iPod Classic 4th Gen SSD Upgrade Adventure

Discussion in 'iPod' started by Slix, Jan 17, 2016.

  1. Slix macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #1
    Hey guys!

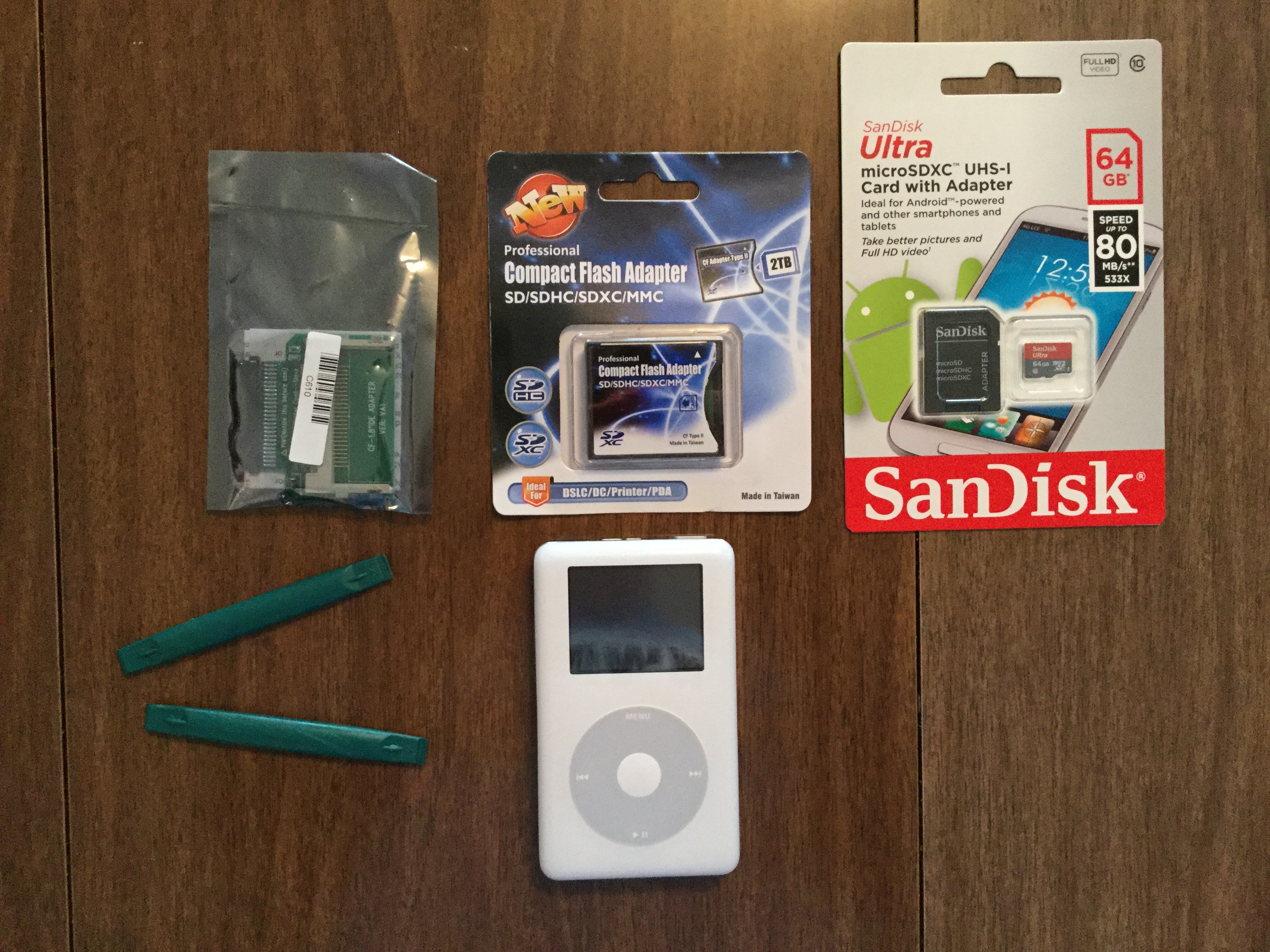

    A few months ago, my previously trusty 4th gen 20 GB iPod photo's (with the color screen) hard drive died on me, so I've been waiting for a good time to buy the necessary equipment to replace the hard drive with a flash card or SSD. Today, I ordered from Amazon, a 1.8" iPod to Compact Flash Adapter, a Compact Flash to SD Card Adapter, and a 64 GB class 10 Micro SD with a Micro-to-SD Adapter!

    When it arrives, I'll be sure to post photos of the upgrade, and I hope all goes well! I'm excited to be able to use that iPod again, because I love the 4th gen iPod's feel and the ability to hold all my music, plus the increased speed (and probably battery life) will be awesome as well!

  2. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #2
    cool, I've never messed with the 4G iPods, wouldn't mind tinkering with one.

  3. joepunk macrumors 68030

    joepunk

    Joined:
    Aug 5, 2004
    Location:
    a profane existence
    #3
    I've been wanting to do this with my 4th gen too. HD died years ago and the battery will need replacing. looking forward to the photos.

  4. Johnny365 macrumors regular

    Johnny365

    Joined:
    Nov 30, 2015
  5. Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #5
    I'm still waiting on the 1.8" to CF adapter... It's estimated to come within the next week sometime. :/

  6. parabola117 macrumors newbie

    parabola117

    Joined:
    Jan 26, 2016
    #6
    Have just done this myself on a faulty hard drive 60GB A1099 iPod 4G.
    Was surprisingly easy to open up.

    I just used an old 2GB Compact Flash card to test it. So happy it fired up perfect straight away!

    Am now about to buy a 128GB Compact Flash card for it and replace the battery.

  7. Slix, Jan 28, 2016
    Last edited: Jan 28, 2016

    Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #7
    After getting the final adapter I ordered yesterday, today I went ahead and tried the upgrade!

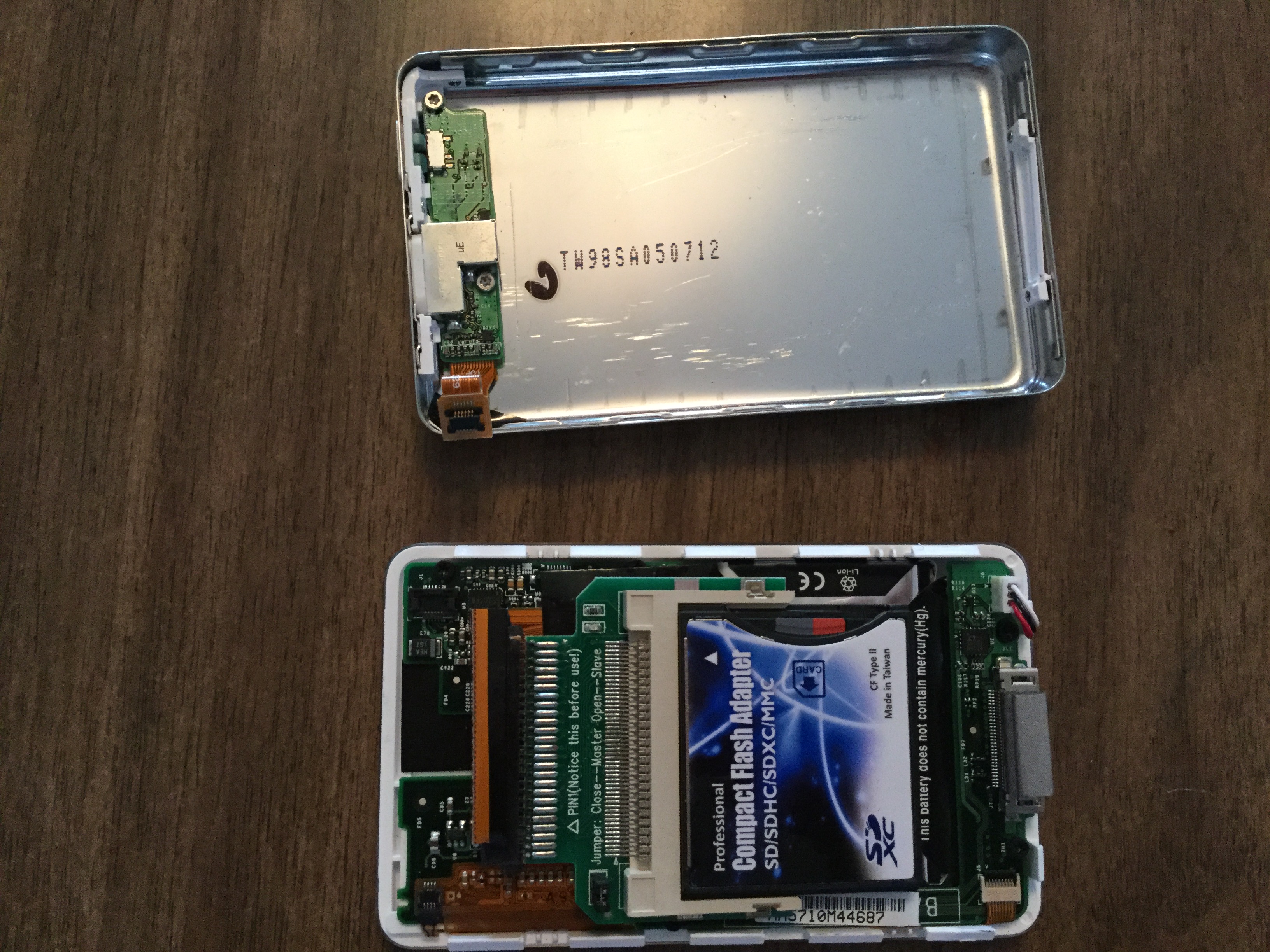

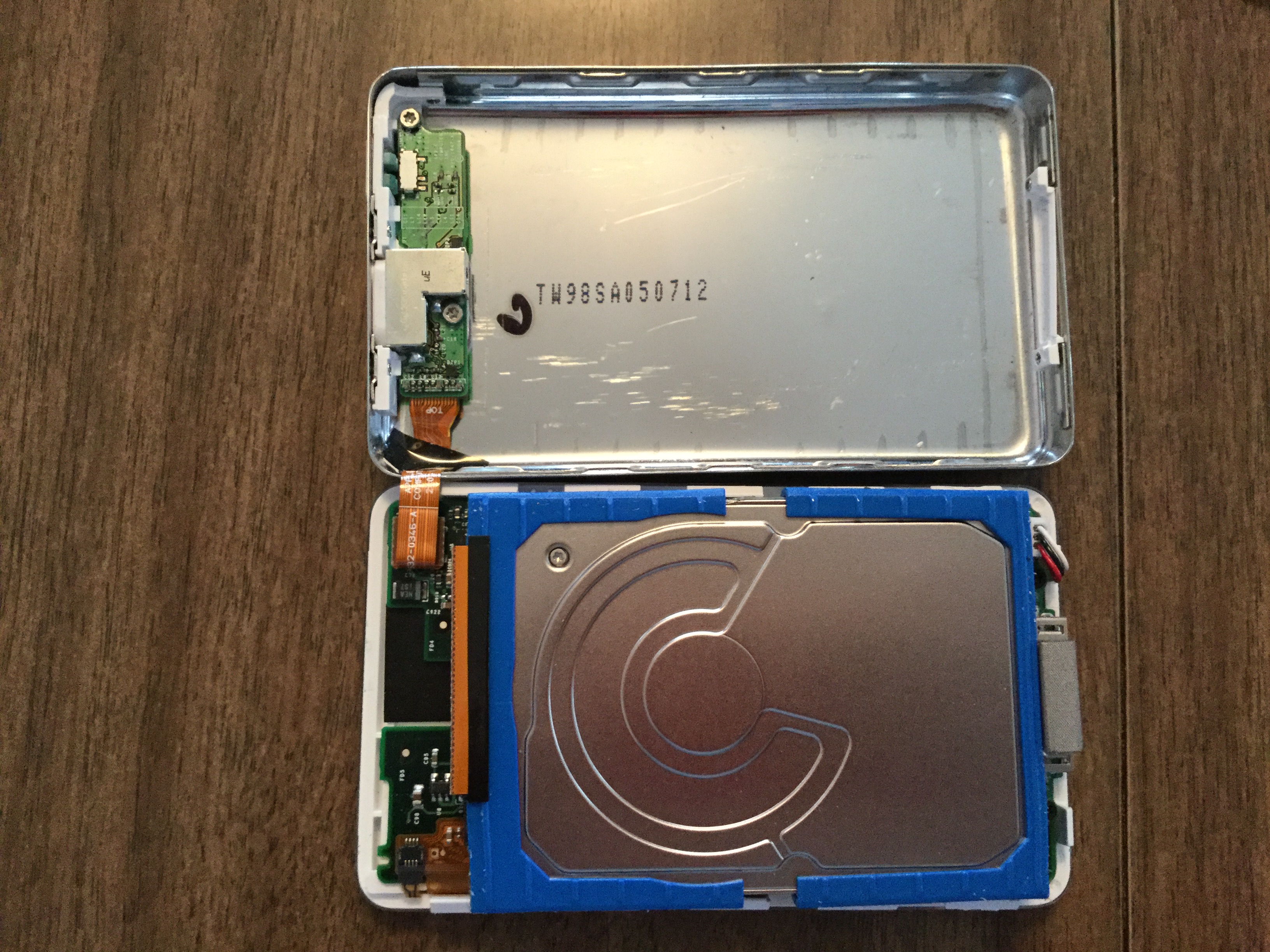

    After some fumbling to get the iPod open, I finally got each of the edges open, and disconnected the back plate and headphone/hold switch connector, and took the hard drive out. The adapters actually were a little more confusing to work with than the iPod itself: The 1.8" to CF adapter wouldn't fit without shaving off a little bit of the plastic piece, but after that, everything connected nicely.

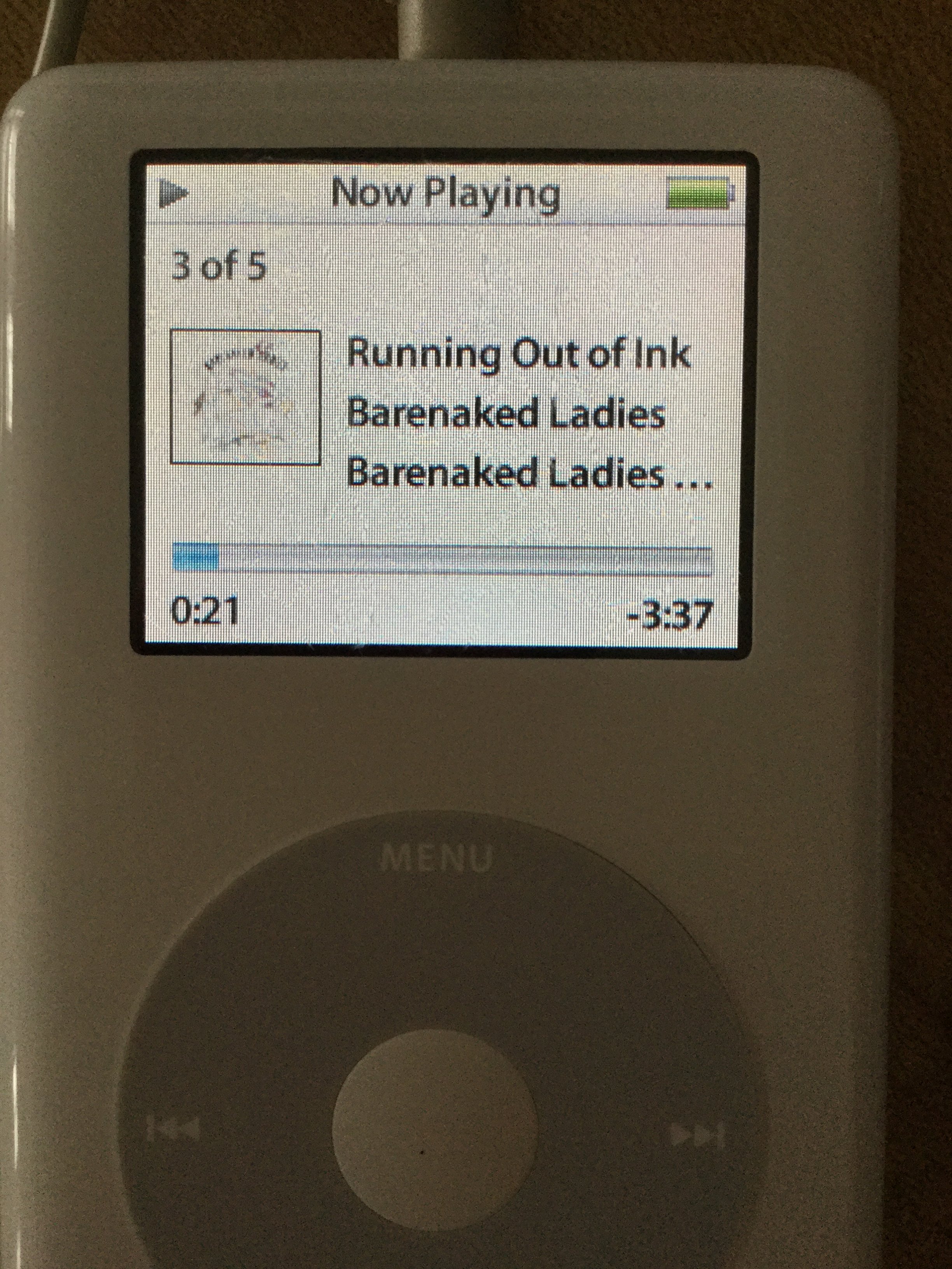

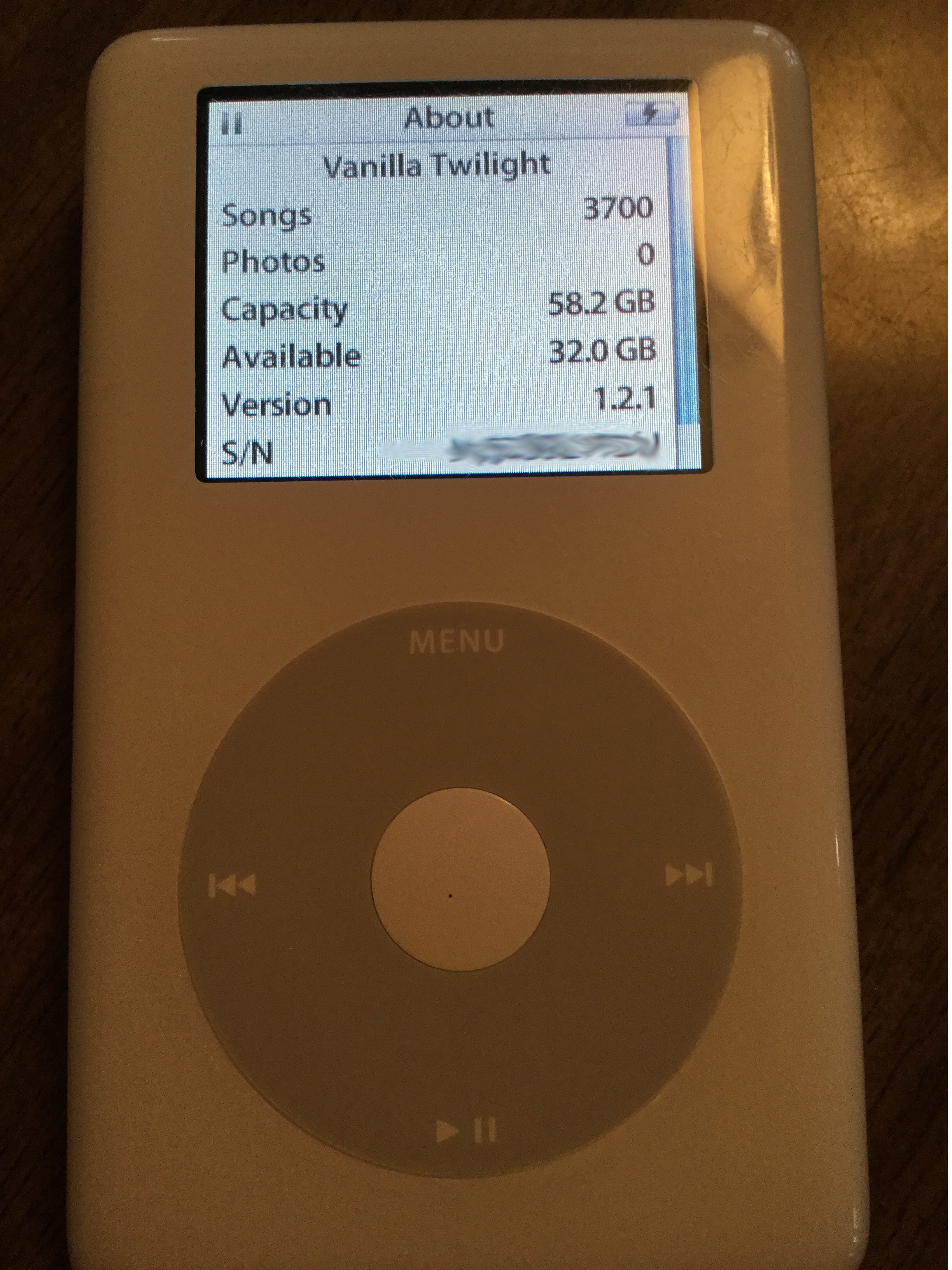

    Before putting the iPod back together, I tried plugging it into my Mac to restore it, and at first iTunes didn't recognize it, but the Finder saw the 64 GB SD card, so I used Disk Utility to erase the SD card and format it as a Mac OS Journaled drive, and then iTunes saw it. I restored it, synced a small test playlist, and after unplugging it from iTunes the iPod had the wall charger icon on the screen, which I'd seen before, when I first got this iPod, so I simply plugged it into an Apple iPod wall charger, and then it worked as promised. I put the case of the iPod all back together, and everything works just great! It's lighter too. ;)

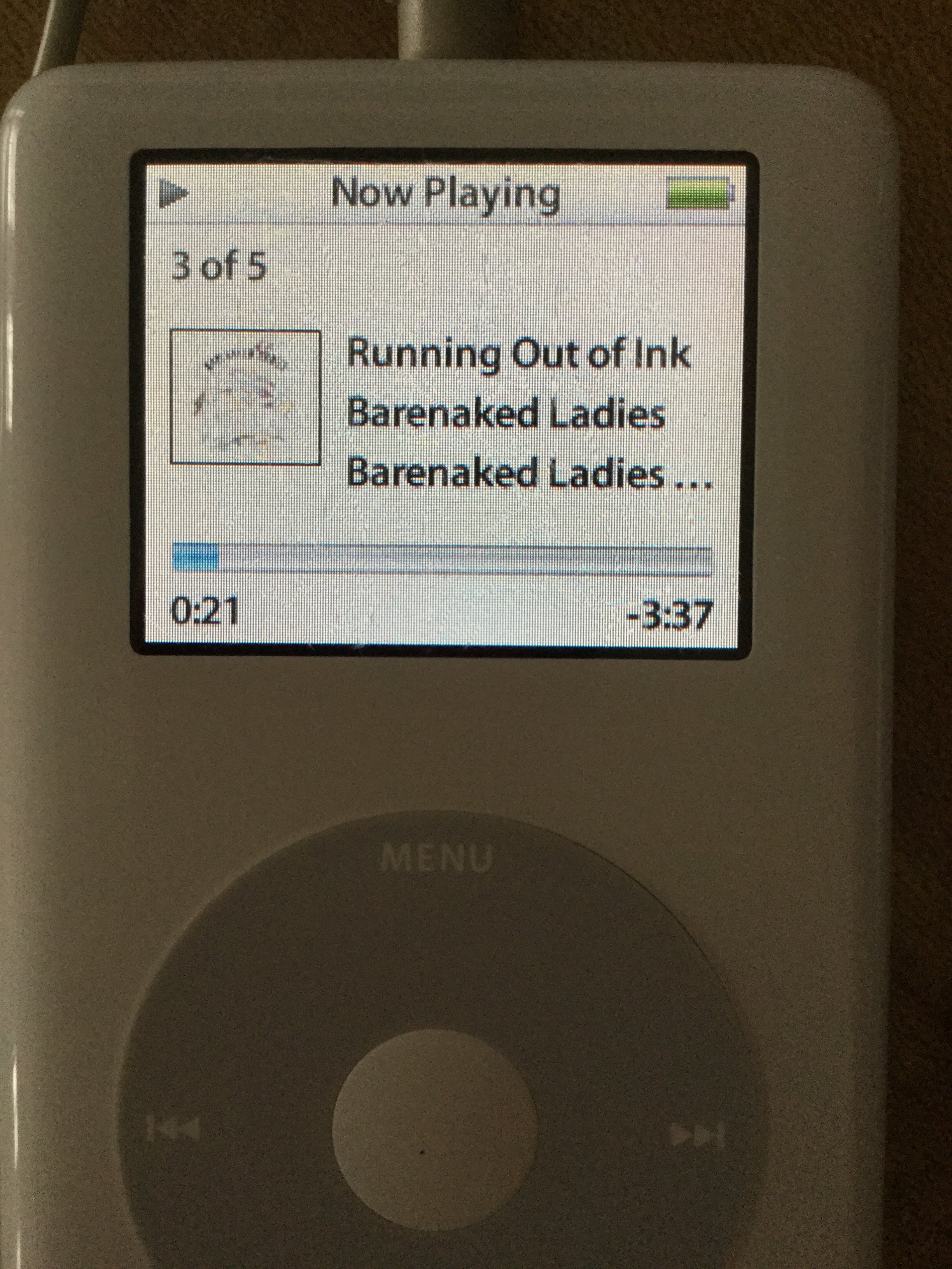

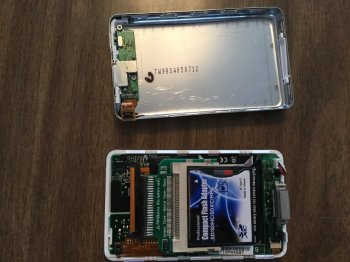

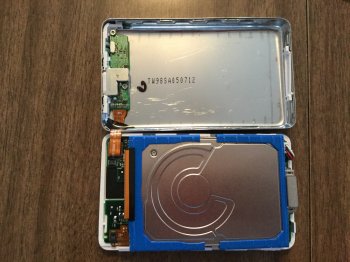

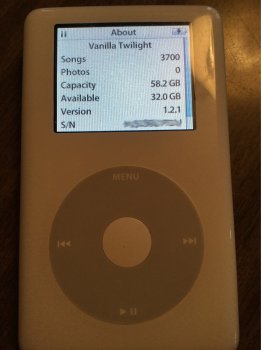

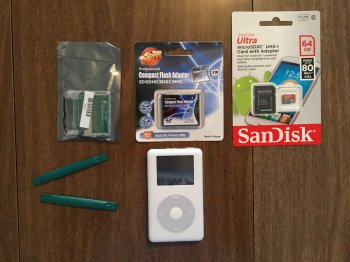

    IMG_1991.JPG IMG_1992.JPG IMG_1993.JPG IMG_1994.JPG IMG_1997_2.jpg

  8. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #8
    Clean mod. I plan on doing the same conversion with a broken iPod I bought.

  9. xoAnna macrumors member

    Joined:
    Jul 2, 2013
    Location:
    Planet Earth…
    #9
    Lovely! Do you think I could do the same with a 3rd Generation Classic ?

  10. Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #10
    I believe so! I just helped my dad take apart my sister's 3rd gen classic to replace her battery. I think the hard drive is around the same size, though I'm not sure if the same connectors I used for the 4th gen would work in the 3rd or not, that's something you'd have to look up to verify. :)

  11. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #11
    I've read that some have done the same for the 3G, so yeah it's the same process and parts.

    What plastic on the adapter did you shave off? Also, did you bend down the jumper pins?

  12. Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #12
    I saw it was done on this guide here (in the comments), so I shaved off a little bit of the piece on this photo that says "cut plastic edge".

    I did not bend down the jumper pins. Should I have?

    [​IMG]

  13. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #13
    No, you only bend it down if it's sticking up to high and presses the screen. That's just what I've read.

  14. Johnny365 macrumors regular

    Johnny365

    Joined:
    Nov 30, 2015
    #14
    Why is the serial number blacked out? This is a 10+ year old device, so I doubt anyone has anything to gain from seeing it LOL

  15. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #15
    probably just a habit of doing it

  16. Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #16
    Yep, just habit. XD

  17. Orizence macrumors 6502

    Joined:
    Nov 10, 2014
    #17
    I did the same thing to my old iPod 4th gen, and also replaced the battery while I was at it. It is now my main portable audio player, and I paid only $80 CAD in total. What an amazing device especially when you consider its over 10 years old now.

  18. fuchsdh macrumors 6502a

    Joined:
    Jun 19, 2014
    #18
    Yep, it's bizarre to think my Classic is now coming up on 8 years old and is actually a better product (lighter, faster, more storage, and more durable) than when I originally bought it. Hoping it'll last as long with the upgrade, and hope y'alls mods do too.

    (At this point I'm half-expecting iTunes to drop support long before they stop functioning.)

  19. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #19
    OP, what did you put on the bottom of the adapter? I've seen some people put a cardboard or a piece of foam.

  20. Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #20
    You mean to hold the adapter in place? I didn't put anything. It seemed to fit just fine without adding anything else in there.

  21. rpetunderclass macrumors regular

    Joined:
    Dec 9, 2014
    #21
    Oh man this is awesome, is the battery life any better? Assuming it is since one less part is moving.

  22. Orizence macrumors 6502

    Joined:
    Nov 10, 2014
    #22
    The battery on mine seems to last easily a few days (3-4) of listening to music while walking or on the city bus, keep in mind I can spend over 2 hours on a bus a day

  23. rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #23
    No I mean to isolate the bottom of the adapter making contact with the iPod's components and possibly shorting something out.

  24. Slix thread starter macrumors 6502a

    Slix

    Joined:
    Mar 24, 2010
    #24
    That I did not do. That's probably something I should do, isn't it? :p

    So far at least, the battery does seem to be better! The battery was pretty good to begin with, but I've noticed an increase, for sure. :)

  25. rgarjr, Feb 12, 2016
    Last edited: Feb 14, 2016

    rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #25

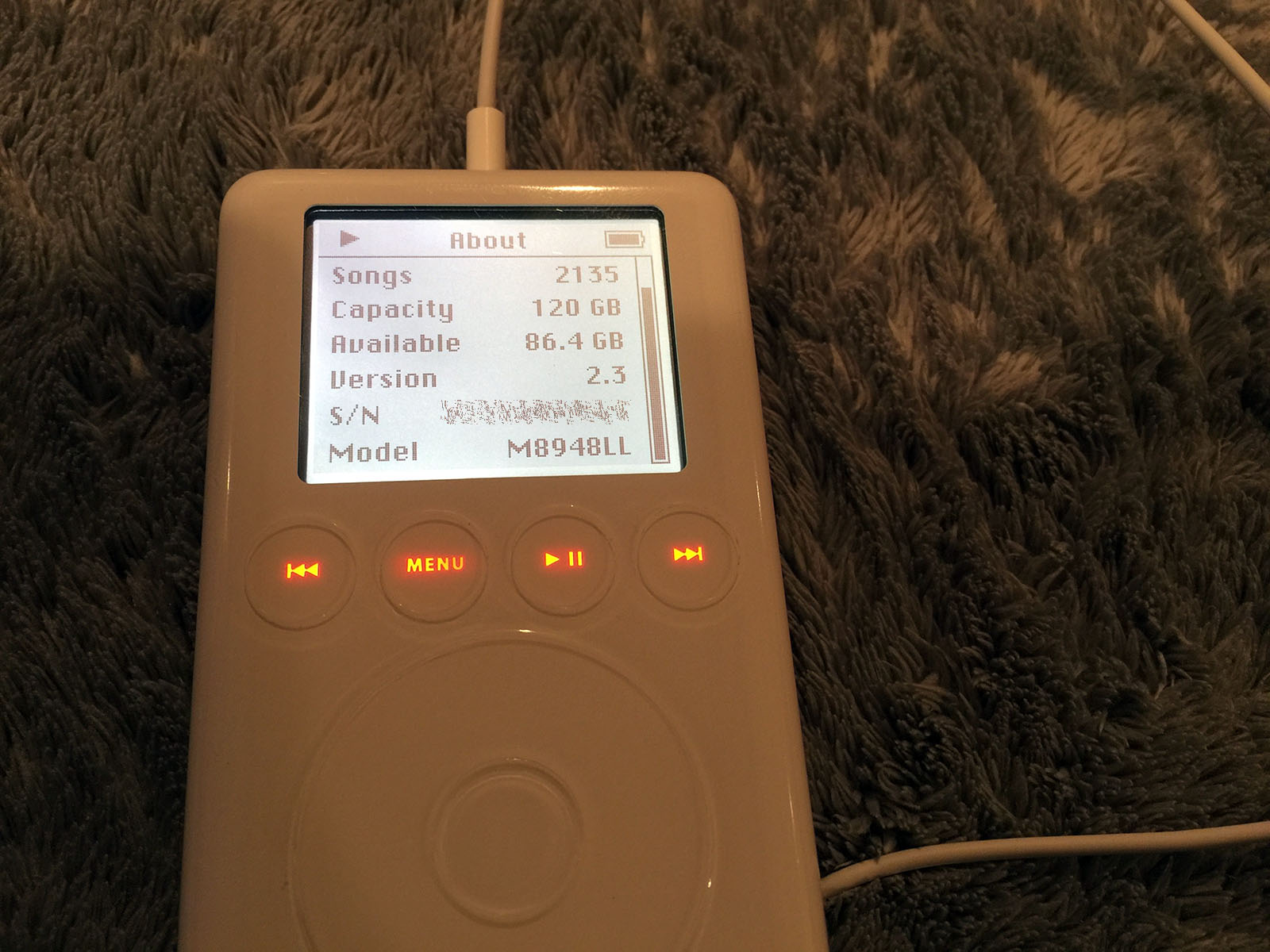

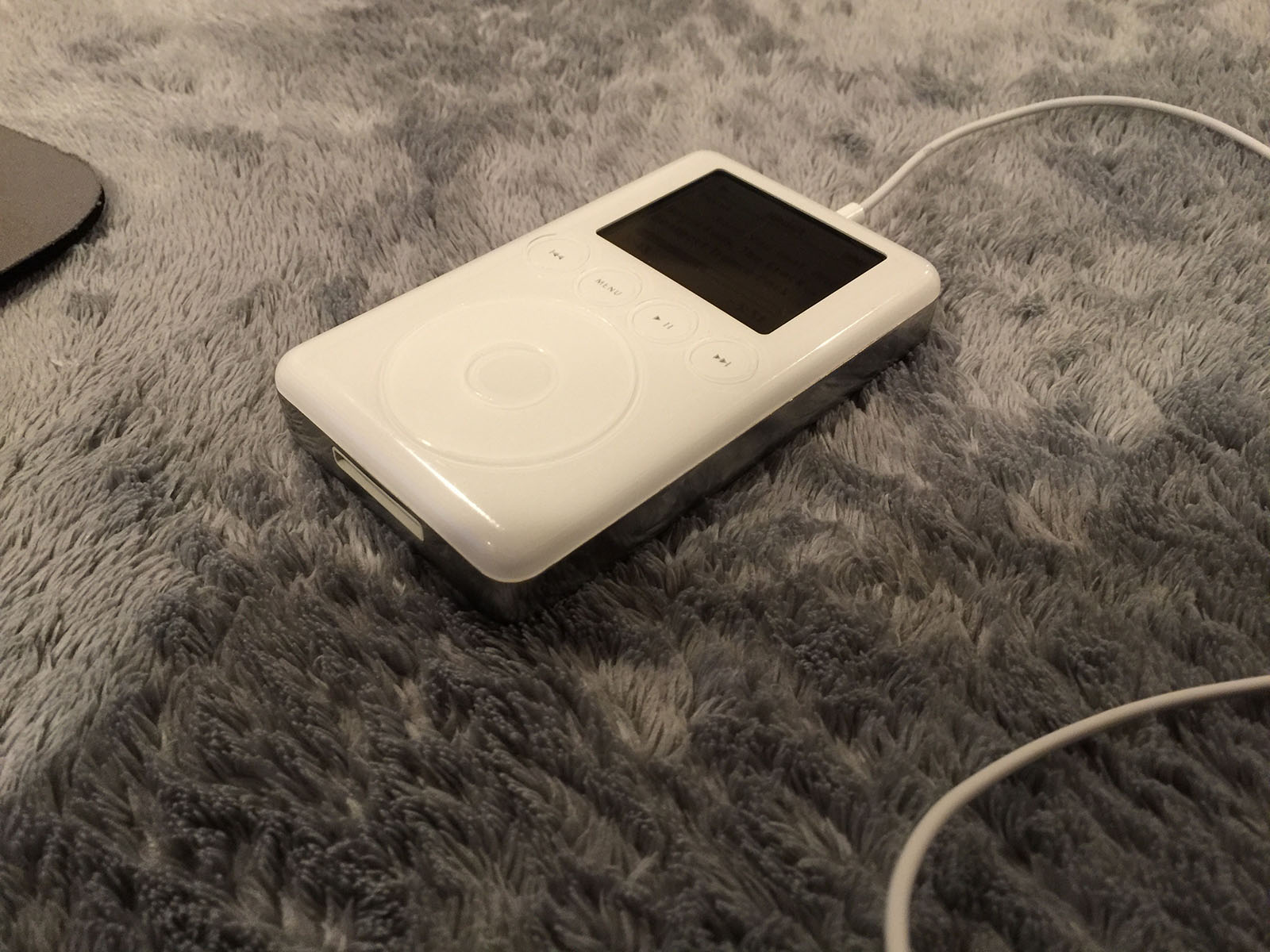

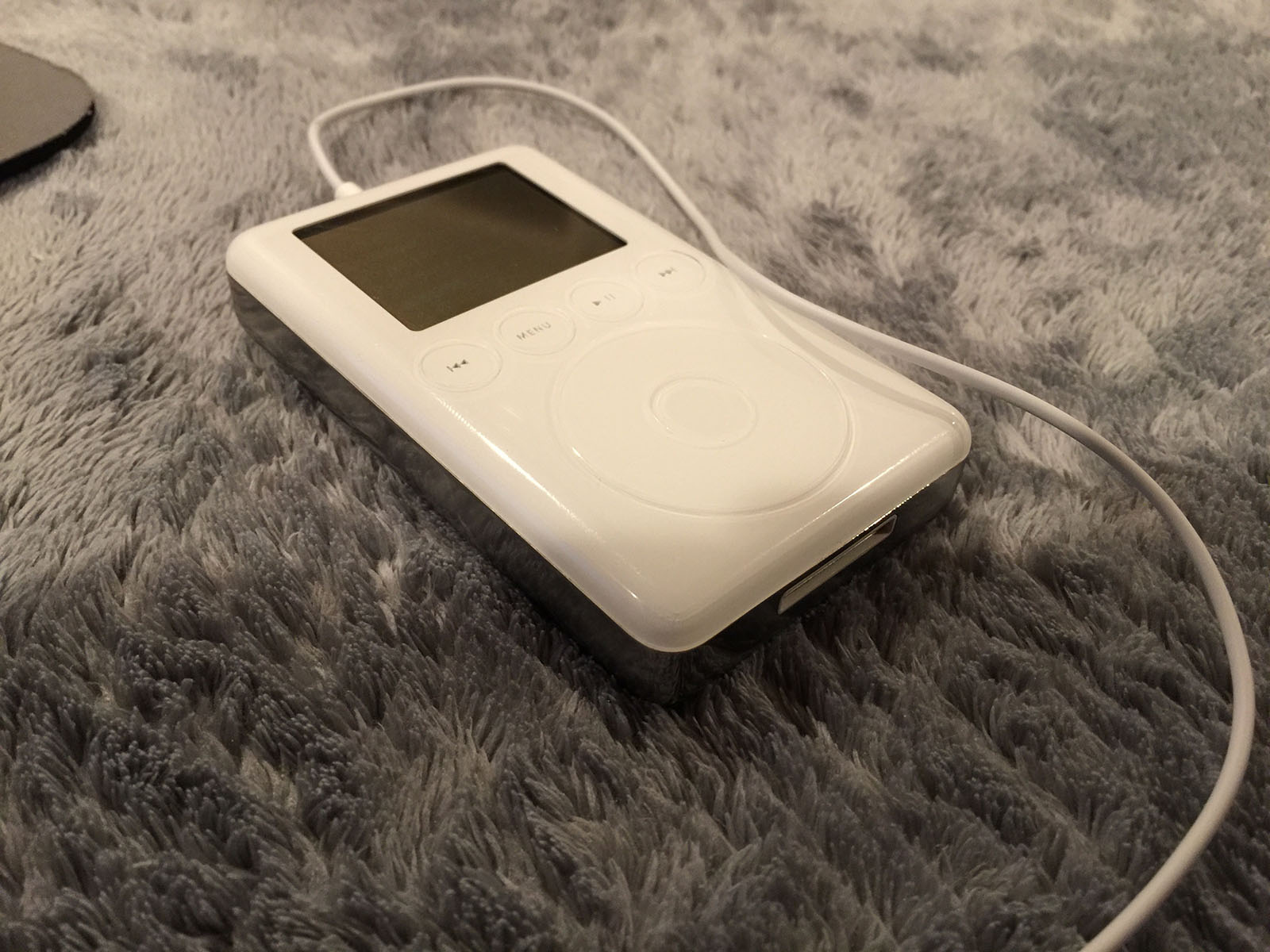

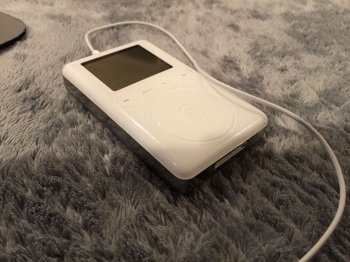

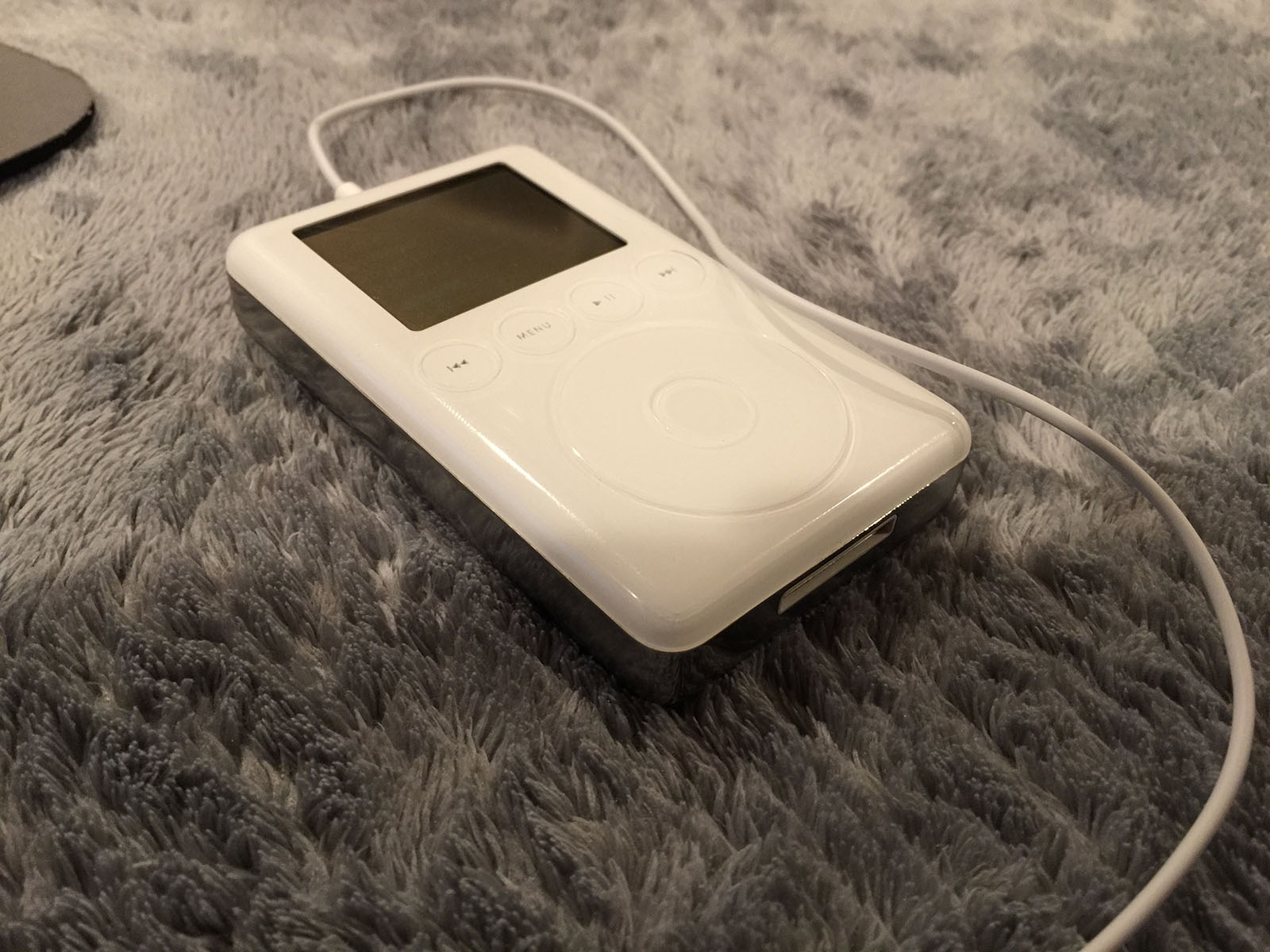

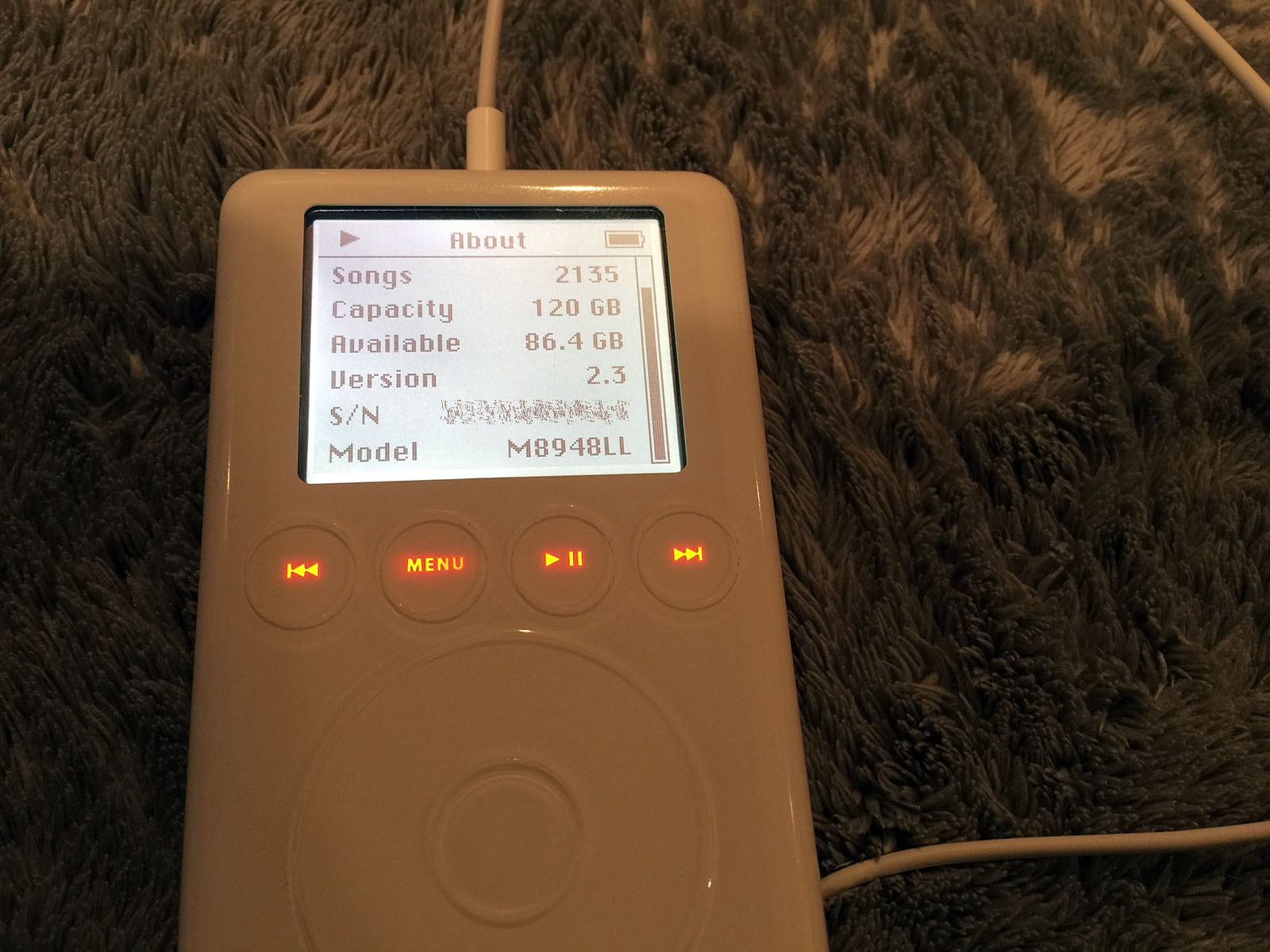

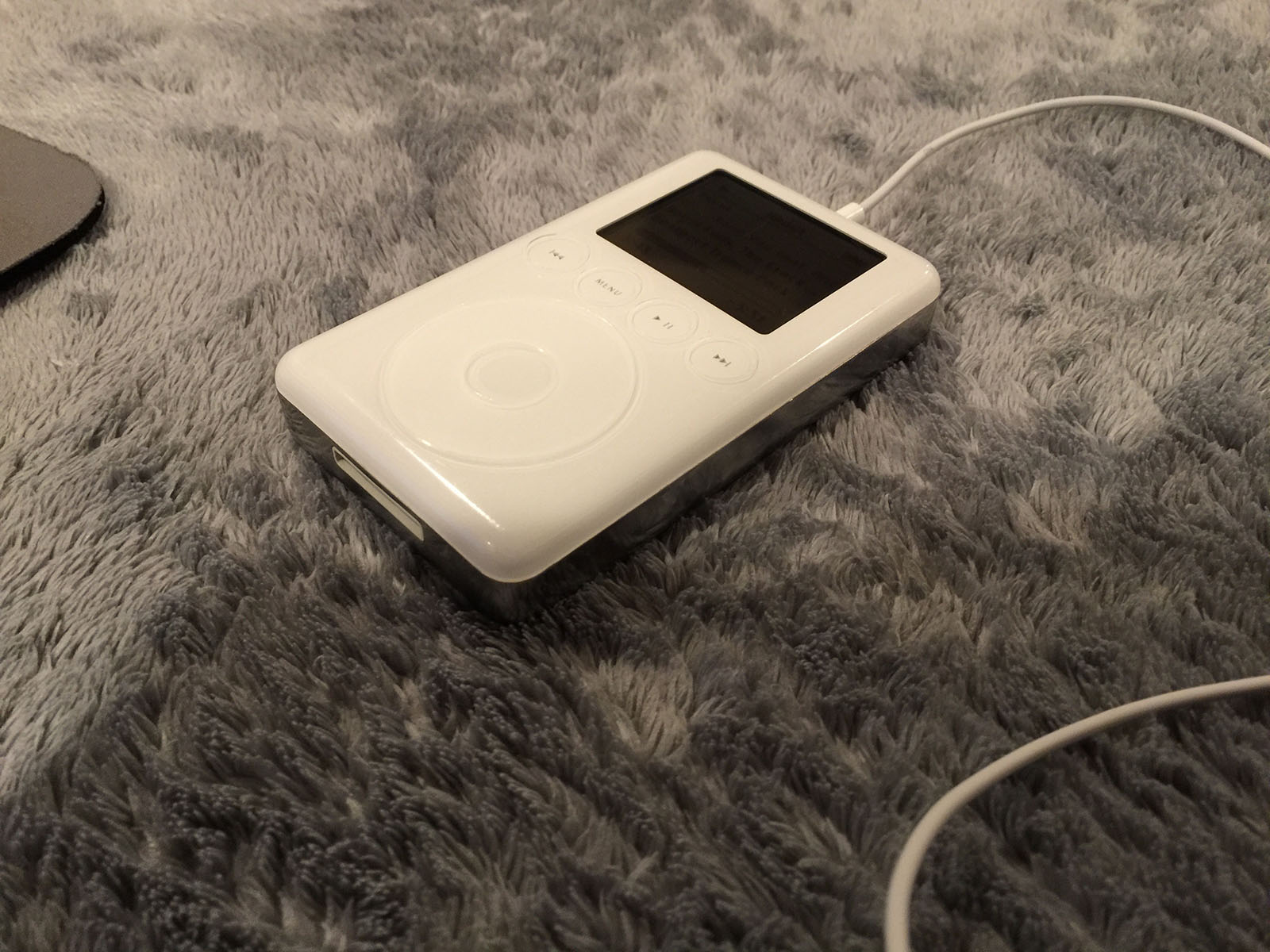

    Bought a iPod 3rd Generation 30GB with a broken HD and modded to 128GB using the same Compact Flash to 50-pin adapter. Also put a new battery in since the original one was from 2003.


    Attached Files:
