iPod Touch Home Button (Messed Up BAD)

Discussion in 'iPod touch' started by DIYEpicFail, Aug 11, 2011.

  1. DIYEpicFail macrumors newbie

    Joined:
    Aug 11, 2011
    Location:
    Austin, TX
    #1
    Hi everyone!

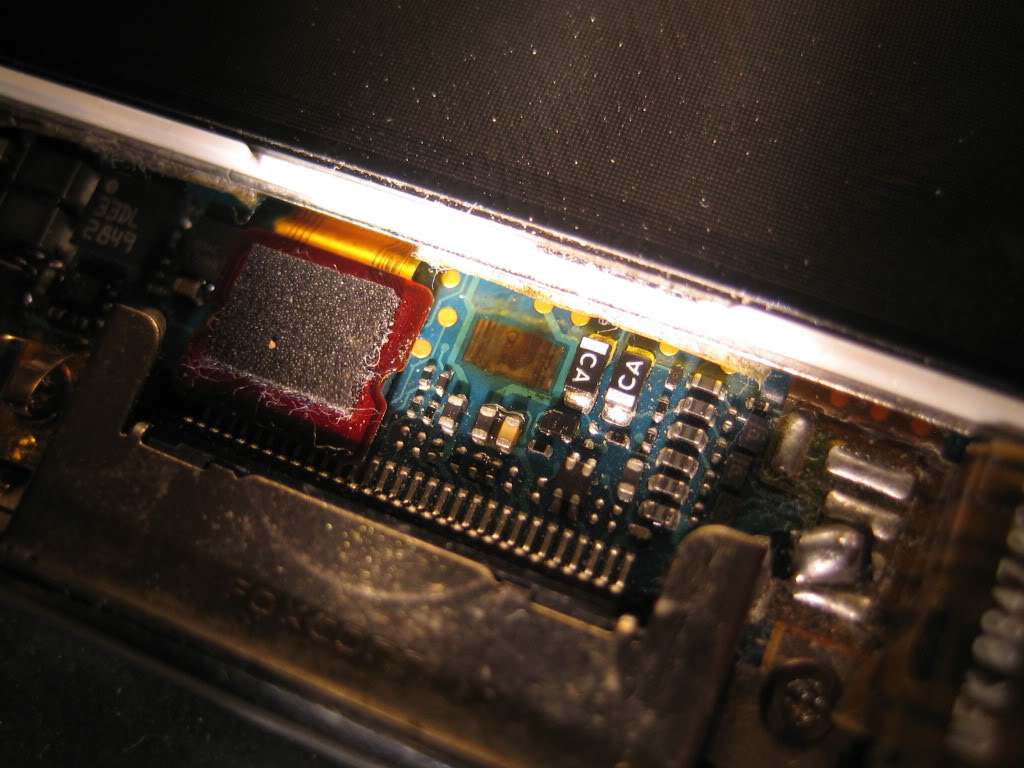

    I was given an iPod Touch 2nd Generation to fix and in the process I broke off the little "Z" shaped spring that makes the home button work, that wouldn't be a problem but I also broke off the solder pad underneath it. (hence my user name) I can't find any trace around it to solder to but I know there has to be one...does anyone know where it is or what an alternate solder point is? I already know about the Activator/SBSettings method of simulating a home button but I'd rather not go that route...

    [​IMG]

    I scraped around the edges of the solder pad a little but I can't find anything. Also, I can't find anything on the actual solder pad to show that it was connected. The Any input is greatly appreciated!

  2. Skwink macrumors member

    Joined:
    Dec 10, 2010
    #2
    That's why you send them to Apple to be fixed.

  3. jonrando macrumors 6502a

    Joined:
    Jun 22, 2011
    #3
    *hopes this isn't the iPod touch of someone you don't know or that person paid you to do this*

  4. DIYEpicFail thread starter macrumors newbie

    Joined:
    Aug 11, 2011
    Location:
    Austin, TX
    #4
    Haha, I know the guy, its been sitting on a shelf broken for two years.

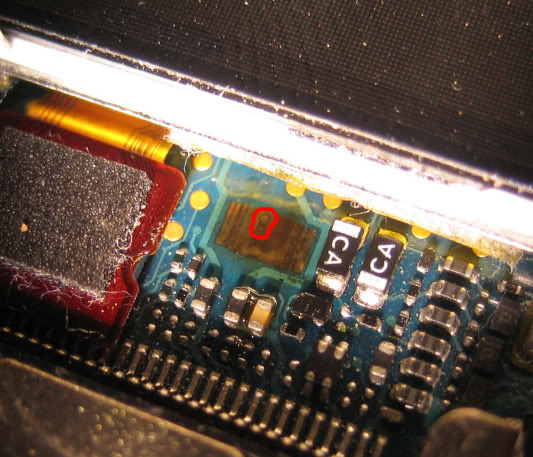

    I was able to get it working, the little circle (highlighted) is the contact and I had to scrape it a little bit to expose enough metal to solder onto. The iPod works again!

    [​IMG]

  5. Skwink macrumors member

    Joined:
    Dec 10, 2010
  6. Mars478 macrumors 6502a

    Mars478

    Joined:
    Mar 6, 2008
    Location:
    NYC, NY
    #6
    Congrats! As a fellow iPod Touch repair man (and iPhone and other apple products) I feel your pain. I personally HATE fixing iPod Touches. They are terrible. The 2G's/3G's use a terrible snap system which is a b*tch to get off. The 4G is a little better with the adhesive but still not very pleasant.

  7. Stavel Hilston macrumors newbie

    Joined:
    Aug 16, 2011
    #7
