Irregular Kernel Panic related to graphics (iMac late 2009)

Discussion in 'iMac' started by memming, Aug 24, 2011.

  1. memming macrumors newbie

    Joined:
    Aug 24, 2011
    #1
    Hi all,

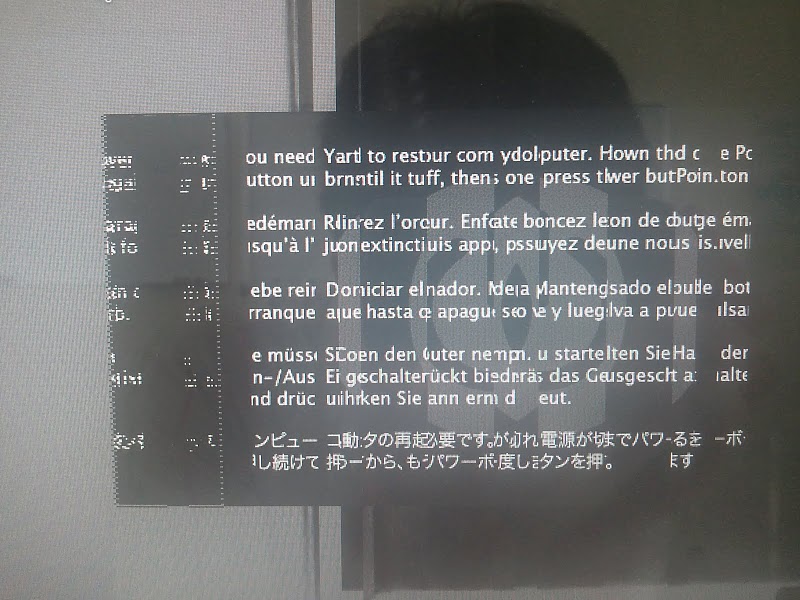

    I was wondering if someone in this forum can help me with the kernel panic issue I have. It randomly happens, and it happens with a distorted GUI. The screen would have a few random pixels with random colors, or a dialog box will be cut into rectangles and scatter on the screen, or the image of an application would get stuck to the menu bar, and it dies. I can still access the machine through ssh, but the GUI doesn't come back.

    I reinstalled snow leopard with all the updates to date, but it is still happening. I also tried PRAM reset, and RAM test. So far I cannot detect the problem, nor reliably reproduce the problem.

    I am suspecting the graphics related hardware or software. Any help would be greatly appreciated.

    panic(cpu 1 caller 0x2a0663): "Spinlock acquisition timed out:
    lock=0x869f20, lock owner thread=0x0, current_thread: 0x96bbb7c, lock
    owner active on CPU
    0xffffffff"@/SourceCache/xnu/xnu-1504.15.3/osfmk/i386/locks_i386.c:374
    Backtrace (CPU 1), Frame : Return Address (4 potential args on stack)
    0x577f8df8 : 0x21b837 (0x5dd7fc 0x577f8e2c 0x223ce1 0x0)
    0x577f8e48 : 0x2a0663 (0x59ccb0 0x869f20 0x0 0x96bbb7c)
    0x577f8e88 : 0x23187b (0x869f20 0x0 0x0 0x921c948b)
    0x577f8ed8 : 0x298e82 (0x577d6050 0xa93808a2 0x92d9 0x6)
    0x577f8f28 : 0x2aa26c (0x0 0x29643e 0x0 0x5d983c40)
    0x577f8f48 : 0x2b32f2 (0x5dabb4f0 0x0 0x577f8f78 0x2aa21d)
    0x577f8f78 : 0x2ab423 (0xde 0x5dabb4f0 0x3674f 0x1)
    0x577f8fd8 : 0x2a1c2e (0x5dabb4f0 0x0 0x0 0x0)
    0x5dabb608 : 0x17592d8 (0x9a9b004 0x9556c04 0xa 0x9519c04)
    0x5dabb798 : 0xaf01ee (0x9a9b004 0x9556c04 0xaec4d04 0x0)
    0x5dabb828 : 0xae008f (0x9a9b004 0x9aaabbc 0xc1d00051 0xa)
    0x5dabb888 : 0xae0653 (0x9a9b004 0x9b25004 0x9aaabbc 0xc1d00051)
    0x5dabb8e8 : 0x9eb729 (0x9a9b004 0x9aaabbc 0xc1d00051 0xbee90004)
    0x5dabb928 : 0x9a86ad (0x9a9b004 0xc1d00051 0xbee90004 0xbee9502d)
    0x5dabb968 : 0x9b697f (0x5dabb9f8 0x5dabba6c 0x9498194 0x5)
    0x5dabb9b8 : 0x9b6af4 (0x5dabba18 0x502d 0x5dabba18 0x9ccd41)
    0x5dabba48 : 0x9b6c34 (0x502d 0x0 0x0 0x0)
    0x5dabbad8 : 0x9da60b (0x5dabbcb8 0x9 0x0 0x0)
    0x5dabbc88 : 0x9dc53e (0x0 0x600d600d 0x702b 0x5dabbcb8)
    0x5dabbd58 : 0xc8aab1 (0xc1d00051 0xbee90004 0xbee9502d 0x502d)
    0x5dabbd98 : 0xcdc246 (0x4870c000 0x0 0xbee9502d 0x5dabbdc8)
    0x5dabbde8 : 0xca650a (0x9b6fe00 0x9519800 0xbab80007 0x0)
    0x5dabbe08 : 0xc98037 (0x9519800 0x9519800 0xbeef0202 0x36dd3a)
    0x5dabbe28 : 0xc9837e (0x9519800 0x0 0x5dabbe58 0xc85658)
    0x5dabbe58 : 0xc839a2 (0x9519800 0x84baa0 0x5dabbee8 0x95cb940)
    0x5dabbe78 : 0xcb80fa (0x4870c000 0x0 0x5dabbea8 0x504e08)
    0x5dabbea8 : 0xcb8485 (0x95cb940 0xd091a01d 0x92d8 0x9648980)
    0x5dabbed8 : 0x553ec7 (0x95cb940 0x95cb7c0 0x1 0x2275c6)
    0x5dabbf28 : 0x552ea6 (0x95cb7c0 0x0 0x0 0x0)
    0x5dabbf88 : 0x552eea (0x9648980 0x863ea0 0x0 0xffffffff)
    0x5dabbfc8 : 0x2a179c (0x9648980 0x0 0x10 0x9464444)
    Kernel Extensions in backtrace (with dependencies):
    com.apple.nvidia.nv50hal(6.3.6)@0x1632000->0x1a46fff
    dependency: com.apple.NVDAResman(6.3.6)@0x96e000
    com.apple.GeForce(6.3.6)@0xc5c000->0xd12fff
    dependency: com.apple.NVDAResman(6.3.6)@0x96e000
    dependency: com.apple.iokit.IONDRVSupport(2.2)@0x961000
    dependency: com.apple.iokit.IOPCIFamily(2.6.5)@0x928000
    dependency: com.apple.iokit.IOGraphicsFamily(2.2)@0x93f000
    com.apple.NVDAResman(6.3.6)@0x96e000->0xc5bfff
    dependency: com.apple.iokit.IOPCIFamily(2.6.5)@0x928000
    dependency: com.apple.iokit.IONDRVSupport(2.2)@0x961000
    dependency: com.apple.iokit.IOGraphicsFamily(2.2)@0x93f000

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    10K549

    Kernel version:
    Darwin Kernel Version 10.8.0: Tue Jun 7 16:33:36 PDT 2011;
    root:xnu-1504.15.3~1/RELEASE_I386
    System model name: iMac9,1 (Mac-F2218FA9)

    System uptime in nanoseconds: 161463942456225
    unloaded kexts:
    com.apple.driver.AppleUSBCDC 4.0.5 (addr 0x5715c000, size 0x12288) -
    last unloaded 102025433564029
    loaded kexts:
    com.google.filesystems.fusefs 2.0.3 - last loaded 96600583557446
    com.apple.filesystems.afpfs 9.7.1
    com.apple.nke.asp_tcp 5.0
    com.apple.driver.AppleHWSensor 1.9.3d0
    com.apple.driver.AGPM 100.12.31
    com.apple.driver.AppleHDA 2.0.5f14
    com.apple.driver.AppleMikeyHIDDriver 1.2.0
    com.apple.driver.AudioAUUC 1.57
    com.apple.driver.AppleMikeyDriver 2.0.5f14
    com.apple.driver.AppleUpstreamUserClient 3.5.7
    com.apple.driver.AppleMCCSControl 1.0.20
    com.apple.filesystems.autofs 2.1.0
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.iokit.CHUDUtils 364
    com.apple.iokit.CHUDProf 366
    com.apple.driver.AudioIPCDriver 1.1.6
    com.apple.driver.AppleLPC 1.5.1
    com.apple.driver.AppleIntelPenrynProfile 17.1
    com.apple.driver.AppleBacklight 170.0.46
    com.apple.driver.ACPI_SMC_PlatformPlugin 4.7.0a1
    com.apple.GeForce 6.3.6
    com.apple.driver.AppleIRController 303.8
    com.apple.iokit.SCSITaskUserClient 2.6.8
    com.apple.BootCache 31.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.driver.AirPortBrcm43224 428.42.4
    com.apple.driver.AppleFWOHCI 4.7.3
    com.apple.iokit.IOAHCIBlockStorage 1.6.4
    com.apple.driver.AppleUSBHub 4.2.4
    com.apple.driver.AppleAHCIPort 2.1.7
    com.apple.nvenet 2.0.17
    com.apple.driver.AppleUSBEHCI 4.2.4
    com.apple.driver.AppleUSBOHCI 4.2.0
    com.apple.driver.AppleHPET 1.5
    com.apple.driver.AppleEFINVRAM 1.4.0
    com.apple.driver.AppleRTC 1.3.1
    com.apple.driver.AppleACPIButtons 1.3.6
    com.apple.driver.AppleSMBIOS 1.7
    com.apple.driver.AppleACPIEC 1.3.6
    com.apple.driver.AppleAPIC 1.4
    com.apple.driver.AppleIntelCPUPowerManagementClient 142.6.0
    com.apple.security.sandbox 1
    com.apple.security.quarantine 0
    com.apple.nke.applicationfirewall 2.1.12
    com.apple.driver.AppleIntelCPUPowerManagement 142.6.0
    com.apple.driver.DspFuncLib 2.0.5f14
    com.apple.driver.AppleProfileReadCounterAction 17
    com.apple.driver.AppleProfileTimestampAction 10
    com.apple.driver.AppleProfileThreadInfoAction 14
    com.apple.driver.AppleProfileRegisterStateAction 10
    com.apple.driver.AppleProfileKEventAction 10
    com.apple.driver.AppleProfileCallstackAction 20
    com.apple.iokit.IOFireWireIP 2.0.3
    com.apple.iokit.IOSurface 74.2
    com.apple.iokit.IOBluetoothSerialManager 2.4.5f3
    com.apple.iokit.IOSerialFamily 10.0.3
    com.apple.iokit.CHUDKernLib 365
    com.apple.iokit.IOAudioFamily 1.8.3fc2
    com.apple.kext.OSvKernDSPLib 1.3
    com.apple.driver.AppleHDAController 2.0.5f14
    com.apple.iokit.IOHDAFamily 2.0.5f14
    com.apple.driver.AppleSMBusController 1.0.10d0
    com.apple.nvidia.nv50hal 6.3.6
    com.apple.driver.AppleBacklightExpert 1.0.1
    com.apple.iokit.AppleProfileFamily 41.4
    com.apple.driver.AppleSMC 3.1.0d5
    com.apple.driver.IOPlatformPluginFamily 4.7.0a1
    com.apple.NVDAResman 6.3.6
    com.apple.iokit.IONDRVSupport 2.2
    com.apple.iokit.IOGraphicsFamily 2.2
    com.apple.driver.AppleSMBusPCI 1.0.10d0
    com.apple.driver.AppleUSBHIDMouse 162
    com.apple.driver.AppleHIDMouse 162
    com.apple.driver.BroadcomUSBBluetoothHCIController 2.4.5f3
    com.apple.driver.AppleUSBBluetoothHCIController 2.4.5f3
    com.apple.iokit.IOBluetoothFamily 2.4.5f3
    com.apple.driver.AppleUSBHIDKeyboard 141.5
    com.apple.driver.AppleHIDKeyboard 141.5
    com.apple.iokit.IOUSBHIDDriver 4.2.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 2.6.8
    com.apple.iokit.IOBDStorageFamily 1.6
    com.apple.iokit.IODVDStorageFamily 1.6
    com.apple.iokit.IOCDStorageFamily 1.6.1
    com.apple.driver.AppleUSBMergeNub 4.2.4
    com.apple.driver.AppleUSBComposite 3.9.0
    com.apple.driver.XsanFilter 402.1
    com.apple.iokit.IO80211Family 320.1
    com.apple.iokit.IOFireWireFamily 4.2.6
    com.apple.iokit.IOAHCISerialATAPI 1.2.6
    com.apple.iokit.IOSCSIArchitectureModelFamily 2.6.8
    com.apple.iokit.IOUSBUserClient 4.2.4
    com.apple.iokit.IOAHCIFamily 2.0.6
    com.apple.iokit.IONetworkingFamily 1.10
    com.apple.iokit.IOUSBFamily 4.2.4
    com.apple.driver.NVSMU 2.2.7
    com.apple.driver.AppleEFIRuntime 1.4.0
    com.apple.iokit.IOHIDFamily 1.6.6
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 6
    com.apple.driver.DiskImages 289.1
    com.apple.iokit.IOStorageFamily 1.6.3
    com.apple.driver.AppleACPIPlatform 1.3.6
    com.apple.iokit.IOPCIFamily 2.6.5
    com.apple.iokit.IOACPIFamily 1.3.0
    Model: iMac9,1, BootROM IM91.008D.B08, 2 processors, Intel Core 2 Duo,
    3.06 GHz, 4 GB, SMC 1.45f0
    Graphics: NVIDIA GeForce GT 130, NVIDIA GeForce GT 130, PCIe, 512 MB
    Memory Module: global_name
    AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E),
    Broadcom BCM43xx 1.0 (5.10.131.42.4)


    Attached Files:

  2. cocky jeremy macrumors 68040

    cocky jeremy

    Joined:
    Jul 12, 2008
    Location:
    Columbus, OH
    #2
    I'm not seeing the same thing i see normally with the "Lion bug" a lot of us are getting, so i would guess it's hardware related. Have you run a hardware test?

  3. memming thread starter macrumors newbie

    Joined:
    Aug 24, 2011
    #3
    Solved after months

    Finally this issue got resolved. We had to replace the logic board twice to get it right. Now it doesn't crash any more. I thought I could trust apple hardware, but apparently not.

  4. cocky jeremy macrumors 68040

    cocky jeremy

    Joined:
    Jul 12, 2008
    Location:
    Columbus, OH
    #4
    Any hardware can go bad. It happens. I was having the same issues as you. Went to get the hardware tested, reinstalled Lion, tried removing RAM.. basically everything. It ended up being that the back of my iMac had dust in it and didn't allow air to blow out to cool well enough, so it would overheat and freeze. Took 5 seconds to spray dust the back, ran smcFanControl and have had no problems since. Crazy how something that gets to you for months can be something so simple. I was about 90% sure my issue was logic board/graphics card.
