Is it even possible to connect two 27inch ACD's to a GTX 680 card?

Discussion in 'Mac Pro' started by chrono1081, Sep 8, 2013.

  1. chrono1081 macrumors 604

    chrono1081

    Joined:
    Jan 26, 2008
    Location:
    Isla Nublar
    #1
    Hi guys,

    (Yes I'm still fussing about what vid card to get) but something I didn't count on...

    I can't find a solution to connect two Apple Cinema Displays (mini display port only) to the nVidia GTX680.

    The 680 has one displayport and comes with an adapter but I can't find any adapters for either mini displayport to HDMI or mini displayport to dvi.

    Is it not possible to connect two ACD's to this card?

  2. costabunny macrumors 68020

    costabunny

    Joined:
    May 15, 2008
    Location:
    Weymouth, UK
  3. N19h7m4r3 macrumors 65816

    N19h7m4r3

    Joined:
    Dec 15, 2012
    #3
    Should be easily done. Even more so if you can guy a GTX 680 with two display ports. If not, there are adapters like costabunny mentioned.

  4. simsaladimbamba

    Joined:
    Nov 28, 2010
    Location:
    located
    #4
    Those adapters mentioned are for going from Mini DisplayPort to DVI, not the other way around.

    Atlona makes or made some DVI to Mini DisplayPort adapters, as does Geffen (eBay link from costabunny).

  5. rabidz7 macrumors 65816

    rabidz7

    Joined:
    Jun 24, 2012
    Location:
    Ohio
  6. chrono1081 thread starter macrumors 604

    chrono1081

    Joined:
    Jan 26, 2008
    Location:
    Isla Nublar
    #6
    Thank you all for the suggestions but will these adapters work though? Be ebay one is the closest that would work but I'd have to use a coupler or something to connect it with the monitor. I read about other adapters like the eBay one that are only "one way" and only working from a monitor to a laptop with a mini-displayport.

    The cable on the apple cinema display isn't interchangeable, its the three headed one that has the male mini-displayport end, the usb, and the laptop charger (both of my monitors are like that).

    I'm basically going from this:

    [​IMG]

    To this:
    [​IMG]

    With the first monitor I can just use the enclosed display port to mini-display port but its the second one I'm not sure on.

  7. simsaladimbamba

    Joined:
    Nov 28, 2010
    Location:
    located
    #7

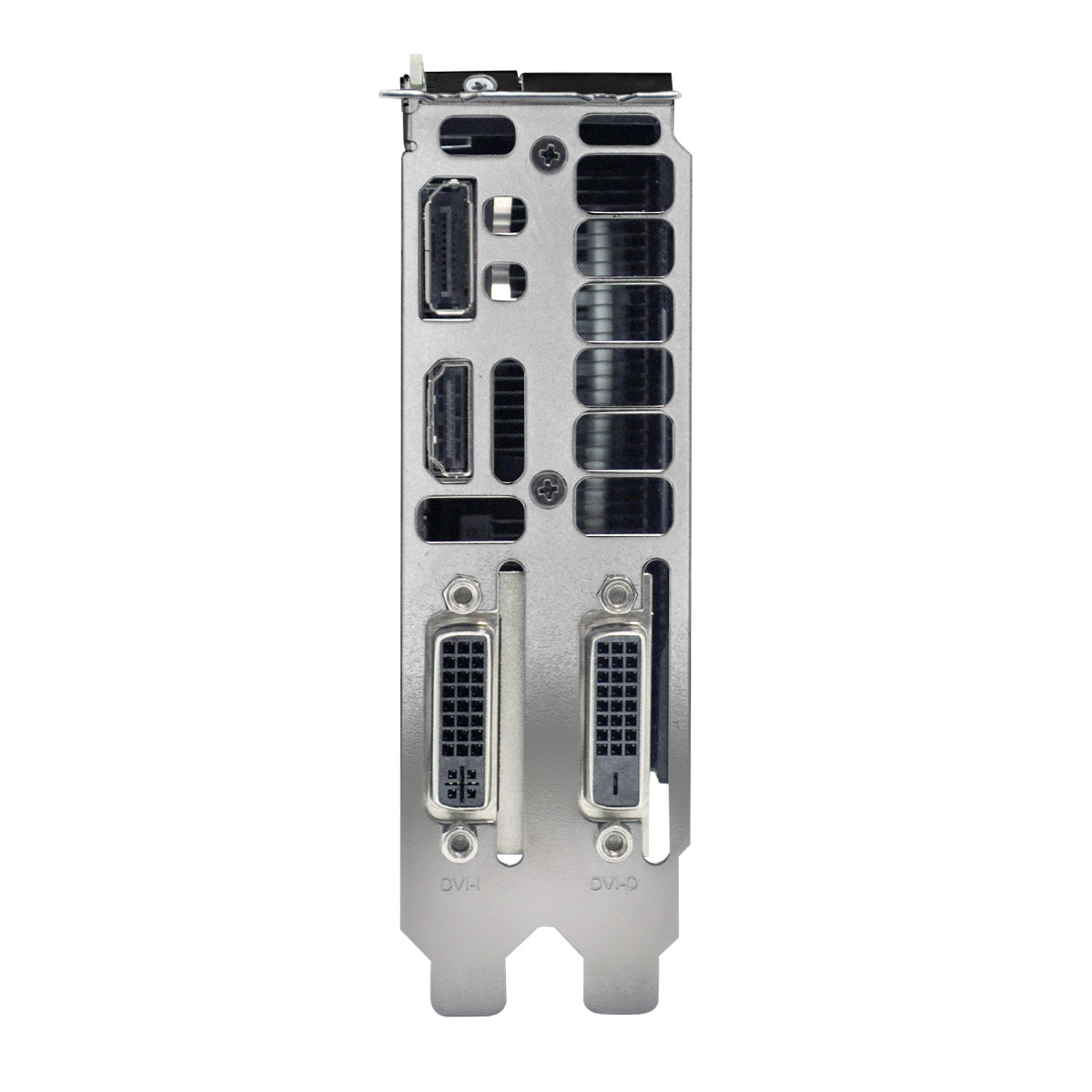

    Depends on the manufacturer, my Asus GTX670 has two DL-DVI, one DisplayPort and one HDMI port.

    ----------

    You need something like this, though it costs 200 USD which makes it 400 USD for two displays.

    But then again, you could use a DisplayPort (male) to Mini DisplayPort (female) adapter, which should cost less than 25 USD hopefully, and then you get one of those more expensive converters.

  8. kappaknight macrumors 68000

    kappaknight

    Joined:
    Mar 5, 2009
    #8
    I plan on selling my mini display port ACD and upgrading to 2 Thunderbolt ACD's at some point. They can be found on Craigslist for cheap(er).

  9. simsaladimbamba

    Joined:
    Nov 28, 2010
    Location:
    located
    #9
    How does this pertain to chrono1081's problem of connecting to MPD displays to the GTX680 with one DisplayPort and two DL-DVI ports?

  10. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #10
    Thunderbolt ACDs won't work on any existing Mac Pro, so I hope your plan is for some other computer.

  11. kappaknight macrumors 68000

    kappaknight

    Joined:
    Mar 5, 2009
    #11
    Ah, I see. I guess I was talking about the new one; whenever it comes out.
