Is there a difference between parts for the 12inch ibook or 14 inch

Discussion in 'PowerPC Macs' started by Eightbitgamer757, Dec 14, 2018.

  1. Eightbitgamer757 macrumors member

    Eightbitgamer757

    Joined:
    Feb 8, 2018
    Location:
    Idaho
  2. bobesch macrumors 65816

    bobesch

    Joined:
    Oct 21, 2015
    Location:
    Kiel, Germany
    #2
    I think RAM and Harddrive are the same - display might differ somehow ... ;)

  3. Eightbitgamer757 thread starter macrumors member

    Eightbitgamer757

    Joined:
    Feb 8, 2018
    Location:
    Idaho
    #3
    i just meant the motherboard in particular, i cant find any cheap 12" boards but 14" ones are abundant

  4. bobesch, Dec 14, 2018
    Last edited: Dec 14, 2018

    bobesch macrumors 65816

    bobesch

    Joined:
    Oct 21, 2015
    Location:
    Kiel, Germany
    #4
    LogicBoards pretty much look the same. Screen resolution is the same on both the 12" and 14" iBook.
    But: the battery-connector is kind of a problem, when it comes to swapping boards between the 12 and 14" models ... :(

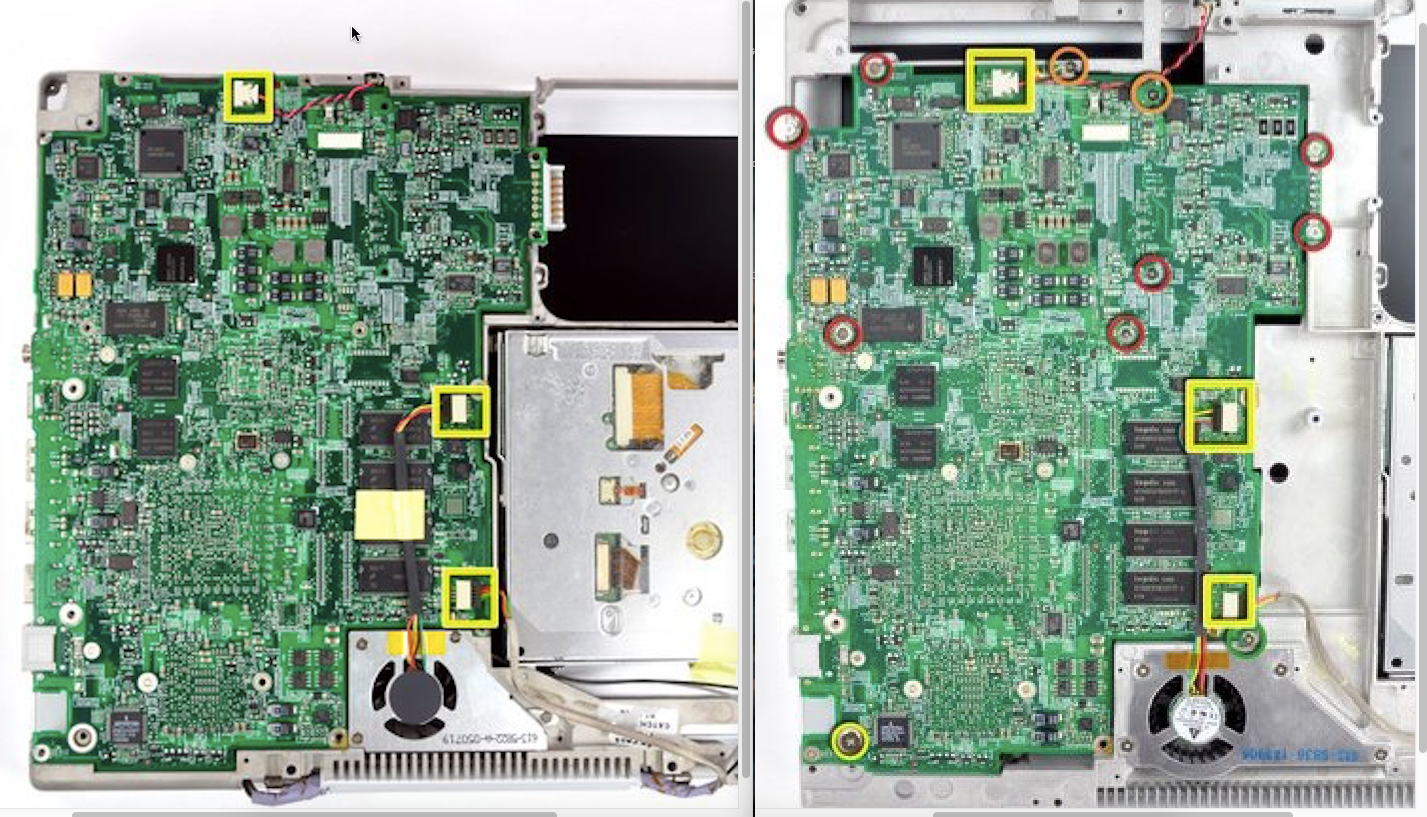

    Got these pictures from iFixit.
    12" 1.33MHz vs 14" 1.42MHz

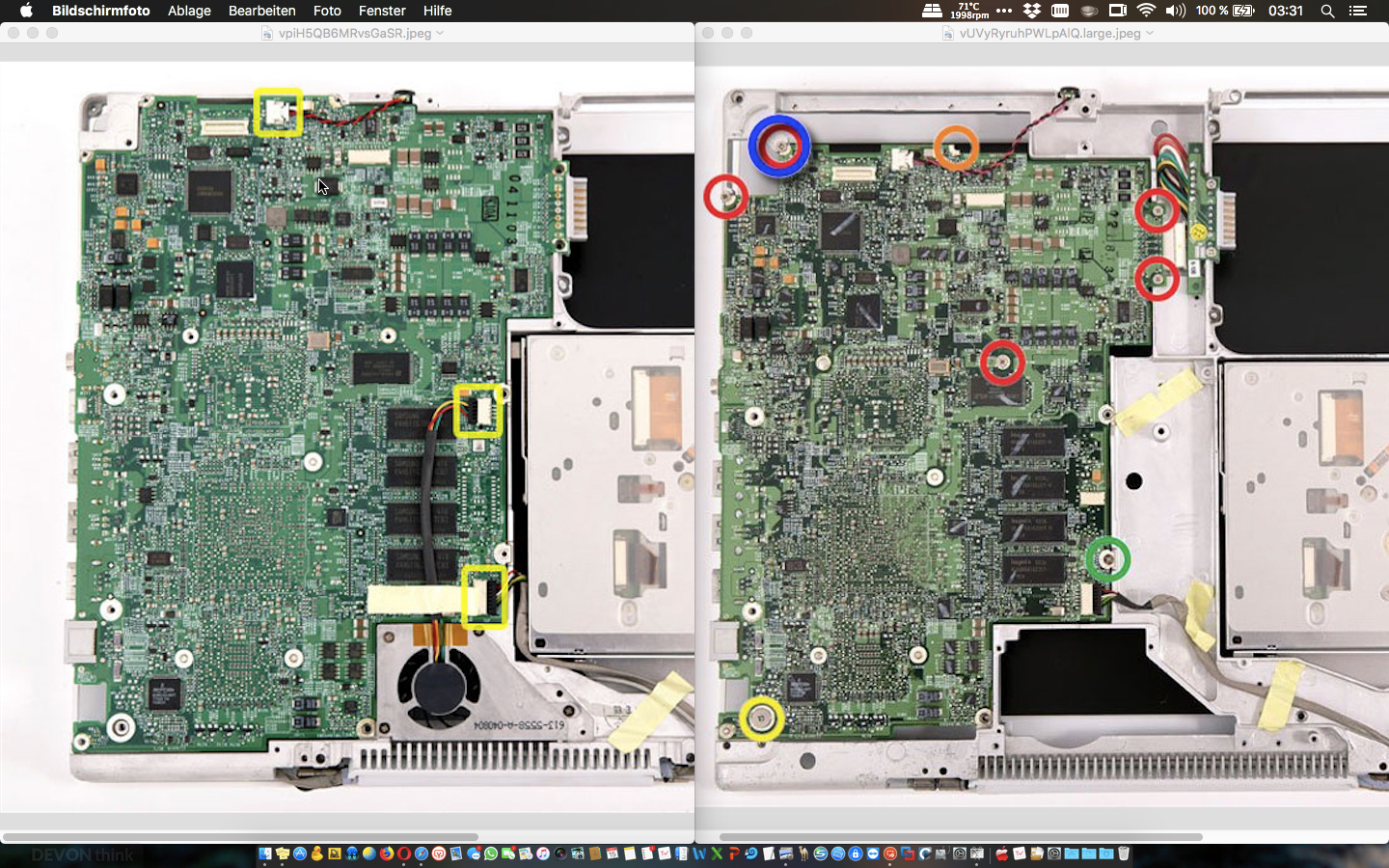

    early G4-iBook 12vs14.jpeg
    12" vs 14" early iBook G4

  5. AphoticD macrumors 68000

    AphoticD

    Joined:
    Feb 17, 2017
    Location:
    Australia
    #5
    The logic boards are different sizes and unlikely to line up.

    The optical drives, hard drive, RAM and some internal cabling will fit. The display data cable, LCD inverter and DC-in boards should also match up.

    The AirPort Extreme card and possibly the keyboard will also be compatible.

  6. AL1630 macrumors 6502

    AL1630

    Joined:
    Apr 24, 2016
    Location:
    Idaho, USA
    #6
    Like others have said, all the standardized parts like Drives, RAM, etc. will work. Too bad about the logic board though. I wonder why the 14 inch boards are more common than the 12 inch ones.

  7. heyimquinn macrumors newbie

    Joined:
    Jun 19, 2017
    #7
    I can personally vouch that the 12" and 14" keyboards are cross-compatible :)

  8. bobesch macrumors 65816

    bobesch

    Joined:
    Oct 21, 2015
    Location:
    Kiel, Germany
    #8
    Did you manage to cross-replace a board? I mean, how did it work out with the battery-connector?
    The rest of the board looks pretty much the same - size should be the same as well, since there's some spare place around the board in the 14" models, while within the 12" iBook the logicboard fits in pretty tight.

  9. heyimquinn macrumors newbie

    Joined:
    Jun 19, 2017
    #9
    Oh no, I did not mean that I replaced the logic board. I had a 14" iBook at our workshop to bring it back to life and the keyboard was an absolutely disgusting mess (I cleaned it and it looks great in the end) so I temporarily replaced it with my iBook 12" keyboard and it worked fine.

  10. Eightbitgamer757 thread starter macrumors member

    Eightbitgamer757

    Joined:
    Feb 8, 2018
    Location:
    Idaho
    #10
    i mainly just needed to knwo if the logic boards are cross compatible becuase i have an iBook that needs some fixin

  11. bobesch, Dec 15, 2018
    Last edited: Dec 16, 2018

    bobesch macrumors 65816

    bobesch

    Joined:
    Oct 21, 2015
    Location:
    Kiel, Germany
    #11
    Stupid me, sorry! I did completely failed to see you mentioning only the keyboard!
    --- Post Merged, Dec 15, 2018 ---

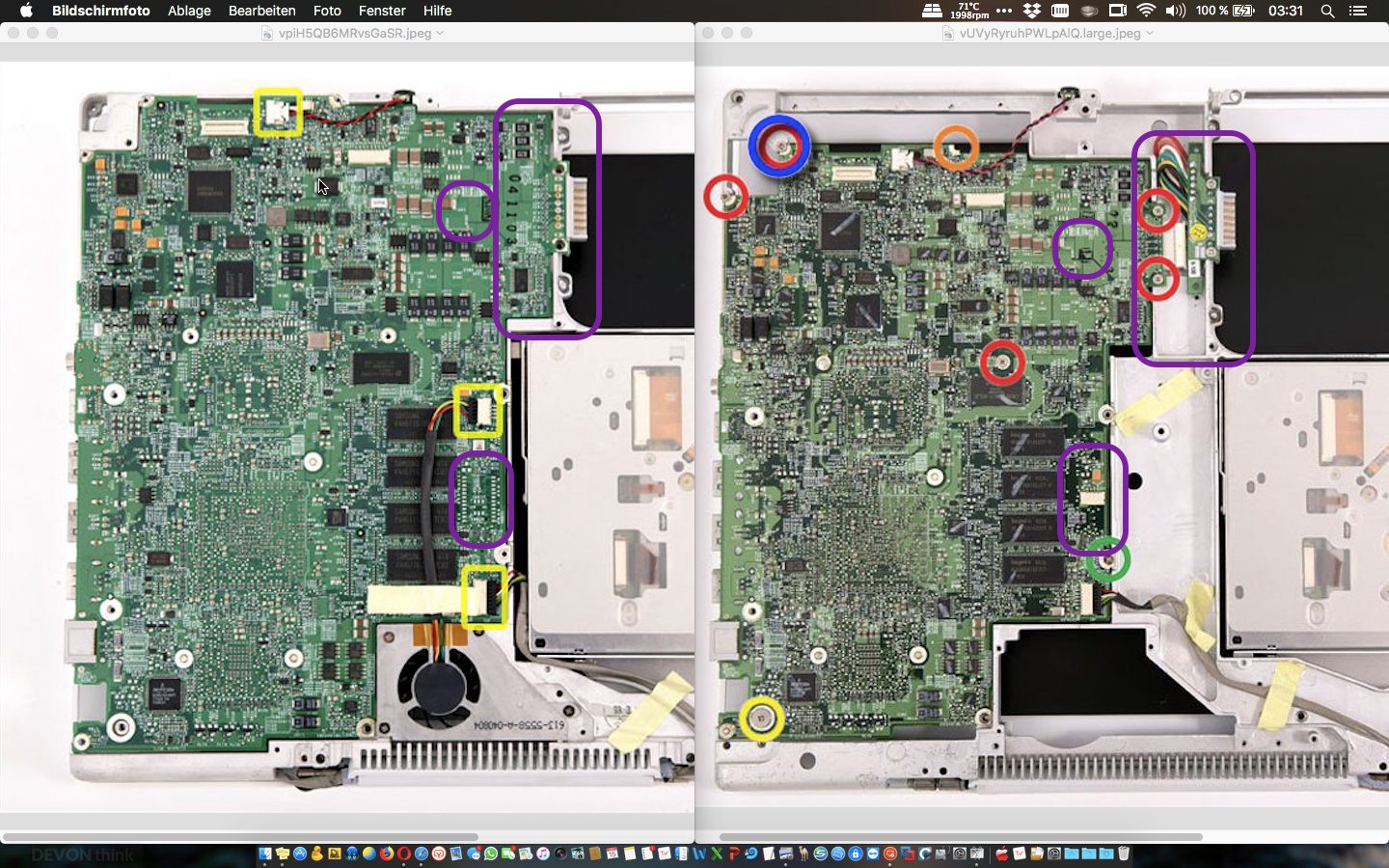

    On a second look, boards do have a few more differences (marked in lilac color). @AphoticD is right: the 14" board certainly won't fit the 12" iBook ...
