Is there a way to know which manufacturer made your MBP display ?

Love-hate 🍏 relationship · Nov 22, 2021

A command or something maybe?

joevt · Nov 22, 2021

0089294 said:
A command or something maybe?

SwitchResX may be able to export the EDID. The EDID may contain some panel model info strings in Apple Vendor Specific Data Blocks. I don't know if Apple is still doing that with M1 Macs.

kvlq · Nov 22, 2021

Yes, it's possible.
Open ColorSync Utility -> open Computer/Displays/Colour LCD from the left panel -> Open profile (top right corner)-> NO.17 Apple display make and model information.

Love-hate 🍏 relationship · Nov 22, 2021

kvlq said:
Yes, it's possible.
Open ColorSync Utility -> open Computer/Displays/Colour LCD from the left panel -> Open profile (top right corner)-> NO.17 Apple display make and model information.

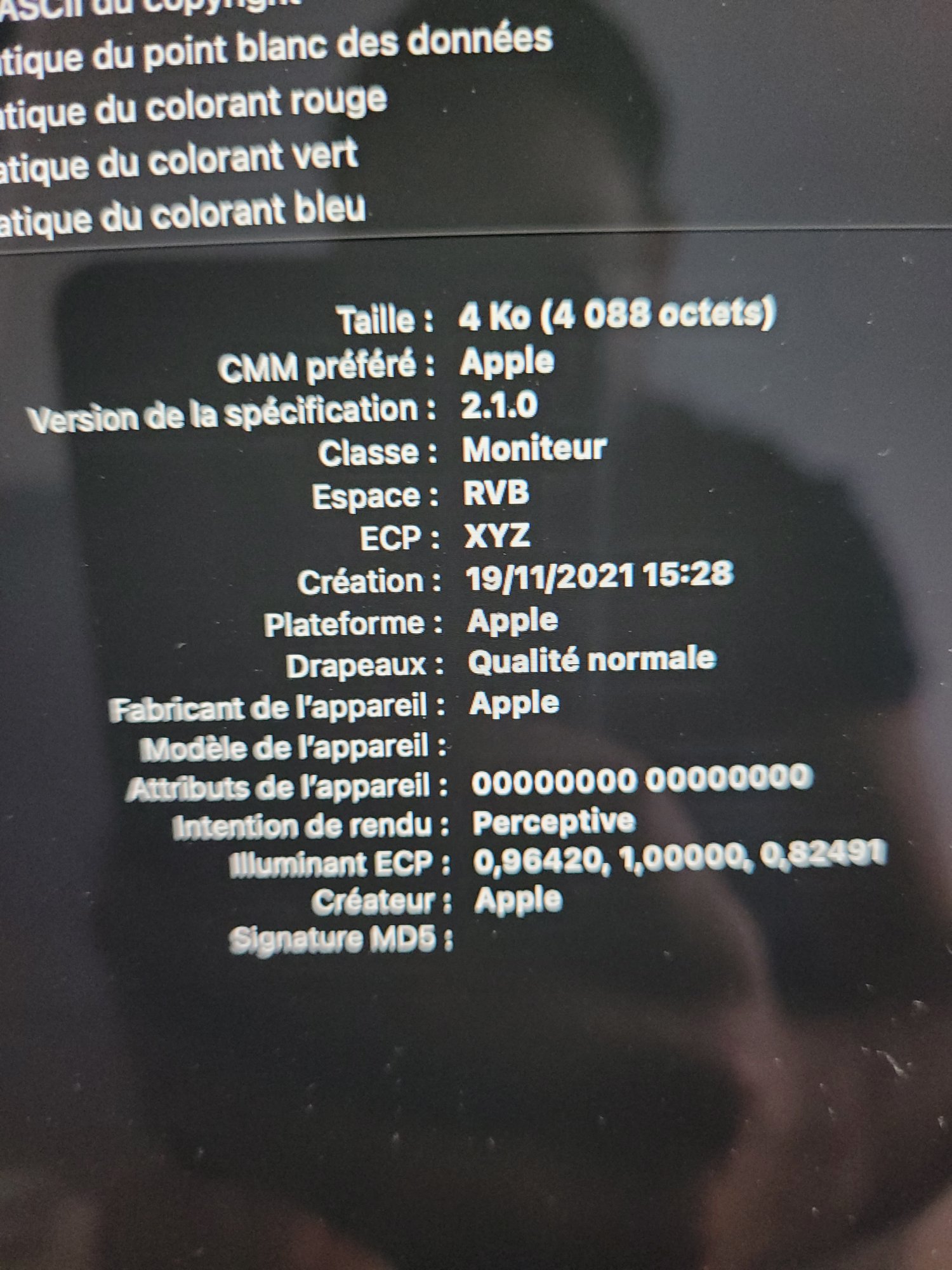

Thanks,and from there ? Which value to i take and how to interpret it ?

Love-hate 🍏 relationship · Nov 22, 2021

kvlq said:
Yes, it's possible.
Open ColorSync Utility -> open Computer/Displays/Colour LCD from the left panel -> Open profile (top right corner)-> NO.17 Apple display make and model information.

kvlq · Nov 22, 2021

Not there, open No.17 Apple display make and model information.
For e.g. mine is : Manufacturer 00000610 which seems to be Samsung after checking it on Google.

Love-hate 🍏 relationship · Nov 22, 2021

kvlq said:
Not there, open No.17 Apple display make and model information.
For e.g. mine is : Manufacturer 00000610 which seems to be Samsung after checking it on Google.

Thanks.if I could give you an award I would

I also have the same manufacturer!! But there is a "problem",i thought Samsung wasn't part of the display makers?

Love-hate 🍏 relationship · Nov 22, 2021

kvlq said:
Not there, open No.17 Apple display make and model information.
For e.g. mine is : Manufacturer 00000610 which seems to be Samsung after checking it on Google.

sadly i think its the model that matters isnt it ? like so far everyone seems to have same manufacturer number but different model number.mine is 0000A04E ,what is yours ?

kvlq · Nov 22, 2021

Love-hate 🍏 relationship · Nov 22, 2021

kvlq said:

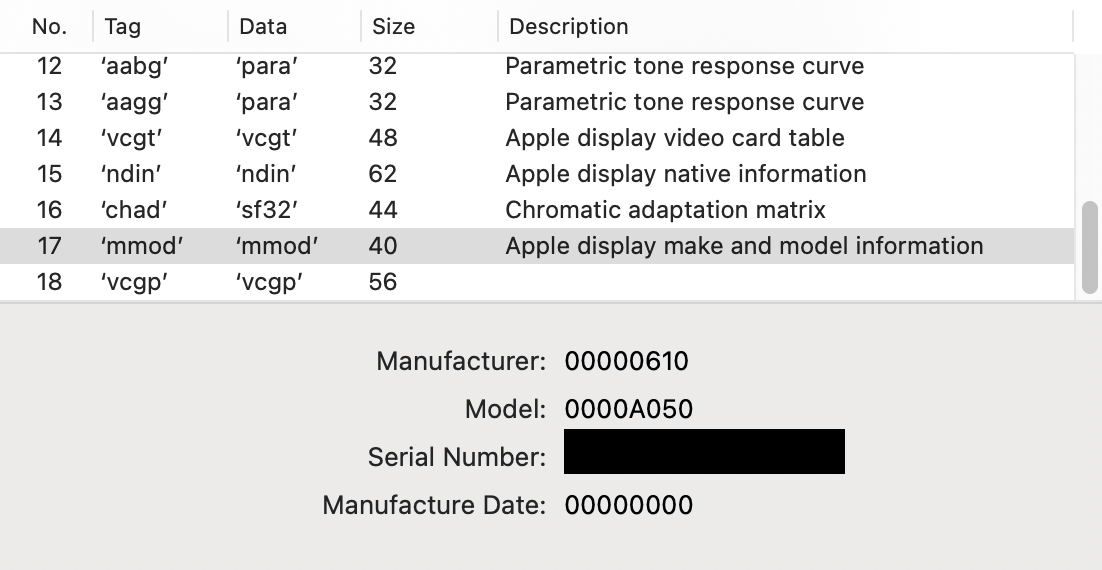

View attachment 1915799

thank you again.ours is definitely different then.where did you see that this is samsung btw ?

kvlq · Nov 22, 2021

Verified the manufacturer/model name on google then got into some Apple discussion threads.

joevt · Nov 22, 2021

kvlq said:
Not there, open No.17 Apple display make and model information.
For e.g. mine is : Manufacturer 00000610 which seems to be Samsung after checking it on Google.

610 is Apple. That is just one piece of info from the EDID. Use SwitchResX to get the full EDID. There may be more info related to the panel.
https://uefi.org/uefi-pnp-export

Love-hate 🍏 relationship · Nov 22, 2021

joevt said:
610 is Apple. That is just one piece of info from the EDID. Use SwitchResX to get the full EDID. There may be more info related to the panel.
https://uefi.org/uefi-pnp-export

know how to get the edid ,and how to read it ?

Love-hate 🍏 relationship · Nov 22, 2021

0089294 said:
know how to get the edid ,and how to read it ?

joevt said:
610 is Apple. That is just one piece of info from the EDID. Use SwitchResX to get the full EDID. There may be more info related to the panel.
https://uefi.org/uefi-pnp-export

here is mine,ive read into but not sure where i should look at

joevt · Nov 22, 2021

0089294 said:
here is mine,ive read into but not sure where i should look at

There's no extra panel info in there.

Code:

edid-decode (hex):

00 ff ff ff ff ff ff 00 06 10 4f a0 00 00 00 00
00 1f 01 04 a5 1e 14 78 20 3e 51 ae 51 43 b0 26
0f 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 00 00 00 10 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 fc 00 41 70 70
6c 65 20 44 69 73 70 6c 61 79 00 00 00 10 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10
00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 ef

70 13 79 02 00 03 00 14 47 3a 01 85 cf 0b 4f 00
07 80 1f 00 ab 07 c3 00 65 00 07 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 a4 90

----------------

Block 0, Base EDID:
  EDID Structure Version & Revision: 1.4
  Vendor & Product Identification:
    Manufacturer: APP
    Model: 41039
    Made in: 2021
  Basic Display Parameters & Features:
    Digital display
    Bits per primary color channel: 8
    DisplayPort interface
    Maximum image size: 30 cm x 20 cm
    Gamma: 2.20
    DPMS levels: Off
    Supported color formats: RGB 4:4:4
    First detailed timing does not include the native pixel format and preferred refresh rate
  Color Characteristics:
    Red  : 0.6796, 0.3193
    Green: 0.2646, 0.6894
    Blue : 0.1494, 0.0595
    White: 0.3125, 0.3291
  Established Timings I & II: none
  Standard Timings: none
FAIL: Missing preferred timing.
  Detailed Timing Descriptors:
    Dummy Descriptor:
    Display Product Name: 'Apple Display'
    Dummy Descriptor:
    Dummy Descriptor:
  Extension blocks: 1
Checksum: 0xef

----------------

Block 1, DisplayID Extension Block:
  Version: 1.3
  Extension Count: 0
  Display Product Type: Display panel or other transducer, LCD or PDP module, etc.
  Video Timing Modes Type 1 - Detailed Timings Data Block:
    DTD:  3024x1964  120.000477 Hz  16:10   259.201 kHz    804.560000 MHz (aspect 16:10, no 3D stereo, preferred)
               Hfront    8 Hsync  32 Hback   40 Hpol P
               Vfront  102 Vsync   8 Vback   86 Vpol N
  Checksum: 0xa4
Checksum: 0x90
FAIL: Missing DisplayID Product Identification Data Block.
FAIL: Missing DisplayID Display Parameters Data Block.
FAIL: Missing DisplayID Display Interface Features Data Block.

----------------

Failures:

Block 0, Base EDID:
  Standard Timings: Missing preferred timing.
EDID:
  DisplayID: Missing DisplayID Product Identification Data Block.
  DisplayID: Missing DisplayID Display Parameters Data Block.
  DisplayID: Missing DisplayID Display Interface Features Data Block.

EDID conformity: FAIL

I was looking for something like this in the DisplayID Extension Block:

Code:

  Vendor-Specific Data Block (0x7f) (Apple), OUI 00-10-FA:
    03 01 18 0f 28 17 00 00 00 00 00 00 00 00 00 00 '....(...........'
    00 00 00 00 00 4c 50 31 36 30 57 54 31 2d 53 4a '.....LP160WT1-SJ'
    41 33 0a 20 00 44 43 4e 39 34 36 35 30 31 43 56 'A3. .DCN946501CV'
    50 4c 56 37 38 41 0a 20 20 20 20 20             'PLV78A.     '

How can I know my MacBook Pro 2015 13" LC… - Apple Community

discussions.apple.com

Love-hate 🍏 relationship · Nov 23, 2021

joevt said:

There's no extra panel info in there.

Code:

edid-decode (hex):

00 ff ff ff ff ff ff 00 06 10 4f a0 00 00 00 00
00 1f 01 04 a5 1e 14 78 20 3e 51 ae 51 43 b0 26
0f 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01
01 01 01 01 01 01 00 00 00 10 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 fc 00 41 70 70
6c 65 20 44 69 73 70 6c 61 79 00 00 00 10 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10
00 00 00 00 00 00 00 00 00 00 00 00 00 00 01 ef

70 13 79 02 00 03 00 14 47 3a 01 85 cf 0b 4f 00
07 80 1f 00 ab 07 c3 00 65 00 07 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 a4 90

----------------

Block 0, Base EDID:
  EDID Structure Version & Revision: 1.4
  Vendor & Product Identification:
    Manufacturer: APP
    Model: 41039
    Made in: 2021
  Basic Display Parameters & Features:
    Digital display
    Bits per primary color channel: 8
    DisplayPort interface
    Maximum image size: 30 cm x 20 cm
    Gamma: 2.20
    DPMS levels: Off
    Supported color formats: RGB 4:4:4
    First detailed timing does not include the native pixel format and preferred refresh rate
  Color Characteristics:
    Red  : 0.6796, 0.3193
    Green: 0.2646, 0.6894
    Blue : 0.1494, 0.0595
    White: 0.3125, 0.3291
  Established Timings I & II: none
  Standard Timings: none
FAIL: Missing preferred timing.
  Detailed Timing Descriptors:
    Dummy Descriptor:
    Display Product Name: 'Apple Display'
    Dummy Descriptor:
    Dummy Descriptor:
  Extension blocks: 1
Checksum: 0xef

----------------

Block 1, DisplayID Extension Block:
  Version: 1.3
  Extension Count: 0
  Display Product Type: Display panel or other transducer, LCD or PDP module, etc.
  Video Timing Modes Type 1 - Detailed Timings Data Block:
    DTD:  3024x1964  120.000477 Hz  16:10   259.201 kHz    804.560000 MHz (aspect 16:10, no 3D stereo, preferred)
               Hfront    8 Hsync  32 Hback   40 Hpol P
               Vfront  102 Vsync   8 Vback   86 Vpol N
  Checksum: 0xa4
Checksum: 0x90
FAIL: Missing DisplayID Product Identification Data Block.
FAIL: Missing DisplayID Display Parameters Data Block.
FAIL: Missing DisplayID Display Interface Features Data Block.

----------------

Failures:

Block 0, Base EDID:
  Standard Timings: Missing preferred timing.
EDID:
  DisplayID: Missing DisplayID Product Identification Data Block.
  DisplayID: Missing DisplayID Display Parameters Data Block.
  DisplayID: Missing DisplayID Display Interface Features Data Block.

EDID conformity: FAIL

I was looking for something like this in the DisplayID Extension Block:

Code:

  Vendor-Specific Data Block (0x7f) (Apple), OUI 00-10-FA:
    03 01 18 0f 28 17 00 00 00 00 00 00 00 00 00 00 '....(...........'
    00 00 00 00 00 4c 50 31 36 30 57 54 31 2d 53 4a '.....LP160WT1-SJ'
    41 33 0a 20 00 44 43 4e 39 34 36 35 30 31 43 56 'A3. .DCN946501CV'
    50 4c 56 37 38 41 0a 20 20 20 20 20             'PLV78A.     '

How can I know my MacBook Pro 2015 13" LC… - Apple Community

discussions.apple.com

do you have this in the extension block on your mbp ?

joevt · Nov 23, 2021

0089294 said:
do you have this in the extension block on your mbp ?

I think I have EDIDs from many Macs with built-in displays (iMac, MacBook Air, MacBook, MacBook Pro). You can find EDIDs in the linuxhw EDID repository.
https://github.com/linuxhw/EDID
The /System/Library/Displays/Contents/Resources/Overrides/Icons.plist file will match icons to displays.
The icons are in the Apple vendor folder at /System/Library/Displays/Contents/Resources/Overrides/DisplayVendorID-610
