iSight macbook pro unibody 2008 pinout

Discussion in 'Apple Collectors' started by Carlos970, Apr 12, 2013.

  1. Carlos970 macrumors newbie

    Joined:
    Oct 17, 2008
    #1
    I have this apple isight from a macbook pro 15' unibody late 2008 and i want to know whats the cable configuration to make an usb adaptation, the problem is that i only have 2 red colour cables and the rest are all the same colour, so, anyone can help me with that?

  2. havokalien macrumors 6502a

    havokalien

    Joined:
    Apr 27, 2006
    Location:
    Kelso, Wa
    #2
    USB issue

    First issue I think is that the iSight is fire wire. All the MacBooks I have pulled apart are. It's a small FW 800 connector. I am not sure about the unibody but anything is possibly. Not sure if this is the right spot to ask. The MacBook or laptop thread may get you more information.

  3. MacTech68, Apr 12, 2013
    Last edited: Apr 12, 2013

    MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #3
    Sorry, but they are USB. Only the original eternal iSight camera is firewire.

    If you have the long cable that connects thru the Bluetooth daughter board and to the logic board, you may be able to trace pin 21 & 22 of the 30 pin connector that connects to the logic board.

    Pin 21 is USB +

    Pin 22 is USB -

    Pin 17 is +5v USB supply

    Pin 3, 6, 9, 20, 23, 26, 27, 28, 29 & 30 are GND

  4. Carlos970 thread starter macrumors newbie

    Joined:
    Oct 17, 2008
  5. MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #5
    Without the other end intact, I can't help.

    Is there an 820-xxxx number on the board that has the camera on it?

  6. Carlos970 thread starter macrumors newbie

    Joined:
    Oct 17, 2008
  7. MacTech68, Apr 13, 2013
    Last edited: Apr 13, 2013

    MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #7
  8. Carlos970 thread starter macrumors newbie

    Joined:
    Oct 17, 2008
  9. MacTech68, Apr 13, 2013
    Last edited: Apr 13, 2013

    MacTech68 macrumors 68000

    MacTech68

    Joined:
    Mar 16, 2008
    Location:
    Australia, Perth
    #9
    OK, looking at pics courtesy of MacFixIt,

    The connection runs from the main logic board then into the camera board and then thru the camera to the bluetooth board.

    Ground & 5v must be common to the bluetooth board and camera board.

    Looking at the bluetooth board (which is a blue board in all the pics I've seen) there seems to be a mounting hole with a silver circle around it (I'll take that as ground).

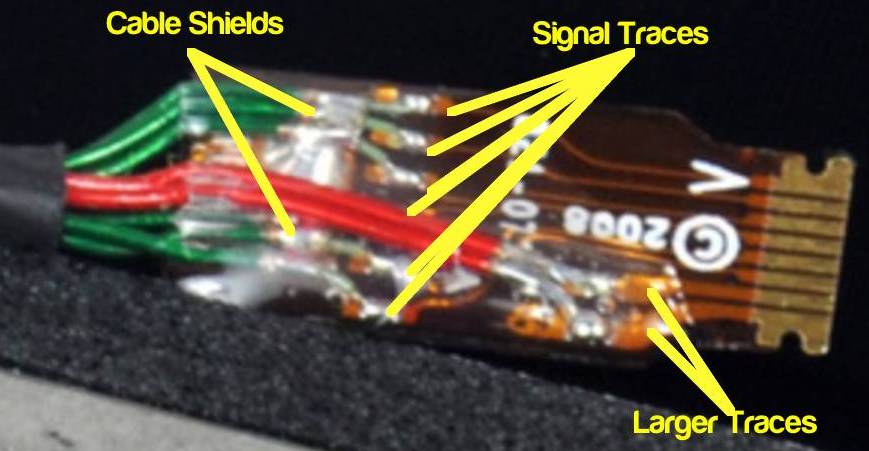

    Also note that those blue (or green) wires are shield cables (like tiny coax cables) - but whilst the shields seem to be soldered together, they don't appear to be connected thru to the camera board as a ground.

    The two red wires I'll take as GND and +5V since looking at the end of the cable, the traces on the connector PCB are thicker.

    This leaves 6 signal wires. 4 will be USB+ and USB- (one for the camera and one for the bluetooth board).

    If you're able to trace the signals that are passed thru to the bluetooth board, you should be able to eliminate 2 or 3 signal wires, leaving 3 choices. What the 3rd signal is for, I'm not certain, but given these can be activated remotely, I'm wondering if this is to activate the camera.

    Oddly, the bottom two signal traces in the attached pic seem to be soldered together (though that could be a trick of the light) - perhaps you can verify that.

    If any of this is obvious, I apologize, without one here, it's a bit difficult. :(

    EDIT: Just a guess, but the 2 unknown signal cables may be for the Ambient Light Sensor, which is passed into the main cable that connects to the Main Logic Board.

    http://osxdaily.com/2010/05/22/where-is-the-ambient-light-sensor-on-a-macbook-pro/
