Javascript debugging

Discussion in 'Mac Programming' started by mmmdreg, Aug 11, 2010.

  1. mmmdreg macrumors 65816

    mmmdreg

    Joined:
    Apr 14, 2002
    Location:
    Sydney, Australia
    #1
    I'm trying to change generate a text-based tree representation of a syntax tree using javascript using recursion. Complications from the condition that a root node is 'undefined' as javascript treats strings as character arrays on some browsers (safari, firefox etc), but not on others (IE).

    Given a string "Sue van den Bruck works", the original tree as an array is:
    [ "s2", [ "s1", [ "s", ["n3", ["n2", ["pn", ["Sue", "van", "den", "Bruck"]]]], ["v3", ["v2", ["v1", ["iv", ["works"]]]]] ] ] ]..

    I want Javascript to turn the array in to a string like:
    (s2 (s1 (s (n3 (n2 (pn (Sue van den Bruck) ) ) ) (v3 (v2 (v1 (iv (works ) ) ) ) ) ) ) )

    Unfortunately, due to the character problem, it ends up looking like:
    (s2 (s1 (s (n3 (n2 (pn (Sue (v (a ) (n ) ) (d (e ) (n ) ) (B (r ) (u ) (c ) (k ) ) ) ) ) ) (v3 (v2 (v1 (iv (works ) ) ) ) ) ) ) )


    The recursive function is:
    Code:
    var treeTxt = ""; //store the syntax tree as it is been constructed
    function drawTree(tree)
    {
        if(tree[0] != undefined)
    	{
    		treeTxt +='('+tree[0]+" "; //save the root of the tree
    		for(var i=1; i<tree.length; i++) //for each of the branches
    		{
    			  drawTree(tree[i]);	//construct the tree for that branch
    		}
    		treeTxt+=') ';
    	}
    	else
    	{
            treeTxt+=' ' + tree + ' ';	                // store the leaf value (compound words)
    	}
    }

    To give some indication of what is happening, here is a printout of the root node, the first branch and the second branch at every level:
    Code:
    s2 : s1,s,n3,n2,pn,Sue,van,den,Bruck,v3,v2,v1,iv,works : undefined

    s1 : s,n3,n2,pn,Sue,van,den,Bruck,v3,v2,v1,iv,works : undefined

    s : n3,n2,pn,Sue,van,den,Bruck : v3,v2,v1,iv,works

    n3 : n2,pn,Sue,van,den,Bruck : undefined

    n2 : pn,Sue,van,den,Bruck : undefined

    pn : Sue,van,den,Bruck : undefined

    Sue : van : den

    v : a : n
    The question is, is there a basic condition or workaround that I can use to avoid this behaviour? The tree originally generated is fine and so this is purely a display problem... which means I don't want to go hacking around and adding special characters to differentiate between tag words and actual words or anything silly like that.

    Cheers if you got any advice!

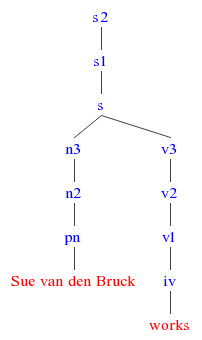

    PS, if you want a visualisation of the tree, check out the attachment.

    edit: apparently IE8 treats it the same as firefox etc.


    Attached Files:

  2. naples98 macrumors member

    naples98

    Joined:
    Sep 9, 2008
    Location:
    Houston
    #2
    Can you post the javascript of how you create the original tree as an array?

  3. mrbash macrumors 6502

    Joined:
    Aug 10, 2008
    #3
    My JS is not that strong, but could you use objects instead of an array of strings?

    Code:
    function Node(name){
        this._name=name
    }
    Node.prototype._name;
    Node.prototype.children;
    Node.prototype.getChildren=function() {
        return children;
    }
    Node.prototype.addChild=function(child){
       if(this.children == undefined)
           this.children = new Array();
       this.children.push(child);
    }

    I haven't tried the above code so you will likely have to fiddle with it. Also you would have to create the tree from the leaf to the root.

  4. mmmdreg thread starter macrumors 65816

    mmmdreg

    Joined:
    Apr 14, 2002
    Location:
    Sydney, Australia
    #4
    The original tree is created externally in Prolog and accessed using Json.

    Sorry this is my first time using Javascript (I'm running maintenance on someone else's code).

  5. ThaGrapist macrumors newbie

    Joined:
    Feb 13, 2010
    Location:
    NC
    #5
    Instead of checking an element of the tree, you should check the type. A simple change of your if statement from
    Code:
    if(tree[0] != undefined)
    to
    Code:
    if (typeof tree != 'string')
    produced the expected output for me on Chrome and Safari.

    For reference, here's my isolated test case:
    Code:
    var gtree = [ "s2", [ "s1", [ "s", ["n3", ["n2", ["pn", ["Sue", "van", "den", "Bruck"]]]], ["v3", ["v2", ["v1", ["iv", ["works"]]]]] ] ] ];

    var treeTxt = "";	//store the syntax tree as it is been constructed
    function drawTree(tree)
    {
    	if (typeof tree != 'string') {
    		treeTxt +='('+tree[0]+" "; //save the root of the tree
    		for (var i = 1; i < tree.length; i++) {	//for each of the branches
    			  drawTree(tree[i]);	//construct the tree for that branch
    		}
    		treeTxt += ') ';
    	} else {
    		treeTxt += ' ' + tree + ' ';	// store the leaf value (compound words)
    	}
    }

    drawTree(gtree);
    document.write(treeTxt);

  6. Eraserhead macrumors G4

    Eraserhead

    Joined:
    Nov 3, 2005
    Location:
    UK
    #6
    What does Firebug say? That has a debugger.

    Though generally you should avoid doing complex stuff in Javascript as its a nasty language you can't easily test.

  7. mmmdreg thread starter macrumors 65816

    mmmdreg

    Joined:
    Apr 14, 2002
    Location:
    Sydney, Australia
    #7
    Cheers Grapist, that worked perfectly =)
