Been a fan of this site your a couple of years and finally became a member.

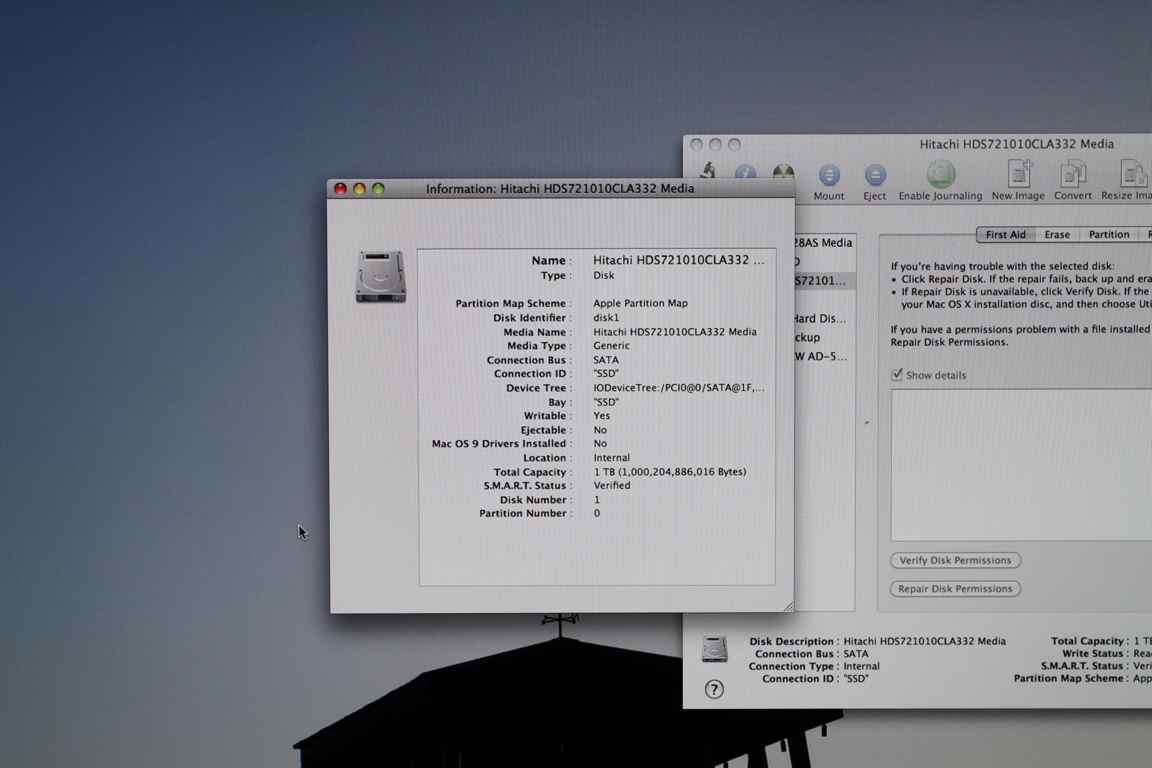

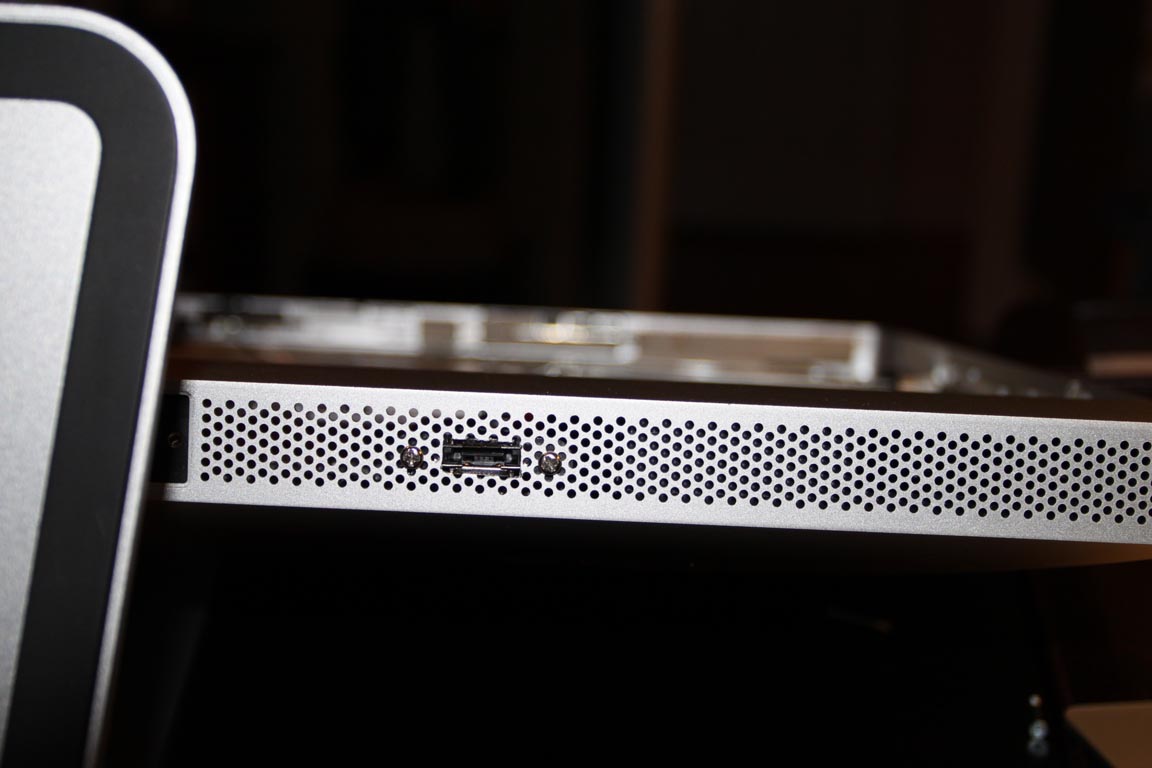

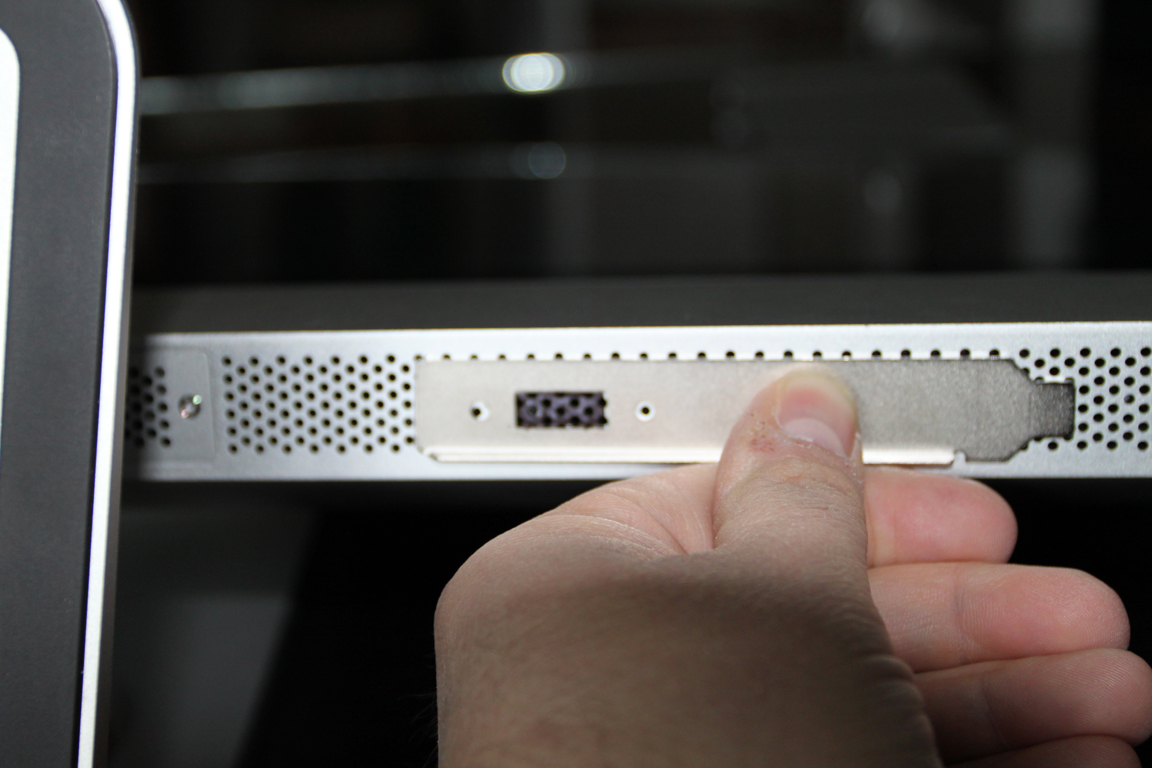

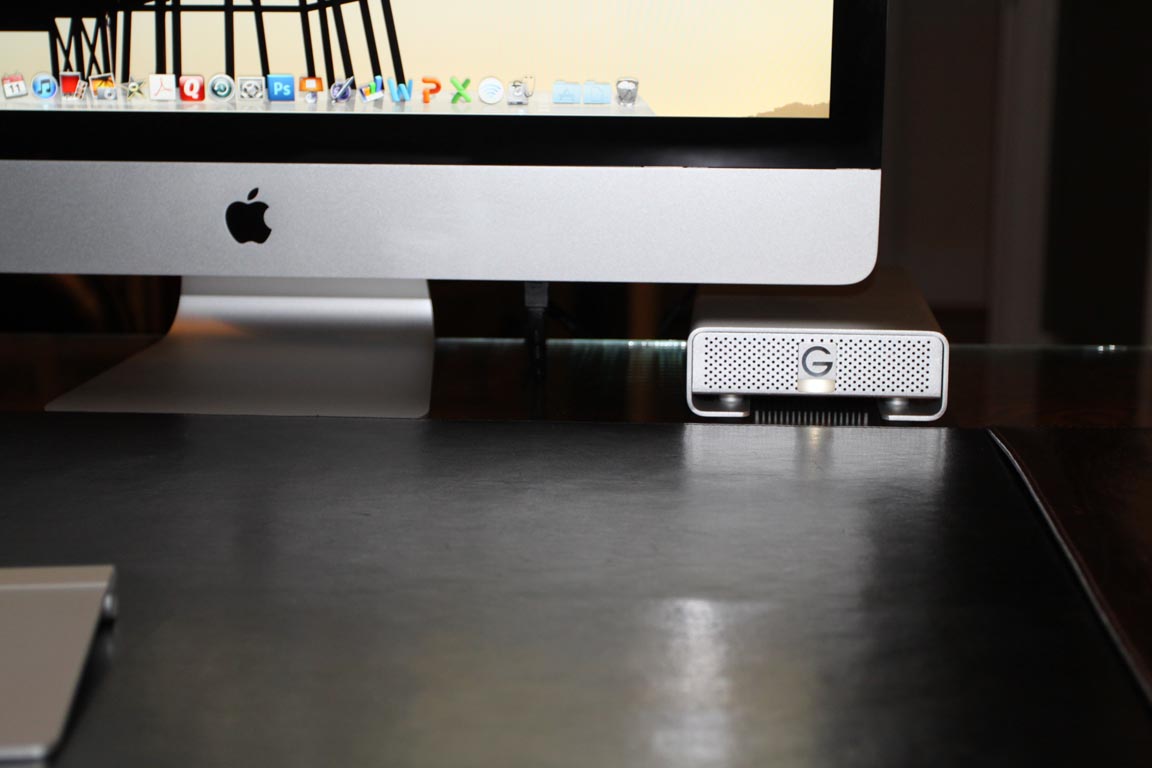

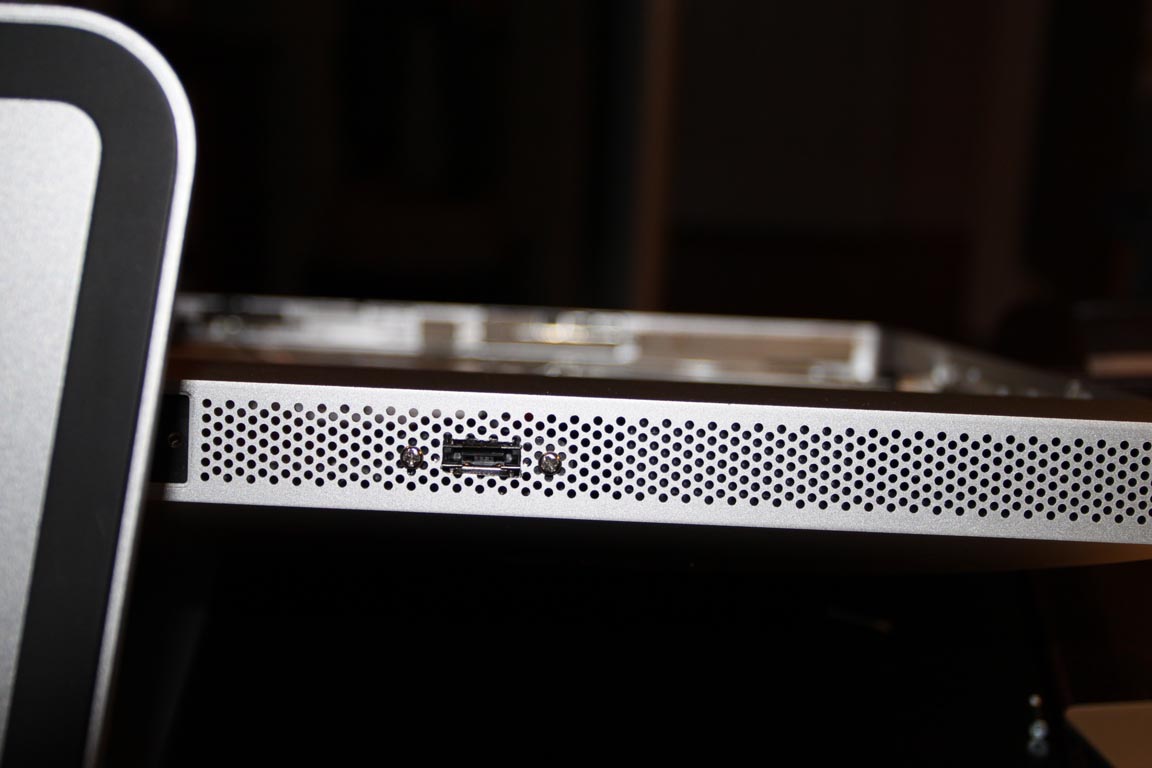

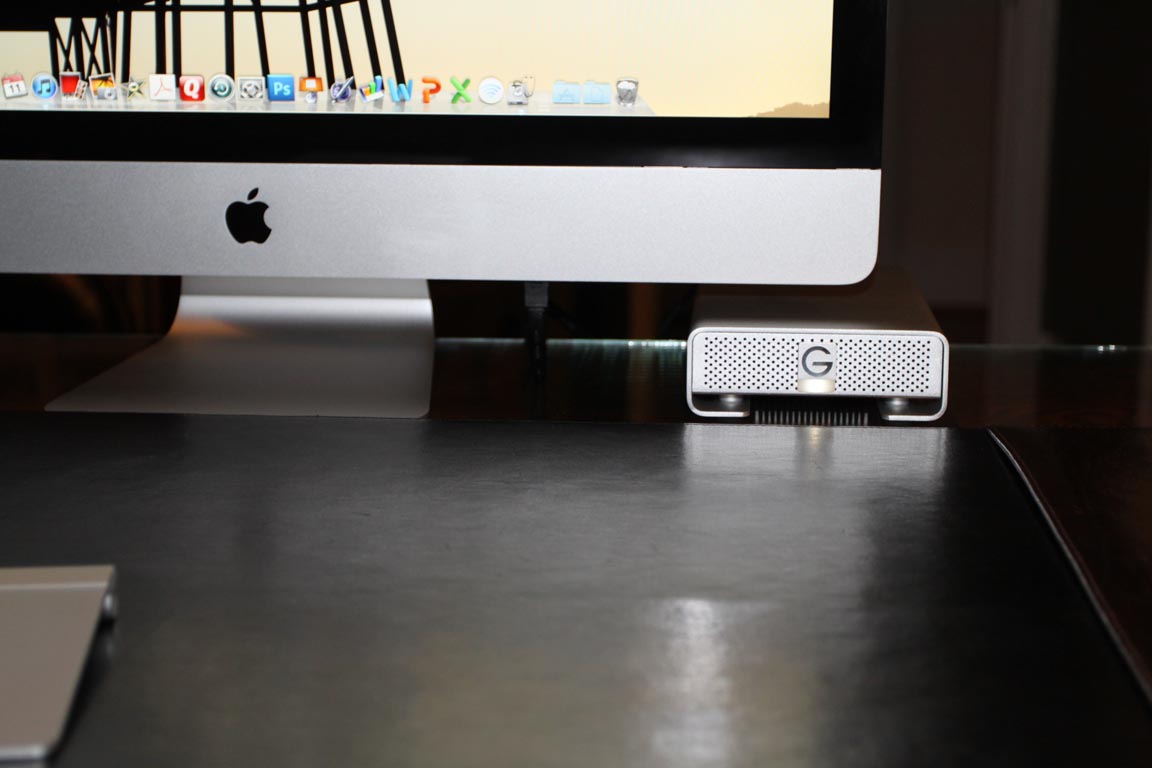

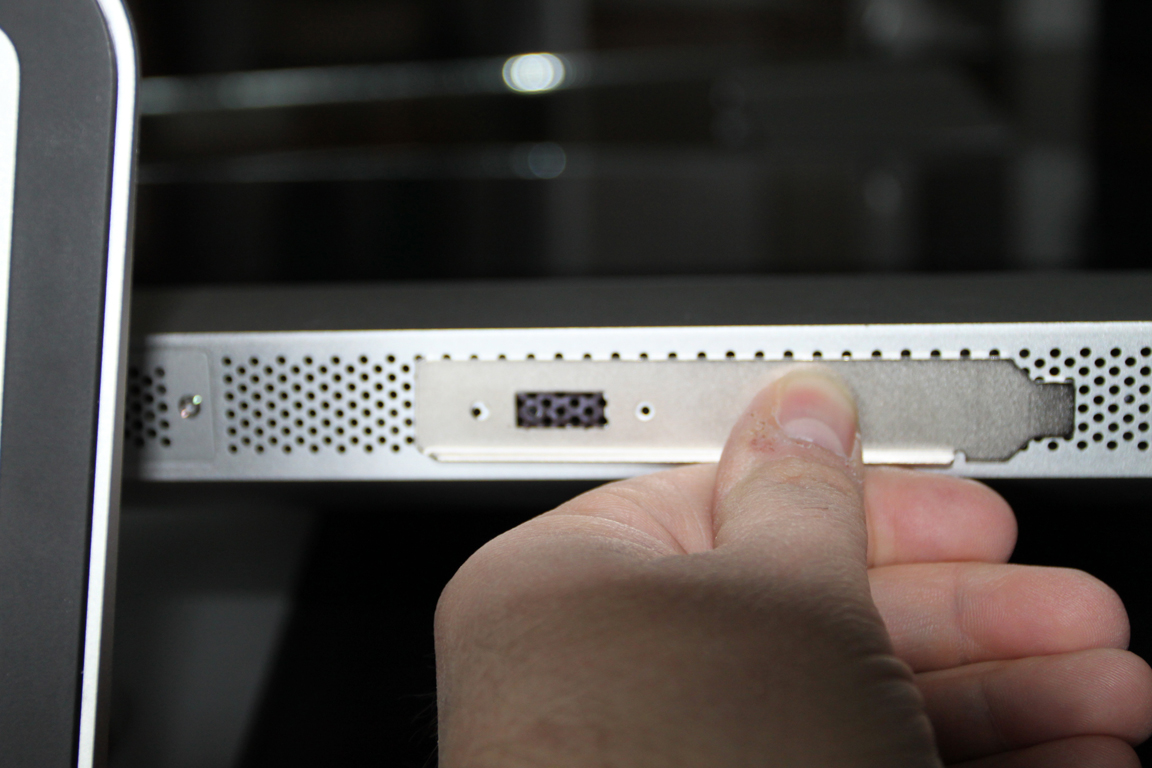

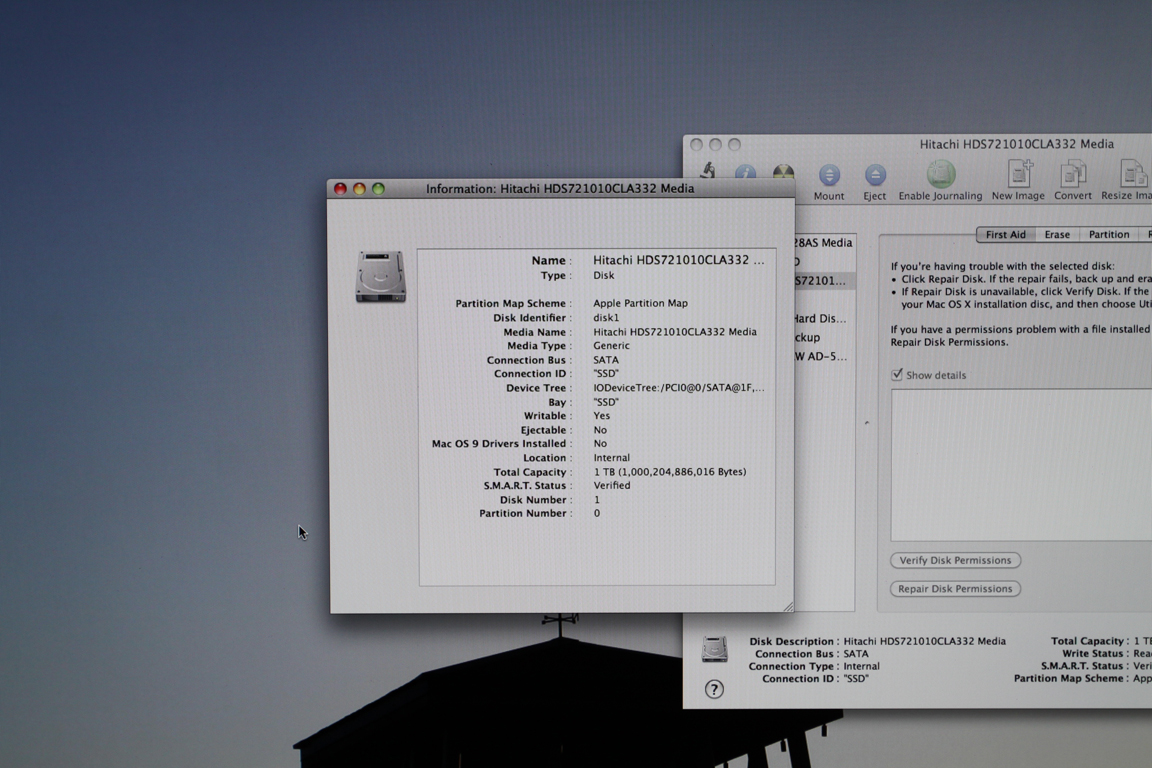

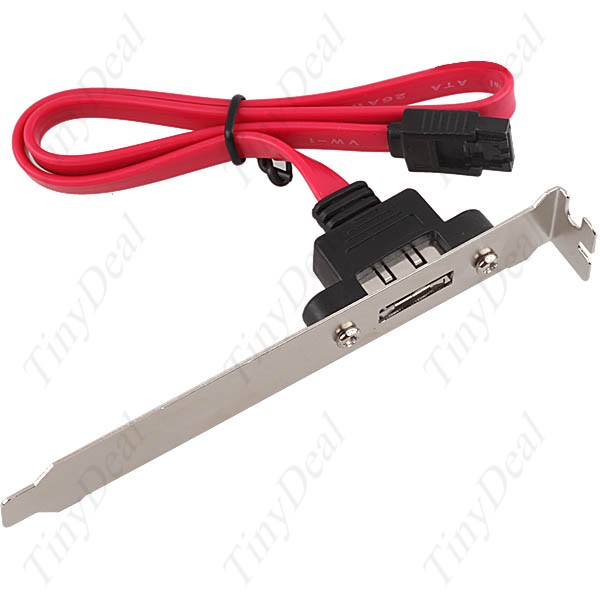

Bought my iMac back in August and have been wishing since that it had an esata or USB 3.0 port. Lately I have been researching the different options I had for esata and it seemed natural to use the 3rd sata port that is on the 2010 iMac logic board, which would be used for an installed SSD. Spent less than $6.00 for a sata to esata "adapter" on eBay and 2 hours later I have a working esata port. Now I just need to find some benchmarking software to test the speed.

Had some reservations about doing this at first because it is not like popping open the case on a pc, but all went well.


Attachments

  • 10087_35672_CCB-10087.jpg
    47.6 KB · Views: 225
  • IMG_1671.JPG
    453.7 KB · Views: 446
  • IMG_1682.JPG
    88.2 KB · Views: 352
  • IMG_1688.JPG
    76 KB · Views: 246
  • IMG_1685.JPG
    589.1 KB · Views: 327

biggd

macrumors 6502
Apr 6, 2008
345
0
Calgary
That is mighty hot!
Good job, I just bought an external HDD and then swore out loud when i realized there was no eSata


RuggedPro

macrumors regular
Sep 19, 2010
142
0
Very nice and good job.

I hate to say it but, there went your warranty. :p

I'd say you're probably right but not 100% sure. Either way, nice clean work. I wonder if they'd even notice if they weren't near that area of the machine.


skiltrip

macrumors 68030
May 6, 2010
2,814
213
New York
How much dismantling of the iMac did you have to do to install this? How did you get in? Took the glass off and went in that way?


Ethernaught

macrumors newbie
Original poster
Feb 11, 2011
14
0
Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_2_1 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8C148 Safari/6533.18.5)

Glass off, LCD off, logic board screws loosened since ports on the otherside.

Ironically OWC has a video to show how hard this upgrade is and it actually made my decision to do it. There are other videos online showing iMacs being upgraded with SSDs which uses the same sata port.


skiltrip

macrumors 68030
May 6, 2010
2,814
213
New York
Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_2_1 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8C148 Safari/6533.18.5)

Glass off, LCD off, logic board screws loosened since ports on the otherside.

Ironically OWC has a video to show how hard this upgrade is and it actually made my decision to do it. There are other videos online showing iMacs being upgraded with SSDs which uses the same sata port.

What did you use to take the glass off? I it was a suction cup type tool what did you use exactly? I've seen videos where they used something made for the shower wall as an extra handle.


Ethernaught

macrumors newbie
Original poster
Feb 11, 2011
14
0
Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_2_1 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8C148 Safari/6533.18.5)

I had a heavy duty shower handle with suction cups. Was cut into two so one can be on each corner. Probably was overkill, I was amazed how easy the glass came off.


Ethernaught

macrumors newbie
Original poster
Feb 11, 2011
14
0
Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_2_1 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8C148 Safari/6533.18.5)

Only special tool was torx bits for screwdriver.


Pepet

macrumors newbie
Feb 19, 2011
2
0
Hi there, I'm new in this forum. Hope I could help someday.
I've read this post, and I have a doubt.
I'm going to add a SSD disc, as is shown in this nice guide. I've ordered every needed part, and I'm going to do this big upgrade.
The question is: Is there any other free SATA left?
It would be nice to get an eSATA connector, but I'm not sure there's another SATA connector free...


skiltrip

macrumors 68030
May 6, 2010
2,814
213
New York
Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_2_1 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8C148 Safari/6533.18.5)

Glass off, LCD off, logic board screws loosened since ports on the otherside.

Ironically OWC has a video to show how hard this upgrade is and it actually made my decision to do it. There are other videos online showing iMacs being upgraded with SSDs which uses the same sata port.

Do you have the link to that video? I can't find it. The only video I found is a basic overview of the upgrades they can do but they don't actually show anything at all in it about the actual upgrade process.


gopherhockey

macrumors regular
Apr 2, 2010
138
0
I have the same question as someone else just asked... if one puts an SSD drive in the 2010 iMac, are there any sata ports left?

The fact that OWC can do it makes me think yes, but combing the internet I'm finding you have to rob from something else to get one.


Maverick713

macrumors 6502
Jun 14, 2009
469
0
Houston, TX
I felt accomplished when I took apart my mac mini (damn clips all along the side) and was ablet og et it back together, but this is a project I would not undertake as I do not want an 1800 dollar paper weight.


Pepet

macrumors newbie
Feb 19, 2011
2
0
I have the same question as someone else just asked... if one puts an SSD drive in the 2010 iMac, are there any sata ports left?

The fact that OWC can do it makes me think yes, but combing the internet I'm finding you have to rob from something else to get one.
If there's anybody else interested, the short answer is NO.
There are only 3 SATA ports, and when you add an SSD all of them are busy.


Detosx

macrumors regular
Aug 27, 2010
117
0
If you have basic soldering skills you can, instead of cutting plastic in your iMac, cut the cable, feed it through the memory area and then carefully solder it back together again. 100% reversible if you also buy a replacement memory slot grill/plate. I noticed in pictures that the cable rests against one of the memory chips which, thermally, is not ideal. Perhaps best to upgrade to 12GB rather than 16GB.
