I just ordered a Samsung EVO 860 for my Mac Pro 5,1 (upgraded 4,1). What sled, connectors, etc., do I need to order in order to put it into one of the drive bays? Thanks for any information.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 Just bought a Samsung EVO 860 need sled and connectors
- Thread starter wnlewis
- Start date
- Sort by reaction score
How to Upgrade Mac Pro Tower to SSD (Fastest Storage): EveryMac.com
How to instructions and video to install SSDs (Solid State Drive) in the tower Mac Pro. SATA 2.0 hard drive bays, optical bays and the fastest PCIe card options.
everymac.com
Although I knew about everymac.com, I did not know about that part. I'm about to order two of the kits for the Mac Pro. Thanks again for putting me on to that!
GT4ME
macrumors newbie
Running into the same problem here - cMP 5,1 (Mid 2012) already running the Lycom DT-120 with a Samsun 970 Pro NVMe; that beautifully.
The 2TB Samsung 860 EVO I have laying around is a B+M keyed SSD blade which doesn’t work with the Lycom cards. I’ve searched everywhere but can’t seem to find a PCIE card that supports B+M keyed SSD blades at this point. I believe the OPs drive is the same as mine, has anyone found a card that works?
The 2TB Samsung 860 EVO I have laying around is a B+M keyed SSD blade which doesn’t work with the Lycom cards. I’ve searched everywhere but can’t seem to find a PCIE card that supports B+M keyed SSD blades at this point. I believe the OPs drive is the same as mine, has anyone found a card that works?
Macschrauber
macrumors 68040
need an adapter from a Sata Blade to standard Sata
like
like

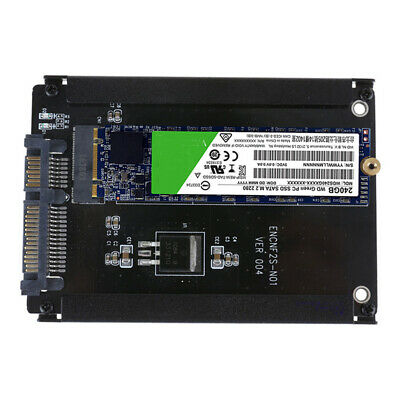

M.2 SSD auf 2.5in SATA Adapter Konverter Open-Frame Brackt Festplattenadapter | eBay
Entdecken Sie M.2 SSD auf 2.5in SATA Adapter Konverter Open-Frame Brackt Festplattenadapter in der großen Auswahl bei eBay. Kostenlose Lieferung für viele Artikel!
www.ebay.de
GT4ME
macrumors newbie
need an adapter from a Sata Blade to standard Sata
like
M.2 SSD auf 2.5in SATA Adapter Konverter Open-Frame Brackt Festplattenadapter | eBay
Entdecken Sie M.2 SSD auf 2.5in SATA Adapter Konverter Open-Frame Brackt Festplattenadapter in der großen Auswahl bei eBay. Kostenlose Lieferung für viele Artikel!www.ebay.de
Is there no PCIE adapter cards that will take a B+M keyed SSD blade?
This?
M.2 NGFF Both B M Key SSD to PCI-E PCIE SATA III 3 Adapter Converter, All OS
M.2 NGFF Both B M Key SSD to PCI-E PCIE SATA III 3 Adapter Converter, All OS
www.amazon.com
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
flowrider
macrumors 604
Recommended Drive Sled Adapter for 2.5"
I use a WD VelociRaptor heatsink mount that I buy from eBay. I buy the complete HDD/heatsink mount and remove and discard the HDD. The smallest HDD is 80GB. I just bought another two as I am replacing my last two spinners with 2.5" Samsung SSDs. I paid $11.50 ea for them. They are heavy...
forums.macrumors.com
Lou
Macschrauber
macrumors 68040
This?
M.2 NGFF Both B M Key SSD to PCI-E PCIE SATA III 3 Adapter Converter, All OS
M.2 NGFF Both B M Key SSD to PCI-E PCIE SATA III 3 Adapter Converter, All OSwww.amazon.com
yes, but you will need cabling to a sata port, so speed is just same. If not using a nvme blade its wasting a pci port.
also you need additional heat sink for the nvme part.
i have such dual nvme / sata Blade cards with a fan. This kind or with snap on heat sink. If one uses NVMe, otherwise its wasting a port, as written.
