Just installed 4 TB HD - only able to use 2 TB

Discussion in 'OS X Mavericks (10.9)' started by c23roo, Oct 18, 2014.

  1. c23roo macrumors regular

    Joined:
    May 29, 2004
    #1
    So, backstory: I have an otherworldly large iPhoto library that my wife would like to keep all together as sort of a master library of sorts. She is comfortable with that interface and has resisted the move to Aperture / Lightroom. I prefer to keep my photography projects nimble and manageable - and I do have LR for that purpose. Nevertheless, the iPhoto library is nearing 300,000 photos/videos and is nearly 2 TB in size. Conveniently, this library lives on a 2 TB drive in a Mac Pro (Mid 2012, I think it's the 5,1 model).

    As photos continue to be taken, and need a place to live, I purchased a 4 TB drive to use for this purpose. I cloned the 2 TB drive to the 4 TB drive using Carbon Copy Cloner. We were then able to view our library on the new drive, we were able to download new photos to the same library, and all seemed fine until the library reached almost 2 TB in size. Now I receive error messages when I try to add new photos (not enough space on target disk).

    I have checked disk utility and the disk is formatted as Mac OS Extended (Journaled) and is recognized as a 4 TB drive. I tried to copy new files to the disk using Finder and I get an error message that there's a problem writing the files due to disk space.

    Any idea what I can do to help use the full capacity of this drive? The iPhoto version is 9.5.1; I'm using OSX Mavericks (10.9.5) which is why I posted here. Hope this is the right place to ask.

    Thanks in advance for your thoughts...
    C

    PS Have lots of backups by the way, on- and off-site.

  2. Gochugogi macrumors regular

    Gochugogi

    Joined:
    Oct 27, 2013
    Location:
    Sandwich Isles
    #2
    Be sure it is formatted with a GUID partition scheme. The MBR partition scheme (default) can only see 2TB.

  3. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #3
    Thanks. That's what I thought I had done.
    Bottom of Disk Utility looks like this:


    Attached Files:

  4. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #4
    If I have not formatted this disk properly, can you walk me through how to do so?

  5. Ledgem macrumors 65816

    Ledgem

    Joined:
    Jan 18, 2008
    Location:
    Hawaii, USA
    #5
    The partition scheme is correct, but what's the format? Right-click on the disk on your desktop and select "Get Info," then look at what's written after Format.

  6. Cave Man macrumors 604

    Cave Man

    #6
    When you initialized the drive in Disk Utility, did you choose the Partition tab and set to 1 volume?

  7. drambuie macrumors 6502a

    Joined:
    Feb 16, 2010
    #7
    I see you used CCC to clone the 2TB drive to the 4TB drive. Did you set the cloned drive/partition to expand to the full capacity of the destination drive? If not, the cloned drive will be set to 2TB max within the 4TB drive's space.

    If the new drive is not required to be bootable, you could have copied the folders to the new drive. If you want to do it this way, re-initialized the 4TB drive with a single reformatted GUID partition, and copy. I don't know if it's any slower than CCC for the same amount of data.

  8. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #8
    Answers to prior questions:

    Hit Get Info; After Format it says Mac OS Extended (Journaled).

    Yes, Set partition tab to one volume.

    And finally, will try reformatting as drambuie suggested. Quick question: what's the best way to go back and re-format this disk - use disk utility and Erase function? I will just be re-loading the same data.

  9. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #9
    Ok. New problem:

    I attempted to format it in Disk Utility using the standard GUID partition map and encountered a strange problem. Disk Utility formatted it using a Logical Volume Group (LVG) instead of GUID.

    Furthermore, Disk Utility subsequently refused to allow me to reformat or repartition this drive. The Partition Layout drop-down in Disk Utility is greyed-out. I seem to be stuck with a LVG drive.

    Disk Utility: Version 13 (450)

    How can I remove the Logical Volume Group partition scheme and reformat this drive as GUID?

  10. BasicGreatGuy Contributor

    BasicGreatGuy

    Joined:
    Sep 21, 2012
    Location:
    In the middle of several books.
    #10
    Try the following...

    In Terminal

    diskutil cs list

    and then

    diskutil coreStorage revert lvUUID

    where lvUUID is the last lvUUID reported by the previous Terminal command.

    Then restart for everything to get back to normal after you have run these commands in Terminal.

  11. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #11

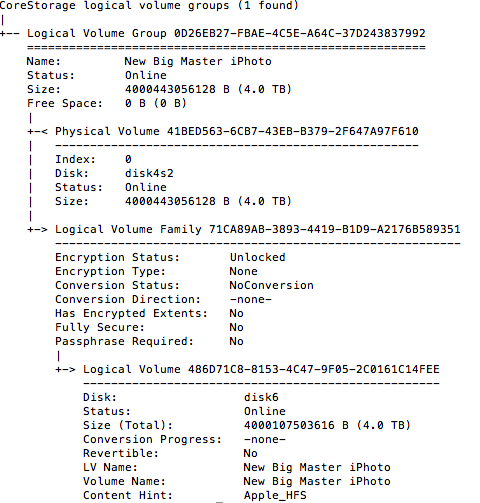

    Here is what I got after the first terminal command.
    What should I type for the next command?
    Sorry, confused.


    Attached Files:

  12. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
  13. Ledgem macrumors 65816

    Ledgem

    Joined:
    Jan 18, 2008
    Location:
    Hawaii, USA
    #13
    Out of curiosity, what's the drive that you purchased? I've encountered a weird hard drive before (owned by a friend) that did some unexpected things even after being formatted. I don't have a solution, but if your drive is similar, I'd like to follow this closely to find out what the solution is.

  14. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #14
    WD Green (don't have serial number on me).
    Thanks - and let me know if you have any other ideas.
    C

    PS incidentally, does it look like I entered the termial command properly? I was a little confused as to which volume ID to use...

  15. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #15
    Update:

    So after scouring the interwebs and discussing this issue with various tech-savvy friends and acquaintances, I was able to re-format the hard drive. I have an old Mac Pro 1,1 (love that old horse!) I use for a home studio setup which is running Snow Leopard. It is running Disk Utility 11.5.2. I was able to re-format my 4 TB drive as GUID using this version (I had been unable to do so on the newer Mac Pro (and newer Disk Utility version).

    Right now I am trying to copy the old iPhoto library directly to the newly-formatted HD. Once that's finished I will try again to add more photos to exceed the 2 TB threshold I was unable to surpass previously.

    Fingers crossed, and thanks to all (here and elsewhere) for your thoughts and advice.

  16. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #16
    :mad:

    Successfully reformatted disk as GUID, but still can't load data past the 2 TB threshold. So I still have a 4 TB drive that thinks it's a 2 TB drive.

    Anybody have any new thoughts on the topic? I would have thought a fresh reformat in Disk Utility would have solved the issue. Nobody else having this problem out there?

    Now I'm cranky.

    - C

  17. Cave Man macrumors 604

    Cave Man

    #17
    This is really strange. I have a 4 TB in my MP5,1 and it is fine. When you do a "Get Info" about the hard drive, what is its listed capacity, available and used? If you open a terminal and do 'ls -al' is there a hidden file that is excessively large, like a core dump or something?

  18. c23roo thread starter macrumors regular

    Joined:
    May 29, 2004
    #18
    Get Info listed it as a 4TB drive; 1.98 used; 2.01 available.

    No big files; Disk Utility thinks I have 2 TB free as well.

    But I may have had a breakthrough. Put the HD back in the old Mac Pro 1,1 and I was able to drag and drop files to exceed 2 TB. Now it's back in the 5,1 and I'm able to put more stuff on.

    Not sure what did the trick; may have been the reformat to GUID (although first try with data on the 5,1 failed). Maybe needed a re-start in between tries. No idea. But it's working now and I'm gonna run with it.

    Thanks for the help!
