late 2008 unibody dual-link DVI-D compatible?

Potatochobit

macrumors regular
Original poster
Apr 2, 2011
109
3
hello

I am thinking about buying a 30" monitor
maybe a Dell U3011

but can the macbook pro GPU handle it?
I think its a crappy 9600M GT

the monitor says it needs dual-link DVI-D compatible graphics card
I have a mini dvi to regular size one already, but how does dual link work?

Nov 28, 2010
22,684
27
located
You get the MDP to Dual-Link DVI adapter from Apple or Monoprice.
Mini DisplayPort (MDP) / Thunderbolt
Mini DisplayPort is the current digital standard on all current Macs to transfer video to an external display or TV. It has been introduced in 10/2008 with the release of the Unibody MacBook and MacBook Pros and has gradually been adopted on all other Macs.
MDP is capable of transmitting video, and since 2010, audio too. MDP is a miniaturised version of DisplayPort. It is also license free and can support resolutions of up to 2560 x 1600, which Mini DVI and Micro DVI are not able to do.
Since 2011, all Macs come with a Thunderbolt port, which is meant for fast data transfer and also as means to connect to an external display device to mirror or extend the Mac's screen.
To learn more about Thunderbolt (TB) and its compatibility with Mini DisplayPort (MDP): Introducing Thunderbolt
MDP adapters can be bought online from:
MDP to VGA adapter from Apple
MDP to DVI adapter from Apple
MDP to Dual-Link-DVI adapter from Apple

Moshi Mini DP to HDMI Adapter with Audio Support adapter from the Apple Online Store

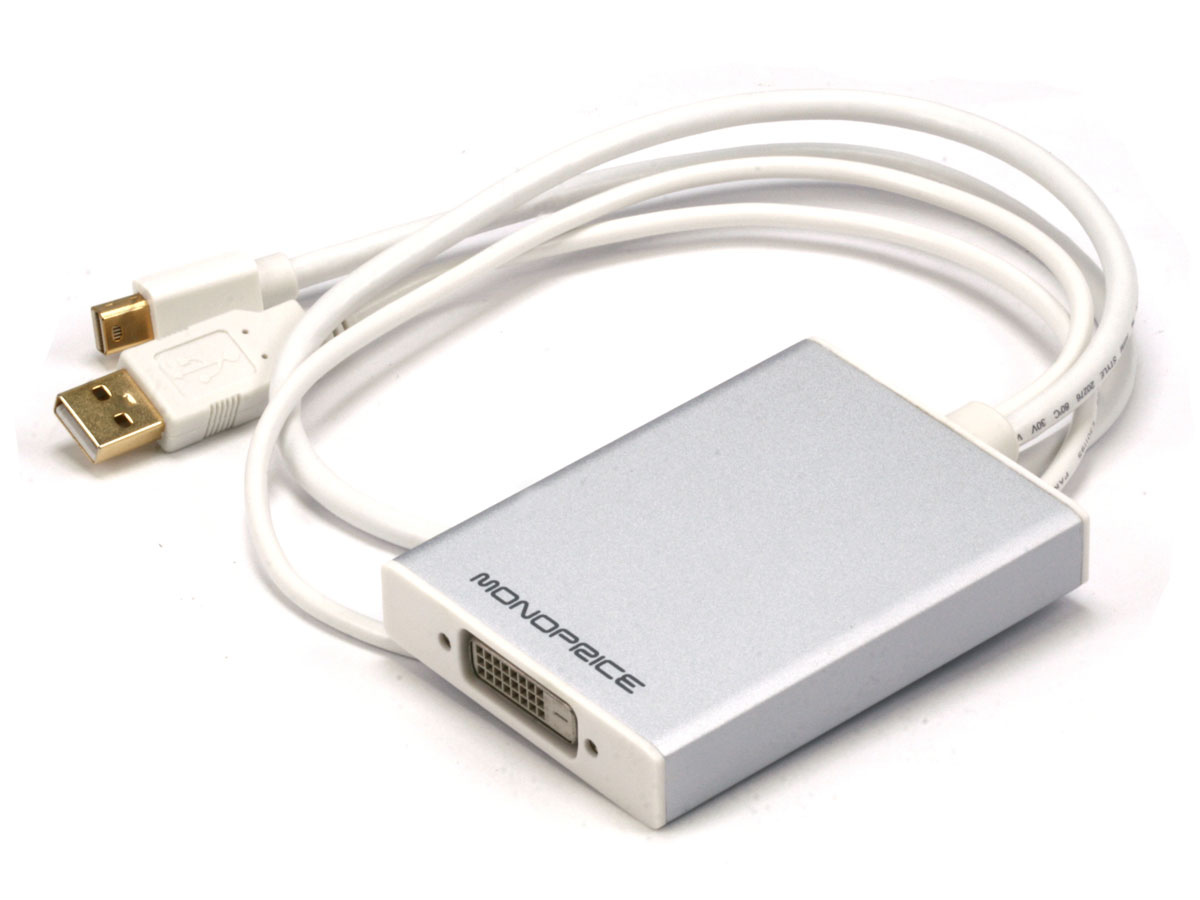

Mini DisplayPort + USB to Dual-Link DVI adapter from Monoprice
Mini DisplayPort to DVI adapter from Monoprice
Mini DisplayPort to VGA adapter from Monoprice
Mini DisplayPort to HDMI adapter from Monoprice
Mini Displayport Male and USB Male/Toslink Audio to HDMI Female Converting adapter from Monoprice
Mini Displayport Male and USB Male Audio to HDMI Female Converting adapter from Monoprice - *NOTE* Will only support 2 channel stereo. Will not support 5.1 Dolby Surround like the above adapter.

Mini DisplayPort to Mini DisplayPort Cables from Monoprice
Mini DisplayPort to VGA Cables from Monoprice
Mini DisplayPort to DVI Cables from Monoprice
Mini DisplayPort to HDMI Cables from Monoprice

Also of interest: "What is "Mini DisplayPort"? Is it an industry-standard? How is it different from or better than Mini-DVI and Micro-DVI?"

Nov 28, 2010
22,684
27
located
Thanx!

Im looking at the link you posted
the mono price MDP to Dual-Link DVI does not seem to have a USB input like the official mac one
do I need that for anything related to the monitor?
It does have a USB cable attached to it for the USB hub on the backside, though it has no USB port on the adapter like the Apple one.
It is called "Mini DisplayPort | Thunderbolt + USB to Dual-Link DVI Adapter"


Potatochobit

macrumors regular
Original poster
Apr 2, 2011
109
3
thanx for the help

Ive decided that instead of one 30" display
I am going to order two 24" displays 1920x1200 Dell U2410

do I need a third adapter/splitter to connect two DVI sources to the MDP?
or is this not possible?


alphaod

macrumors Core
Feb 9, 2008
22,164
1,209
NYC
No need any adapter. Just buy a miniDisplayPort to regular DisplayPort cable. The Dell U3011 has a DisplayPort input.

You cannot connect two monitors to your computer.


alphaod

macrumors Core
Feb 9, 2008
22,164
1,209
NYC
I thought one of the selling points behind display port was that you could daisy-chain?
No, the selling point of Thunderbolt is you can daisy chain, but that requires buying a Thunderbolt monitor, which is limited to one model only: the Apple Thunderbolt Display, but you can only daisy chain on a 15" or 17" MacBook Pro (the 13" you are limited to 2 monitors, be it 2 external displays or the built-in display with an external).

The OP's computer does not have Thunderbolt, so therefore this is a moot point.
