Late 2009 27" iMac SSD Optical Bay Question

Discussion in 'iMac' started by tsangstagangsta, Nov 30, 2011.

  1. tsangstagangsta macrumors newbie

    Joined:
    Nov 30, 2011
    #1
    Hey guys, I'm new to the forum and hoping to perform an upgrade by swapping my Optical Bay drive with an SSD on my late 2009 27" iMac

    here's what I think I know:

    - the optical Superdrive is 12.7mm
    - I must follow iFixit's Optical drive replacement instructions to replace it

    here's what I am having trouble with:

    - I recently ordered this optical bay caddy:
    http://www.ebay.com/itm/ws/eBayISAP...&ssPageName=ADME:X:RTQ:US:1123#ht_1780wt_1398
    on the advice of a member Zed X on these forums and it arrived today but I noticed there aren't any screw holes on the sides... should I be worried about not being able to screw it back into place (as the iFixit guide seems to suggest the Superdrive needs to be unscrewed out)

    Can I just tape the bay into the optical drive slot with electrical tape?

    I believe this optical caddy is 9.5mm, will that still fit okay?

    Did I make a mistake buying this cheap caddy or are all caddy's pretty much created equal (just two connectors in a piece of metal)?

    here is the original thread I found the information on:

    http://forums.macrumors.com/showthread.php?t=1159414

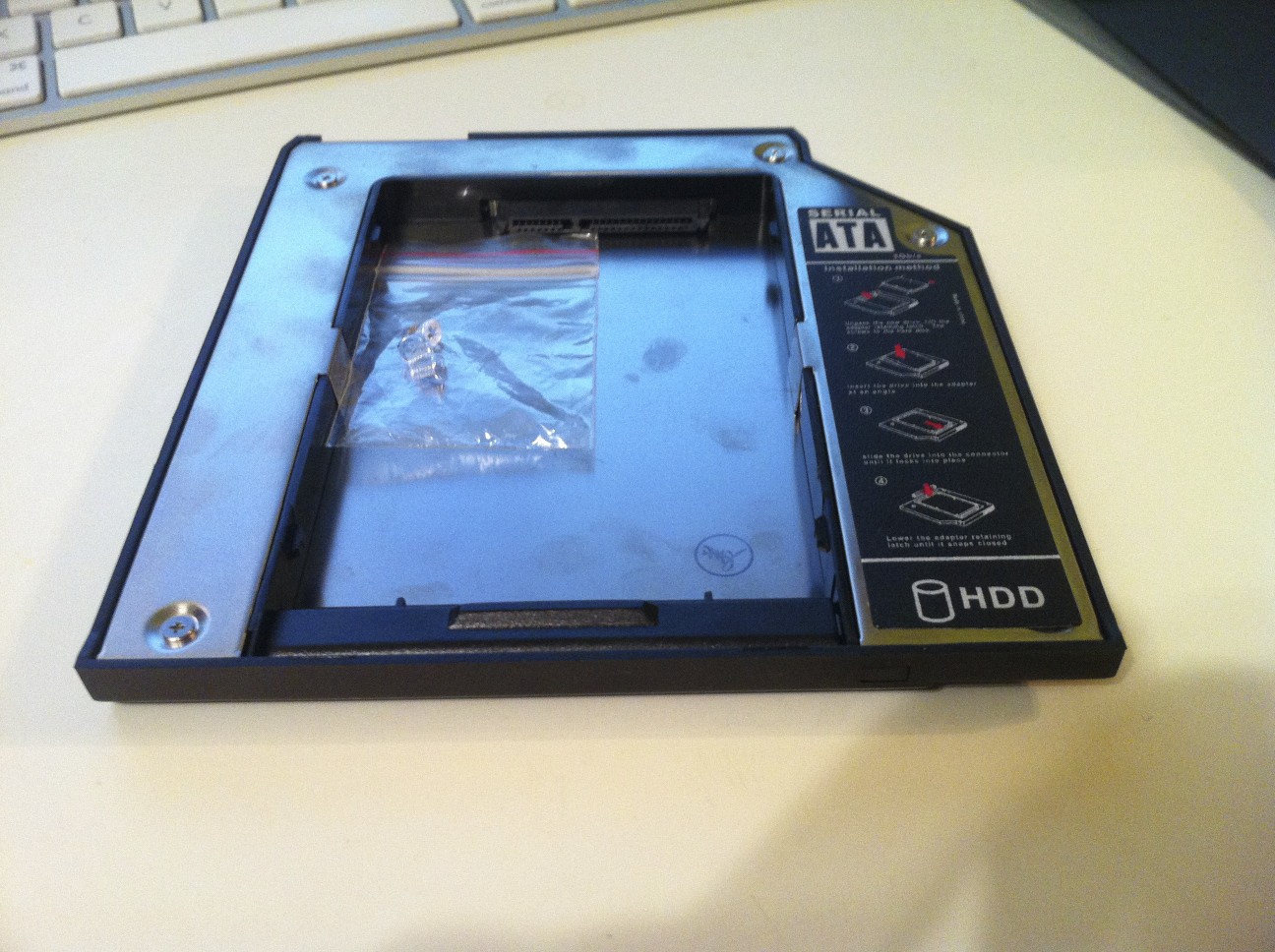

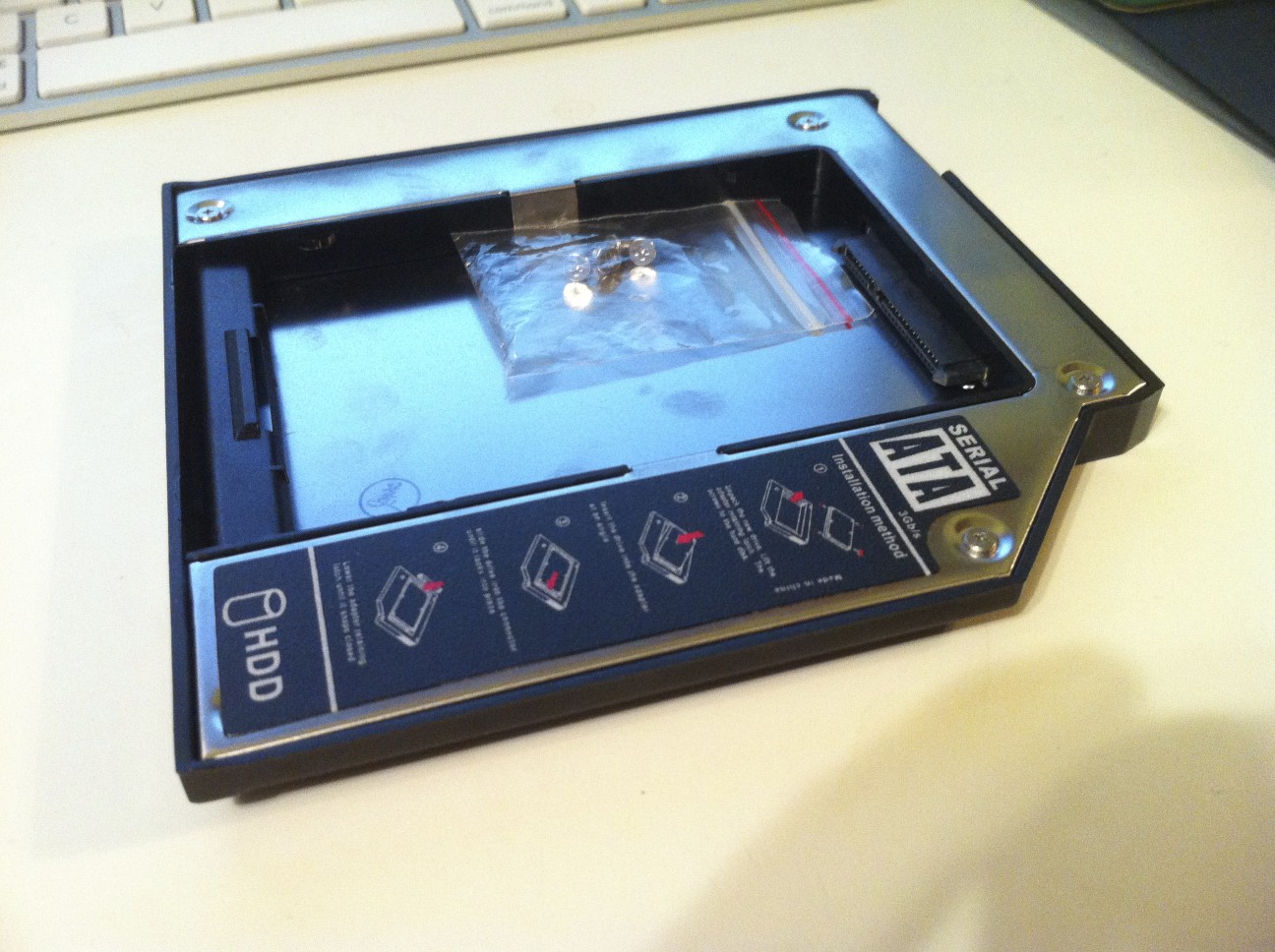

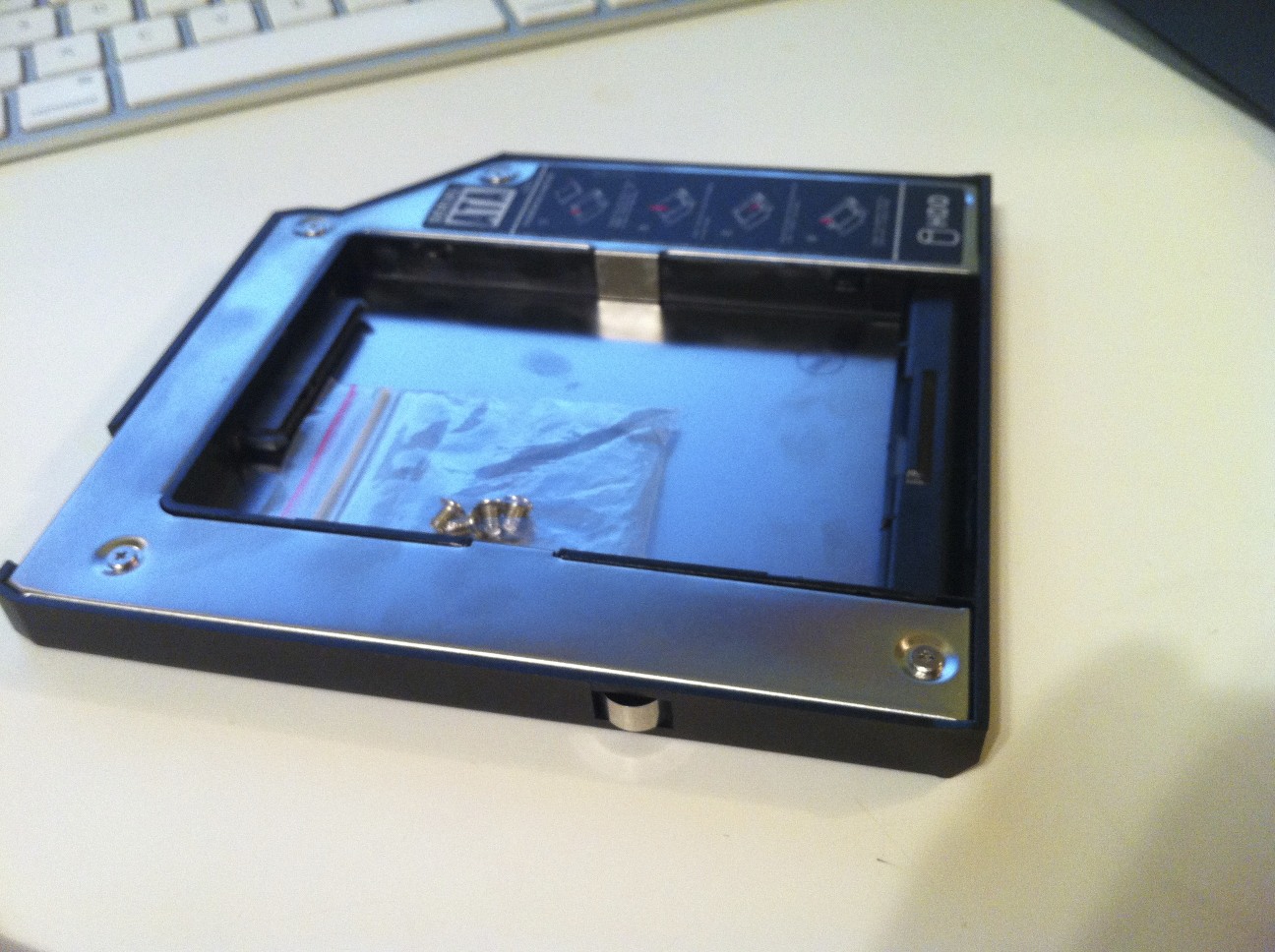

    If any recommendations for a good caddy are out there, I'm all ears, or if you think mine will work then please also let me know! Here are some images of my caddy:


    Attached Files:

  2. tnewson macrumors member

    Joined:
    Nov 15, 2011
    Location:
    London
    #2
    If that is the same auction which you ordered this from then I'm afraid that's a caddy for an IBM think pad. Which is probably why it has no
    Screws in the side.

    If the connector is SATA - Slimline Sata then you can most probably bodge it in.
