Late 2012 Mac Mini liquid intrusion

Discussion in 'Mac mini' started by snowtrooper1966, Feb 7, 2017.

  1. snowtrooper1966 macrumors regular

    snowtrooper1966

    Joined:
    Oct 13, 2011
    Location:
    Clarksburg, WV
    #1
    Son was at desktop using Mac Mini.
    Our toddler walked over with cup of apple juice and spilled it on desktop.
    Since the Mini was on, the internal cooling fan actually sucked in liquid.
    By the time I responded to calamity, I could hear the fan and liquid sloshing inside.
    Immediate power down and unplugging.
    Careful to keep the Mini level (so as not to have any liquid go deeper intrmeranlly) I took the bottom cover off, to my horror, it was completely overflowing.
    Holding it above my head to look up underneath, clearly liquid hade made it up and into the cooling fan and some dust was wet on the grill the holds the WiFi antenna.
    1st thought was to remove tha fan to dry/clean it and give entire unit the rice treatment, but further reflection had me wondering if I wanted to let apple juice dry on anything in there, and rice dust prolly not too good with mini internals....

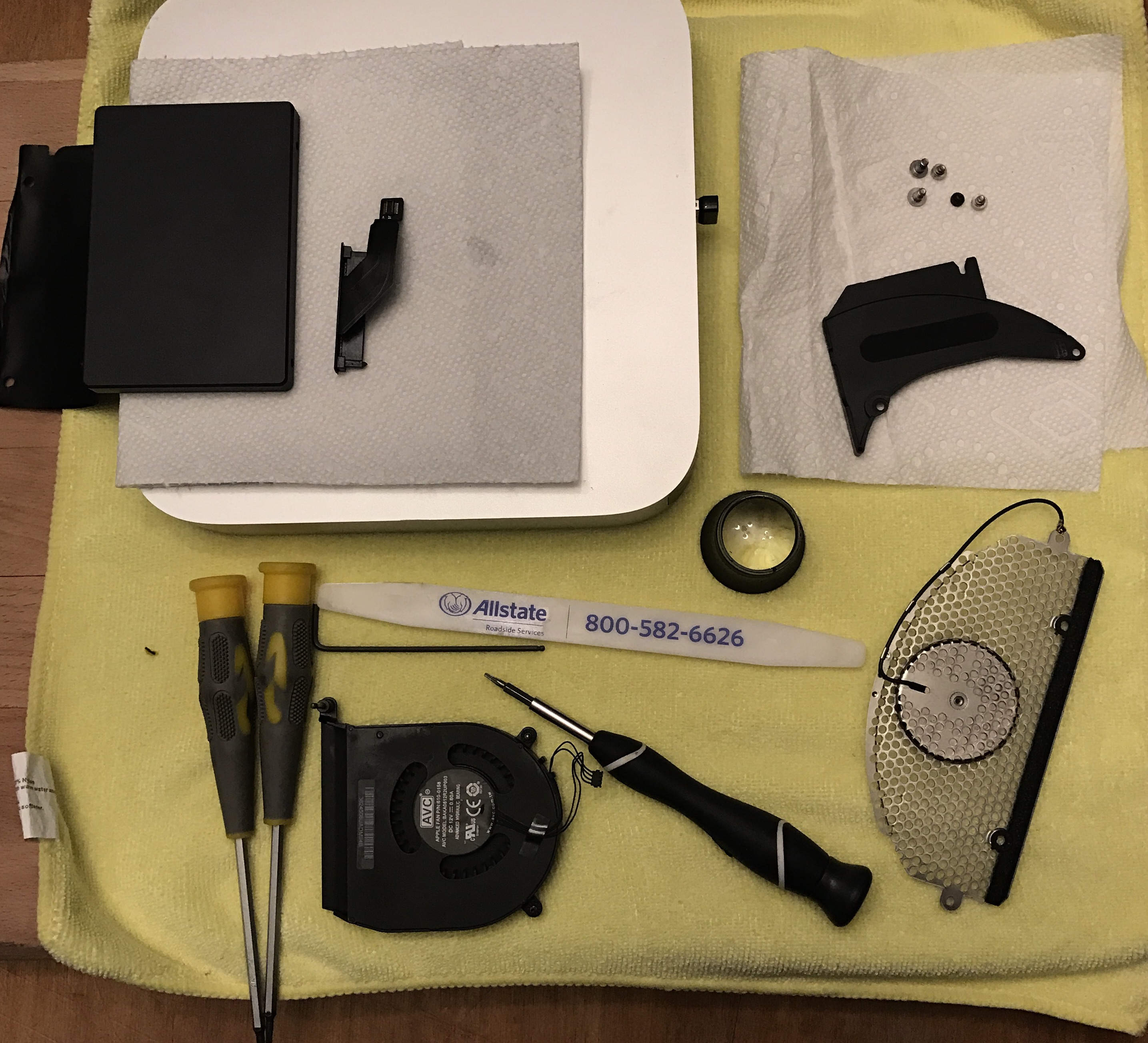

    Again, keeping it level, uninstalledn the fan, grill, and subsequently discovering dampness on the hardrive, removed that as well.

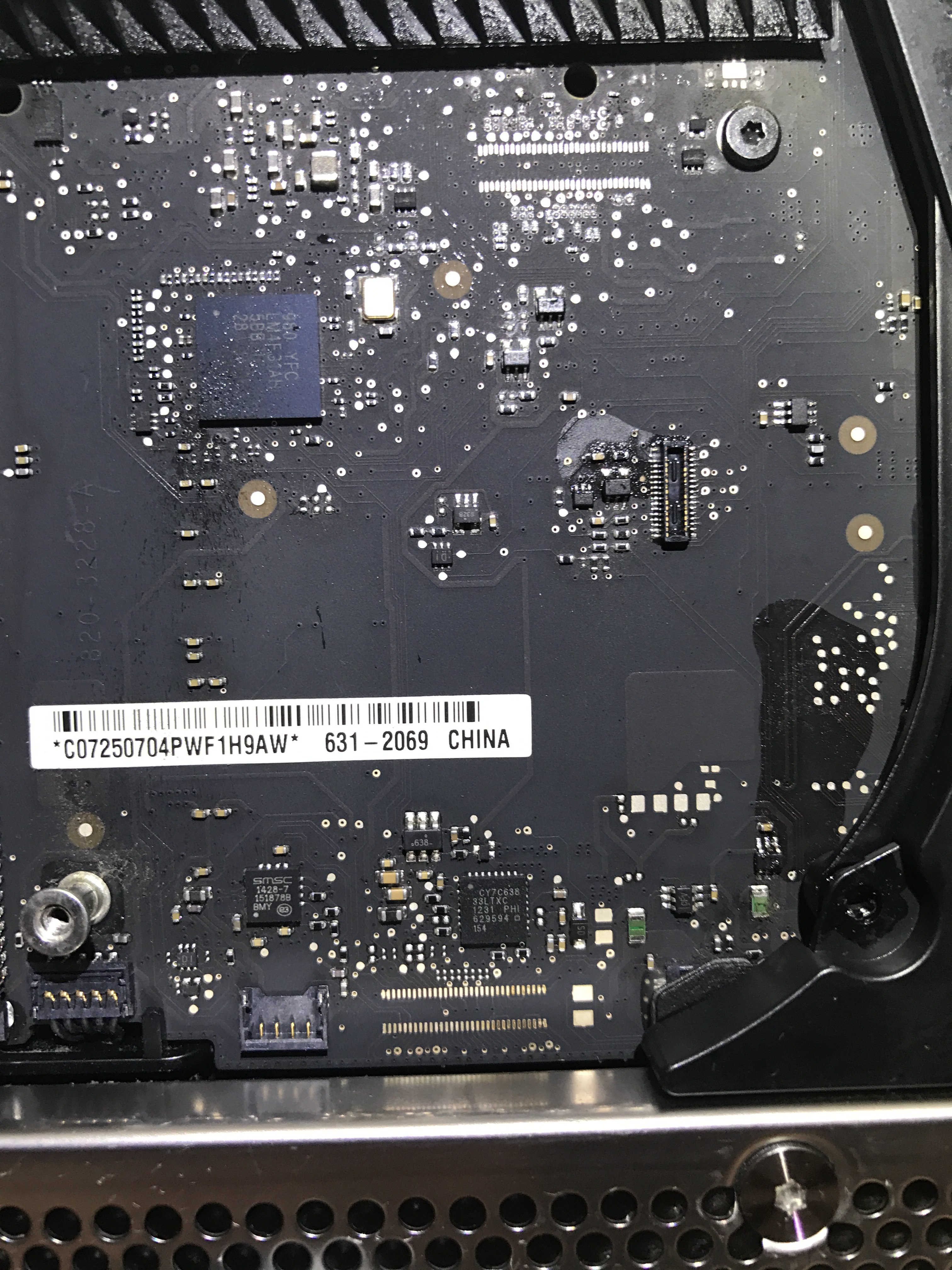

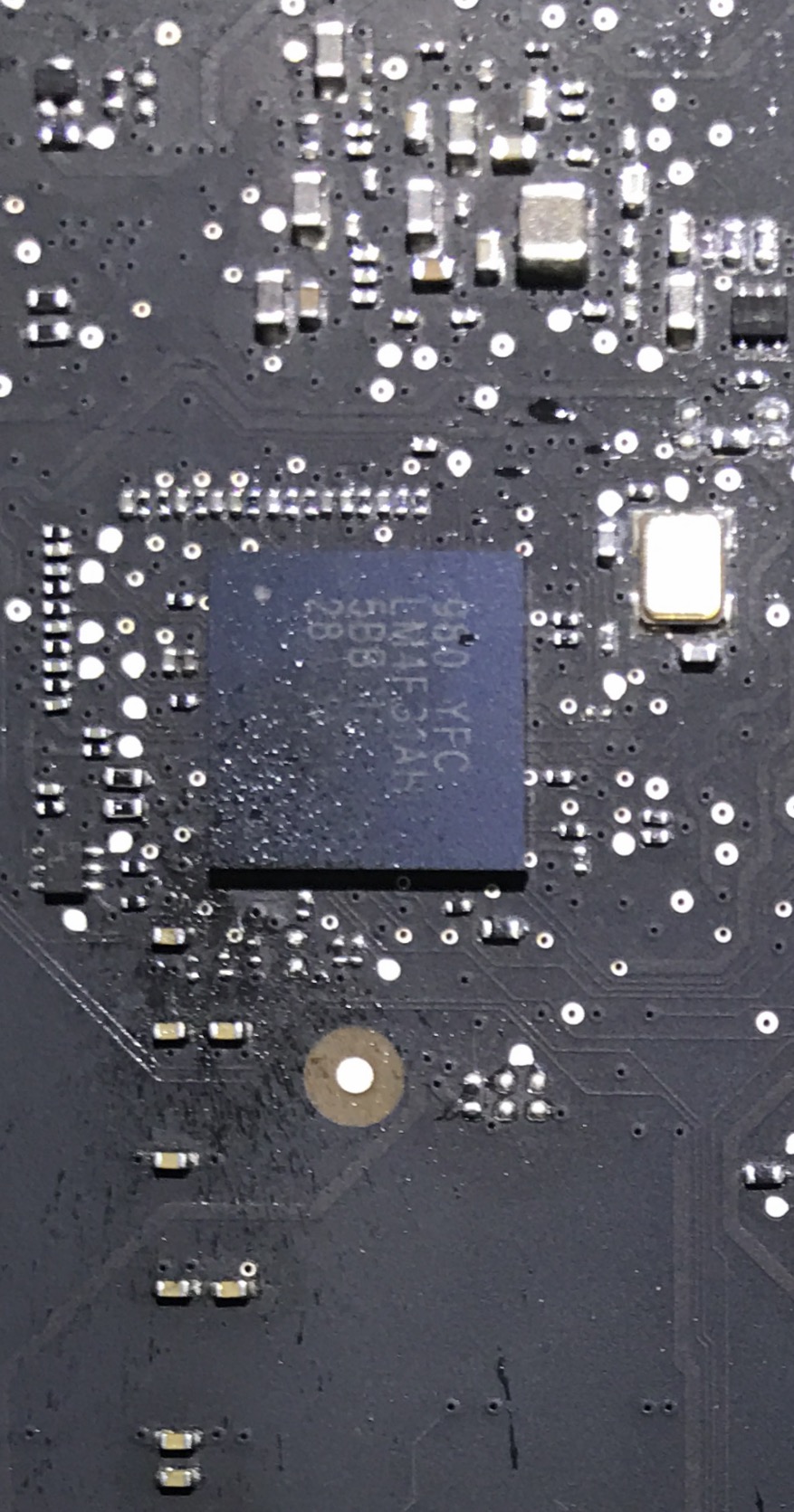

    Pix included show motherboard directly under cooling fan where it appears liquid was flung across some of the components.

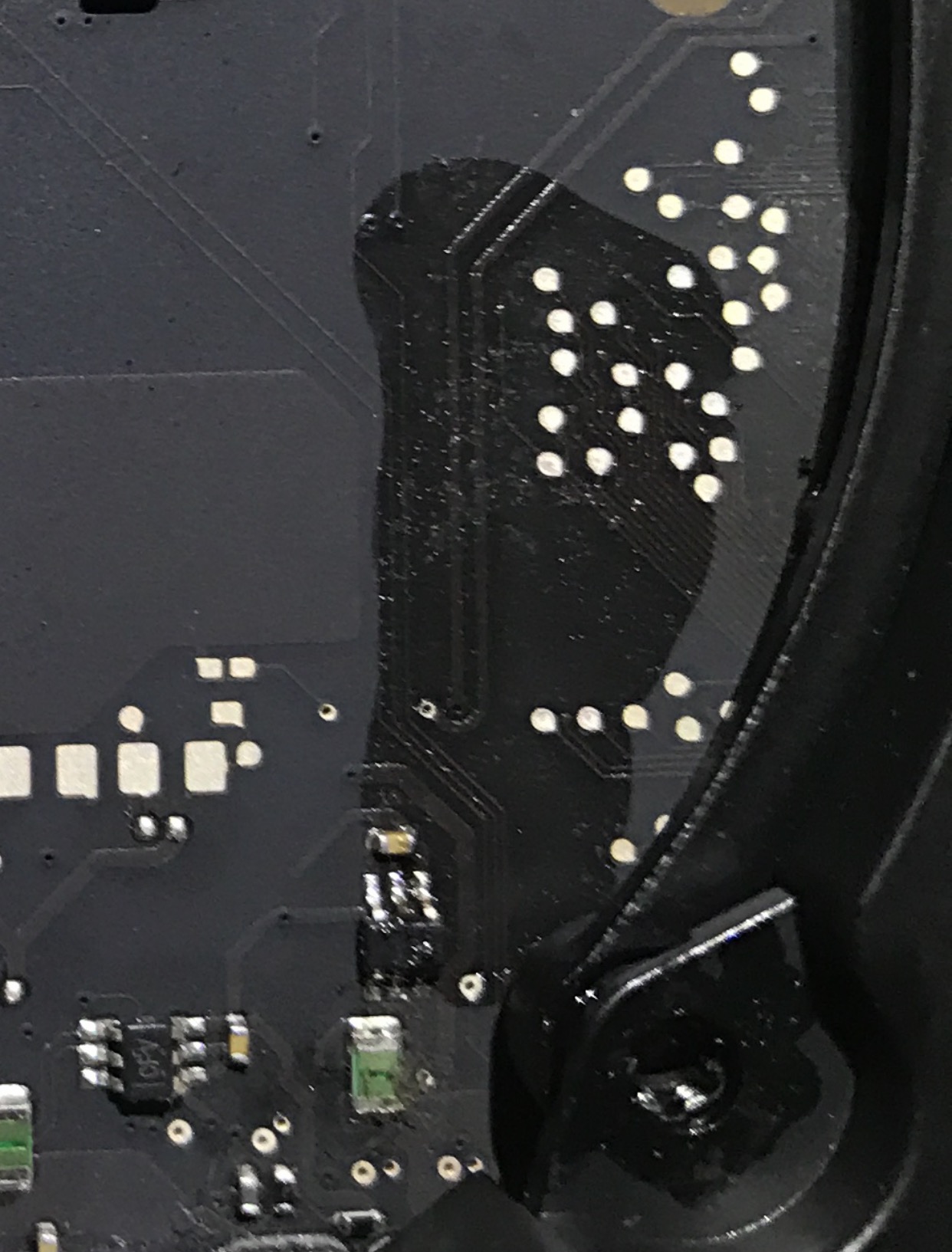

    Also anothe detail spot that looks leakproof and sticky.
    Took apart the SATA connector on the HD, some of the prongs were damp.
    Doused the fan and SATA connector with isopropyl and dried with light blasts of air.
    No liquid seems to have gone inside HD.
    My biggest concern is trying to clean (or even if I should) the 2 areas of the MB.
    Was thinking of a new tooth or other small detail brush, and isopropyl, but not sure that would sufficiently clean dried sugary apple juice residue.
    Any insight is greatly appreciated.

    --- Post Merged, Feb 7, 2017 ---
    --- Post Merged, Feb 7, 2017 ---
    --- Post Merged, Feb 7, 2017 ---

  2. Kaida macrumors regular

    Kaida

    Joined:
    May 28, 2016
    Location:
    Singapore
    #2
    I would use a toothbrush with isopropyl alcohol to brush it down.

  3. for this, Feb 8, 2017
    Last edited: Feb 8, 2017
  4. fischersd macrumors 68040

    fischersd

    Joined:
    Oct 23, 2014
    Location:
    Kitchener, Ontario, Canada
    #4
    For the system board (and any other circuit boards - such as the bottom of the spinning disk) - I'd use q-tips rather than a brush. You're just trying to get that sticky juice off. For the fan, maybe spray it with some windex / all purpose cleaner - use a can of compressed air to get it to circulate and dry out.

  5. flyinmac macrumors 68030

    flyinmac

    Joined:
    Sep 2, 2006
    Location:
    United States
    #5
    For circuit boards, they produce an electronic contact cleaner spray

    It is used to wash circuit boards and contacts. And it dries residue free.

    That is what I have always used when I'm washing a circuit board that is removed from the computer.

    I wouldn't use it on a hard drive though.

    Basically, you tilt the board, and spray lightly to let the board soak a minute. Then spray the board from top to bottom to flush away all dirt and contaminants. With the board tilted and working in a sweeping motion with the spray.

    Then tilt the board the other direction and repeat.

    I typically do both sides of a circuit board.

    Then let dry. Usually takes a couple minutes.

    But do keep in mind that this option does mean you will likely need to reapply any heat sink grease between and chips, CPUs, GPUs, etc.

    Be sure that any cleaner you use is safe on printed circuit boards, and contacts which may contain a residual minimal charge.

    It's been years since I've purchased any. But I used to get it at any electronics store that sold component parts like radio shack, jameco, jdr micro devices, etc.

    Or, you could do spot cleaning as others suggested.

  6. daflake macrumors 6502a

    Joined:
    Apr 8, 2008
    #6
    Avoid a brush and get come contact cleaner. Q-tips will work fine...

  7. snowtrooper1966 thread starter macrumors regular

    snowtrooper1966

    Joined:
    Oct 13, 2011
    Location:
    Clarksburg, WV
    #7
    Hmmm
    Did have a can of electrical contact cleaner in my hand at Home Depot today, but put it back since it dissipates so quickly and I need to agitate the surface where the sticky is, thinking a small artist paint brush would be gentle enough not to damage anything.
    Agree Q-tips would work well on the smooth chip surface and flat circuit board area, but would think the fibers would get pulled on the soldered areas/prongs...

  8. flyinmac macrumors 68030

    flyinmac

    Joined:
    Sep 2, 2006
    Location:
    United States
    #8
    Sounds like you have a good plan. And yes cotton fibers on q-tips would tend to get stuck on any raised or pointed tips like solder points.

  9. snowtrooper1966 thread starter macrumors regular

    snowtrooper1966

    Joined:
    Oct 13, 2011
    Location:
    Clarksburg, WV
    #9
    Small artist's brush, Q-tips, isopropyl and patience.

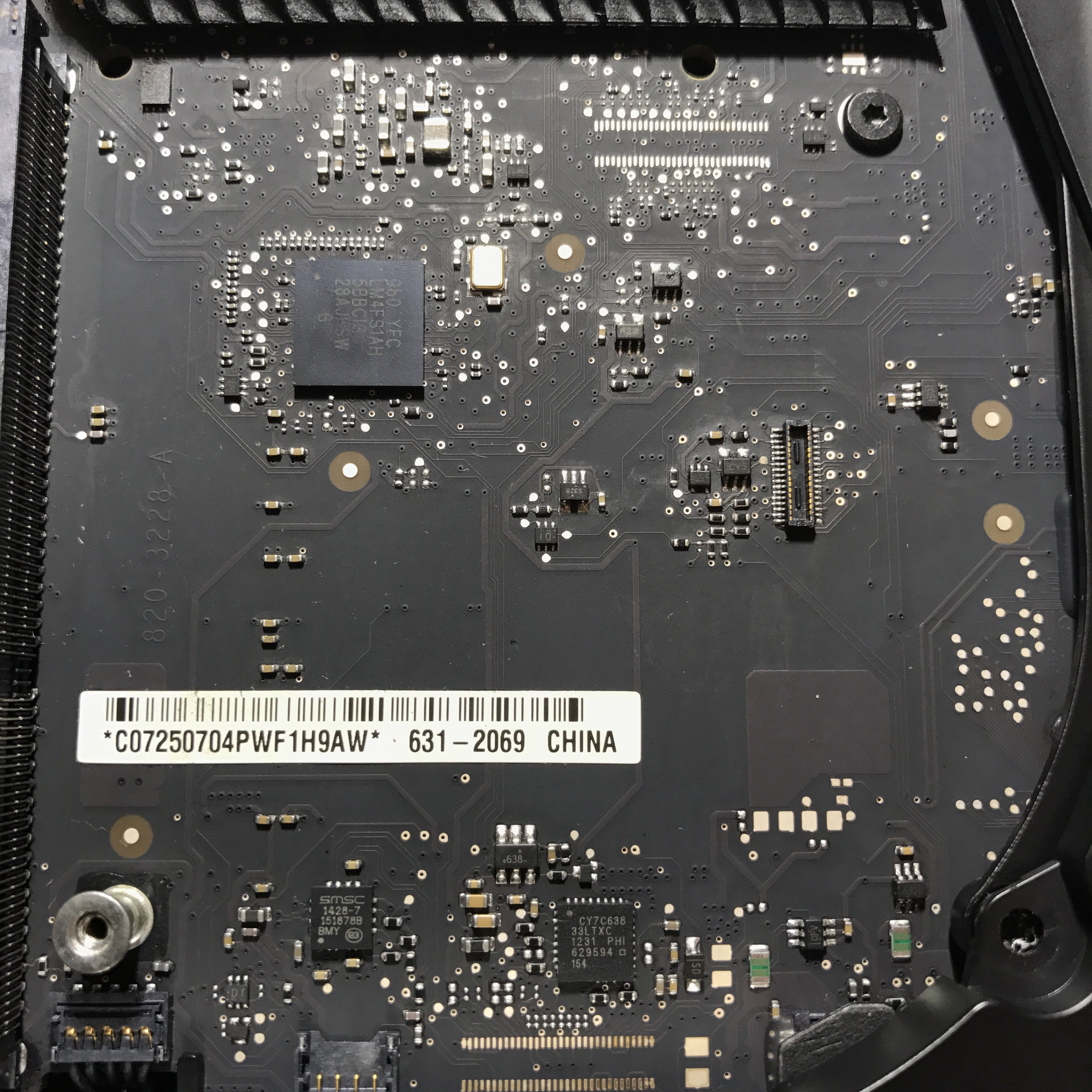

    Cleaned up nicely.
    Reassembled, fingers crossed.

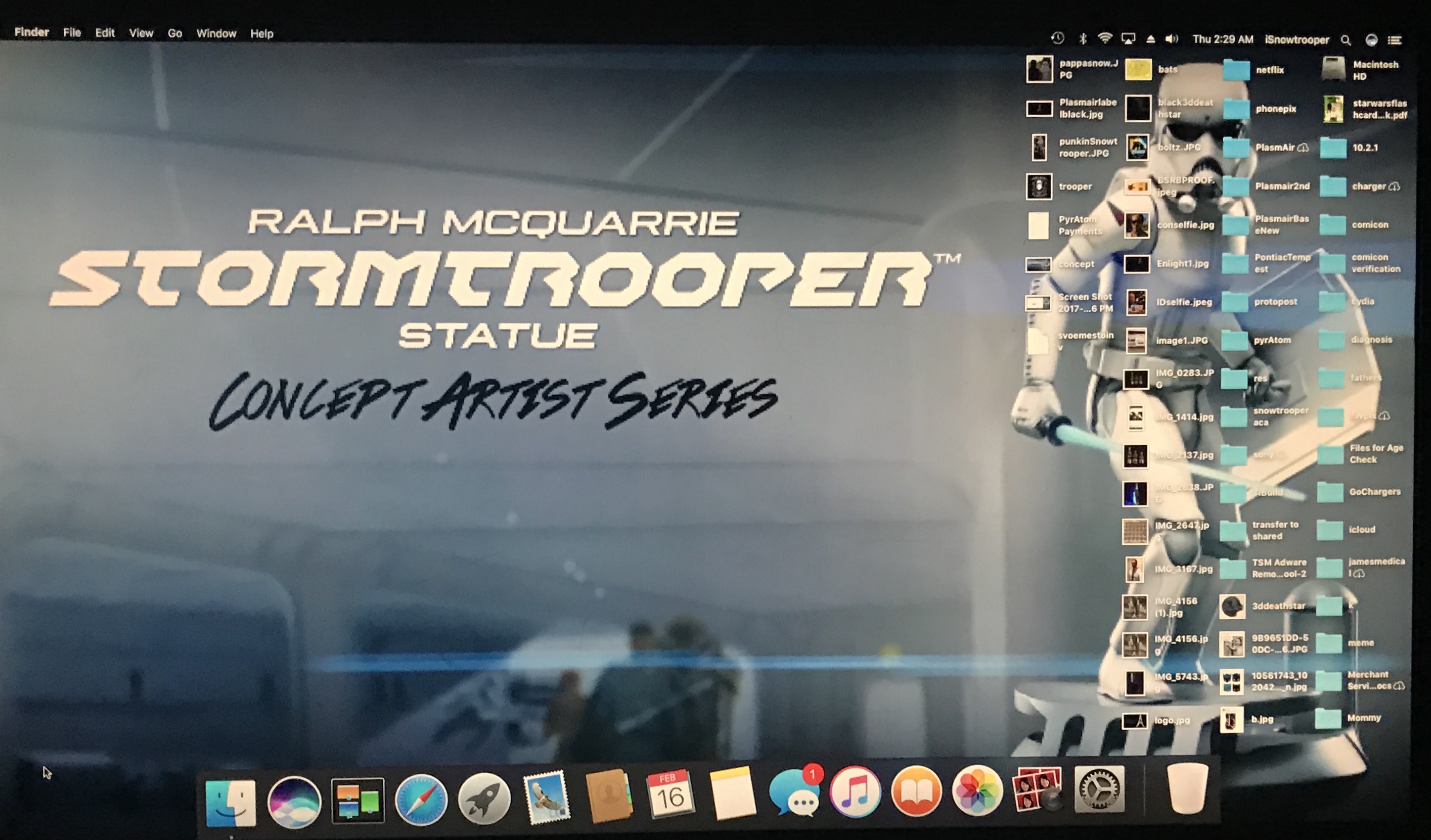

    Booted right up, back to same page as when I yanked the power.
    Incredible after taking a bath in Apple (yes, the irony is not lost on me) juice....
    Thanks for the support!



  10. flyinmac macrumors 68030

    flyinmac

    Joined:
    Sep 2, 2006
    Location:
    United States
    #10
    Glad it's working for you. And glad you were able to get it cleaned up.

  11. robotica macrumors 6502a

    robotica

    Joined:
    Jul 10, 2007
    Location:
    Edinburgh
    #11
    Good work!

    I was going to suggest you replace the psu, but it looks like you got away with it.

    However, I wouldn't recommend leaving it on unattended for a we while until you can be 100% there is no long term damage.

  12. snowtrooper1966 thread starter macrumors regular

    snowtrooper1966

    Joined:
    Oct 13, 2011
    Location:
    Clarksburg, WV
    #12
    Psu?

  13. robotica macrumors 6502a

    robotica

    Joined:
    Jul 10, 2007
    Location:
    Edinburgh
    #13
    Power supply unit :)

  14. snowtrooper1966 thread starter macrumors regular

    snowtrooper1966

    Joined:
    Oct 13, 2011
    Location:
    Clarksburg, WV
    #14
    Of course, should have googled it.
    Apologies for being lazy, the three kids tend to suck the sensibility out of my cranium by the end of the day....

  15. robotica macrumors 6502a

    robotica

    Joined:
    Jul 10, 2007
    Location:
    Edinburgh
    #15
    No worries dude :) good job in getting it all sorted.

  16. snowtrooper1966 thread starter macrumors regular

    snowtrooper1966

    Joined:
    Oct 13, 2011
    Location:
    Clarksburg, WV
    #16
    Did run the boot up hardware diagnostic tool, no issues found....
