late 2013 imac proccesor upgrade help

Discussion in 'iMac' started by rimom, Oct 6, 2017.

  1. rimom macrumors newbie

    rimom

    Joined:
    Oct 6, 2017
    #1
    Hi guys

    I had an entry i5 2.7 imac wich died on me , bought another motherboard late 2013 with 1gb vram wich is for custom builds ... seller told me that accepts i7 4770s my old i5 procc won.t fit so I guess is another socket

    can anyone please tel me what socket should I search for this proccesor and if anyone had any succes with other proccesor on this motherboard




    thank you

  2. Khaleal macrumors newbie

    Joined:
    Aug 24, 2013
    #2
    Your old CPU HAS to fit in the socket, otherwise, you've got the wrong motherboard.
    And yes, 21.5" iMac 2013 will take i7-4770s

  3. rimom thread starter macrumors newbie

    rimom

    Joined:
    Oct 6, 2017
    #3
    It doesn’t make any sense , how can I get the wrong motherboard ? everything fits in place and motherboard looks identical . as far as I can see on everymac site there is a 2013 21,5 “imac with i5 2.7 and there is another edition late 2013 with i7 4770s so maybe the switched proccesor types during that year.

    i just want to know what processors fits this motherboard ..the rest I can hadle
    is this late 2013 socket 1150 or 1155

  4. opeter macrumors 65816

    opeter

    Joined:
    Aug 5, 2007
    Location:
    Slovenia, EU
    #4
    Do you have the 27" iMac or the 21.5"? Because, if I remember correctly, some of the late-2013 models have soldered Haswell CPUs. At least the 21.5" models.

  5. rimom thread starter macrumors newbie

    rimom

    Joined:
    Oct 6, 2017
    #5
    it is a 21,5 “ , none of the boards have soldered cpu’s as I stated earier I allready tried swaping proccesor from one to the other , everymac says that the proccesor is slodered and gives no further details

  6. opeter macrumors 65816

    opeter

    Joined:
    Aug 5, 2007
    Location:
    Slovenia, EU
    #6
    You sure it is the late 2013 and not late 2012 logicboard?

    There is a post on iFixit:
    https://www.ifixit.com/Answers/View/195358/upgrade+i5+to+i7+processor

    As to the CPU's here is the breakdown for this system:
    22 nm, 64-bit "Fourth Generation" Intel Core i5/i7 "Haswell" processor LGA 1155 (Socket H2)

    - Core i5 3.2GHz (I5-4570)
    - Core i5 3.4GHz (I5-4670)
    - Core i7 3.5GHz (I7-4771)

  7. rimom thread starter macrumors newbie

    rimom

    Joined:
    Oct 6, 2017
    #7
    3B0894FD-F348-499C-A1F0-970E2075319D.jpeg the link is for the 27”

    I am asking for the 21,5 2013

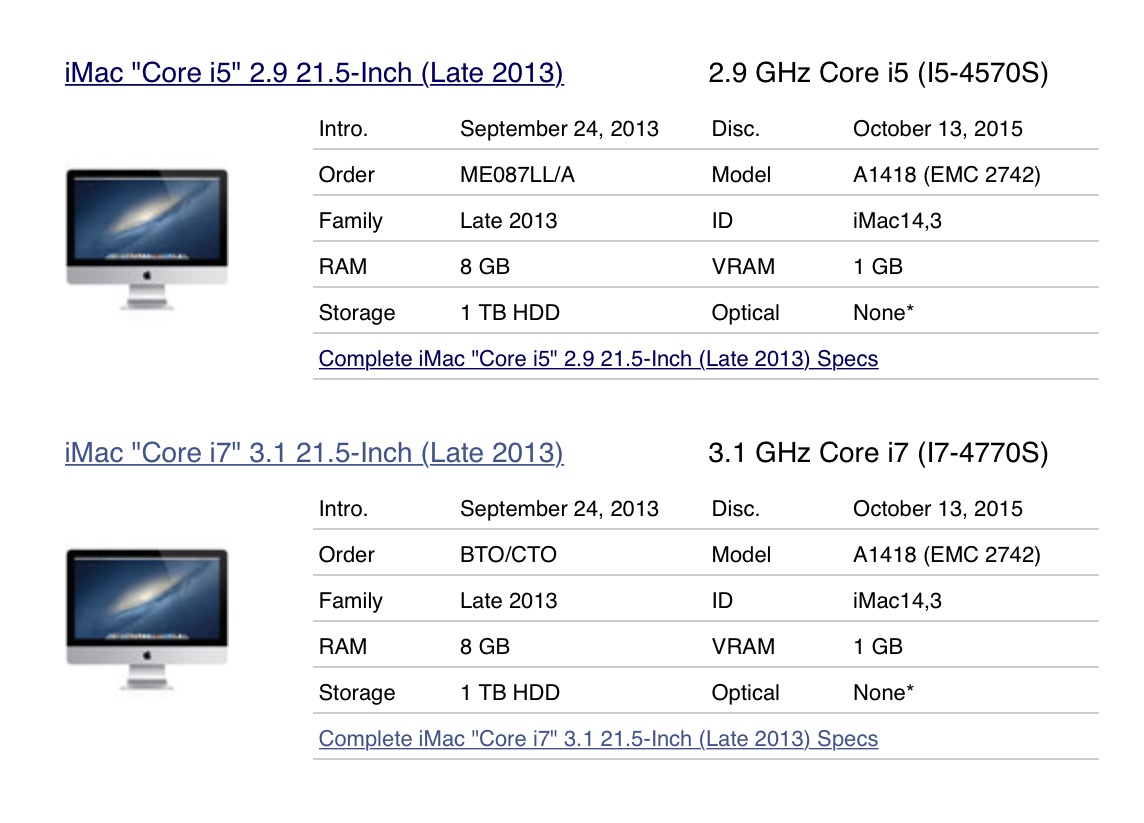

    found this on everymac and i’m 99% this is the board but proccesor not soldered

  8. opeter, Oct 7, 2017
    Last edited: Oct 7, 2017

    opeter macrumors 65816

    opeter

    Joined:
    Aug 5, 2007
    Location:
    Slovenia, EU
    #8

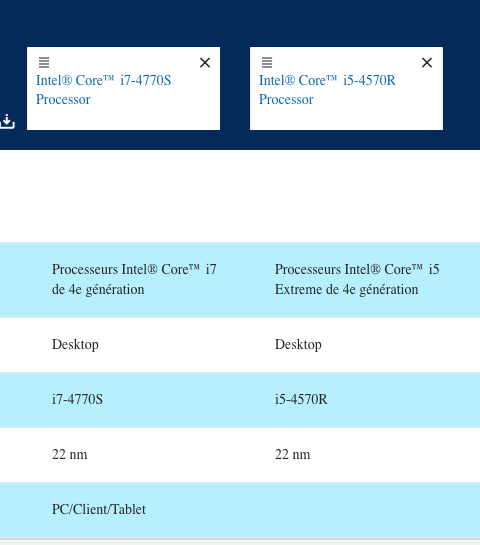

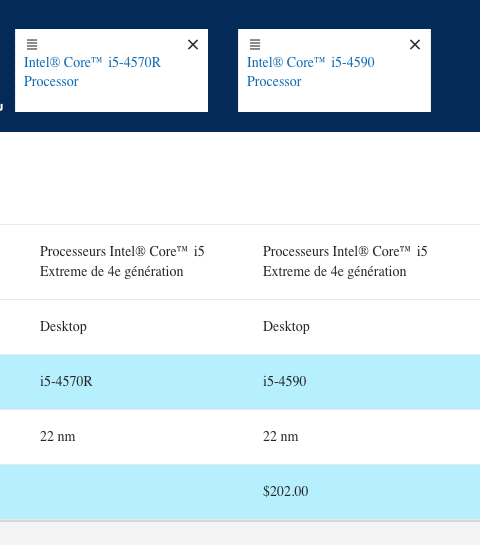

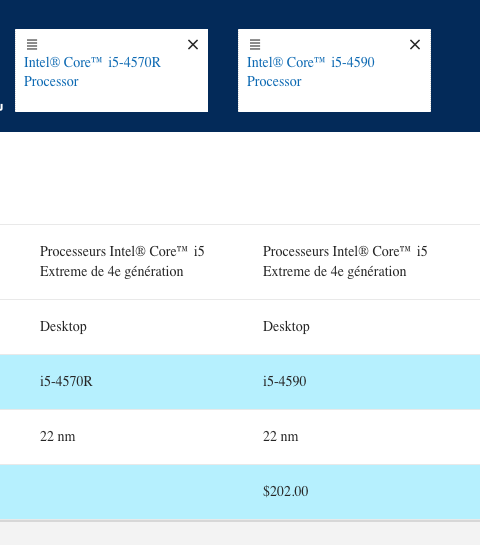

    Ah, OK. The soldered CPU is for example the 4570R or any other version, that has the Iris Pro integrated GPU.

    https://www.macrumors.com/2013/09/25/ifixit-tears-down-new-imacs-finds-soldered-cpu-on-21-5-model/

    EDIT: Sorry, the same is written for the 4570S model. Look:

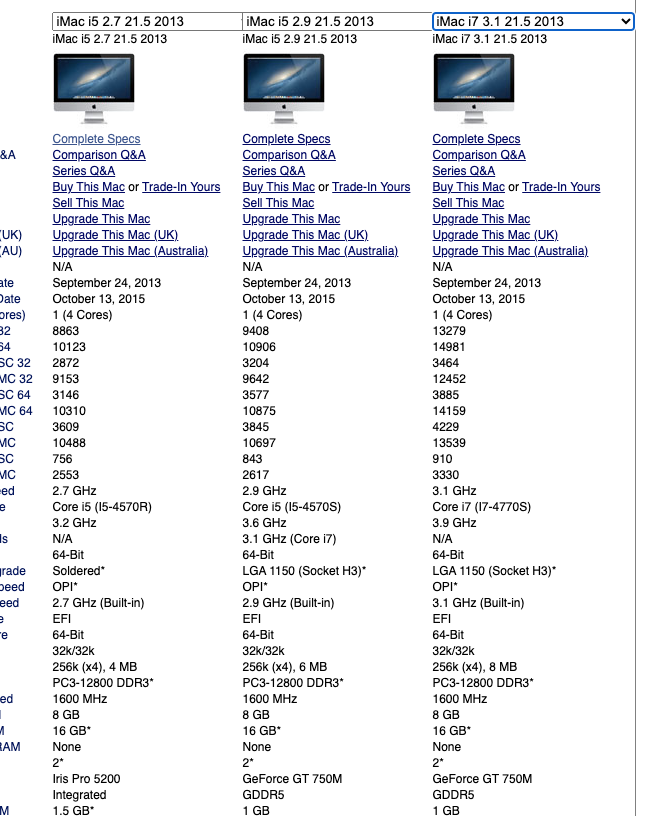

    Apple iMac "Core i5" 2.9 21.5-Inch (Late 2013) Specs

    EDIT2: for every 21.5-inch Late 2013 iMac models, there is only one info for the CPU -> "soldered"
    https://everymac.com/systems/by_year/macs-released-in-2013.html

    --- Post Merged, Oct 7, 2017 ---
    I am asking you once again: are you sure, you have a late 2013, 21.5-inch iMac logicboard in front of you?

    Could you please share you Abour this Mac screen?

  9. nambuccaheadsau macrumors 6502a

    nambuccaheadsau

    Joined:
    Oct 19, 2007
    Location:
    Nambucca Heads Australia
    #9
    Mactracker also advises the late 2013 21/.5" iMac has a soldered CPU. What does Apple System profiler (Aboiut this Mac) say for the model number under Hardware Review? The 2012 and late 2013 iMac use different video cards. It is possible you did purchase it in late 2013 and still be the 2012 model.

    The 2013 has either an Intel Iris Pro 5200 or NVIDIA GeForce GT 750M.

  10. rimom thread starter macrumors newbie

    rimom

    Joined:
    Oct 6, 2017
    #10
    guys, I am not shure that you understood the situation so I try to. rbeak it down for you

    I have a 21,5 imac i5 2,7 with a defective motherboard , I bought a new motherboard from ebay and it was advertised that it is a custom board made to order and it will take the i7 4770s 3.1 proccesor

    I tried putting the 2.7 i5 from my broken board but it does not fit

    from what i understand my broken imac has a ivybridge socket 1155 and into the new board I need to put haswell , what socket is that ? 1150?


    so I just want to know what proccesor fits the new board wich is a custom late 2013 with 1gb vram

  11. opeter macrumors 65816

    opeter

    Joined:
    Aug 5, 2007
    Location:
    Slovenia, EU
    #11

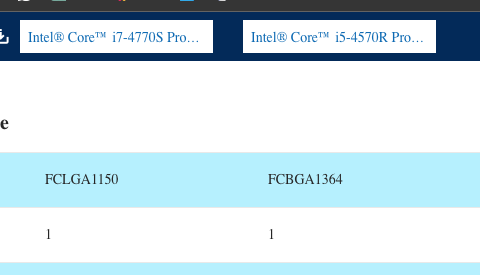

    Haswell is Socket LGA 1150
    Ivy Bridge is Socket LGA 1155

  12. Khaleal macrumors newbie

    Joined:
    Aug 24, 2013
    #12
    iMac Late 2013 - Haswell LGA 1150
    iMac Late 2012 - Ivy Bridge LGA 1155
    If you have Ivy Bridge then you have a late 2012 not late 2013
