LCD replacement went bad..

Discussion in 'MacBook Pro' started by omkarenator, Jul 24, 2013.

  1. omkarenator, Jul 24, 2013
    Last edited: Jul 24, 2013

    omkarenator macrumors newbie

    Joined:
    Jul 24, 2013
    #1
    Found below exact same issue on my Macbook Pro 13" (mid 2010)

    http://www.ifixit.com/Answers/View/...s+a+dark+pattern+on+bottom+edge+of+the+screen

    I ordered and installed a new LCD (from ifixit.com) following the instructions manual. However the new screen did not work on the first attempt. Suspecting a faulty part, I re-installed my original screen to confirm. This time however I smelled something burning from the LVDS connector's end towards the logic board. I immediately disconnected the battery and everything stopped. I see the plastic on the clip/hook on the connector little burnt. Also there is tiny spot on the socket. I immediately disconnected the cable from both ends and tested the computer on an external monitor. It worked fine. I booted into the OS and did a proper shutdown. So I think I haven't damaged anything vital on the logic board (i guess, please confirm).

    At this point, would replacing the LVDS cable solve my problem?

    Is there any chance that I might have damaged either or both the LCDs (new and old) during this? There is no way for me to test that now without the cable.

    Close examination shows that, the LVDS socket shorted with the LVDS connector's bracket. The plastic flap on the bracket got burnt. I see the insulation on 2/3 pins of the socket burnt out, exposing the pins. Is there any way I can verify that there is no damage from the socket side? I'm thinking and replacing the LVDS cable.

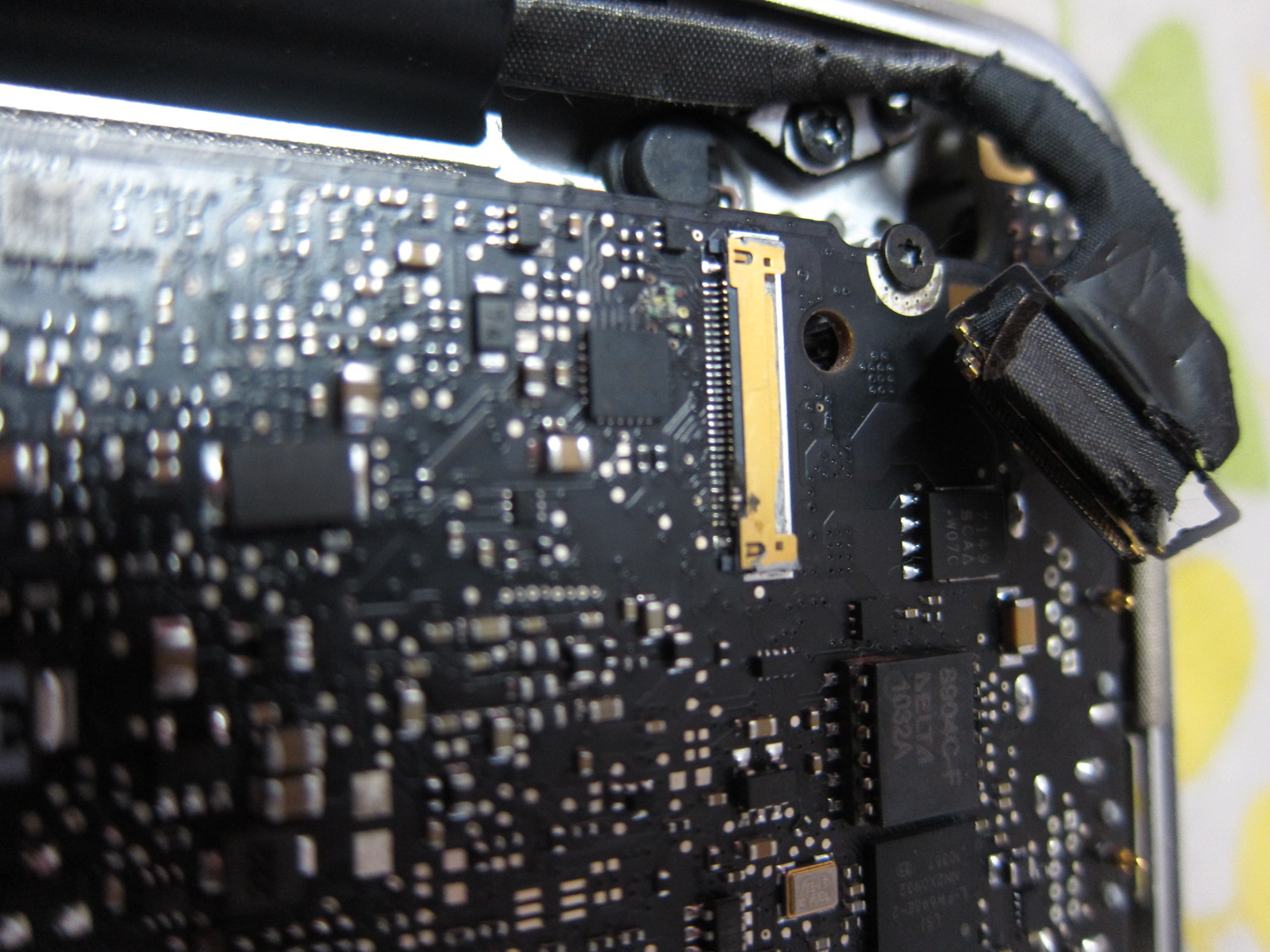

    Edit: attaching a picture showing the damage to the socket


    Attached Files:

  2. nickandre21 macrumors 6502a

    Joined:
    Jun 21, 2012
    #2
    my friend had replaced the display himself and the lvds socket shorted frying a component near the socket he now uses the laptop on an external monitor.
    Check and see if anything appears burnt around the connector if not you can replace the socket and see how it works.
    Was the cable fitted properly?

  3. omkarenator thread starter macrumors newbie

    Joined:
    Jul 24, 2013
    #3
    I don't see anything burnt around the socket. But the pins on the socket have a kind of insulating layer on top just where they come out of the socket. The layer is burnt out and 2/3 pins are exposed. I think thats where they had a contact with the connector's bracket.

    yes the cable fitted properly.

  4. nickandre21 macrumors 6502a

    Joined:
    Jun 21, 2012
    #4
    In that case replace the socket hope that's the only thing gone. Ensure that the pins on the cable on the replacement display are fine.

  5. omkarenator thread starter macrumors newbie

    Joined:
    Jul 24, 2013
    #5
    I think it involves soldering tiny pins and I don't have any experience of it. Are there any diagnostics I could do to confirm that everything on the socket side is fine and just replace the cable?

  6. nickandre21 macrumors 6502a

    Joined:
    Jun 21, 2012
    #6
    well your cable looks burnt as well, i could be wrong but the only way to check the cable would be to test it on a working logic board unless you do know about electronics and taking a reading.
    My suggestion would be to have someone with experience on macs and carries out board level repairs to have a look at it.

    Maybe this thread could be of help to you.
    http://forums.macrumors.com/showthread.php?t=972699

  7. omkarenator thread starter macrumors newbie

    Joined:
    Jul 24, 2013
    #7
    thanks. Have been reading up on that thread for couple days now.. Now just have to get Dadioh's attention to this thread :)

    also I'm more concerned with the safety of the logic board and LVDS socket than the cable which I'll have to replace anyway.

  8. nickandre21 macrumors 6502a

    Joined:
    Jun 21, 2012
    #8
    yeah if you would've asked me to test the display i would just chicken out, what if a perfectly good board goes kaput :eek: anyways all the best and do update when you get some positive.
