LG GGC-H20LI Blu-Ray/HD-DVD drive install?

Discussion in 'Mac Pro' started by janstett, Nov 1, 2007.

  1. janstett macrumors 65816

    Joined:
    Jan 13, 2006
    Location:
    Chester, NJ
    #1
    LG's combo Blu-Ray & HD-DVD player has hit the streets at a price of $299. I'm thinking of adding one to my Mac Pro but first some questions:

    (1) DVD player has an HD tab now with Leopard -- has anybody played either Blu-Ray or HD-DVD on Leopard? Not much use in buying the drive if I can't play anything back on it.

    (2) The specs say this is a SATA device. I've never seen a SATA CD-ROM before -- any issues plugging this into bay 2 of my Mac Pro? I'm assuming the existing super drive is ATA.

  2. tcbluejayfan macrumors newbie

    Joined:
    Aug 11, 2007
    Location:
    Ohio
    #2
    i dont know about the playing capabilities of leopard yet, but if it says its only SATA then you will need to either have built is SATA or a SATA card, since SATA is different than IDE.

  3. janstett thread starter macrumors 65816

    Joined:
    Jan 13, 2006
    Location:
    Chester, NJ
    #3
    The Mac Pro does have SATA (all four hard drive bays are SATA) but the question is about the optical drive bays. I think they're only equipped for ATA/IDE but I can't recall for sure from the last time I cracked open the case.

    I may do it through USB/eSata but I'd prefer the drive to be internal.

    EDIT: Double checked the Mac Pro manual online, unfortunately the optical drives are ATA/IDE so this new drive won't work on the Mac Pro (dammit).

    I think the motherboard has 4 SATA ports and they're all used by the internal disk cage so that's not an option.

    Not looking good :( I'll live with e-sata or USB in an external case, so the question of DVD player is still open.

  4. iPhil macrumors 68040

    iPhil

    #4

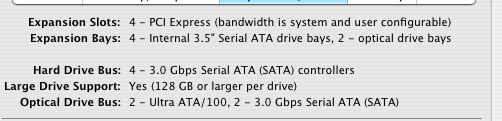

    This info is from Apple system spec app edit : Pic thats from MP spec screen


    Attached Files:

  5. slicedbread macrumors regular

    Joined:
    Nov 5, 2006
    #5
    I think the mac pro actually has 6 sata ports on the motherboard. However there are only 4 located behind the hard drive racks. And the cd/DVD drives have the pata connectors behind. The 2 extra sata ports are located somewhere else and are hard to route to the DVD bays.

  6. rhildinger macrumors member

    Joined:
    Oct 11, 2006
    #6
    There have been several people in these forums who have installed SATA optical drives in the Mac Pro. It's actually very easy as long as you haven't used all the hard drive bay ports. Search the forums for pioneer drive install and you'll probably find the answers you need. There's absolutely no reason why you couldn't put the LG HD-DVD/BluRay drive in the Mac Pro.

    -Robert

  7. JesterJJZ macrumors 68020

    JesterJJZ

    Joined:
    Jul 21, 2004
    #7
    Hard or impossible?

  8. khoang macrumors newbie

    Joined:
    Jan 11, 2008
    #8
    I've installed the LG blue-ray/HD-DVD writer

    It works fine. You need small hands to route the cable but not impossible. I can send pictures if you'd like. Works fine on Mac for burning. Haven't been able to get my Bootcamp Vista 64 to see it though for some reason.

    Ken

  9. viltsu macrumors member

    Joined:
    Oct 4, 2007
    #9
    Could you put the pictures in this thread? That would make installing process of blu-ray device easier!

    Thanks in advance!

  10. janstett thread starter macrumors 65816

    Joined:
    Jan 13, 2006
    Location:
    Chester, NJ
    #10
    Update: I got my hands on an extrnal sata to USB case. I was disappointed to see leopard didn't do anything with either HD-DVD or Blu-ray even though it could see the drive and read discs.

    Not too long after, my wife told me she needed a new pc for her business so I gave her my old home theater pc which I stopped using in favor of hd discs on the consoles. I replaced it with a quad core Gateway I got for $750 and put the combo drive in there. With PowerDVD it plays both formats and decodes to six analog output audio.

    Now that hd-DVD is dead I may get a Blu-ray burner for my Mac depending on playback and what happens at Macworld.

    But anyway, glad it can be done, thanks.

    It just irks me that to play discs I have to go with a pc.

  11. AdvocateUK macrumors regular

    AdvocateUK

    Joined:
    Jan 10, 2008
    Location:
    Billingham, United Kingdom
    #11
    From what I've read the extra two sata connectors are actually quite easy to get to, you just need an sata cable that has one of the 90 degree connectors on one end.

  12. Eidorian macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #12
    SATA cables here on NewEgg. I doubt it would need to be very long but there are a wide variety that have 90 degree connectors.

  13. khoang macrumors newbie

    Joined:
    Jan 11, 2008
    #13

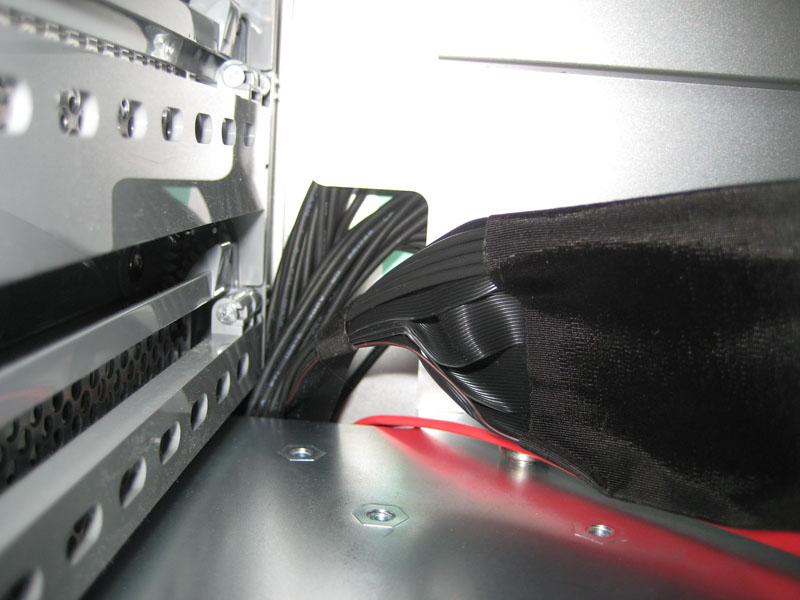

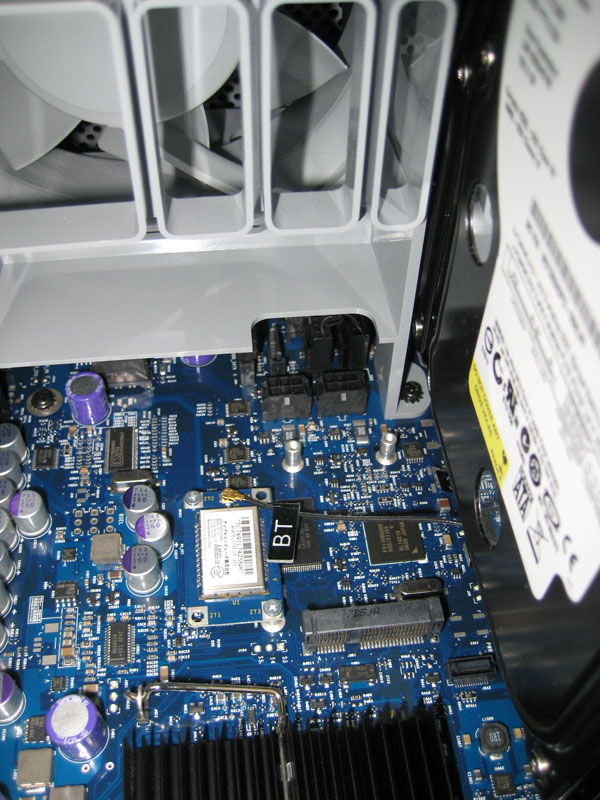

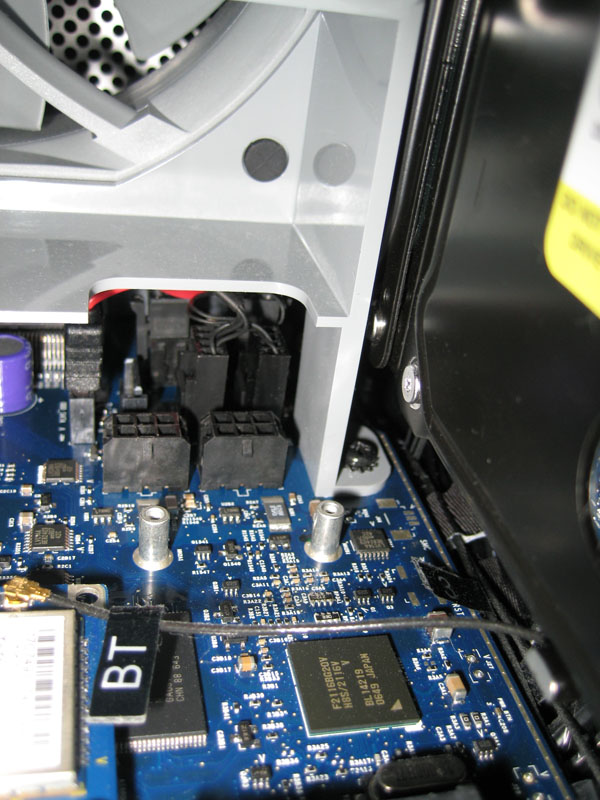

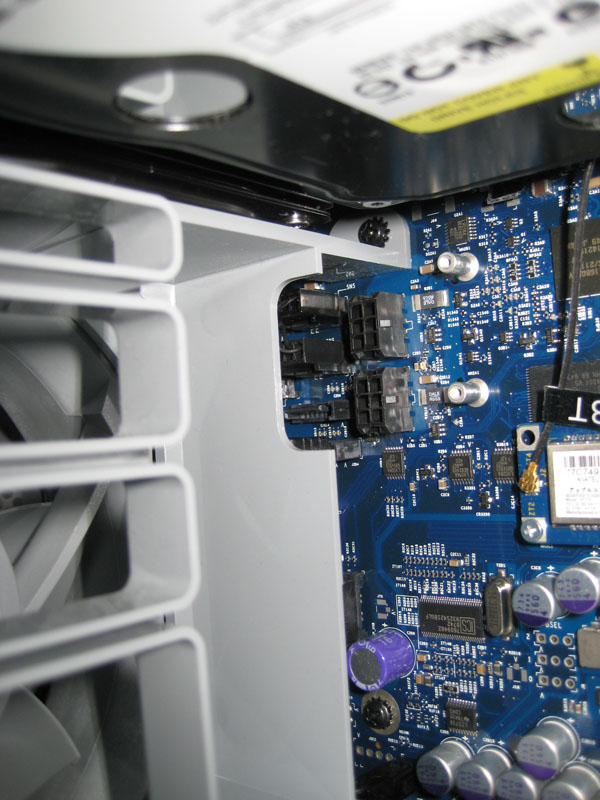

    Here you go. Hope this helps. This is on a new 2.8GHz Mac Pro.

    Ken


    Attached Files:

  14. viltsu macrumors member

    Joined:
    Oct 4, 2007
  15. Dark Dragoon macrumors 6502a

    Dark Dragoon

    Joined:
    Jul 28, 2006
    Location:
    UK
    #15
    If you want to use two SATA drives and 90 degree connectors, make sure you buy one 270 degree and one 90 degree otherwise they don't fit. Also make sure to buy cables which are long enough, I tried with 50cm cables first and they were just a bit too short.

  16. pkoch1 macrumors 6502a

    pkoch1

    Joined:
    Oct 3, 2007
    Location:
    Boston
    #16
    DVD Player

    This is from DVD Player Help regarding playing HD DVDs

    That would explain why there is mention of HD in DVD Player.

  17. kskaggs macrumors newbie

    Joined:
    Jan 21, 2008
    #17
    Blu-ray burning

    Thanks for the picts. Installed my LG GGW-H20L with a 90 degree Sata cable and actually just broke off a little bit of the plastic above the ports for easier access. Now the Mac Pro recognizes the drive and recognizes discs when I insert them but I can only burn regular discs and not BD-R or BD-RE. Could this be a media brand problem? What brand are you using? I have tried Verbatim BD-RE and Panasonic BD-R. Mac Pro 2 x 2.66 Ghz Dual Core Intel Xeon OSX Sever 10.1.11. Any tips appreciated. Thanks in advance.....K

  18. Rad macrumors regular

    Joined:
    Aug 8, 2006
    #18
    Burning software?

    Are you using Toast (which is supposed to support Blu Ray recording) or directly burning from the finder?
    Where did you buy the LG GGW-H20L? Looks like a good drive!

  19. kskaggs macrumors newbie

    Joined:
    Jan 21, 2008
    #19
    Lg Ggw-h20l

    Yes, I am using Toast 8.0.3.

  20. speakerwizard macrumors 68000

    speakerwizard

    Joined:
    Aug 8, 2006
    Location:
    London
    #20
    you wont be able to watch off the shelf hd disks as no apple hardware has the right drm chips like most modern tvs

  21. kskaggs macrumors newbie

    Joined:
    Jan 21, 2008
    #21
    Just looking to burn large archive files to disc.

  22. Random Chaos macrumors member

    Joined:
    Jan 16, 2008
    #22
    Just a note on the drive itself. I know someone that picked up the LG GGC-H20N (same as the LG GGC-H20L but does't have Lightscribe) and loves it (not on a Mac though).

  23. holograph macrumors newbie

    Joined:
    Sep 22, 2007
    #23
    data & power cable?

    Hi guys, thanks for the interesting discussion re installing the LG GGW-H20L in the Mac Pro.

    I intend to install this drive in a Mac Pro 2HGz in Optical drive bay 2.

    Will this cable do? http://www.aria.co.uk/Products/Peripherals/Cabling/Serial+ATA

    Also will the power connection work in bay2, or do I need something like https://www.aria.co.uk/Products/Per...Molex+to+SATA+Power+Connector+?productId=7683

    I have all 4 HD drive bays full, so obviously I need to get to the two back SATA ports as discussed here..

    Unfortunately I dont really see what I´m supposed to see in the pictures above, but I´m guessing that will clear up once I open up the Mac Pro? :)

    Many questions, thanks in advance!

  24. diotav macrumors 6502a

    Joined:
    Aug 9, 2005
    Location:
    10.0.0.1
    #24
    I installed the GGW-H20L 4 days ago in my Mac Pro. After taking the machine apart I was able to install the drive on the SATA connection. A lot of patience is needed. I can also confirm that Toast recognizes the drive but doesn't burn BD .. Finder on the other hand has no problem with burning.

    @holograph .. you only need a 75cm SATA to SATA cable. The powercable is included with the drive and is compatible with the cable that's already in the Mac Pro for bay2.

  25. holograph macrumors newbie

    Joined:
    Sep 22, 2007
    #25
    yupyup, managed to install my GGW-H20L a couple of days aswell!. Works exactly as diotav mentioned. Veeery tight getting the SATA cable from the optical bay to the motherboard connectors.. (thanks diotav, I actually managed to do it with a 60cm cable, but yes would recommend a 75, definitely) Now we need a fix for it to work with BD in toast, as that´s kind of a big reason for me for using it.
