Logic board repair need help A1278 2008 820-2327

Discussion in 'MacBook' started by Nuclearblue, Nov 23, 2015.

  1. Nuclearblue macrumors newbie

    Joined:
    Jan 22, 2014
    #1
    I hope somebody can give me some hints about an old Macbook A1278 2008 mobo 820-2327 with the following strange symptoms: dim green light on magsafe, powers only with the battery on on charges normally but no power with the magsafe only. The problem was caused by a "fried" magsafe adapter and i still didn't figure out what is the problem.

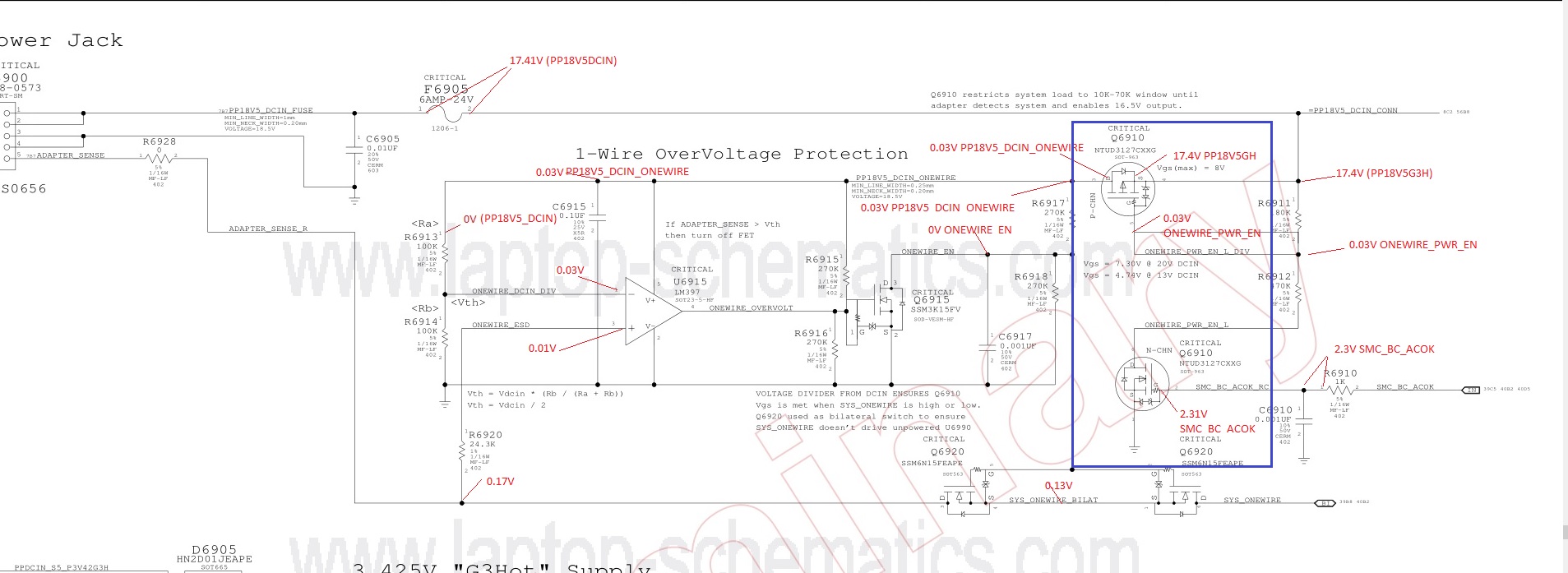

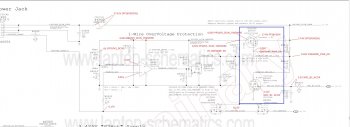

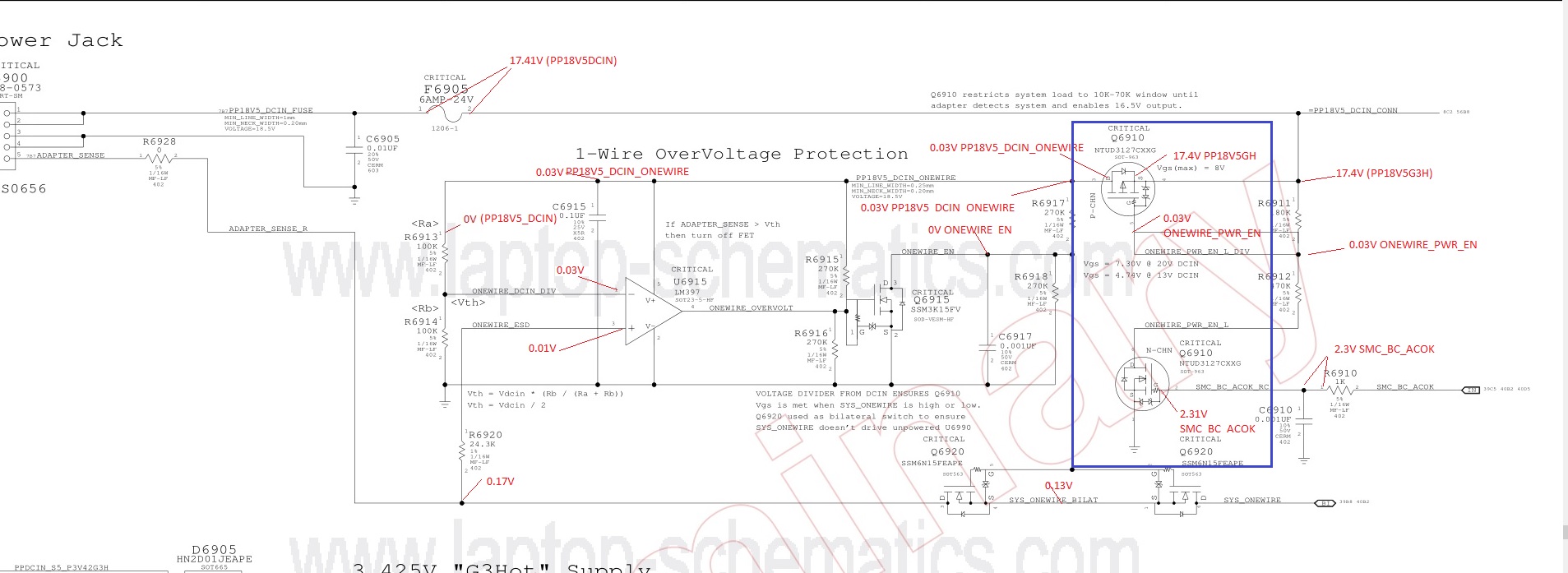

    I made some reading around the sys one wire circuit as follows:
    It is clear that there is something wrong around the Q6910 MOSFET but due my lack of knowledge
    on electronics i didn't figured out if this is due to a wrong voltage coming from the SMC_BC_ACOK
    or it is just blown itself...

    Thanks in advance


    Attached Files:

  2. Nuclearblue thread starter macrumors newbie

    Joined:
    Jan 22, 2014
