LouCioccio

macrumors newbie
Original poster
Aug 3, 2020
4
1
I picked up a 2015 MacBook Pro 15" headless with no hard drive or display. I installed the SSD stick and adapter to fit in the proprietary socket. I formatted the SSD stick on my wife's 2014 Mac mini and installed Big Sur. It works fine ran Tech Tools which found every ok an passed. Then I ran AHT which also passed ADP000. Later (I am Cheap) I picked up a 15" display as untested, no cracks. In fact it was pristine. So I hooked it up did get white screen boot chime and the screen dimmed from low Rez then brighten for high Rez it also had a grayish vertical bar. No other stuff. So I did install it on the laptop. While operating it I noticed the screen will go from white to a Magenta with a white vertical bar, if I close the lid the second screen will go black if I am on battery but stay on if I have the power pack AC running which is normal for clamshell. I am trying to determine if the LVDS cable is the culprit. If I close the lid an then open it I get a white screen then later it will go magenta. I did order a new cable and will swap it out on Monday. Do you have any ideas or suggestions?
Lou Cioccio

I picked up a 2015 MacBook Pro 15" headless with no hard drive or display. I installed the SSD stick and adapter to fit in the proprietary socket. I formatted the SSD stick on my wife's 2014 Mac mini and installed Big Sur. It works fine ran Tech Tools which found every ok an passed. Then I ran AHT which also passed ADP000. Later (I am Cheap) I picked up a 15" display as untested, no cracks. In fact it was pristine. So I hooked it up did get white screen boot chime and the screen dimmed from low Rez then brighten for high Rez it also had a grayish vertical bar. No other stuff. So I did install it on the laptop. While operating it I noticed the screen will go from white to a Magenta with a white vertical bar, if I close the lid the second screen will go black if I am on battery but stay on if I have the power pack AC running which is normal for clamshell. I am trying to determine if the LVDS cable is the culprit. If I close the lid an then open it I get a white screen then later it will go magenta. I did order a new cable and will swap it out on Monday. Do you have any ideas or suggestions?
Lou Cioccio

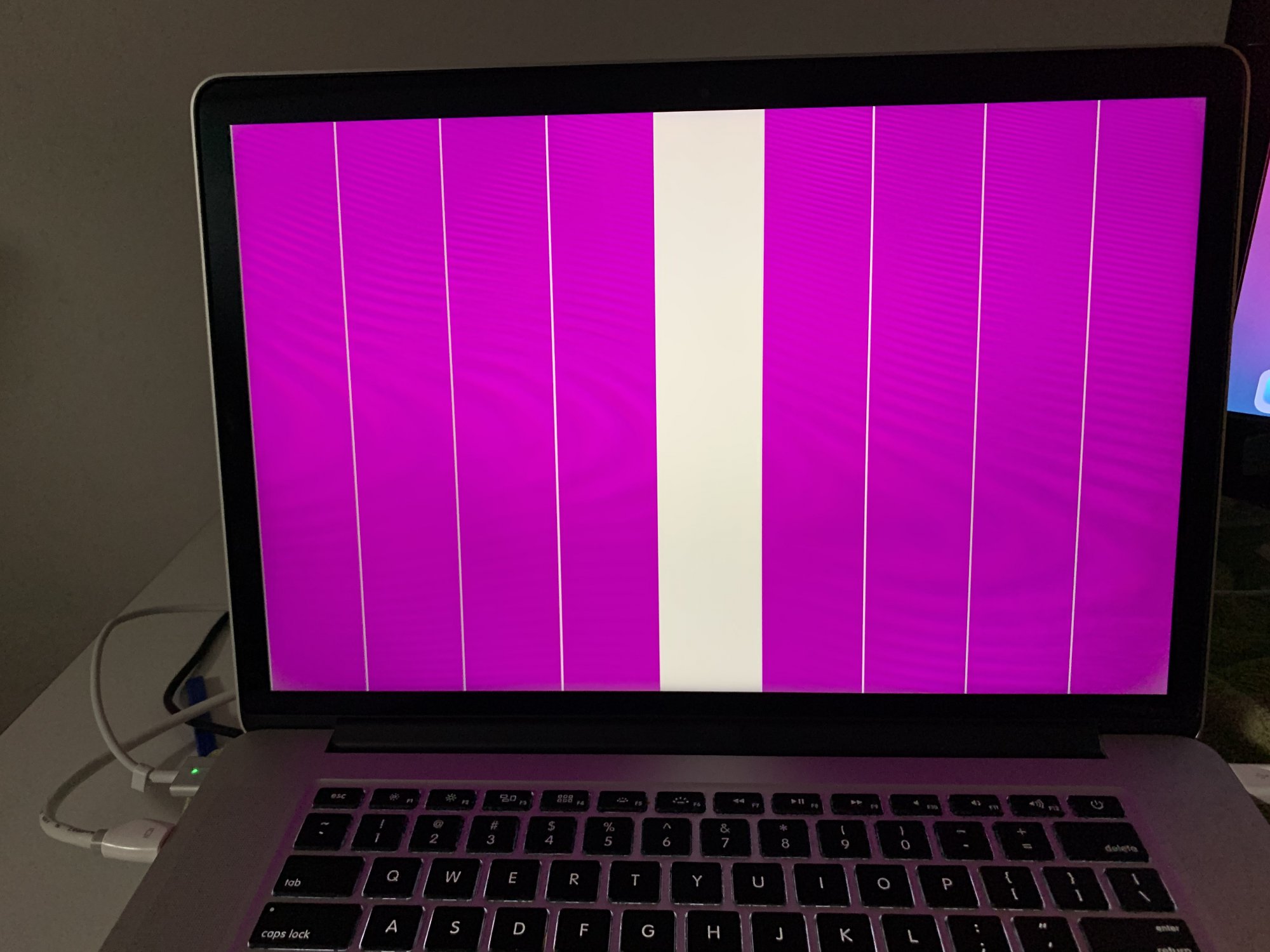

View attachment 1687463

Change the cable still the same so the display is “bad”. Not worth getting a display so it will be used as a desktop.

  • Like
Reactions: Audit13
