Mac Cooling System

[andrai886]

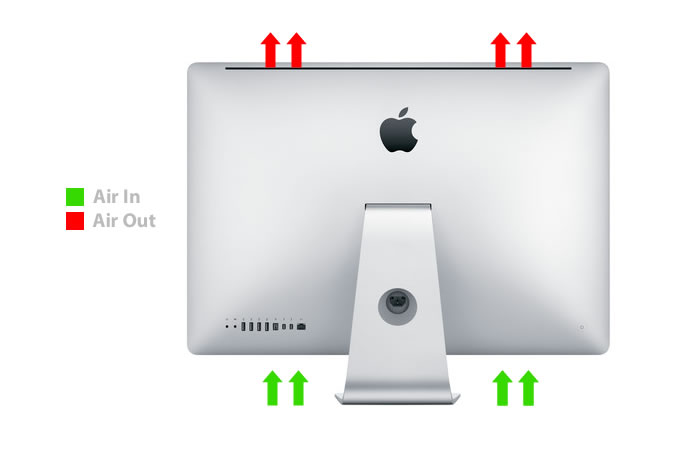

I am trying to get the perfect for position for my Mid 2011 iMac so it will have the most efficient cooling. Can someone confirm me if the air flow presented in the image is correct?

Thanks



[ezramoore]

This is correct.



[Gav2k]

It doesn't really work like that but yeah hot air rises to a degree inside the enclosure so you could say that's how it's going to work.

It's vented Top and bottom but the enclosure isn't channeled its free vented with fans directing air over main components and pushing towards the top to a degree
