MP 1,1-5,1 Mac Fan Control for Linux (Qt5)

[startergo]

A Qt5 GUI application for controlling Apple SMC (System Management Controller) fans on Mac hardware running Linux.

Features​

• Real-time monitoring: View current fan speeds (RPM) and temperature sensors
• Manual/Automatic control: Switch between SMC firmware control and manual fan speed settings per fan
• Safety enforcement: Automatic min/max RPM limits to prevent hardware damage
• Temperature display: Monitor all 28 temperature sensors with color-coded values
• Clean interface: Intuitive Qt5 GUI similar to macsfancontrol for macOS

GitHub - startergo/macsfancontrol-qt

Contribute to startergo/macsfancontrol-qt development by creating an account on GitHub.

github.com

Contributors are welcome.



[startergo]

Experimental UEFI Mac Fan Control application:

GitHub - startergo/applesmc-efi

Contribute to startergo/applesmc-efi development by creating an account on GitHub.

github.com



[startergo]

Implemented save/load/delete functionality for fan configuration presets and automatic settings persistence across application restarts. Also fixed sensor dropdown selection being reset during periodic updates.
Extended the application to support hwmon devices (AMD GPU, NVIDIA GPU, etc.) alongside Apple SMC fans, enabling unified control of all system fans in a single interface.



[mattspace]

Implemented save/load/delete functionality for fan configuration presets and automatic settings persistence across application restarts. Also fixed sensor dropdown selection being reset during periodic updates.
Extended the application to support hwmon devices (AMD GPU, NVIDIA GPU, etc.) alongside Apple SMC fans, enabling unified control of all system fans in a single interface.

So, can it get the temps from MPX GPUs in a 7,1?



[startergo]

o, can it get the temps from MPX GPUs in a 7,1?

That is an interesting question. I have to test with my T2 Mac mini. Can you post this information from within MFC running in macOS?

macs-fan-control/how-to-post-tech-info.md at master · crystalidea/macs-fan-control

Control fans on Apple computers. Contribute to crystalidea/macs-fan-control development by creating an account on GitHub.

github.com

Also you can try running endeavouros for T2 Mac’s and post the Sensors here.



[startergo]

So, can it get the temps from MPX GPUs in a 7,1?

I have added T2 support, but only tested on MacMini8,1.

on T2 Macs (ACPI-based applesmc)
ls /sys/bus/acpi/devices/APP0001:00/



[mattspace]

That is an interesting question. I have to test with my T2 Mac mini. Can you post this information from within MFC running in macOS?

macs-fan-control/how-to-post-tech-info.md at master · crystalidea/macs-fan-control

Control fans on Apple computers. Contribute to crystalidea/macs-fan-control development by creating an account on GitHub.

github.com

Also you can try running endeavouros for T2 Mac’s and post the Sensors here.

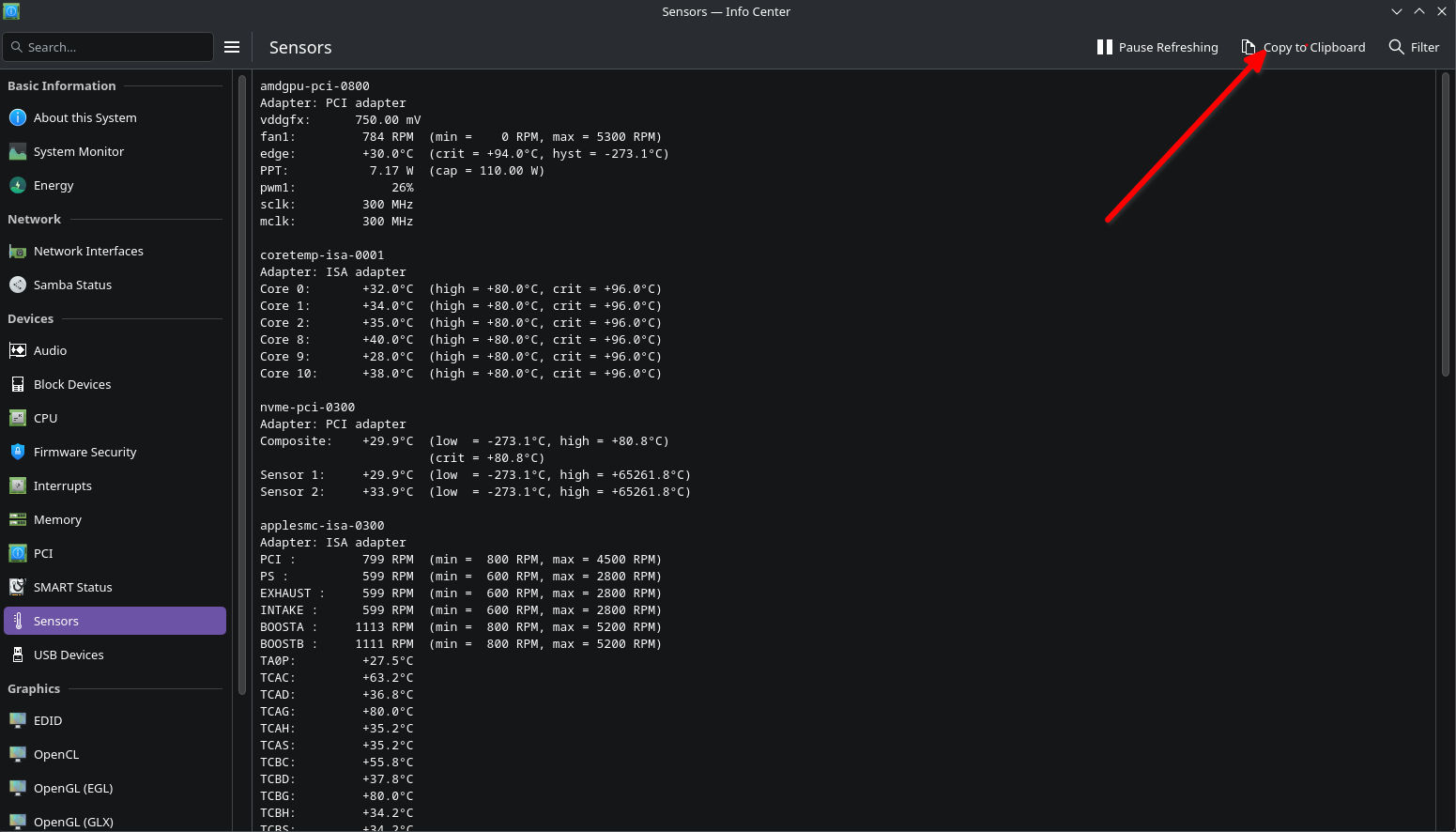

View attachment 2605443

Sorry, I barely like installing / reinstalling macOS as it is. Installing another system is a bit too gung-ho for my current circumstances with this machine.

It'll get proxmoxed eventually, but for now I'm keeping as conservative with it as I can.



[startergo]

By the way there is no need to install Linux for testing a Live Linux should suffice.



[amishallin]

This is very good news. I'm currently using mbpfan on a MacPro5,1 running Slackware. It has no UI but is configured with a text file. Also customized the output of sensors to say what is being monitored (for example CPU A Diode instead of TC0D) and hide irrelevant things that show crazy values like negative temperatures, crazy voltages in the 1000s etc.

I'll have to monitor this project.



[lambda_foo]

Interesting, I'm using mbpfan control with this minimal configuration on MacPro 6,1.

# temperature units in celsius
low_temp = 63 # if temperature is below this, fans will run at minimum speed
high_temp = 66 # if temperature is above this, fan speed will gradually increase
max_temp = 75 # if temperature is above this, fans will run at maximum speed
polling_interval = 1 # default is 1 seconds
