ugmold

macrumors newbie
Original poster
Jul 10, 2008
16
0

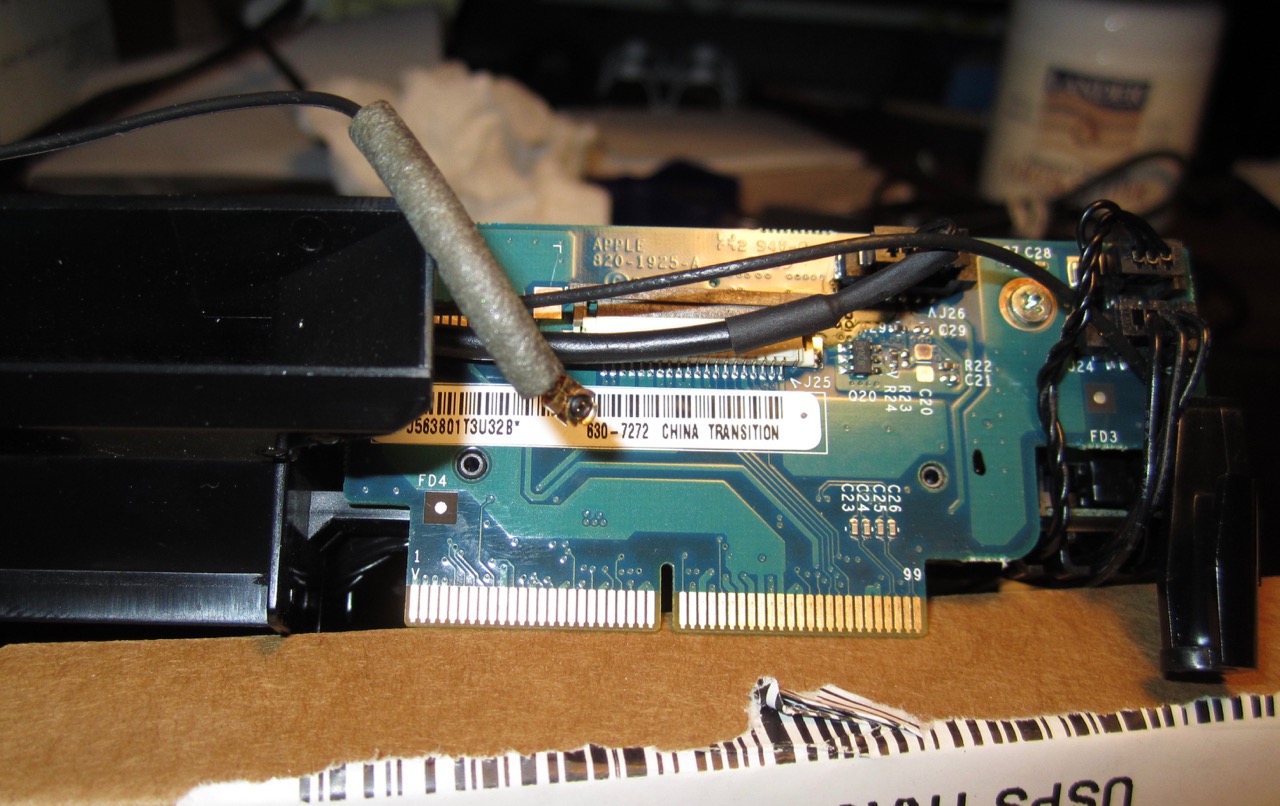

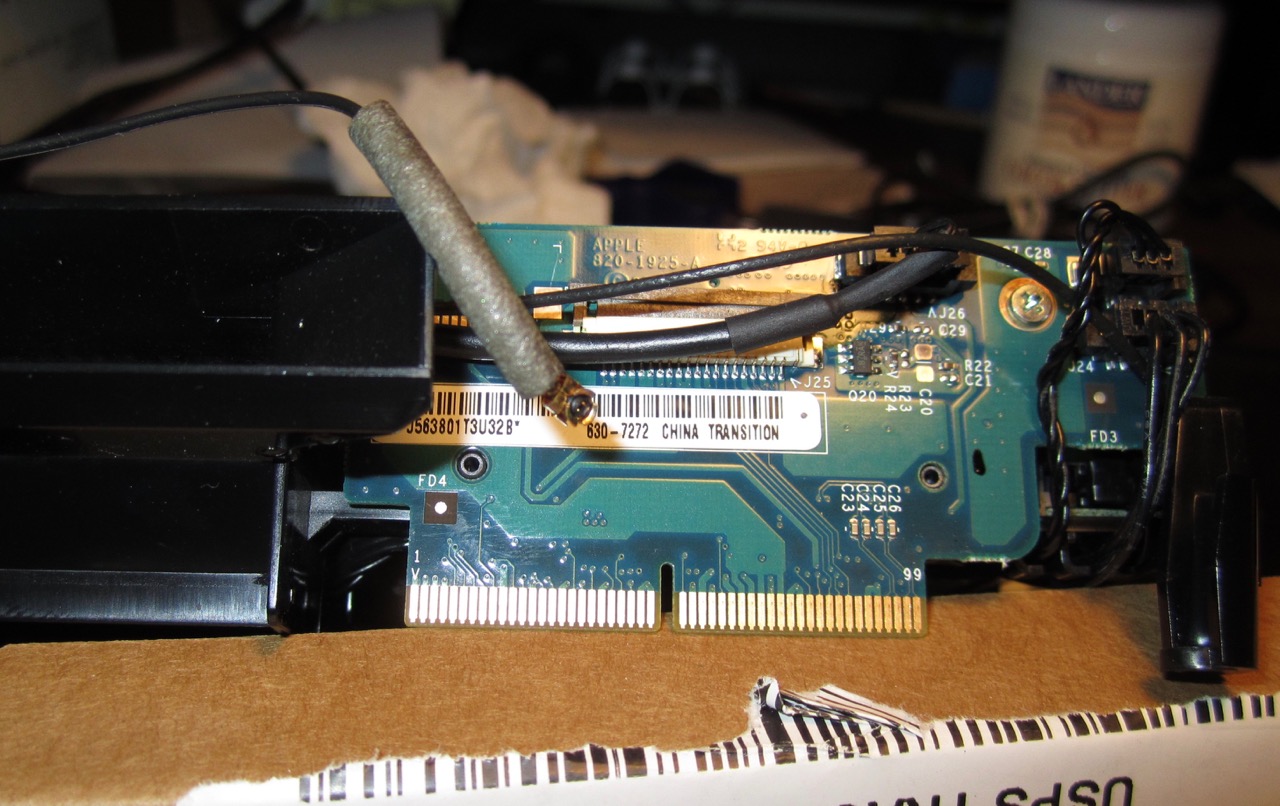

I went to upgrade my RAM on my 2007 Mac Mini, following a good youtube video for instructions, but when separating the halves the antennae wire snagged and the connection popped off (didn't take much).

I don't plan on using WIFI, but still I'd like to fix it. I'm trying to figure out where it connected to.

I can't believe I did this I just got it.

-ug


Attachments

  • IMG_2517.jpg
    245 KB · Views: 112
Last edited:

ugmold

macrumors newbie
Original poster
Jul 10, 2008
16
0
I reassembled, had another issue where the backing/snap bracket came off the ribbon cable (superglued it) by this time I thought the thing would never work again, but so far it is and mighty zippy with 2 GB of RAM. So I guess I'm not going to worry about WIFI, it didn't work very well in my setup anyway, so I ran an ethernet cable.


Intell

macrumors P6
Jan 24, 2010
18,931
478
Inside
That antenna fits onto the wireless card. It roughly in the middle of the logicboard and has two connectors on it. The antenna should be connected to the Main or Primary connector. You will need to remove the black plastic housing that the optical drive and hard drive is in before you will see the wireless card and be able to reconnect it.


ugmold

macrumors newbie
Original poster
Jul 10, 2008
16
0
That antenna fits onto the wireless card. It roughly in the middle of the logicboard and has two connectors on it. The antenna should be connected to the Main or Primary connector. You will need to remove the black plastic housing that the optical drive and hard drive is in before you will see the wireless card and be able to reconnect it.

So by looking at the photo, did I break off the connection? What would be the fix, solder?
Thanks for the reply.


Intell

macrumors P6
Jan 24, 2010
18,931
478
Inside
You did not break it. It's a snap connector. All you need to do it put the antenna half on top of the card connector and lightly push down.


Mr_Brightside_@

macrumors 68040
Sep 23, 2005
3,636
1,852
Toronto
Yeah I upgraded one to 4GB recently that had really weedy WiFi. Checked the cable when I had it open and it was just about coming off the connector. Reconnected it securely and it worked great after.


ugmold

macrumors newbie
Original poster
Jul 10, 2008
16
0
Thanks Intel and Brightside glad I didn't break it. Appreciate the help.
