mac mini 2014 - PCIe SSD upgrade

Discussion in 'Mac mini' started by majkom, Oct 30, 2014.

  1. majkom macrumors 65816

    Joined:
    May 3, 2011
    #1
    people, still no solution for own PCIe ssd upgrade?

  2. drsox macrumors 65816

    drsox

    Joined:
    Apr 29, 2011
    Location:
    Xhystos
    #2
  3. majkom thread starter macrumors 65816

    Joined:
    May 3, 2011
    #3
    thats probably not what Ive been asking about

  4. Darby67 macrumors 6502

    Joined:
    Jul 5, 2011
    Location:
    the corner of Fire and Brimstone
    #4
    These things do not happen overnight. If a solution happens, which I feel will, it will likely take a several weeks to several months.

  5. yabba235, Dec 16, 2014
    Last edited: Dec 16, 2014

    yabba235 macrumors newbie

    Joined:
    Dec 16, 2014
    Location:
    Central EU
    #5
    Hi !

    Solution is simple - apple pcie connector scheme is available, there is no schema mini connector on the Macintosh computer.

    Therefore, if someone can take a good photo of the underside of the ssd pcie flex cable from mac mini fusion/flash ssd version (with adhesive foil removed because it obscures the printed path ) you can make your own cable.

    The photo from Ifixit is not sufficient for this purpose :(

    This both connector is connected 1:1, but without schematic or photo don't know what is the distribution of the signals on the mobo pcie connector mac mini.

    And is all :)

    Reg.

  6. scoobdriver macrumors member

    Joined:
    Aug 1, 2011
    #6

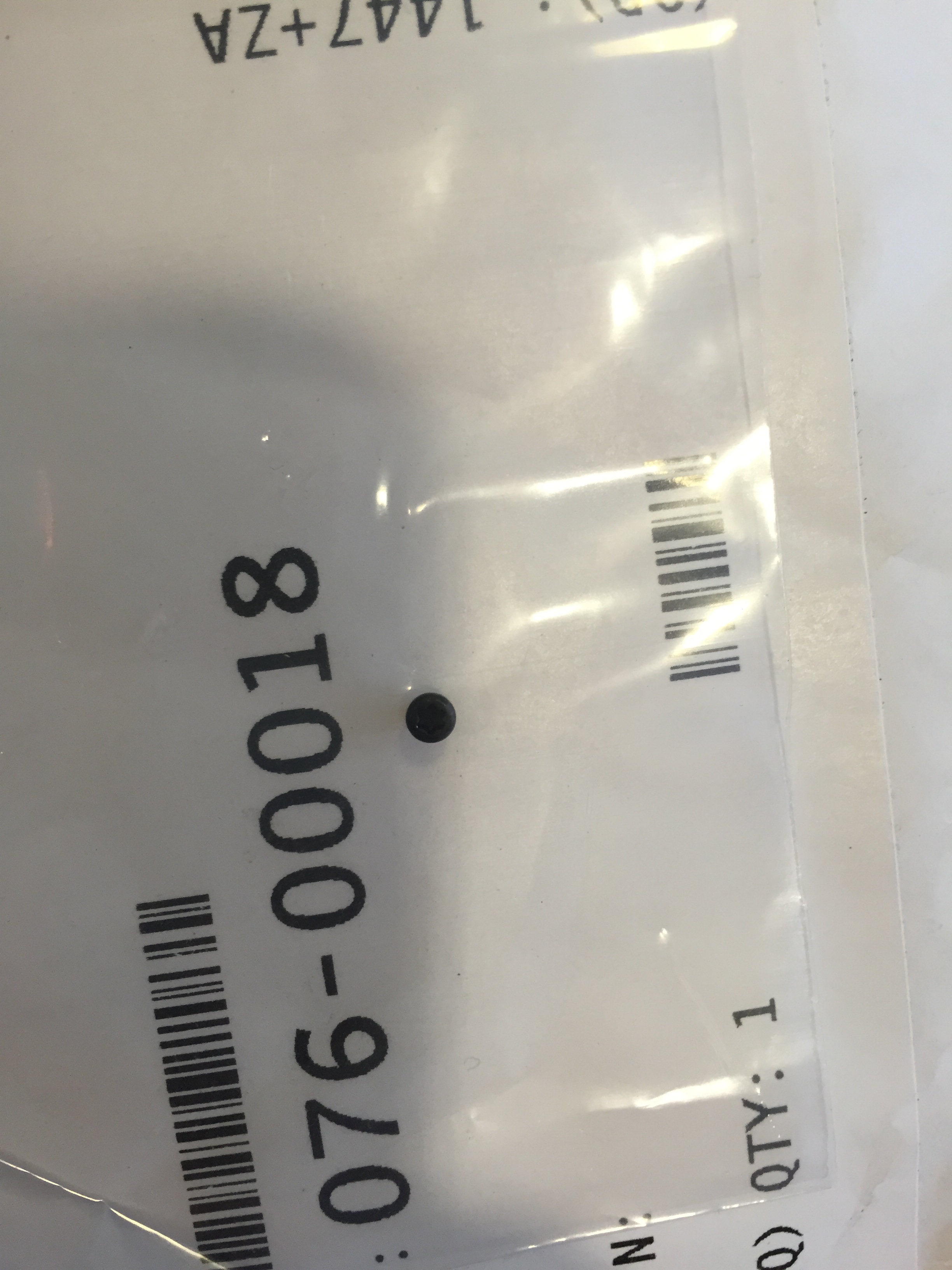

    I got around to opening my parcel of the PCIe SSD flex cable to do my own upgrade. it had been unopened and was from Apple Distribution with the part number 076-00018 on it (should of comprised the Cable, 2 screws and the plate) .. It only had 1 screw and the plate inside... (devastated) , the company I had ordered it from , (whom I will not name) tried to re-order the part and I am told apple informed them they would not supply the said part and where putting a hold on part orders ?!? , I have attempted to procure from elsewhere , and it hopefully should be on its way..

  7. yabba235 macrumors newbie

    Joined:
    Dec 16, 2014
    Location:
    Central EU
    #7
    From this it follows that the cable is not available?
    Can you write where you bought it?

    Can you take a picture of this cable as described above?
    This will be very helpful for me.

  8. scoobdriver macrumors member

    Joined:
    Aug 1, 2011
    #8
    I dont have the cable as yet.. it is the same as that shown in ifixit teardown .. PCIe to SSD.. The Part number should be 076-00018 and consist the cable, and the plate that screws on top on the pcie connector to keep the cable in place.. This is all I received..


    Attached Files:

  9. Cenick macrumors newbie

    Joined:
    Aug 5, 2015
    #9
  10. Cenick macrumors newbie

    Joined:
    Aug 5, 2015
  11. yabba235 macrumors newbie

    Joined:
    Dec 16, 2014
    Location:
    Central EU
    #11
    Simply replaces old hdd carrier with new from link above :)

  12. paulrbeers macrumors 68040

    Joined:
    Dec 17, 2009
    #12

    Just go to ebay, google 2013 Macbook Air SSD, or 2013 late Macbook pro or 2014 macbook Air or 2014 macbook pro....

    They all use the same SSD blade. Basically you want anything after the early 2013 macbook pro.

    P.S. There is an EDIT button...

  13. koreanbear macrumors newbie

    koreanbear

    Joined:
    Oct 22, 2015
    #13
    Scoob, i just need the SSD bracket and two torx screws that hold the cable in place. Is 076-00018 those parts?
    Thanks!


Share This Page
