Mac mini: 4k @ 120hz?

[Abbas]

I do have access to a Logitech 2.4GHz receiver so let me try using that with the Mac and report back.

Damn! I can confirm using a USB receiver works! I connected the G502X to the Mac with the supplied Dongle, and the difference is VERY visible. Still not as smooth as Windows but I can work on this now without getting irritated.



[Technotron]

Nice, good to hear. I've ordered a second hand magic trackpad, will also report back... 🙂



[Zorast]

This adapter only Support 4k@120hz 8b 4:2:0 also with custom Firmware!

Cable Matters 48Gbps USB C to HDMI 2.1 Cable (USB C HDMI Cable) 1.8 m for 8K 60Hz/4K 120Hz and HDR - Compatible with USB4 and Thunderbolt 4/3 Port - (Maximum Resolution on Any Mac is 4K@60Hz)

Cable Matters 48Gbps USB C to HDMI Adapter Cable, Support 4K 120Hz and 8K HDR - Thunderbolt 3 and Thunderbolt 4 Port Compatible - 6ft

www.amazon.de



[garuspl]

Can confirm that this Cable Matter Adapter is the best from this Brand, I tested all of them 8k Adapters:

Cable Matters 48Gbps USB C to HDMI 2.1 Adapter (USB C HDMI Adapter) for 4K 120Hz and 8K 60Hz HDR - Thunderbolt 3, USB4, Thunderbolt 4 Port Compatible Maximum Resolution on Any Mac is 4K 60Hz

Connect more with Cable Matters products.

www.amazon.de

It can do 4k@120hz 4:2:2
Alan Spiegel does get with this Adapter RGB 4k@120hz, dont know how they can reach this. This Adapter has an VIA Billboard:

FYI I bought exactly this adapter and mine was VMM6100 🙁



[Fakehitman]

Has anyone was able to make this hack working on Mac m1 + Sony A90j (which supports VRR).
I am asking because I tried changing EEID, updating firmware for Cable matters cable https://www.amazon.de/dp/B08QDV5H4M?psc=1&ref=ppx_yo2ov_dt_b_product_details&tag=macr05-21.

still no luck



[Zorast]

FYI I bought exactly this adapter and mine was VMM6100 🙁

Yes but it working with 4:2:2 4k@120hz with EDID override. U can make the Firmwareupdate to 6.02.120



[N30S]

Has anyone was able to make this hack working on Mac m1 + Sony A90j (which supports VRR).
I am asking because I tried changing EEID, updating firmware for Cable matters cable https://www.amazon.de/dp/B08QDV5H4M?psc=1&ref=ppx_yo2ov_dt_b_product_details&tag=macr05-21.

still no luck

Same thing here. I ordered two more adapters (different ones) to play some more lottery on that...



[Djlild7hina]

Same thing here. I ordered two more adapters (different ones) to play some more lottery on that...

I also haven’t had any luck with that one. Seems like it’s a no go, same with the Sabrent USB type c to HDMI 2.1

The Cable Matters usb type c to hdmi 2.1 adapter (VMM6100) will work at 422 with EDID changes.



[Zorast]

Ok after Testing this Adapters and Stations/Docks:

Cable Matters 48Gbps USB C to HDMI 2.1 Cable (USB C HDMI Cable) 1.8 m for 8K 60Hz/4K 120Hz and HDR - Compatible with USB4 and Thunderbolt 4/3 Port - (Maximum Resolution on Any Mac is 4K@60Hz)

Cable Matters 48Gbps USB C to HDMI Adapter Cable, Support 4K 120Hz and 8K HDR - Thunderbolt 3 and Thunderbolt 4 Port Compatible - 6ft

www.amazon.de

Also with Custom Firmware 4:2:2 4k 120hz

Cable Matters 48Gbps USB C to HDMI 2.1 Adapter (USB C HDMI Adapter) for 4K 120Hz and 8K 60Hz HDR - Thunderbolt 3, USB4, Thunderbolt 4 Port Compatible Maximum Resolution on Any Mac is 4K 60Hz

Connect more with Cable Matters products.

www.amazon.de

4:2:2 4k 120hz

Cable Matters 48Gbps USB C to HDMI 2.1 Adapter Supports 4K@120Hz/8K@60Hz (DSC Required) HDR 100W PD, Compatible with Thunderbolt 4/3 - The Maximum Resolution on Any MacBook is 4K @ 60Hz

Cable Matters 48Gbps USB C to HDMI Adapter, Support 4K 120Hz and 8K 60Hz (DSC Required) HDR, 100W PD - Thunderbolt 3 and Thunderbolt 4 Port Compatible - Maximum resolution on any MacBook is 4K@60Hz

www.amazon.de

4:2:2 4k 120hz

SATECHI 13-in-1 USB-C Docking Station with 3X 4K HDMI, 100W PD, 2X DisplayPort, 2X USB-C, 3X USB-A, Ethernet & Audio - for MacBook Air/Pro, Windows & More (DisplayLink Required)

Satechi ST-U4MA3M station d'accueil USB Type-C Grey

www.amazon.de

4:2:2 4k 120hz

USB C to HDMI 2.1 Adapter, Supports Thunderbolt 4 to HDMI 8K@60Hz 4K@120Hz 144Hz 60Hz for Thunderbolt 3, USB4, iPad Pro Air, Samsung S22 S21, Galaxy Tab, MacBook, TV, Intel Laptop, Tablet, Mobile

USB C to HDMI 2.1 Adapter

www.amazon.de

4:4:4 4k 60hz

cablecc Câble USB 4 USB-C Type-C vers HDMI 2.0 Female 8K 60 Hz UHD 4K HDMI Male

USB4 USB-C Type-C Source to Female HDMI 2.0 Display 8K 60HZ UHD 4K HDMI Monitor Cable This is a 8K USB4 USB-C Type-C to HDMI cable. Does not support HDMI to USB-C It is not bi-directional. USB-C x HDMI cable supports 8K@60Hz, 4K@120Hz for USB4 USB-C Type-C enabled desktops and laptops to connec...

www.amazon.de

4:2:0 4k 120hz 8b

Club3D CAC-1588 USB Gen2 Type-C to HDMI 8K60Hz or 4K120Hz HDR10, DSC1.2, Power Delivery 3.0 Active Adapter M/B

The Club 3D CAC- 1588 is a USB Type-C to HDMI (8K60Hz or 4K120Hz) adapter with PD charging. The HDMI port allows you to connect an HDMI monitor so you can watch videos on a large screen and the USB Type-C PD port supports PD3.0 with max. 100 W PD charging. It can be operated on all USB Type-C and...

www.amazon.de

Limited to 60hz 4k

Club 3D USB Gen2 Type-C to HDMI 4K120Hz HDR10 with DSC 1.2 Active Adapter M/B. CAC-1586

Club3D Adapter USB 3.2 Type C > HDMI 2.1 HDR10 4K120Hz active retail

www.amazon.de

Limited to 4k 60hz

KabelDirekt 8K USB C to HDMI 2.1 Adapter Cable for eSports-Grade Performance with Shatterproof Metal Connectors - 1.8m (Transfers 8K/60Hz and 4K/120Hz from Gaming Laptops to TVs or Monitors)

KabelDirekt 8K USB C to HDMI 2.1 adapter cable for eSports-ready performance with break-resistant metal connectors - 1.8m (transfers 8K/60Hz and 4K/120Hz from gaming laptops to TVs or monitors)

www.amazon.de

4:2:0 4k 60hz

i-tec Thunderbolt 4 Docking Station with Power Supply 96 W - 2 x TB 4, 1 x HDMI, 1 x 2.5GLAN, 4 x USB 3.1 Gen2, 1 x SD, 1 x Audio/Mic

I-TEC Thunderbolt 4 Dual Ekranas Docking Station PD 96W IT version

www.amazon.de

Can select 120hz 4k but do not work correctly (Waiting for Support answer, hoping for an Firmware update)
4:4:4 4k 60hz

This is the best one:

Anker USB-C to HDMI Adapter (8K@60Hz or 4K@144Hz) for MacBook Pro, MacBook Air, iPad Pro, Pixelbook, XPS and More

Anker USB-C to HDMI Adapter (8K@60Hz or 4K@144Hz) for MacBook Pro, MacBook Air, iPad Pro, Pixelbook, XPS and More

www.amazon.de

With Custom Firmware(https://forums.macrumors.com/threads/mac-mini-4k-120hz.2267035/post-31968090), Thankful getting from Cable Matters Support!!! > 4k@120hz 4:4:4 8b

I does connect the Anker Adapter to the TB 4 iTEC Dock, it works perfek also in 4:4:4 8b 4k120hz too.
The Anker does also work when u connect it directly to your Mac! But I like the one cable solution 🙂



[N30S]

Ok after Testing this Adapters and Stations/Docks:

i-tec Thunderbolt 4 Docking Station with Power Supply 96 W - 2 x TB 4, 1 x HDMI, 1 x 2.5GLAN, 4 x USB 3.1 Gen2, 1 x SD, 1 x Audio/Mic

I-TEC Thunderbolt 4 Dual Ekranas Docking Station PD 96W IT version

www.amazon.de

Can select 120hz 4k but do not work correctly (Waiting for Support answer, hoping for an Firmware update)
4:4:4 4k 60hz

Weird, I also have that one and tested it first before getting some random adapters. I can't even select 120Hz. Actually, it doesn't even do 4k + HDR (just green flickering) on an LG Oled 48C2. Not a cable issue, either, because it works with the adapters.



[Zorast]

But we have to talk about Bandwidth and Specifications.

Iam not a Pro so if @stevemr123 and @joev can Assist it will be perfect!

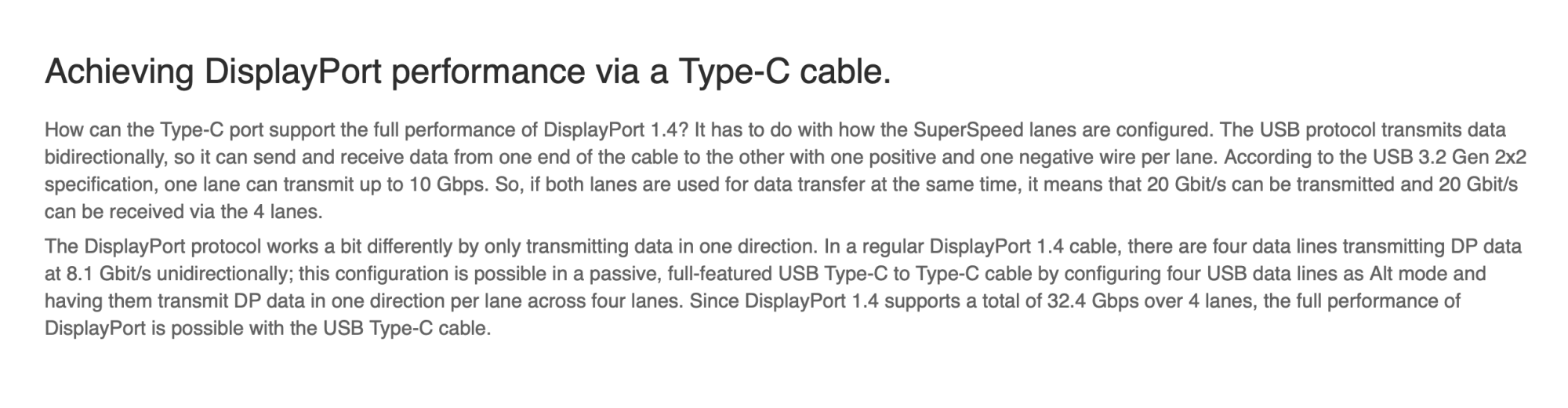

DP has a limitation of HBR3 width 32,4 Gbit/s with 4 Lanes, so it can do 4x8Gbps.

DisplayPort – Wikipedia

de.m.wikipedia.org

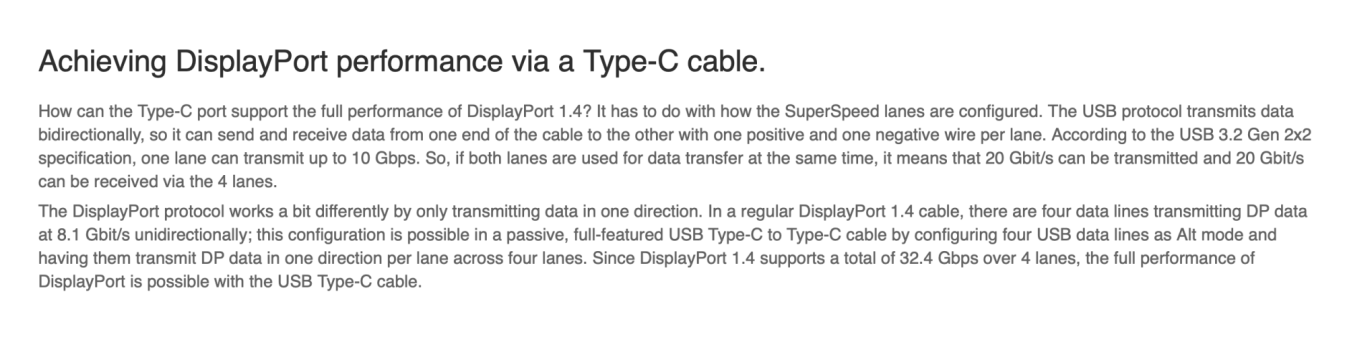

How DisplayPort Alt Mode is Enabled over a USB Type-C Cable

A USB Type-C cable connection can act as a USB host, USB device & as a DisplayPort video connection.

evision-webshop.de

Mac does not support DSC i think ?? So we need uncompressed Bandwidth to check. In my Case Mac does never use DSC with an USB-C/TB4 or USB4 Adapter/Station!

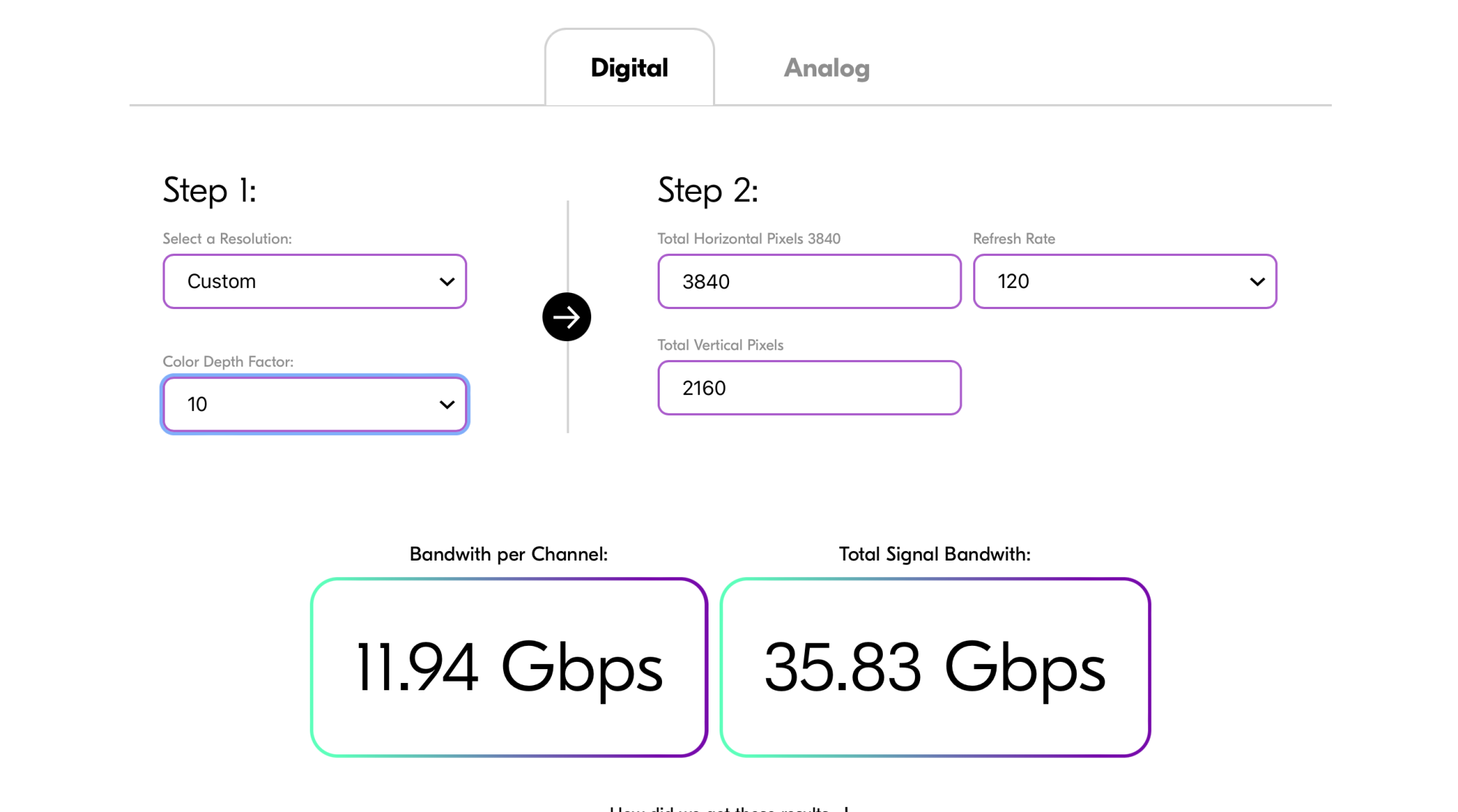

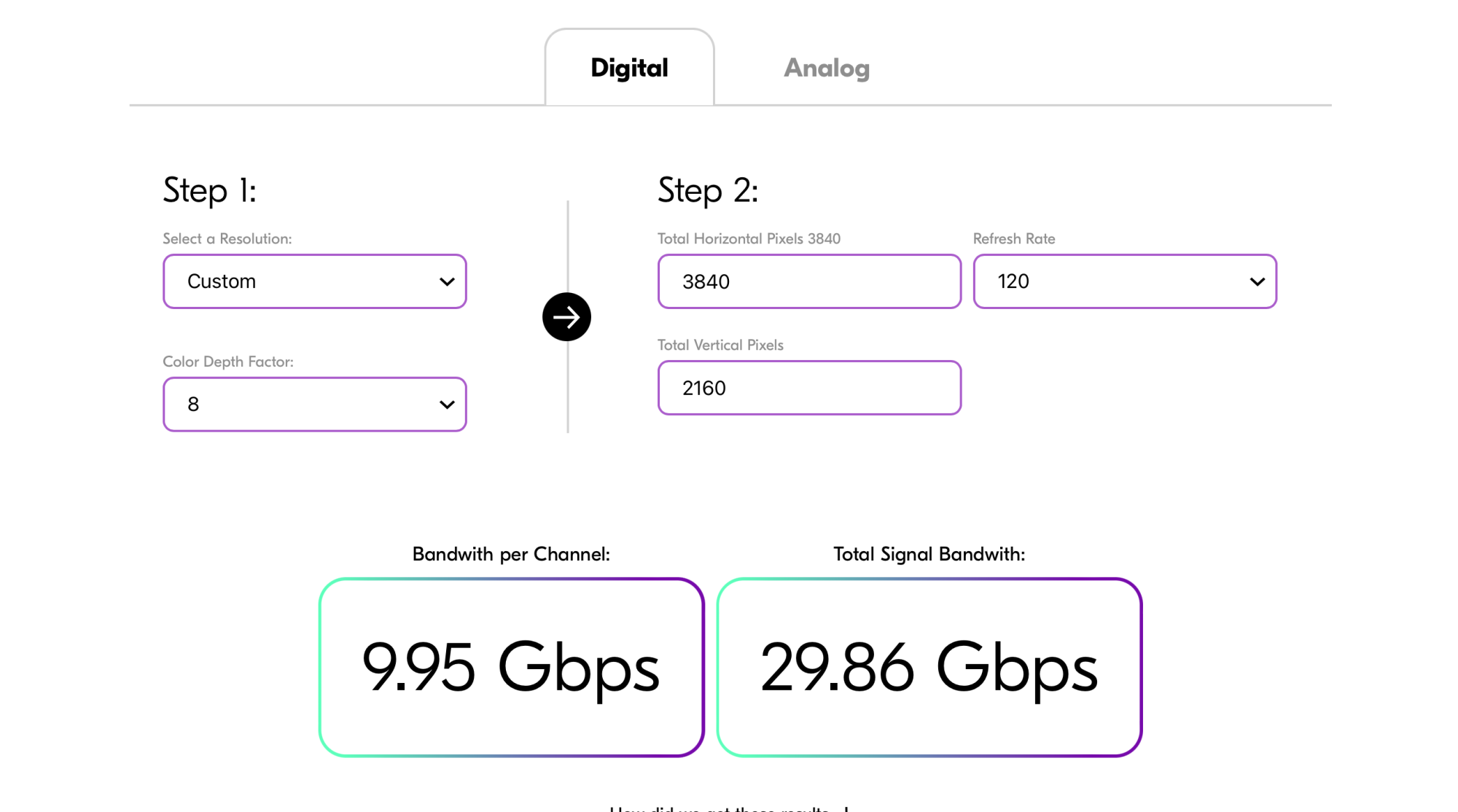

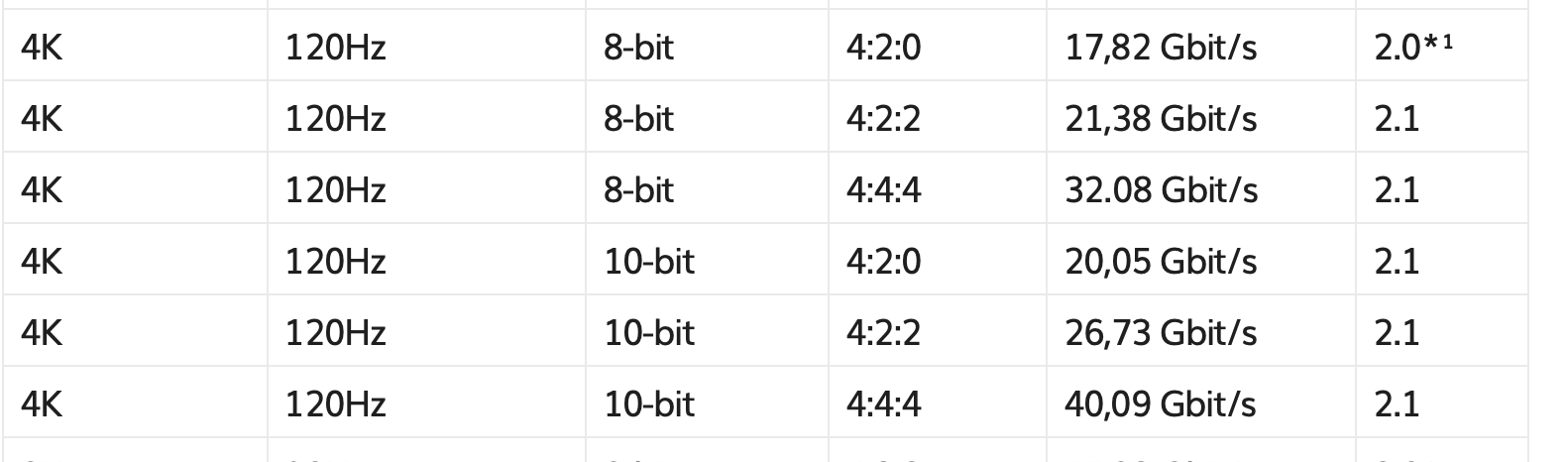

DP-ALT without DSC will be Limited to 4k@120hz 4:4:4 8-bit. 10-bit is not possible!

Theres also another things we have to know. Mac M1 can not use USB-C 3.2, they are Limited to 5-10Gbps.

Mac Studio (2022) - Technical Specifications – Apple Support (UK)

support.apple.com

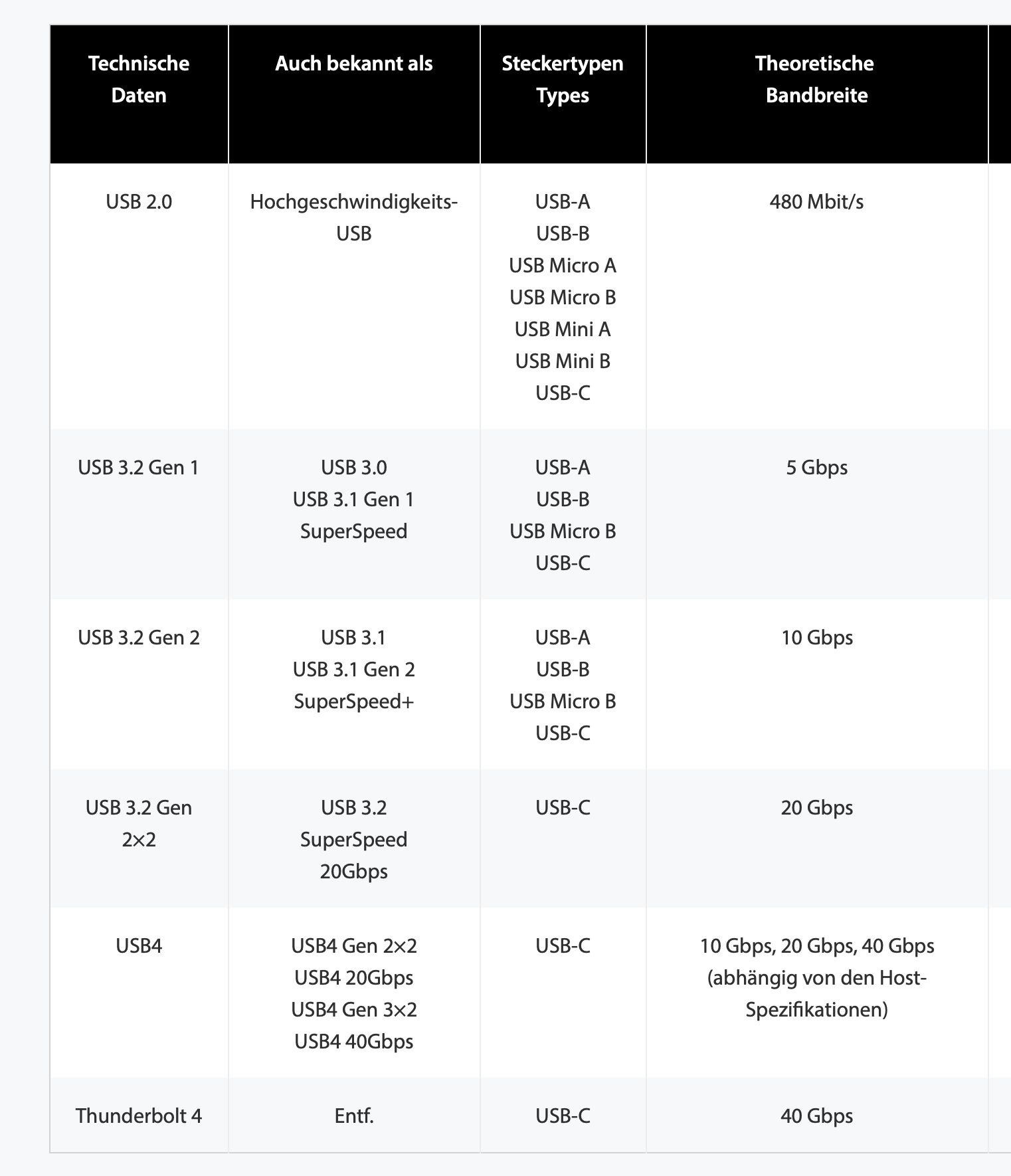

Tests show Thunderbolt ports on M1 Macs don't fully support USB 3.1 Gen 2 speeds

New test results from Howard Oakley of The Eclectic Light Company show that the Thunderbolt ports on M1 Macs don't take full advantage of the promised speeds of USB 3.1 Gen 2 devices.

www.dpreview.com

This is how to get better USB-C speeds on M1 Mac (all models)

A new report published claims that M1 Macs don't truly support USB 3.1 Gen 2 and thus don't offer Thunderbolt 4 speeds. But there's a way you can get increased speed on M1 Macs. Here's how!

pocketnow.com

M1 Mac Thunderbolt 4 ports mostly don't support 10Gb/s speed - 9to5Mac

Pro users of M1 Macs have reported disappointing transfer speeds with external SSDs, and tests appear to show that most M1 Mac Thunderbolt 4.

9to5mac.com

Fallback to 5Gbps on all M1 Macs expect from Mac Studio front connections:

Apple: Thunderbolt in M1-Macs unterstützt wohl keine 10 GBit/s - Golem.de

Thunderbolt-Ports sollten auch USB 3.2 Gen2 mit 10 GBit/s unterstützen. Laut einem Test ist das wohl bei M1-Macs nicht immer der Fall.

www.golem.de

I did read Mac Studios have different types of connections. the Front ones can do USB 3.2 with 10-20Gbps, so this will be enough for full DP Bandwidth.

I dont know if this also will be a Problem. When the Chips only get 5-10 Gbps on 2 Lines( 2,5-5Gbps per Line) so DP Alt is maxed out 10-20Gbps ?? Is this limitation the reason why we only get 4:2:0 or sometimes 4:2:2 !?

I dont understand why the Anker works with 4:4:4 4k 120hz 8-bit, but this is the best whe can get with DP-ALT without DSC ! So the Anker does it right with Cable Matters Custom Firmware for VMM7100 Chips (https://forums.macrumors.com/threads/mac-mini-4k-120hz.2267035/post-31968090)

Can someone with Mac Studio M1 MAX and M1 Ultra test if it works better when u connect the Adapter on the 2 Front USB-C Connectors ?



[Zorast]

Weird, I also have that one and tested it first before getting some random adapters. I can't even select 120Hz. Actually, it doesn't even do 4k + HDR (just green flickering) on an LG Oled 48C2. Not a cable issue, either, because it works with the adapters.

Iam in contact with support about this. I think it can run better, this is a Firmware issuse.



[Djlild7hina]

Ok after Testing this Adapters and Stations/Docks:

Cable Matters 48Gbps USB C to HDMI 2.1 Cable (USB C HDMI Cable) 1.8 m for 8K 60Hz/4K 120Hz and HDR - Compatible with USB4 and Thunderbolt 4/3 Port - (Maximum Resolution on Any Mac is 4K@60Hz)

Cable Matters 48Gbps USB C to HDMI Adapter Cable, Support 4K 120Hz and 8K HDR - Thunderbolt 3 and Thunderbolt 4 Port Compatible - 6ft

www.amazon.de

Also with Custom Firmware 4:2:2 4k 120hz

Cable Matters 48Gbps USB C to HDMI 2.1 Adapter (USB C HDMI Adapter) for 4K 120Hz and 8K 60Hz HDR - Thunderbolt 3, USB4, Thunderbolt 4 Port Compatible Maximum Resolution on Any Mac is 4K 60Hz

Connect more with Cable Matters products.

www.amazon.de

4:2:2 4k 120hz

Cable Matters 48Gbps USB C to HDMI 2.1 Adapter Supports 4K@120Hz/8K@60Hz (DSC Required) HDR 100W PD, Compatible with Thunderbolt 4/3 - The Maximum Resolution on Any MacBook is 4K @ 60Hz

Cable Matters 48Gbps USB C to HDMI Adapter, Support 4K 120Hz and 8K 60Hz (DSC Required) HDR, 100W PD - Thunderbolt 3 and Thunderbolt 4 Port Compatible - Maximum resolution on any MacBook is 4K@60Hz

www.amazon.de

4:2:2 4k 120hz

SATECHI 13-in-1 USB-C Docking Station with 3X 4K HDMI, 100W PD, 2X DisplayPort, 2X USB-C, 3X USB-A, Ethernet & Audio - for MacBook Air/Pro, Windows & More (DisplayLink Required)

Satechi ST-U4MA3M station d'accueil USB Type-C Grey

www.amazon.de

4:2:2 4k 120hz

USB C to HDMI 2.1 Adapter, Supports Thunderbolt 4 to HDMI 8K@60Hz 4K@120Hz 144Hz 60Hz for Thunderbolt 3, USB4, iPad Pro Air, Samsung S22 S21, Galaxy Tab, MacBook, TV, Intel Laptop, Tablet, Mobile

USB C to HDMI 2.1 Adapter

www.amazon.de

4:4:4 4k 60hz

cablecc Câble USB 4 USB-C Type-C vers HDMI 2.0 Female 8K 60 Hz UHD 4K HDMI Male

USB4 USB-C Type-C Source to Female HDMI 2.0 Display 8K 60HZ UHD 4K HDMI Monitor Cable This is a 8K USB4 USB-C Type-C to HDMI cable. Does not support HDMI to USB-C It is not bi-directional. USB-C x HDMI cable supports 8K@60Hz, 4K@120Hz for USB4 USB-C Type-C enabled desktops and laptops to connec...

www.amazon.de

4:2:0 4k 120hz 8b

Club3D CAC-1588 USB Gen2 Type-C to HDMI 8K60Hz or 4K120Hz HDR10, DSC1.2, Power Delivery 3.0 Active Adapter M/B

The Club 3D CAC- 1588 is a USB Type-C to HDMI (8K60Hz or 4K120Hz) adapter with PD charging. The HDMI port allows you to connect an HDMI monitor so you can watch videos on a large screen and the USB Type-C PD port supports PD3.0 with max. 100 W PD charging. It can be operated on all USB Type-C and...

www.amazon.de

Limited to 60hz 4k

Club 3D USB Gen2 Type-C to HDMI 4K120Hz HDR10 with DSC 1.2 Active Adapter M/B. CAC-1586

Club3D Adapter USB 3.2 Type C > HDMI 2.1 HDR10 4K120Hz active retail

www.amazon.de

Limited to 4k 60hz

KabelDirekt 8K USB C to HDMI 2.1 Adapter Cable for eSports-Grade Performance with Shatterproof Metal Connectors - 1.8m (Transfers 8K/60Hz and 4K/120Hz from Gaming Laptops to TVs or Monitors)

KabelDirekt 8K USB C to HDMI 2.1 adapter cable for eSports-ready performance with break-resistant metal connectors - 1.8m (transfers 8K/60Hz and 4K/120Hz from gaming laptops to TVs or monitors)

www.amazon.de

4:2:0 4k 60hz

i-tec Thunderbolt 4 Docking Station with Power Supply 96 W - 2 x TB 4, 1 x HDMI, 1 x 2.5GLAN, 4 x USB 3.1 Gen2, 1 x SD, 1 x Audio/Mic

I-TEC Thunderbolt 4 Dual Ekranas Docking Station PD 96W IT version

www.amazon.de

Can select 120hz 4k but do not work correctly (Waiting for Support answer, hoping for an Firmware update)
4:4:4 4k 60hz

This is the best one:

Anker USB-C to HDMI Adapter (8K@60Hz or 4K@144Hz) for MacBook Pro, MacBook Air, iPad Pro, Pixelbook, XPS and More

Anker USB-C to HDMI Adapter (8K@60Hz or 4K@144Hz) for MacBook Pro, MacBook Air, iPad Pro, Pixelbook, XPS and More

www.amazon.de

With Custom Firmware, Thankful getting from Cable Matters Support!!! > 4k@120hz 4:4:4 8b

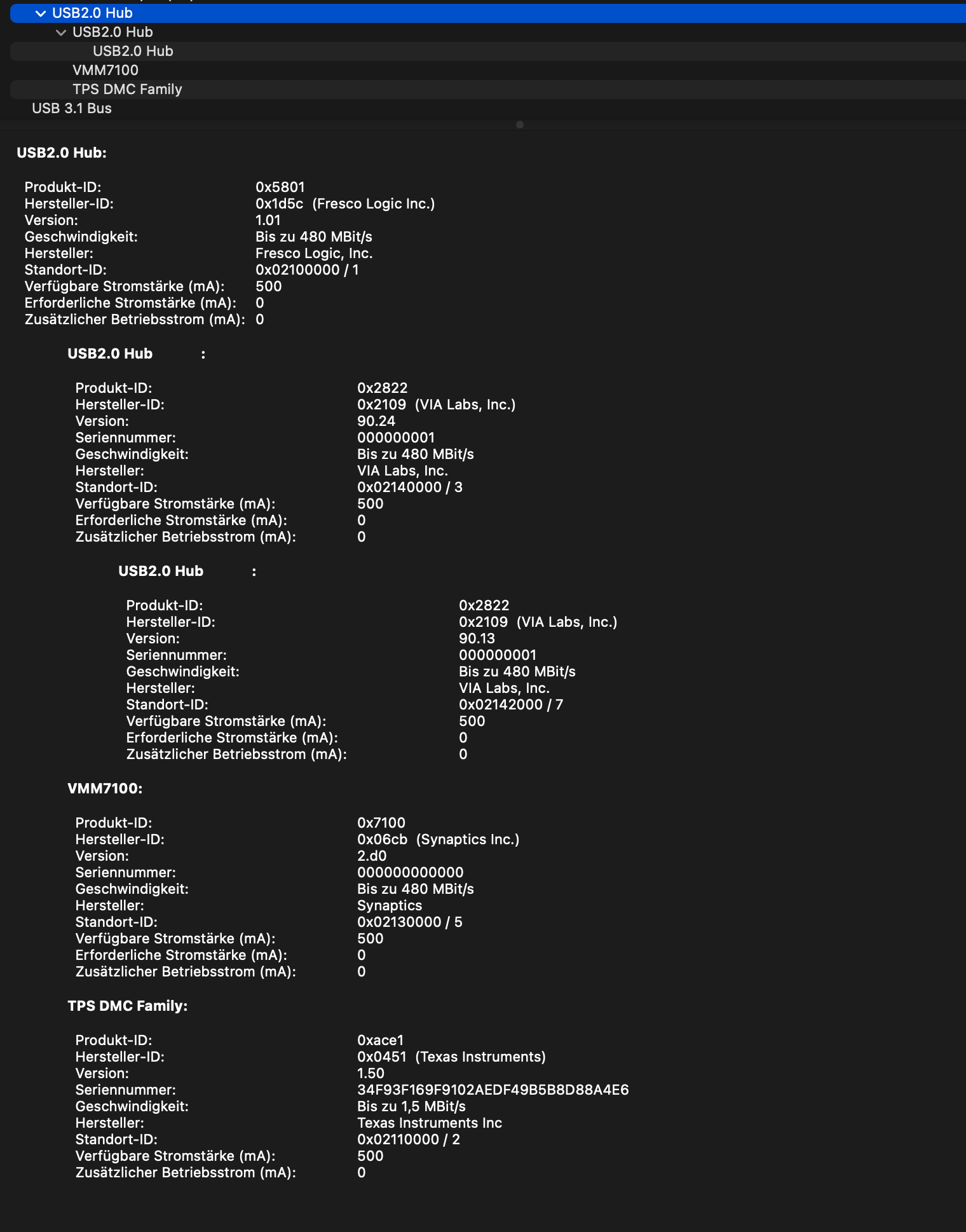

View attachment 2159717

I does connect the Anker Adapter to the TB 4 iTEC Dock, it works perfekt. in 4:4:4 8b. Only a Cable connection now.

Dang you tested a lot! Just to confirm, the anker adapter only works with custom firmware and connected to the tb4 dock? Does it work just connecting to the Mac?



[Zorast]

Dang you tested a lot! Just to confirm, the anker adapter only works with custom firmware and connected to the tb4 dock? Does it work just connecting to the Mac?

I does connect the Anker Adapter to the TB 4 iTEC Dock, it works perfek also in 4:4:4 8b 4k120hz too.
The Anker does also work when u connect it directly to your Mac! But I like the one cable solution 🙂



[Djlild7hina]

I does connect the Anker Adapter to the TB 4 iTEC Dock, it works perfek also in 4:4:4 8b 4k120hz too.
The Anker does also work when u connect it directly to your Mac! But I like the one cable solution 🙂

Great! Excited to try with my cable coming in tomorrow 🙂



[Technotron]

Thanks for all the testing @AironMan really appreciate it.

So in conclusion:

Best: https://www.amazon.de/dp/B0BG5BJ8SX?psc=1&ref=ppx_yo2ov_dt_b_product_details&tag=macr05-21

Works in conjunciton with (provided FW is updated on the above adapter): https://www.amazon.de/dp/B09YYT8LF4?psc=1&ref=ppx_yo2ov_dt_b_product_details&tag=macr05-21

So you just connect the Anker adapter to one of the TB4 ports on the i-tec dock?



[steve123]

Can someone with Mac Studio M1 MAX and M1 Ultra test if it works better when u connect the Adapter on the 2 Front USB-C Connectors ?

The Mac Studio with the M1 Ultra has two TB4 ports on the front instead of two USB 3.2 ports. So, you get the full 40 Gbps bandwidth from the front ports on the Studio w. M1 Ultra.

Which Anker product are you referring to?



[Zorast]

The Mac Studio with the M1 Ultra has two TB4 ports on the front instead of two USB 3.2 ports. So, you get the full 40 Gbps bandwidth from the front ports on the Studio w. M1 Ultra.

Which Anker product are you referring to?

Anker USB-C to HDMI Adapter (8K@60Hz or 4K@144Hz) for MacBook Pro, MacBook Air, iPad Pro, Pixelbook, XPS and More

Anker USB-C to HDMI Adapter (8K@60Hz or 4K@144Hz) for MacBook Pro, MacBook Air, iPad Pro, Pixelbook, XPS and More

www.amazon.de

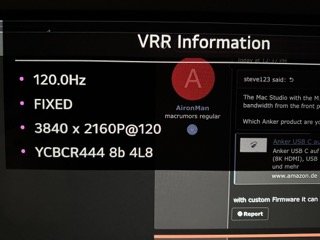

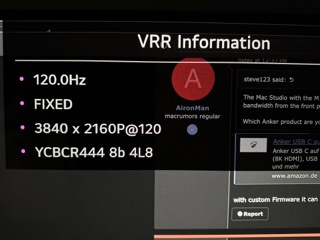

with custom Firmware it can do 4k@120hz 8:8:8 8bit



[Zorast]

The Mac Studio with the M1 Ultra has two TB4 ports on the front instead of two USB 3.2 ports. So, you get the full 40 Gbps bandwidth from the front ports on the Studio w. M1 Ultra.

Which Anker product are you referring to?

Yeah but I dont think this Adapters utilize TB4 DP-ALT they will let Apple Hardware think its an USB-C Device and then it will be limited to around 10-20 Gbps !



[Zorast]

Thanks for all the testing @AironMan really appreciate it.

So in conclusion:

Best: https://www.amazon.de/dp/B0BG5BJ8SX?psc=1&ref=ppx_yo2ov_dt_b_product_details&tag=macr05-21

Works in conjunciton with (provided FW is updated on the above adapter): https://www.amazon.de/dp/B09YYT8LF4?psc=1&ref=ppx_yo2ov_dt_b_product_details&tag=macr05-21

So you just connect the Anker adapter to one of the TB4 ports on the i-tec dock?

Yes ! U can also only use the Anker Adapter



[Djlild7hina]

Yes ! U can also only use the Anker Adapter

If HDR mode is enabled in system settings is it still 4:4:4?



[Zorast]

If HDR mode is enabled in system settings is it still 4:4:4?

HDR is not possible the Bandwidth is not enough !



[magbarn]

You're the Man, AironMan. Ordered the Anker from Amazon here for $50.
Applied your firmware file using my Lenovo Legion 7 laptop=PROFIT
No need for EDID or 3rd party apps, I've got 4:4:4 4K120. I did have to switch to 60/120 twice to get it to work at 444 though. Not sure why, but mad props to you.



[Technotron]

So in the long run, I am considering the solution with the Anker dongle + itec dock, as I would also prefer a one-cable-does-all solution, but I am not about to spend another 250 EUR just yet (lol).

I am wondering if I can update the FW of my cable (https://www.amazon.nl/dp/B09MCXCWTQ?psc=1&ref=ppx_yo2ov_dt_b_product_details) to get the full RGB range out of it.

1. AironMan, where exactly can I see the chip used in my cable?
2. Could you hook me up with the exact flashing procedure once more?

Edit: weird, I don't see any info regarding my USB C - HDMI adapter... perhaps because I am already running a modified EDID?



[Zorast]

So in the long run, I am considering the solution with the Anker dongle + itec dock, as I would also prefer a one-cable-does-all solution, but I am not about to spend another 250 EUR just yet (lol).

I am wondering if I can update the FW of my cable (https://www.amazon.nl/dp/B09MCXCWTQ?psc=1&ref=ppx_yo2ov_dt_b_product_details) to get the full RGB range out of it.

1. AironMan, where exactly can I see the chip used in my cable?
2. Could you hook me up with the exact flashing procedure once more?

Edit: weird, I don't see any info regarding my USB C - HDMI adapter... perhaps because I am already running a modified EDID?

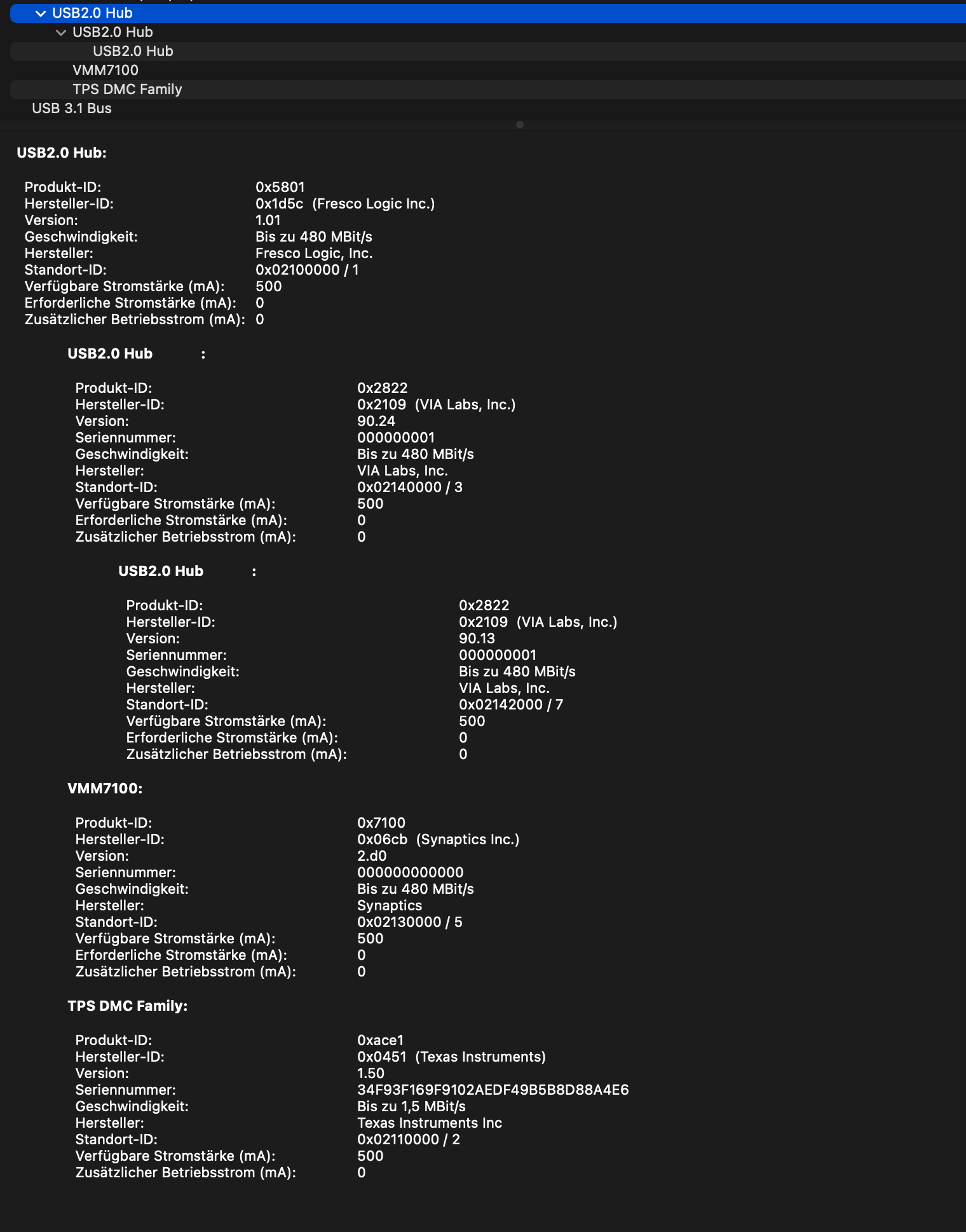

View attachment 2160020

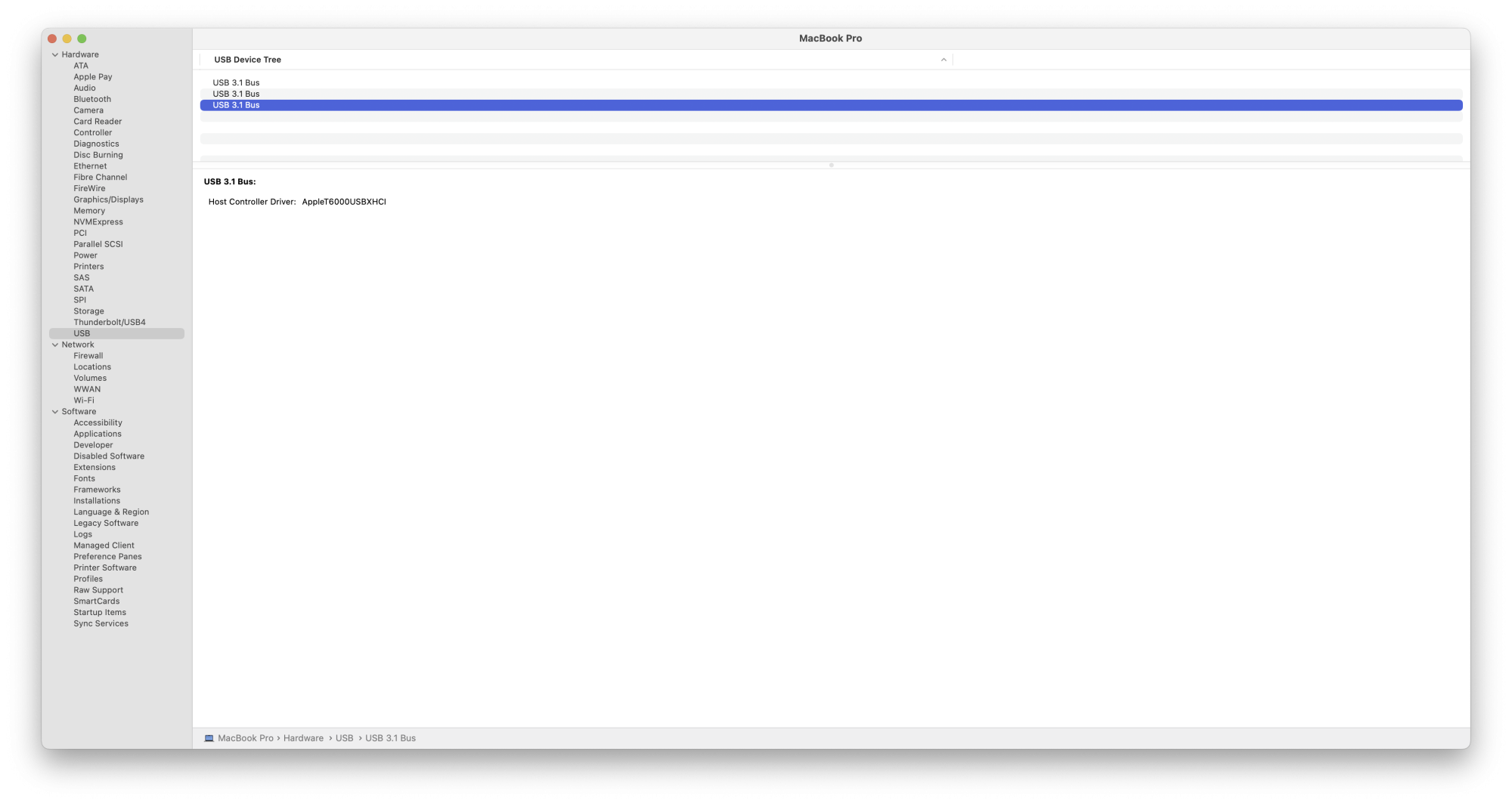

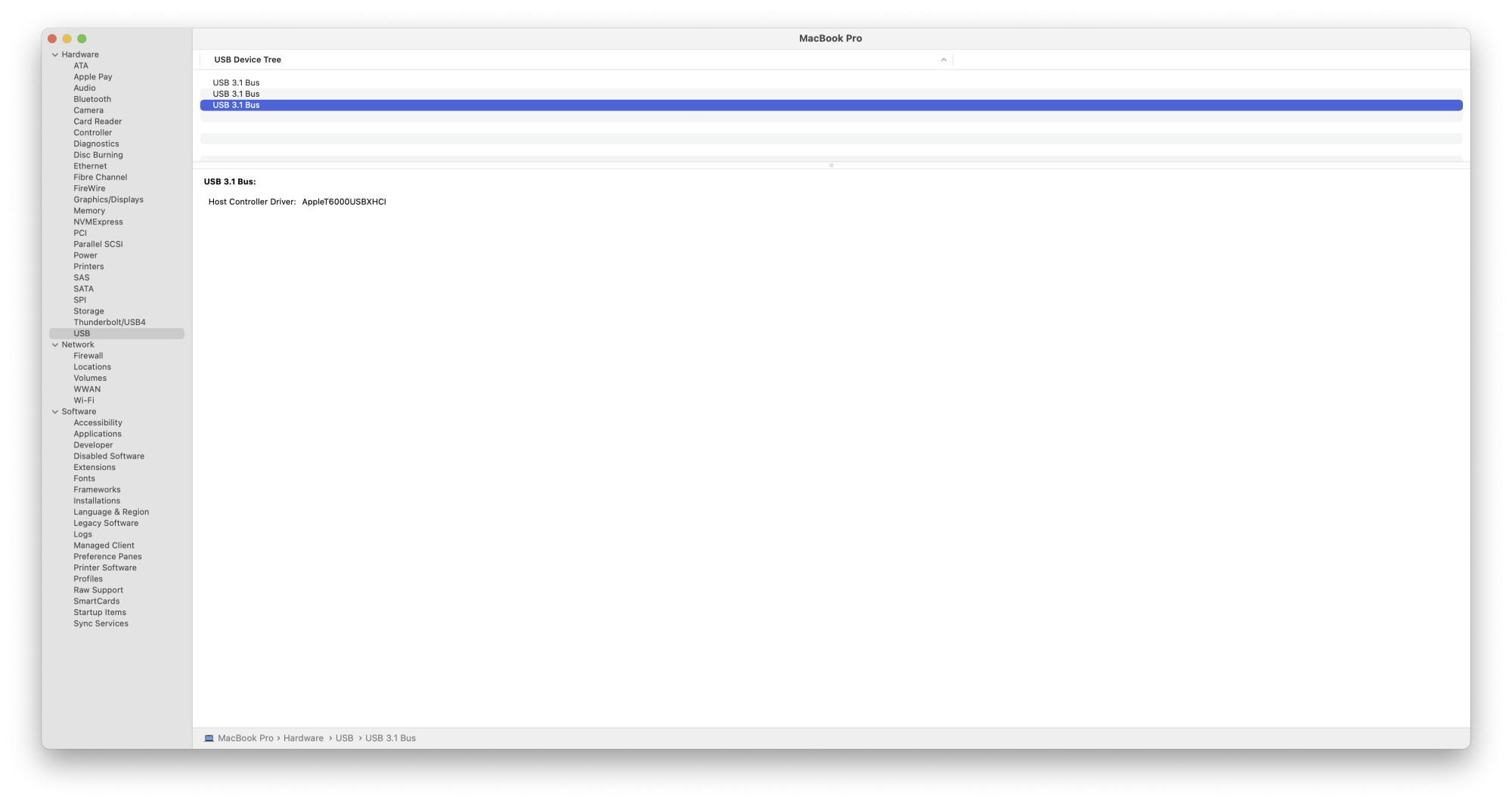

Click on Thunderbolt/USB 4.

U can also only connect the Anker Adapter, u dont need the TB4 Station!
