Mac Mini Core 2 Duo problem

[CooperBox]

I trust this Intel-related query is acceptable here on our PPC forum.
I'm currently refubishing a 1.83Ghz mid 2007 MacMini2,1 which was apparently functioning fairly well albeit with reports of reduced performance.
Found the fan well clogged, and with a small piece of the liner plucked away which produced a rubbing sound when turned by hand. Similar sound after cleaning and I have no doubt that most repairers would have ditched it. I thought it was a candidate for some t.l.c however, and 1hr later with the liner cleaned up and spindle re-oiled, it spun quickly and silently almost like new and surprisingly without noticeable side or end play.
Then came my first encounter with those pesky heat-cooler plastic retainers, which I mananged to remove without a breakage, and sucessfully re-install after processor re-pasting - which was long overdue.
Long story short, after re-assembly the Mac appeared to power on, but would display no image. After numerous checks still no image.
I then again disassembled completely, and found no obvious connection problems, until I gave a detailed inspection of the logic board.

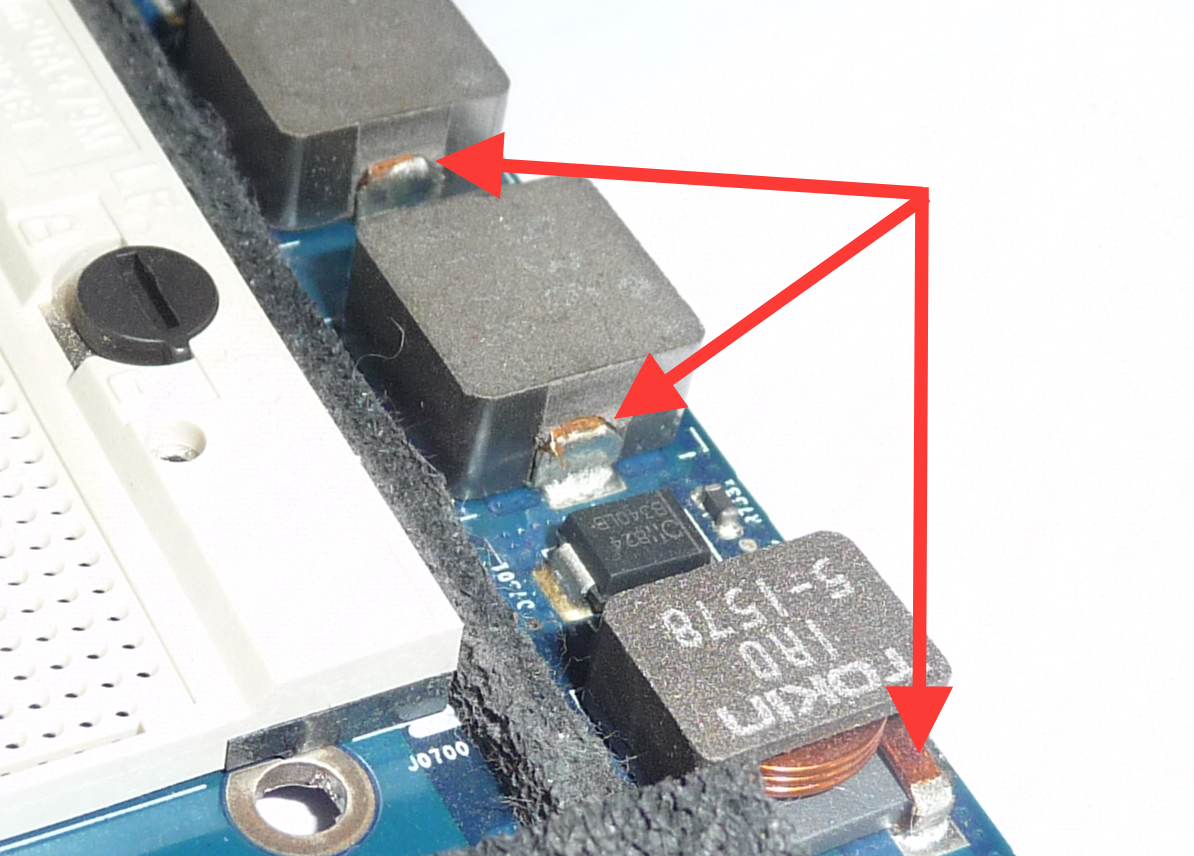

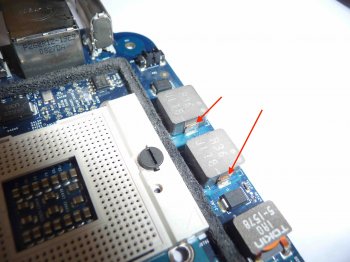

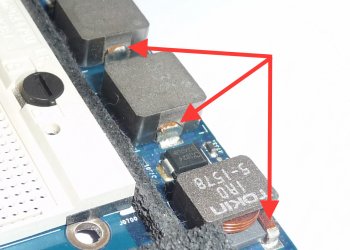

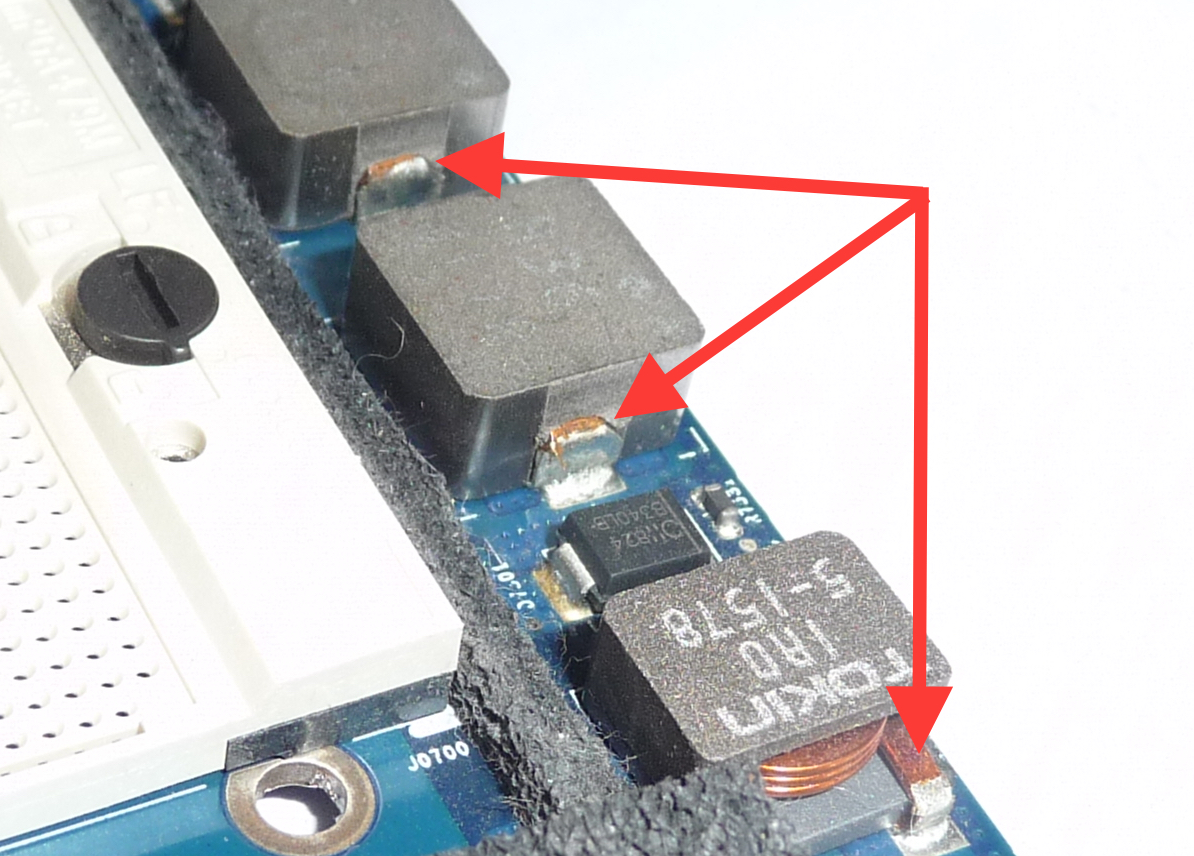

Corrosion and partial fracture on 2 components:-

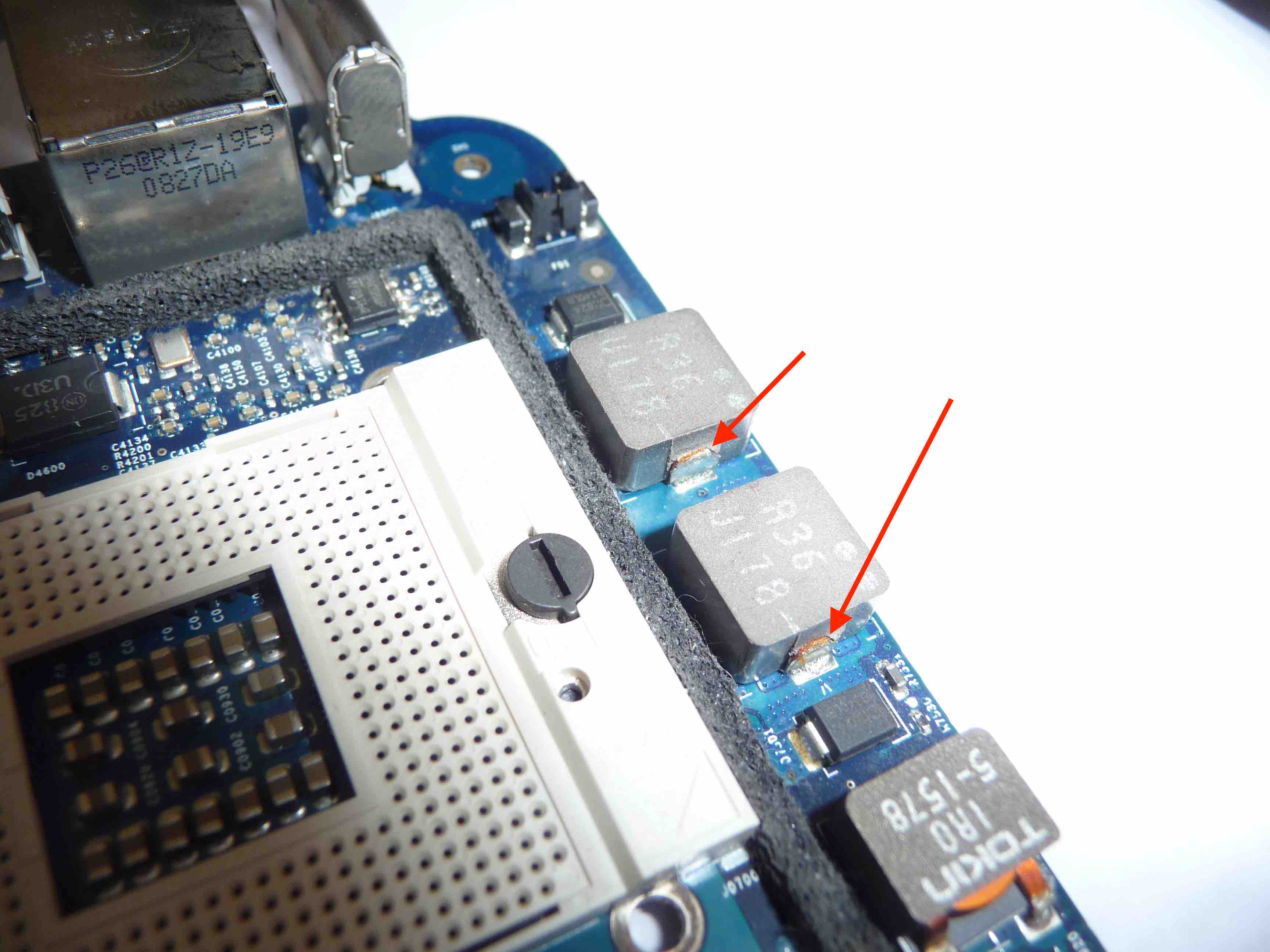

A third leg on a component also appears to be affected by corrosion:-



Could anybody please advise what these components actually are, and whether these could be responsible for the lack of screen image.
I fear it will be impossible to change these out, although I may attempt an attack with the soldering iron, to clean and add solder to the partial fracture areas.
Plan B is already in motion, which is to source another logic board. Any possible offers here......?

On a related note, the 1.83Ghz T5600 'Merom' processor could obviously be upgraded to a T2700 2Ghz 'Merom'. Which begs the obvious question, could one upgrade confortably to a 2.0 GHz or 2.26 GHz 'Penryn' on the same board?
I note all these Core 2 Dual upgrade processors can now be found very cheaply. Not so sure about replacement boards though.......



[LightBulbFun]

did you make sure to turn the little black processor retention screw back into the locked position when putting the system back together? you would be surprised at how many people forget to do this

as for the components you pointed out they are the Chokes/inductors for the CPU VRM circuitry and are vital for operation of the System.

and as for the CPU upgrade, the max CPU that you can fit to a MacMini1,1/2,1 is a 2.33Ghz Core 2 Duo T7600, there are no Penryn Socket M CPUs.



[CooperBox]

LBFun, thanks for the feedback.

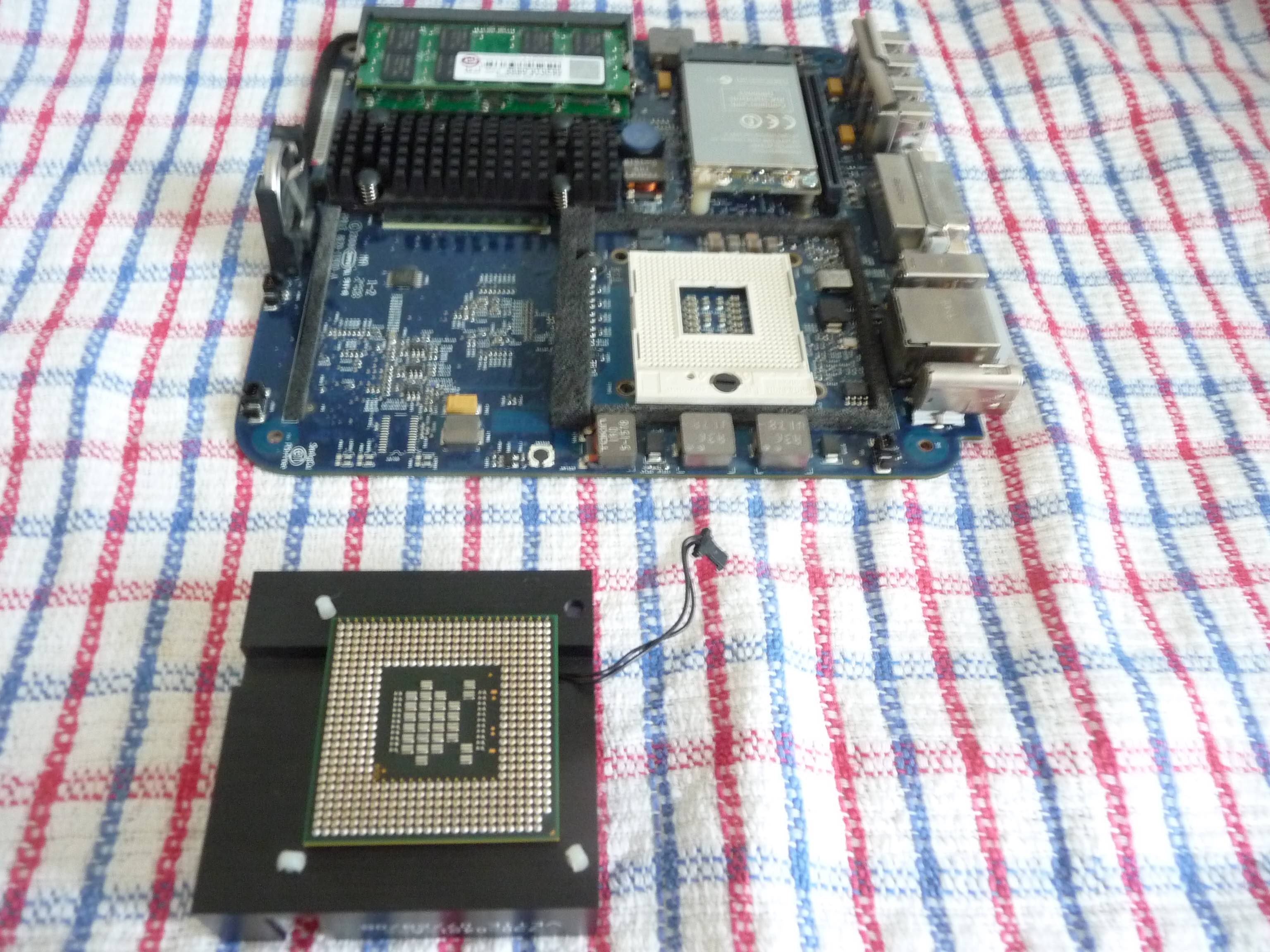

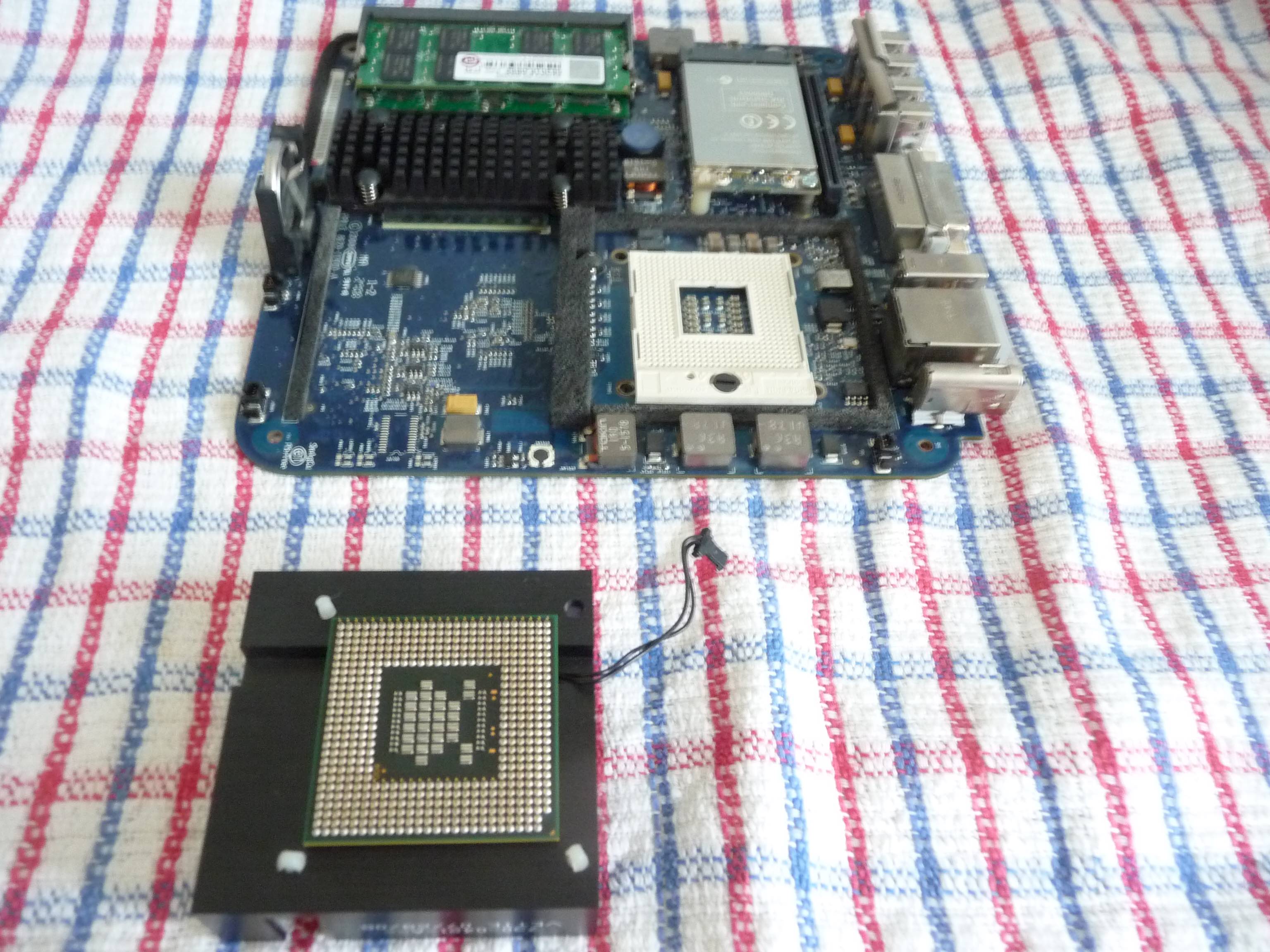

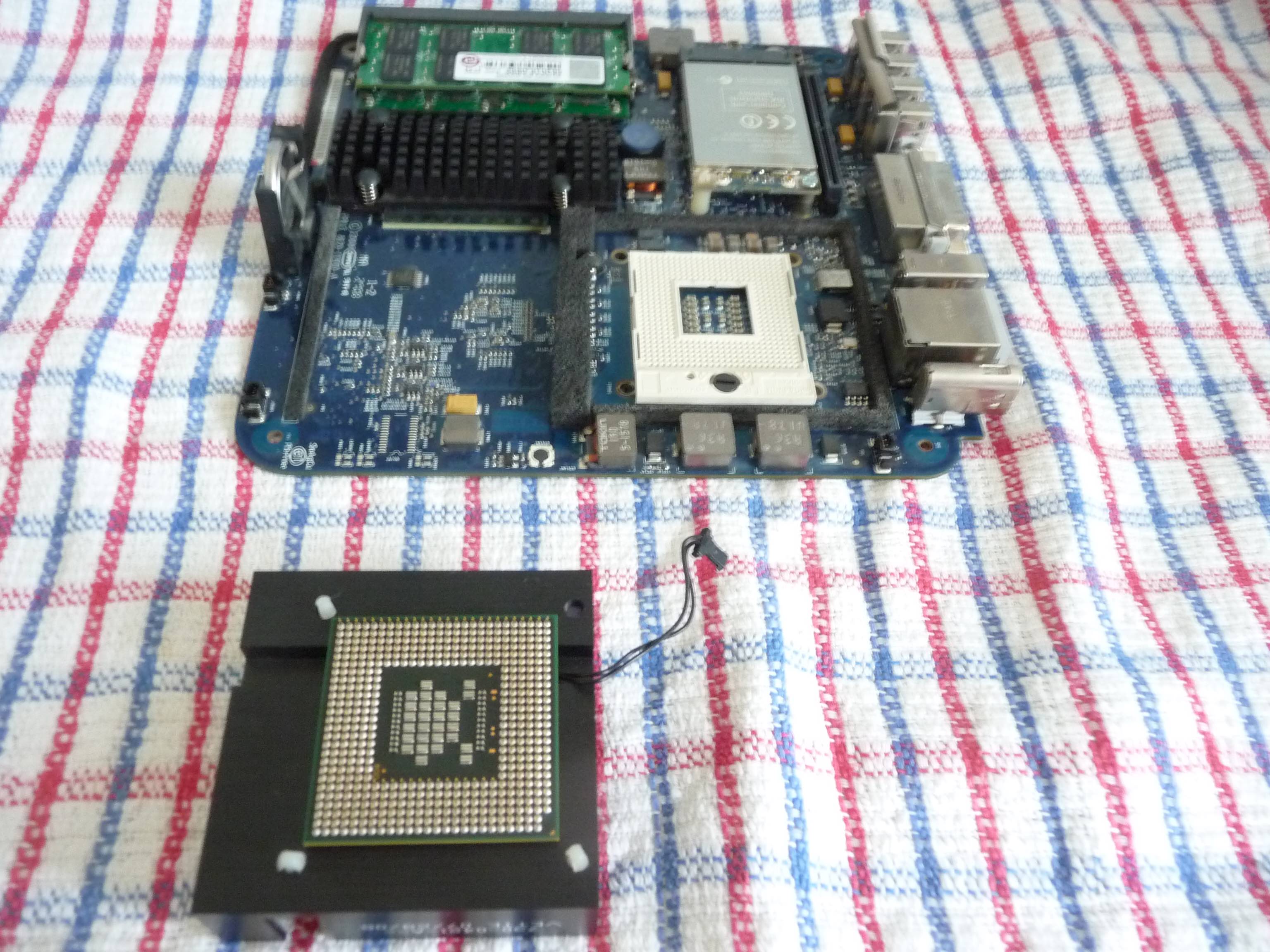

Regarding the disassembly, I was somewhat surprised that when I removed the heat-sink, it came out with the processor still attached (see photo below), and even a light tap wasn't sufficient to free them - it took a spudger on both sides as a leverage to break the bonding of the super hard thermal paste. I then immediately checked the processor socket lockscrew, and surprised to see it was still in the locked position. Following a detailed inspection for no damaged pins (all found perfect), clean and re-paste, the T5600 processor was re-inserted into it's socket and securely locked in place.

From past discussions I realise that you're one of several 'processor kings' on this forum. I wasn't aware there was a 2.33Ghz Core 2 Duo T7600, as according to Macktracker that wasn't offered as an option on the 2007-2009 MacMini2,1.
I think I'd be a little concerned though about the higher operating temperatures with a 2.33Ghz. What's your view on this?

I've just been reading now that a few upgraders were paying $300 for that 2.33Ghz T7600 back in 2008! Also that one guy replaced a broken plastic heatsink retention pin with 2 zip-ties! No way would I have done that. I've ordered Nylon screws, hex nuts, and washers that may come in useful one day.

I've been advised of the availability of a logic board from a slightly earlier MacMini1,1 (Core Duo 1.66MHz) and guess that same board would comfortably accomodate my current 1.83Ghz T5600. Am I right in assuming that?



[DouglasCarroll]

I recently upgraded my Mac mini to a core2duo and it was the best upgrade I ever could do, works great. I suspect you overlooked something when you were putting it back together. Take it apart and recheck all the connections.

Good luck

LBFun, thanks for the feedback.
Regarding the disassembly, I was somewhat surprised that when I removed the heat-sink, it came out with the processor still attached (see photo below), and even a light tap wasn't sufficient to free them - it took a spudger on both sides as a leverage to break the bonding of the super hard thermal paste. I then immediately checked the processor socket lockscrew, and surprised to see it was still in the locked position. Following a detailed inspection for no damaged pins (all found perfect), clean and re-paste, the T5600 processor was re-inserted into it's socket and securely locked in place.

From past discussions I realise that you're one of several 'processor kings' on this forum. I wasn't aware there was a 2.33Ghz Core 2 Duo T7600, as according to Macktracker that wasn't offered as an option on the 2007-2009 MacMini2,1.
I think I'd be a little concerned though about the higher operating temperatures with a 2.33Ghz. What's your view on this?

I've just been reading now that a few upgraders were paying $300 for that 2.33Ghz T7600 back in 2008! Also that one guy replaced a broken plastic heatsink retention pin with 2 zip-ties! No way would I have done that. I've ordered Nylon screws, hex nuts, and washers that may come in useful one day.

I've been advised of the availability of a logic board from a slightly earlier MacMini1,1 (Core Duo 1.66MHz) and guess that same board would comfortably accomodate my current 1.83Ghz T5600. Am I right in assuming that?

View attachment 771672



[LightBulbFun]

LBFun, thanks for the feedback.
Regarding the disassembly, I was somewhat surprised that when I removed the heat-sink, it came out with the processor still attached (see photo below), and even a light tap wasn't sufficient to free them - it took a spudger on both sides as a leverage to break the bonding of the super hard thermal paste. I then immediately checked the processor socket lockscrew, and surprised to see it was still in the locked position. Following a detailed inspection for no damaged pins (all found perfect), clean and re-paste, the T5600 processor was re-inserted into it's socket and securely locked in place.

From past discussions I realise that you're one of several 'processor kings' on this forum. I wasn't aware there was a 2.33Ghz Core 2 Duo T7600, as according to Macktracker that wasn't offered as an option on the 2007-2009 MacMini2,1.
I think I'd be a little concerned though about the higher operating temperatures with a 2.33Ghz. What's your view on this?

I've just been reading now that a few upgraders were paying $300 for that 2.33Ghz T7600 back in 2008! Also that one guy replaced a broken plastic heatsink retention pin with 2 zip-ties! No way would I have done that. I've ordered Nylon screws, hex nuts, and washers that may come in useful one day.

I've been advised of the availability of a logic board from a slightly earlier MacMini1,1 (Core Duo 1.66MHz) and guess that same board would comfortably accomodate my current 1.83Ghz T5600. Am I right in assuming that?

View attachment 771672

the T7600 has the same 35W TDP as all other Socket M CPUs so thermals are not an issue, many people have upgraded their Mac Minis to T7600s with no issues.

a MacMini1,1 board should drop in however its worth noting you will want to flash it to MacMini2,1 for Full Core 2 Duo support and to support more then 2GB of RAM luckily @dosdude1 has made a nifty tool to allow you to do this with ease
