strawberrynatto

macrumors newbie
Original poster
Feb 16, 2014
12
0
Bought a new late 2012 Mac Mini. Bought a Samsung 128gb 840 Pro SSD. Bought a WD Blue 1TB HDD. Bought a USB mouse/keyboard. Connect via HDMI with HDTV.

Powered on, found the right channel for viewing on HDTV. Clear sailing thru set-up. Verified stock HDD position (lower). Created a Mavericks USB boot key drive. Ordered the OWC Data Doubler.

Today, opened up the Mac Mini. Took out the stock HDD (too small for my needs). Put the new WD HDD in the upper position, put the Samsung SSD in the bottom/lower position. Put everything back together - no issues or problems.

Plugged in usb mouse/keyboard. Plugged in usb flash drive. Powered on holding Option key. Nothing happens. Just a white screen. Try again, same result. Try again, holding down C key, gives me an Internet Recovery box in centre screen to click on and below that, pick a wireless connection. Try again, same result.

Plugging the USB flash key in a laptop shows it works no problem. But no matter even if i disassemble and swap drive positions, still nothing works.

I'm not cloning anything because I have no files or anything to save or carry over. I'm guessing it's something with my 2 installed drives not having an OS on them, but they USB bootable flash key drive should take care of that. But doesn't.

Is there an easier/ideal way to do this? I have the stock drive which is set up and running Mavericks.

I just need to end up with my SSD formatted and a clean install of Mavericks. And my secondary installed HDD (not the stock one, but the new larger sized one) formatted for my music library.


apfelmann

macrumors 6502
Jul 23, 2007
396
129
I read somewhere probably on this forum that mavericks needs a special build for Mac Mini

so maybe internet recovery or cloning the original drive are the only options


jbarley

macrumors 601
Jul 1, 2006
4,023
1,894
Vancouver Island
Bought a new late 2012 Mac Mini. Bought a Samsung 128gb 840 Pro SSD. Bought a WD Blue 1TB HDD. Bought a USB mouse/keyboard. Connect via HDMI with HDTV.

Powered on, found the right channel for viewing on HDTV. Clear sailing thru set-up. Verified stock HDD position (lower). Created a Mavericks USB boot key drive. Ordered the OWC Data Doubler.

Did you try to boot the new Mavericks USB boot key right after you created it to see if it worked?


FreakinEurekan

macrumors 603
Sep 8, 2011
5,877
2,865
I read somewhere probably on this forum that mavericks needs a special build for Mac Mini

so maybe internet recovery or cloning the original drive are the only options

Nope, there was a special build of Mountain Lion for the 2012 Mini (12B2100) but it uses the stock version of Mavericks.


famous600

macrumors 6502a
Apr 8, 2010
705
1
I would plug Ethernet in. Boot holding command option R to go straight into internet recovery and try it that way.


mmomega

macrumors 68040
Dec 30, 2009
3,879
2,089
DFW, TX
I had a similar problem back when the Samsung 830 SSD's came out and I had to format the SSD to anything, fat, ntfs, just any file system before my mac would see it.
After that it was smooth sailing, ever since that one time, I have a USB -> Sata adaptor that I will format any new SSD with before installing and I haven't had a problem since.

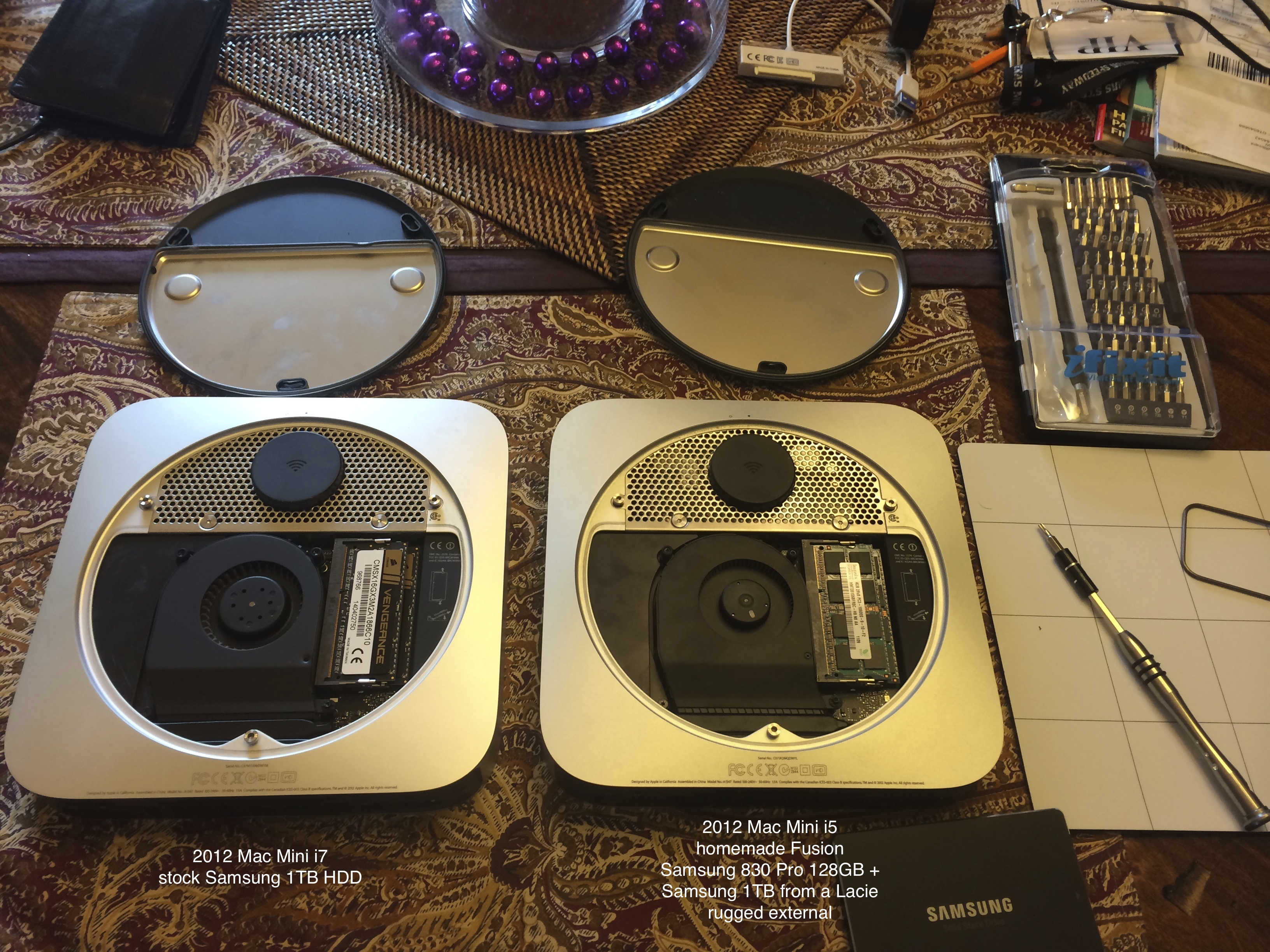

I just installed an 840 Pro 256GB + Samsung 1TB drive in my 2012 i7 mini and I'm waiting for Mavs to download to create a boot disk.

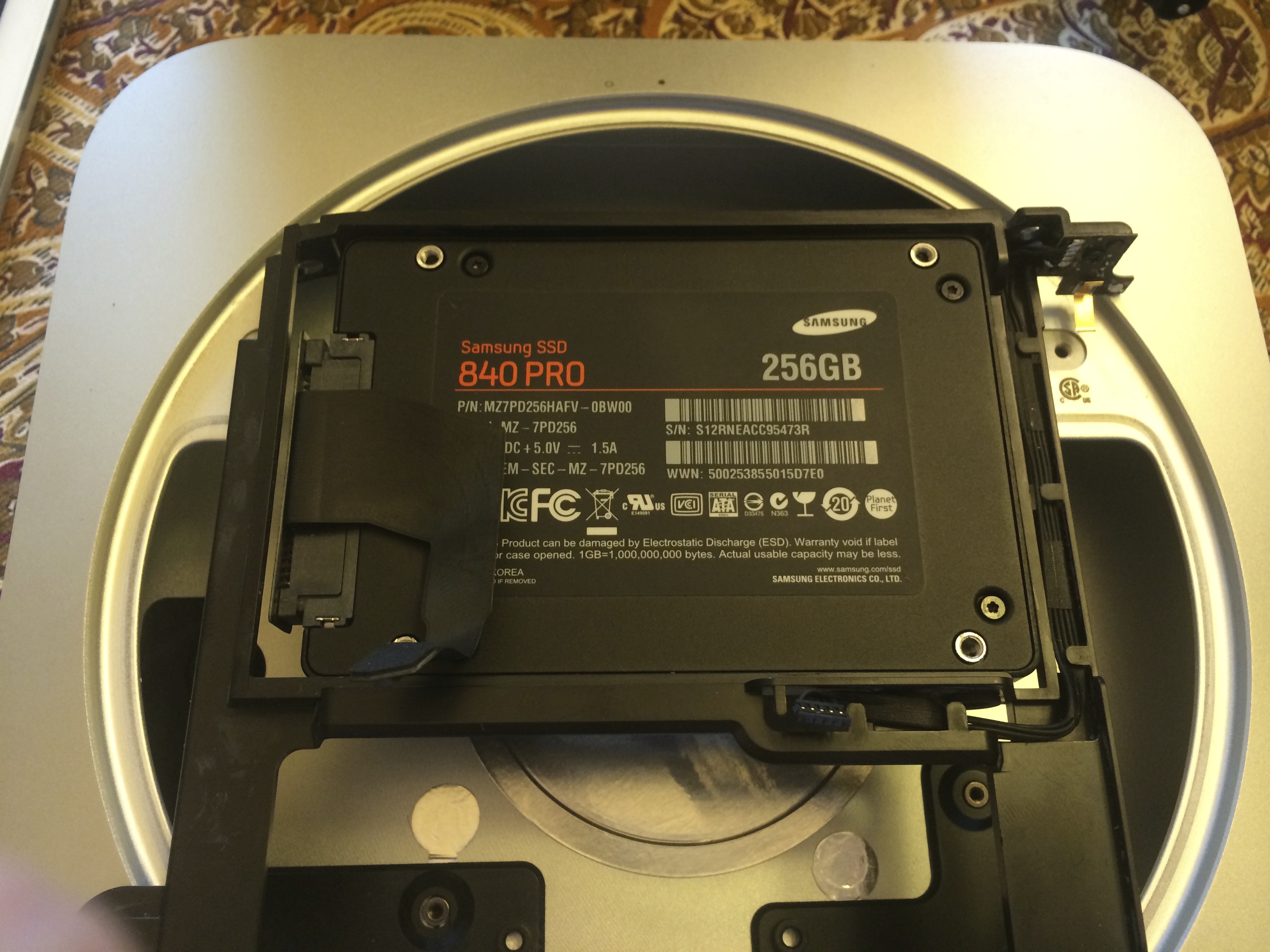

Same configuration as yours, SSD on the bottom, HDD on top and it worked great in my i5 mini, just switching it over to the i7.

If the Sammy SSD is brand new I would try formatting it somehow, it worked for me. Hope this helps.


Final product will end up being
2012 Mac Mini
Intel Core i7 2.3GHz to 3.3Ghz TurboBoosted 6MB L3
Intel HD4000 Graphics

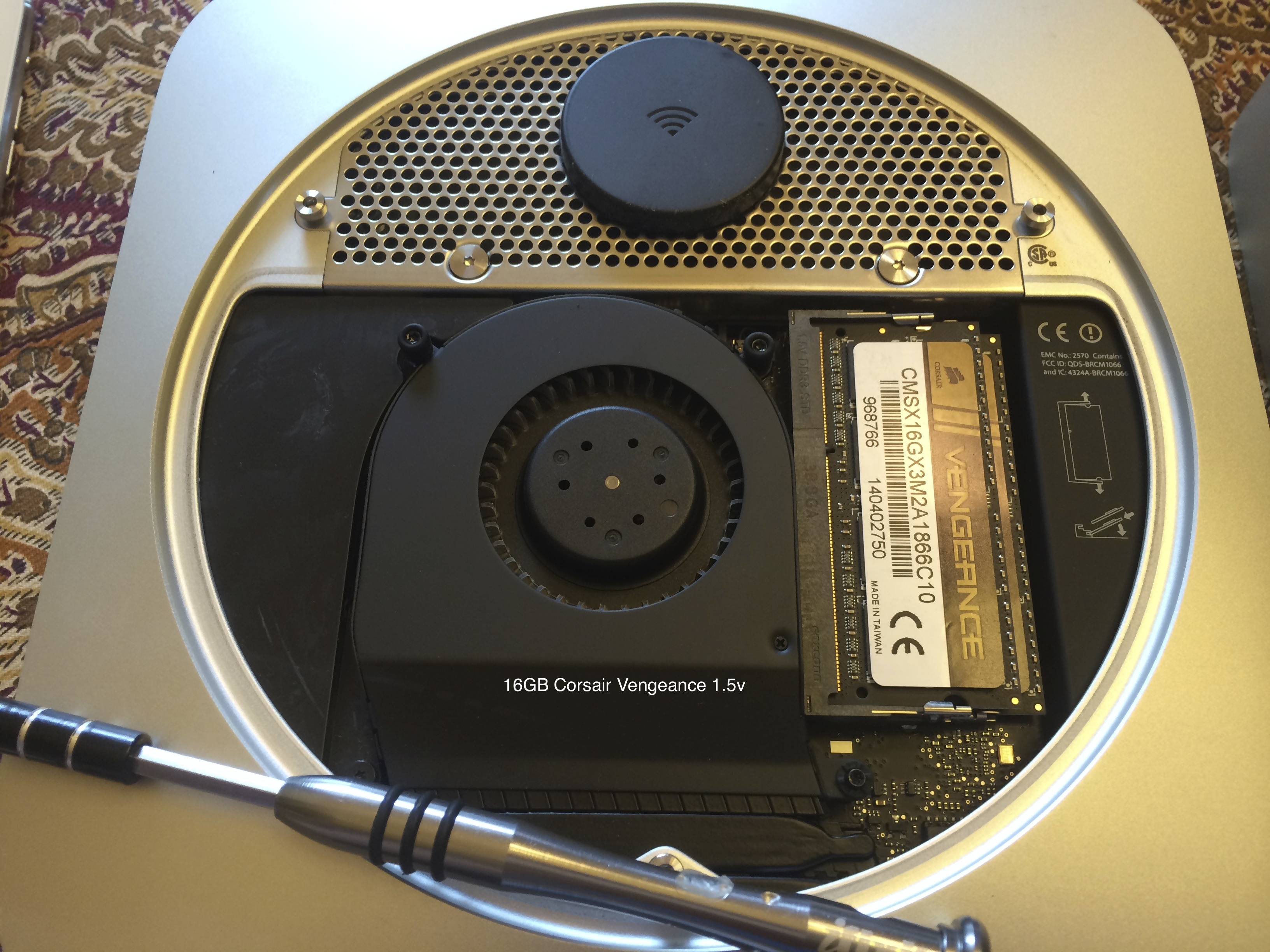

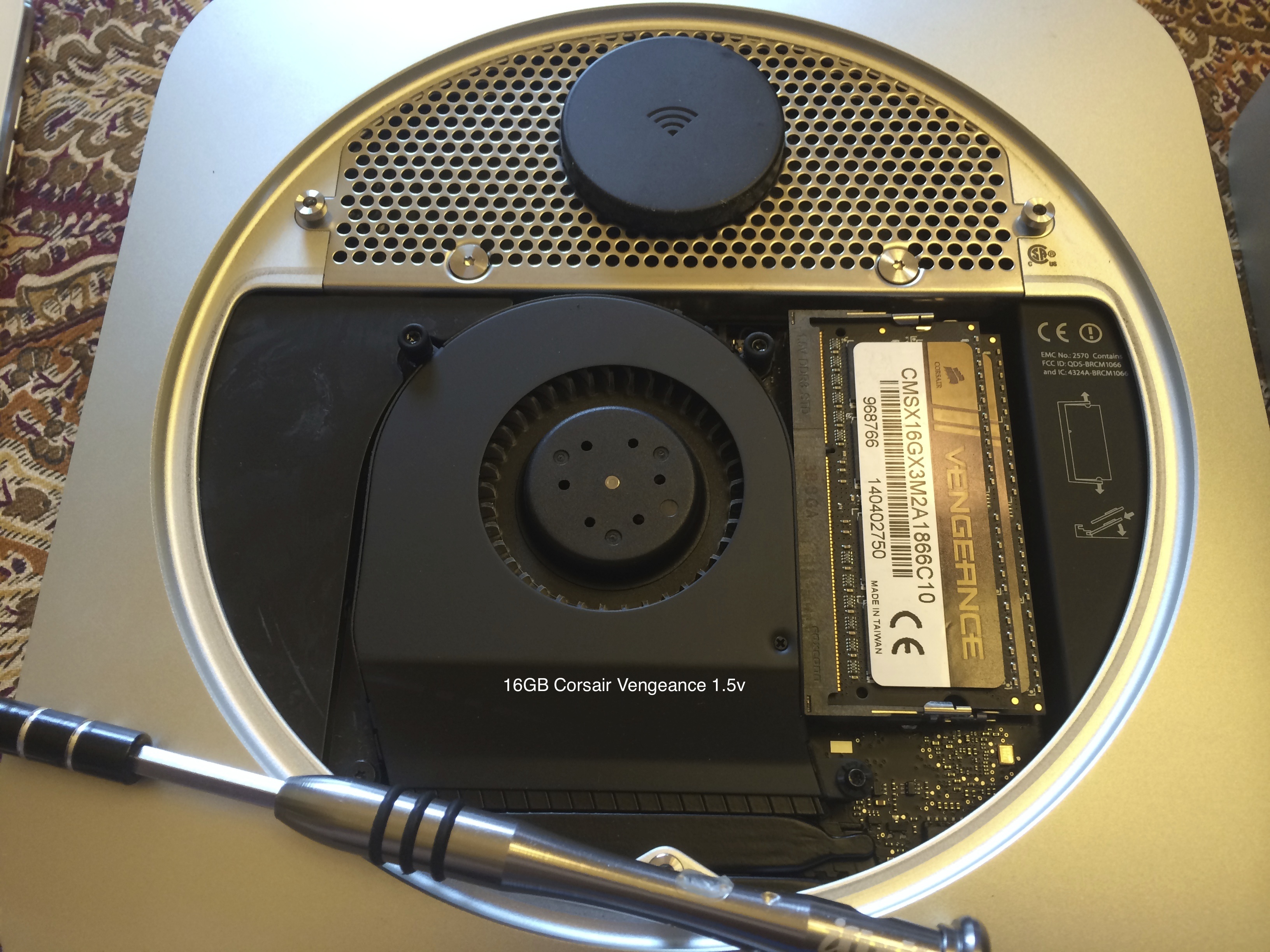

Corsair Vengeance 2x 8GB 1600MHz 1.5v 204pin RAM

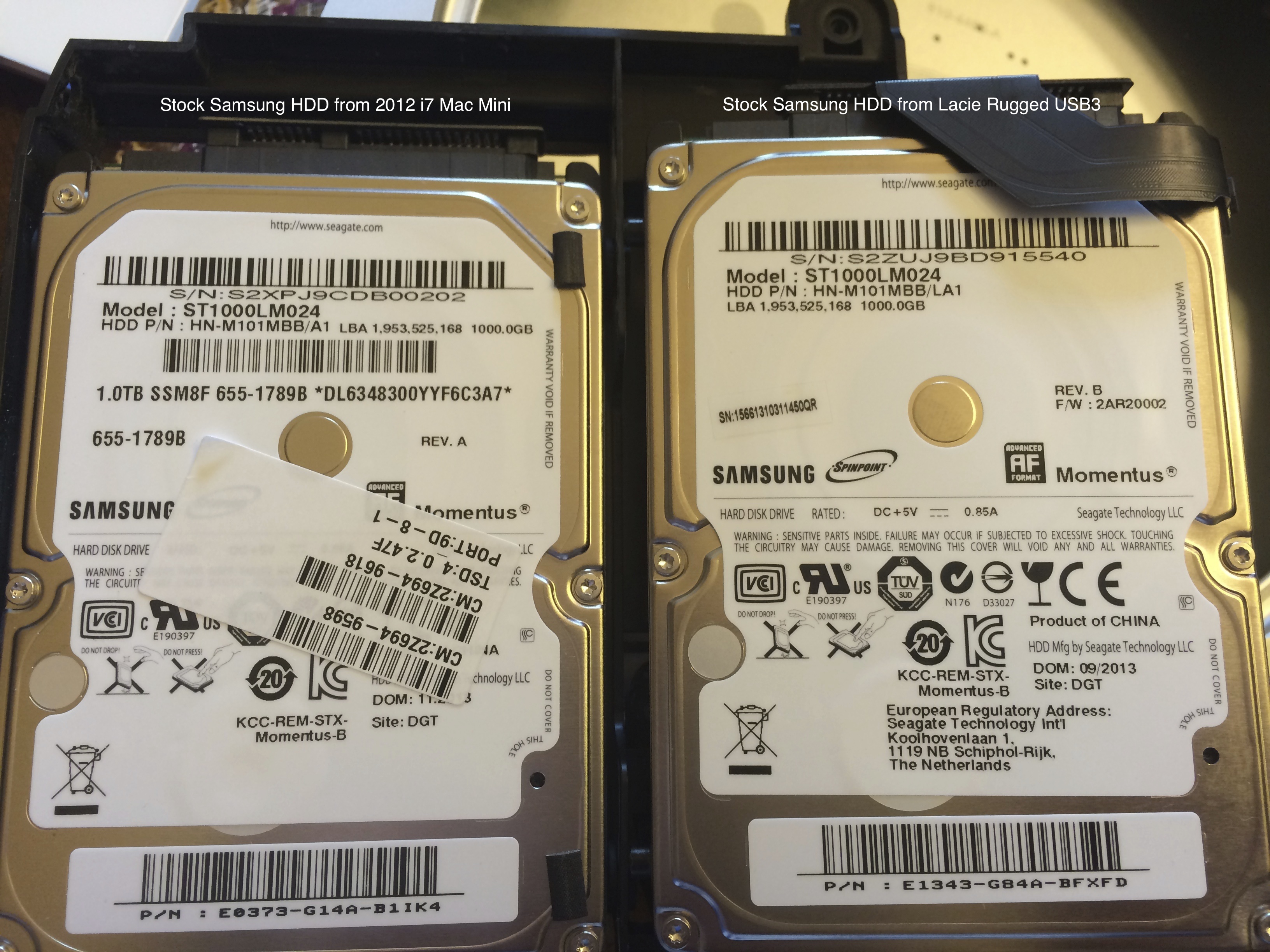

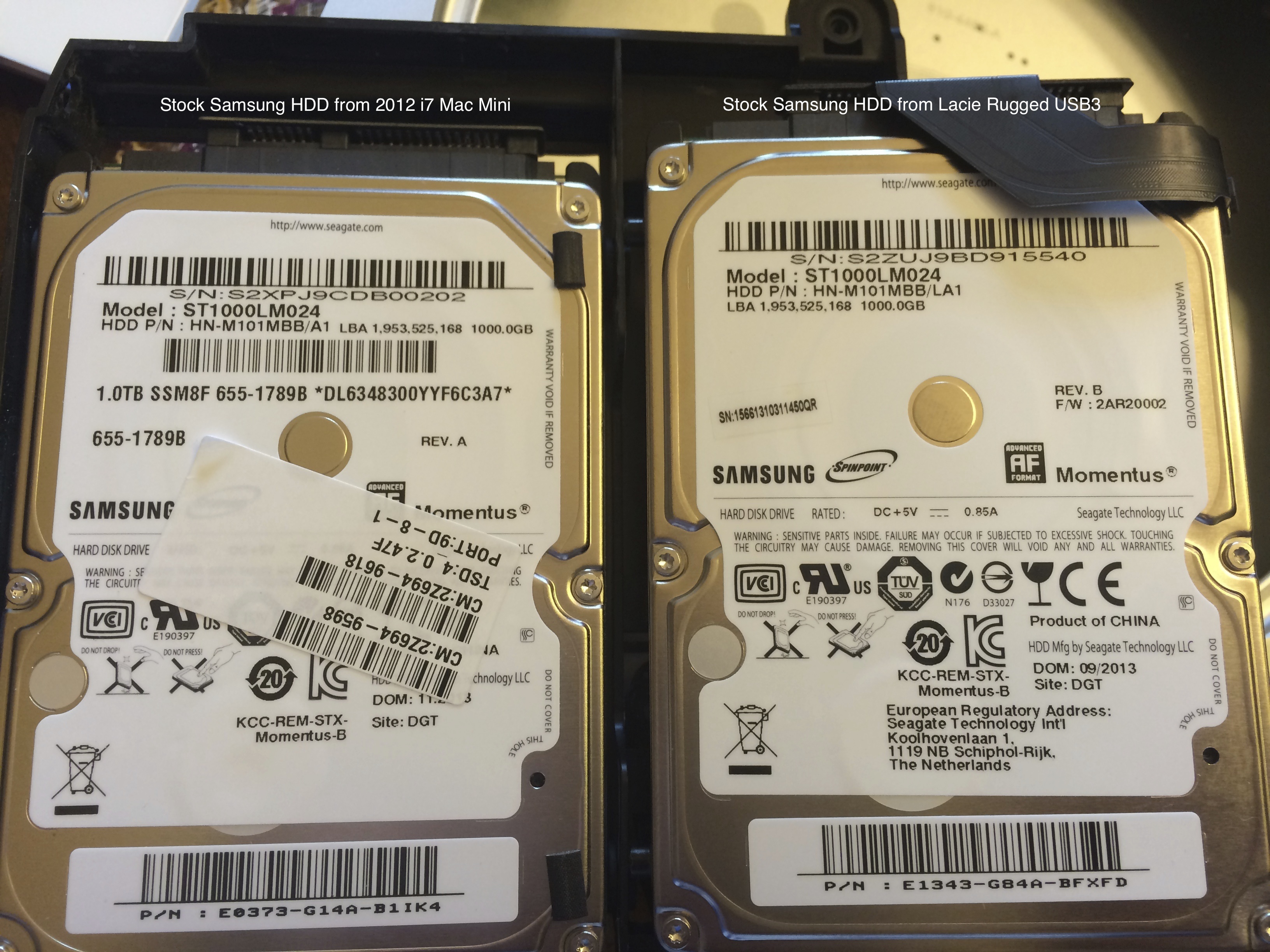

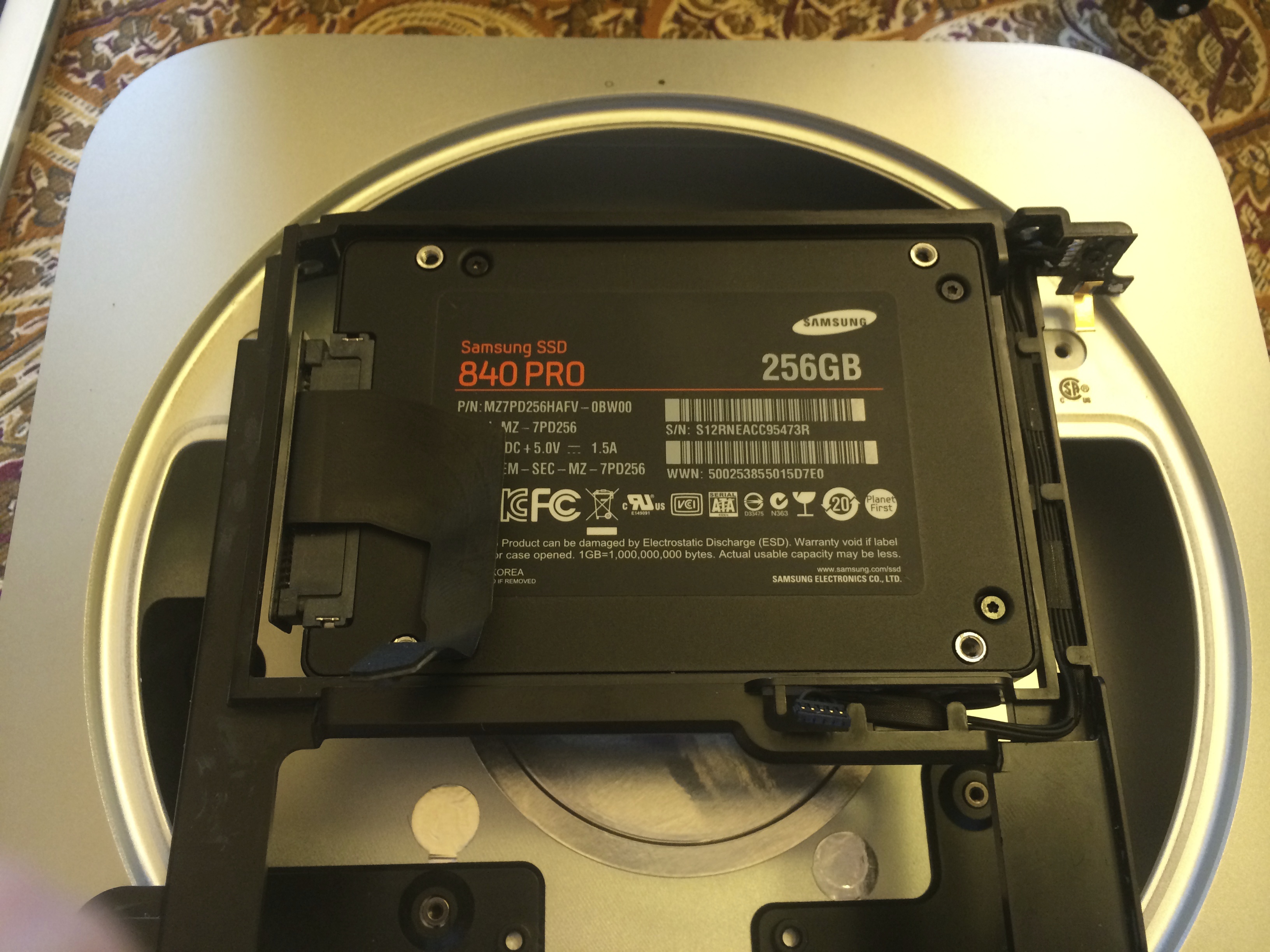

Samsung 256GB 840 Pro SSD + the stock Samsung/Seagate 1TB 5400rpm HDD Fusion'd


Attachments

  • IMG_1686.jpg
    2.3 MB · Views: 141
  • IMG_1687.jpg
    1.7 MB · Views: 110
  • IMG_1689.jpg
    1.8 MB · Views: 122
  • IMG_1691.jpg
    1.5 MB · Views: 113
Last edited:

mmomega

macrumors 68040
Dec 30, 2009
3,879
2,089
DFW, TX
Mine seems to be installing now.

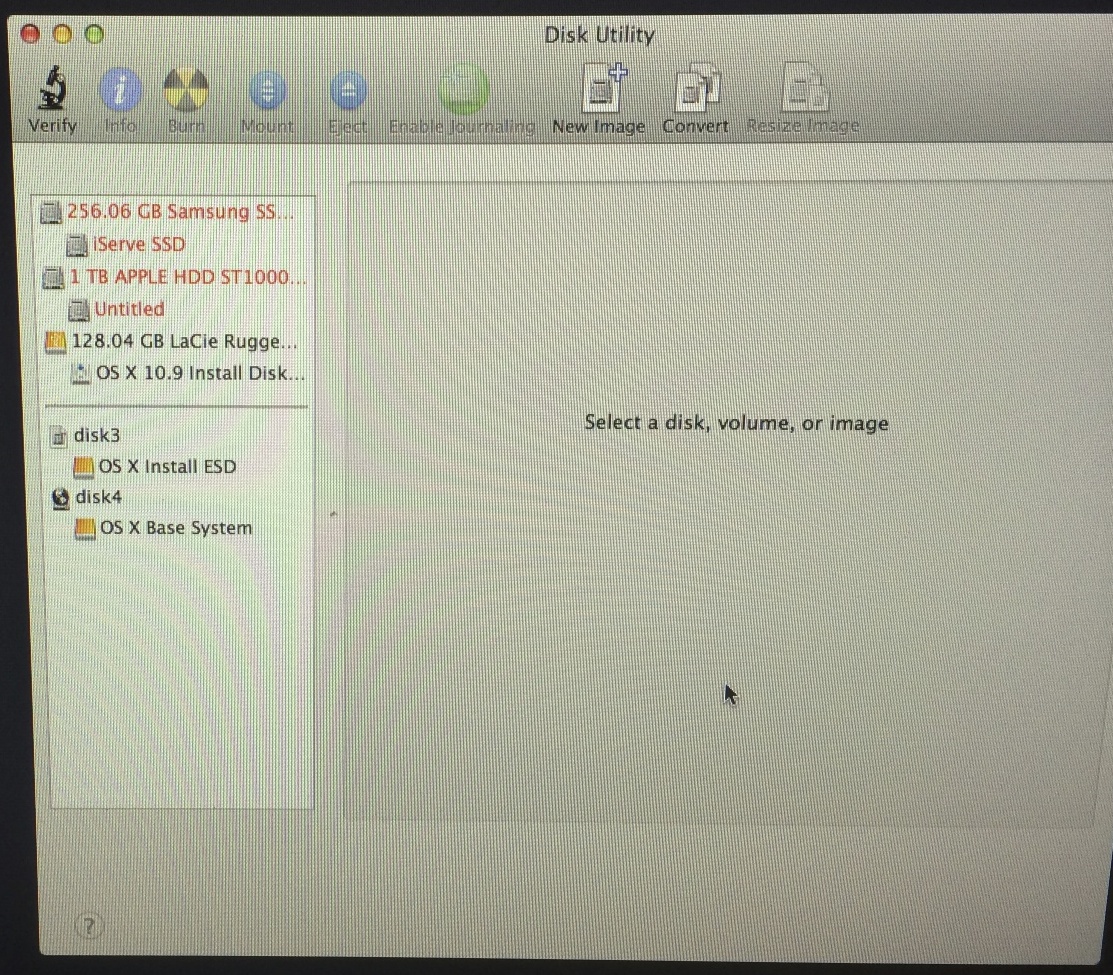

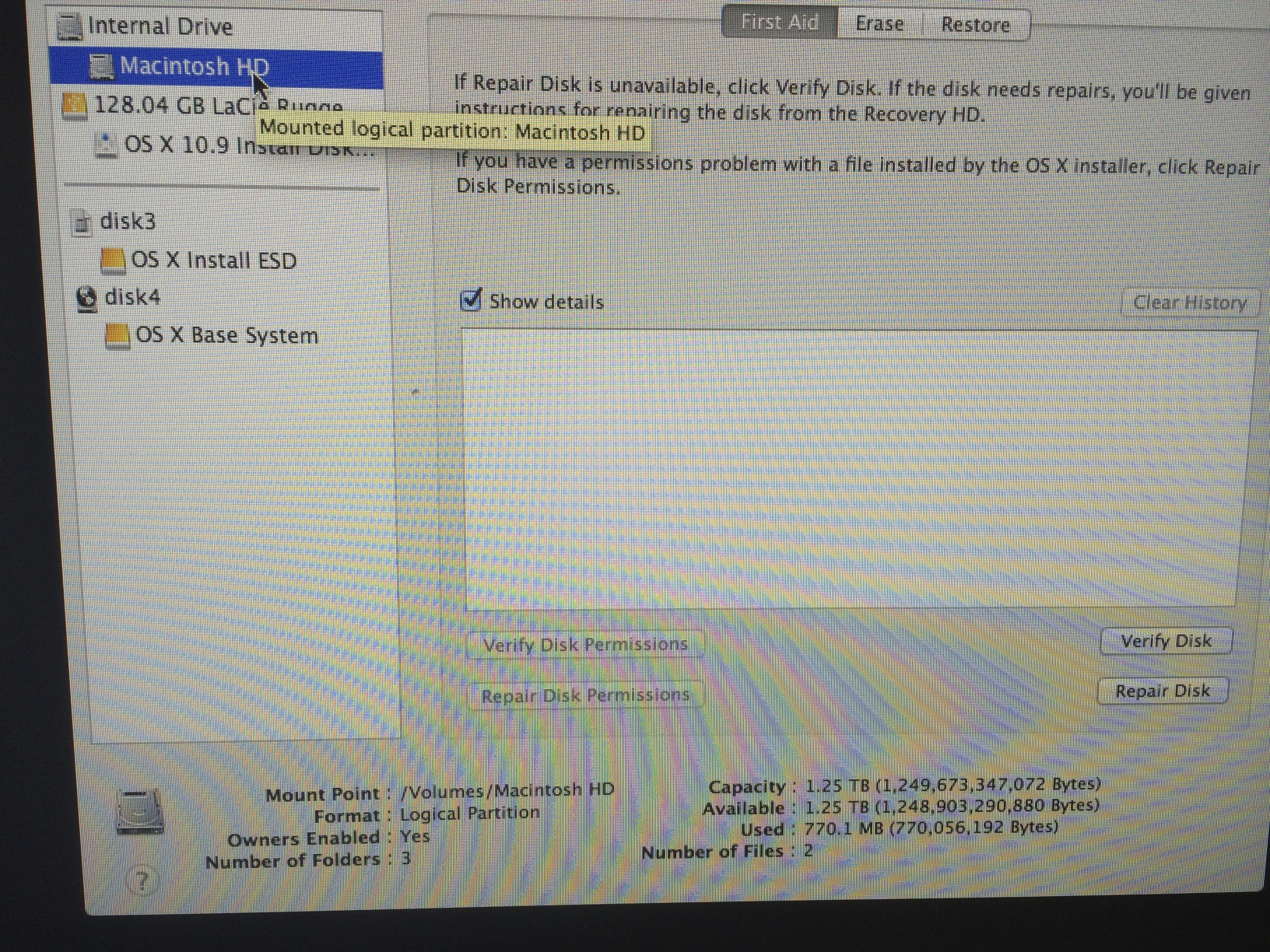

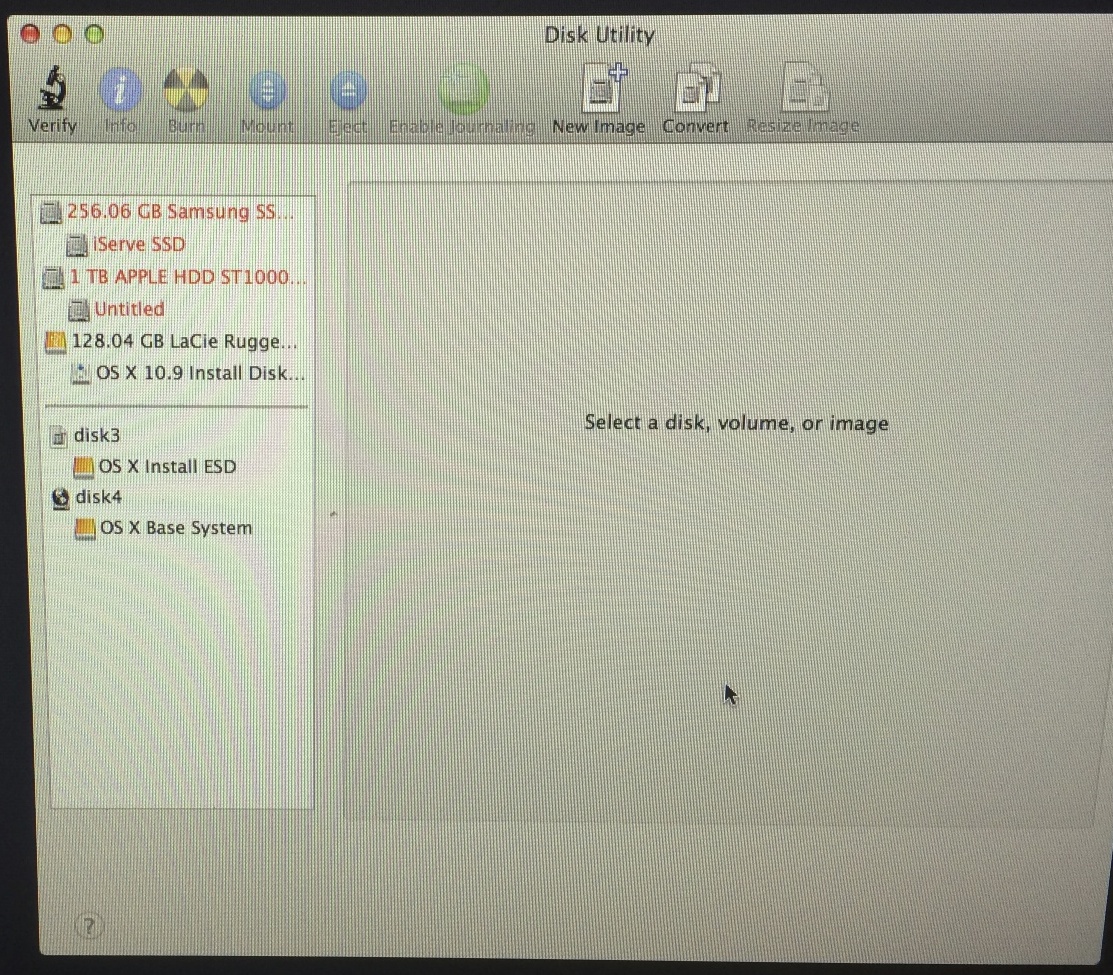

Doing nothing other than turning the Mini on , Holding Option, Booting from Mavericks USB Installer, entered Disk Utility and saw the SSD and HDD marked red.

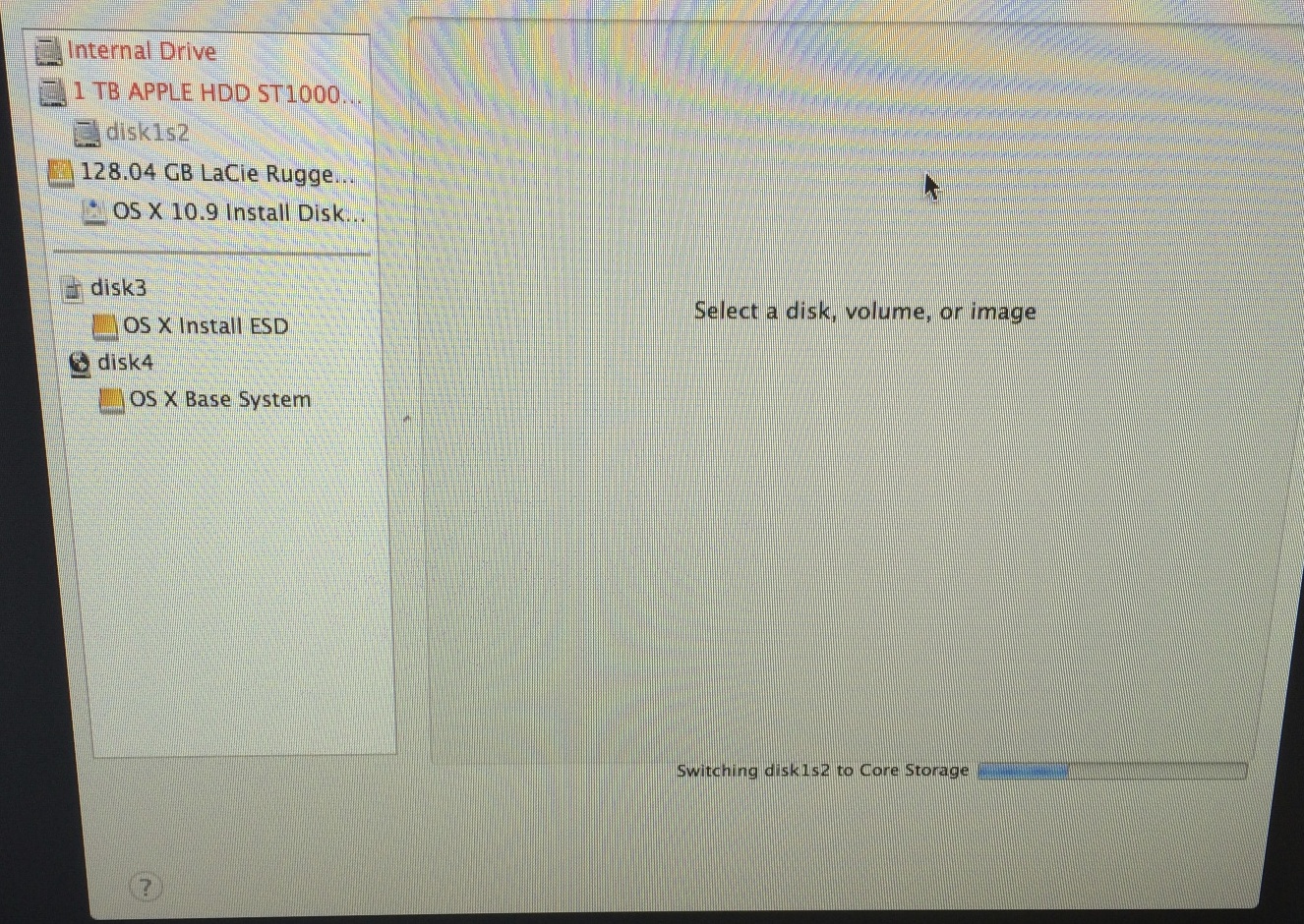

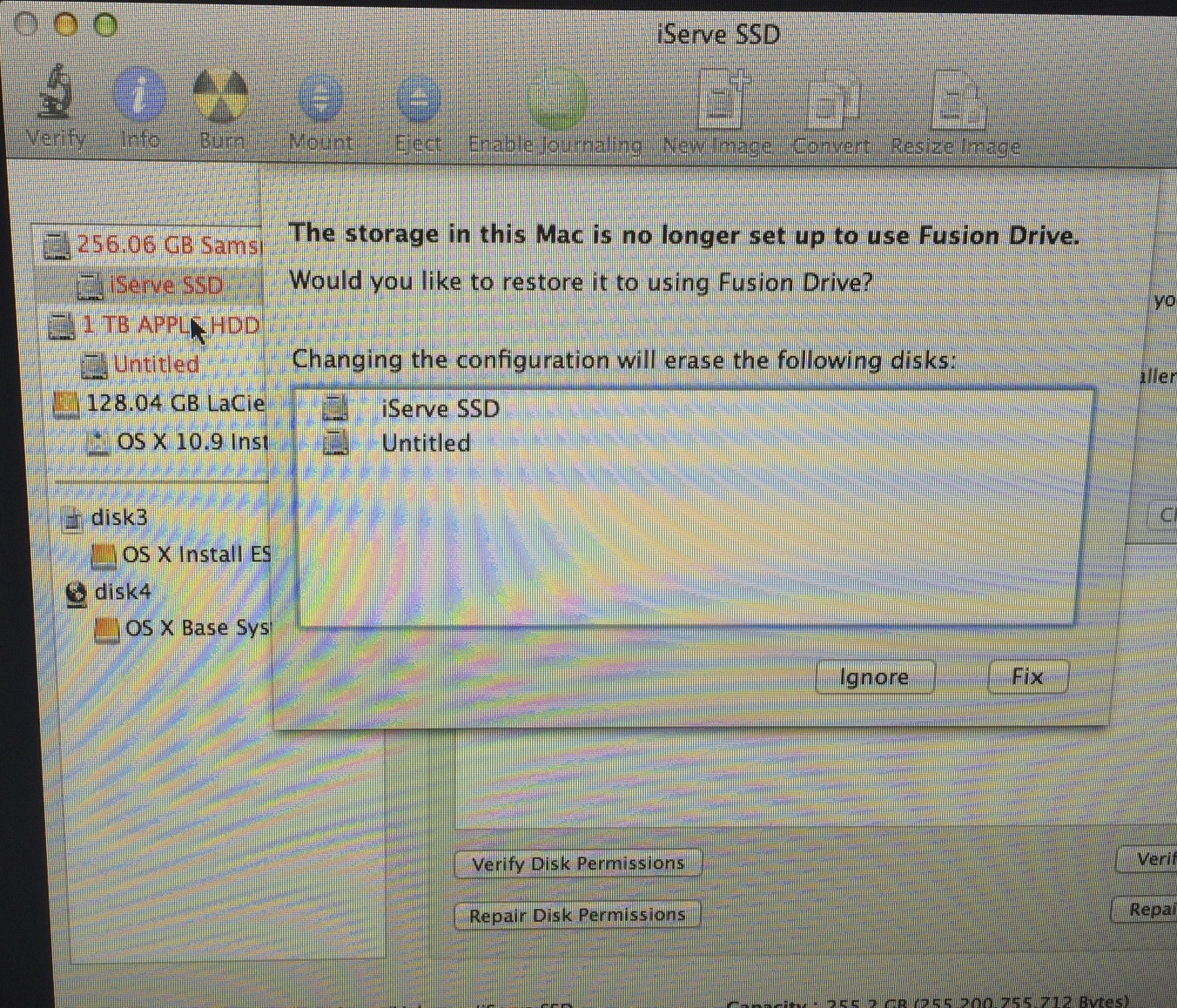

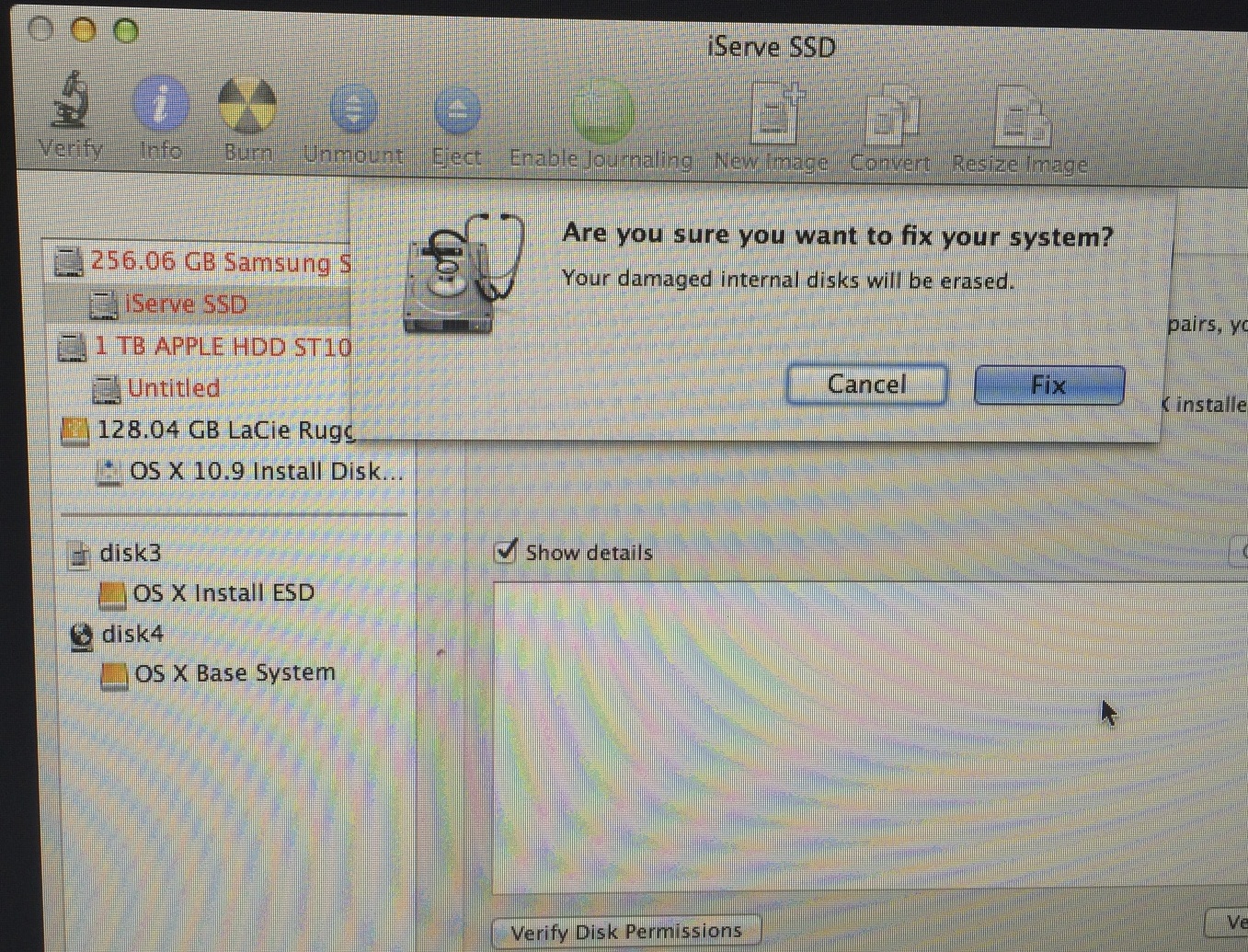

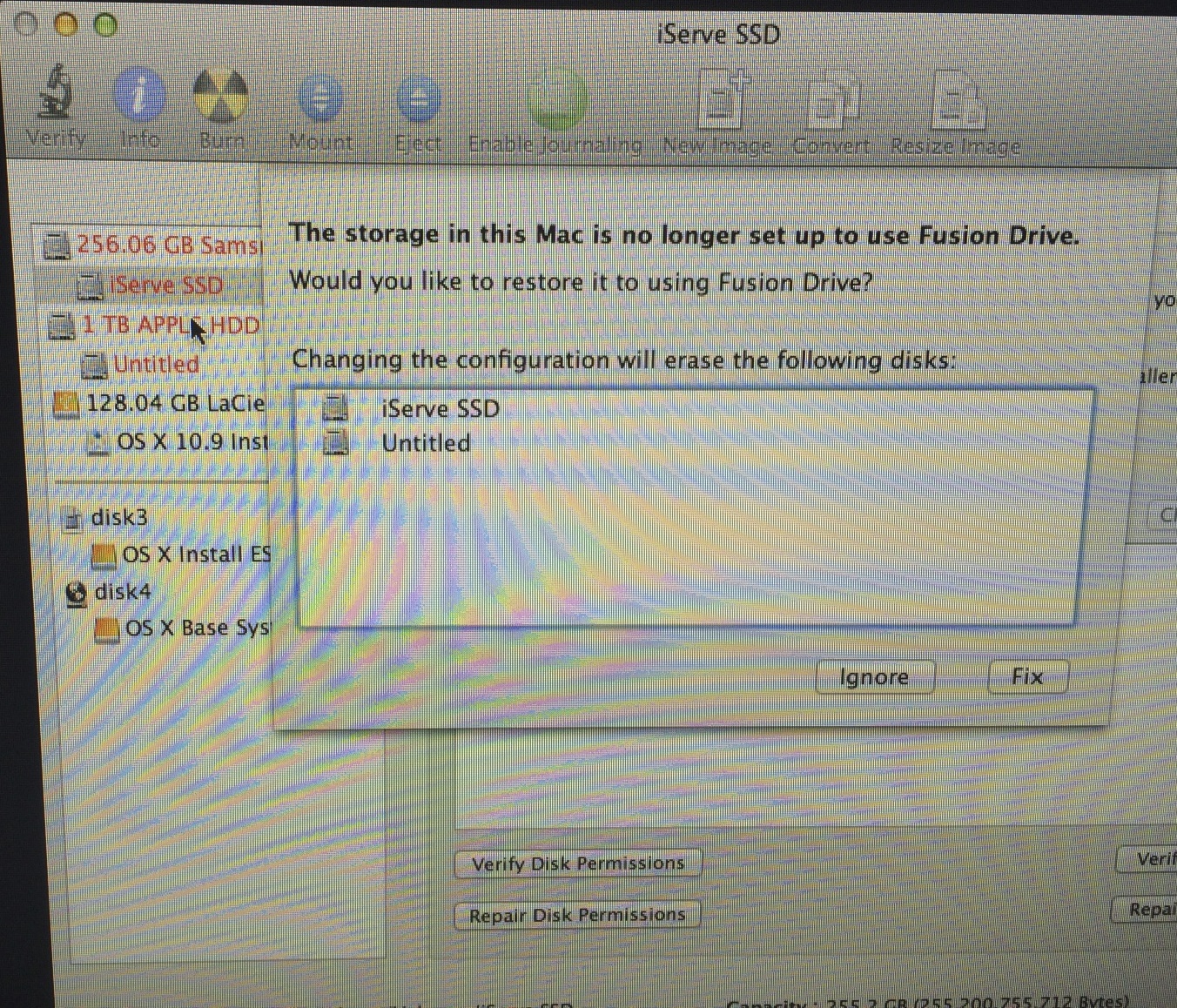

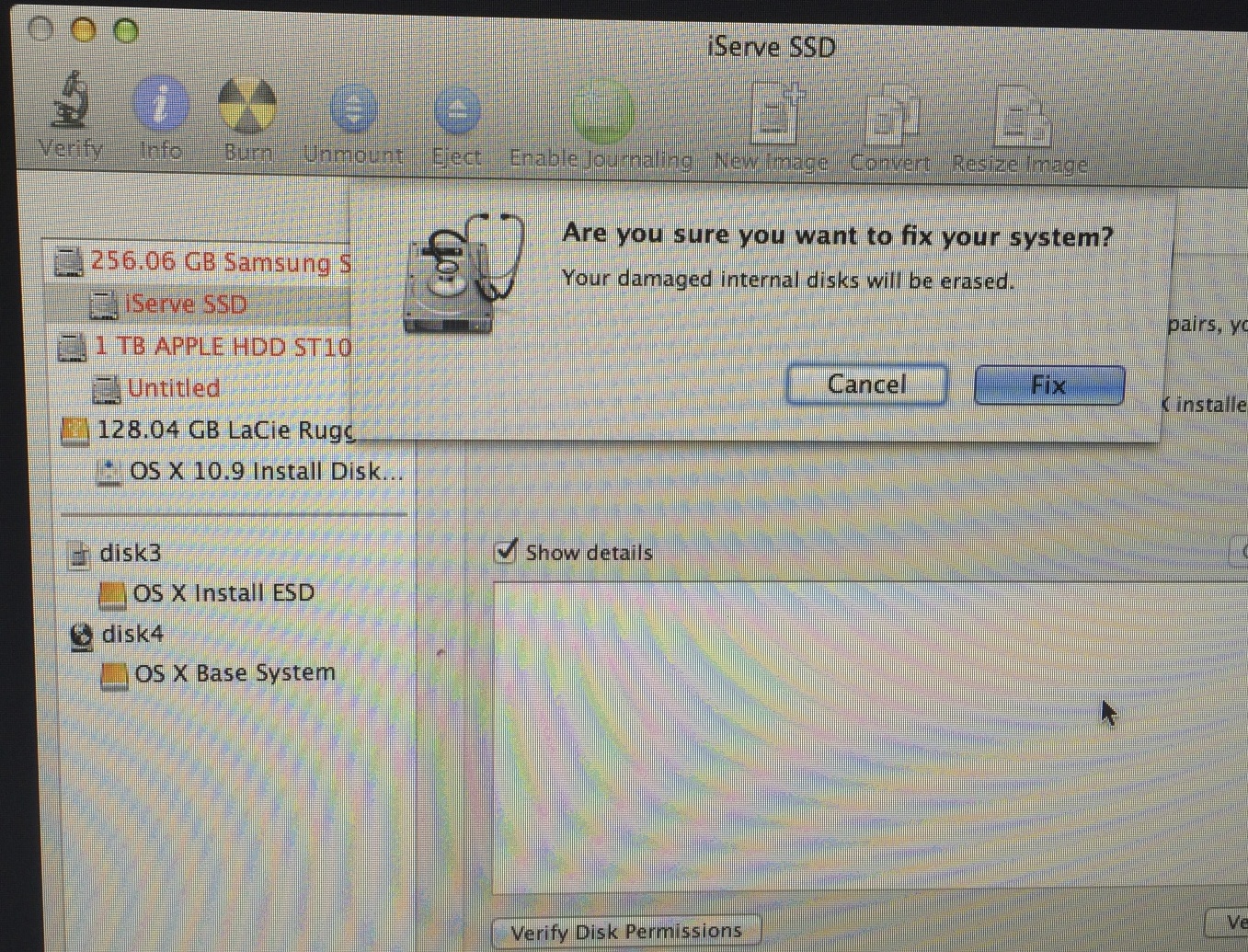

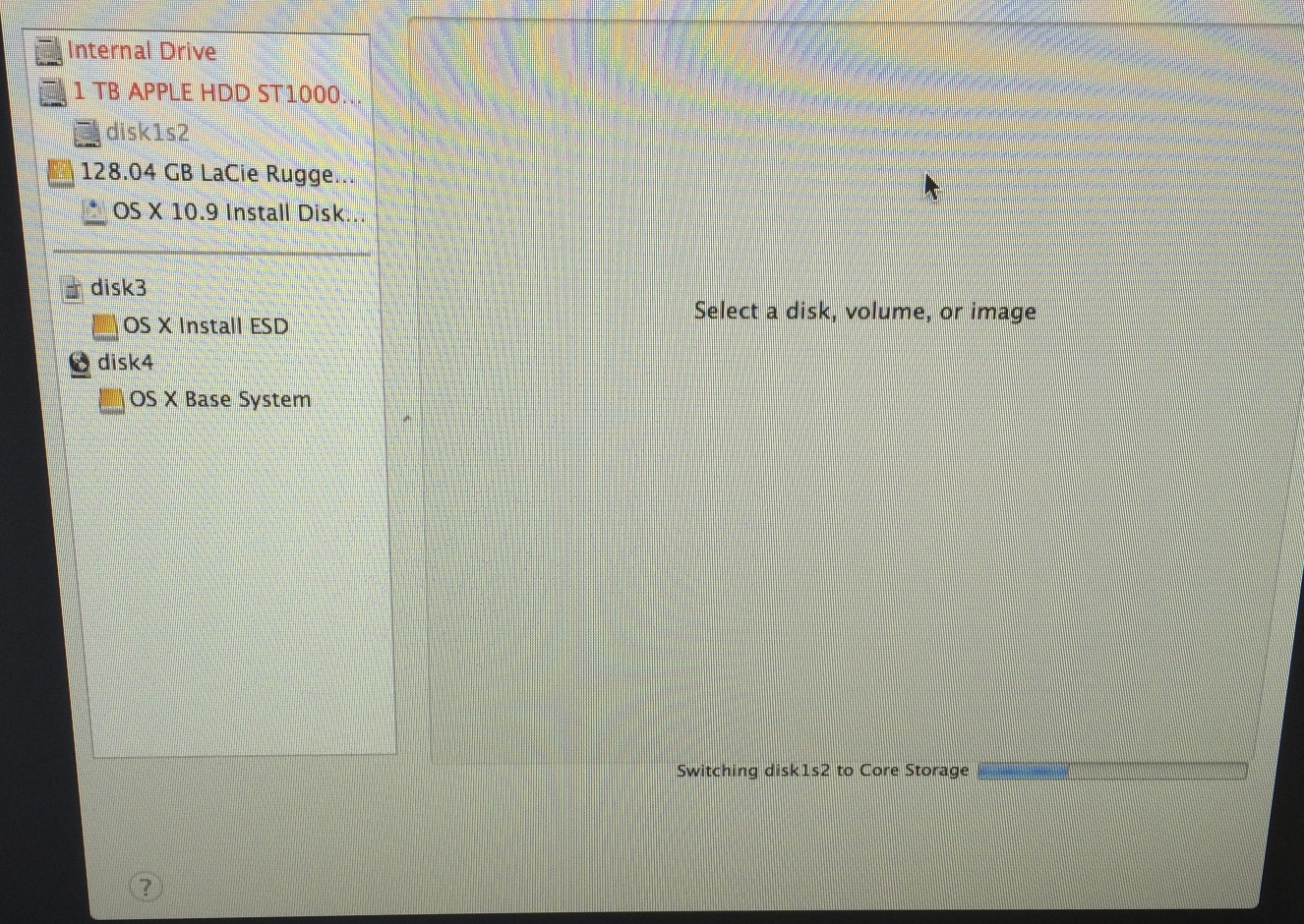

Clicked on the SSD and DiskUtility asked if I wanted to create a Fusion drive, I did, so it combined the drives (it asks to "fix" your system) and is now installing Mavericks.

Been installing for 18 mins and estimates 2 minutes remaining.


Attachments

  • IMG_1693.jpg
    582 KB · Views: 108
  • IMG_1694.jpg
    981.5 KB · Views: 100
  • IMG_1695.jpg
    843.8 KB · Views: 109
  • IMG_1696.jpg
    711.4 KB · Views: 102
  • IMG_1697.jpg
    1.2 MB · Views: 103
Last edited:
