Mac Mini IR Sensor

Reclzz

macrumors member
Original poster
Apr 8, 2014
39
3
Good evening from Europe

I was putting a SSD into my Mac Mini 2012 server and accidentally ripped the IR Sensor cable socket apart.

I saw it's screwed on at the end, can I screw it off without losing functionality besides IR which I've never used.

Cheers
The IR-less


paulrbeers

macrumors 68040
Dec 17, 2009
3,961
120
Good evening from Europe

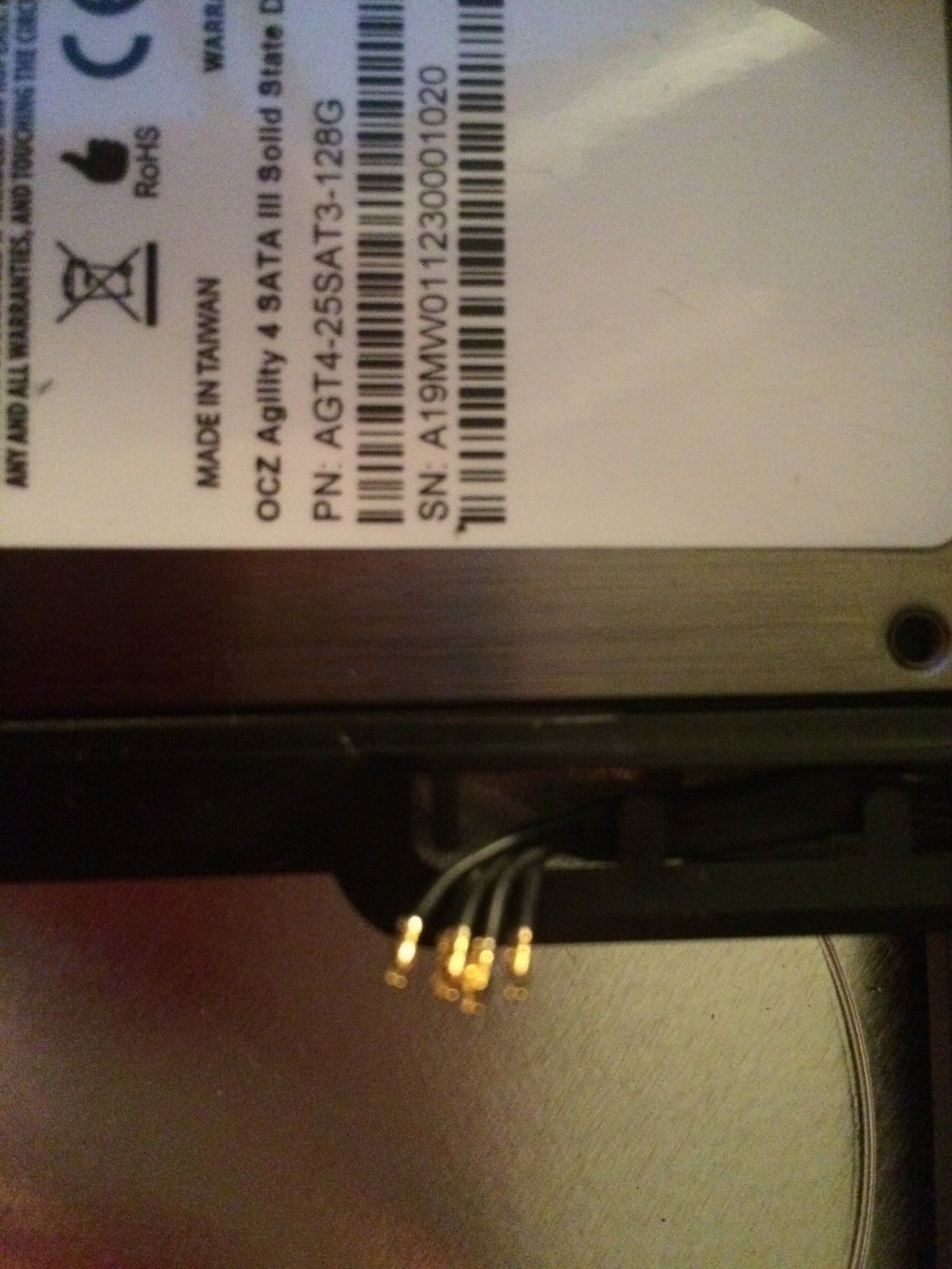

I was putting a SSD into my Mac Mini 2012 server and accidentally ripped the IR Sensor cable socket apart. View attachment 583394
I saw it's screwed on at the end, can I screw it off without losing functionality besides IR which I've never used.

Cheers
The IR-less
On one of my 2012's I broke the IR Sensor. I didn't even both to figure out why. Thing has run like a champ for years now without it. The IR sensor and the front light are on the same board so you may not have a power light either, but again neither will affect the overall working of the Mini.


Decimotox

macrumors 6502a
Jul 8, 2013
596
334
Sorry that happened to you, OP.

Hilariously enough, I did the EXACT same thing. I had just finished attaching everything back up but then something was wiggling, so I pulled out the motherboard without detaching the IR cable and it exploded and looked exactly like yours did lol.

I searched a bunch on google for a replacement and finally got one at powerbookmedic .com. They're out of stock currently, but I just found one for you: http://www.applecomponents.com/item...t=Service Parts: Boards: Wireless&per_page=30


Decimotox

macrumors 6502a
Jul 8, 2013
596
334
And yes, you can screw it off and it'll work just fine. As the previous poster said, though, the status light and the IR receiver (obviously) won't work. It doesn't affect the functionality of the computer, though. I waited about 3 months before replacing mine.
