Mac Mini (Late 2012) - video benchmarks

Discussion in 'Mac mini' started by michael_aos, Nov 16, 2012.

  1. michael_aos macrumors 6502

    Joined:
    Jan 26, 2004
    #1
    I'd like to get some idea how the new Mac Mini (Late 2012) video / graphics performance compares to my 2006 Mac Pro 1,1 w/ATI Radeon HD 5770. I've seen the Geekbench scores.

    Also, can the Mac Mini (Late 2012) drive 3 monitors -- or perhaps more specifically, can I hang a Mini DisplayPort to DVI Adapter off an Apple Thunderbolt Display?

    Xbench video test composite on the Mac Pro is 154.97.

    Quartz Graphics Test 285.61
    Line 316.90 21.10 Klines/sec [50% alpha]
    Rectangle 343.46 102.54 Krects/sec [50% alpha]
    Circle 259.17 21.13 Kcircles/sec [50% alpha]
    Bezier 258.17 6.51 Kbeziers/sec [50% alpha]
    Text 269.74 16.87 Kchars/sec
    OpenGL Graphics Test 160.96
    Spinning Squares 160.96 204.18 frames/sec
    User Interface Test 103.69
    Elements 103.69 475.87 refresh/sec

  2. alexdd macrumors member

    Joined:
    Oct 26, 2012
    #2

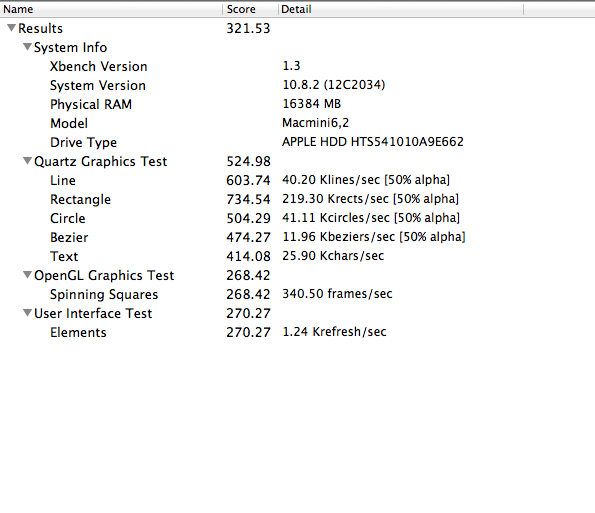

    Mac Mini 6.2 i7 2.6Ghz


    Attached Files:

  3. elliotn macrumors regular

    Joined:
    Sep 5, 2011
    #3
    Last year's Mini - 2.7 i7, AMD graphics, 16Gb RAM:

    (I've no idea what it means!)


    Attached Files:

  4. mchoffa macrumors 6502a

    Joined:
    Jul 12, 2008
    Location:
    Asheville, NC
    #4
    I'm also waiting on confirmation of this. I'm just guessing it will work since the retina 13 MBP has the same HD 4000 GPU and runs its own native 2560x1600 + 2 external 2560x1440 thunderbolts... I'm guessing (hoping) the mini can handle two thunderbolts + 1080p over hdmi

  5. Rhinoevans macrumors 6502

    Joined:
    Oct 5, 2012
    Location:
    Las Vegas, NV
    #5
    Doesn't the 13 " have 2 TB ports,

    I think. The only was to run 3 monitors is one with a USB to DVI adapter

  6. mchoffa macrumors 6502a

    Joined:
    Jul 12, 2008
    Location:
    Asheville, NC
    #6
    the mini can handle 2 thunderbolts daisy chained, and it can run a 1080p display over hdmi, but I haven't seen any confirmation anywhere on whether it can run the 2 TB + 1080p hdmi all at once... I'd think it could if the rMBP can run 2560x1600 + 2560x1440 + 2560x1440 off the same GPU

  7. blevins321 macrumors 68030

    Joined:
    Dec 24, 2010
    Location:
    Winnipeg, MB
    #7
    I don't know if the Mini can power 3 monitors by itself specifically. But I do know that you cannot plug a MDP->DVI adapter into a TB display directly. The other display won't light up. You have to have another Thunderbolt device between the two for it to work.
