mac os (extended journaled encrypted) missing?

Discussion in 'macOS High Sierra (10.13)' started by deafgoose, Dec 7, 2017.

  1. deafgoose macrumors regular

    deafgoose

    Joined:
    Oct 20, 2011
    #1
    I am trying to password protect a new USB thumb drive in macOS High Sierra and the option for mac os (extended journaled encrypted) is missing from Disk Utility.

    What are my options now?

  2. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #2

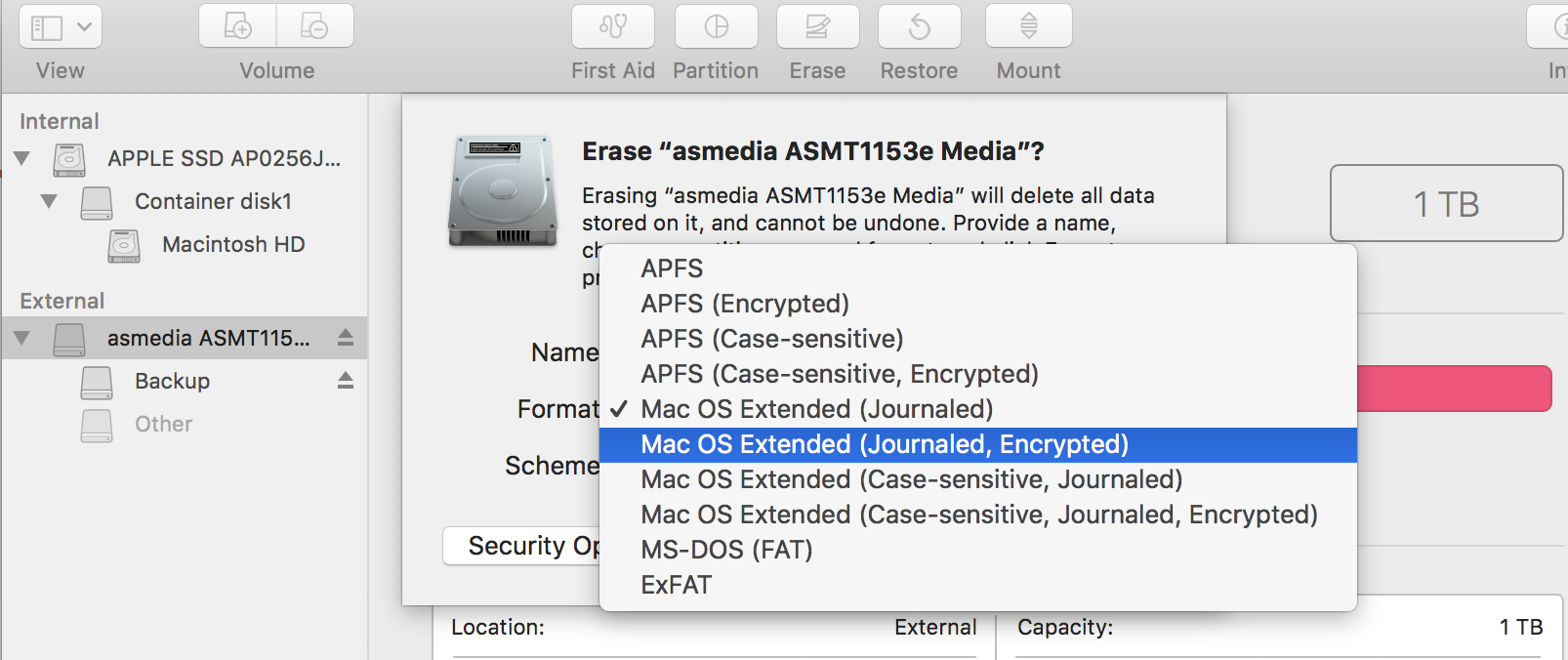

    it is there for me. In the view options make sure you have selected show all devices then select the device itself and not a partition as I have in my screenshot.

    Screen Shot 2017-12-07 at 10.49.24 AM.png

  3. deafgoose thread starter macrumors regular

    deafgoose

    Joined:
    Oct 20, 2011
    #3
    Yep, did that. No dice...

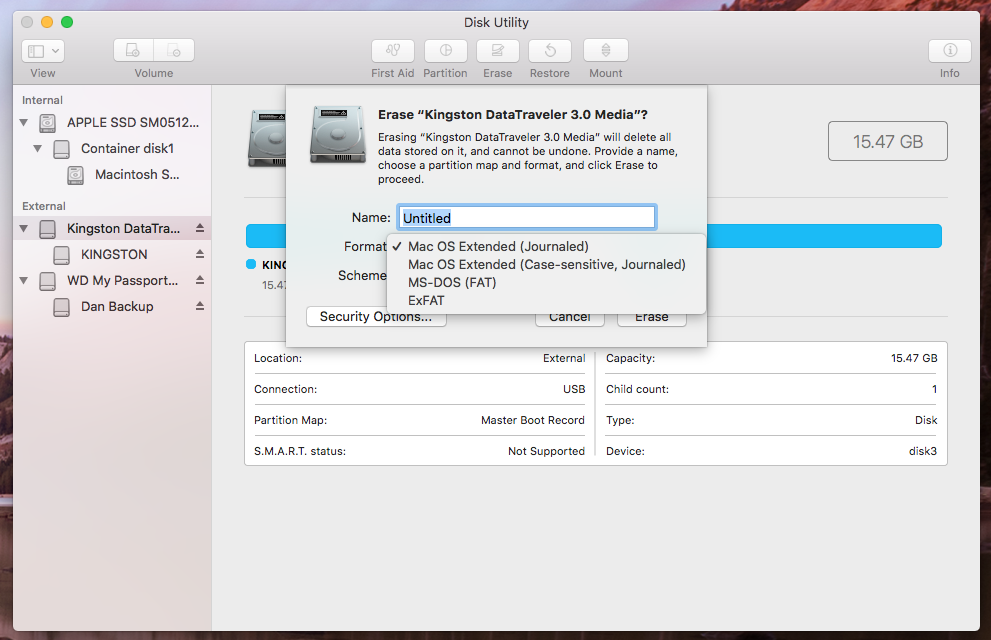

    Attached Files:

  4. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #4

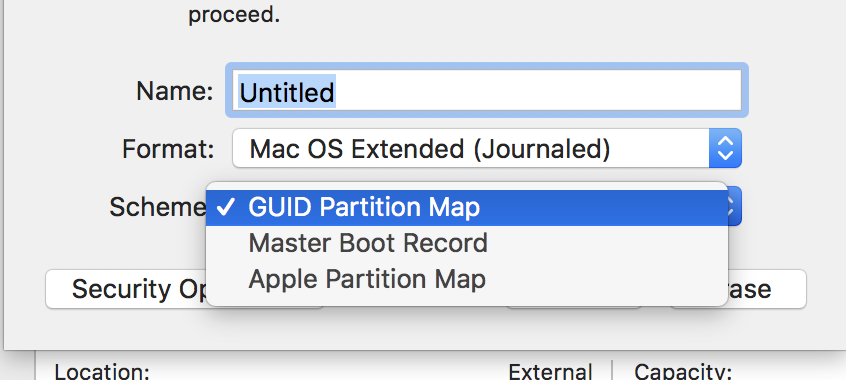

    Screen Shot 2017-12-07 at 11.11.43 AM.png

    It is because you have the partition scheme set to MBR. Change it to GUID and you will see all the options.

  5. deafgoose thread starter macrumors regular

    deafgoose

    Joined:
    Oct 20, 2011
    #5
    BINGO. Thank-you so much for your help. I was going crazy. lol
