Mac Pro 2009 with 2010 Processor Board

Discussion in 'Mac Pro' started by feins, Sep 27, 2014.

  1. feins macrumors member

    feins

    Joined:
    Aug 11, 2010
    Location:
    Malaysia
    #1
    Hi all Guru i need help.

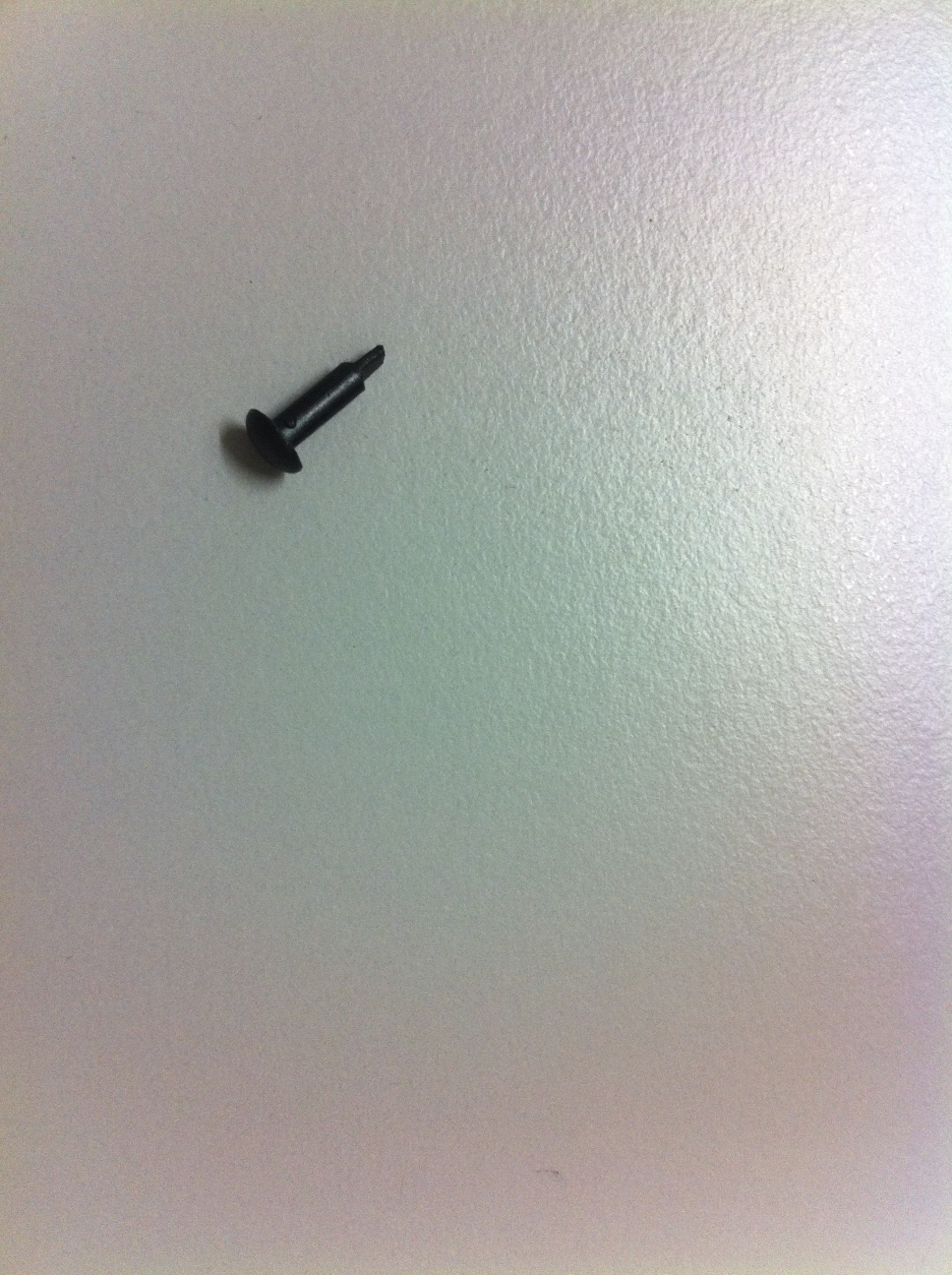

    My Mac Pro 2009 EFI Mod to 5.1 few days ago had a broken Northbridge Plastic rivet and cause the IOH T-Diode shoot to 128'C.

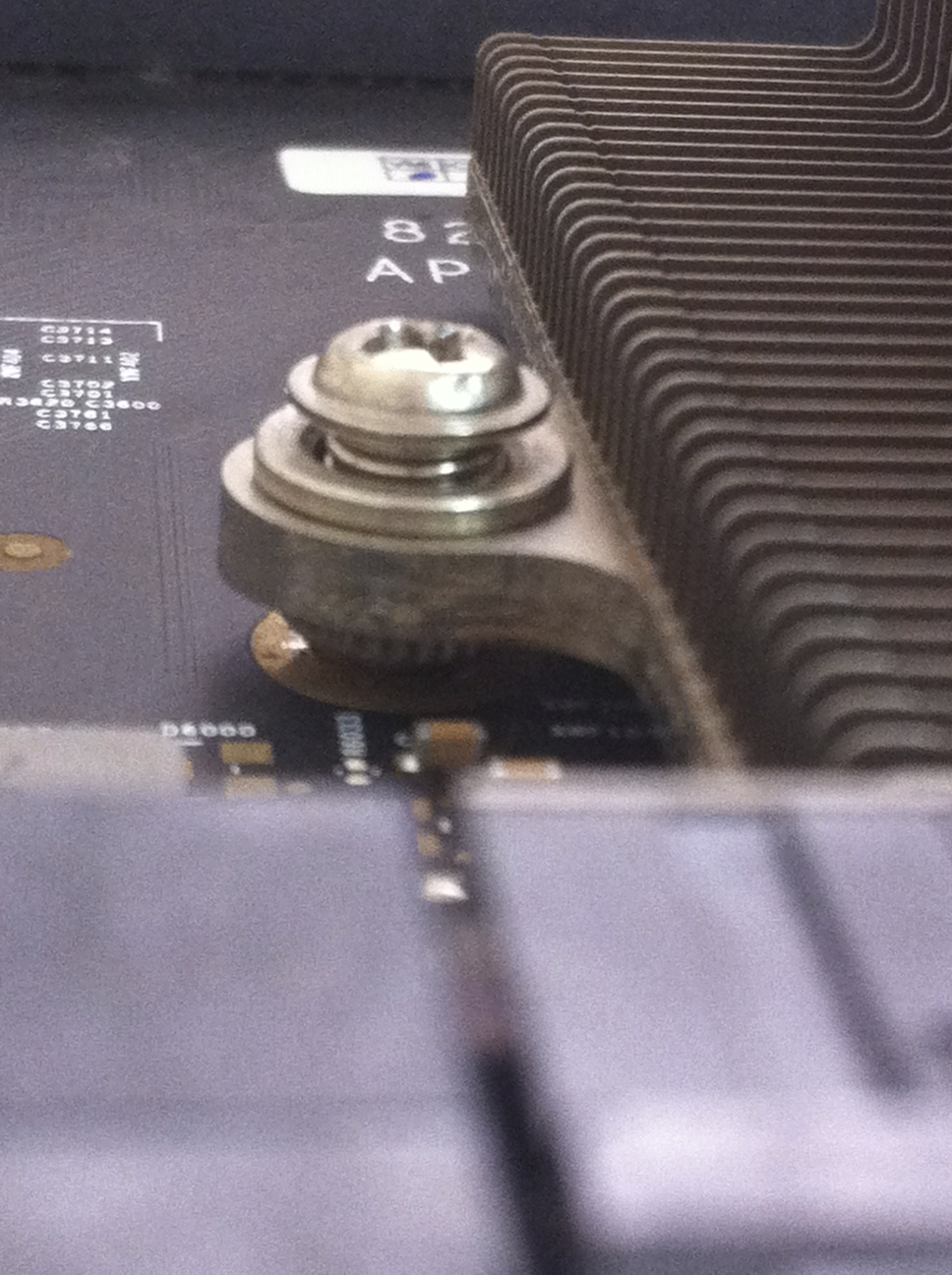

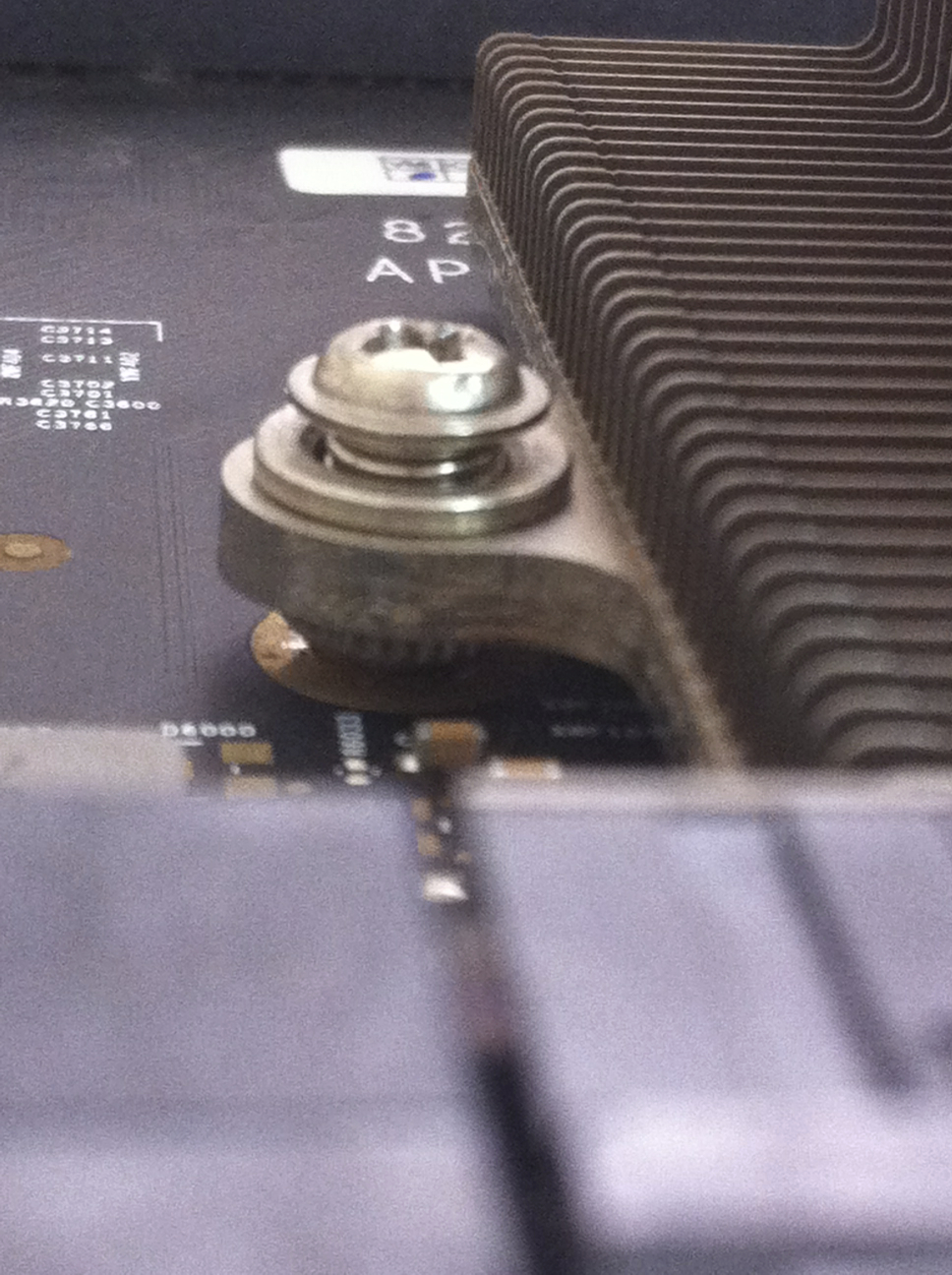

    Ive mod by replace both plastic pin with screw and nuts and now that's resolved but something else happen.
    My Booster 2 Fan Report 0 RPM but the fan is spinning so now the Booster 1 fan spin at max speed as it think the Booster 2 fan not working.
    Now the real question how to find which part was faulty the Booster 2 sensor or the Processor board!?
    If i get a 2010 Processor Board will it work with my Mod 2009 Logic board?
    Need help urgently.:mad:


    Attached Files:

  2. Parigot macrumors member

    Joined:
    Oct 22, 2011
    Location:
    Montreal
    #2
    As far as I'm aware, you cannot use a 5.1 tray on a 4.1.

    As for the fan issue, it seems the sensor is not working. Is it disconnected?
    You should look up an official Apple Repair Guide. Cost a few $$$ but worth it.

  3. feins thread starter macrumors member

    feins

    Joined:
    Aug 11, 2010
    Location:
    Malaysia
    #3
    My 4.1 was EFI Mod to 5.1 so I'm not sure will it support the 2010 Processor Tray as the 2010 Tray come with the ISH clamp where the 2009 doesn't.

    Booster 2 Fan are working i can see its spinning but iStat show 0RPM, only i can't determine which part is faulty the Fan Sensor or The Processor Tray.

    I had the Apple Repair Guide but it didn't mention how to check on this.:(

  4. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #4
    AFAIK, your 4,1 is now using the 5,1 firmware, but not the 5,1 SMC. Therefore, if you install a 5,1 tray, it should boot, but the fan will spin at full speed.

  5. feins thread starter macrumors member

    feins

    Joined:
    Aug 11, 2010
    Location:
    Malaysia
    #5
    Got it so by means just stick back to the 2009 tray. But on my case how to pinpoint which part is faulty as the CPU B heatsink and the Processorboard are not cheap both part nearly cost the same price.
