Mac Pro 3.1 Any SCSI Utilities Around?

Discussion in 'Mac Pro' started by Merv'sG5, Aug 14, 2014.

  1. Merv'sG5 macrumors newbie

    Joined:
    Feb 20, 2013
    Location:
    Melbourne Australia
    #1
    Hello All,

    I have a Mac Pro 3.1 with a ATTO ExpressPCI UL5D SCSI card installed! I have moved from the Amiga world, and on that platform there are many SCSI programs available for free! But on the Mac with Maverick installed I can't find one SCSI utility available on the net! I know SCSI is dead, but I have a lot of SCSI gear around I would like to use on my Mac Pro! Can anyone direct me to some SCSI programs available on the net! I don't mind paying for a good SCSI program!

    Thanks in advance,
    Merv Stent

  2. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #2
    What do you mean by SCSI programs. The only SCSI I know of (Small Computer System Interface) was the HDD controller used by Apple up until, I believe, 1999. The last model to employ it was a G3 model. After SCSI, Apple switched to IDE. Over the years there have been interface cards, most notably Adaptec. Whether these still work on the cMP, in the current OS, I couldn't say.

    As far as "programs" are concerned you would just need something that would format the SCSI HHD and allow data transfer. Is that what you are talking about?

    Lou

  3. OS6-OSX macrumors 6502a

    OS6-OSX

    Joined:
    Jun 13, 2004
    Location:
    California
    #3
    Just Theory
    1. If your 3,1 can see your SCSI card but your SCSI card can't see the drives because they need to be formatted (then)
    2. Broaden your search for SCSI utilities including 10.6 (if found)
    3. Dual boot your 3,1 with 10.6
    4. Use "those" utilities to format the HD's
    5. Reboot under 10.9 and check for the HD's still being connected via SCSi
    6. Zap the 10.6 partition or keep it for future endeavors!:p

    It is worth a try.

  4. OS6-OSX macrumors 6502a

    OS6-OSX

    Joined:
    Jun 13, 2004
    Location:
    California
    #4

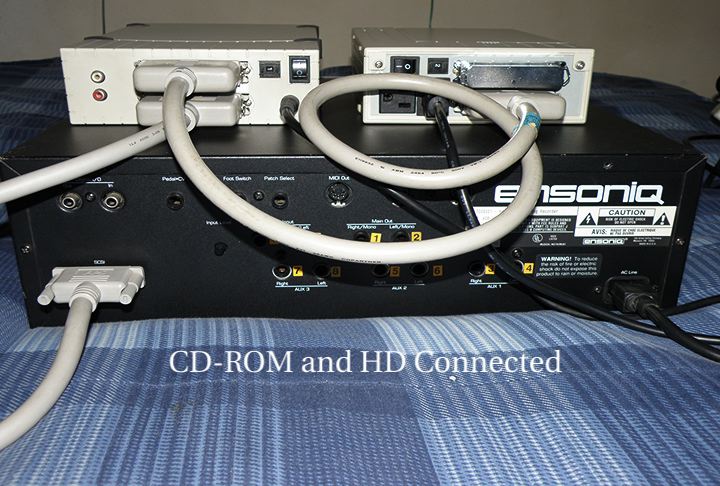

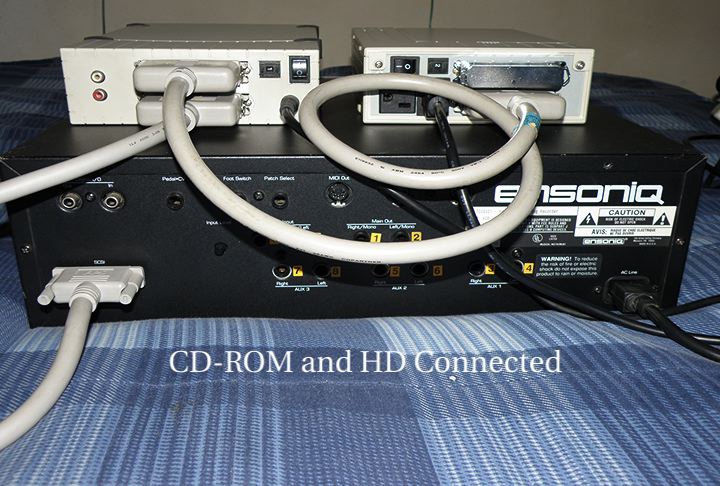

    Have not used SCSI gear in years! I do remember a SCSI burner connected to a G3 waaaaaaay back. The only other SCSI gear I had was connected to each other and to a midi interface. List or post photos of the gear you speak of.


    Attached Files:

  5. OS6-OSX macrumors 6502a

    OS6-OSX

    Joined:
    Jun 13, 2004
    Location:
    California
    #5

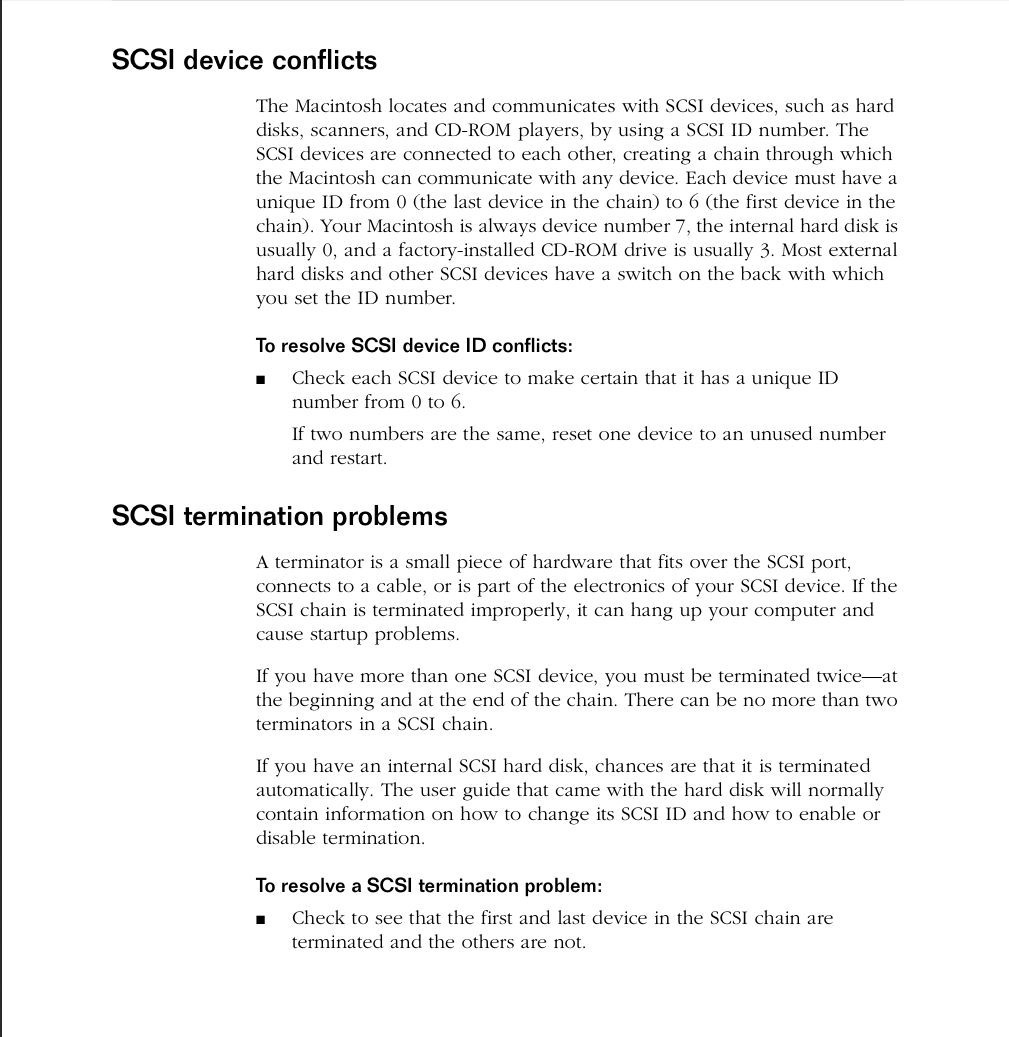

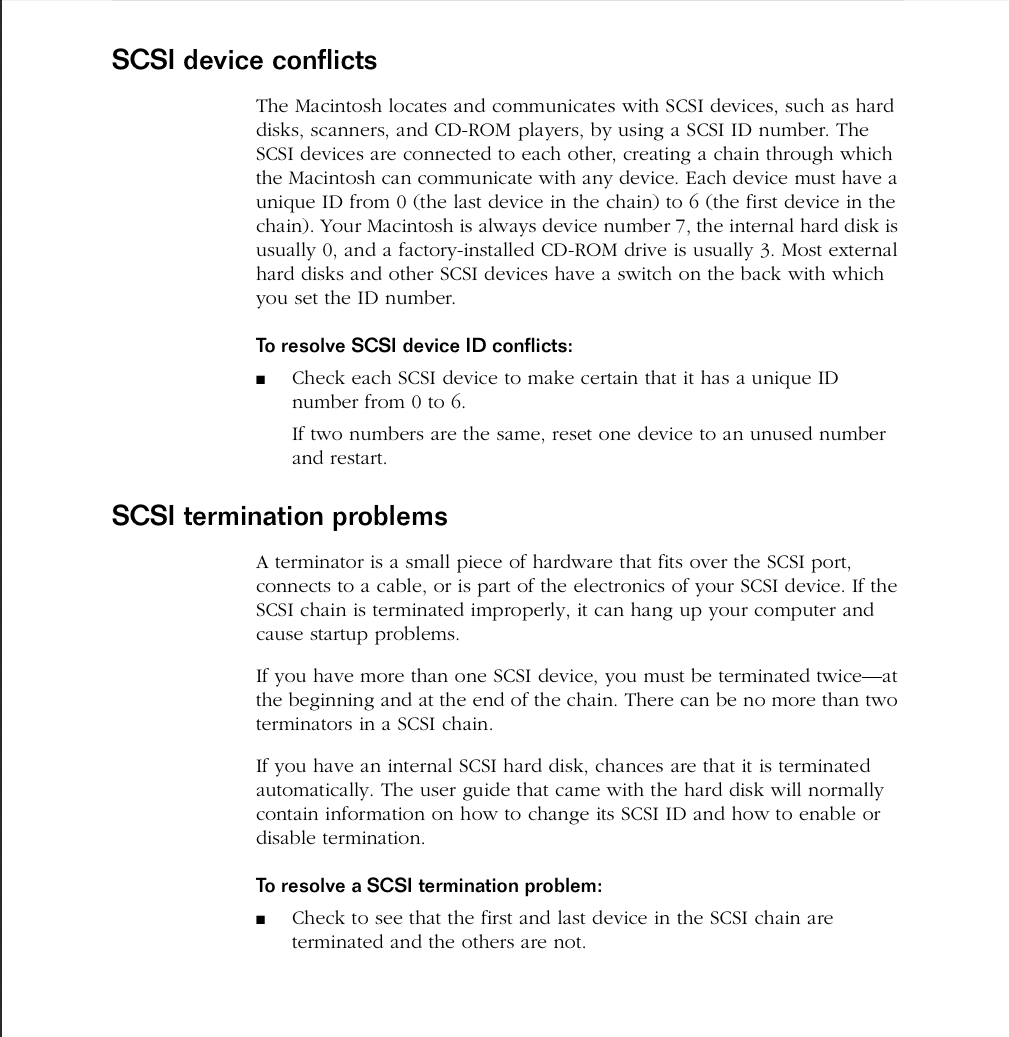

    Just glanced at the old bookshelf and saw the Norton Utilities 8.0 user guide.
    I do remember Norton recognizing SCSI devices. The challenge for you is to find what version is usable on the MP and if that version recognizes SCSI.


    Attached Files:

    • SCSI.jpg
      File size:
      386.1 KB
      Views:
      98
  6. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #6
    10.9 is no-go with ExpressPCI UL5D. Driver support has ended with 10.6.8 IIRC. No driver = no functionality under OS (even simplest).

    For 10.6.8 there's an ATTO Config Tool. Most recent version I recall was 3.38.

  7. SumDuud macrumors newbie

    Joined:
    Feb 1, 2015
    Location:
    Perth, WA
    #7
    ATTO ExpressPCI UL5D SCSI

    Hi Merv,

    did you ever get any success with the ATTO Express (PCIe ?) SCSI card, I would like to use my tape drive on my Mac Pro 3.1, and was wondering if you had been able to attach any SCSI gear to the Mac pro with success. ?

    G.
