Mac Pro 5,1 - E5620 to W5590 CPUs

Discussion in 'Mac Pro' started by flowrider, Aug 9, 2013.

  1. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #1
    Thanks to Thomaspin for his post and blog on how he upgraded his 4,1 machine to use the W5590 (4 core, 3.33 GHz) CPUs:

    http://forums.macrumors.com/showthread.php?t=1609476

    I had been contemplating upgrading to X5570s due to the lower TDP, but Thomasspin's post and blog convinced me that the W5590s would run OK.

    My machine is a 2010 5,1 and came with E5620s (4 Core, 2.40 GHz). The Upgrade was far easier than the 4,1 due to the CPU carriers design utilizing the CPU holding mechanism and CPUs that utilize an Integrated Heat Spreader (IHS).

    I had never replaced CPUs before, and was somewhat trepidatious about trying this but, I downloaded this excellent Apple Guide:

    http://tim.id.au/laptops/apple/macpro/macpro_mid2010.pdf

    I printed and bound it, and read and re-read the sections on Heatsink and CPU replacement until I could recite it in my sleep. The Thermal Grease and long 3mm socket arrived in the mail on Wednesday and the CPUs (refurb units sourced from ebay) followed the next afternoon.

    I powered down the machine before supper and pulled the power plug. After supper I threw caution to the wind and opened my one month old machine and pulled out the processor tray. Thirty minutes later, all was complete and I powered the machine on. I was greeted by the White LED along with the Start-Up Chime. It appears that I had done it right:eek:

    I was somewhat disappointed by the after Geekbench score, I was expecting something closer to 20K, but my results are a solid improvement of 35%.

    The machine does run hotter (by 10° to 15°) and I am now using smcFanControl to speed up the fans. According my my UPS my wattage load has increased from about 250 watts to 340 watts.

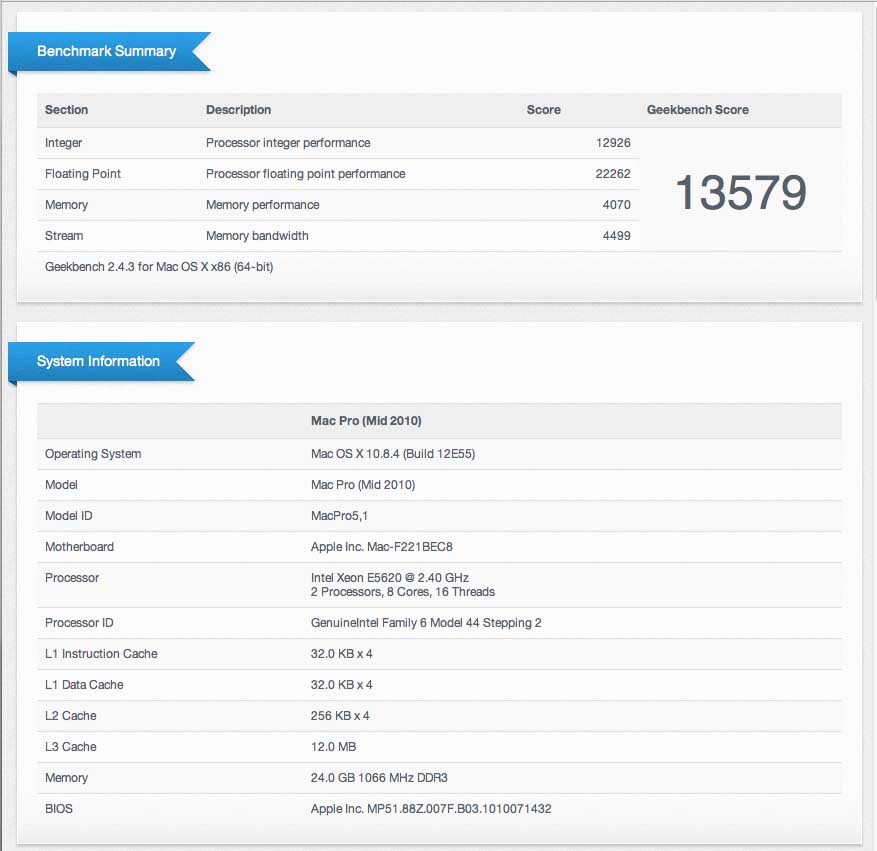

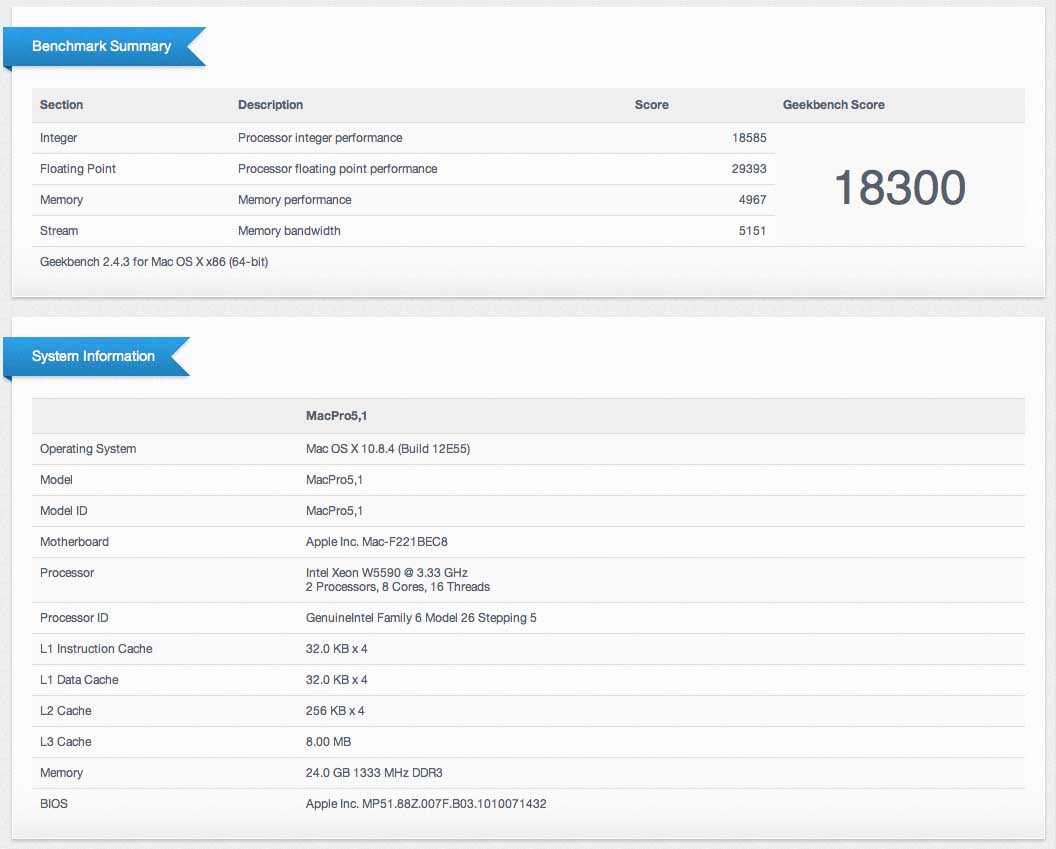

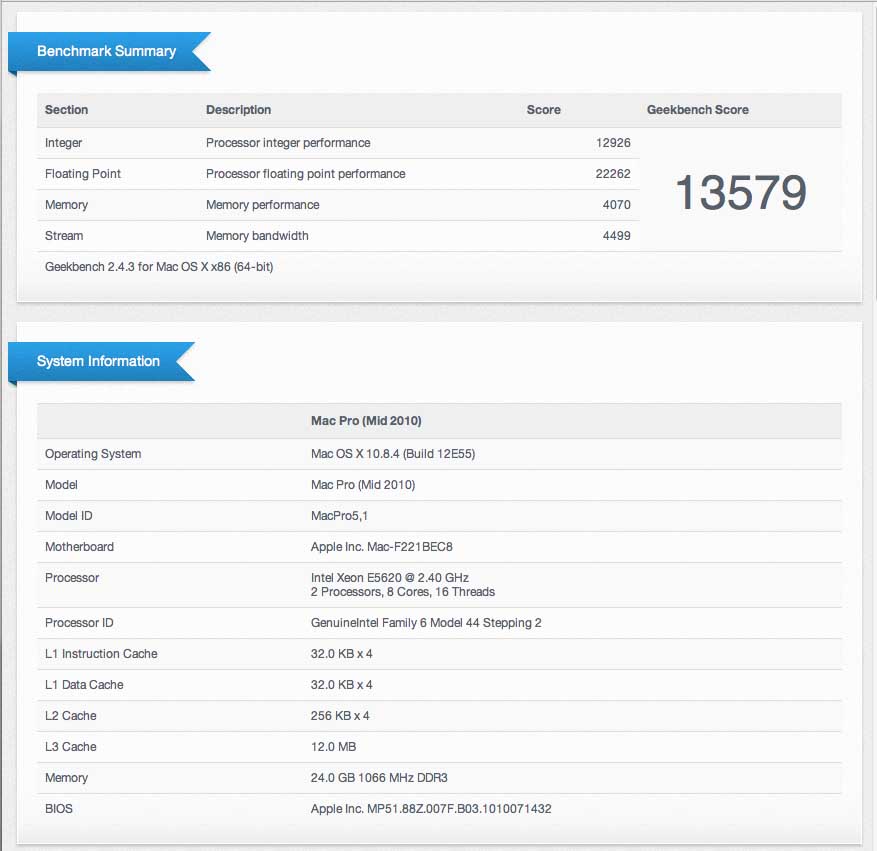

    My Before and After Geekbench scores are attached.

    Lou


    Attached Files:

  2. xcodeSyn macrumors 6502a

    Joined:
    Nov 25, 2012
    #2
    First, thanks for your post. I was also thinking about W5590 upgrade since the price has come down recently, but I am a little puzzled at your results on both wattage and GB score. The author of this link mentioned (toward the end of the article) that his W5590 upgrade on an MP4,1 only caused 3℃ temperature increase and a GB score of 20643. Did you happen to get the production or ES version of the W5590? I understand that Nehalem core is less efficient than that of Westmere, but 10° to 15° increase makes me wonder a bit unless you were referring to Fahrenheit instead.

  3. flowrider, Aug 9, 2013
    Last edited: Aug 9, 2013

    flowrider thread starter macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #3
    ^^^^Yes, sorry, I am American and sometimes tend to forget that not all us use the Fahrenheit temp. scale.

    Also, IIRC something changed with either the OS or Geekbench about the time of the release of 10.8.3. There was much chatter on various Mac sites about scores going down. As far as my score goes, The Geekbench website shows that the 2009 4,1 Mac Pro with two X5570s (The top processor for the 4,1) scores 17,537 in 64 bit. So, maybe my score is not that far off. But, it also shows my previous configuration (5,1 with 2 E5620s) scores 14,146 where my machine scored 13,579.

    Oh, I do have the production version of the W5590, not an engineering sample. The marking on the chip was quite clear.

    Don't know if anything I've said makes any sense:confused:

    Lou

  4. flowrider thread starter macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #4
    Maybe a little sense after all:eek:

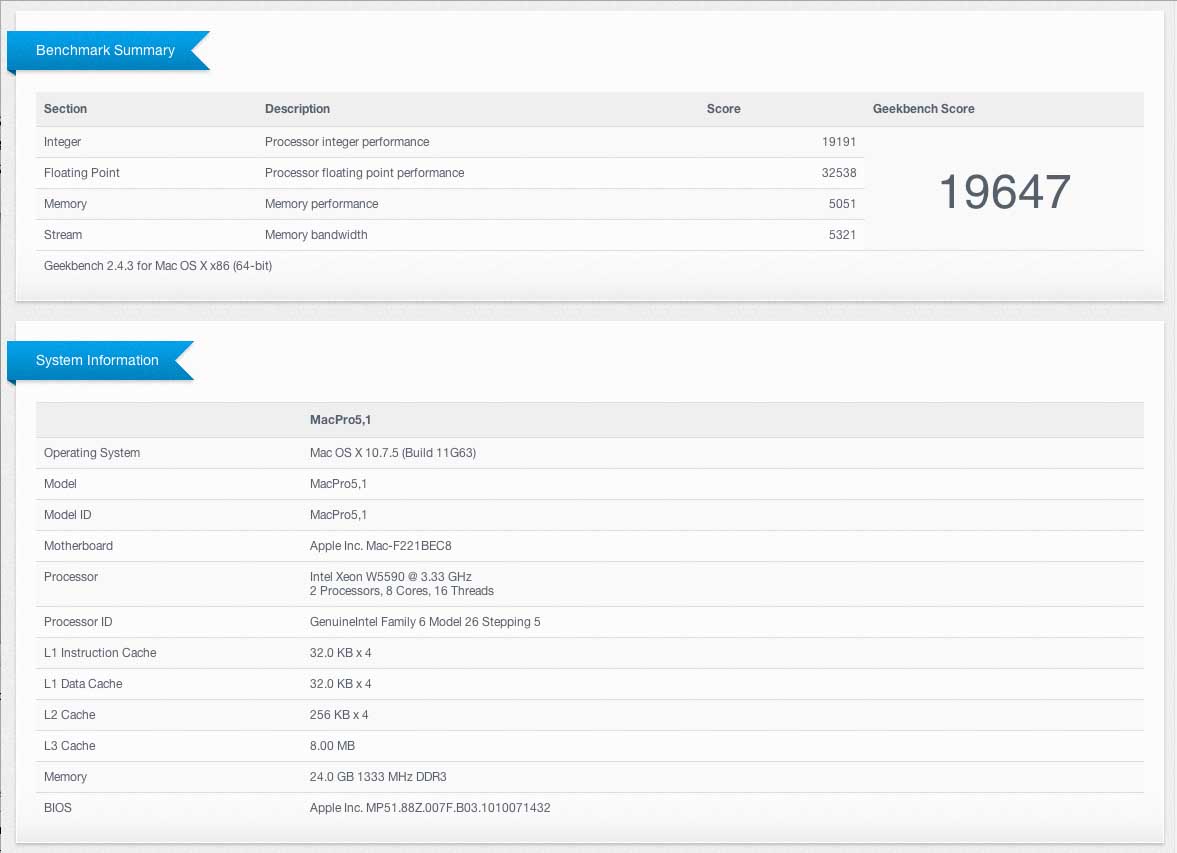

    I have OS an 10.7.5 on an external Firewire 400 HDD. I ran Geekbench from the old OS and got the attached score. Much closer to my hoped for goal of 20K.

    Lou


    Attached Files:

  5. xcodeSyn macrumors 6502a

    Joined:
    Nov 25, 2012
    #5
    Hard to believe that changing OS X version would make such an improvement.

  6. flowrider thread starter macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #6

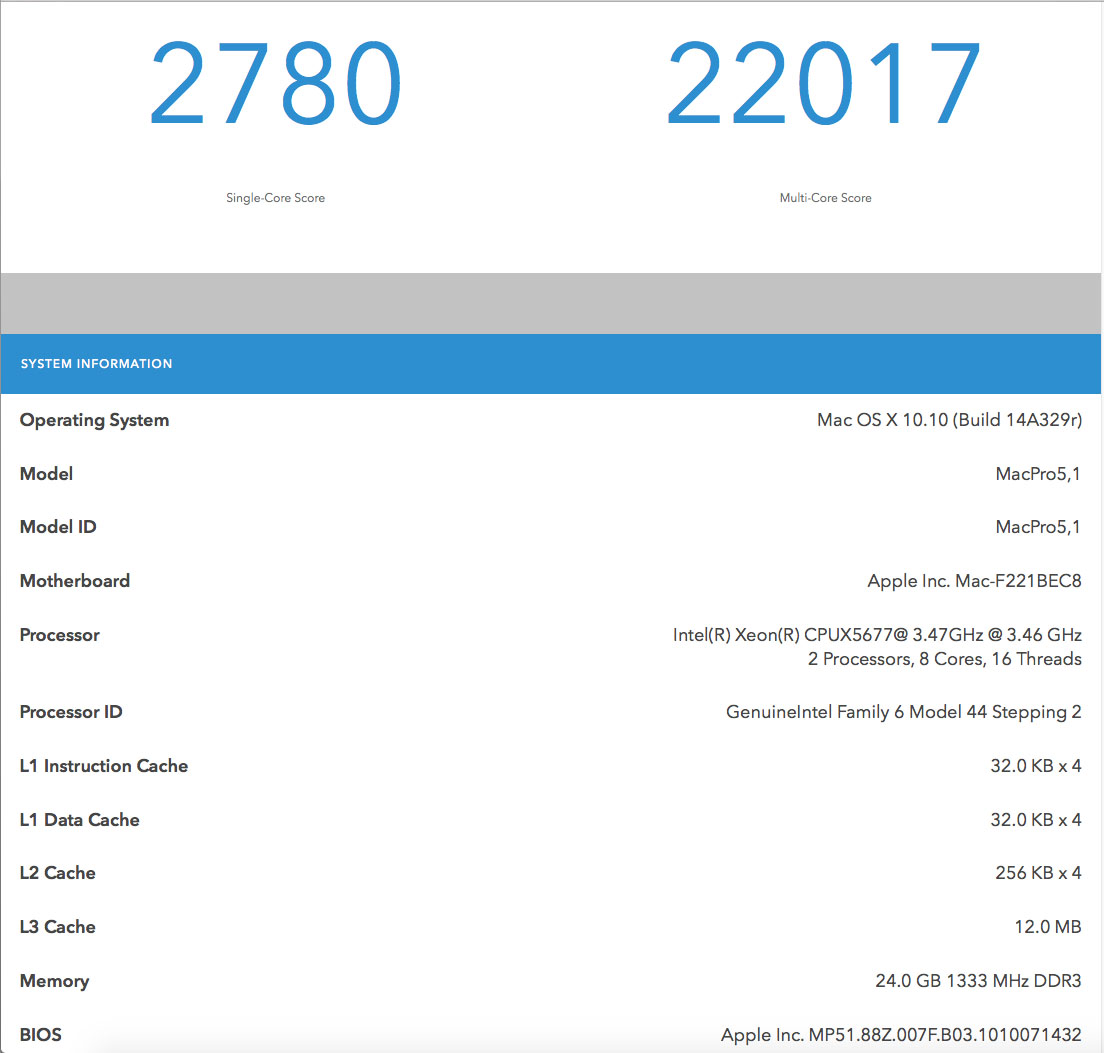

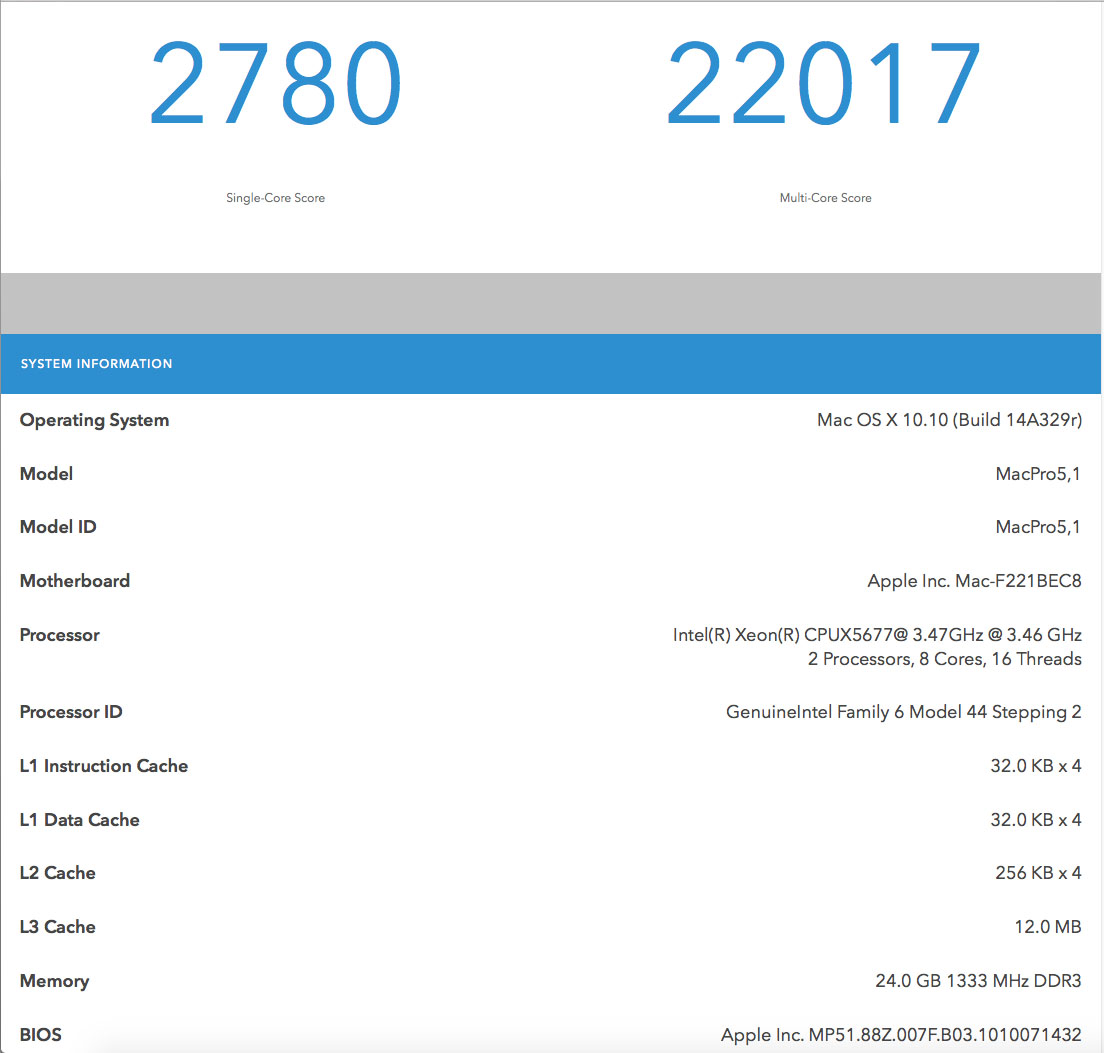

    E5620 to W5590 to X5677 CPUs

    I have since upgraded again, this time to X5677. I stayed with 8 cores because for what I do I believe 12 cores would be a waste. Also I thought the 8 fast cores would run cooler and consume less power than 12 fast cores.

    Lou


    Attached Files:

  7. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #7
    May i know how much power draw from a single 5677 under full load?(e.g. the average current shows in iStat when running GeekBench stress test) I would like to know how much less power it consume compare to my Hex core (W3690, I assume it's power comsumption is very very close to the 5690).

    Intel state that both 5677 and 5690 may draw up to 130W, which sounds very interesting to me. Same speed, same technology, 2 more cores, but the same power consumption.

  8. flowrider thread starter macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #8
    ^^^^Sorry I didn't answer this sooner. CPU - 46 Watts, CPU Front Side Bus Termination - 21 Watts.

    Lou

  9. Lucas Godfrey macrumors 6502

    Lucas Godfrey

    Joined:
    Jul 12, 2010
    Location:
    Somewhere between Here and There
    #9
    Am i being stupid or is there something I'm missing, how are you able to use 2 W class xeons in the mac pro? i thought W class were single config only and X class were for multi CPU?

  10. flowrider, Sep 26, 2014
    Last edited: Oct 22, 2015

    flowrider thread starter macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #10
    ^^^^Well, Intel has changed what the leading Alpha means. The change happened when going from the 35XX (55XX) to the 36XX (56XX) series.

    In the older series it meant:

    E = Enterprise and CPUs with a TDP of 80 Watts
    X = Accelerated and CPUs with a TDP of 95 Watts
    W = Workstation and CPUs with a TDP of 130 Watts

    and in every case the leading numeric after the alpha meant:

    3 = for single CPU use only (1 x I/O Bus)
    5 = for dual CPU use, but will work in single CPU applications (2 x I/O Bus)

    With the later series, the above nomenclature rules stayed constant EXCEPT - The "X" prefix means accelerated (95 or 130 watt TDP) and is only used on CPUs with a 2 x I/O bus. The "W" prefix is now used only in the single CPU series (1 X I/O Bus).

    In any case in both series, the meaning of leading numeric after the alpha has remained the same. A "3" for CPUs with a 1 x I/O bus and a "5" for CPUs with a 2 X I/O Bus.

    I hope this makes sense to you. It took me awhile to figure it out.

    Lou

  11. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #11
    I successfully upgraded my procs today but I'm falling 1000-2000 points short of my expected Geekbench 64bit multi score of around 32000. Do you think it's because I'm running Yosemite?

  12. JronMasteR macrumors 6502

    JronMasteR

    Joined:
    May 4, 2011
    Location:
    Switzerland
    #12
    From what I have seen, Geekbench scores are lower since I have upgraded to yosemite. Mostly memory performance scores are quite a bit lower compared to mavericks.

  13. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #13
    Thanks. I'm going to boot to my old Lion drive later and run the test from there for comparison. I'll post the results once done.

  14. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #14
    Hmmm - so I booted from the 10.8.5 Lion drive and the Geekbench 64bit multi score is still not quite right at around 30300. Just switched back to Yosemite and I’m getting around 31000. It must be my RAM config of 4x8gb sticks. Will research further.

  15. majortom67 macrumors newbie

    Joined:
    Dec 13, 2014
    #15
    I just did the same thing. Performance as for GeekBench and Cinebench (CPU only) boosted by a meere 33% (but for just 150$...) but heat is greater: I'm encoding with Handbrake at full 1500/1600% CPU and fans are at 3.900 RPM. Regardless this, they're very loud. When I had the two 2,4Ghz CPUs there was no fan noise at all. Anyway, I do not encode everyday and normal tasks don't push the fans, neither a hardly encoded x264 full HD. RAM is now running at 1333, previously at 1067.
    Simon

  16. Upgrader macrumors regular

    Upgrader

    Joined:
    Nov 23, 2014
    #16
    Did you upgrade a 4,1 2009 machine? Ifso, did you add the extra thermal pads?

  17. alesi macrumors newbie

    Joined:
    Jul 2, 2010
    Location:
    Vigo
    #17
    So the xeons in the 2010 2.4 8-core mac pro has the IHS?

    I want to replace this processors but don't know which processor choose, with IHS o without it...

  18. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #18
    Correct, normal CPU will be good for the upgrade.

  19. alesi macrumors newbie

    Joined:
    Jul 2, 2010
    Location:
    Vigo
    #19
    Thank you!

    I´ll buy 2x5670... for my mac pro.

  20. JGruber macrumors 6502

    Joined:
    Feb 13, 2006
    #20
    I know this is a little old.

    But I have a Mac Pro 4,1 that is a 2.26 Quad Core Xeon. What CPU upgrades are recommended for a single CPU MP?

  21. flowrider thread starter macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #21
    ^^^^Much discussion on this very subject on this forum.

    W3680, W3690, X5680 or X5690 will all work and fit quite nicely in your 4,1 Mac Pro. They are all six core, and will give your machine a nice boost in performance. Since it's a single CPU 2009 Model, a stock Intel CPU will fit just fine with no modifications needed.

    Lou

  22. alesi macrumors newbie

    Joined:
    Jul 2, 2010
    Location:
    Vigo
    #22
    2 x 5670 installed today and running perfect. It was really easy. Almost same temperature than before. 2ºC less on idle and 4-5ºC more under load.

    idle:
    CPU A: 34ºC
    CPU B: 27ºC

    Load:
    CPU A: 59ºC
    CPU B: 51ºC
