Mac Pro 5,1 - Odd Finder graphical glitch

metrocon

macrumors member
Original poster
Jan 6, 2004
42
2
I have a Mac Pro 5,1 with a MacVidCards GTX 970 installed, connected to a 27" Apple Cinema Display. I've been running El Capitan for the last few years with no problems, recently decided to try wiping it and installing High Sierra.

I installed 10.13.6, along with the latest nVidia web driver (387.10.10.10.40.105) and CUDA driver (396.148). Everything seems to work okay, except in Finder from time to time I see a black rectangle, usually on top of a filename, but sometimes on top of other text (like creation date in the preview pane). It seems kind of random when and where it shows up, and also seems to happen more frequently if there are a lot of files being displayed, and if I'm resizing the window.

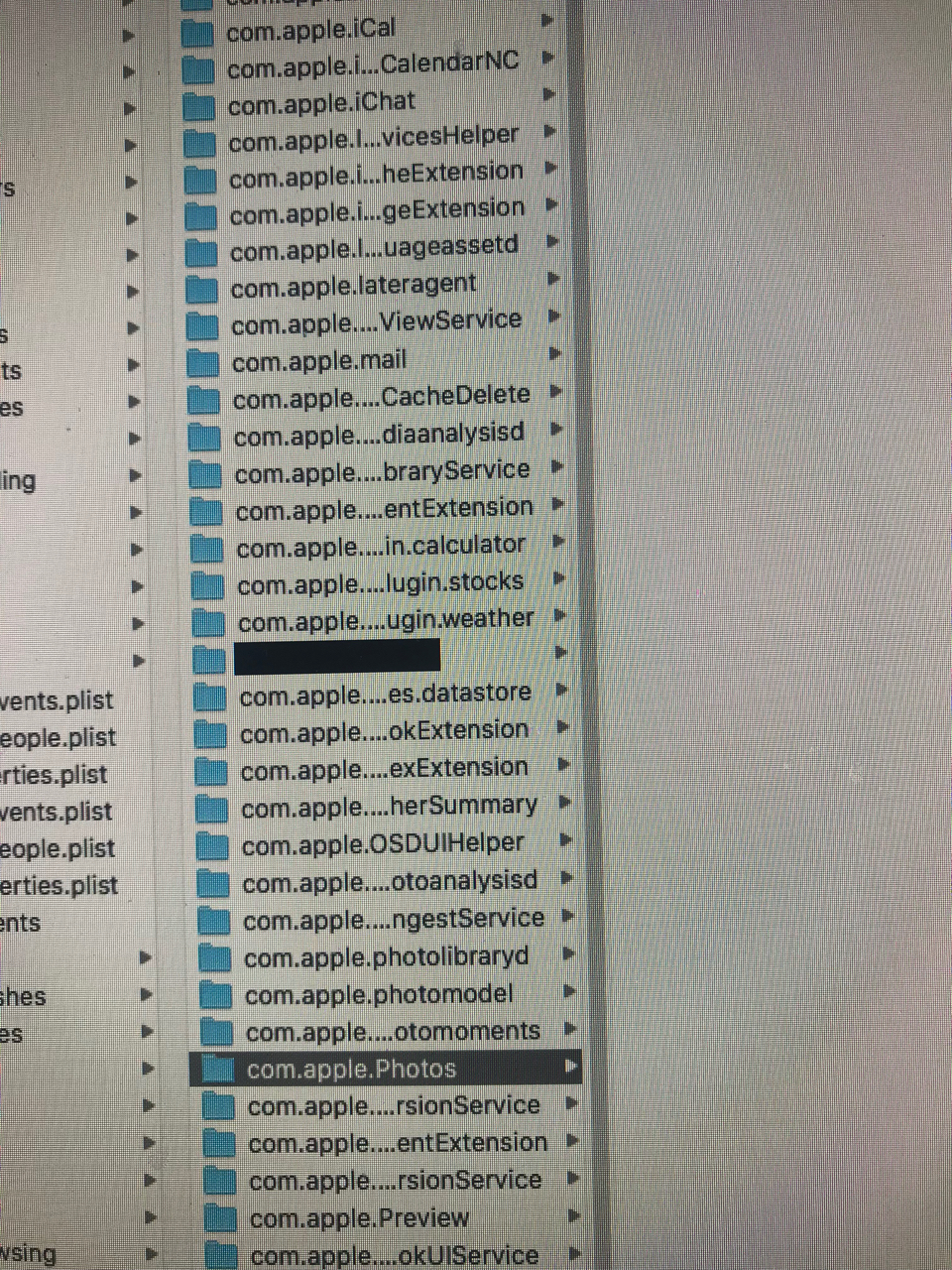

When I try to screen cap it, the black rectangle doesn't show up in the screen shot, so here's a photo of the monitor itself showing what happens.

Has anyone else ever encountered this?

Thanks!


Attachments


h9826790

macrumors G5
Apr 3, 2014
12,787
5,600
Hong Kong
I have a Mac Pro 5,1 with a MacVidCards GTX 970 installed, connected to a 27" Apple Cinema Display. I've been running El Capitan for the last few years with no problems, recently decided to try wiping it and installing High Sierra.

I installed 10.13.6, along with the latest nVidia web driver (387.10.10.10.40.105) and CUDA driver (396.148). Everything seems to work okay, except in Finder from time to time I see a black rectangle, usually on top of a filename, but sometimes on top of other text (like creation date in the preview pane). It seems kind of random when and where it shows up, and also seems to happen more frequently if there are a lot of files being displayed, and if I'm resizing the window.

When I try to screen cap it, the black rectangle doesn't show up in the screen shot, so here's a photo of the monitor itself showing what happens.

Has anyone else ever encountered this?

Thanks!

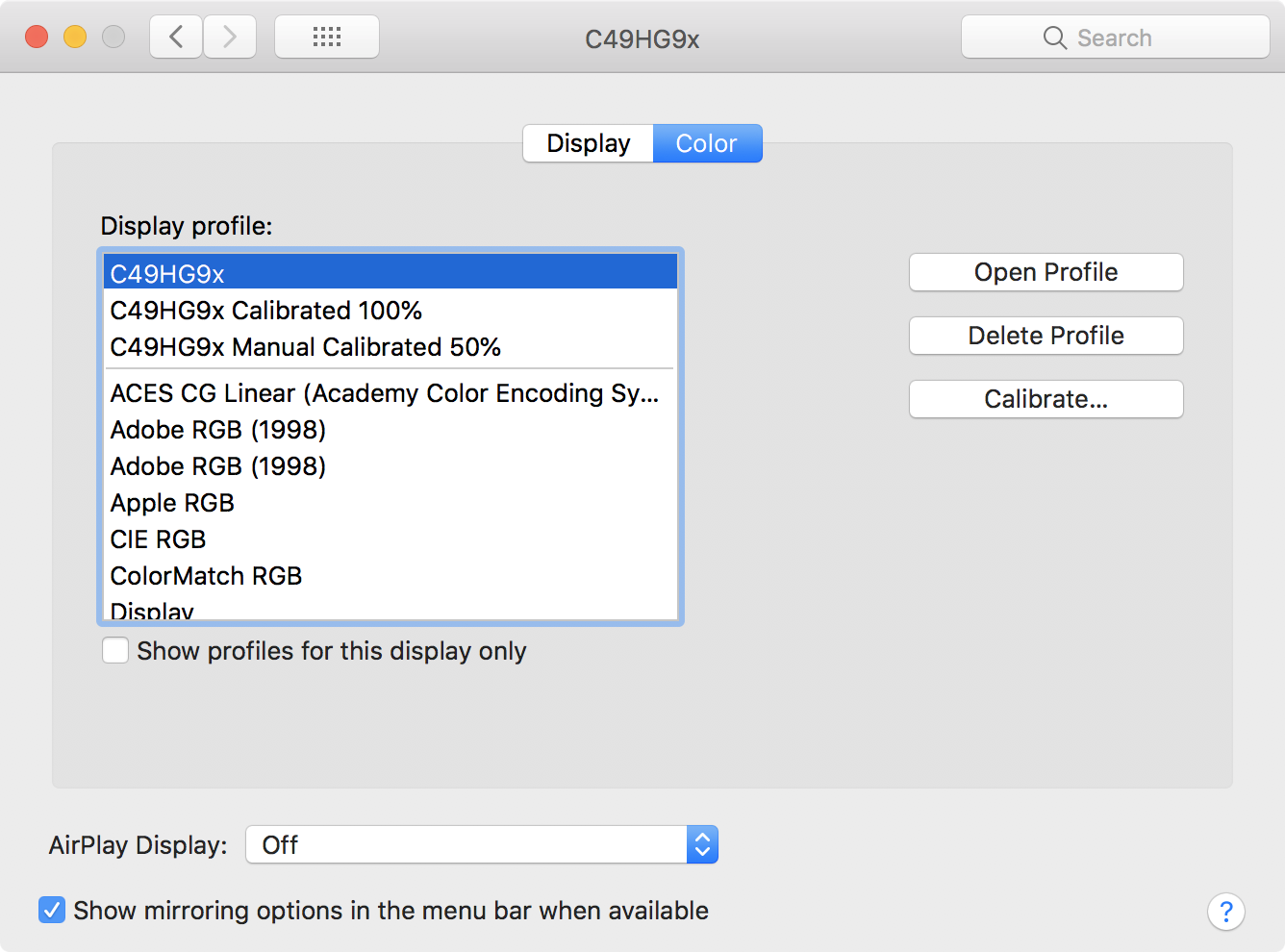

Did you use the monitor's native colour space?
Screen Shot 2018-07-31 at 01.16.11.png


tsialex

macrumors 603
Jun 13, 2016
5,364
6,079
Brazil

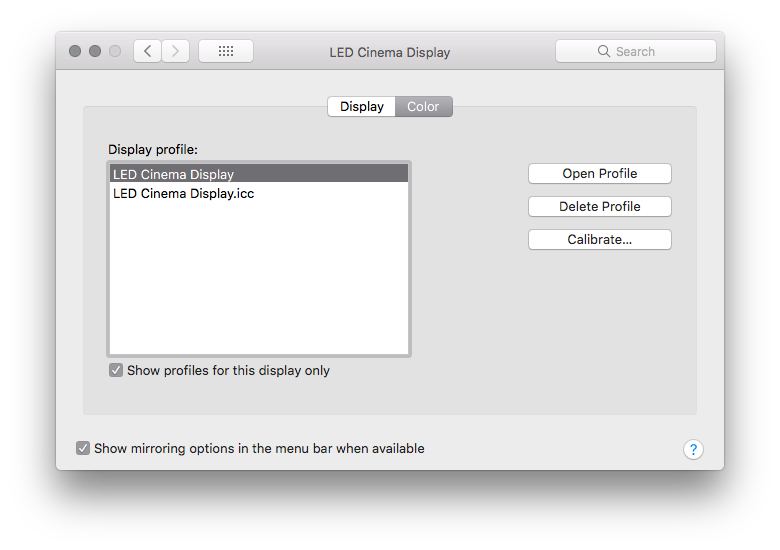

I've used both the monitor's native space, and the calibrated profile from my X-Rite i1Display. The black rectangles show up in both situations.
I have that black rectangle on Finder with eVGA GTX680 for Mac and native driver since High Sierra Betas, more people has it too.

Last edited:

sabbott

macrumors newbie
Feb 26, 2015
16
1
South Africa
I'm seeing the same problem. Mostly Finder, but sometimes the menu bar too.

4,1 -> 5,1
Asus GTX 970 (no Mac EFI from Macvidcards)
10.13.5
NVidia 387.10.10.10.35.106
CUDA 396.64

No real solution I've found, though I haven't dug very far...


h9826790

macrumors G5
Apr 3, 2014
12,787
5,600
Hong Kong

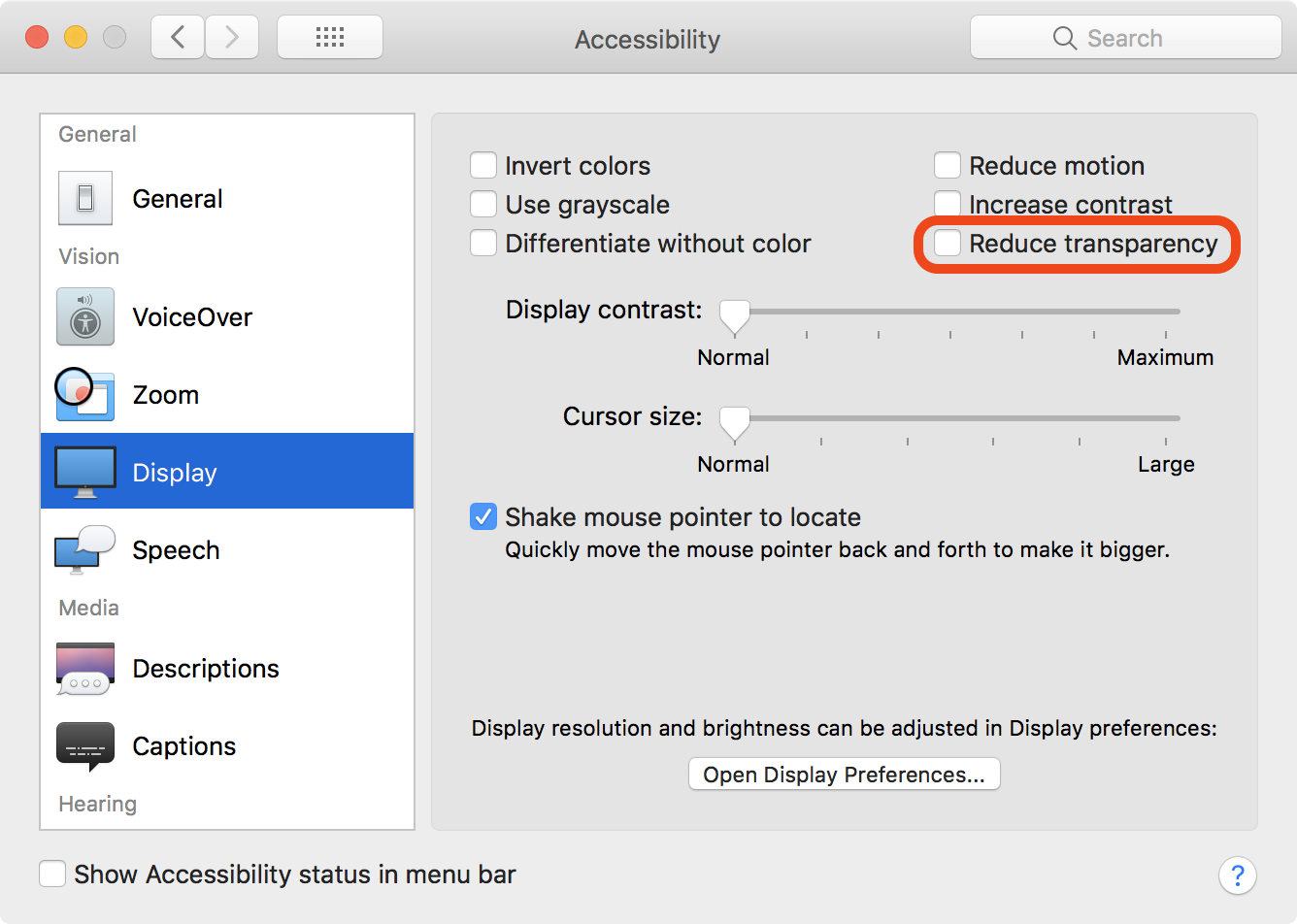

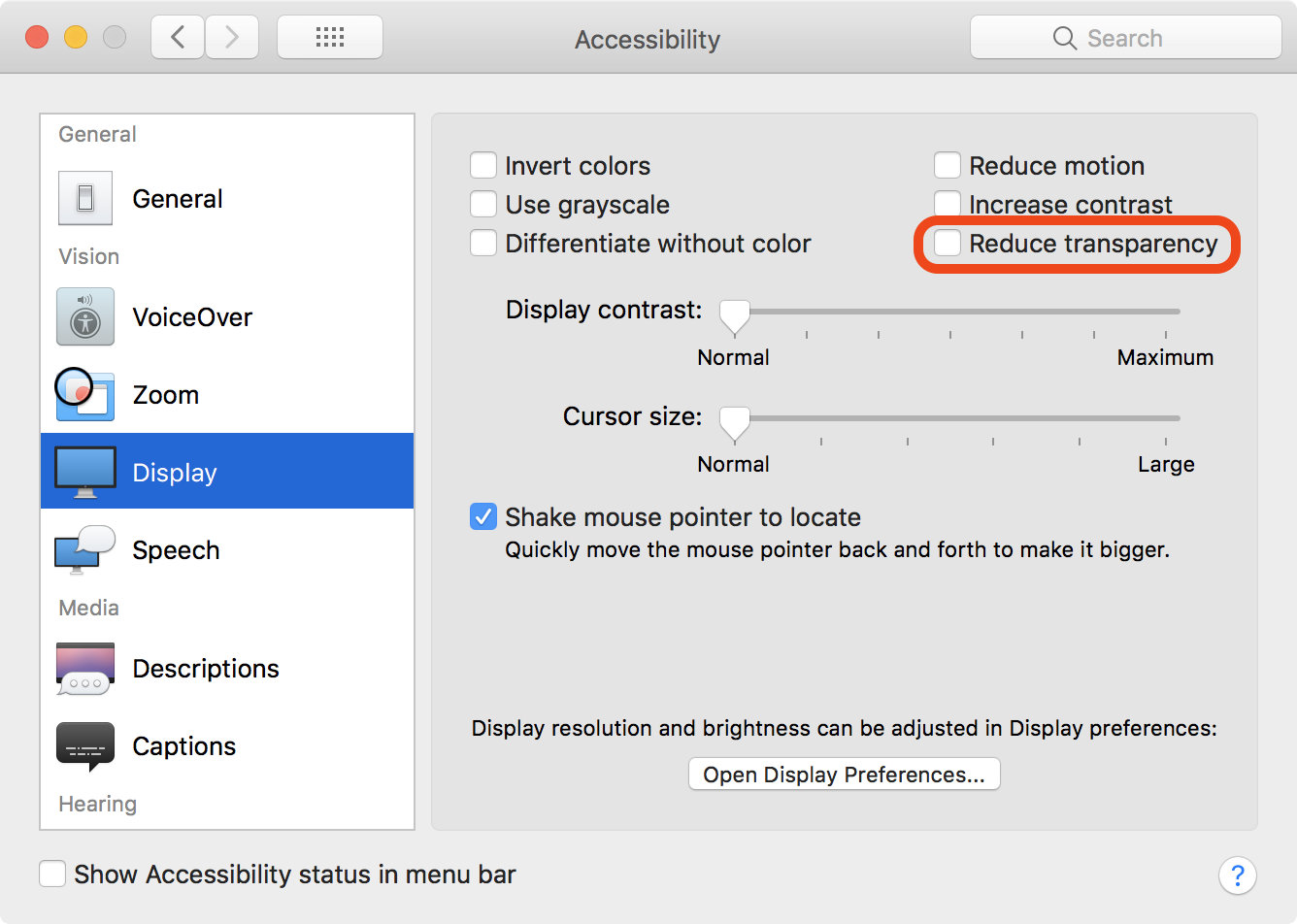

Try Enable "reduce transparency", this setting able to fix some colour bug few months ago. Not sure if this can help on this black box bug.
Screen Shot 2018-07-31 at 01.50.22.png


bookemdano

macrumors 65816
Jul 29, 2011
1,211
701
Also seeing this occasionally with an MVC 750 Ti in 10.13.6 with the latest NVIDIA web drivers.


angelonyc

macrumors newbie
Aug 1, 2018
3
5
New York, NY
Don't know if this relates to you.. I have a 2015 MacPro, with the D300 graphic cards.. My 4K monitor started blipping out, 1/2 second at first.. Evently the LK monitor died.. I bought a new 4k LG monitor, The display started blipping, eventually became worse. I returned it to B&H Photo for a replacement unit. Same thing, after two weeks, I started getting the 4K monitor to blip off for 1/2 second. I looked on Mac Rumors site and read there was an issue with the Thunderbolt lanes and 4K monitors, HDMI also is a thunderbolt lane.. It would start with some issue on display card, a wait state, or loop, then a 'kernel process' would climb up to 1000%. Computer would come to a standstill for minutes, sometimes eventually the task would lower % rate, and computer ok again. other times computer froze kernel panic.. Audio would play, but everything else was dead.

Apple store did a few tests, determined like Mac Rumors said, it is an issue with graphic cards.. I'm taking it in, this week to replace cards.. I cannot find the original 240 gig SSD. I put an OWC 1 TB in.. Apple told me, the repair company, may and DOES have the right to refuse to service it. Since I cannot find my 240 gig SSD.. My only solution is to buy a new computer. AS TOLD TO ME BY APPLE itself. They put notes in my case, and said if problem existed only in graphics card, and not logic boards, they may play nice, and replace it.. I'm going with the optimistic viewpoint for now.


fabibcn

macrumors newbie
Jun 14, 2018
2
1
Happens to me also, with flashed 680GTX, with or without web drivers, using a 4K Dell monitor. Have gotten used to it, strangely


MriX

macrumors member
Oct 23, 2017
68
11
Germany
Has every flashed GTX680 this problem? Would be one more argument for people getting a AMD R9 280X


bsbeamer

macrumors 68020
Sep 19, 2012
2,402
1,116
Would see this occasionally with previous NVIDIA drivers, but have not yet seen with GTX 1080 and the latest 387.10.10.15.15.108 driver in 10.13.6.


Tapper

macrumors newbie
Dec 30, 2013
3
0
los angeles, ca
I too am seeing these black rectangle Finder artifacts. Just upgrade to an NVIDIA GeForce GTX 680 Mac card from my ATI Radeon HD 4870. Perhaps these artifacts are a result of Metal? And although the GTX is a better card on paper, it seems slightly slower than the Radeon.


orph

macrumors 68000
Dec 12, 2005
1,858
381
UK
i get that sometimes on my gtx 770 osx 10.12 native and nvidia driver on the menu bar, never gave a problem just flashes black for a few secs then back to normal.
all it dose it make me glance at the top right of my screen once in a while


TzunamiOSX

macrumors 6502
Oct 4, 2009
301
46
Germany
Hours of testing and search the web, and now i find these thread…

I was so happy with El Capitan, but the support has gone. So i have updated to High Sierra.

And now: AHHHHH, black flashing menu bar, black bars over names. I HATE High Sierra.

Any fixes or workarounds?

Problem with Titan X and with 680 GTX Mac Edition too.

Last edited:

h9826790

macrumors G5
Apr 3, 2014
12,787
5,600
Hong Kong
Hours of testing and search the web, and now i find these thread…

I was so happy with El Capitan, but the support has gone. So i have updated to High Sierra.

And now: AHHHHH, black flashing menu bar, black bars over names. I HATE High Sierra.

Any fixes or workarounds?

Problem with Titan X and with 680 GTX Mac Edition too.
You may try

1) Disable SIP

2) Disable Gatekeeper

3) run the following code in terminal (internet connection required)
Code:
bash <(curl -s https://raw.githubusercontent.com/Benjamin-Dobell/nvidia-update/master/nvidia-update.sh) 378.10.10.10.25.106
This steps will force install the old V378 driver for High Sierra. The performance is not as good as the current V387 driver, but less buggy.


TzunamiOSX

macrumors 6502
Oct 4, 2009
301
46
Germany
Are these glitches in Sierra too? If not i fall back to El Capitan and update to Sierra.
[doublepost=1542551959][/doublepost]Looks like i found a solution to reduce the problem.

Take this View Option
Bildschirmfoto 2018-11-18 um 16.02.42.png


then

Finder/View/Show View Options

When you set "Icon size" to Big in all windows you get you get a lot less glitches on filenames

take effect after closing window and reopen

Last edited:

TzunamiOSX

macrumors 6502
Oct 4, 2009
301
46
Germany
After install my backup I get the same glitches under El Capitan. The only change was the Mac Pro Firmware update form the old MP51.007F.803 to the new 140.0.0.0. Looks like the Problem is between the Nvidia Web drivers and the new MacPro Firmware.
