MP All Models Mac Pro CPU Compatibility List

Status
The first post in this thread is a WikiPost, and can be edited by anyone with the appropriate permissions.

Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
- - Post merged: - -

"I highly recommend using CPU-Z and hwinfo64, but it is easily possible to pull CPUID info OS X"

how ?

I have my 6212U installed again in the MP7,1 ( second time ! ) with Beta 10.15.3 .

I'm not certain I want to even shut her down before we determine the CPUID .

We may have one shot at this .

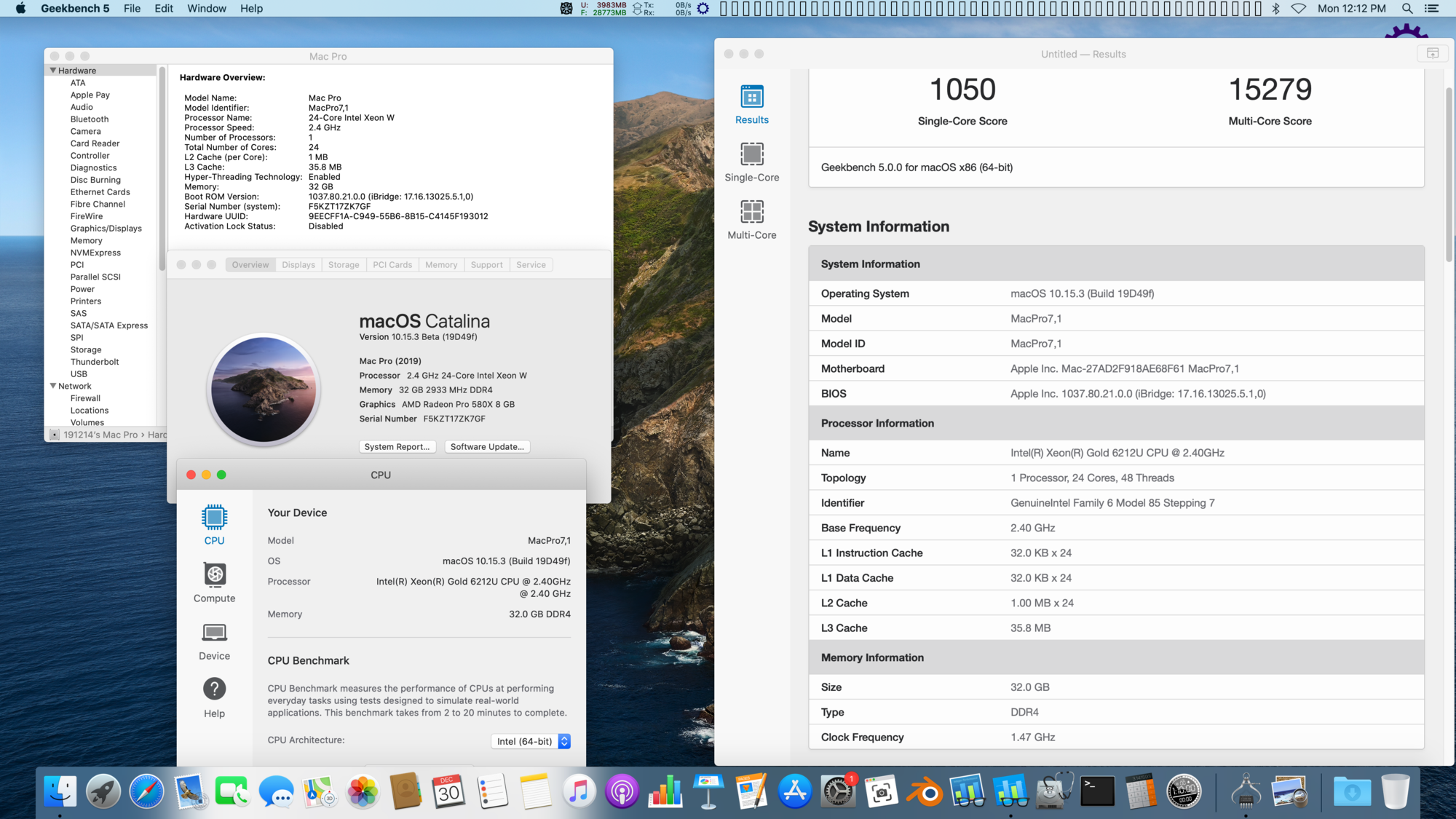

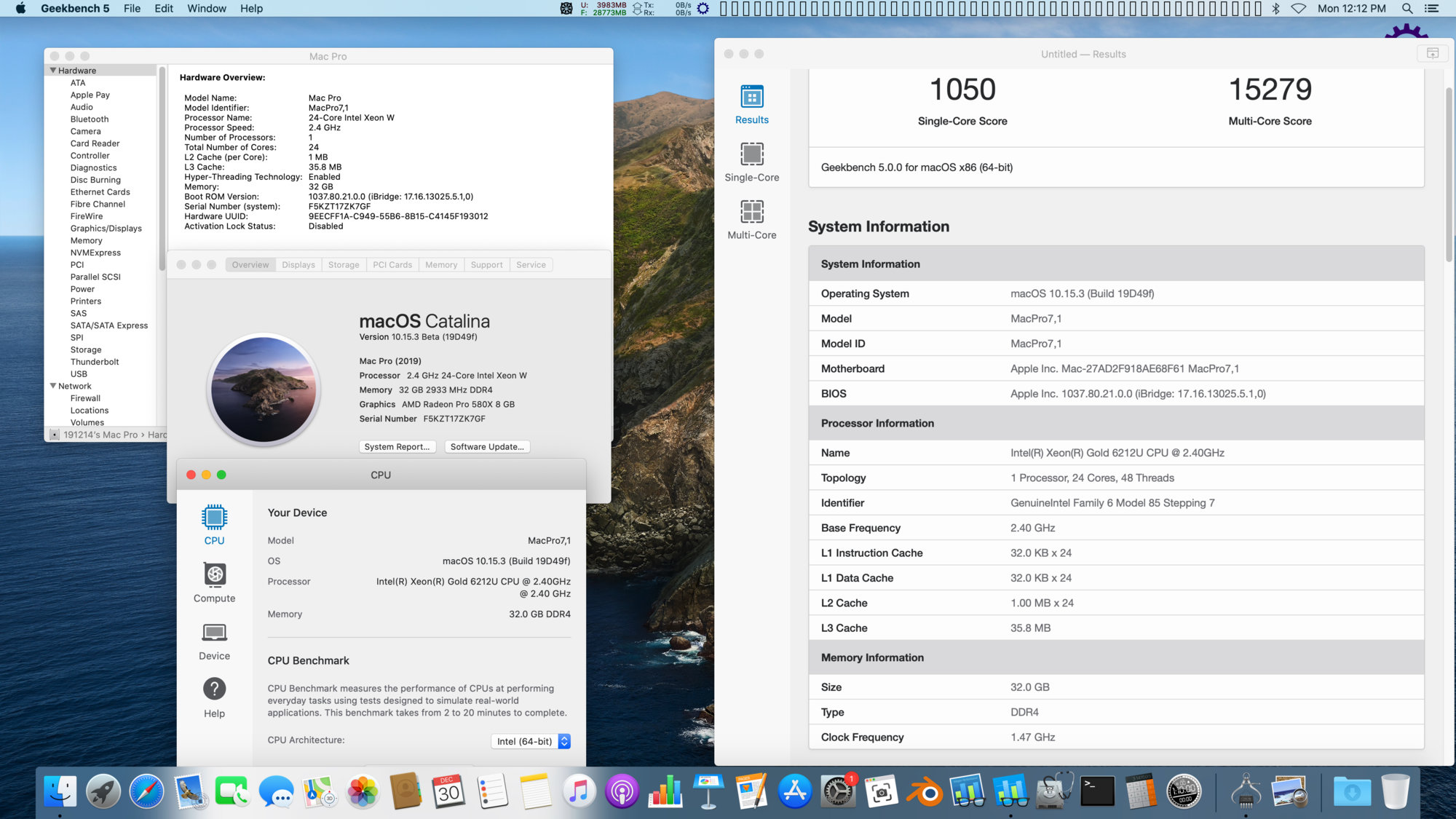

Screen Shot 2019-12-30 at 12.12.43 PM.png

- - Post merged: - -

I highly recommend using CPU-Z and hwinfo64, but it is easily possible to pull CPUID info OS X
how do I get this info in macOS ?


Attachments

Last edited:

majus

macrumors regular
Mar 25, 2004
203
110
Oklahoma City, OK
Maybe this?
It is based on CPU-Z according to the site. Link at the end of the article for version 3.1.


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Maybe this?
It is based on CPU-Z according to the site. Link at the end of the article for version 3.1.
Well , despite its name , the utility didn't inform us of the CPUID number . It gives us some chip info and a nice list of processor features supported . But no CPUID number ... :( .

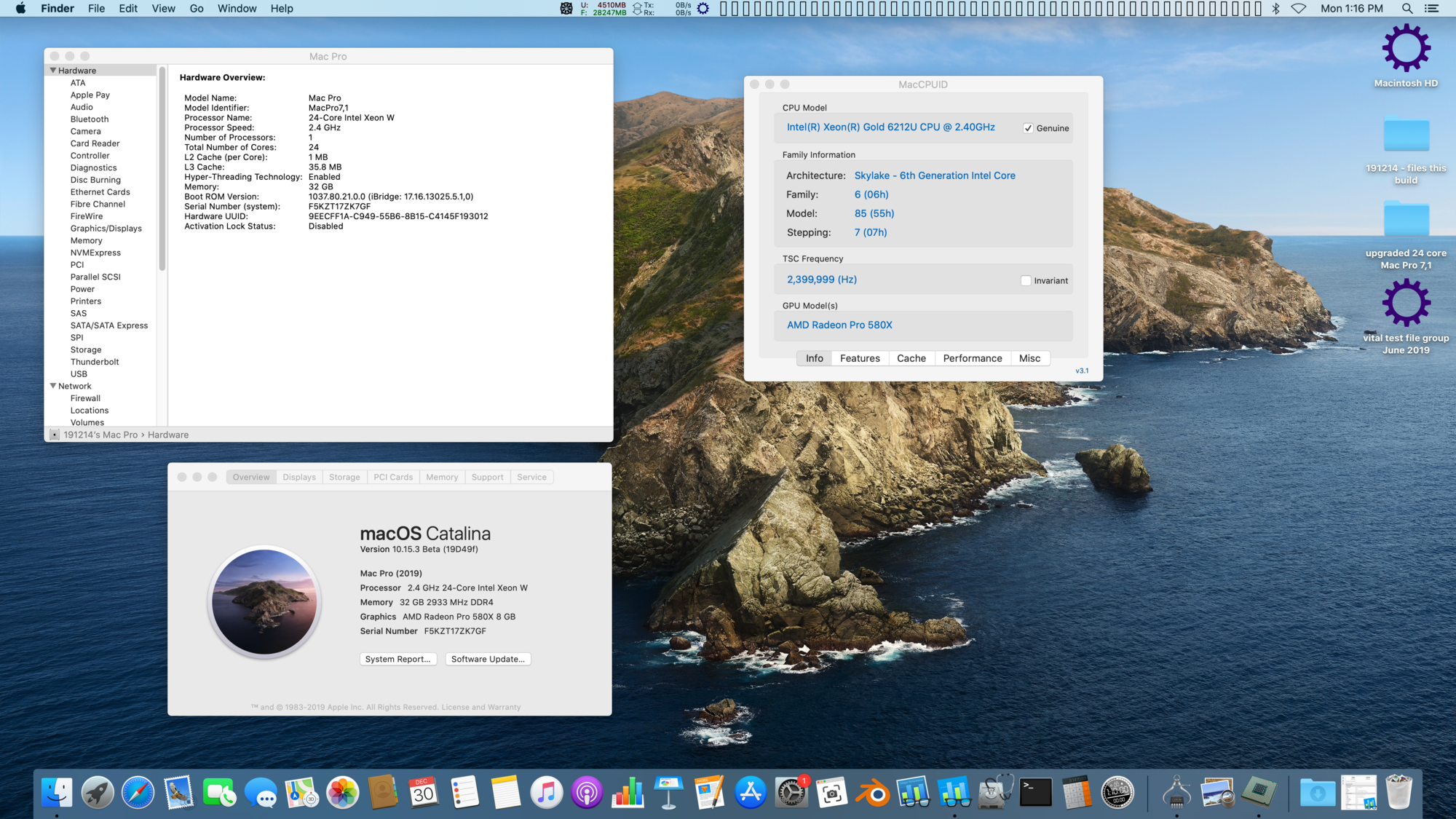

Screen Shot 2019-12-30 at 1.16.06 PM.png


Cascade Lakes are very closely related to Skylakes BTW .


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
For what its worth , I ran the sysctl -a command in terminal of the MP7,1 and here is what we get :

Last login: Mon Dec 30 12:03:37 on console cm191214@191214s-Mac-Pro ~ % sysctl -a user.cs_path: /usr/bin:/bin:/usr/sbin:/sbin user.bc_base_max: 99
user.bc_dim_max: 2048
user.bc_scale_max: 99
user.bc_string_max: 1000
user.coll_weights_max: 2
user.expr_nest_max: 32
user.line_max: 2048
user.re_dup_max: 255
user.posix2_version: 200112
user.posix2_c_bind: 0
user.posix2_c_dev: 0
user.posix2_char_term: 0
user.posix2_fort_dev: 0
user.posix2_fort_run: 0
user.posix2_localedef: 0
user.posix2_sw_dev: 0
user.posix2_upe: 0
user.stream_max: 20
user.tzname_max: 255
kern.ostype: Darwin
kern.osrelease: 19.3.0
kern.osrevision: 199506
kern.version: Darwin Kernel Version 19.3.0: Sun Dec 8 22:27:29 PST 2019; root:xnu-6153.80.8.0.1~15/RELEASE_X86_64
kern.maxvnodes: 263168 kern.maxproc: 8352
kern.maxfiles: 98304
kern.argmax: 262144
kern.securelevel: 0
kern.hostname: 191214s-Mac-Pro.local kern.hostid: 0
kern.clockrate: { hz = 100, tick = 10000, tickadj = 0, profhz = 100, stathz = 100 } kern.posix1version: 200112
kern.ngroups: 16
kern.job_control: 1
kern.saved_ids: 1
kern.boottime: { sec = 1577729010, usec = 986726 } Mon Dec 30 12:03:30 2019 kern.nisdomainname:

kern.maxfilesperproc: 49152 kern.maxprocperuid: 5568 kern.ipc.maxsockbuf: 8388608 kern.ipc.sockbuf_waste_factor: 8 kern.ipc.somaxconn: 128 kern.ipc.nmbclusters: 65536 kern.ipc.soqlimitcompat: 1 kern.ipc.mleak_sample_factor: 500 kern.ipc.mb_normalized: 0 kern.ipc.mb_watchdog: 0 kern.ipc.mb_drain_force: 0 kern.ipc.mb_drain_maxint: 0 kern.ipc.socket_debug: 0 kern.ipc.sodefunct_calls: 0 kern.ipc.sosendminchain: 16384 kern.ipc.sorecvmincopy: 16384 kern.ipc.sosendjcl: 1 kern.ipc.sosendjcl_ignore_capab: 0 kern.ipc.sosendbigcl_ignore_capab: 0 kern.ipc.sodefunctlog: 0 kern.ipc.sothrottlelog: 0 kern.ipc.sorestrictrecv: 1 kern.ipc.sorestrictsend: 1 kern.ipc.soreserveheadroom: 1 kern.ipc.maxextbkidleperproc: 1 kern.ipc.extbkidletime: 600 kern.ipc.extbkidlercvhiwat: 131072 kern.ipc.sotcdb: 0 kern.ipc.throttle_best_effort: 0 kern.ipc.njcl: 21840 kern.ipc.njclbytes: 16384 kern.ipc.soqlencomp: 0 kern.ipc.sbmb_cnt: 0 kern.ipc.sbmb_cnt_peak: 178 kern.ipc.sbmb_cnt_floor: 0 kern.ipc.sbmb_limreached: 0 kern.ipc.io_policy.log: 0 kern.ipc.io_policy.uuid: 1 kern.ipc.maxsendmsgx: 100 kern.ipc.maxrecvmsgx: 100 kern.usrstack: -370401280 kern.netboot: 0
kern.sysv.shmmax: 4194304

kern.sysv.shmmin: 1 kern.sysv.shmmni: 32 kern.sysv.shmseg: 8 kern.sysv.shmall: 1024 kern.sysv.semmni: 87381 kern.sysv.semmns: 87381 kern.sysv.semmnu: 87381 kern.sysv.semmsl: 87381 kern.sysv.semume: 10
kern.aiomax: 90
kern.aioprocmax: 16 kern.aiothreads: 4
kern.corefile: /cores/core.%P kern.coredump: 1 kern.sugid_coredump: 0 kern.delayterm: 0 kern.shreg_private: 0 kern.posix.sem.max: 10000 kern.usrstack64: 140732822986752 kern.tfp.policy: 2
kern.procname: sysctl kern.speculative_reads_disabled: 0 kern.osversion: 19D49f kern.safeboot: 0
kern.rage_vnode: 0
kern.tty.ptmx_max: 511
kern.check_openevt: 0
kern.threadname:
kern.dtrace.err_verbose: 0 kern.dtrace.buffer_memory_maxsize: 11453246122 kern.dtrace.buffer_memory_inuse: 0 kern.dtrace.difo_maxsize: 262144 kern.dtrace.dof_maxsize: 524288 kern.dtrace.global_maxsize: 16384 kern.dtrace.provide_private_probes: 1 kern.dtrace.dof_mode: 1 kern.dtrace.ignore_fbt_blacklist: 0
kern.nbuf: 16384
kern.maxnbuf: 16384 kern.monotonic.supported: 1 kern.monotonic.pmis: 1088 0 kern.monotonic.retrograde_updates: 1088 0 kern.monotonic.task_thread_counting: 1

kern.flush_cache_on_write: 0 kern.wq_stalled_window_usecs: 200 kern.wq_reduce_pool_window_usecs: 5000000 kern.wq_max_timer_interval_usecs: 50000 kern.wq_max_threads: 512 kern.wq_max_constrained_threads: 240 kern.kdbg.experimental_continuous: 0 kern.kdbg.debug: 0
kern.kdbg.oldest_time: 7227167080932 kern.ds_supgroups_supported: 1
kern.sugid_scripts: 0
kern.zleak.active: 0
kern.zleak.max_zonemap_size: 12884901888 kern.zleak.global_threshold: 6442450944 kern.zleak.zone_threshold: 805306368
kern.uuid: 9EC18232-E356-30D5-84B8-282F31C3917B kern.osproductversion: 10.15.3
kern.iossupportversion: 13.0
kern.bootargs:
kern.kernelcacheuuid: 24409451-D816-BE17-5D29-46833FDFECE2 kern.num_files: 2688
kern.num_vnodes: 263168
kern.num_tasks: 8192
kern.num_threads: 40960
kern.num_taskthreads: 8192
kern.num_recycledvnodes: 32118
kern.namecache_disabled: 0
kern.sched_enable_smt: 1
kern.sched_allow_NO_SMT_threads: 1
kern.preheat_max_bytes: 1048576
kern.preheat_min_bytes: 32768
kern.speculative_prefetch_max: 201326592 kern.speculative_prefetch_max_iosize: 524288 kern.vm_page_free_target: 4000
kern.vm_page_free_min: 3500
kern.vm_page_free_reserved: 816 kern.vm_page_speculative_percentage: 5 kern.vm_page_speculative_q_age_ms: 500 kern.vm_max_delayed_work_limit: 32
kern.vm_max_batch: 256
kern.bootsessionuuid: 467E9F50-9F06-4E40-95BF-E044EE0DDD58 kern.timer.coalescing_enabled: 1
kern.timer.deadline_tracking_bin_1: 2000000

kern.timer.deadline_tracking_bin_2: 5000000 kern.timer.longterm.threshold: 1000 kern.timer.longterm.scan_limit: 100000 kern.timer.longterm.scan_interval: 100000 kern.timer.longterm.qlen: 37 kern.timer.longterm.scan_pauses: 2 kern.vfsnspace: 0
kern.singleuser: 0 kern.minimalboot: 0 kern.affinity_sets_enabled: 1 kern.affinity_sets_mapping: 1 kern.slide: 1 kern.ipc_voucher_trace_contents: 0 kern.stack_size: 16384 kern.stack_depth_max: 10560 kern.kern_feature_overrides: 0 kern.ipc_portbt: 0
kern.sched: dualq
kern.timer_coalesce_bg_scale: -5 kern.timer_resort_threshold_ns: 50000000 kern.timer_coalesce_bg_ns_max: 100000000 kern.timer_coalesce_kt_scale: 3 kern.timer_coalesce_kt_ns_max: 1000000 kern.timer_coalesce_fp_scale: 3 kern.timer_coalesce_fp_ns_max: 1000000 kern.timer_coalesce_ts_scale: 3 kern.timer_coalesce_ts_ns_max: 1000000 kern.timer_coalesce_tier0_scale: 3 kern.timer_coalesce_tier0_ns_max: 1000000 kern.timer_coalesce_tier1_scale: 2 kern.timer_coalesce_tier1_ns_max: 5000000 kern.timer_coalesce_tier2_scale: 1 kern.timer_coalesce_tier2_ns_max: 20000000 kern.timer_coalesce_tier3_scale: -2 kern.timer_coalesce_tier3_ns_max: 75000000 kern.timer_coalesce_tier4_scale: -15 kern.timer_coalesce_tier4_ns_max: 10000000000 kern.timer_coalesce_tier5_scale: -15 kern.timer_coalesce_tier5_ns_max: 10000000000 kern.hv_support: 1 kern.thread_groups_supported: 0 kern.memorystatus_sysprocs_idle_delay_time: 10 kern.memorystatus_apps_idle_delay_time: 10

kern.jetsam_aging_policy: 2
kern.memorystatus_purge_on_warning: 2 kern.memorystatus_purge_on_urgent: 5 kern.memorystatus_purge_on_critical: 8
kern.bridge.bootsessionuuid: 3B708038-7432-4CAA-9687-EB4E72E9FC1F kern.msgbuf: 16384
kern.task_exc_guard_default: 0 kern.ulock_adaptive_spin_usecs: 20 kern.eventhandler.debug: 0
kern.secure_kernel: 0 kern.skywalk.ring_stat_enable: 0 kern.skywalk.flowswitch.ip_reass: 1 kern.skywalk.flowswitch.ipfm_frag_ttl: 60 kern.skywalk.flowswitch.ipfm_timeout_tcall_ival: 1 kern.skywalk.flowswitch.flow_route_expire: 600 kern.skywalk.flowswitch.en1.ipfm.frag_limit: 2112 kern.skywalk.flowswitch.en1.ipfm.frag_count: 0 kern.skywalk.flowswitch.en1.ipfm.queue_limit: 1024 kern.skywalk.flowswitch.en1.ipfm.queue_count: 0 kern.skywalk.flowswitch.en0.ipfm.frag_limit: 2112 kern.skywalk.flowswitch.en0.ipfm.frag_count: 0 kern.skywalk.flowswitch.en0.ipfm.queue_limit: 1024 kern.skywalk.flowswitch.en0.ipfm.queue_count: 0 kern.skywalk.flowswitch.en3.ipfm.frag_limit: 2112 kern.skywalk.flowswitch.en3.ipfm.frag_count: 0 kern.skywalk.flowswitch.en3.ipfm.queue_limit: 1024 kern.skywalk.flowswitch.en3.ipfm.queue_count: 0 kern.skywalk.flowswitch.en4.ipfm.frag_limit: 2112 kern.skywalk.flowswitch.en4.ipfm.frag_count: 0 kern.skywalk.flowswitch.en4.ipfm.queue_limit: 1024 kern.skywalk.flowswitch.en4.ipfm.queue_count: 0 kern.skywalk.flowswitch.en5.ipfm.frag_limit: 2112 kern.skywalk.flowswitch.en5.ipfm.frag_count: 0 kern.skywalk.flowswitch.en5.ipfm.queue_limit: 1024 kern.skywalk.flowswitch.en5.ipfm.queue_count: 0 kern.skywalk.flowswitch.en6.ipfm.frag_limit: 2112 kern.skywalk.flowswitch.en6.ipfm.frag_count: 0 kern.skywalk.flowswitch.en6.ipfm.queue_limit: 1024 kern.skywalk.flowswitch.en6.ipfm.queue_count: 0 kern.skywalk.flowswitch.en2.ipfm.frag_limit: 1472 kern.skywalk.flowswitch.en2.ipfm.frag_count: 0 kern.skywalk.flowswitch.en2.ipfm.queue_limit: 736 kern.skywalk.flowswitch.en2.ipfm.queue_count: 0

kern.skywalk.flowswitch.awdl0.ipfm.frag_limit: 1472 kern.skywalk.flowswitch.awdl0.ipfm.frag_count: 0 kern.skywalk.flowswitch.awdl0.ipfm.queue_limit: 736 kern.skywalk.flowswitch.awdl0.ipfm.queue_count: 0 kern.skywalk.netif.default_drop: 0 kern.interrupt_timer_coalescing_enabled: 1 kern.timer_coalesce_idle_entry_hard_deadline_max: 5000000 kern.pmtimeout: 0
kern.wake_abs_time: 0
kern.sleep_abs_time: 0
kern.useractive_abs_time: 558770860 kern.userinactive_abs_time: 0
kern.sleeptime: { sec = 0, usec = 0 } Wed Dec 31 18:00:00 1969 kern.waketime: { sec = 0, usec = 0 } Wed Dec 31 18:00:00 1969 kern.willshutdown: 0
kern.iokittest: 0
kern.progressmeterenable: 0
kern.progressmeter: 386
kern.wakereason:
kern.consoleoptions: 0
kern.aotmode: 0
kern.aotmodebits: 0
kern.hibernatefile:
kern.bootsignature:
kern.hibernatemode: 0
kern.hibernategraphicsready: 0
kern.hibernatewakenotification: 0 kern.hibernatelockscreenready: 0
kern.hibernatehidready: 0
kern.monotonicclock: 0
kern.monotonicclock_usecs: 2046880443054 7396596368677 kern.monotonicclock_rate_usecs: 30 kern.monotoniclock_offset_usecs: 1575689526128021 kern.pthread_mutex_default_policy: 0
kern.hv.vmx_mitigations: 22
kern.hv.vmx_supported_mitigations: 30
vm.loadavg: { 0.29 0.16 0.17 }
vm.swapusage: total = 0.00M used = 0.00M free = 0.00M (encrypted) vm.cs_force_kill: 0
vm.cs_force_hard: 0
vm.cs_debug: 0 vm.cs_debug_fail_on_unsigned_code: 0 vm.cs_debug_unsigned_exec_failures: 0

vm.cs_debug_unsigned_mmap_failures: 0 vm.cs_all_vnodes: 0
vm.cs_system_enforcement: 1 vm.cs_process_enforcement: 0 vm.cs_enforcement_panic: 0
vm.cs_library_validation: 0
vm.global_user_wire_limit: 27144193310 vm.user_wire_limit: 27144193310 vm.global_no_user_wire_amount: 7215545058 vm.vm_copy_src_not_internal: 4 vm.vm_copy_src_not_symmetric: 0 vm.vm_copy_src_large: 0
vm.vm_page_external_count: 426144 vm.vm_page_filecache_min: 0 vm.vm_page_xpmapped_min: 0 vm.compressor_input_bytes: 0 vm.compressor_compressed_bytes: 0 vm.compressor_bytes_used: 0
vm.compressor_mode: 4
vm.compressor_is_active: 1 vm.compressor_swapout_target_age: 0 vm.compressor_available: 1 vm.vm_ripe_target_age_in_secs: 172800 vm.compressor_eval_period_in_msecs: 250 vm.compressor_sample_min_in_msecs: 500 vm.compressor_sample_max_in_msecs: 10000 vm.compressor_thrashing_threshold_per_10msecs: 50 vm.compressor_thrashing_min_per_10msecs: 20 vm.swapfileprefix: /private/var/vm/swapfile vm.compressor_timing_enabled: 0 vm.lz4_compressions: 0
vm.lz4_compression_failures: 0 vm.lz4_compressed_bytes: 0 vm.lz4_wk_compression_delta: 0 vm.lz4_wk_compression_negative_delta: 0 vm.lz4_decompressions: 0 vm.lz4_decompressed_bytes: 0 vm.uc_decompressions: 0 vm.wk_compressions: 0
vm.wk_catime: 0 vm.wkh_catime: 0 vm.wkh_compressions: 0 vm.wks_catime: 0

vm.wks_compressions: 0 vm.wk_compressions_exclusive: 0 vm.wk_sv_compressions: 0 vm.wk_mzv_compressions: 0 vm.wk_compression_failures: 0 vm.wk_compressed_bytes_exclusive: 0 vm.wk_compressed_bytes_total: 0 vm.wks_compressed_bytes: 0 vm.wks_compression_failures: 0 vm.wks_sv_compressions: 0 vm.wk_decompressions: 0 vm.wk_datime: 0
vm.wkh_datime: 0
vm.wkh_decompressions: 0
vm.wks_datime: 0
vm.wks_decompressions: 0 vm.wk_decompressed_bytes: 0 vm.wk_sv_decompressions: 0
vm.lz4_threshold: 2048 vm.wkdm_reeval_threshold: 1536 vm.lz4_max_failure_skips: 0 vm.lz4_max_failure_run_length: -1 vm.lz4_max_preselects: 0 vm.lz4_run_preselection_threshold: -1 vm.lz4_run_continue_bytes: 0 vm.lz4_profitable_bytes: 0 vm.vm_page_background_mode: 1 vm.vm_page_background_exclude_external: 0 vm.vm_page_background_target: 50000 vm.vm_page_background_count: 136692 vm.vm_page_background_internal_count: 119946 vm.vm_page_background_external_count: 16746 vm.vm_page_background_promoted_count: 9550 vm.vm_pageout_considered_bq_internal: 0 vm.vm_pageout_considered_bq_external: 0 vm.vm_pageout_rejected_bq_internal: 0 vm.vm_pageout_rejected_bq_external: 0 vm.darkwake_mode: 0
vm.cs_blob_count: 582 vm.cs_blob_size: 29595664 vm.cs_blob_count_peak: 582 vm.cs_blob_size_peak: 29595664 vm.cs_blob_size_max: 15417344

vm.vm_do_collapse_compressor: 0 vm.vm_do_collapse_compressor_pages: 0 vm.vm_do_collapse_terminate: 0 vm.vm_do_collapse_terminate_failure: 0 vm.vm_should_cow_but_wired: 0 vm.vm_create_upl_extra_cow: 1 vm.vm_create_upl_extra_cow_pages: 1 vm.vm_create_upl_lookup_failure_write: 0 vm.vm_create_upl_lookup_failure_copy: 0 vm.vm_debug_events: 0 vm.shared_region_unnest_logging: 1 vm.enforce_shared_cache_dir: 1 vm.shared_region_trace_level: 1 vm.shared_region_version: 3 vm.shared_region_persistence: 0 vm.pagesize: 4096 vm.vm_page_free_target: 4000 vm.memory_pressure: 0 vm.page_free_wanted: 0 vm.page_purgeable_count: 85085 vm.page_purgeable_wired_count: 33 vm.kern_lpage_count: 238 vm.madvise_free_debug: 0 vm.page_reusable_count: 108908 vm.reusable_success: 340705 vm.reusable_failure: 30 vm.reusable_pages_shared: 422 vm.all_reusable_calls: 0 vm.partial_reusable_calls: 368395 vm.reuse_success: 2591 vm.reuse_failure: 0
vm.all_reuse_calls: 0 vm.partial_reuse_calls: 2558 vm.can_reuse_success: 11009 vm.can_reuse_failure: 5 vm.reusable_reclaimed: 0 vm.reusable_nonwritable: 30 vm.reusable_shared: 0
vm.free_shared: 5
vm.page_free_count: 6629739 vm.page_speculative_count: 215001 vm.page_cleaned_count: 0 vm.page_pageable_internal_count: 773080

vm.page_pageable_external_count: 426144 vm.pageout_inactive_clean: 0 vm.pageout_inactive_used: 0 vm.pageout_inactive_dirty_internal: 0 vm.pageout_inactive_dirty_external: 0 vm.pageout_speculative_clean: 0 vm.pageout_freed_external: 0 vm.pageout_freed_speculative: 0 vm.pageout_freed_cleaned: 0
vm.prefault_nb_pages: 0
vm.prefault_nb_bailout: 0 vm.vm_clump_promote_threshold: 4 vm.vm_min_kernel_address: 18446743521806254080 vm.vm_max_kernel_address: 18446744073709547519 vm.pages: 8248994
vm.page_busy_absent_skipped: 0 vm.upl_pages_tainted: 0 vm.iopl_pages_tainted: 0 vm.corpse_footprint_count: 2 vm.corpse_footprint_size_avg: 118422 vm.corpse_footprint_size_max: 118632 vm.corpse_footprint_full: 0 vm.corpse_footprint_no_buf: 0 vm.shared_region_pager_copied: 0 vm.shared_region_pager_slid: 16715 vm.shared_region_pager_slid_error: 0 vm.shared_region_pager_reclaimed: 0 vm.protect_privileged_from_untrusted: 1 vm.copied_on_read: 0
vfs.generic.maxtypenum: 28 vfs.generic.nfs.client.initialdowndelay: 5 vfs.generic.nfs.client.nextdowndelay: 30 vfs.generic.nfs.client.iosize: 1048576 vfs.generic.nfs.client.access_cache_timeout: 60 vfs.generic.nfs.client.allow_async: 0 vfs.generic.nfs.client.statfs_rate_limit: 10 vfs.generic.nfs.client.nfsiod_thread_max: 16 vfs.generic.nfs.client.nfsiod_thread_count: 0 vfs.generic.nfs.client.lockd_mounts: 0 vfs.generic.nfs.client.max_async_writes: 128 vfs.generic.nfs.client.access_delete: 1 vfs.generic.nfs.client.access_dotzfs: 1 vfs.generic.nfs.client.access_for_getattr: 0

vfs.generic.nfs.client.idmap_ctrl: 1 vfs.generic.nfs.client.callback_port: 0 vfs.generic.nfs.client.is_mobile: 0 vfs.generic.nfs.client.squishy_flags: 11 vfs.generic.nfs.client.debug_ctl: 0 vfs.generic.nfs.client.readlink_nocache: 0 vfs.generic.nfs.client.root_steals_gss_context: 0 vfs.generic.nfs.client.default_nfs4domain: vfs.generic.nfs.server.wg_delay: 1000 vfs.generic.nfs.server.wg_delay_v3: 0 vfs.generic.nfs.server.require_resv_port: 0 vfs.generic.nfs.server.async: 0 vfs.generic.nfs.server.export_hash_size: 64 vfs.generic.nfs.server.reqcache_size: 64 vfs.generic.nfs.server.request_queue_length: 128 vfs.generic.nfs.server.user_stats: 1 vfs.generic.nfs.server.gss_context_ttl: 28800 vfs.generic.nfs.server.fsevents: 1 vfs.generic.nfs.server.nfsd_thread_max: 0 vfs.generic.nfs.server.nfsd_thread_count: 0 vfs.generic.nfs.server.nfsd_sock_idle_timeout: 3600 vfs.generic.nfs.server.nfsd_tcp_connections: 0 vfs.generic.nfs.server.use_upcall_svc: 1 vfs.generic.nfs.server.upcall_queue_limit: 0 vfs.generic.nfs.server.upcall_queue_max_seen: 0 vfs.generic.nfs.server.upcall_queue_count: 0 vfs.generic.sync_timeout: 5 vfs.generic.root_unmounted_cleanly: 1 vfs.generic.hfs.kdebug.allocation: 0 vfs.generic.hfs.jnl.trim_flush: 240 vfs.generic.hfs.jnl.kdebug.trim: 0 vfs.generic.hfs.allocated: 0 vfs.generic.always_do_fullfsync: 0 vfs.generic.apfs.fusion_rc_promotion_size_limit_mb: 4096 vfs.generic.apfs.fusion_rc_flags: 0 vfs.generic.apfs.fusion_w2rc_filled_ratio_threshold: 50 vfs.generic.apfs.fusion_lc_rc_promotion_threshold_mult: 8 vfs.generic.apfs.fusion_rc_promotion_threshold_mult: 4 vfs.generic.apfs.fusion_wbc_buffersize: 16777216 vfs.generic.apfs.fusion_verbosity_flags: 0 vfs.generic.apfs.fusion_paranoia_level: 0 vfs.generic.apfs.fusion_swapfile_backoff: 4 vfs.generic.apfs.fusion_slow_io_threshold: 10240

vfs.generic.apfs.fusion_elevator_throttle: 100 vfs.generic.apfs.fusion_promoter_throttle: 100 vfs.generic.apfs.fusion_promoter_queue_limit: 1000 vfs.generic.apfs.fusion_wbc_elevator_wmk: 0 vfs.generic.apfs.fusion_wbc_backoff_wmk_reenable: 25 vfs.generic.apfs.fusion_wbc_backoff_wmk_med: 95 vfs.generic.apfs.fusion_wbc_backoff_wmk_low: 60 vfs.generic.apfs.allocated: 230898261 vfs.generic.autofs.vnode_recycle_on_inactive: 1 vfs.nummntops: 13
vfs.nspace.resolver: 0 vfs.nspace.prevent_materialization: 0 vfs.nspace.thread_prevent_materialization: 0 net.local.stream.sendspace: 8192 net.local.stream.recvspace: 8192 net.local.stream.tracemdns: 0 net.local.dgram.maxdgram: 2048 net.local.dgram.recvspace: 4096 net.local.inflight: 0 net.inet.ip.portrange.lowfirst: 1023 net.inet.ip.portrange.lowlast: 600 net.inet.ip.portrange.first: 49152 net.inet.ip.portrange.last: 65535 net.inet.ip.portrange.hifirst: 49152 net.inet.ip.portrange.hilast: 65535 net.inet.ip.forwarding: 0
net.inet.ip.redirect: 1
net.inet.ip.ttl: 64
net.inet.ip.rtexpire: 3600 net.inet.ip.rtminexpire: 10 net.inet.ip.rtmaxcache: 128 net.inet.ip.sourceroute: 0 net.inet.ip.accept_sourceroute: 0 net.inet.ip.gifttl: 30 net.inet.ip.subnets_are_local: 0 net.inet.ip.mcast.maxgrpsrc: 512 net.inet.ip.mcast.maxsocksrc: 128 net.inet.ip.mcast.loop: 1 net.inet.ip.dummynet.hash_size: 64 net.inet.ip.dummynet.curr_time: 0 net.inet.ip.dummynet.ready_heap: 0 net.inet.ip.dummynet.extract_heap: 0 net.inet.ip.dummynet.searches: 0

net.inet.ip.dummynet.search_steps: 0 net.inet.ip.dummynet.expire: 1 net.inet.ip.dummynet.max_chain_len: 16 net.inet.ip.dummynet.red_lookup_depth: 256 net.inet.ip.dummynet.red_avg_pkt_size: 512 net.inet.ip.dummynet.red_max_pkt_size: 1500 net.inet.ip.dummynet.debug: 0 net.inet.ip.random_id_statistics: 0 net.inet.ip.random_id_collisions: 0 net.inet.ip.random_id_total: 0 net.inet.ip.sendsourcequench: 0 net.inet.ip.maxfragpackets: 2048 net.inet.ip.fragpackets: 0 net.inet.ip.maxfragsperpacket: 128 net.inet.ip.adj_clear_hwcksum: 0 net.inet.ip.adj_partial_sum: 1 net.inet.ip.check_interface: 0 net.inet.ip.rx_chaining: 1 net.inet.ip.rx_chainsz: 6 net.inet.ip.linklocal.in.allowbadttl: 1 net.inet.ip.random_id: 1 net.inet.ip.maxchainsent: 5 net.inet.ip.select_srcif_debug: 0 net.inet.ip.output_perf: 0 net.inet.ip.output_perf_bins: 0 net.inet.ip.rfc6864: 1
net.inet.icmp.maskrepl: 0 net.inet.icmp.icmplim: 250 net.inet.icmp.timestamp: 0 net.inet.icmp.drop_redirect: 1 net.inet.icmp.log_redirect: 0 net.inet.icmp.bmcastecho: 1 net.inet.igmp.recvifkludge: 1 net.inet.igmp.sendra: 1 net.inet.igmp.sendlocal: 1 net.inet.igmp.v1enable: 1 net.inet.igmp.v2enable: 1 net.inet.igmp.legacysupp: 0 net.inet.igmp.default_version: 3 net.inet.igmp.gsrdelay: 10 net.inet.igmp.debug: 0 net.inet.tcp.rfc1644: 0 net.inet.tcp.mssdflt: 512

net.inet.tcp.keepidle: 7200000 net.inet.tcp.keepintvl: 75000 net.inet.tcp.sendspace: 131072 net.inet.tcp.recvspace: 131072 net.inet.tcp.keepinit: 75000 net.inet.tcp.v6mssdflt: 1024 net.inet.tcp.backoff_maximum: 65536 net.inet.tcp.ecn_timeout: 60 net.inet.tcp.disable_tcp_heuristics: 0 net.inet.tcp.clear_tfocache: 0 net.inet.tcp.log_in_vain: 0 net.inet.tcp.blackhole: 0 net.inet.tcp.delayed_ack: 3 net.inet.tcp.tcp_lq_overflow: 1 net.inet.tcp.recvbg: 0 net.inet.tcp.drop_synfin: 1 net.inet.tcp.reass.overflows: 0 net.inet.tcp.slowlink_wsize: 8192 net.inet.tcp.maxseg_unacked: 8 net.inet.tcp.rfc3465: 1 net.inet.tcp.rfc3465_lim2: 1 net.inet.tcp.recv_allowed_iaj: 5 net.inet.tcp.doautorcvbuf: 1 net.inet.tcp.autorcvbufmax: 2097152 net.inet.tcp.lro: 0
net.inet.tcp.lrodbg: 0 net.inet.tcp.lro_startcnt: 4 net.inet.tcp.disable_access_to_stats: 1 net.inet.tcp.challengeack_limit: 10 net.inet.tcp.do_rfc5961: 1 net.inet.tcp.rcvsspktcnt: 512 net.inet.tcp.rexmt_thresh: 3 net.inet.tcp.path_mtu_discovery: 1 net.inet.tcp.slowstart_flightsize: 1 net.inet.tcp.local_slowstart_flightsize: 8 net.inet.tcp.tso: 1 net.inet.tcp.ecn_setup_percentage: 100 net.inet.tcp.ecn_initiate_out: 2 net.inet.tcp.ecn_negotiate_in: 2 net.inet.tcp.packetchain: 50 net.inet.tcp.socket_unlocked_on_output: 1 net.inet.tcp.rfc3390: 1 net.inet.tcp.min_iaj_win: 16

net.inet.tcp.acc_iaj_react_limit: 200 net.inet.tcp.doautosndbuf: 1 net.inet.tcp.autosndbufinc: 8192 net.inet.tcp.autosndbufmax: 2097152 net.inet.tcp.ack_prioritize: 1 net.inet.tcp.rtt_recvbg: 1 net.inet.tcp.recv_throttle_minwin: 16384 net.inet.tcp.enable_tlp: 1 net.inet.tcp.sack: 1 net.inet.tcp.sack_maxholes: 128 net.inet.tcp.sack_globalmaxholes: 65536 net.inet.tcp.sack_globalholes: 0 net.inet.tcp.fastopen_backlog: 10 net.inet.tcp.fastopen: 3 net.inet.tcp.now_init: 861522388 net.inet.tcp.microuptime_init: 1427181 net.inet.tcp.minmss: 216 net.inet.tcp.do_tcpdrain: 0 net.inet.tcp.pcbcount: 12 net.inet.tcp.tw_pcbcount: 0 net.inet.tcp.icmp_may_rst: 1 net.inet.tcp.rtt_min: 100 net.inet.tcp.rexmt_slop: 200 net.inet.tcp.randomize_ports: 0 net.inet.tcp.win_scale_factor: 3 net.inet.tcp.init_rtt_from_cache: 1 net.inet.tcp.tcbhashsize: 4096 net.inet.tcp.keepcnt: 8
net.inet.tcp.msl: 15000 net.inet.tcp.max_persist_timeout: 0 net.inet.tcp.always_keepalive: 0 net.inet.tcp.timer_fastmode_idlemax: 10 net.inet.tcp.broken_peer_syn_rexmit_thres: 10 net.inet.tcp.tcp_timer_advanced: 0 net.inet.tcp.tcp_resched_timerlist: 387 net.inet.tcp.pmtud_blackhole_detection: 1 net.inet.tcp.pmtud_blackhole_mss: 1200 net.inet.tcp.cc_debug: 0 net.inet.tcp.newreno_sockets: 0 net.inet.tcp.background_sockets: 0 net.inet.tcp.cubic_sockets: 12 net.inet.tcp.use_newreno: 0 net.inet.tcp.cubic_tcp_friendliness: 0

net.inet.tcp.cubic_fast_convergence: 0
net.inet.tcp.cubic_use_minrtt: 0
net.inet.tcp.lro_sz: 8
net.inet.tcp.lro_time: 10
net.inet.tcp.bg_target_qdelay: 100
net.inet.tcp.bg_allowed_increase: 8
net.inet.tcp.bg_tether_shift: 1
net.inet.tcp.bg_ss_fltsz: 2
net.inet.tcp.log.level_info: 0
net.inet.tcp.log.enable: 0
net.inet.tcp.log.enable_usage: connection:0x1 rtt:0x2 ka:0x4 loop:0x10 local:0x20 gw:0x40 syn:0x100 fin:0x200 rst:0x400 dropnecp:0x1000 droppcb:0x2000 droppkt:0x4000
net.inet.tcp.log.rtt_port: 0 net.inet.tcp.log.thflags_if_family: 0 net.inet.tcp.log.privacy: 1 net.inet.tcp.log.rate_limit: 600 net.inet.tcp.log.rate_duration: 60 net.inet.tcp.log.rate_max: 0 net.inet.tcp.log.rate_exceeded_total: 0 net.inet.tcp.log.rate_current: 0 net.inet.udp.checksum: 1 net.inet.udp.maxdgram: 9216 net.inet.udp.recvspace: 786896 net.inet.udp.log_in_vain: 0 net.inet.udp.blackhole: 0 net.inet.udp.pcbcount: 52 net.inet.udp.randomize_ports: 1 net.inet.ipsec.def_policy: 1 net.inet.ipsec.esp_trans_deflev: 1 net.inet.ipsec.esp_net_deflev: 1 net.inet.ipsec.ah_trans_deflev: 1 net.inet.ipsec.ah_net_deflev: 1 net.inet.ipsec.ah_cleartos: 1 net.inet.ipsec.ah_offsetmask: 0 net.inet.ipsec.dfbit: 0 net.inet.ipsec.ecn: 0 net.inet.ipsec.debug: 0 net.inet.ipsec.esp_randpad: -1 net.inet.ipsec.bypass: 1 net.inet.ipsec.esp_port: 0 net.inet.log_restricted: 0 net.inet.raw.maxdgram: 8192

net.inet.raw.recvspace: 8192 net.inet.raw.pcbcount: 0
net.inet.mptcp.enable: 1 net.inet.mptcp.mptcp_cap_retr: 4 net.inet.mptcp.dss_csum: 0
net.inet.mptcp.fail: 1
net.inet.mptcp.keepalive: 840 net.inet.mptcp.rtthist_thresh: 600 net.inet.mptcp.userto: 1
net.inet.mptcp.rto_thresh: 1500 net.inet.mptcp.probeto: 1000 net.inet.mptcp.probecnt: 5 net.inet.mptcp.dbg_area: 31 net.inet.mptcp.dbg_level: 1 net.inet.mptcp.pcbcount: 0 net.inet.mptcp.alternate_port: 0 net.inet.mptcp.allow_aggregate: 0 net.inet.mptcp.expected_progress_headstart: 5000 net.inet.mptcp.rto: 3
net.inet.mptcp.nrto: 3
net.inet.mptcp.tw: 60
net.link.generic.system.ifcount: 22 net.link.generic.system.if_verbose: 0 net.link.generic.system.dlil_verbose: 0 net.link.generic.system.sndq_maxlen: 128 net.link.generic.system.rcvq_maxlen: 256 net.link.generic.system.rxpoll_decay: 2 net.link.generic.system.rxpoll_freeze_time: 1000000000 net.link.generic.system.rxpoll_sample_time: 10000000 net.link.generic.system.rxpoll_interval_time: 1000000 net.link.generic.system.rxpoll_interval_pkts: 0 net.link.generic.system.rxpoll_wakeups_lowat: 10 net.link.generic.system.rxpoll_wakeups_hiwat: 100 net.link.generic.system.rxpoll_max: 0 net.link.generic.system.rxpoll: 1 net.link.generic.system.dlil_input_threads: 22 net.link.generic.system.dlil_input_sanity_check: 0 net.link.generic.system.flow_advisory: 1 net.link.generic.system.delaybased_queue: 1 net.link.generic.system.hwcksum_in_invalidated: 0 net.link.generic.system.hwcksum_dbg: 0 net.link.generic.system.start_delayed: 0 net.link.generic.system.start_delay_disabled: 0

net.link.generic.system.hwcksum_dbg_mode: 0 net.link.generic.system.hwcksum_dbg_partial_forced: 0 net.link.generic.system.hwcksum_dbg_partial_forced_bytes: 0 net.link.generic.system.hwcksum_dbg_partial_rxoff_forced: 0 net.link.generic.system.hwcksum_dbg_partial_rxoff_adj: 0 net.link.generic.system.hwcksum_dbg_verified: 0 net.link.generic.system.hwcksum_dbg_bad_cksum: 0 net.link.generic.system.hwcksum_dbg_bad_rxoff: 0 net.link.generic.system.hwcksum_dbg_adjusted: 0 net.link.generic.system.hwcksum_dbg_finalized_hdr: 0 net.link.generic.system.hwcksum_dbg_finalized_data: 0 net.link.generic.system.hwcksum_tx: 1
net.link.generic.system.hwcksum_rx: 1 net.link.generic.system.tx_chain_len_count: 0 net.link.generic.system.threshold_notify: 1 net.link.generic.system.threshold_interval: 2 net.link.generic.system.enable_netagent: 0 net.link.generic.system.port_used.entry_count: 0 net.link.generic.system.port_used.entry_gen: 0 net.link.generic.system.port_used.verbose: 0 net.link.generic.system.port_used.wakeuuid_not_set_count: 0 net.link.generic.system.port_used.wakeuuid_not_set_last_time: { sec = 0, usec = 0 } Wed Dec 31 18:00:00 1969 net.link.generic.system.port_used.wakeuuid_not_set_last_if: net.link.ether.inet.prune_intvl: 300
net.link.ether.inet.probe_intvl: 7 net.link.ether.inet.max_age: 1200 net.link.ether.inet.host_down_time: 20 net.link.ether.inet.arp_llreach_base: 120 net.link.ether.inet.arp_unicast_lim: 3 net.link.ether.inet.maxtries: 5 net.link.ether.inet.maxhold: 16 net.link.ether.inet.useloopback: 1 net.link.ether.inet.proxyall: 0 net.link.ether.inet.sendllconflict: 0 net.link.ether.inet.log_arp_warnings: 0 net.link.ether.inet.keep_announcements: 1 net.link.ether.inet.send_conflicting_probes: 1 net.link.ether.inet.verbose: 0 net.link.ether.inet.maxhold_total: 1024 net.link.bridge.inherit_mac: 0 net.link.bridge.rtable_prune_period: 300 net.link.bridge.rtable_hash_size_max: 2048

net.link.bridge.txstart: 0 net.link.bridge.debug: 0 net.link.loopback.max_dequeue: 256 net.link.loopback.sched_model: 0 net.link.loopback.dequeue_sc: 0 net.link.fake.txstart: 1 net.link.fake.hwcsum: 0 net.link.fake.nxattach: 0 net.link.fake.bsd_mode: 1 net.link.fake.debug: 0 net.link.fake.wmm_mode: 0 net.link.fake.multibuflet: 0 net.link.fake.copypkt_mode: 0 net.link.fake.tx_headroom: 0 net.link.fake.max_mtu: 2048 net.link.fake.buflet_size: 512 net.link.fake.user_access: 0 net.link.fake.if_adv_intvl: 0 net.link.fake.tx_drops: 0 net.link.bond.debug: 0 net.link.iptap.total_tap_count: 0 net.link.iptap.log: 0 net.link.pktap.total_tap_count: 0 net.link.pktap.count_unknown_if_type: 0 net.link.pktap.log: 0
net.key.debug: 0
net.key.spi_trycnt: 1000 net.key.spi_minval: 256 net.key.spi_maxval: 268435455 net.key.int_random: 60 net.key.larval_lifetime: 30 net.key.blockacq_count: 10 net.key.blockacq_lifetime: 20 net.key.esp_keymin: 256 net.key.esp_auth: 0 net.key.ah_keymin: 128 net.key.prefered_oldsa: 0 net.key.natt_keepalive_interval: 20 net.inet6.ip6.forwarding: 0 net.inet6.ip6.redirect: 1 net.inet6.ip6.hlim: 64 net.inet6.ip6.maxfragpackets: 2048 net.inet6.ip6.accept_rtadv: 1

net.inet6.ip6.keepfaith: 0 net.inet6.ip6.log_interval: 5 net.inet6.ip6.hdrnestlimit: 15 net.inet6.ip6.dad_count: 1 net.inet6.ip6.auto_flowlabel: 1 net.inet6.ip6.defmcasthlim: 1 net.inet6.ip6.gifhlim: 0 net.inet6.ip6.kame_version: 2009/apple-darwin net.inet6.ip6.use_deprecated: 1 net.inet6.ip6.rr_prune: 5
net.inet6.ip6.v6only: 0
net.inet6.ip6.rtexpire: 3600 net.inet6.ip6.rtminexpire: 10 net.inet6.ip6.rtmaxcache: 128 net.inet6.ip6.use_tempaddr: 1 net.inet6.ip6.temppltime: 86400 net.inet6.ip6.tempvltime: 604800 net.inet6.ip6.auto_linklocal: 1 net.inet6.ip6.prefer_tempaddr: 1 net.inet6.ip6.use_defaultzone: 0 net.inet6.ip6.maxfrags: 4096 net.inet6.ip6.mcast_pmtu: 0 net.inet6.ip6.neighborgcthresh: 1024 net.inet6.ip6.maxifprefixes: 16 net.inet6.ip6.maxifdefrouters: 16 net.inet6.ip6.maxdynroutes: 1024 net.inet6.ip6.fragpackets: 0 net.inet6.ip6.adj_clear_hwcksum: 0 net.inet6.ip6.adj_partial_sum: 1 net.inet6.ip6.input_perf: 0 net.inet6.ip6.input_perf_bins: 0 net.inet6.ip6.output_perf: 0 net.inet6.ip6.output_perf_bins: 0 net.inet6.ip6.select_srcif_debug: 0 net.inet6.ip6.select_srcaddr_debug: 0 net.inet6.ip6.select_src_expensive_secondary_if: 0 net.inet6.ip6.select_src_strong_end: 1 net.inet6.ip6.mcast.maxgrpsrc: 512 net.inet6.ip6.mcast.maxsocksrc: 128 net.inet6.ip6.mcast.loop: 1 net.inet6.ip6.only_allow_rfc4193_prefixes: 0 net.inet6.ip6.clat_debug: 0 net.inet6.ip6.maxchainsent: 21

net.inet6.ip6.dad_enhanced: 1 net.inet6.ipsec6.def_policy: 1 net.inet6.ipsec6.esp_trans_deflev: 1 net.inet6.ipsec6.esp_net_deflev: 1 net.inet6.ipsec6.ah_trans_deflev: 1 net.inet6.ipsec6.ah_net_deflev: 1 net.inet6.ipsec6.ecn: 0 net.inet6.ipsec6.debug: 0 net.inet6.ipsec6.esp_randpad: -1 net.inet6.icmp6.rediraccept: 1 net.inet6.icmp6.redirtimeout: 600 net.inet6.icmp6.nd6_prune: 1 net.inet6.icmp6.nd6_delay: 5 net.inet6.icmp6.nd6_umaxtries: 3 net.inet6.icmp6.nd6_mmaxtries: 3 net.inet6.icmp6.nd6_useloopback: 1 net.inet6.icmp6.nodeinfo: 3 net.inet6.icmp6.errppslimit: 500 net.inet6.icmp6.nd6_debug: 0 net.inet6.icmp6.nd6_accept_6to4: 1 net.inet6.icmp6.nd6_optimistic_dad: 63 net.inet6.icmp6.nd6_onlink_ns_rfc4861: 0 net.inet6.icmp6.nd6_prune_lazy: 5 net.inet6.icmp6.rappslimit: 10 net.inet6.icmp6.nd6_llreach_base: 30 net.inet6.icmp6.nd6_maxsolstgt: 8 net.inet6.icmp6.nd6_maxproxiedsol: 4 net.inet6.icmp6.prproxy_cnt: 0 net.inet6.mld.gsrdelay: 10 net.inet6.mld.v1enable: 1 net.inet6.mld.v2enable: 1 net.inet6.mld.use_allow: 1 net.inet6.mld.debug: 0 net.inet6.send.opmode: 1 net.inet6.send.opstate: 1 net.systm.kctl.autorcvbufmax: 262144 net.systm.kctl.autorcvbufhigh: 0 net.systm.kctl.debug: 0 net.ndrv_multi_max_count: 1024 net.statistics_privcheck: 0 net.stats.debug: 0
net.stats.sendspace: 2048 net.stats.recvspace: 8192

net.utun.max_pending_input: 512 net.utun.ring_size: 64 net.utun.tx_fsw_ring_size: 64 net.utun.rx_fsw_ring_size: 128 net.ipsec.verify_interface_creation: 0 net.ipsec.max_pending_input: 512 net.ipsec.ring_size: 64 net.ipsec.tx_fsw_ring_size: 64 net.ipsec.rx_fsw_ring_size: 128 net.ipsec.debug: 0 net.necp.drop_all_level: 0
net.necp.debug: 0 net.necp.pass_loopback: 1 net.necp.pass_keepalives: 1 net.necp.socket_policy_count: 16 net.necp.socket_non_app_policy_count: 16 net.necp.ip_policy_count: 6 net.necp.session_count: 4 net.necp.client_fd_count: 59 net.necp.client_count: 64 net.necp.arena_count: 0 net.necp.nexus_flow_count: 0 net.necp.socket_flow_count: 8 net.necp.if_flow_count: 0 net.necp.observer_fd_count: 0 net.necp.observer_message_limit: 256 net.necp.sysctl_arena_count: 0 net.necp.drop_unentitled_level: 0 net.necp.pass_interpose: 1 net.necp.drop_dest_debug: 0 net.netagent.debug: 5 net.netagent.registered_count: 29 net.netagent.active_count: 28
net.cfil.log: 3
net.cfil.debug: 1 net.cfil.sock_attached_count: 0 net.cfil.active_count: 0 net.cfil.close_wait_timeout: 1000 net.cfil.sbtrim: 1 net.restricted_port.enforced: 1 net.restricted_port.verbose: 0 net.classq.verbose: 0 net.classq.sfb.holdtime: 0

net.classq.sfb.pboxtime: 0 net.classq.sfb.hinterval: 0 net.classq.sfb.increment: 82 net.classq.sfb.decrement: 16 net.classq.sfb.allocation: 0 net.classq.sfb.ratelimit: 0 net.classq.target_qdelay: 0 net.classq.update_interval: 0 net.pktsched.verbose: 0 net.qos.reset_dscp_to_wifi_ac_map: 0 net.qos.verbose: 0 net.qos.policy.restricted: 0 net.qos.policy.restrict_avapps: 0 net.qos.policy.wifi_enabled: 0 net.qos.policy.capable_enabled: 0 net.mpklog.enabled: 1 net.mpklog.type: 0 net.mpklog.version: 1
net.alf.loglevel: 55
net.alf.perm: 0
net.alf.defaultaction: 1
net.alf.mqcount: 0
debug.lowpri_throttle_max_iosize: 131072 debug.lowpri_throttle_tier1_window_msecs: 25 debug.lowpri_throttle_tier2_window_msecs: 100 debug.lowpri_throttle_tier3_window_msecs: 500 debug.lowpri_throttle_tier1_io_period_msecs: 40 debug.lowpri_throttle_tier2_io_period_msecs: 85 debug.lowpri_throttle_tier3_io_period_msecs: 200 debug.lowpri_throttle_tier1_io_period_ssd_msecs: 5 debug.lowpri_throttle_tier2_io_period_ssd_msecs: 15 debug.lowpri_throttle_tier3_io_period_ssd_msecs: 25 debug.lowpri_throttle_enabled: 1
debug.bpf_bufsize: 4096 debug.bpf_maxbufsize: 524288 debug.bpf_maxdevices: 256 debug.bpf_wantpktap: 0 debug.bpf_debug: 0 debug.sched: 2 debug.toggle_address_reuse: 0 debug.kextlog: 4083 debug.iotrace: 0
debug.noidle: 0

debug.darkwake: 3 debug.swd_panic: 1 debug.swd_timeout: 0 debug.swd_wake_timeout: 0 debug.swd_sleep_timeout: 0 debug.acpi_flags: 0 debug.acpi_layer: 0 debug.acpi_level: 0 debug.iokit: 0 debug.defang_watchdogd: 0 debug.ioppf: 0 debug.agpm.LogLevel: 2 hw.ncpu: 48
hw.byteorder: 1234
hw.memsize: 34359738368
hw.activecpu: 48
hw.physicalcpu: 24
hw.physicalcpu_max: 24
hw.logicalcpu: 48
hw.logicalcpu_max: 48
hw.cputype: 7
hw.cpusubtype: 8
hw.cpu64bit_capable: 1
hw.cpufamily: 939270559
hw.cacheconfig: 48 2 2 48 0 0 0 0 0 0
hw.cachesize: 34359738368 32768 1048576 37486592 0 0 0 0 0 0 hw.pagesize: 4096
hw.pagesize32: 4096
hw.busfrequency: 400000000
hw.busfrequency_min: 400000000
hw.busfrequency_max: 400000000
hw.cpufrequency: 2400000000
hw.cpufrequency_min: 2400000000
hw.cpufrequency_max: 2400000000
hw.cachelinesize: 64
hw.l1icachesize: 32768
hw.l1dcachesize: 32768
hw.l2cachesize: 1048576
hw.l3cachesize: 37486592
hw.tbfrequency: 1000000000
hw.packages: 1
hw.optional.floatingpoint: 1
hw.optional.mmx: 1

hw.optional.sse: 1
hw.optional.sse2: 1
hw.optional.sse3: 1
hw.optional.supplementalsse3: 1
hw.optional.sse4_1: 1
hw.optional.sse4_2: 1
hw.optional.x86_64: 1
hw.optional.aes: 1
hw.optional.avx1_0: 1
hw.optional.rdrand: 1
hw.optional.f16c: 1
hw.optional.enfstrg: 1
hw.optional.fma: 1
hw.optional.avx2_0: 1
hw.optional.bmi1: 1
hw.optional.bmi2: 1
hw.optional.rtm: 0
hw.optional.hle: 0
hw.optional.adx: 1
hw.optional.mpx: 0
hw.optional.sgx: 0
hw.optional.avx512f: 1
hw.optional.avx512cd: 1
hw.optional.avx512dq: 1
hw.optional.avx512bw: 1
hw.optional.avx512vl: 1
hw.optional.avx512ifma: 0
hw.optional.avx512vbmi: 0
hw.targettype: Mac
hw.cputhreadtype: 1
machdep.user_idle_level: 0
machdep.cpu.max_basic: 22
machdep.cpu.max_ext: 2147483656
machdep.cpu.vendor: GenuineIntel
machdep.cpu.brand_string: Intel(R) Xeon(R) Gold 6212U CPU @ 2.40GHz machdep.cpu.family: 6
machdep.cpu.model: 85
machdep.cpu.extmodel: 5
machdep.cpu.extfamily: 0
machdep.cpu.stepping: 7 machdep.cpu.feature_bits: 9223086162756500479 machdep.cpu.leaf7_feature_bits: 3550476267 2056 machdep.cpu.leaf7_feature_bits_edx: 3154117632

machdep.cpu.extfeature_bits: 1241984796928
machdep.cpu.signature: 329303
machdep.cpu.brand: 0
machdep.cpu.features: FPU VME DE PSE TSC MSR PAE MCE CX8 APIC SEP MTRR PGE MCA CMOV PAT PSE36 CLFSH DS ACPI MMX FXSR SSE SSE2 SS HTT TM PBE SSE3 PCLMULQDQ DTES64 MON DSCPL VMX SMX EST TM2 SSSE3 FMA CX16 TPR PDCM SSE4.1 SSE4.2 x2APIC MOVBE POPCNT AES PCID XSAVE OSXSAVE SEGLIM64 TSCTMR AVX1.0 RDRAND F16C
machdep.cpu.leaf7_features: RDWRFSGS TSC_THREAD_OFFSET BMI1 AVX2 FDPEO SMEP BMI2 ERMS INVPCID PQM FPU_CSDS MPX PQE AVX512F AVX512DQ RDSEED ADX SMAP CLFSOPT CLWB IPT AVX512CD AVX512BW AVX512VL PKU AVX512VNNI MDCLEAR IBRS STIBP L1DF ACAPMSR SSBD machdep.cpu.extfeatures: SYSCALL XD 1GBPAGE EM64T LAHF LZCNT PREFETCHW RDTSCP TSCI
machdep.cpu.logical_per_package: 64 machdep.cpu.cores_per_package: 32 machdep.cpu.microcode_version: 83886123 machdep.cpu.processor_flag: 0 machdep.cpu.mwait.linesize_min: 64 machdep.cpu.mwait.linesize_max: 64 machdep.cpu.mwait.extensions: 3 machdep.cpu.mwait.sub_Cstates: 8224 machdep.cpu.thermal.sensor: 1 machdep.cpu.thermal.dynamic_acceleration: 1 machdep.cpu.thermal.invariant_APIC_timer: 1 machdep.cpu.thermal.thresholds: 2 machdep.cpu.thermal.ACNT_MCNT: 1 machdep.cpu.thermal.core_power_limits: 1 machdep.cpu.thermal.fine_grain_clock_mod: 1 machdep.cpu.thermal.package_thermal_intr: 1 machdep.cpu.thermal.hardware_feedback: 0 machdep.cpu.thermal.energy_policy: 1 machdep.cpu.xsave.extended_state: 767 2688 2696 0 machdep.cpu.xsave.extended_state1: 15 2432 256 0 machdep.cpu.arch_perf.version: 4 machdep.cpu.arch_perf.number: 4 machdep.cpu.arch_perf.width: 48 machdep.cpu.arch_perf.events_number: 7 machdep.cpu.arch_perf.events: 0 machdep.cpu.arch_perf.fixed_number: 3 machdep.cpu.arch_perf.fixed_width: 48 machdep.cpu.cache.linesize: 64 machdep.cpu.cache.L2_associativity: 16

machdep.cpu.cache.size: 256
machdep.cpu.tlb.inst.large: 8 machdep.cpu.tlb.data.small: 64 machdep.cpu.tlb.data.small_level1: 64 machdep.cpu.address_bits.physical: 46 machdep.cpu.address_bits.virtual: 48 machdep.cpu.core_count: 24
machdep.cpu.thread_count: 48 machdep.cpu.tsc_ccc.numerator: 192 machdep.cpu.tsc_ccc.denominator: 2 machdep.vectors.timer: 221
machdep.vectors.IPI: 222
machdep.pmap.hashwalks: 631931 machdep.pmap.hashcnts: 677319 machdep.pmap.hashmax: 6 machdep.pmap.kernel_text_ps: 2097152 machdep.pmap.kern_pv_reserve: 16000 machdep.memmap.Conventional: 34299498496 machdep.memmap.RuntimeServices: 6291456 machdep.memmap.ACPIReclaim: 1048576 machdep.memmap.ACPINVS: 9437184 machdep.memmap.PalCode: 0 machdep.memmap.Reserved: 43462656 machdep.memmap.Unusable: 0 machdep.memmap.Other: 0
machdep.tsc.frequency: 2394000000 machdep.tsc.deep_idle_rebase: 1
machdep.tsc.at_boot: 24966249086 machdep.tsc.rebase_abs_time: 16785764874 machdep.tsc.nanotime.tsc_base: 65151370248 machdep.tsc.nanotime.ns_base: 0 machdep.tsc.nanotime.scale: 1794054843 machdep.tsc.nanotime.shift: 0 machdep.tsc.nanotime.generation: 2 machdep.misc.fast_uexc_support: 1 machdep.misc.panic_restart_timeout: 1266874889 machdep.misc.interrupt_latency_max: 0x4 0xde 0x976312 machdep.misc.timer_queue_trace:
machdep.misc.nmis: 0
machdep.xcpm.mode: 1 machdep.xcpm.pcps_mode: 1 machdep.xcpm.hard_plimit_max_100mhz_ratio: 44 machdep.xcpm.hard_plimit_min_100mhz_ratio: 7

machdep.xcpm.soft_plimit_max_100mhz_ratio: 44 machdep.xcpm.soft_plimit_min_100mhz_ratio: 7 machdep.xcpm.tuib_plimit_max_100mhz_ratio: 44 machdep.xcpm.tuib_plimit_min_100mhz_ratio: 7 machdep.xcpm.tuib_enabled: 0 machdep.xcpm.power_source: 0 machdep.xcpm.bootplim: 0 machdep.xcpm.bootpst: 44 machdep.xcpm.tuib_ns: 0 machdep.xcpm.vectors_loaded_count: 1 machdep.xcpm.ratio_change_ratelimit_ns: 1000000 machdep.xcpm.ratio_changes_total: 1567159 machdep.xcpm.maxbusdelay: 4294967295 machdep.xcpm.maxintdelay: 0 machdep.xcpm.mid_applications: 0 machdep.xcpm.mid_relaxations: 0 machdep.xcpm.mid_mode: 0 machdep.xcpm.mid_cst_control_limit: 0 machdep.xcpm.mid_mode_active: 0 machdep.xcpm.mbd_mode: 1 machdep.xcpm.mbd_applications: 3336 machdep.xcpm.mbd_relaxations: 3336 machdep.xcpm.forced_idle_ratio: 100 machdep.xcpm.forced_idle_period: 30000000 machdep.xcpm.deep_idle_log: 0 machdep.xcpm.qos_txfr: 1 machdep.xcpm.deep_idle_count: 0 machdep.xcpm.deep_idle_last_stats: n/a machdep.xcpm.deep_idle_total_stats: n/a machdep.xcpm.cpu_thermal_level: 0 machdep.xcpm.gpu_thermal_level: 3 machdep.xcpm.io_thermal_level: 3 machdep.xcpm.io_control_engages: 0 machdep.xcpm.io_control_disengages: 0 machdep.xcpm.io_filtered_reads: 0 machdep.xcpm.io_cst_control_enabled: 0 machdep.xcpm.ring_boost_enabled: 0 machdep.xcpm.io_epp_boost_enabled: 0 machdep.xcpm.epp_override: 0 machdep.xcpm.perf_hints: 1 machdep.eager_timer_evaluations: 91 machdep.eager_timer_evaluation_max: 230352 machdep.x86_fp_simd_isr_uses: 0

machdep.uncore_sample_state: 0 machdep.uncore_sample_mask: 6 machdep.uncore_sample_ctl: 0 machdep.uncore_pcie_mmio_base: 1610612736 audit.session.superuser_set_sflags_mask: 24576 audit.session.superuser_clear_sflags_mask: 24576 audit.session.member_set_sflags_mask: 0 audit.session.member_clear_sflags_mask: 16384 ktrace.state: 2
ktrace.owning_pid: 226
ktrace.background_pid: 226
ktrace.configured_by: tailspind kperf.limits.timer_min_period_ns: 20000 kperf.limits.timer_min_bg_period_ns: 1000000 kperf.limits.timer_min_pet_period_ns: 2000000 kperf.limits.timer_min_bg_pet_period_ns: 5000000 kperf.debug_level: 0 security.mac.platform_exec_logging: 0 security.mac.max_slots: 7 security.mac.labelvnodes: 1 security.mac.vnode_label_count: 260 security.mac.device_enforce: 1 security.mac.pipe_enforce: 1 security.mac.posixsem_enforce: 1 security.mac.posixshm_enforce: 1 security.mac.proc_enforce: 1 security.mac.socket_enforce: 1 security.mac.system_enforce: 1 security.mac.sysvmsg_enforce: 1 security.mac.sysvsem_enforce: 1 security.mac.sysvshm_enforce: 1 security.mac.vm_enforce: 1 security.mac.vnode_enforce: 1 security.mac.endpointsecurity.log_level: 1 security.mac.amfi.force_policy: 0 security.mac.amfi.verbose_logging: 0 security.mac.amfi.hsp_enable: 0 security.mac.sandbox.audio_active: 0 security.mac.sandbox.sentinel: .sb-417560af security.mac.qtn.sandbox_enforce: 1 security.mac.qtn.user_approved_exec: 1 security.mac.asp.cache_entry_count: 595 security.mac.asp.cache_allocation_count: 595

security.mac.asp.cache_release_count: 0 security.mac.asp.exec_hook_work_time: 7095 security.mac.asp.exec_hook_sleep_time: 0 security.mac.asp.exec_hook_count: 1643 security.mac.asp.library_hook_time: 12498 security.mac.asp.library_sleep_time: 0 security.mac.asp.library_hook_count: 14392 security.mac.asp.pending_evaluation_count: 0 cm191214@191214s-Mac-Pro ~ %


There is a CPU signature , but no recognizable CPUID .


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Probably wrong, but maybe this: SRF9A

::EDIT:: Yes, wrong; that is the sSpec number; use it to find the CPUID.
Yes , that's the S-spec number . That's also a production chip verification number . Strangely , this chip has no ES or QS versions reported .


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
OK , some good news folks .

With tsialex's assistance , we have verified the Gold 6212U's CPUID is 50657 . So this silicon is definitely in the supported list .

He determined it by this method :

It's just a matter to convert family/model/stepping to hex and rearrange it:

machdep.cpu.family: 6 = 0x06h
machdep.cpu.model: 85 = 0x55h
machdep.cpu.stepping: 7 = 0x07h

CPUID format is this:

The second number from model in hex: 5
The two model numbers in hex: 06
First number from model in hex: 5
The second number from stepping in hex: 7


So, CPUID in hexa = 50657
- - Post merged: - -

Additional good news !

The Gold 6212U upgraded MP7,1 survived a shut down and cold boot . I did not restart it . Nor did I reset NVRAM .

The Gold 6212U upgraded MP7,1 also survived a shut down , a SMC reset and a cold boot . Again , I did not restart it . Nor did I reset NVRAM .

The next test is the scary one . I will attempt to reset the NVRAM and see if the System still recognizes this upgrade .

I currently have beta 10.15.3 installed and the boot ROM and iBridge versions shown in my last screen grab .


majus

macrumors regular
Mar 25, 2004
203
110
Oklahoma City, OK
machdep.cpu.family: 6 = 0x06h
machdep.cpu.model: 85 = 0x55h
machdep.cpu.stepping: 7 = 0x07h

CPUID format is this:

The second number from model in hex: 5
The two model numbers in hex: 06
First number from model in hex: 5
The second number from stepping in hex: 7
Shouldn't the word I underlined be "family"?

Also, I noted in your screen grab that MacCPUID returns the required numbers in addition to the Terminal command. Good to know.

Last edited:

majus

macrumors regular
Mar 25, 2004
203
110
Oklahoma City, OK
I thought that too , but give the guy a break . His first language is Brazilian Portuguese and there's a lot on his plate ...
I have the utmost respect for Alex. His knowledge is first-rate.

I thought it might just be a normal oversight, but to clarify: should it be "family"?


tsialex

macrumors 604
Jun 13, 2016
6,602
7,332
Brazil
After showing @Snow Tiger how to get the Intel CPUID from family/model/stepping, I noticed that Apple already have this humanly parsed correctly but obscured it totally by using the name signature and showing it with the wrong decimal notation.

So, to show the CPUID for any CPU with the notation that Intel use thru all the documentation, is just a matter of calling sysctl -x machdep.cpu.signature:

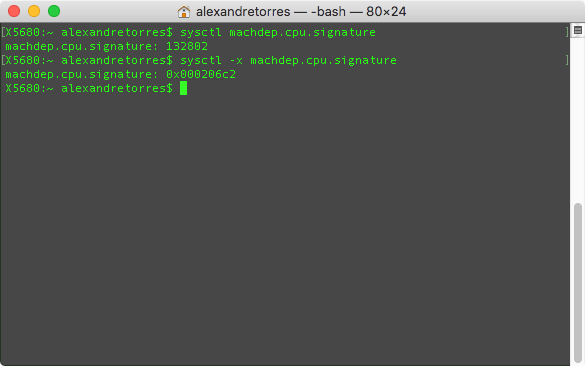

Screen Shot 2019-12-31 at 05.34.25.png

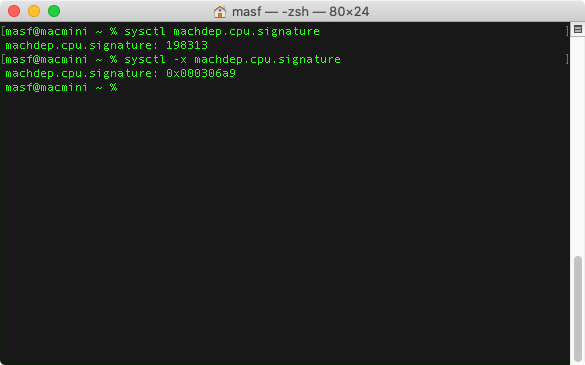

Screen Shot 2019-12-31 at 05.54.59.png



- - Post merged: - -

Correcting what I posted to @Snow Tiger using my iPhone at the time:

It's just a matter to convert family/model/stepping to hex and rearrange it:

machdep.cpu.family: 6 = 0x06
machdep.cpu.model: 85 = 0x55
machdep.cpu.stepping: 7 = 0x07

CPUID format in resume is just this:

The first number from machdep.cpu.model in hex: 5
The two numbers from machdep.cpu.family in hex: 06
The second number from machdep.cpu.model in hex: 5
The second number from machdep.cpu.stepping in hex: 7


So, CPUID in hexa = 50657. Anyway, Apple already have it ready for you:

Code:
sysctl -x machdep.cpu.signature

Last edited:
  • Like
Reactions: OkiRun and majus

Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Yes , all that needs to be done now to identify the CPUID of a Xeon is to discover it's cpu.signature ( which is in decimal ) and convert it into hexidecimal ( which is the CPUID that Intel uses ) .

For my Gold 6212U , terminal reports it as machdep.cpu.signature: 329303 . Using a decimal to hexadecimal converter gives us 50657 .

And that confirms this chip is compatible in this System , since 50657 is the only production microcode supported in the MP7,1's firmware ( at this time , at any rate . I don't suppose this will change as Cascade Lake is end of the road for socket compatibility ) . Ice and Tiger Lakes will never be installable in a MP7,1 .

Last edited:
  • Like
Reactions: OkiRun and majus

tsialex

macrumors 604
Jun 13, 2016
6,602
7,332
Brazil
Yes , all that needs to be done now to identify the CPUID of a Xeon is to discover it's cpu.signature ( which is in decimal ) and convert it into hexidecimal ( which is the CPUID that Intel uses ) .

For my Gold 6212U , terminal reports it as machdep.cpu.signature: 329303 . Using a decimal to hexadecimal converter gives us 50657 .

And that confirms this chip is compatible in this System , since 50657 is the only production microcode supported in the MP7.1's firmware ( at this time , at any rate . I don't suppose this will change as Cascade Lake is end of the road for socket compatibility ) . Ice and Tiger Lakes will never be installable in a MP7,1 .
Just use -x, will give the hex dump of the value:

sysctl -x machdep.cpu.signature

  • Like
Reactions: majus

Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Well , to those still following my progress I regret to inform you that for the second time my Gold 6212U upgraded MP7,1 has failed to survive a NVRAM reset . It is now offline again . Just a black screen , no power to the mouse / keyboard and consumes around 100 W at the wall continuously .

Looks like for now the only processor upgrades that work with the MP7,1 are the W-series Xeons .

Last edited:

Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
will this helpfull?

We already determined the CPUID using other programs and a decimal to hexadecimal conversion tool .

The CPU I used , a Gold 6212U , is already known as supported for the MP7,1 .

Something else is preventing a survival of the NVRAM reset , probably Apple security and involving the factory SSD .


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Will a Mac Pro with an upgraded Xeon W survive a NVRAM reset?
should . At least the Apple shipping models . I helped the first person ( MR member zhpenn ) who performed a W-3275M upgrade in the MP7,1 last year . He said he NVRAM reset his Mac . And he seems to think everything is running fine .

  • Like
Reactions: OkiRun

OkiRun

macrumors 6502
Oct 25, 2019
446
242
Japan
should . At least the Apple shipping models . I helped the first person ( MR member zhpenn ) who performed a W-3275M upgrade in the MP7,1 last year . He said he NVRAM reset his Mac . And he seems to think everything is running fine .
I am impressed beyond words that you have been able to uninstall and reinstall CPUs in the 7.1 without a catastrophe.
I envision docking and undocking these CPUs much like watching the Hindenburg attempt it. :eek:


sapralex

macrumors newbie
Jan 4, 2020
17
3
Hey everyone) I'm planning to buy a new Mac Pro and want to install a non M version of intel xeon W-3275. I'm not a tech specialist and I really don't like to do something even a little bit risky inside my workstation, but overpaying $3000 for the RAM limit I will probably never need is too bad.
So is there a confirmation that non M versions are absolutely compatible and will work as good as M versions?
And that intel xeon W upgrades for the new MP work perfect in general?


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Hey everyone) I'm planning to buy a new Mac Pro and want to install a non M version of intel xeon W-3275. I'm not a tech specialist and I really don't like to do something even a little bit risky inside my workstation, but overpaying $3000 for the RAM limit I will probably never need is too bad.
So is there a confirmation that non M versions are absolutely compatible and will work as good as M versions?
And that intel xeon W upgrades for the new MP work perfect in general?
Well , we only have one verified report that the W series Xeon upgrade attempt works . And English is not that upgrader's first language , so communication is not perfect . Did he really perform a NVRAM reset properly ? Remember , the Mac will work with an unapproved Cascade Lake Xeon upgrade . It's just that only the W Series Xeons ( at this time ) will survive a NVRAM reset . And we no longer get start up chimes with a NVRAM reset with the newer Macs , so the audio verification is gone ( which is easy to talk about and observe ) .

There is no verification that the non M versions work , but they should . They are in the smallest possible subfamily of Cascade Lake Xeons that Apple uses .

If you don't have some basic technical skill , you might not want to consider doing this on your own . I'm an experienced tech and even I get nervous every time I swap out silicon with this model . Its much more risky than installing Skylake / Cascade Lake Xeons on the PC side ( which uses much safer PHMs ) . Every time I do this upgrade , I feel one day I'll roll a pair of snake eyes and fry the processor and logic board .

If you do the upgrade , just take your time . Don't panic . Be cautious . Finger installation and removal of the processor is not easy , because of the obstruction caused by the two heatsink standoff plates . The socket has three times the number of pins of the socket most processor upgrade installers here at MR are familiar with . And the silicon is big , heavy and expensive . And finger installation is definitely not safe . Apple has a method or device they are not sharing with us . Eventually , we'll find out . Performing a System tear down to install or remove the processor might just be the safest method at the moment . Maybe that's just the way Apple techs are expected to perform this operation . We don't know since we don't have the service manual yet .

One piece of advice I'd like to share is this : do not apply thermal paste directly onto the silicon . Thermal paste just the heatsink and apply just thinly enough so you don't see the metal of the thermal area of the heatsink . Just a very thin application ! Don't clean the processor of old paste while its still installed in the socket , either . Wait until its safely removed before you clean it . The paste Apple applies at the factory seems quite dry , but I've noticed this with two other PC LGA3647 heatsink manufacturers so it seems to be an industry standard . I still prefer using messy and moist Arctic MX4 because of its superb durability .

Last edited:
  • Like
Reactions: ActionableMango

sapralex

macrumors newbie
Jan 4, 2020
17
3
Well , we only have one verified report that the W series Xeon upgrade attempt works . And English is not that upgrader's first language , so communication is not perfect . Did he really perform a NVRAM reset properly ? Remember , the Mac will work with an unapproved Cascade Lake Xeon upgrade . It's just that only the W Series Xeons ( at this time ) will survive a NVRAM reset . And we no longer get start up chimes with a NVRAM reset with the newer Macs , so the audio verification is gone ( which is easy to talk about and observe ) .

There is no verification that the non M versions work , but they should . They are in the smallest possible subfamily of Cascade Lake Xeons that Apple uses .

If you don't have some basic technical skill , you might not want to consider doing this on your own . I'm an experienced tech and even I get nervous every time I swap out silicon with this model . Its much more risky than installing Skylake / Cascade Lake Xeons on the PC side ( which uses much safer PHMs ) . Every time I do this upgrade , I feel one day I'll roll a pair of snake eyes and fry the processor and logic board .

If you do the upgrade , just take your time . Don't panic . Be cautious . Finger installation and removal of the processor is not easy , because of the obstruction caused by the two heatsink standoff plates . The socket has three times the number of pins of the socket most processor upgrade installers here at MR are familiar with . And the silicon is big , heavy and expensive . And finger installation is definitely not safe . Apple has a method or device they are not sharing with us . Eventually , we'll find out . Performing a System tear down to install or remove the processor might just be the safest method at the moment . Maybe that's just the way Apple techs are expect to perform this operation . We don't know since we don't have the service manual yet .

One piece of advice I'd like to share is this : do not apply thermal paste directly onto the silicon . Thermal paste just the heatsink . Don't clean the processor of old paste while its still installed in the socket , either . Wait until its safely removed before you clean it . The paste Apple applies at the factory seems quite dry , but I've noticed this with two other PC LGA3647 heatsink manufacturers so it seems to be an industry standard . I still prefer using Arctic MX4 because of its superb durability .

Thanks for the reply=) You've just scared me so much that I'm not sure I want to do that anymore. If I decide to do that, I'll definitely try to find professionals in my country) I didn't even think about changing it on my own haha) The thing is, I'm now scared that they also might screw up )))) Probably I'm going to wait some time for the new information)

P.S If Apple just gave us the option of M and non M CPUs, life would be so much easier, but that's Apple =(


J~Sharpie

macrumors newbie
Dec 14, 2010
4
0
Anyone know if a Mac Pro server 5,2 with 1 cpu has the same board so I could upgrade to 2 cpus. I found one locally but haven’t had time to look in it.


Snow Tiger

macrumors 6502a
Dec 18, 2019
611
407
Anyone know if a Mac Pro server 5,2 with 1 cpu has the same board so I could upgrade to 2 cpus. I found one locally but haven’t had time to look in it.
Could you clarify what model you are discussing ? A list of all Macintosh models is available at EveryMac.com

Status
The first post in this thread is a WikiPost, and can be edited by anyone with the appropriate permissions.
