MP 6,1 Mac Pro Cylinder led diagnostics

[Eldad5005]

Hi
I’m trying to find a manual on the diagnostics light inside the Mac Pro late 2013 a1481 (cylinder)

currenlty I have only 4 less lighting up (out of 7) and Mac won’t start up
No chime sound,usb backlit keyboard not getting Light.
I’ve tested the voltage and it seems to get more then 10v on pins on the main power supply, replace power supply but still same problem.

I’ve tried changing the cmos battery with no vail

The only thing left is checking with another main board or video cArd but I doubt that’s we’re the problem is

I would appreciate if anyone has a link to the diagnostics leds on the board- I’ve looked all over but couldn’t find any documentation on this.

tnx



[MisterAndrew]

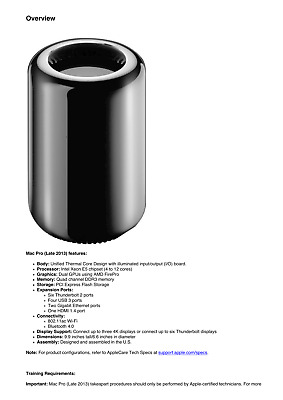

I found the service manual on eBay. It does indeed have a section on the diagnostic LEDs.

Apple Mac Pro Late 2013 Technician Guide Service Manual | eBay

Find many great new & used options and get the best deals for Apple Mac Pro Late 2013 Technician Guide Service Manual at the best online prices at eBay! Free shipping for many products!

www.ebay.com

[automerge]1587886178[/automerge]
The block diagram only shows half the image in the manual, but here's the full image. It looks like the PDF was created from another source. Probably a web based Apple confidential resource.

Late 2013 Mac Pro System Block Diagram

Thanks to Lightbulbfun on Macrumors forum, we now have the official system block diagram of the nMP. :-D It shows the 6 Thunderbolt 2 ports have d...

egpu.io



[saulinpa]

I bit and paid the $1.99 for that eBay service manual. It is a PDF capture of the web manual using "PD4ML. HTML to PDF Converter for Java", not the true Apple manual PDF. That's why the diagram is cut off as it is formatted for page.
[automerge]1588006518[/automerge]



[MisterAndrew]

Is it safe to assume Apple stopped issuing PDF format manuals after the Mac Pro 5,1 and now keeps all of that web based? It seems to be an industry-wide trend. Also, from reading a good part of the manual there's no way I would attempt doing a CPU change on one of these myself without having the proper tools. It makes the iFixit guides look like the product of rednecks. And also helps me understand Apple's position on only allowing certified technicians to do repair work. Due to the complexities and sensitive nature of the equipment I can understand how they would want to avoid the liability of end-users working on them.

Thanks for sharing that BTW. I wasn't going to share it because I didn't want to hurt someone's little revenue stream, but of course it isn't something they can legally sell.



[rueyloon]

Did you managed to solve the problem? Same thing happening to me now...



[1am0]

Did you managed to solve the problem? Same thing happening to me now...

how many leds on I/O board are lighting up?



[krakman]

my 2013 Mac Poo failed to startup yesterday 🤬 i have already spent £700 a few years ago getting it repaired, since then all it did was sit around as i still use the old 5.1s in the office.

pressing the diagnostic button i get 5 green LEDS

using a multimeter i tested the bus bars and it reports 12v, i have ordered a new PSU just to test.



[kochikame]

my 2013 Mac Poo failed to startup yesterday 🤬 i have already spent £700 a few years ago getting it repaired, since then all it did was sit around as i still use the old 5.1s in the office.

pressing the diagnostic button i get 5 green LEDS

using a multimeter i tested the bus bars and it reports 12v, i have ordered a new PSU just to test.

Hi krakman, did you solve the problem with a new power source?
My mac pro does not start, leds seem to be ok on the power source board pushing led buttons 2,,3,5,and 8 are green and no one is lit on cpu board. It is frustating not to know whats happennig



[lotech]

I am also having similar issues - Although the back I/O lights up - I'm missing #4,6,7 diagnostics lights - I thought it was the GPU so swapped them with another MacPro I have - but they're fine, have swapped everything but the logic board and CPU. I have a feeling its something on the main CPU riser card.



[lotech]

Hi krakman, did you solve the problem with a new power source?
My mac pro does not start, leds seem to be ok on the power source board pushing led buttons 2,,3,5,and 8 are green and no one is lit on cpu board. It is frustating not to know whats happennig

Did you ever find a solve? Seem's we have the same problem



[Jean-Jacques]

I got the same problem. Then i replace the coin battery and restart the Mac but still the same problem. I spend a lot of time on it and i was able to start many times without the cover. First boot of the mac was done when i was pressing the diagnostic button. Then i was able to boot many time with the cover out. Then i tried in normal configuration and the mac cannot reboot. Apple they don't care about the old model.
I got a problem with a macbook pro mid 2010 and compagny in Paris solve the problem but it cost 350 euros and the Macbook pro is still alive. Maybe i will try to talk with them to see if they can do something about it and let you know.



[julik_tar]

I bit and paid the $1.99 for that eBay service manual. It is a PDF capture of the web manual using "PD4ML. HTML to PDF Converter for Java", not the true Apple manual PDF. That's why the diagram is cut off as it is formatted for page.
[automerge]1588006518[/automerge]

Thank you so so much for this ❤️



[aldergood]

Yesterday my Mac dead with the yellow light on the CPU riser card. All the light on the I/O board are green. It's really frustrated when not to known what is actually happening.



[freeforlinki]

Hello, I have a similar problem, which manifests itself with a constant orange light, most often when falling asleep.
It does not interfere with work and disappears after a restart, but I wonder what it could be. The only defect I have is non-working ethernet ports, but I do not use wired internet from there, since I use a cinema display and use its ethernet port.



[tsialex]

Hello, I have a similar problem, which manifests itself with a constant orange light, most often when falling asleep.
It does not interfere with work and disappears after a restart, but I wonder what it could be. The only defect I have is non-working ethernet ports, but I do not use wired internet from there, since I use a cinema display and use its ethernet port.

Did you replaced the RTC BR2032 battery? First thing to measure and replace when you have sleep issues.



[freeforlinki]

Did you replaced the RTC BR2032 battery? First thing to measure and replace when you have sleep issues.

I actually have no problem falling asleep, but then this light turns on. But I've never replaced the battery. I'm thinking of ordering an i-o board then to avoid having to disassemble it again.



[tsialex]

I actually have no problem falling asleep, but then this light turns on. But I've never replaced the battery.

RTC battery keeps the RTC and every other time related variable/counter working when the Mac Pro sleeps.

Low battery voltage will cause failure when awakening, not when entering sleep.

I'm thinking of ordering an i-o board then to avoid having to disassemble it again.

Run ASD and Apple Diagnostics before anything.

Even if you order the IO board, order a brand new Panasonic BR2032 from Digikey/Mouser/etc, so you won't have to disassemble again soon.



[freeforlinki]

Аnd where can I download the current ASD diagnosticbecause the factory one does not detect errors. And I guess this one is more detailed. Thanks



[tsialex]

Аnd where can I download the current ASD diagnosticbecause the factory one does not detect errors. And I guess this one is more detailed. Thanks

All Apple Hardware Test (AHT) & Apple Service Diagnostic (ASD) disks - Macintosh Repository

Apple Service Diagnostic (ASD) is Apple's bootable hardware testing console that lets you run extensive technical test routines on your...

www.macintoshrepository.org

ASD

GitHub Gist: instantly share code, notes, and snippets.

gist.github.com



[freeforlinki]

Thanks, I think the problem was with the RAM memory. After detailed diagnostics, the Ethernet ports also worked, which is strange.
