Mac Pro Early 2009 2xx5570 CPU - Loud Fans

Discussion in 'Mac Pro' started by pdafan, Jan 13, 2017.

  1. pdafan, Jan 13, 2017
    Last edited: Jan 13, 2017

    pdafan macrumors member

    Joined:
    Aug 2, 2011
    #1
    Was handed over an old Mac Pro Early 2009 with dual CPU.
    The machine is able to boot up and work nicely but shortly after a while (5 secs into desktop), 4 fans will start to roar loudly
    Booster 1 and 2 at around 5200 RPM
    Intake and Exhaust at around 2700 RPM
    Expansion slot and Power Supply normal at around 700.

    The CPU temperature are pretty normal at around 40-60 deg celsius.
    I borrowed a friend's CPU board (Early 2009 too) and fitted on to my motherboard and it was quiet (booster 1/2 at 1100RPM, the rest around 600-800 RPM).
    This seems to prove that my Mac motherboard is fine. Problem lies with the CPU board.

    Would like to add on that no CPU upgrade was done. Factory fitted BTO/CTO.
    Tally with the spec label at the back of Mac Pro.

    Can I seek expertise on how I can pin point the problem source and address it?
    Thanks much

  2. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #2
    If that's the stock config. The thermal paste should dry up already. May be you can re-apply the thermal paste and see if that make any difference.

    Up to 60C with max fan speed after just log in to desktop in fact doesn't right. That's a good temperature, however, with that high fan speed, and the CPU's are not under stress, the temperature should be a lot lower.

  3. pdafan thread starter macrumors member

    Joined:
    Aug 2, 2011
    #3
    Thanks for your advice. 60C is not the temperature right after start up.
    The temperature is only 35C.
    I used the macfan control to base on ambient. After sometime then the temperature rises up to 40-60C. That is why I can't pinpoint the problem and I cannot understand why the fan can spin so loudly.
    Anyway I will redo the thermal paste and how it goes.

  4. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #4
    Can you post a screen capture about how you set the fan profile? It may actually the cause of the high fan RPM.

  5. pdafan thread starter macrumors member

    Joined:
    Aug 2, 2011
    #5
    I think I found the problem but not exactly know what it means.

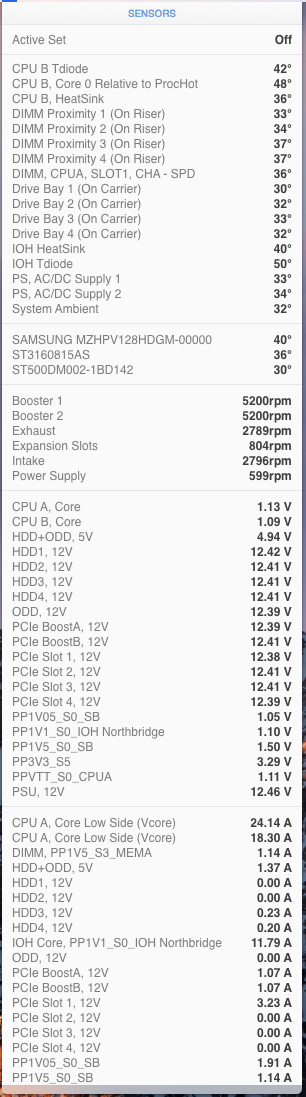

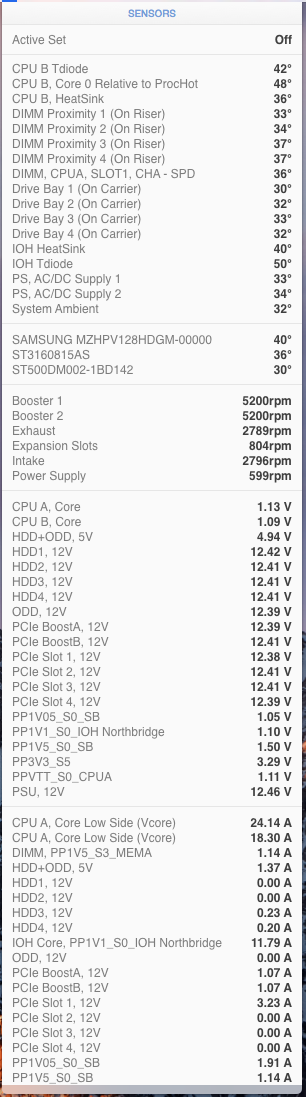

    The entire CPU A section is missing (from iStats Menu)

    From the About This Mac, it shows 2 x 2.93Ghz Quad Core Intel Xeon.

    So what does this mean? CPU or board or heatsink fault?


    Attached Files:

  6. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #6
    Yes, possible the missing temperature reading cause the system to spin the fan to 100% as precaution.

    Anyway, if that reading is from the CPU itself, open it up, reseat the CPU A, and redo the thermal paste, may able to fix he issue.

    Before you do that, may I know if that's the stock CPU?

  7. pdafan thread starter macrumors member

    Joined:
    Aug 2, 2011
    #7
    I have re-seated CPU A with fresh thermal paste. Does not help. It is the stock delidded CPU X5570.
    About This Mac still shows 2 x 2.93GHz Intel Xeon.
    Could it be the heat sink or sensor issue? Hopefully it is one I can just replace the heatsink

  8. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #8
    TBH, not sure, because I assume the CPU diode temperature is coming from the CPU itself, and the heatsink temperature is coming from the heatsink, and now both are missing.

    Anyway, did you try SMC reset yet?

  9. pdafan, Jan 15, 2017
    Last edited: Jan 15, 2017

    pdafan thread starter macrumors member

    Joined:
    Aug 2, 2011
    #9
    Hi h9826790,

    I did the SMC reset and the CPU A set appeared!
    No more loud fans.

    Earlier I did the SMC reset before reseating the CPUs and that did not work.

    So it went working nicely for the next few reboots where I reformatted the HDD and installed a fresh OSX.

    Then I took out the CPU board and inserted a few strips of RAM. Slotted in and the loud fans came back :(.
    CPU A went disappearing again.

    Really strange behavior.

    Is there any app/utility that can confirm the presence of CPUs, particular CPU A?

  10. Mejenborg macrumors newbie

    Mejenborg

    Joined:
    Apr 22, 2016
    Location:
    Aarhus, Denmark
    #10

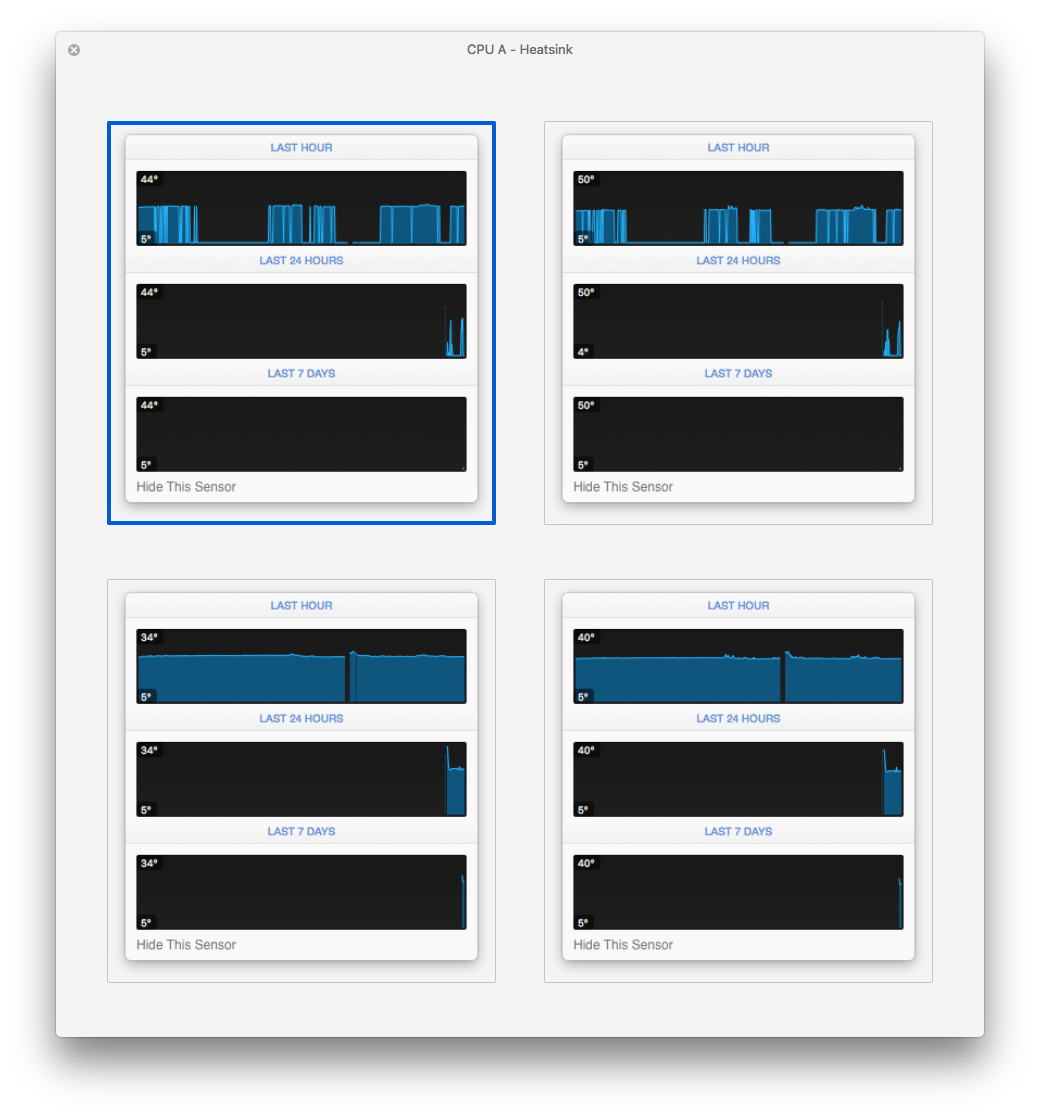

    I have the exact same problem on my Mac Pro 4,1 upgraded to 5,1.. My CPU A randomly appears and disappears as seen on this iStat Menu history.
    CPU A - Heatsink, CPU A - Tdiode
    CPU B - Heatsink, CPU B - Tdiode


    Attached Files:

  11. Mejenborg macrumors newbie

    Mejenborg

    Joined:
    Apr 22, 2016
    Location:
    Aarhus, Denmark
    #11
    An update.. My Mac Pro was a 4,1 -> 5,1 upgrade. Where I also upgraded the CPU's from E5520 to X5690.
    Though it didn't help to downgrade the CPU's again, the issue still occured.

    Then I removed all but two ram sticks, all PCIe cards, all extra harddrives and changed the motherboard battery.
    Bootet it up, launched geekbench, let it run, then afterwards launched handbrake and encoded a DVD.

    It's been up and running for now 30 minutes without the fans spinning up crazy, which is new. Before the fans would spin up a few minutes into OSX was loaded.
    --- Post Merged, Feb 5, 2017 ---
    My next step, is to turn it off again, and insert all ram sticks again, the harddrives, and the CPU's. and see what happens.. Maybe it was the battery on the motherboard?

  12. Mejenborg macrumors newbie

    Mejenborg

    Joined:
    Apr 22, 2016
    Location:
    Aarhus, Denmark
    #12
    Final results, both CPU's, harddrives, and ram sticks are all back in place. Seems to work perfectly..

    So, to sum op, seems like a new battery on the motherboard is all it takes. I had the power unplugged.

  13. TzunamiOSX macrumors regular

    Joined:
    Oct 4, 2009
    Location:
    Germany
  14. TzunamiOSX macrumors regular

    Joined:
    Oct 4, 2009
    Location:
    Germany
    #15
    Perhaps the fan connector of the CPU cooler has a connetion problem. This is a common problem, when using lidded CPUs

  15. pdafan thread starter macrumors member

    Joined:
    Aug 2, 2011
    #16
    For my stock de-lidded CPU, changing the battery does not help either.
    Every time I plug/remove RAM, hard disk or Memory checketc, CPU A would disappear.
    I had to leave it there power unplugged for a day. Do the SMC thingie to get the CPU detected again.
    Strange behaviour.

    Just an update for anyone who experienced similar issues.

  16. adam9c1 macrumors 65816

    adam9c1

    Joined:
    May 2, 2012
    Location:
    Chicagoland
    #17
    I'm a big fan of Temperature Gauge Pro. TGPRO
    I see you got your issue cleared but I second battery and SMC

  17. Mejenborg macrumors newbie

    Mejenborg

    Joined:
    Apr 22, 2016
    Location:
    Aarhus, Denmark
    #18
    Disappears? MacOS won't recognise CPU A? Is there a red LED light on the CPU board between the CPU A socket and the RAM sockets?

  18. TzunamiOSX macrumors regular

    Joined:
    Oct 4, 2009
    Location:
    Germany
    #19
    Change CPU A and B (A to B, B to A), perhaps the CPU is faulty.
