Mac Pro heat issue? Shutting down unexpectley.

Discussion in 'Mac Pro' started by gmehje, Jul 22, 2013.

  1. gmehje macrumors member

    Joined:
    Jul 31, 2009
    #1
    Hi all,
    I wonder if someone could help please.
    My Mac pro keeps shutting down unexpectedly - 3/4 times a day with no warning. Could it be heat related? Here's a recent screenshot of the temperatures (no idea how to read them - what is 'normal'?) plus the latest crash report copied below:

    Any help is hugely appreciated!!!

    Kind Regards
    Ged


    Interval Since Last Panic Report: 776657 sec
    Panics Since Last Report: 9
    Anonymous UUID: D2D8D70B-40B4-43C8-16CE-1DFE28EAAE63

    Mon Jul 22 10:05:12 2013
    panic(cpu 10 caller 0xffffff7f8d6367f2): NVRM[0/5:0:0]: Read Error 0x00000100: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0x8c000000 0xffffff839b0c9000 0x0c0e80a3, D0, P1/3
    Backtrace (CPU 10), Frame : Return Address
    0xffffff8399bf31f0 : 0xffffff800ce1d626
    0xffffff8399bf3260 : 0xffffff7f8d6367f2
    0xffffff8399bf3320 : 0xffffff7f8d7333b9
    0xffffff8399bf3380 : 0xffffff7f8d73342e
    0xffffff8399bf33f0 : 0xffffff7f8daaa20f
    0xffffff8399bf3550 : 0xffffff7f8d759fe8
    0xffffff8399bf3590 : 0xffffff7f8d63e567
    0xffffff8399bf3640 : 0xffffff7f8d63c05a
    0xffffff8399bf3840 : 0xffffff7f8d63cfa2
    0xffffff8399bf3920 : 0xffffff7f8e396e90
    0xffffff8399bf3960 : 0xffffff7f8e3a6da7
    0xffffff8399bf3980 : 0xffffff7f8e3d5def
    0xffffff8399bf39c0 : 0xffffff7f8e3d5e4d
    0xffffff8399bf3a00 : 0xffffff7f8e3acb7f
    0xffffff8399bf3a50 : 0xffffff7f8e377506
    0xffffff8399bf3ae0 : 0xffffff7f8e37329c
    0xffffff8399bf3b10 : 0xffffff7f8e370e2b
    0xffffff8399bf3b40 : 0xffffff800d2645c3
    0xffffff8399bf3bc0 : 0xffffff800d266653
    0xffffff8399bf3c20 : 0xffffff800d26408f
    0xffffff8399bf3d70 : 0xffffff800ce984a1
    0xffffff8399bf3e80 : 0xffffff800ce20aed
    0xffffff8399bf3eb0 : 0xffffff800ce10448
    0xffffff8399bf3f00 : 0xffffff800ce1961b
    0xffffff8399bf3f70 : 0xffffff800cea5dd6
    0xffffff8399bf3fb0 : 0xffffff800cecdd43
    Kernel Extensions in backtrace:
    com.apple.NVDAResman(8.1)[A26D2A3D-C06F-3A0F-BCFF-901A98C93C3D]@0xffffff7f8d5d9000->0xffffff7f8d8e6fff
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f8d4cb000
    dependency: com.apple.iokit.IONDRVSupport(2.3.7)[38C214C0-83C8-3594-8A4C-DC6AC3FEC163]@0xffffff7f8d5c5000
    dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[74E3E50F-E50A-3073-8C96-06F854292A91]@0xffffff7f8d582000
    com.apple.nvidia.gf100hal(8.1)[9A635463-C3DB-3A9F-A375-03FB8A6931A8]@0xffffff7f8d8f4000->0xffffff7f8dc20fff
    dependency: com.apple.NVDAResman(8.1.0)[A26D2A3D-C06F-3A0F-BCFF-901A98C93C3D]@0xffffff7f8d5d9000
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f8d4cb000
    com.apple.GeForce(8.1)[A15BB65E-3501-340F-87CB-2FD2BAD33E35]@0xffffff7f8e355000->0xffffff7f8e421fff
    dependency: com.apple.NVDAResman(8.1.0)[A26D2A3D-C06F-3A0F-BCFF-901A98C93C3D]@0xffffff7f8d5d9000
    dependency: com.apple.iokit.IONDRVSupport(2.3.7)[38C214C0-83C8-3594-8A4C-DC6AC3FEC163]@0xffffff7f8d5c5000
    dependency: com.apple.iokit.IOPCIFamily(2.7.3)[1D668879-BEF8-3C58-ABFE-FAC6B3E9A292]@0xffffff7f8d4cb000
    dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[74E3E50F-E50A-3073-8C96-06F854292A91]@0xffffff7f8d582000

    BSD process name corresponding to current thread: WindowServer

    Mac OS version:
    12D78

    Kernel version:
    Darwin Kernel Version 12.3.0: Sun Jan 6 22:37:10 PST 2013; root:xnu-2050.22.13~1/RELEASE_X86_64
    Kernel UUID: 3EB7D8A7-C2D3-32EC-80F4-AB37D61492C6
    Kernel slide: 0x000000000cc00000
    Kernel text base: 0xffffff800ce00000
    System model name: MacPro4,1 (Mac-F221BEC8)

    System uptime in nanoseconds: 640563768313
    last loaded kext at 118285900127: com.apple.driver.AppleUSBCDC 4.1.23 (addr 0xffffff7f8eea7000, size 16384)
    last unloaded kext at 291473471677: com.apple.driver.AppleUSBCDC 4.1.23 (addr 0xffffff7f8eea7000, size 12288)
    loaded kexts:
    com.mcafee.kext.Virex 1.1.0d1
    com.nvidia.CUDA 1.1.0
    com.CalDigit.iokit.CalDigitFastIO 2.6.1
    com.McAfee.kext.AppProtection 1.1.0d1
    com.owc.driver.Accelsior 1.0 b2
    com.CalDigit.driver.CalDigitUSBxHCI 1.3.8a2
    com.Areca.ArcMSR 1.3.5
    com.apple.driver.AppleHWSensor 1.9.5d0
    com.apple.filesystems.autofs 3.0
    com.apple.driver.AudioAUUC 1.60
    com.apple.iokit.IOBluetoothSerialManager 4.1.3f3
    com.apple.driver.AppleMikeyHIDDriver 122
    com.apple.driver.AGPM 100.12.87
    com.apple.driver.AppleUpstreamUserClient 3.5.10
    com.apple.driver.AppleTyMCEDriver 1.0.2d2
    com.apple.driver.AppleHDA 2.3.7fc4
    com.apple.driver.AppleMCCSControl 1.1.11
    com.apple.iokit.IOUserEthernet 1.0.0d1
    com.apple.GeForce 8.1.0
    com.apple.driver.AppleMikeyDriver 2.3.7fc4
    com.apple.iokit.BroadcomBluetoothHCIControllerUSBTransport 4.1.3f3
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AppleLPC 1.6.0
    com.apple.driver.ApplePolicyControl 3.3.0
    com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
    com.apple.iokit.SCSITaskUserClient 3.5.5
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 34
    com.apple.driver.XsanFilter 404
    com.apple.iokit.IOAHCIBlockStorage 2.3.1
    com.apple.driver.AppleUSBHub 5.5.5
    com.apple.driver.AppleFWOHCI 4.9.6
    com.apple.driver.Intel82574L 2.3.0b5
    com.apple.driver.AppleAHCIPort 2.5.1
    com.apple.driver.AppleUSBEHCI 5.5.0
    com.apple.driver.AppleUSBUHCI 5.2.5
    com.apple.driver.AppleEFINVRAM 1.7
    com.apple.driver.AppleRTC 1.5
    com.apple.driver.AppleHPET 1.8
    com.apple.driver.AppleACPIButtons 1.7
    com.apple.driver.AppleSMBIOS 1.9
    com.apple.driver.AppleACPIEC 1.7
    com.apple.driver.AppleAPIC 1.6
    com.apple.driver.AppleIntelCPUPowerManagementClient 196.0.0
    com.apple.nke.applicationfirewall 4.0.39
    com.apple.security.quarantine 2
    com.apple.driver.AppleIntelCPUPowerManagement 196.0.0
    com.apple.iokit.IOSCSIBlockCommandsDevice 3.5.5
    com.apple.kext.triggers 1.0
    com.apple.iokit.IOSerialFamily 10.0.6
    com.apple.driver.AppleUSBAudio 2.9.0f6
    com.apple.driver.DspFuncLib 2.3.7fc4
    com.apple.iokit.IOAudioFamily 1.8.9fc11
    com.apple.kext.OSvKernDSPLib 1.6
    com.apple.iokit.IOSurface 86.0.4
    com.apple.nvidia.gf100hal 8.1.0
    com.apple.NVDAResman 8.1.0
    com.apple.iokit.AppleBluetoothHCIControllerUSBTransport 4.1.3f3
    com.apple.iokit.IOBluetoothFamily 4.1.3f3
    com.apple.driver.AppleSMBusController 1.0.11d0
    com.apple.iokit.IOFireWireIP 2.2.5
    com.apple.driver.AppleHDAController 2.3.7fc4
    com.apple.iokit.IOHDAFamily 2.3.7fc4
    com.apple.driver.AppleSMBusPCI 1.0.11d0
    com.apple.driver.AppleGraphicsControl 3.3.0
    com.apple.iokit.IONDRVSupport 2.3.7
    com.apple.iokit.IOGraphicsFamily 2.3.7
    com.apple.driver.AppleSMC 3.1.4d2
    com.apple.driver.IOPlatformPluginLegacy 1.0.0
    com.apple.driver.IOPlatformPluginFamily 5.3.0d51
    com.apple.driver.AppleUSBHIDKeyboard 170.2
    com.apple.driver.AppleHIDKeyboard 170.2
    com.apple.iokit.IOUSBHIDDriver 5.2.5
    com.apple.driver.AppleUSBMergeNub 5.5.5
    com.apple.driver.AppleUSBComposite 5.2.5
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.5.5
    com.apple.iokit.IOBDStorageFamily 1.7
    com.apple.iokit.IODVDStorageFamily 1.7.1
    com.apple.iokit.IOCDStorageFamily 1.7.1
    com.apple.iokit.IOAHCISerialATAPI 2.5.1
    com.apple.iokit.IOFireWireFamily 4.5.5
    com.apple.iokit.IONetworkingFamily 3.0
    com.apple.iokit.IOUSBUserClient 5.5.5
    com.apple.iokit.IOAHCIFamily 2.3.1
    com.apple.iokit.IOUSBFamily 5.5.5
    com.apple.iokit.IOSCSIParallelFamily 2.5.1
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.5.5
    com.apple.driver.AppleEFIRuntime 1.7
    com.apple.iokit.IOHIDFamily 1.8.1
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 220.2
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.DiskImages 345
    com.apple.iokit.IOStorageFamily 1.8
    com.apple.driver.AppleKeyStore 28.21
    com.apple.driver.AppleACPIPlatform 1.7
    com.apple.iokit.IOPCIFamily 2.7.3
    com.apple.iokit.IOACPIFamily 1.4
    com.apple.kec.corecrypto 1.0
    Model: MacPro4,1, BootROM MP41.0081.B07, 8 processors, Quad-Core Intel Xeon, 2.93 GHz, 32 GB, SMC 1.39f5
    Graphics: NVIDIA Quadro 4000, NVIDIA Quadro 4000, PCIe, 2048 MB
    Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 3, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 4, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 5, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 6, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 7, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Memory Module: DIMM 8, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353431332D3030362E4130304C4620
    Bluetooth: Version 4.1.3f3 11349, 2 service, 18 devices, 1 incoming serial ports
    Network Service: Ethernet 1, Ethernet, en0
    PCI Card: NVIDIA Quadro 4000, sppci_displaycontroller, Slot-1
    PCI Card: NVIDIA Quadro 4000, NVDA,Parent, Slot-1
    PCI Card: pci17d3,1880, sppci_raid, Slot-2
    PCI Card: CalDigit USB3 Adapter, Slot-4
    PCI Card: pci1b4b,9230, sppci_ahci, Slot-3
    Serial ATA Device: OCZ-AGILITY3, 240.06 GB
    Serial ATA Device: HL-DT-ST DVD-RW GH41N
    Serial ATA Device: MARVELL Raid VD 0, 239.9 GB
    Serial ATA Device: MARVELL VIRTUALL
    USB Device: Keyboard Hub, apple_vendor_id, 0x1006, 0xfd100000 / 2
    USB Device: Apple Keyboard, apple_vendor_id, 0x0221, 0xfd120000 / 3
    USB Device: Intuos5 touch M, 0x056a (WACOM Co., Ltd.), 0x0027, 0x3a200000 / 2
    USB Device: BRCM2046 Hub, 0x0a5c (Broadcom Corp.), 0x4500, 0x5a100000 / 2
    USB Device: Bluetooth USB Host Controller, apple_vendor_id, 0x8215, 0x5a110000 / 3
    USB Device: Logitech USB Headset, 0x046d (Logitech Inc.), 0x0a0c, 0x1a200000 / 2
    USB Device: USB Mass Storage, 0x174c (ASMedia Technology Inc.), 0x55aa, 0x04200000 / 3
    USB Device: My Book 1140, 0x1058 (Western Digital Technologies, Inc.), 0x1140, 0x04100000 / 2
    FireWire Device: built-in_hub, 800mbit_speed


    Attached Files:

  2. monkeybagel macrumors 65816

    Joined:
    Jul 24, 2011
    Location:
    United States
    #2
    The nVidia video card is referenced several times in that crash. Is this a recent addition to the system? Is the fan on that card working properly?

  3. Studio K macrumors 6502

    Studio K

    Joined:
    Feb 17, 2013
    Location:
    United States
    #3

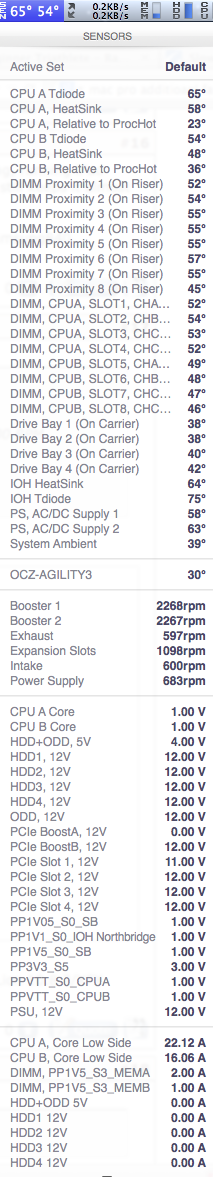

    Was your system under a heavy CPU load when you captured that iStat screen shot?

    Your CPU A diode was in the mid-60's. that's not excessive if your running something, but it would be alarming if the system were idling. My Mac Pro idles in the low 40's.

    Your BOOST fans are at 2500 rpms each. Again, that is fine if you are doing some heavy lifting CPU-wise, but that would not be normal if you were idling.

  4. gmehje thread starter macrumors member

    Joined:
    Jul 31, 2009
    #4
    Many thanks for your swift reply.

    Studio K:
    The system was not under heavy load. I had Mac mail, PowerPoint, Safari Photoshop and Firefox but wasn't really doing any work - certainly no large open files or video work.

    monkeybagel:

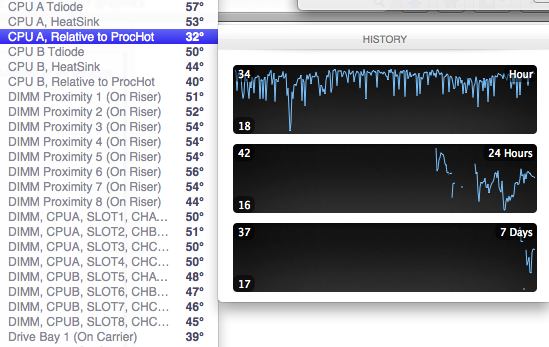

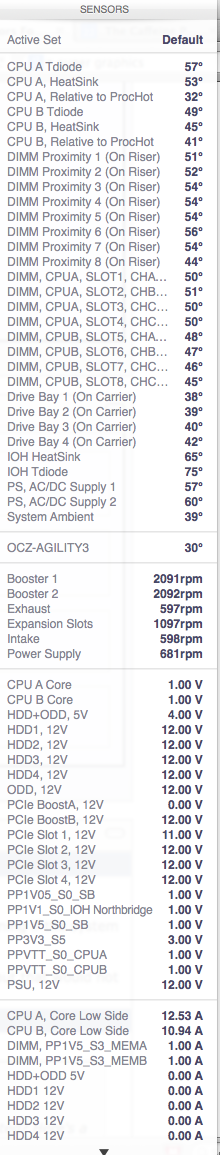

    Here's a screenshot of the temp now (light lead - safari. mac mail. power point, evernote open).

    I have cleaned out the dust from the cards, fans etc.

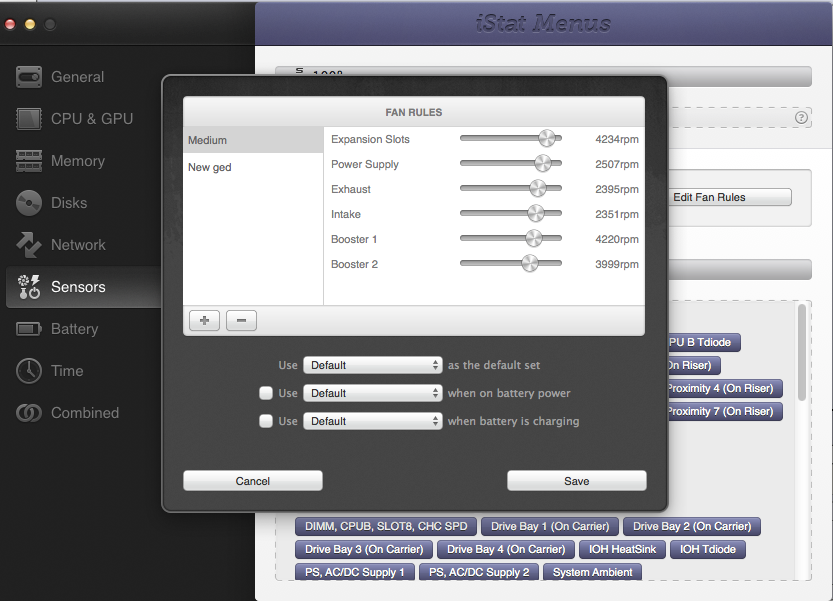

    I tried to edit the 'fan rules' in istat menus - but the documentation is terrible so not sure what was best. screenshot enclosed.

    Any thoughts hugely appreciated?

    ged


    Attached Files:

  5. Studio K, Jul 22, 2013
    Last edited: Jul 22, 2013

    Studio K macrumors 6502

    Studio K

    Joined:
    Feb 17, 2013
    Location:
    United States
    #5
    A Tdiode temperature in the upper 50's or mid 60's seems high for light duty stuff. That places your core temps at around 75. And your BOOST fans were running at 2250 rpms to maintain that temperature. I believe that those fans would normally run at 1100 or so under 'light' conditions.

    Try just opening 1 or 2 programs (Mail and Safari) and see what the fans and temps do. Then do something very processor-intensive that works the cores hard. See what the BOOST fans and Tdiode does in iStat.

    There is also the SMC reset. Unplug the machine. Hold down the power button for 15 seconds more or less. Plug it back in. Wait 10 seconds. Then turn back on. That might knock things back in order fan-wise.

    I don't use iSTAt for fan control. I found it hard to manage (it sets the minimums too low and then you can't get them back to where Apple puts them). SMC FAN CONTROL is better in that it is easier to get things back to the defaults if you want to.

  6. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #6
    Nvidia drivers crashed according to KP log.
    Is there any particular reason that you've still on 10.8.3?

    Nvidia drivers in this version tend to crash sometimes, especially while Flash and Chrome were in use.

    Update to 10.8.4 and try Nvidia web driver as well. This should solve your issue IMO. You may reset PRAM after update to clear Nvram content. After that set your boot disk again in System Preferences/Startup disk.

  7. Tesselator macrumors 601

    Tesselator

    Joined:
    Jan 9, 2008
    Location:
    Japan
    #7
    Sounds right.

    It's not heat tho! You don't typically get system stops from heat till around 80c on some components, 100 or 120C on others. :eek: And i think all your highest temperatures are on components where stops happen at the 100c mark. You're still a little high tho so do get and install smcFanControl while you're going about finding out why and how to fix the crashes.

  8. Studio K macrumors 6502

    Studio K

    Joined:
    Feb 17, 2013
    Location:
    United States
    #8
    Have you cleaned the inside of your computer recently? If not, it may be worth seeing how much dust has built up in and around the CPU heatsinks and intake and exhaust fan blades.

    A thorough cleaning/dusting may lower your temperatures and fanspeeds.

  9. gmehje thread starter macrumors member

    Joined:
    Jul 31, 2009
    #9
    Many thanks for all the comments. I'll look at these tomorrow.
    Yes StudioK I did a thorough clean of all dust etc inside Mac Pro. Thanks for asking.
    Great forum!!

  10. TonyK macrumors 6502a

    TonyK

    Joined:
    May 24, 2009
    #10
    Realizing this is an old thread but I would like to know if the heating is resolved and what it took to resolve it.

    Thanks,



Share This Page
