Hi everyone,

Before even starting my thread I'd like to point out this Apple Support page which contains some interesting piece of information: http://support.apple.com/en-us/HT202801

That way, you'll know I'm aware of what it says.

That being said, I started a chat with Apple Support earlier today with this question : "How is the new Mac Pro not able to run 3 UHD Displays @60Hz?"
And I had no better answer that : "just check this page" or even one "Mmmmmeh, it might work but I'm not sure"

So here is the question : Since the New Mac Pro has 3 independent Thunderbolt Bus (port 1-2, port 3-4 and port 5-6 + HDMI), is it possible to connect 3 UHD Displays via Mini DisplayPort and have them running @60Hz ?

The apple support page states you should run 2 displays via Mini DisplayPort and one via HDMI (so 30Hz for the third one).

What happens if I plug the third in a Thunderbolt port ? If I play with SwitchResX, will I be able to run the 3 displays @60Hz (or anything beyond 30Hz for the third display)?

I have 2 ASUS PB287Q plugged via MiniDP->DP running @60Hz flawlessly. I'd love to have a third display BUT I don't want something @30Hz.

So, if anyone has information I'll be glad to read that. If someone has 3 UHD displays on a new Mac Pro, please try them all on TB ports.

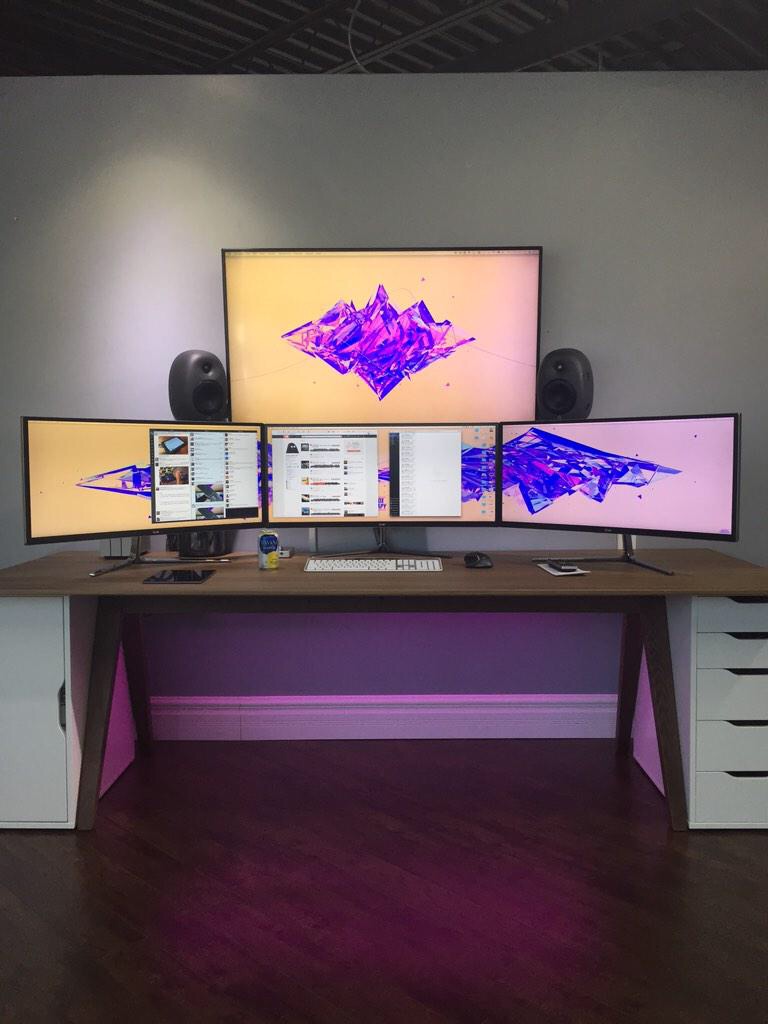

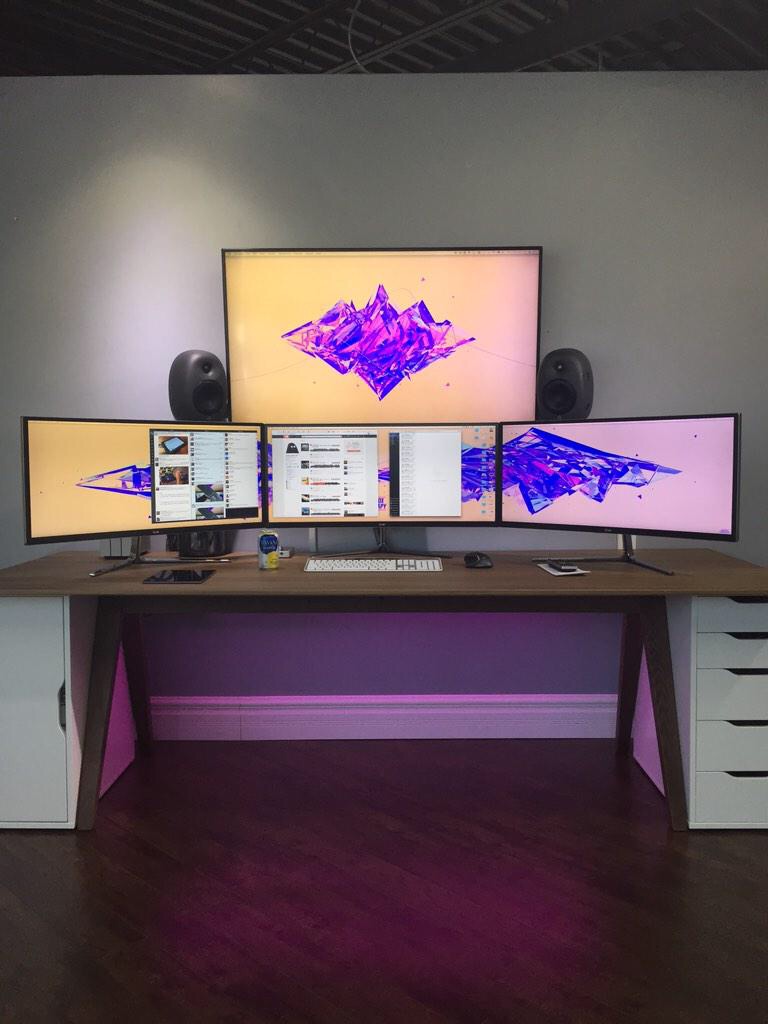

Before I finish, I'd like to point out that for example, Lew from Unbox Therapy is currently using 3 3440*1440 + one UHD with the New Mac Pro (see attachment).


So I assume everything runs @60Hz. Is there such a big difference between 3 3440*1440 and 3840*2160 that the new Mac Pro won't be able to run the second one @60Hz?


Thanks for your answers,
Cheers from France.
Bob


Attachments


sirisy

macrumors member
Feb 13, 2015
33
10
Brazil
So here is the question : Since the New Mac Pro has 3 independent Thunderbolt Bus (port 1-2, port 3-4 and port 5-6 + HDMI), is it possible to connect 3 UHD Displays via Mini DisplayPort and have them running @60Hz ?

What happens if I plug the third in a Thunderbolt port ? If I play with SwitchResX, will I be able to run the 3 displays @60Hz (or anything beyond 30Hz for the third display)?


Thanks for your answers,
Cheers from France.
Bob
sorry for my bad english, but trying to help...

yes, you can connect 3 uhd Displays via Mini DisplayPort and have them running @60Hz (connecting each one in a different thunderbolt bus)... i have 3 dell up2414q @60hz on mac pro (2013) - base model


w0rd3r

macrumors regular
Original poster
Jun 4, 2014
145
51
France
yes, you can connect 3 uhd Displays via Mini DisplayPort and have them running @60Hz (connecting each one in a different thunderbolt bus)... i have 3 dell up2414q @60hz on mac p
Awesome!
So the apple support page is wrong ?

That's a very good news. I was trying to find out someone with 3 UHD display to test that. Thanks a gazillion times.

Quick question : did you know it will work before you tried ?


sirisy

macrumors member
Feb 13, 2015
33
10
Brazil
Awesome!
So the apple support page is wrong ?

That's a very good news. I was trying to find out someone with 3 UHD display to test that. Thanks a gazillion times.

Quick question : did you know it will work before you tried ?


no. I intended to connect two @ 60Hz and one @ 30Hz. But i tested and it worked.

is really very strange, but the Apple support page is wrong


w0rd3r

macrumors regular
Original poster
Jun 4, 2014
145
51
France
no. I intended to connect two @ 60Hz and one @ 30Hz. But i tested and it worked.

is really very strange, but the Apple support page is wrong
Ok thanks. No trick needed ? They all run @60Hz out of hte box with a MiniDP->DP Cable?

And I don't know if you've tested or if you even can but what happens if you plug a 4th monitor through HDMI now ? Is everything working as it should?

And did you try to put 2 of your 3 monitors on the same Thunderbolt Bus?

Thanks again, Bob


sirisy

macrumors member
Feb 13, 2015
33
10
Brazil
Ok thanks. No trick needed ? They all run @60Hz out of hte box with a MiniDP->DP Cable?

And I don't know if you've tested or if you even can but what happens if you plug a 4th monitor through HDMI now ? Is everything working as it should?

And did you try to put 2 of your 3 monitors on the same Thunderbolt Bus?

Thanks again, Bob
dell up2414q is a “tiled display” (MST display). it doesn't worked @60hz out of box. You need to activate an option in the display menu…. but after turned on, it worked

I also tested the three dell up2414q with another apple thunderbolt display (ATD). All connected via Thunderbolt/minidisplay port.

Two Dells (each connected to different bus thunderbolt ) worked @ 60hz. The third Dell ( connected to the same bus thunderbolt that ATD was connected ), worked @30hz

and ATD worked normally (@ 60hz - 2560x1440 )

I made no test with hdmi


w0rd3r

macrumors regular
Original poster
Jun 4, 2014
145
51
France
dell up2414q is a “tiled display” (MST display). it doesn't worked @60hz out of box. You need to activate an option in the display menu…. but after turned on, it worked

I also tested the three dell up2414q with another apple thunderbolt display (ATD). All connected via Thunderbolt/minidisplay port.

Two Dells (each connected to different bus thunderbolt ) worked @ 60hz. The third Dell ( connected to the same bus thunderbolt that ATD was connected ), worked @30hz

and ATD worked normally (@ 60hz - 2560x1440 )

I made no test with hdmi
Ok thanks for everything.
I ordered the third ASUS PB287Q. I also have to enable DisplayPort 1.2 to use it @60Hz.

I'll let you know when I receive it, but based on what you said, it should work perfectly.

Bob.


w0rd3r

macrumors regular
Original poster
Jun 4, 2014
145
51
France

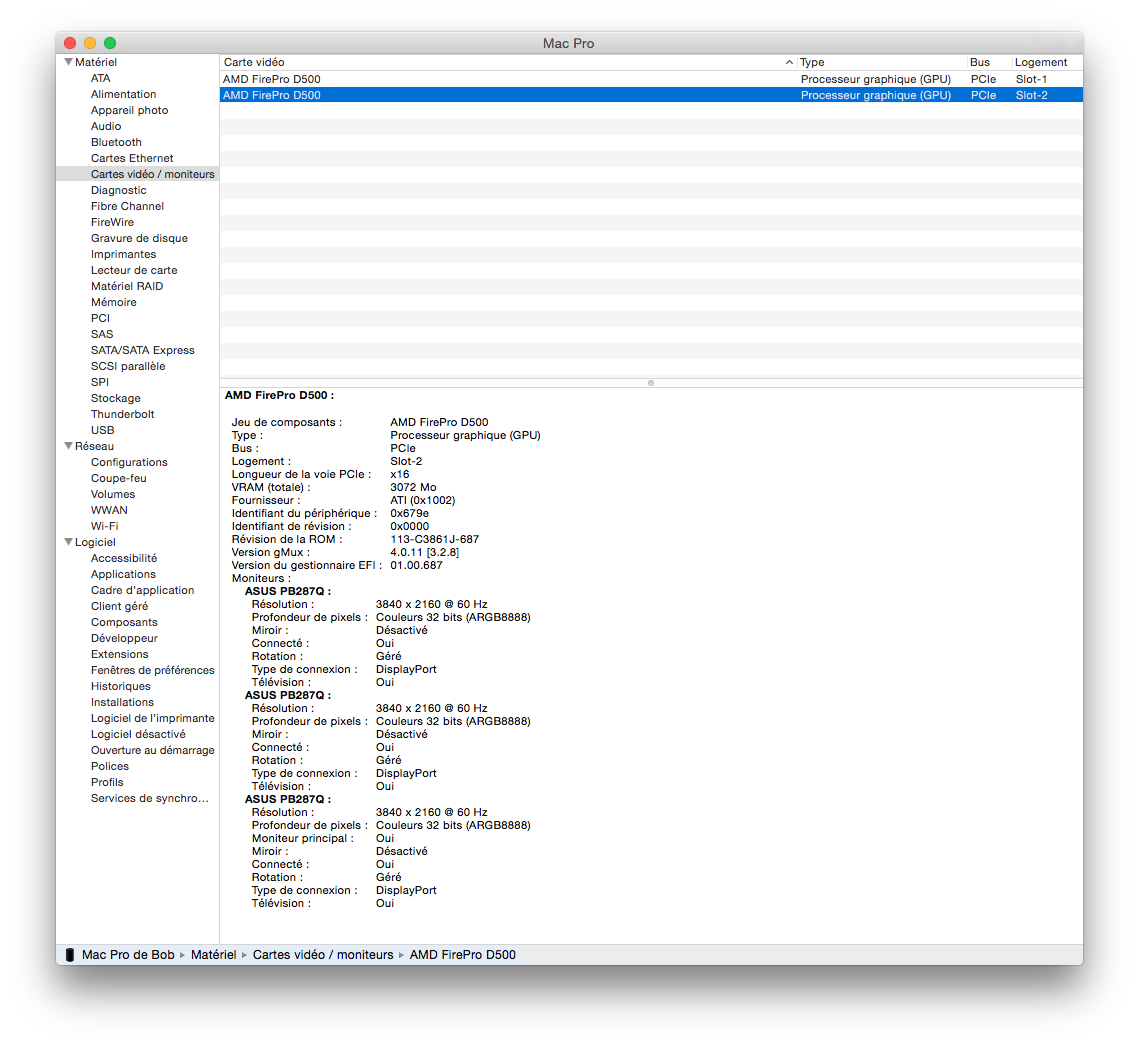

Well after I received my third PB287Q today, I just plugged it in and it worked flawlessly @60Hz despite what Apple said.

The only thing is, by default I don't have the 3200*1800 resolution on the third screen (but I have it on the 2 others). I'll play with SwitchResX to have it back.

Anyway thanks again for everything, and I hope this thread will help anyone who's wondering what the hell was Apple thinking when they wrote the Support Page.

Bob
