Mac Pro Perspex Door (Like G5)

Discussion in 'Mac Pro' started by AkuskaUK, Jan 9, 2014.

  1. AkuskaUK macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #1
    Is it possible to get a perspex door for a Mac Pro? One similar to the G5; this is because i would like to run some tests on airflow and i will be purchasing a GTX770 or 780 (i want to see the glowing logo :p), would it be a DIY job or is there a place i can buy one?

    Thanks in advance.

  2. jeeplj8 macrumors member

    Joined:
    Jan 4, 2014
    #2
    I think you mean a G4...the G5 was an aluminum case just like the Mac Pro. At least mine was....

  3. hwojtek macrumors 6502a

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    A small rural village in western Poland
    #3

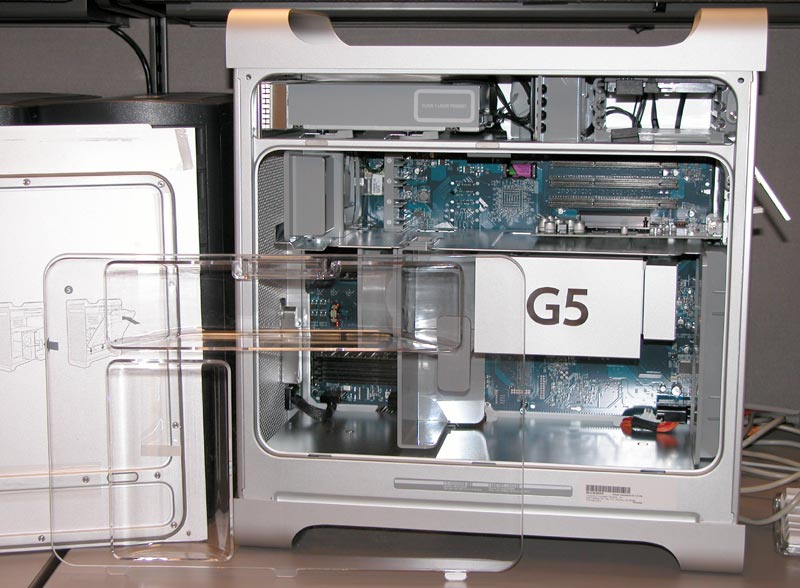

    ...and it had a perspex door inside, just beneath the aluminum side door. At least my G5's have.
    [​IMG]

  4. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #4
    I could "test" one when I get home. You'd need one from a quad core model since that one is flat and doesn't have the bump into seal the front fan better.

  5. jeeplj8 macrumors member

    Joined:
    Jan 4, 2014
    #5
    I had forgotten about that. I thought you meant the semi-transparent plastic case from the G4.

    Looking at how the perspex door is formed, it would not work on my 3.1 machine as the have moved things around.

  6. AkuskaUK thread starter macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #6
    Yes, i have a DP PowerMac G5 door, ild like one that could fit my Mac Pro :) Would it be hard to make?

  7. haravikk macrumors 65816

    Joined:
    May 1, 2005
    #7
    Just get some perspex in the right size? It's fairly cheap to buy and there's bound to be a web-site you could order it from pre-cut to your required size.

    After that it's an issue of what exactly you need, and how handy you are; for example you could do a full replacement for the metal side panel, but you'd probably need to cut out some tabs so it sits properly in place and either use a rubber strip for a friction fit, or try to make something compatible with the Mac Pro's built in latching mechanism (it's not a hard job, just very fiddly if you've never done anything like it before).

    If you're happy only covering part of the machine like the G5 shields did then you can easily go for a smaller piece and maybe use some kind of right angle brackets to hold it in place, or even add something that can slip just under the hard drive trays.

    In all cases, rubber strips for noise cancelling are a good idea as it may be hard to get a perfect rattle-free fit with a DIY shield.

  8. AkuskaUK thread starter macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #8
    I'm going to get a Perspex door made :) thank you everyone for the replies!

  9. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #9
    Sorry I didn't respond sooner. I tried with my g5 door and it won't work. You have to have a special piece cut out for it too work.

  10. Gav Mack macrumors 68020

    Gav Mack

    Joined:
    Jun 15, 2008
    Location:
    Sagittarius A*
    #10
    A had a client get the outside door for a 1,1 cnc cut in clear acrylic. Looked ok for the first year then turned cloudy and horrible. Think you have to use the right plastic to cope with the temperature changes and the airflow in the case!

  11. AkuskaUK thread starter macrumors 6502

    AkuskaUK

    Joined:
    Mar 18, 2011
    Location:
    Shanklin, Isle Of Wight
    #11
    I'll have a look and ask around! Thanks for your comment :) if it only lasts a year, that should last me, it's only because I want to see the GTX770 and it's internals :p

  12. jakesaunders27 macrumors 6502a

    jakesaunders27

    Joined:
    Jan 23, 2012
    Location:
    United Kingdom
  13. Gav Mack macrumors 68020

    Gav Mack

    Joined:
    Jun 15, 2008
    Location:
    Sagittarius A*
    #13
    He took his door down to the workshop and they CNC cut a copy of it. Used clear velcro pads to attach it to the case cos attempting to copy the locking and latch mechanism would require metal parts and a lot more aggravation and cost. Those sides will have to be thinner to match the velcro thickness for a snug fit.

    Just don't use acrylic, a clear polycarbonate that isn't brittle should be good enough. Been a long time out of the fabrication game since my brother sold his business but I would imagine there's some pretty good new materials out there to machine out a copy.
