MacBook Pro 13 late 2011 liquid damage

Discussion in 'MacBook Pro' started by ggn1971, Sep 27, 2012.

  1. ggn1971, Sep 27, 2012
    Last edited: Sep 28, 2012

    ggn1971 macrumors newbie

    Joined:
    Sep 27, 2012
    #1
    Hello all,
    this is my first post here. Thank you for this wonderfull forum plenty of usefull informations for Apple addicts...
    My problem lies with a late 2011 macbook pro 13 inches which I recently bought "as is, received some kind of liquid" for peanuts. It's been just returned from a local Apple dealer whose diagnostic was: "dead motherboard, dead hard drive and associated cable". The seller didn't want to spend big money on the repair and bought a brand new mac, so now its mine ;-)
    Once opened, it looks like it is the hard drive which received most of the liquid. Some connections are corroded and burnt, the cable is burnt and there is a small component on the motherboard which also fried. The board itself is clean and received no liquid, the drive failure led to dramatic consequences on the board.
    After some isopropyl alcohol cleaning, the mac runs fine with an external drive enclosure (I am writing this post on the Mac). Everything is ok, from keyboard to card reader. But of course I didn't try with an internal drive as I don't have spare cable for the moment (its on the way), and I have to fix the broken component on the logicboard.

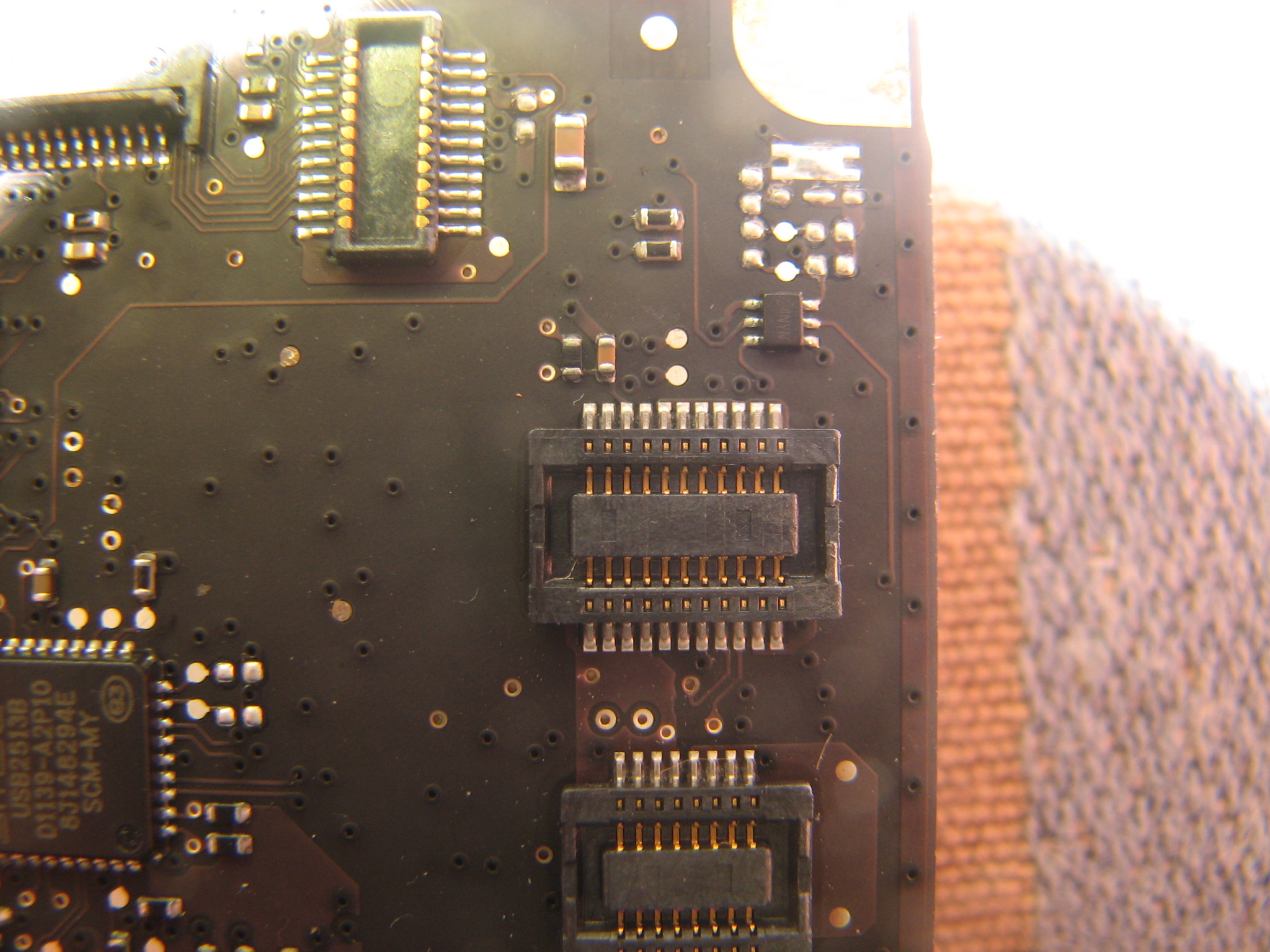

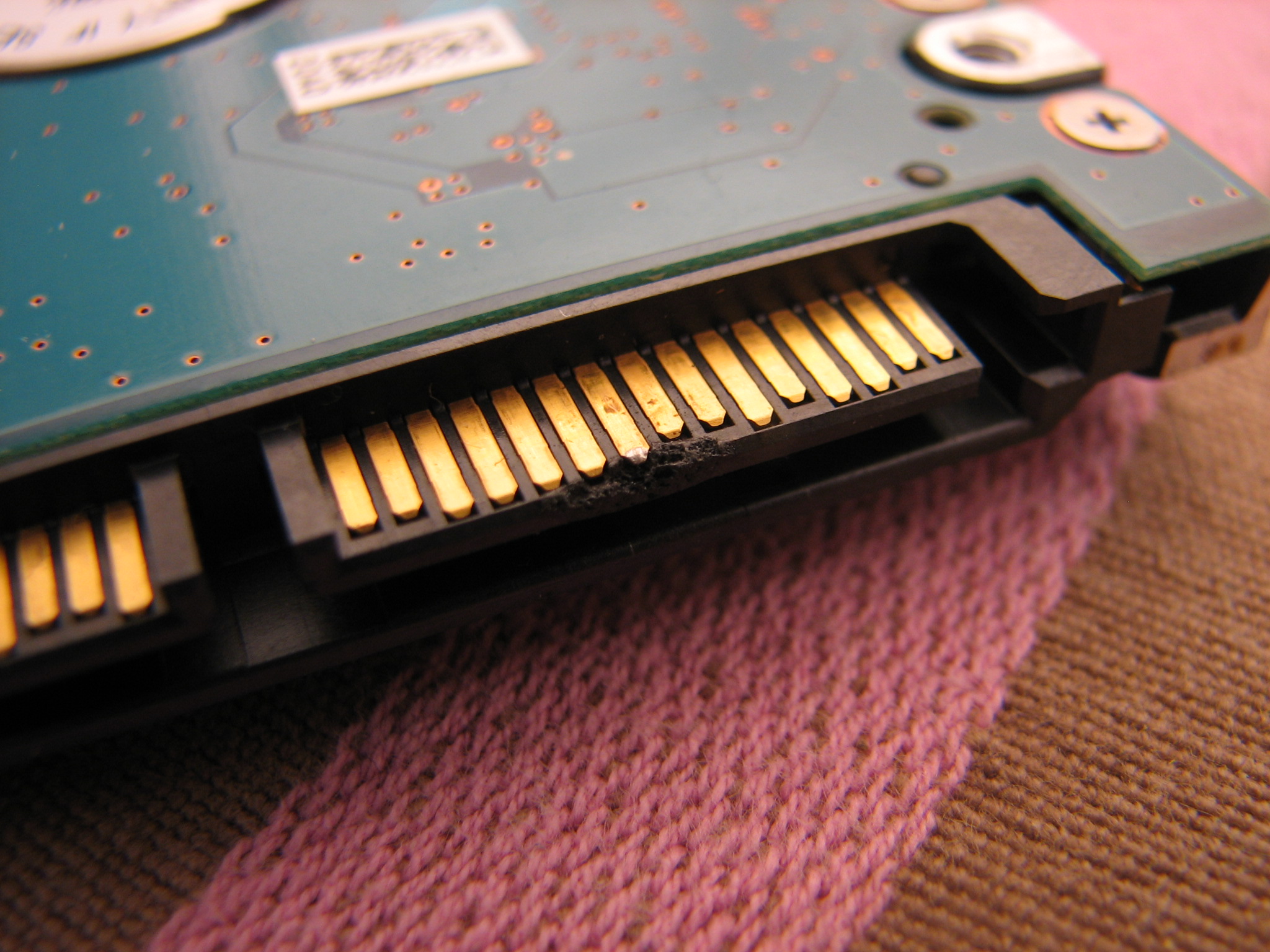

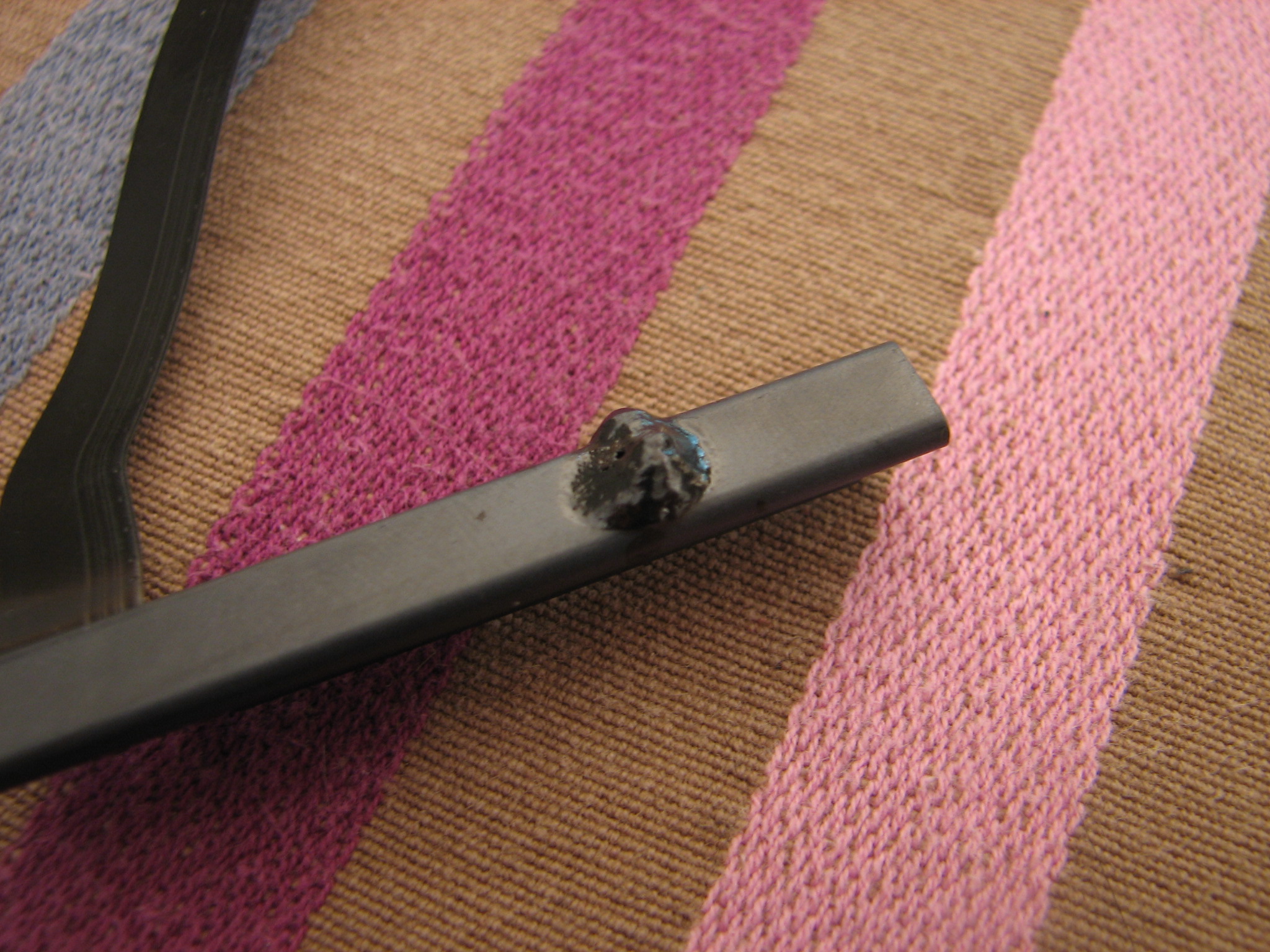

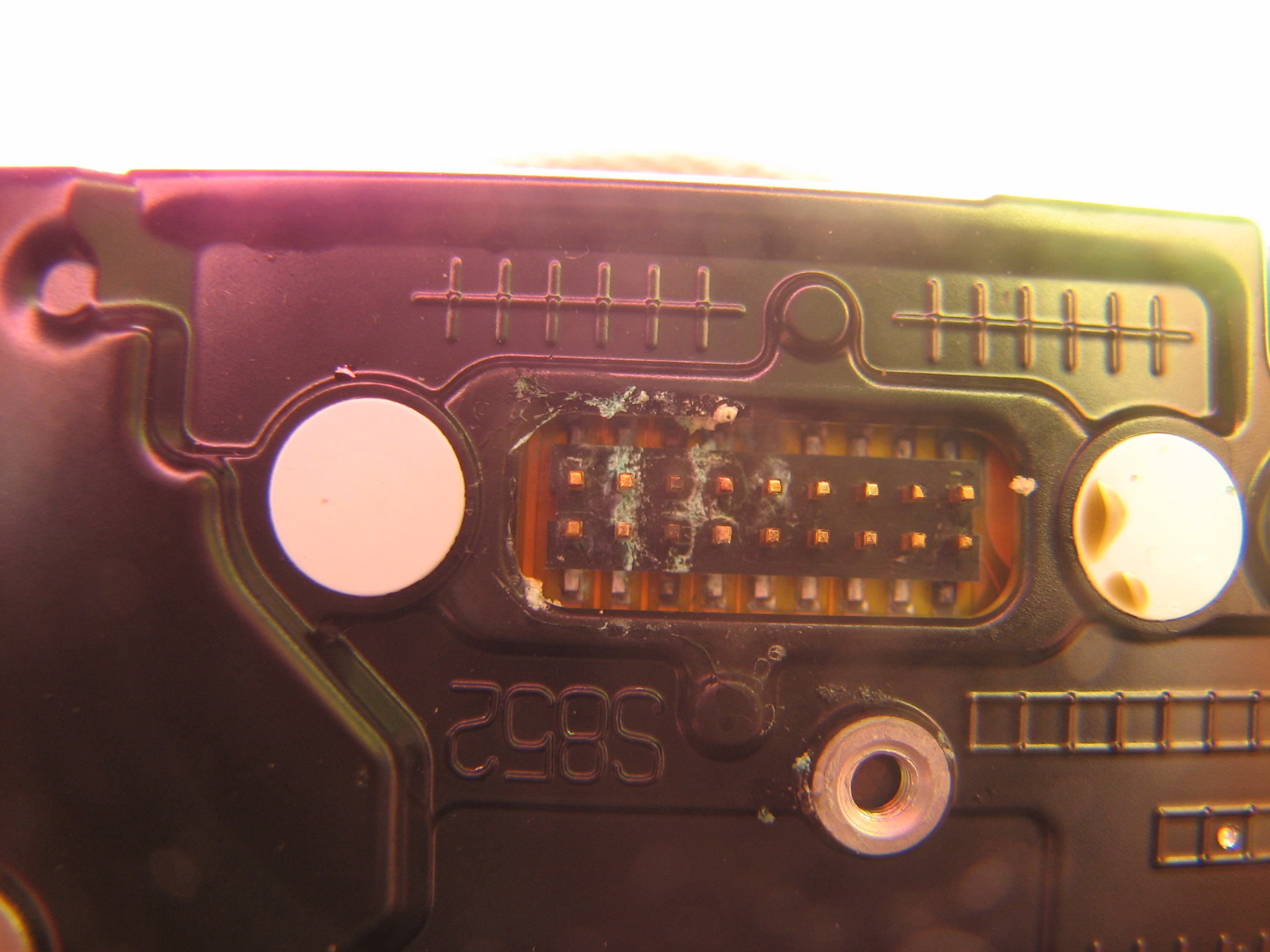

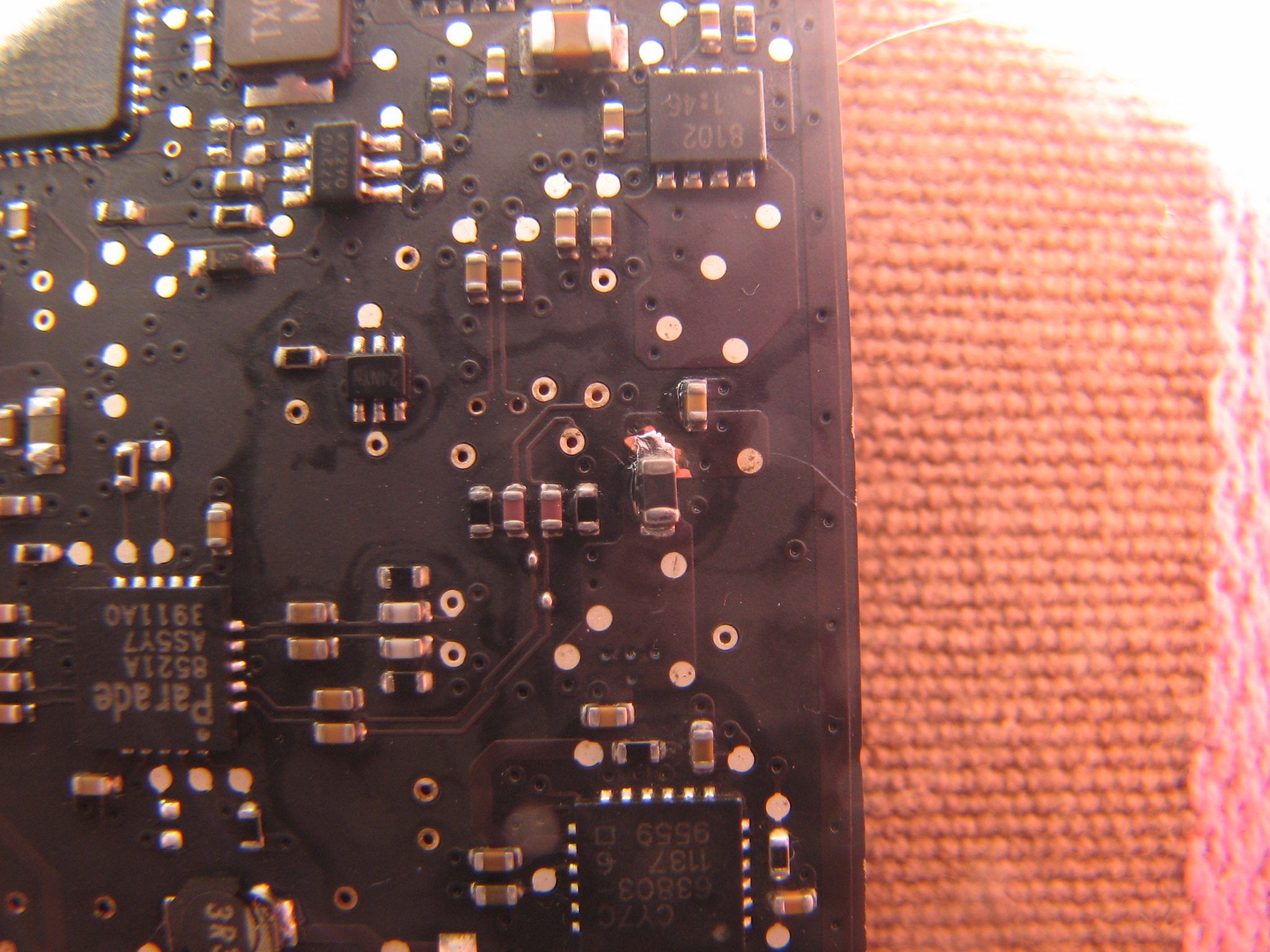

    I have attached some pics of the broken component (two sides of the board, the other side is the SATA connector) and some pics of the hard drive and cable.

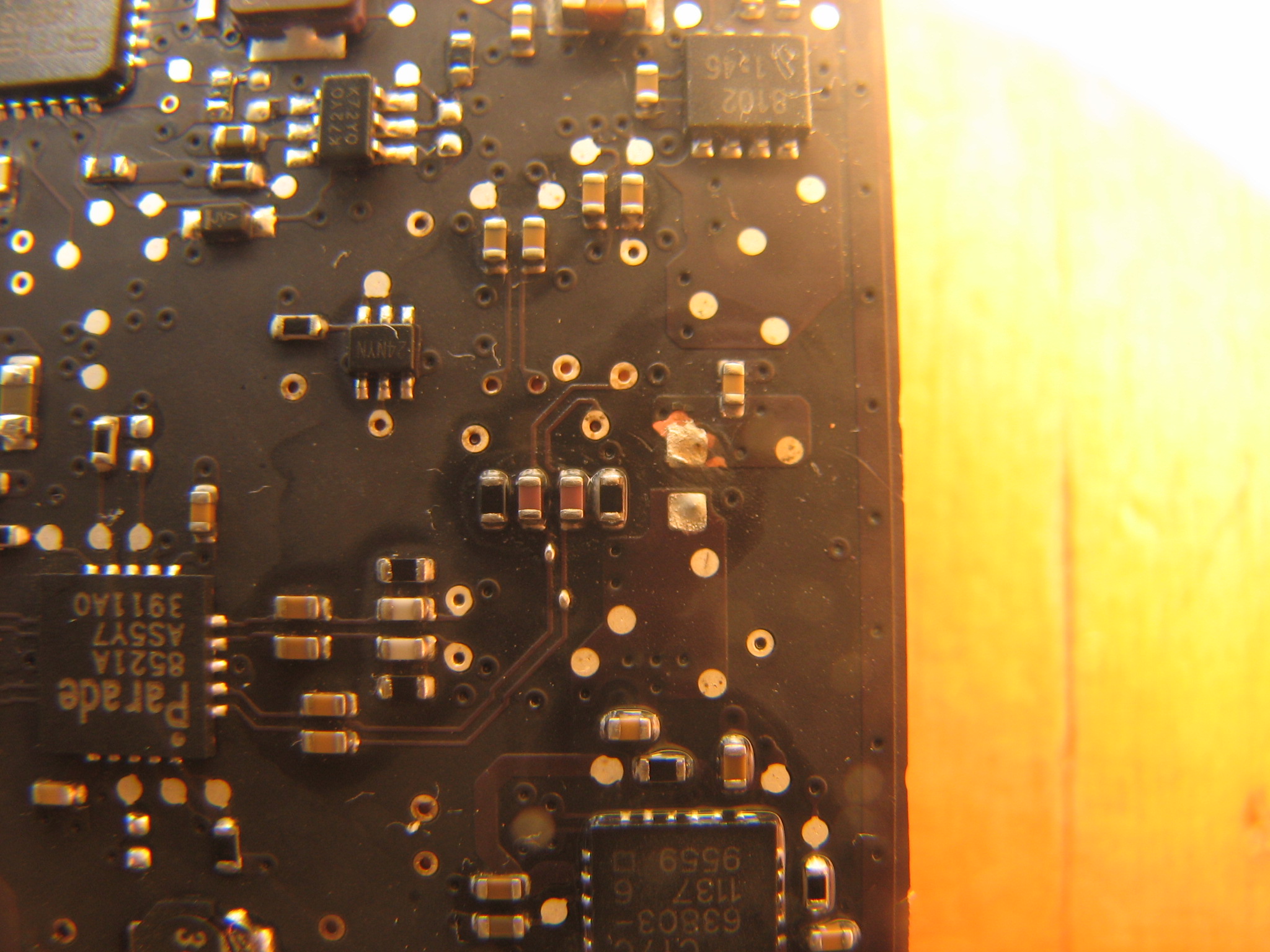

    My question is: what is this burnt component (first pic, right side of the board) and where can I source it? Is it a fuse?
    Is there a full macbook schematic available somewhere on the net?
    Thanks for your help!
    PS: excuse my english...


    Attached Files:

  2. Dark Void macrumors 68030

    Dark Void

    Joined:
    Jun 1, 2011
    Location:
    Cimmerian End
    #2
    You can check iFixit guides for a complete teardown. Not sure what which pic you are trying to identify, you listed all of them already.

  3. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
    #3
    My explaination must be very unclear...
    I already dismantled the mac, the board pics are here to show a burnt component on the right side. It is easy to find.

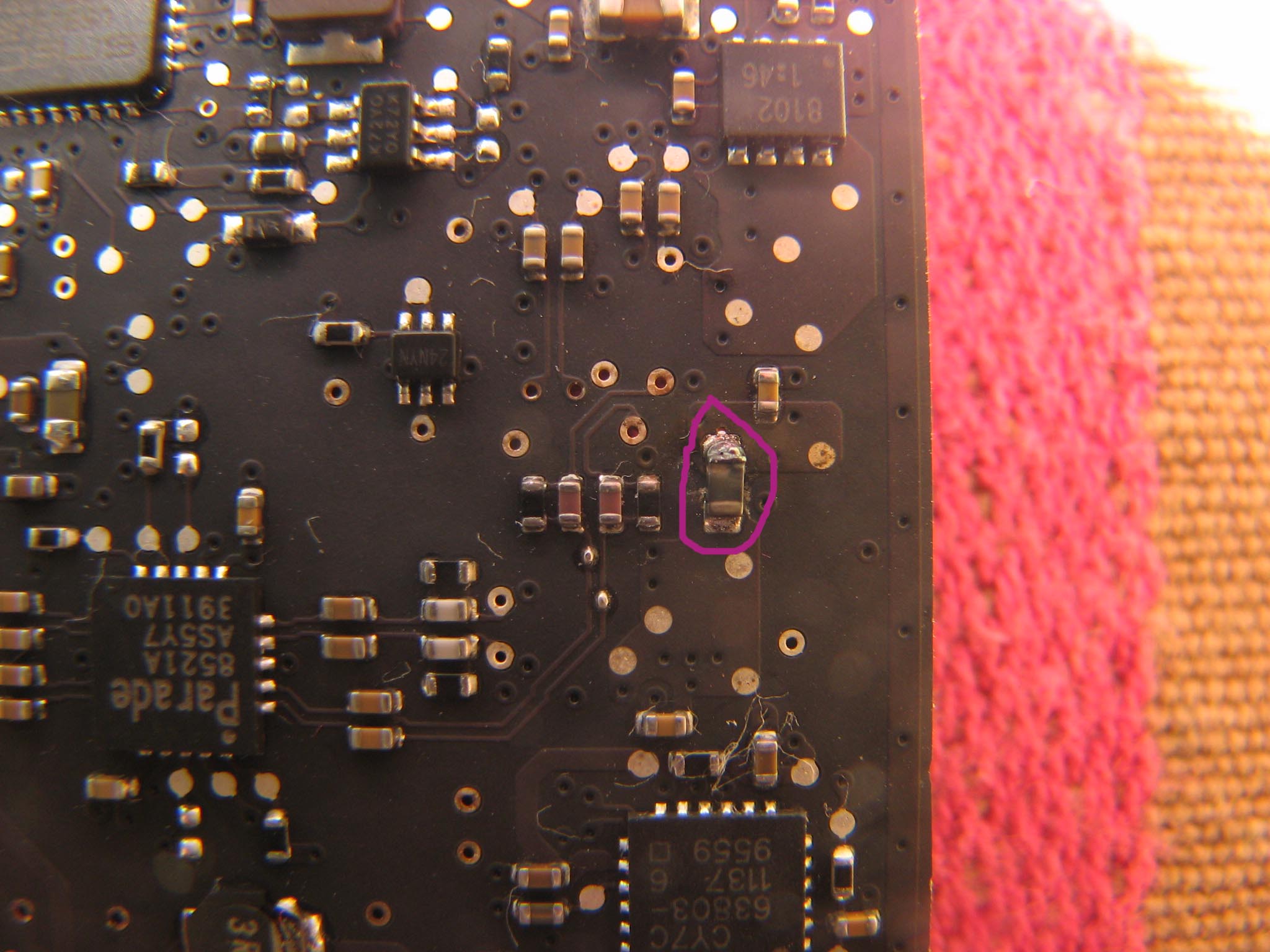

    Here is the same pic with the faulty component red circled.


    Attached Files:

  4. Dark Void macrumors 68030

    Dark Void

    Joined:
    Jun 1, 2011
    Location:
    Cimmerian End
    #4
    Oh, I see. Not sure what that is though, sorry.

  5. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
  6. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
    #6
    hello again,
    Today I had the opportunity to pick up a drive cable so that I could test a known good drive on the board's sata connector, and the drive didn't even spin.
    The superdrive works perfect on its own sata connector.
    Should this confirm that the burnt component is some kind of fuse protecting the hard drive sata connector voltage supply?
    How could I check this statement?

  7. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
    #7
    Hello,
    I managed to get a board schematic as well as a board layout.
    I found the faulty component to be "L4500, FERR-70-OHM-4AMP"
    I tried to find one on Farnell, without success.
    Could someone help me source the correct replacement part?
    Thanks.

  8. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
  9. Dangerous Theory macrumors 68000

    Joined:
    Jul 28, 2011
    Location:
    UK
    #9
    That's impressive that you found the part. I hope it works out, will be interested to know if you've fixed it.

  10. T5BRICK macrumors 604

    T5BRICK

    Joined:
    Aug 3, 2006
    Location:
    Oregon
    #10
    That looks like the right part, as long as it is the correct size.

    One check to see if the part on the logic board is actually at fault(yes I know it's burned). Measure the resistance across it with a multimeter. It should be a couple ohms or less.

    Keep in mind that this may not be the only bad part on the board.

    Good luck!

  11. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
    #11
    Yes I know there may be some other damaged parts on the board, but this one is definitely bad ;)
    According to the data sheet, it is 1.6 mm long. It looks like the original size.
    I measured the resistance accross it and it gave infinite reading. I found it to be normal as it was burnt and actually acted like a fuse.
    By reading the schematic, this resistor is in the sata 5V path but I'll be lucky if it ended to be the only damaged part...
    I'll keep you posted, thanks for the replies :D

  12. seveej macrumors 6502a

    seveej

    Joined:
    Dec 14, 2009
    Location:
    Helsinki, Finland
    #12
    Ho *****!

    I've done my share of repairing broken mac's, but never have I even considered starting soldering on the logic board. Never.
    Thenagain, you seem to know something about what you're doing, so I'll wish you the best of luck.

    Pekka

    P.S. Welcome to the forum.

  13. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
  14. ggn1971 thread starter macrumors newbie

    Joined:
    Sep 27, 2012
    #14
    Hello,
    I'm back with fresh and good news :)
    I received the components from Farnell this morning.

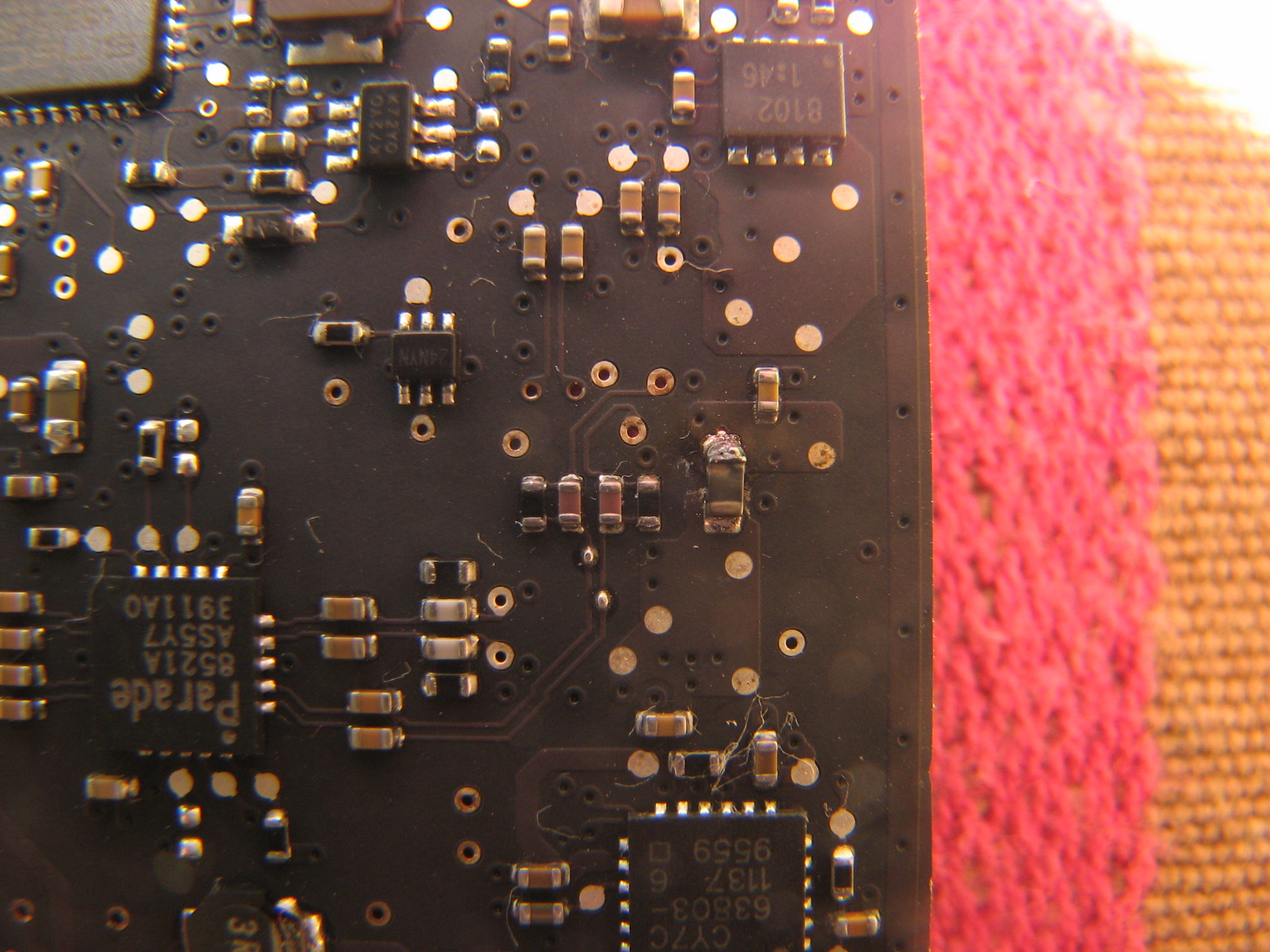

    The first pic shows the board with the faulty resistor removed and the pads cleaned with flux and alcohol.

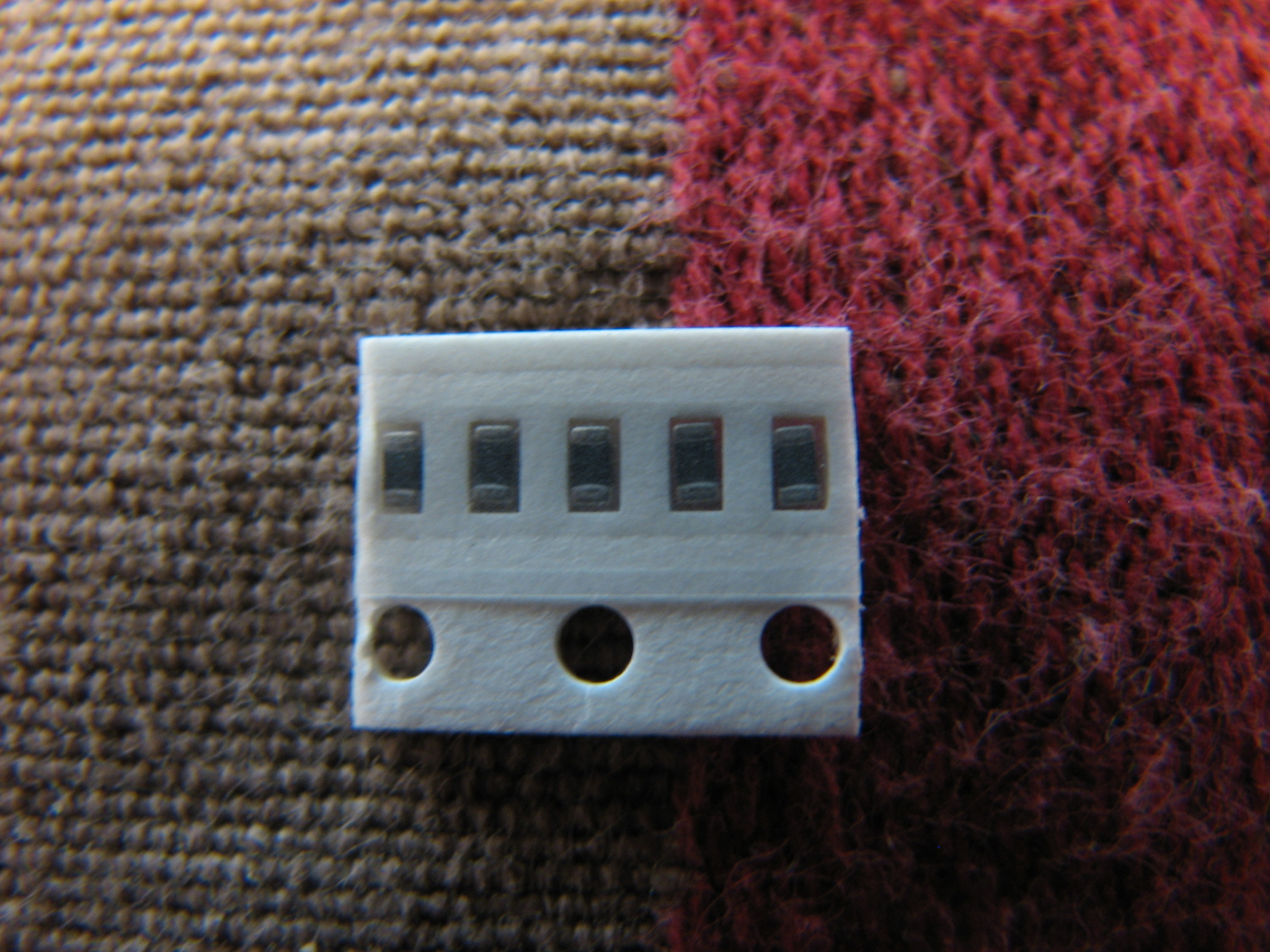

    The second one shows the new resistors from farnell and the last one shows the new resistor soldered to the board. My tools are good binocular magnifiers and a small soldering iron, with flux to help soldering and alcohol to clean everything.
    Once everything back in place with a good drive pluged in, I'm a bit stressed to push the power switch...
    But voilà, it works like a charm :D
    Another macbook saved and fully back to life!
