MacBook Pro A1278 - Burnt Component

Discussion in 'MacBook Pro' started by iMayne, Jun 8, 2016.

  1. iMayne macrumors newbie

    iMayne

    Joined:
    Apr 29, 2010
    Location:
    UK, West Midlands
    #1
    Hi all

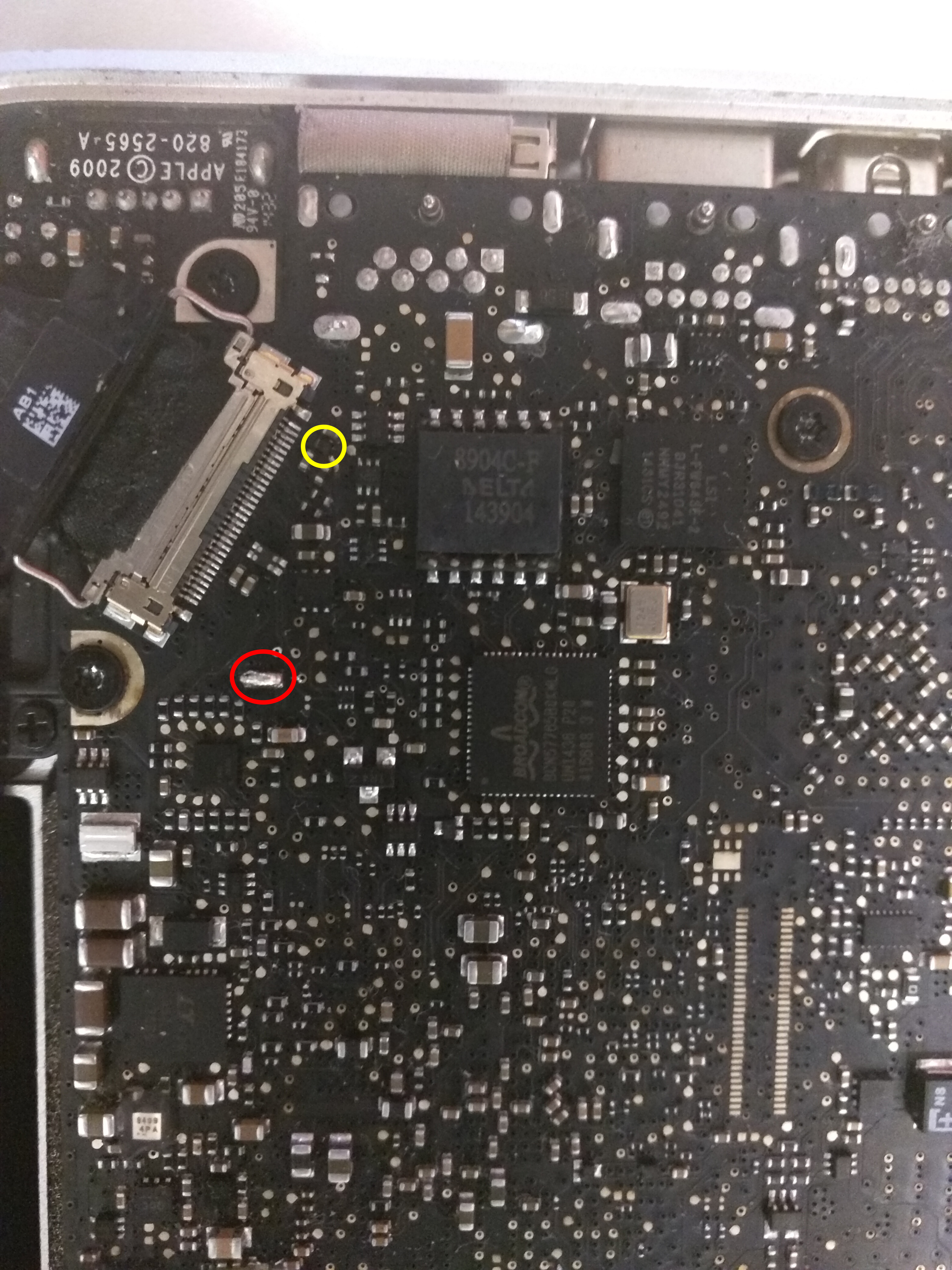

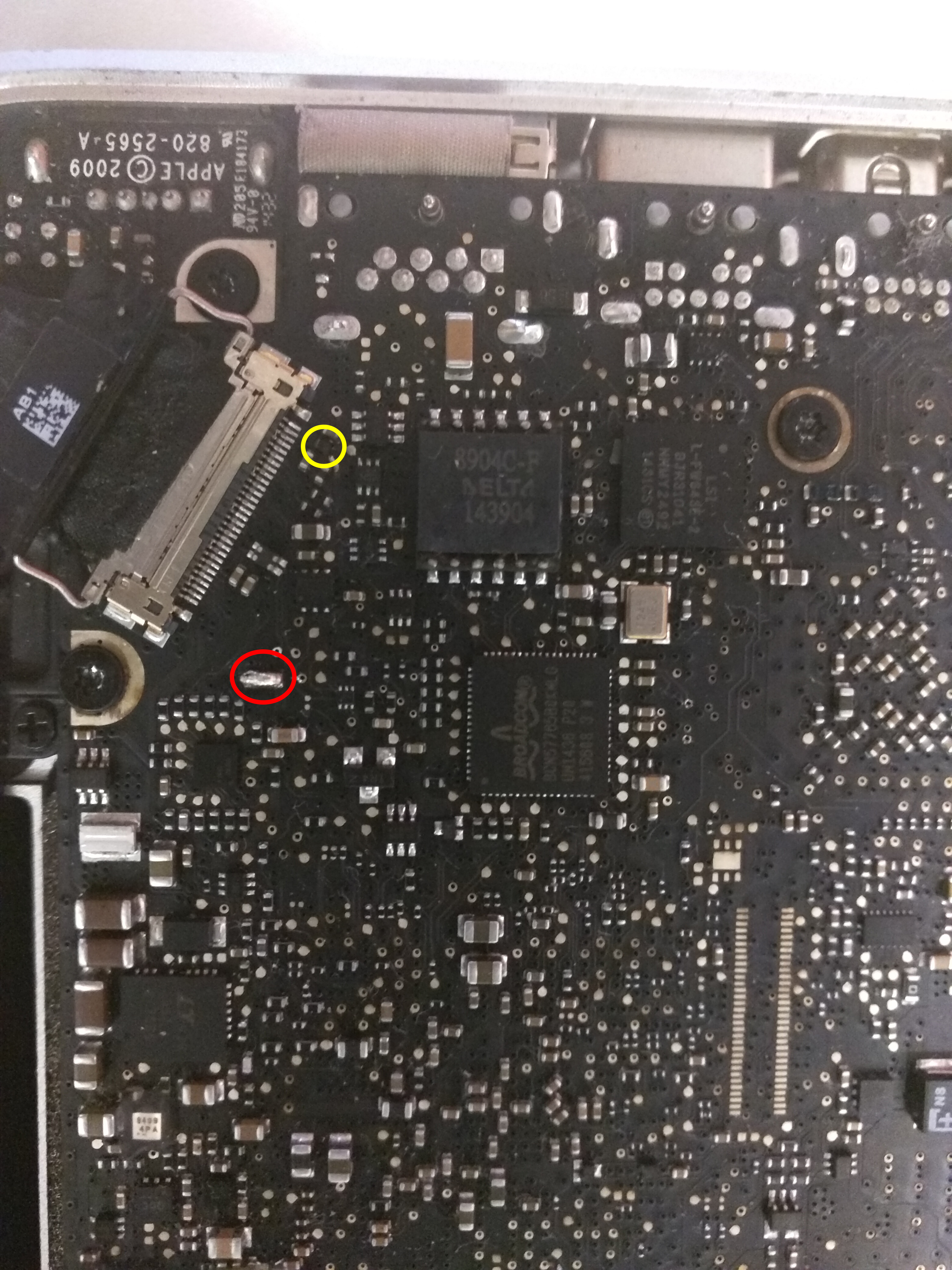

    MacBook was working great. Few minutes, no display. Short story: shorted fuse, near lcd connector, and burnt component. Any schematics available or do you know the rated fuse and burnt part in image?:

    Red: Fuse (bridged to get the backlight)
    Yellow: No idea

    MacBook Pro is the mid 2012 model

    [​IMG]


    Attached Files:

  2. rgarjr, Jun 10, 2016
    Last edited: Jun 10, 2016

    rgarjr macrumors 603

    rgarjr

    Joined:
    Apr 2, 2009
    Location:
    Southern Cal
    #2
    From what I've seen on other posts, you won't find any schematics and it's even against the rules on here to ask about it.

  3. iMayne thread starter macrumors newbie

    iMayne

    Joined:
    Apr 29, 2010
    Location:
    UK, West Midlands
    #3
    It's cool. Problem solved.
