Macbook Pro Kernel_task over 300%

kingskie

macrumors newbie
Original poster
Oct 7, 2016
6
0
indonesia
Hello,

I am a newbie here..please help me.

I am doing repair for Macbook Pro A1278 (APPLE A1278 820-2936-A).

these are the sympthoms:
1. when turn on the macbook i have to push the power button until the chimes sound if not it can not be turn on.
2. after turn on the macbook is very lagging. so when i check the activity monitor it shows kernel task over 300%.

so i tried some action:
1. reinstall the mac os x -- nothing changed
2. change the battery -- nothing changed
3. take out all the connector (wifi, speaker, dvdrom) -- nothing changed
4. try to safe mode boot - kerner_task below 50% and no lagging.
5. try to do AHT -- shows error 4SNS/1/40000000:IB0R-9.166
6. try to measure the U5400 --it shows 0V at pin 6.

P.S. this macbook pro has no water damage

Help me please.

FD


Attachments


JohnDS

macrumors 65816
Oct 25, 2015
1,185
244
From googling, it appears that the error code quoted is a logic board sensor error. I think your logic board needs to be repaired or replaced. This does not sound like a software problem.


kingskie

macrumors newbie
Original poster
Oct 7, 2016
6
0
indonesia
thank for reply JohnDS.
i know this is logic board problem that is why i need help to repair it. can somebody assist me?


kingskie

macrumors newbie
Original poster
Oct 7, 2016
6
0
indonesia
IB0R is the Battery Current Sensor.

Sensor: IB0R
Location: Logic Board
Description: Battery (BMON) (Current)
MRI/ASD Name: Battery

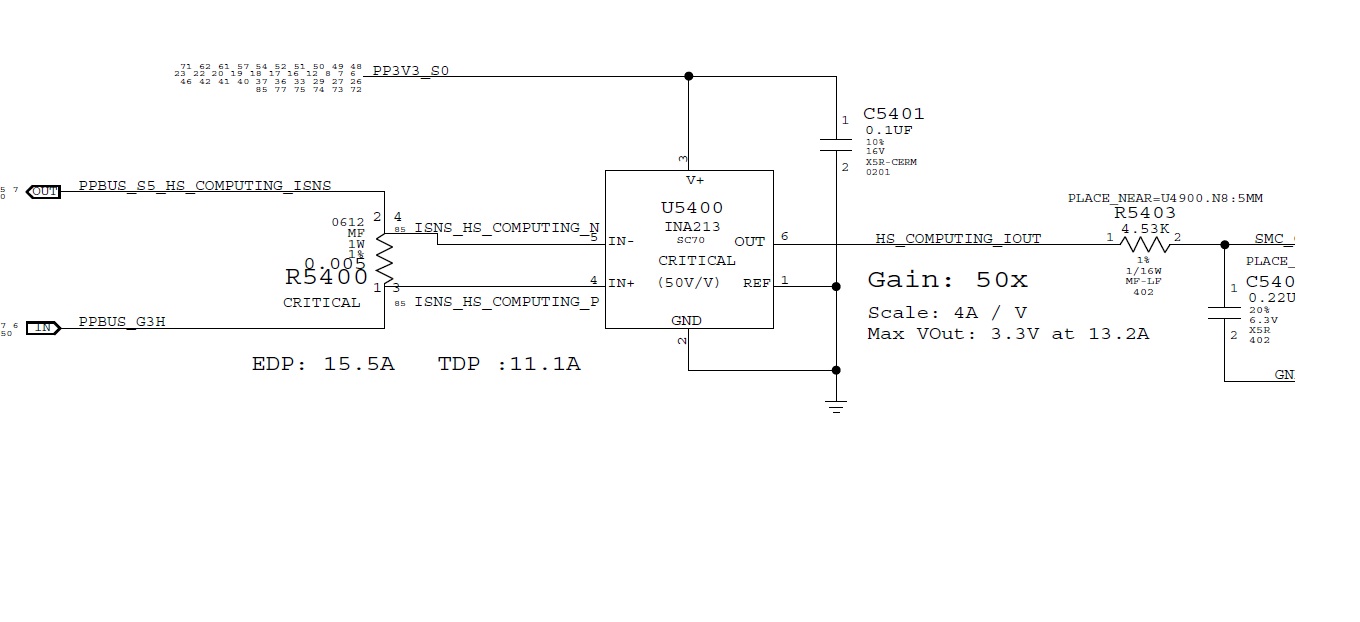

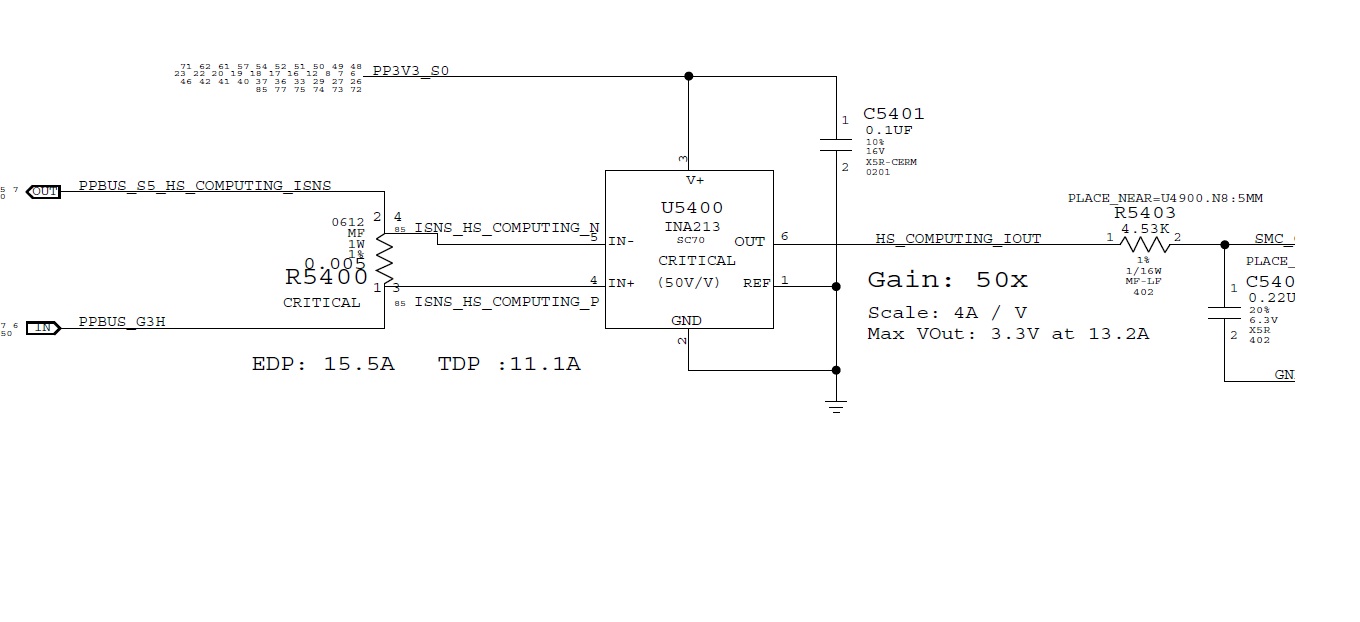

In the schematic it looks like this circuit is called "CHARGER BMON High Side (BATTERY DISCHAEGE) Current Sense, MUX & Filter" on page 50, High Side Current Sensing. That would be around U5420 / U5421.

Pin 6 could be a signal line so I'm not sure whether there is supposed to be a voltage present there or not. Admittedly my knowledge of electronics in this area is still fairly basic.
thanks for the reply iMacC2D.

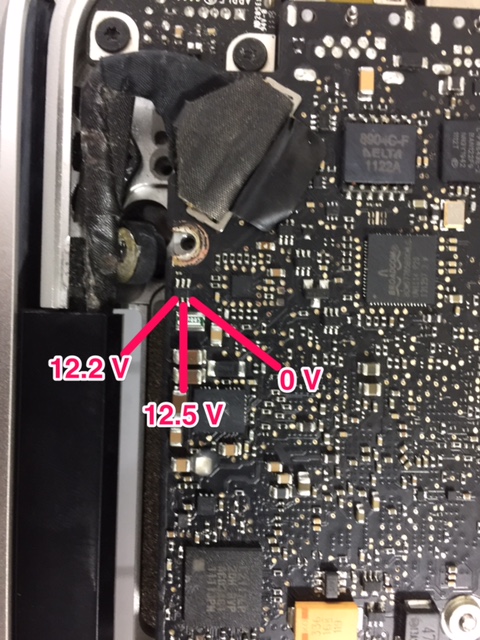

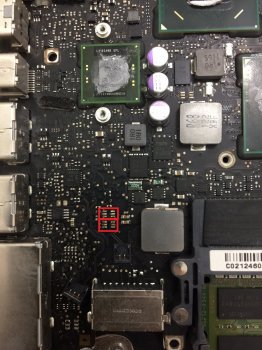

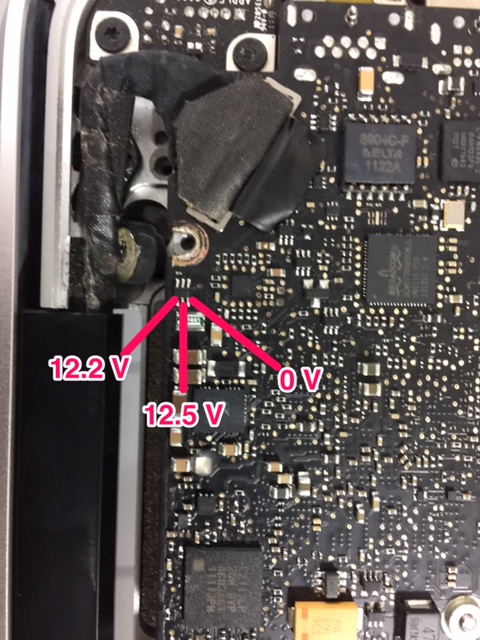

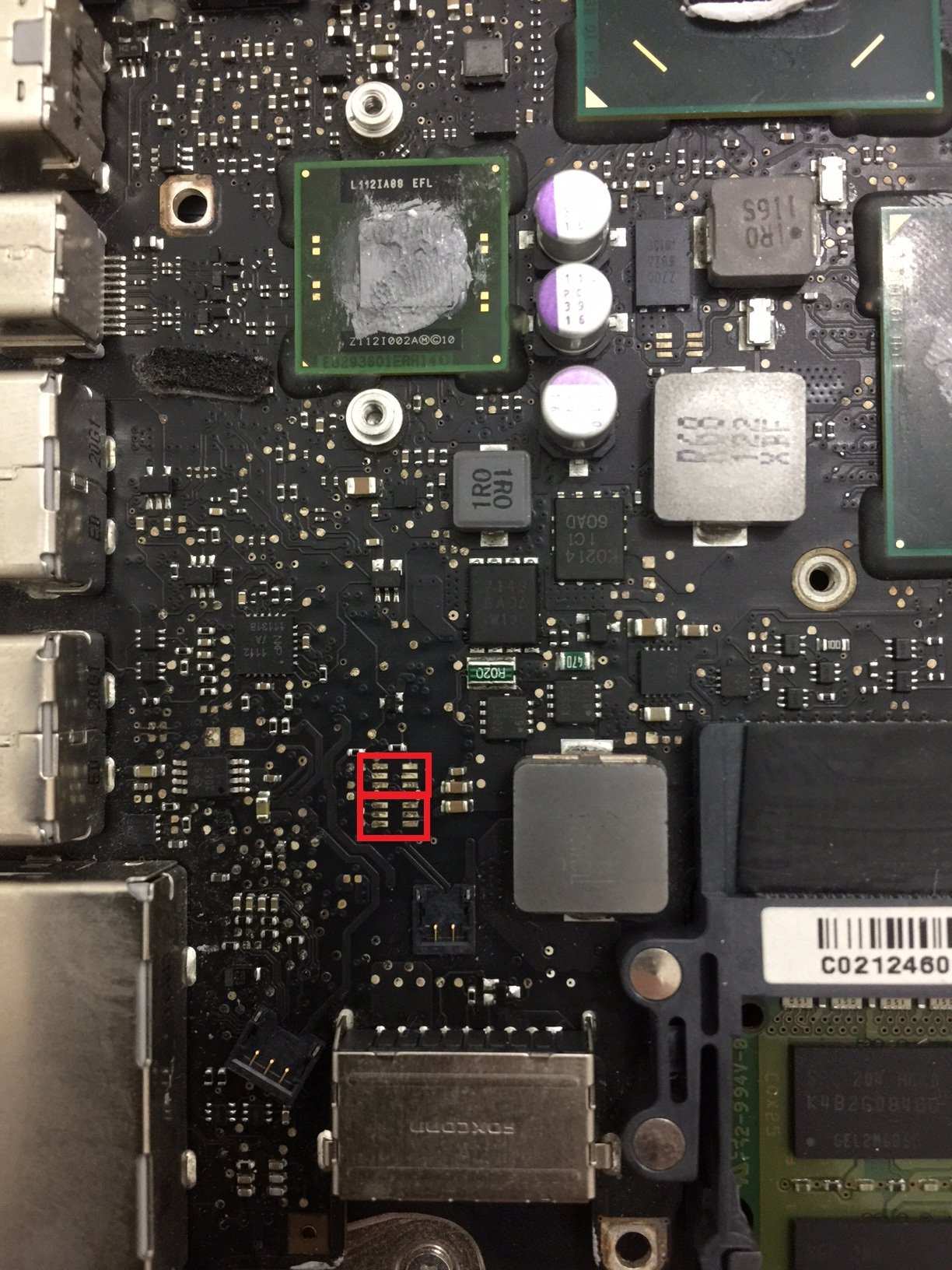

i really confuse about the 820-2936 boardview i have. in boardview i can see there are U5420 and U5421 but phisically on the logicboard there is no present for U5420 and U5421. i can only see the path as i attached the image.

can you help to share your schematic file and boardview for this type?
