macbook screen issue!!!

Discussion in 'MacBook' started by aquasamo, Jun 19, 2011.

  1. aquasamo macrumors newbie

    Joined:
    Jun 18, 2011
    #1

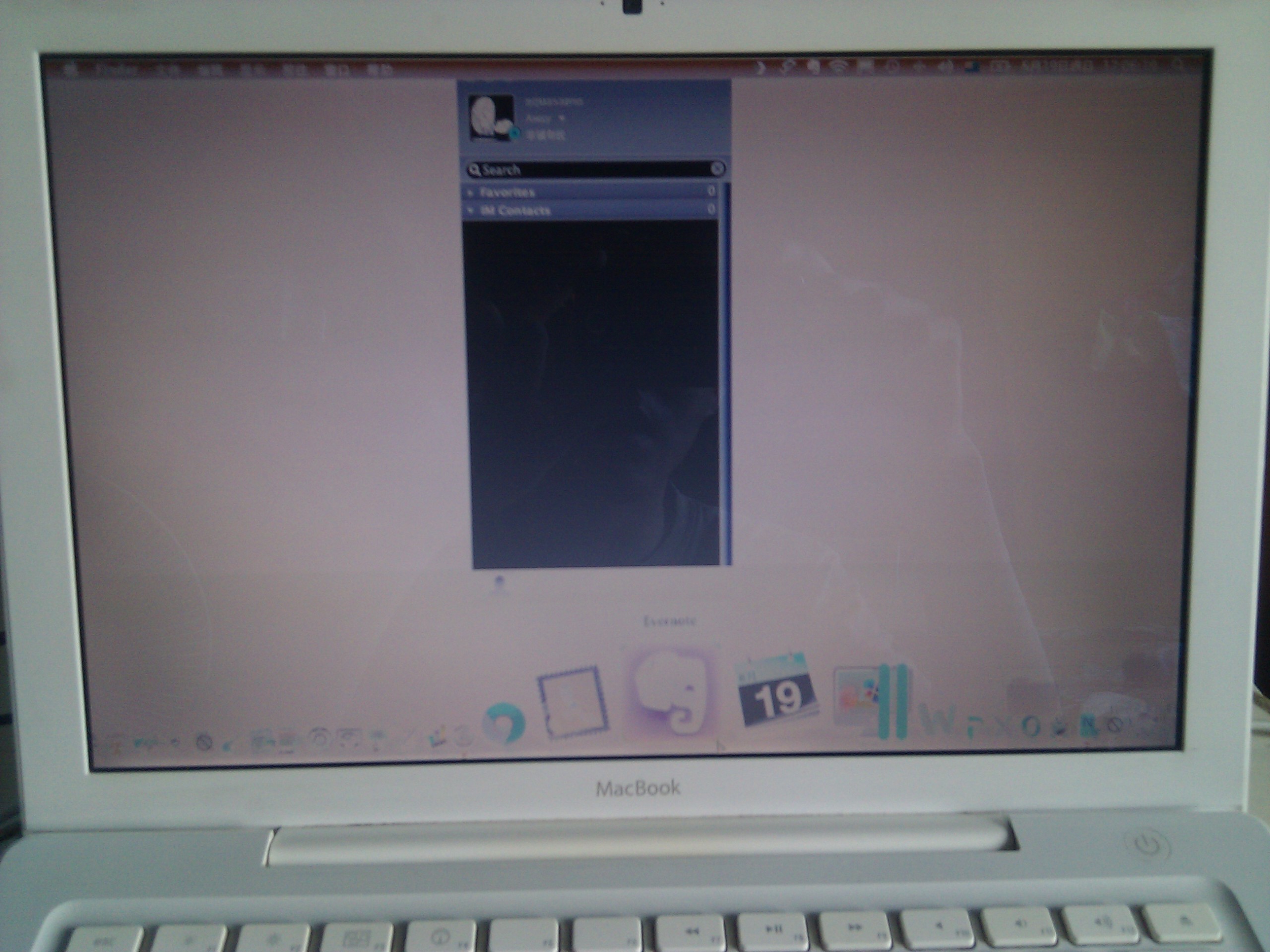

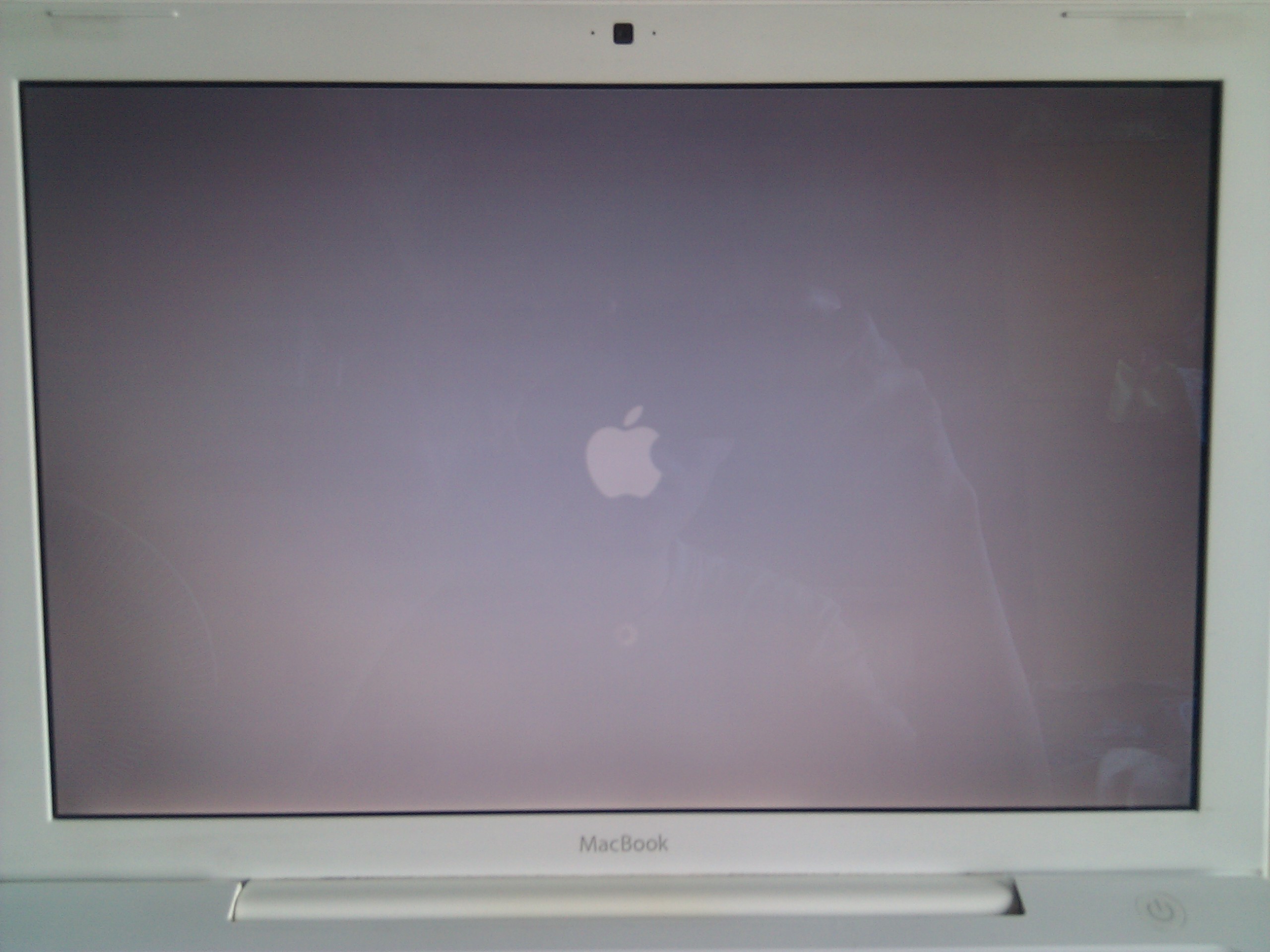

    Is it the LCD issue or the graphic card issue?


    Attached Files:

  2. l.a.rossmann macrumors 65816

    l.a.rossmann

    Joined:
    May 15, 2009
    Location:
    Brooklyn
    #2
    LCD issue for sure.

  3. h00ligan macrumors 68030

    Joined:
    Apr 10, 2003
    Location:
    A hot desert
    #3
    What did you spill on it when the lid was closed??hmmmm?

  4. mryallups macrumors newbie

    Joined:
    Jun 22, 2011
    #4
    I also have this issue. Rossmann, Do you think this is an issue with the complete lcd or with a component like the inverter or a replaceable component on the lcd?

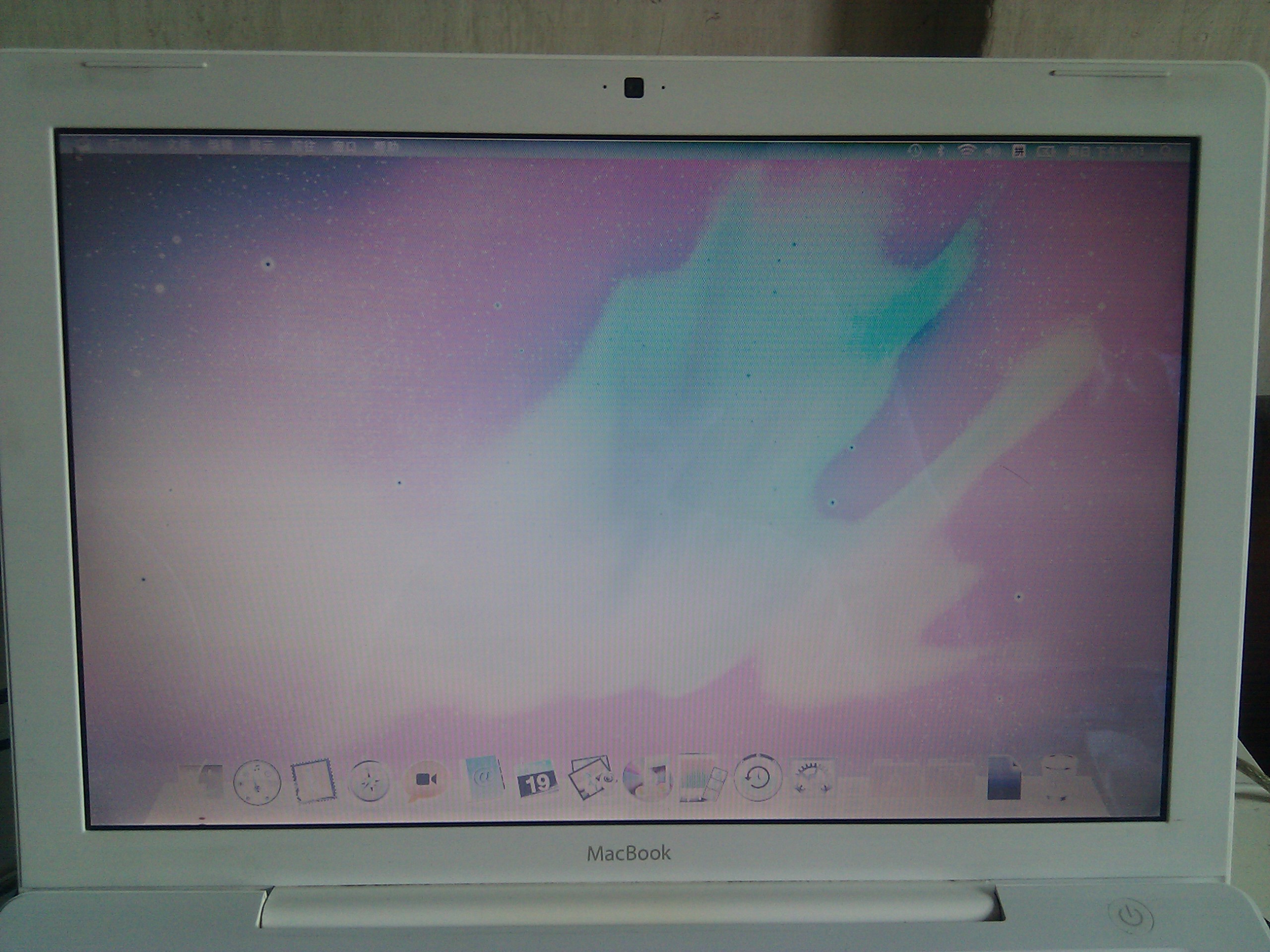

    Here are some pics I took next to my other macbook which is working fine.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  5. MultiFinder17 macrumors 68000

    MultiFinder17

    Joined:
    Jan 8, 2008
    Location:
    Tampa, Florida
    #5
    OP: Try pressing Command + Option + Control + 8 on your keyboard. It looks like you might have inverted the screen colors on accident. Either that or this is indeed a bit of an issue.

  6. mryallups macrumors newbie

    Joined:
    Jun 22, 2011
    #6
    I wish that was the problem, but I already thought of that one. Definitely a display issue. when I run to an external or take a screen shot it looks fine. I have to replace a part somewhere and I am just hoping to spend the least amount possible.

  7. mryallups macrumors newbie

    Joined:
    Jun 22, 2011
    #7

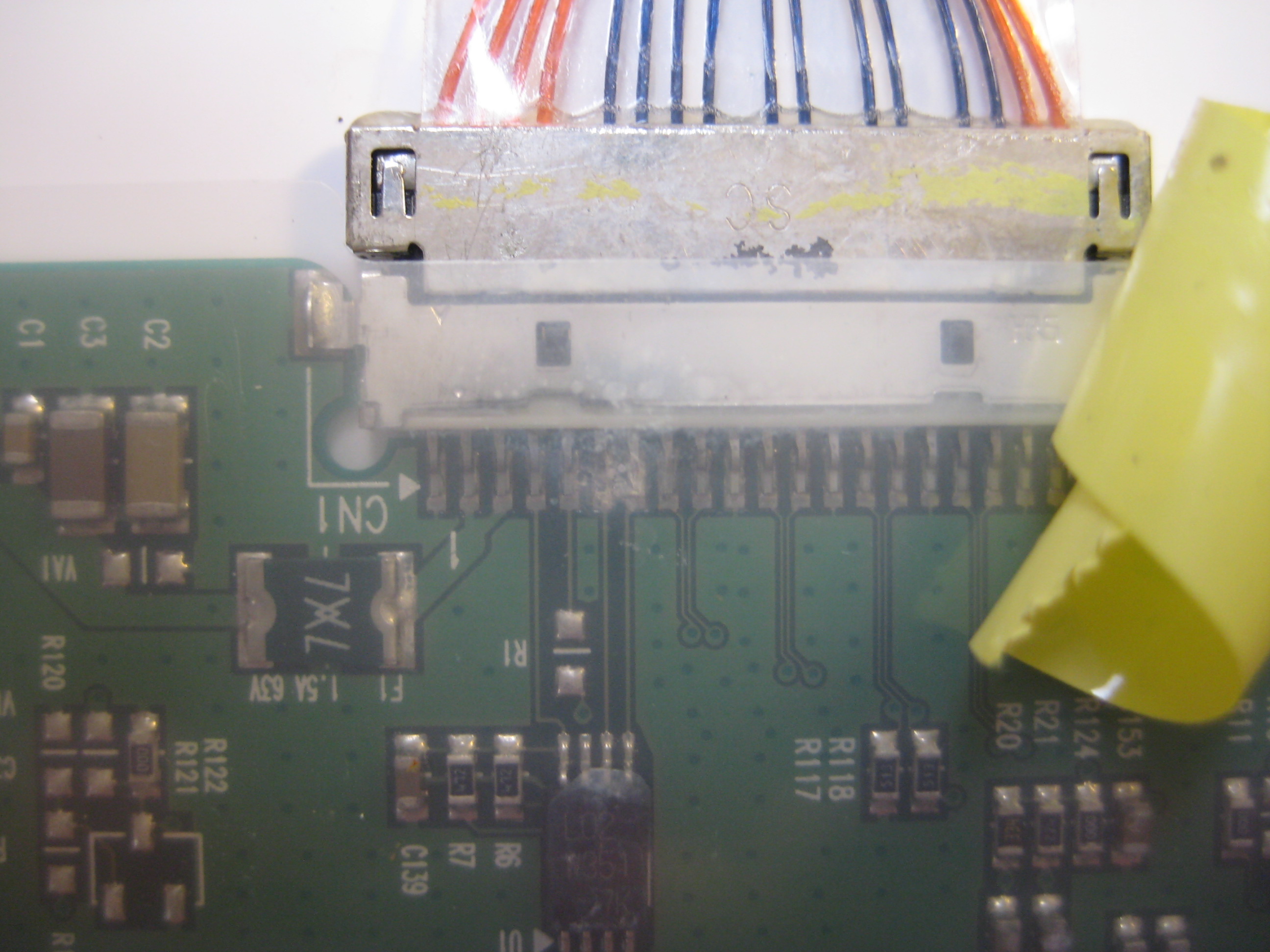

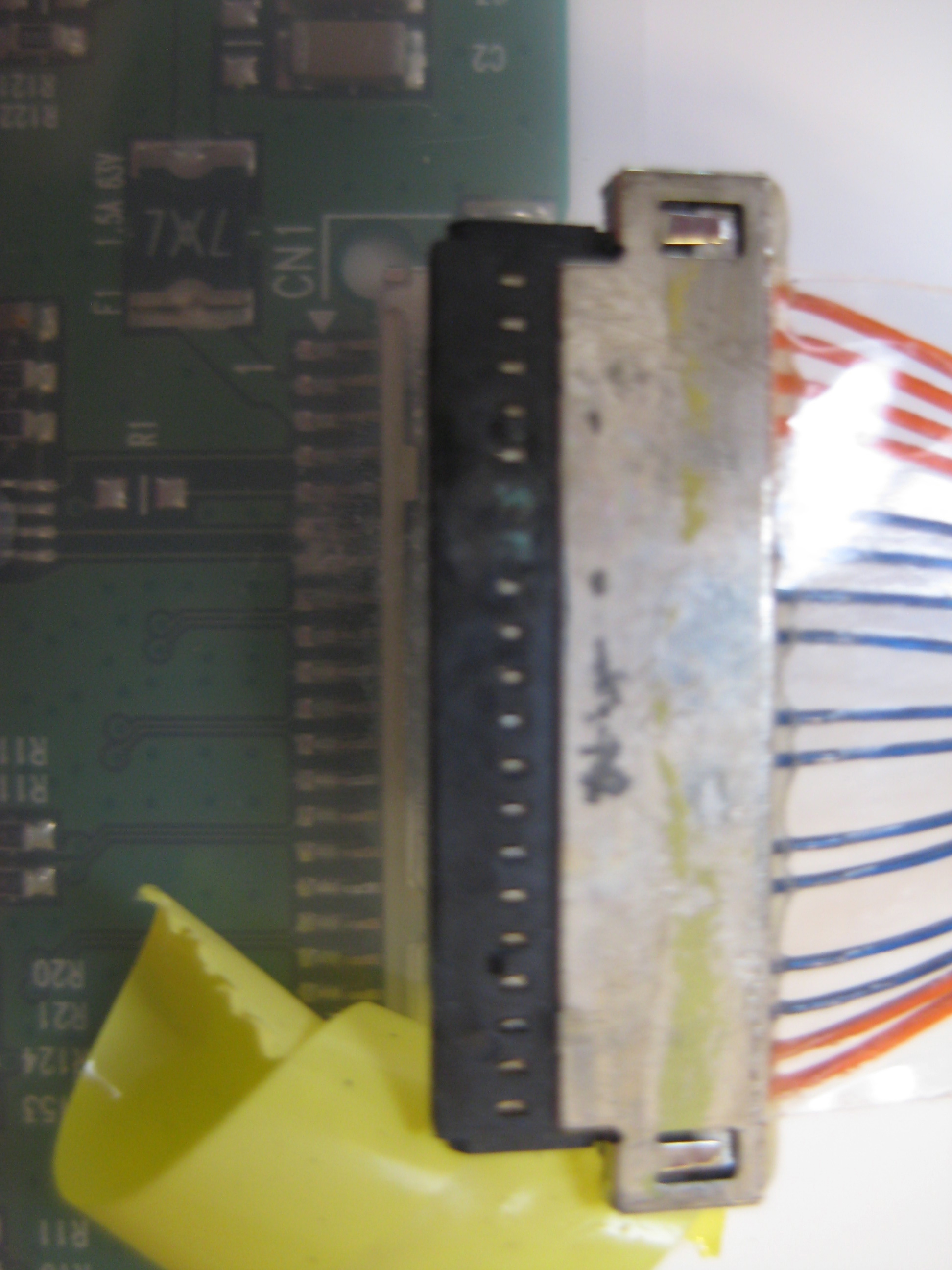

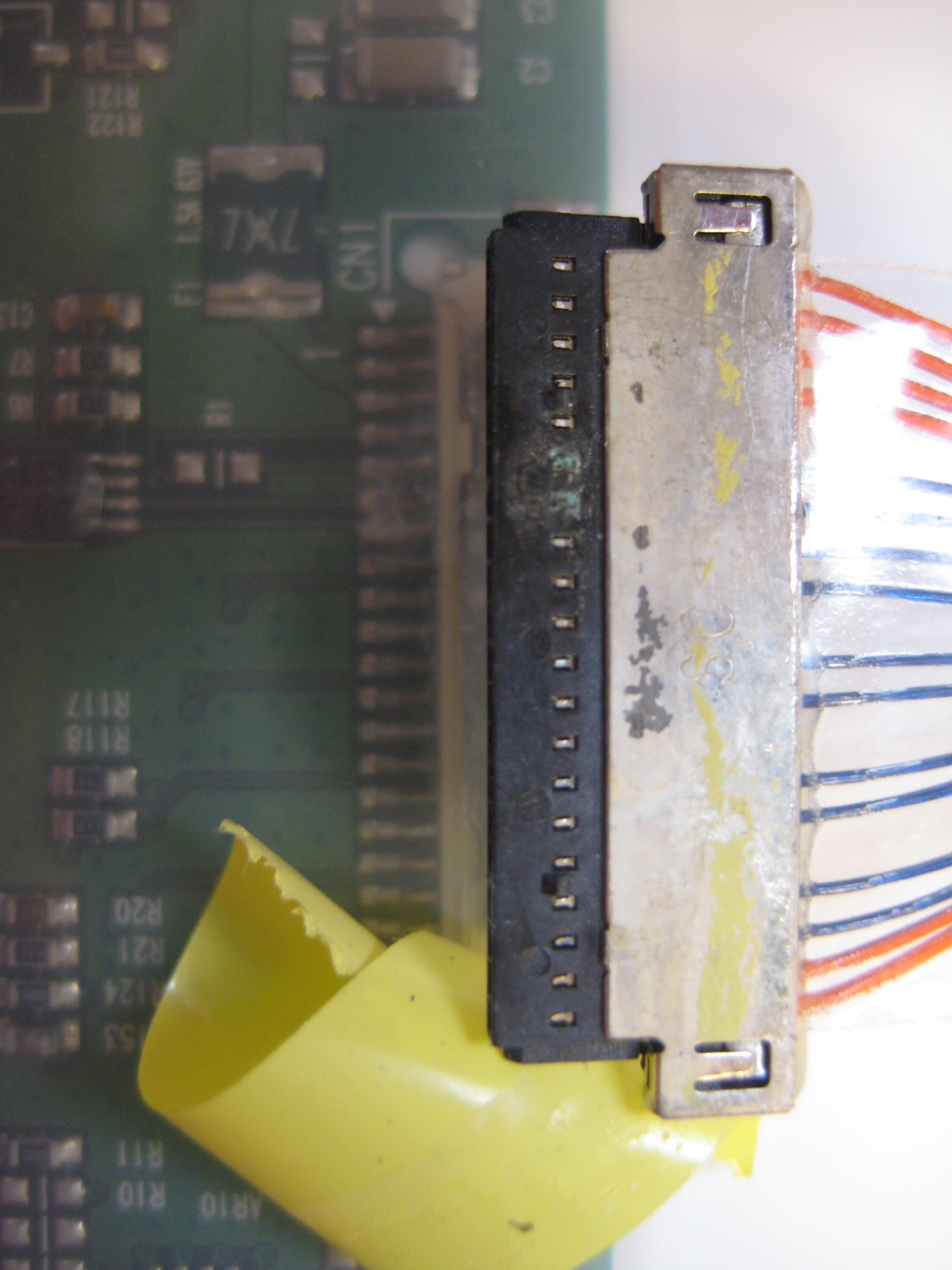

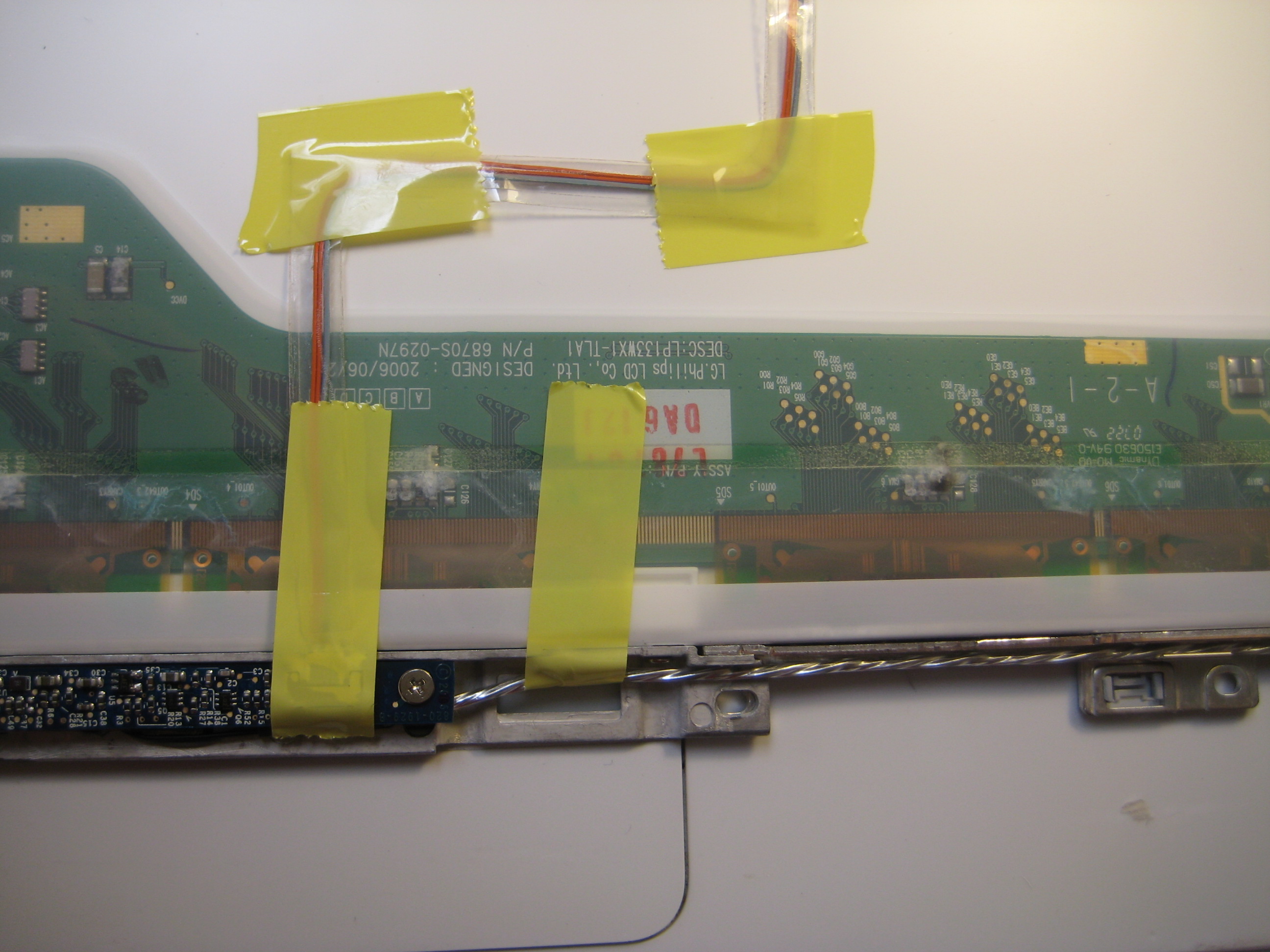

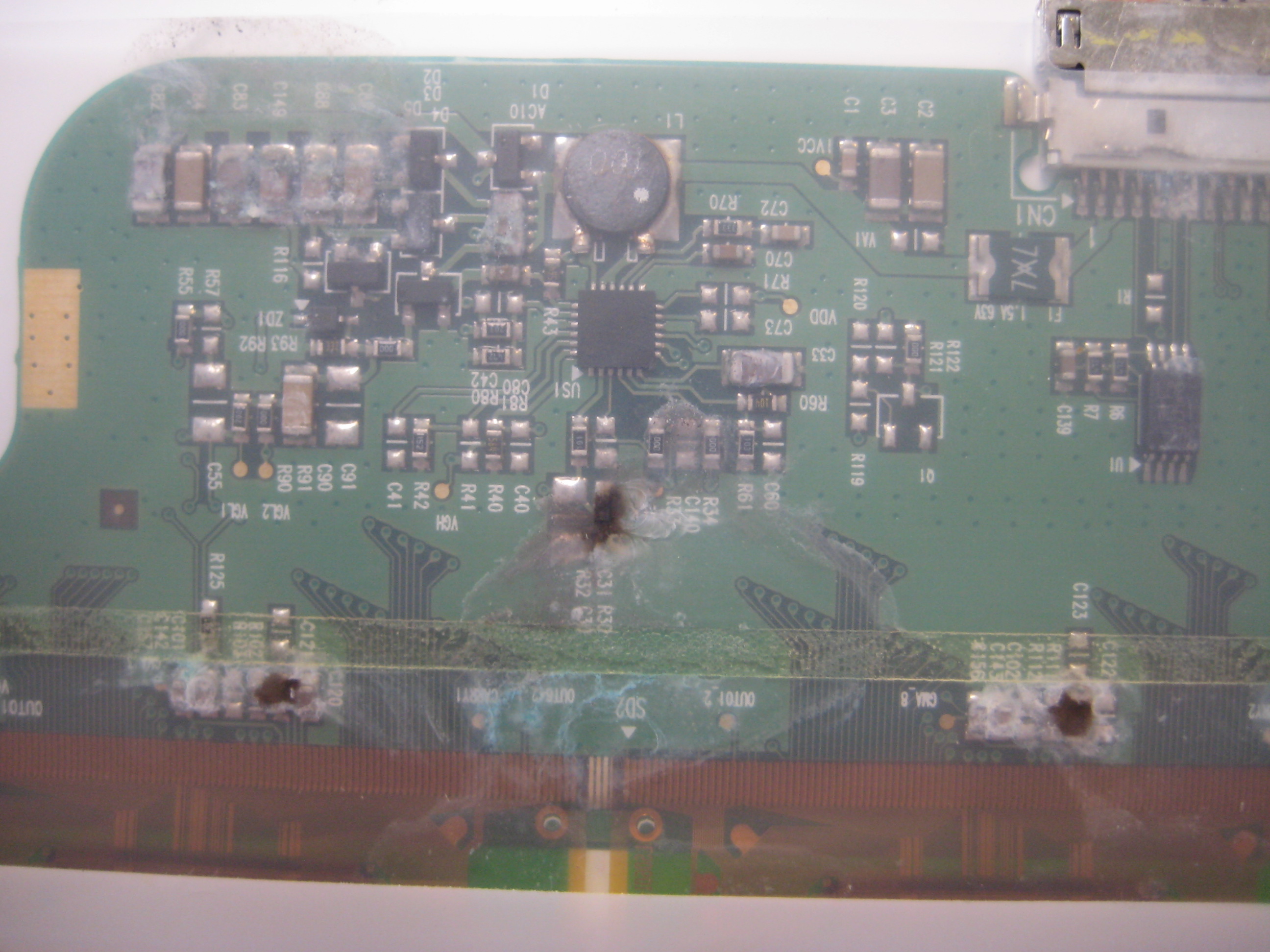

    Here are some photos of the back panel of the screen. can these corroded spots be cleaned to restore the image?


    Attached Files:

  8. brapmac740, Jun 24, 2011
    Last edited: Jun 24, 2011

    brapmac740 macrumors member

    brapmac740

    Joined:
    Nov 2, 2008
    Location:
    Cleveland, Ohio
    #8
    Quick and easy fix for this!


    Step 1. Remove outer bevel.

    Step 2 Remove 12 screws and 7 frame screws.

    Step 3 Remove tape and Inverter wiring that is taped to the back of LCD

    Step 4 Remove LCD clip, by pulling directly to right.

    Step 5 Remove LCD screen

    Step 6 Take to shooting Range

    Step 7 Load [1] .50 caliber bullet into chamber of a weapon of your choice.
    I personally prefer an Ar 15 upper reciever on a .50 call barrel.

    Step 8 Sight in the LCD screen

    Step 9 Pull Trigger

    Step 10 Post picture of fixed LCD screen on Macrumors.

    [​IMG]

  9. mryallups macrumors newbie

    Joined:
    Jun 22, 2011
    #9
    Victory

    I used a little rubbing alcohol on some q-tips to clean the dirty spots and the display is as good as new. I saved $100 instead of buying a new LCD. No need to take it to the shooting range after all.

  10. brapmac740 macrumors member

    brapmac740

    Joined:
    Nov 2, 2008
    Location:
    Cleveland, Ohio
    #10
    Where are you storing this thing that those got so coroded?

  11. mryallups macrumors newbie

    Joined:
    Jun 22, 2011
    #11
    I bought I from someone who obviously spilled water on it.

  12. brapmac740 macrumors member

    brapmac740

    Joined:
    Nov 2, 2008
    Location:
    Cleveland, Ohio
    #12
    How nice of them to notify you about that little hiccup before they sold it to you.
