Macintosh Plus Mini Scale (Custom Built)

Discussion in 'Apple Collectors' started by AppleAlex!, Apr 15, 2014.

  1. AppleAlex!, Apr 15, 2014
    Last edited: Apr 16, 2014

    AppleAlex! macrumors member

    AppleAlex!

    Joined:
    Aug 28, 2011
    Location:
    UK
    #1
    Hi Everyone,

    Just thought Id share my most recent school project with you all, been working on it for a few months now ( whilst juggling A-Level, DT, Physics, Mechanics and ICT)

    Not the kind of design I set out to achieve as I wanted it to be as true to the original Macintosh Plus as possible (but due to equipment restrictions the design began to drift away form that...), but in the end im quite happy with how it turned out.

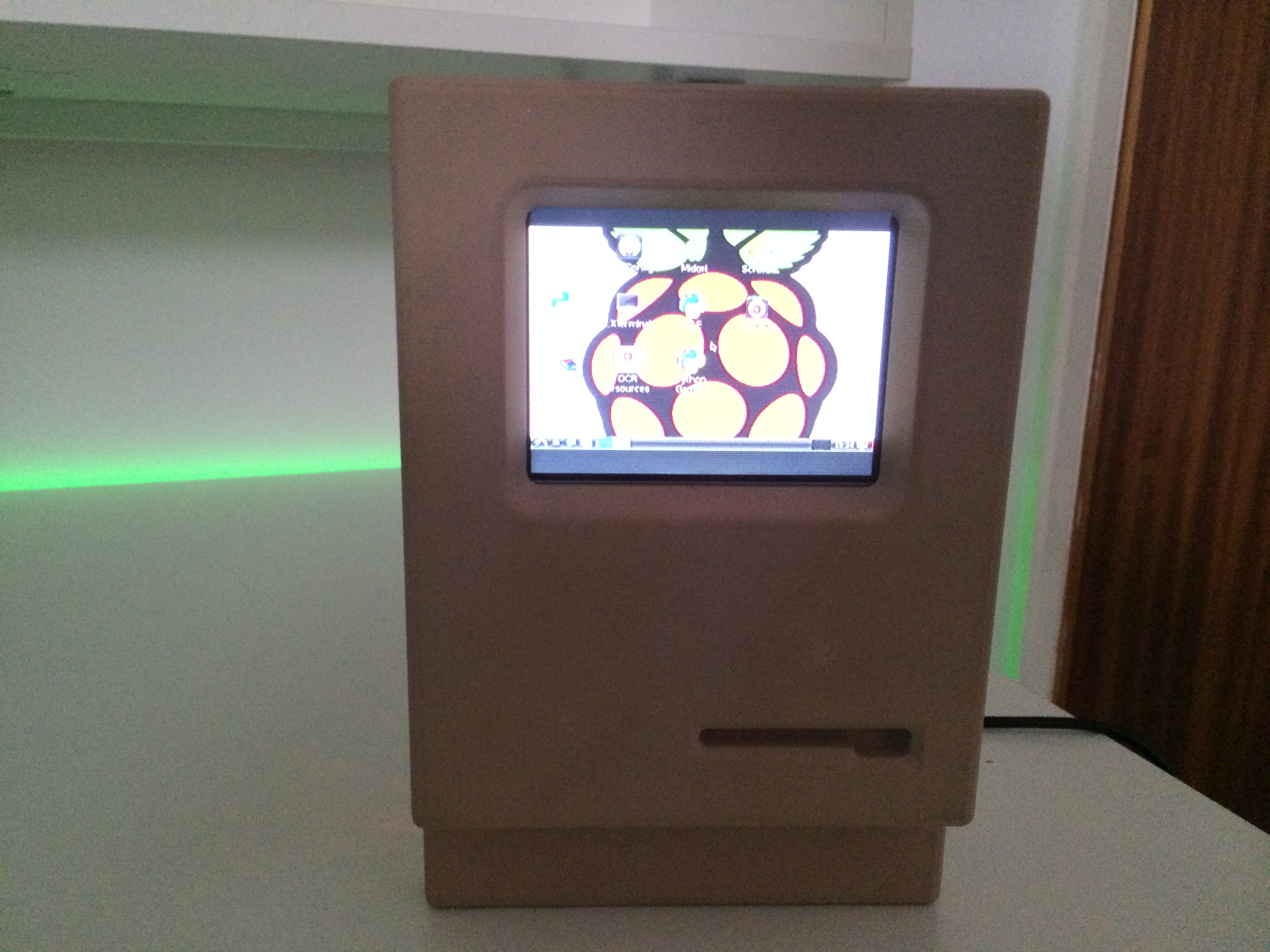

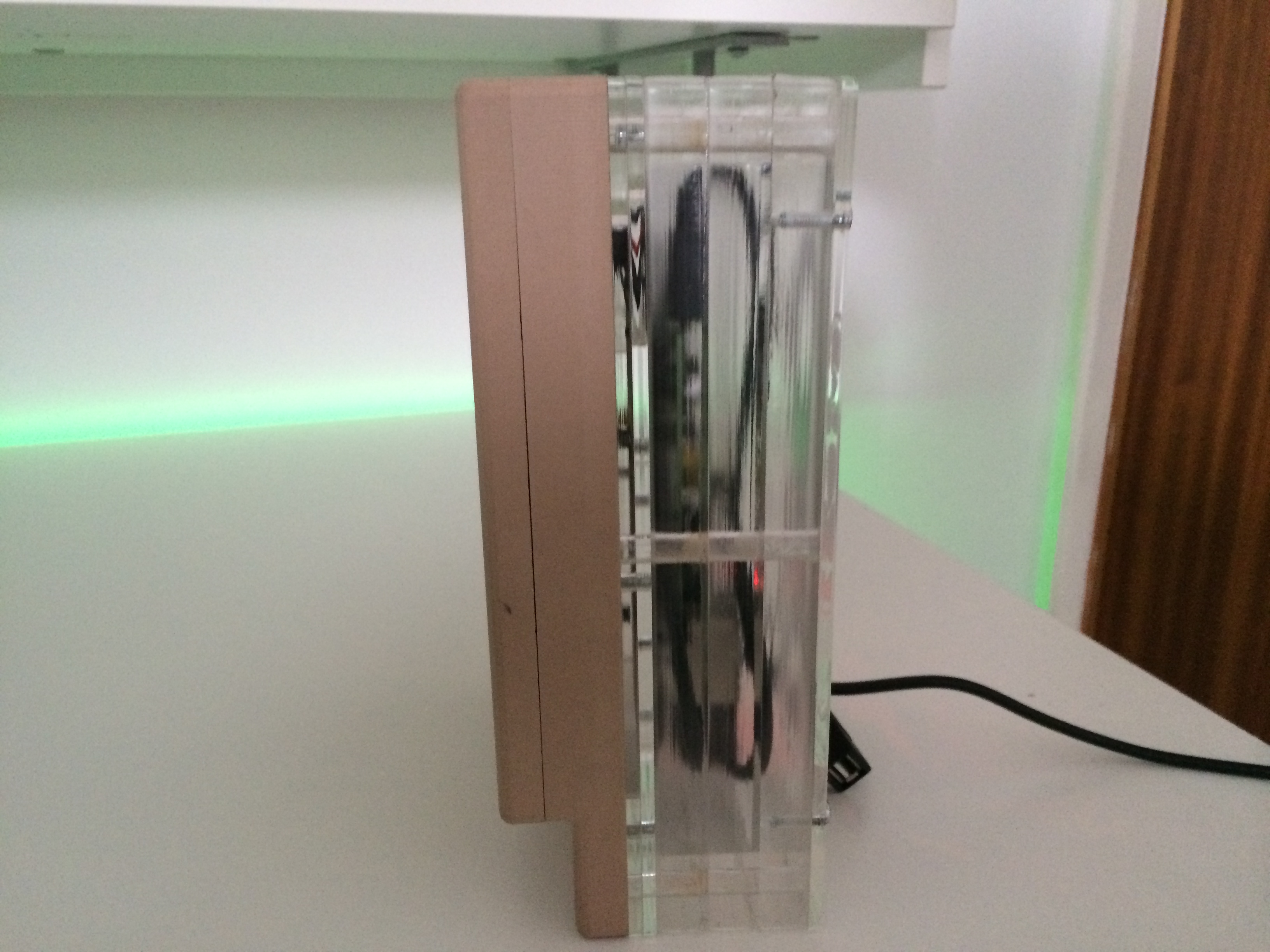

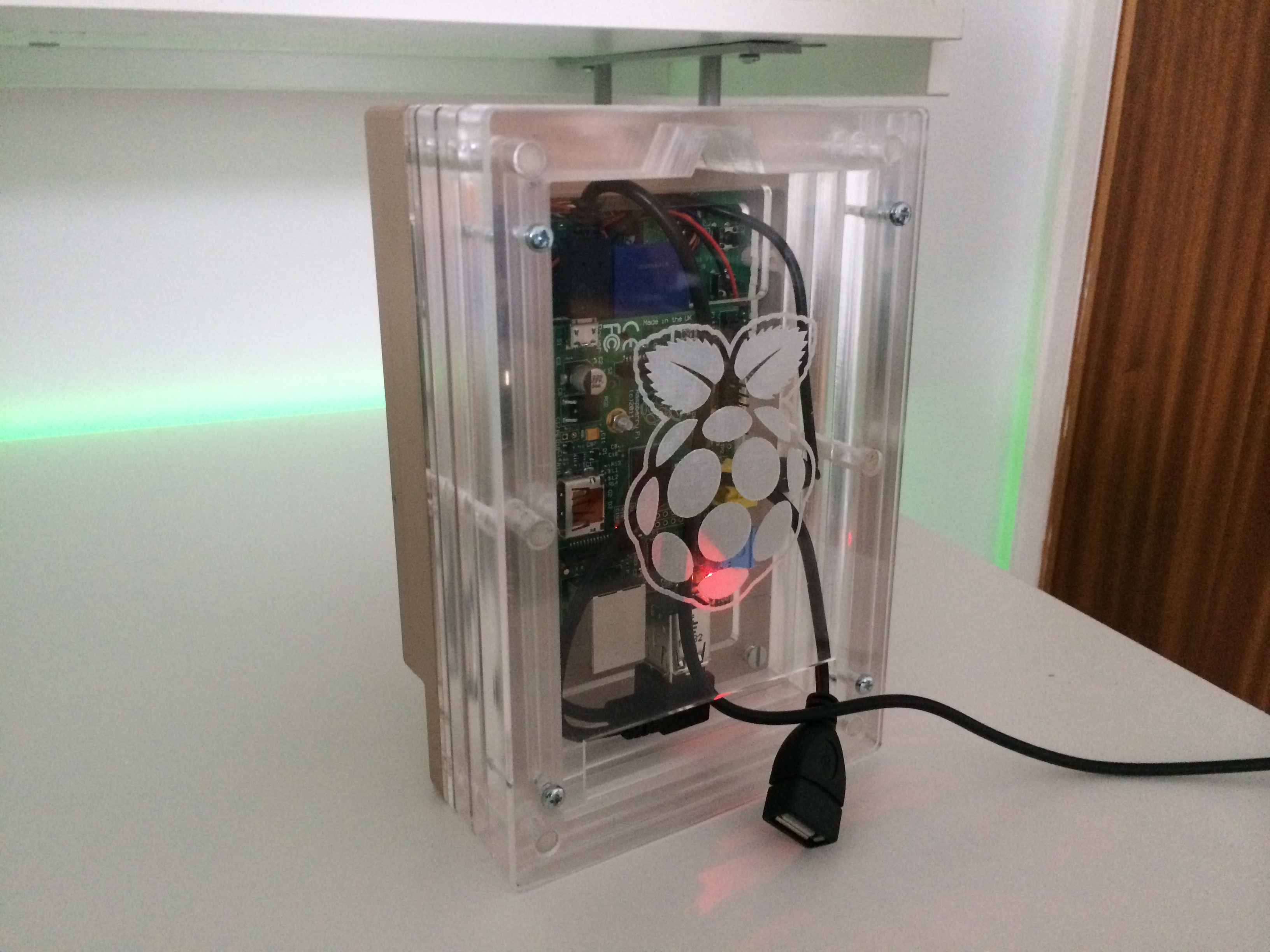

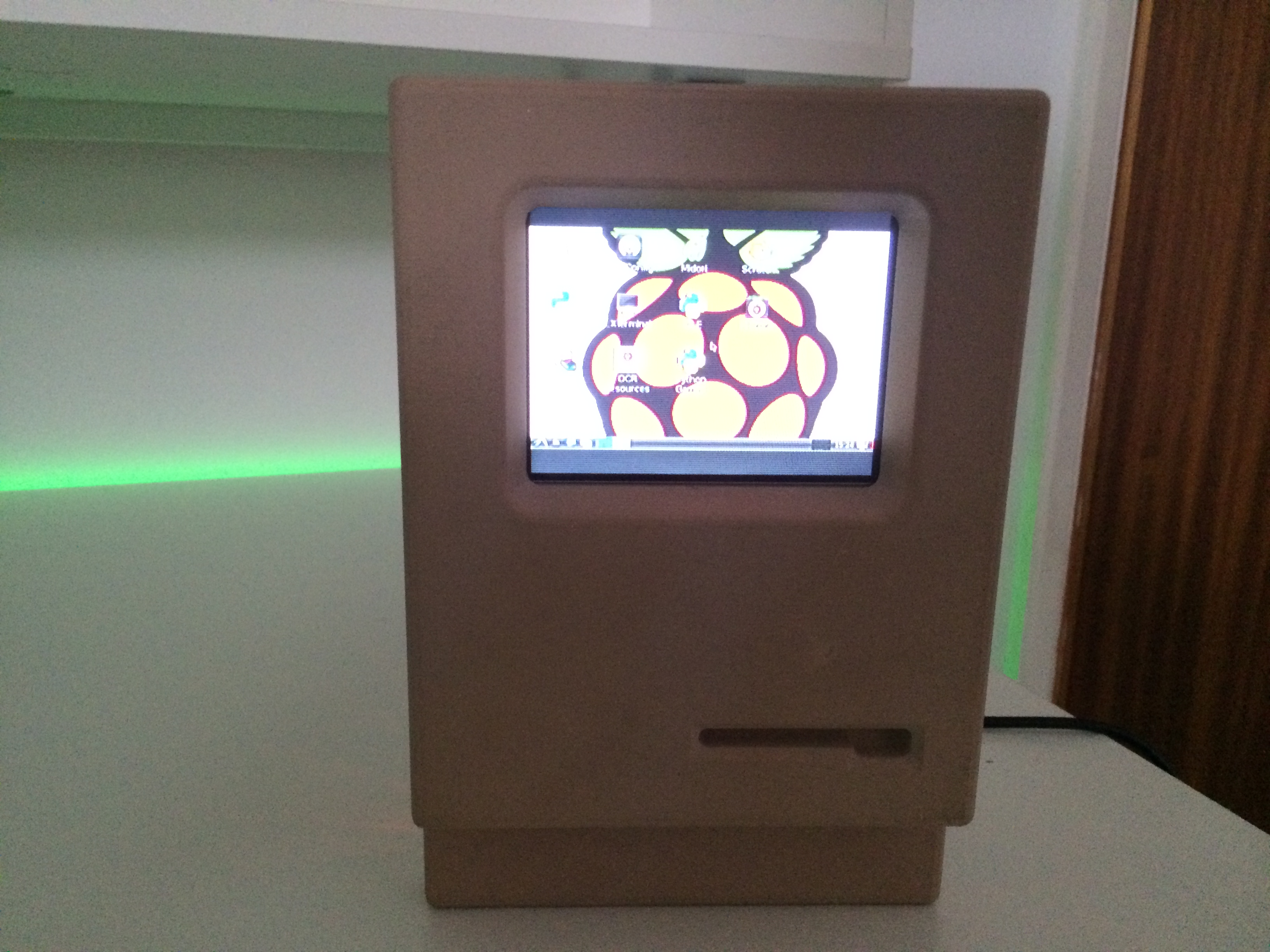

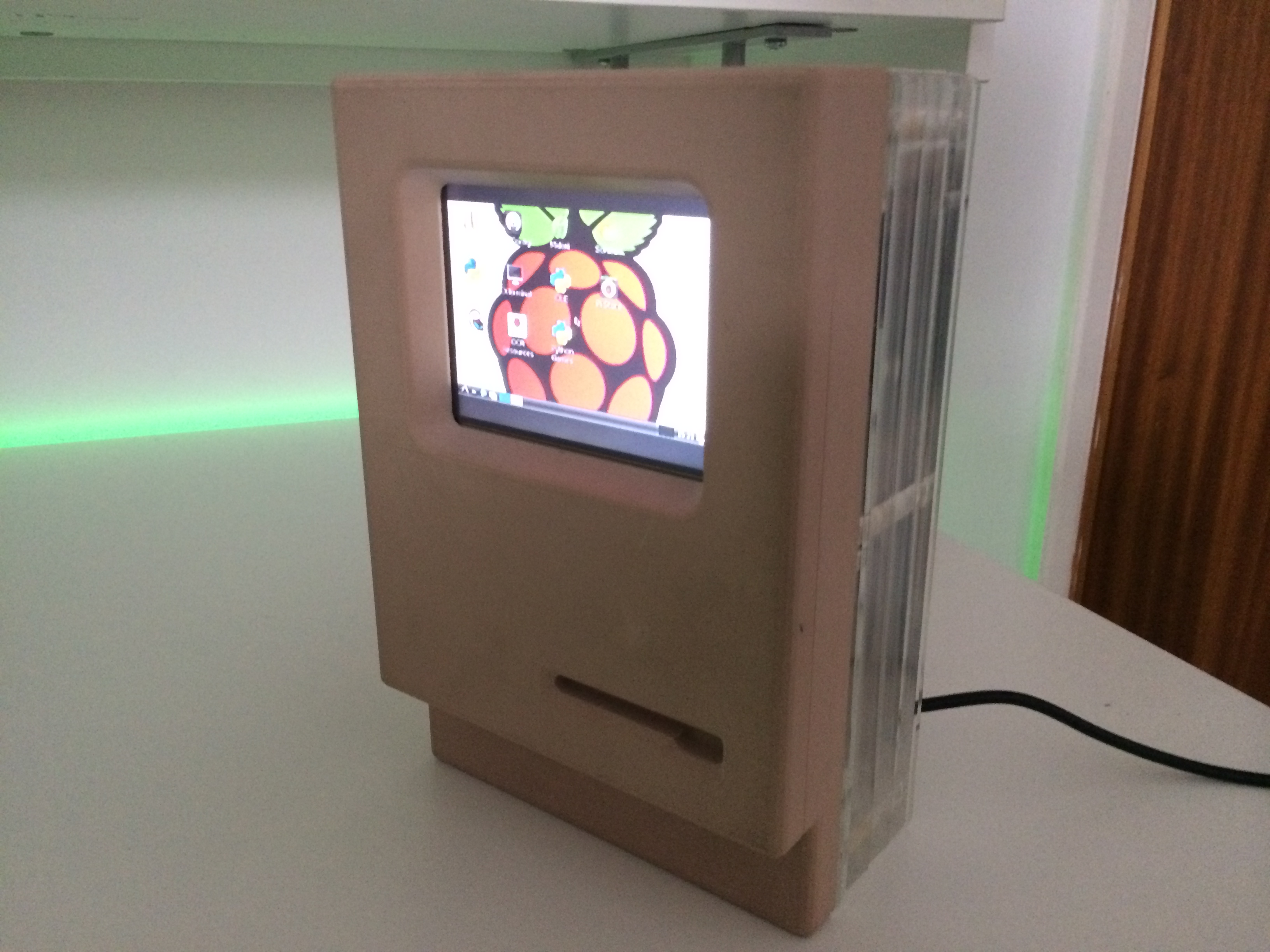

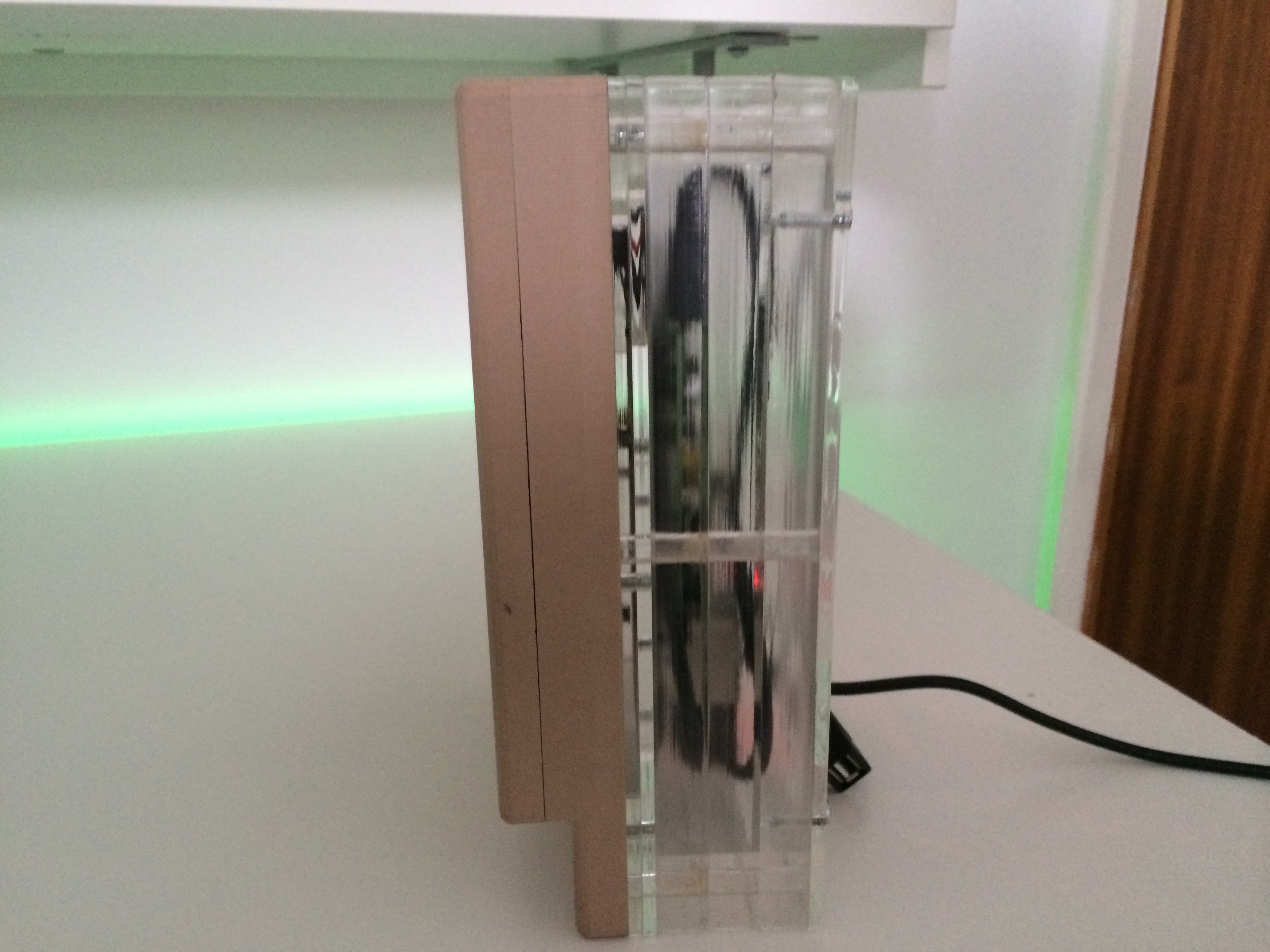

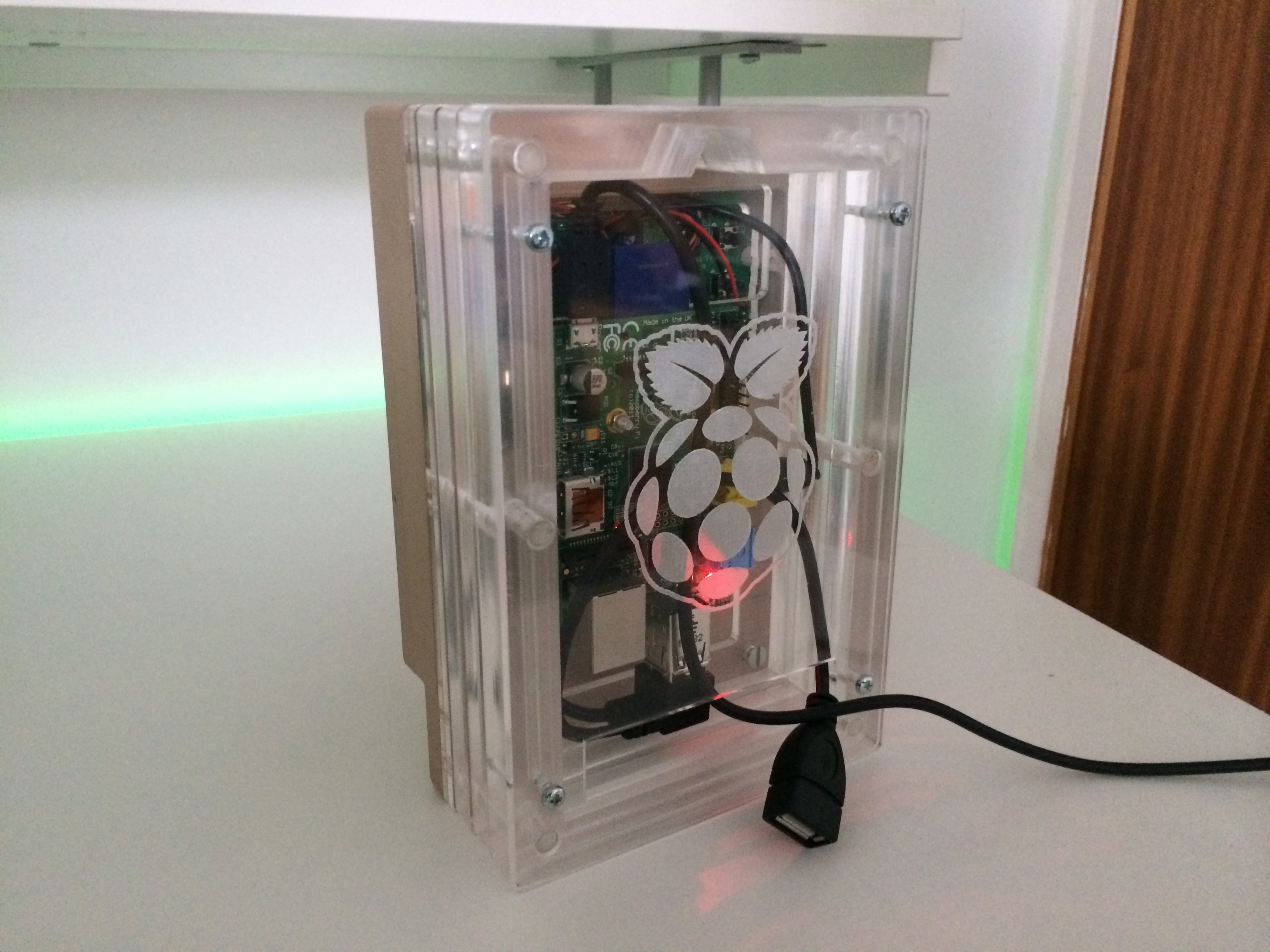

    I used a 3.5" screen that is intended for use in a car as a rear reversing monitor, I modified it to run off 5v USB power and AV video from the Raspberry Pi. Used the B revision of the Raspberry Pi. Quite a simple project really but the casing was a pain, tried 3D printing it but it wasn't up to the job so I had to resort to using the milling machine to make the front casing and then made the rear casing out of clear acrylic.

    Hope you guys like it, leave me some suggestions for my next Raspberry Pi project! :)

    Thanks

    Alex

    (Apologies if this is posted in the wrong forum, I just thought it fitted in because it was meant to be a replica of the Macintosh Plus)


    Attached Files:

  2. Theclamshell macrumors 68030

    Joined:
    Mar 2, 2009
  3. bigeasy_uk macrumors 6502

    Joined:
    Sep 8, 2005
    Location:
    Leamington Spa, England
    #3
    Nice one Alex, looks great. Have you tried out mini vmac on it?

  4. Katakefalos macrumors newbie

    Katakefalos

    Joined:
    Jan 1, 2014
    Location:
    Thessaloniki Greece,Istanbul Turkey.
    #4
    Are you totally crazy people? Its very bad.Nothing like retro computer.A pure rubbish.:eek:

  5. AppleAlex! thread starter macrumors member

    AppleAlex!

    Joined:
    Aug 28, 2011
    Location:
    UK
    #5
    Thanks! :) Yeah I have, it works pretty well running Mac OS 7. I didn't get a chance to take any photos with it running mini vMac, I will upload some when I get home as it looks a lot more retro then. Was also looking for a small striped apple logo transfer and trying to work out the best way to write "Macintosh Plus" on the front.

  6. bigeasy_uk, Apr 15, 2014
    Last edited by a moderator: Apr 16, 2014

    bigeasy_uk macrumors 6502

    Joined:
    Sep 8, 2005
    Location:
    Leamington Spa, England
    #6
    He has done a good job recreating the front of a mac plus. It can't be 100% scale accurate due to the hardware size limitations.

    He's in school, he should be commended for what he has done and it's also nice to see he's using the raspberry pi.

    Don't listen to him Alex!

  7. AppleAlex! thread starter macrumors member

    AppleAlex!

    Joined:
    Aug 28, 2011
    Location:
    UK
    #7
    This is the reason people refrain from posting things on the internet, yes I know it's not really anything near the beauty of the Macintosh Plus, but if you are going to criticise it be constructive and give me some suggestions.

    I know that the clear acrylic kind of ruins it, but I literally had 2 hours to make the back casing, that included measuring it, producing the 2D design files and then laser cutting and assembling it. Whilst doing this Extended project, I have also juggled doing Physics, DT, Mechanics and ICT (A-levels, not sure what the equivalent is in different countries).

  8. deluxeshredder macrumors 6502a

    Joined:
    Nov 30, 2013
    #8
    Not too bad for a first (?) attempt, but such classic designs should be reproduced with more attention to detail.

  9. AppleAlex! thread starter macrumors member

    AppleAlex!

    Joined:
    Aug 28, 2011
    Location:
    UK
    #9
    Thanks, yeah it is a first attempt and I would have liked to have had it perfectly to scale with every little detail, but sadly this project was more about the 20'000 word accompaniment than the project itself.. Thank you for your constructive criticism tho :)

  10. harrymatic macrumors 6502

    Joined:
    Dec 30, 2013
    Location:
    United Kingdom
    #10
    I really like this, especially the CNC milled front (MDF?). The whole thing is very neatly put together. It looks a bit top-heavy though, does it fall over easily?

  11. AppleAlex! thread starter macrumors member

    AppleAlex!

    Joined:
    Aug 28, 2011
    Location:
    UK
    #11
    Thanks! The front is actually made out of a wood/plastic fibre board (cant remember its technical name) but it worked perfectly for milling. Surprisingly It doesn't fall over, some of the acrylic at the back is made out of 12mm which increases the weight at the back drastically, was thinking of adding another layer to the back to make it look slightly better proportioned.

  12. unclegrumpyinc macrumors newbie

    Joined:
    Jun 16, 2014
    #12
    wow that is really cool!
    I think that is so cool you know about how to build a computer! and with the retro parts.
    Wow something I definitely admire
    You have inspired me!
    thanks

  13. The Retro Mac nerd macrumors newbie

    The Retro Mac nerd

    Joined:
    May 30, 2016
    #13
    Pretty cool! I need to make something like that...
