OS X MacOS Benchmark Thread

Discussion in 'Mac and PC Games' started by padams35, Apr 13, 2018.

  1. padams35, Apr 13, 2018
    Last edited: Apr 14, 2018

    padams35 macrumors regular

    Joined:
    Nov 10, 2016
    #1
    This thread is dedicated to light/mac gamers like myself who are trying to judge the relative performance gains between different models. Since all the web data I could find was either sparse or inconsistent I'm hoping my fellow mac fans will volunteer benchmarks for their machines.

    Benchmark Program: Unigine Valley. https://benchmark.unigine.com/valley
    That's the newest, free, easy to use MacOS OpenGL benchmark I could find.

    Requested Benchmark #1: Basic Preset
    This benchmark is intended allow direct GPU to GPU comparisons. One might consider this benchmark a representation of how well a mac could run a modern demanding game on low settings.

    Requested Benchmark #2: Custom: Quality=High, AA=x4, Resolution=System, Full Screen=yes
    This benchmark is intended to judge relative GPU to GPU performance adjusted for screen sizes. Ie, How much better is the Pro 570 at 2560x1440 vs a Pro 560 at 2048x1152. One might consider this benchmark as a representation of how well a mac could run a modern demanding game at high detail.

    If anyone knows of a good free/cheap Metal benchmark that reports in FPS vs abstract numbers shout out.


    Anyway, here are the results from my own mac. I'll try to update the list to include results from other posters.

    Benchmark #1 Results
    69.8 fps - Radeon M290X, ?GB in 5K 2014 iMac
    67.7 fps - FirePro D500, 3GB in 2013 MacPro
    42.8 fps - Radeon RX 460, 2GB in Thunderbolt-1 eGPU
    23.7 fps - Radeon 6770M, 512MB in 21.5" 2.7Ghz 2011 iMac
    15.5 fps - Intel HD 6000 in 13" 2.2Ghz 2015 Macbook Air


    Benchmark #2 Results
    27.0 fps - FirePro D500, 3GB in 2013 MacPro (4K)
    20.9 fps - Radeon RX 460, 2GB in Thunderbolt-1 eGPU (external 1920x1080)
    20.3 fps - Radeon M290X, ?GB in 5K 2014 iMac (2.5K +retina doubling)
    7.6 fps - Intel HD 6000 in 13" 2.2GHz 2015 Macbook Air (1440x900)
    6.7 fps - Radeon 6770M, 512MB in 21.5" 2.7Ghz 2011 iMac (1920x1080)

  2. jerwin macrumors 68020

    Joined:
    Jun 13, 2015
    #2
    for a m290x (1280 shaders) on a 2014 imac 5k

    69.8 (720p basic-- eww)
    29.7 2k
    20.3 2.5k (30% drop)

    Theoretically, the 560 is good for 1.9 TFLops, and the 570 is 3.6 TFlops-- (almost twice as fast).

    so you'd be better off with a 570-- even with the load imposed by a higher resolution screen.

  3. voyager77 macrumors member

    Joined:
    Jun 25, 2012
    #3
    Mac pro - D500

    #1
    67,7

    #2
    28,0 (Full screen is 4K)

  4. padams35 thread starter macrumors regular

    Joined:
    Nov 10, 2016
    #4
    Theoretically. My concern is the Geekbench4 OpenCL scores. The 570 comes in at ~90K for over double the 560(MBP) at ~44K, but the 560 (iMac) are posting ~57K. The pessimistic answer is that the MBP is simply thermal throttling, but what if the 4K iMacs have been clocked higher to run closer to their RX counterparts?

    I realize that GPU OpenCL computing scores don't correlate directly to gaming, but I'm still hoping for empirical FPS results.

    Also a RX460-2GB Thunderbolt-1 eGPU benchmark:
    #1: 42.8
    #2: 20.9 (1920x1080)

  5. jerwin macrumors 68020

    Joined:
    Jun 13, 2015
    #5
    570 imac is 28 compute units at 1 Ghz
    560 imac is 16 compute units at 907 Mhz (the same as in the macbook pro)

    (my computer is 20 compute units at 975 Mhz)

  6. h9826790, Apr 22, 2018
    Last edited: Apr 22, 2018

    h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #6
    Mac Pro 2009, CPU W3690, GPU 1080Ti.

    The #1 test can be CPU single thread limiting indeed. My CPU shows 109% is actually right at the single thread turbo boost limit.

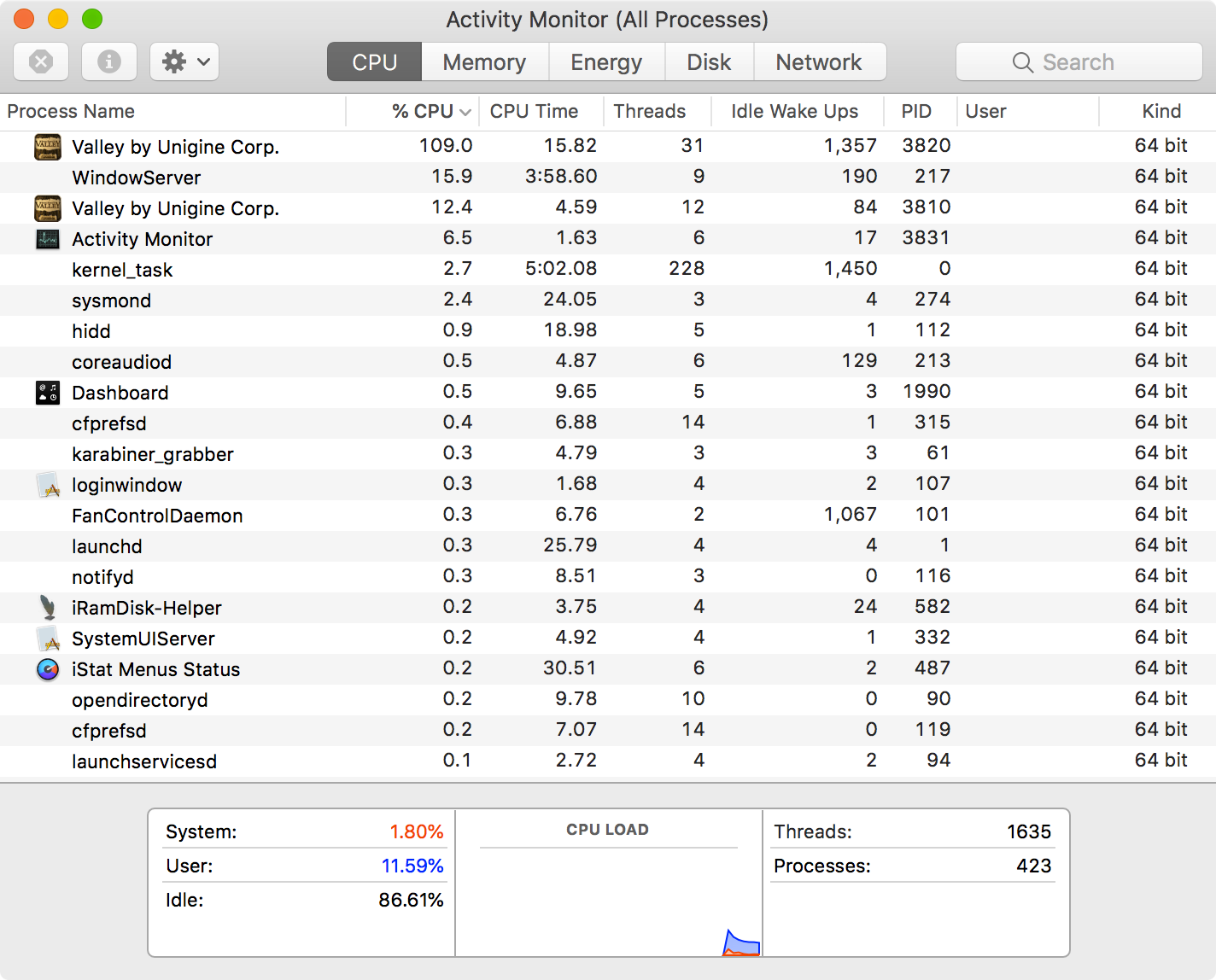

    Screen Shot 2018-04-23 at 03.33.32.png

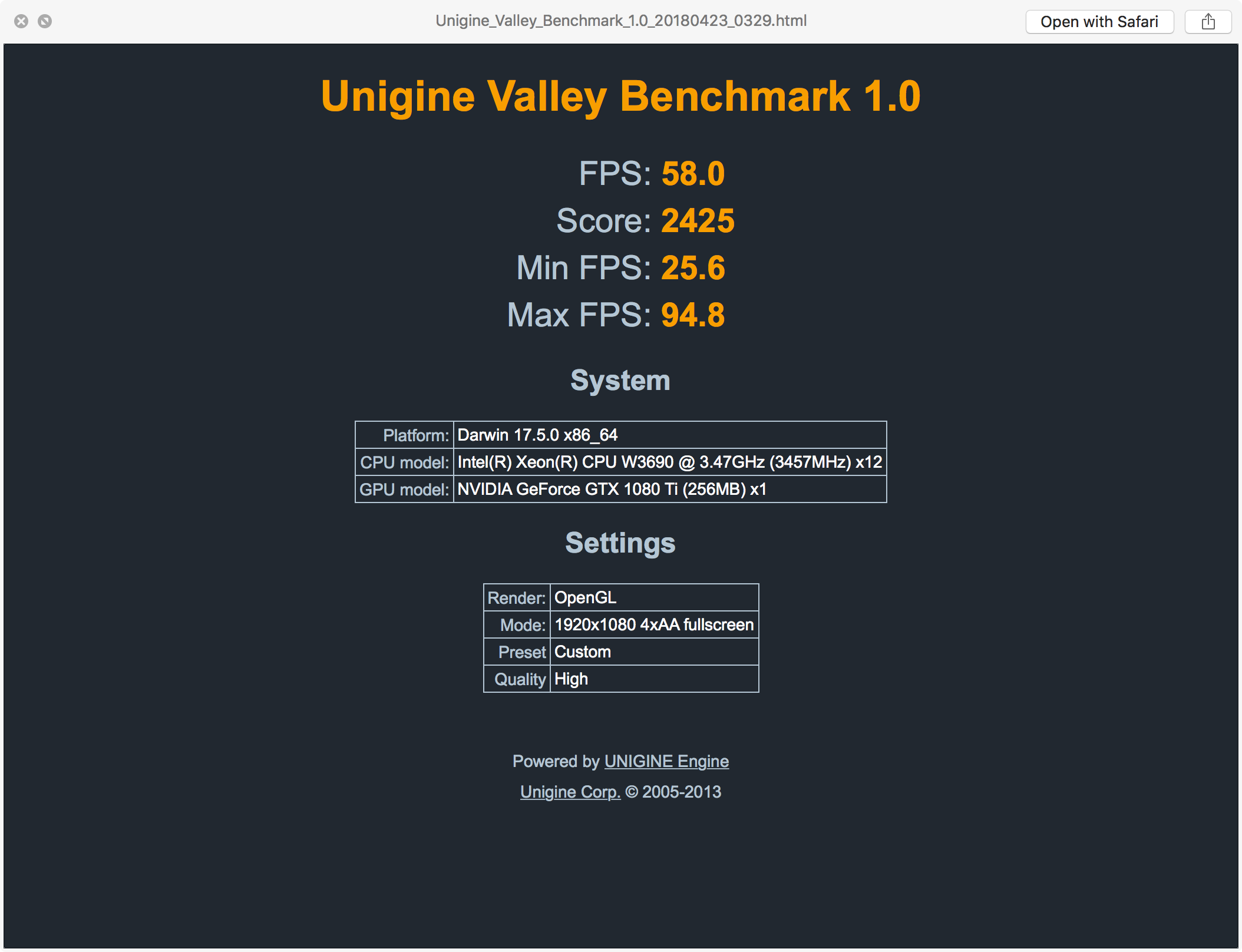

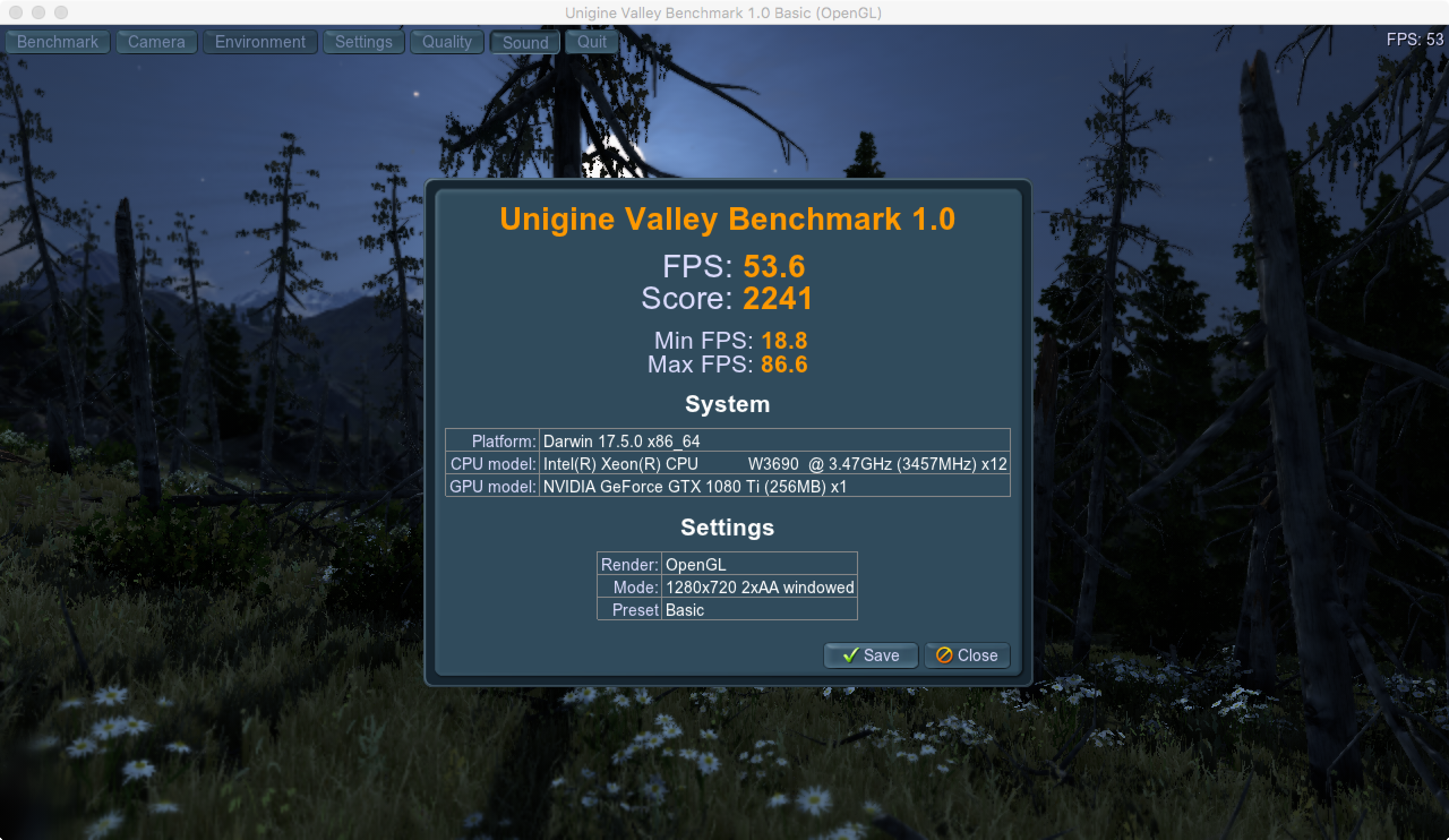

    And my test 2 result is better than test 1 also shows that this benchmark is not stressful enough for my GPU. Screen Shot 2018-04-23 at 03.20.39.png Screen Shot 2018-04-23 at 03.36.01.png

    In fact, even if I run the ExtremeHD test, I still got similar result. Which means this test is very CPU single thread limiting (In my case).

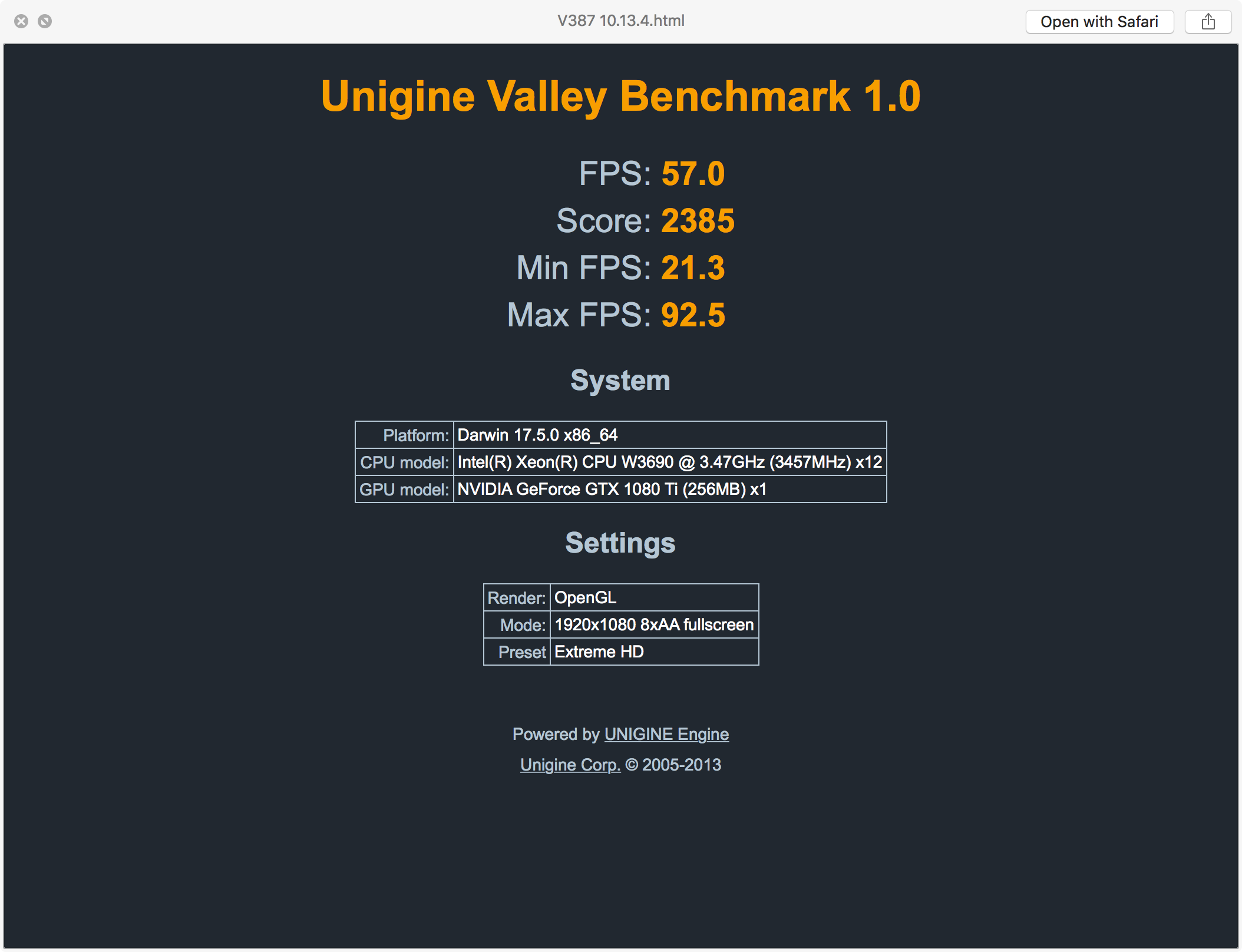

    Screen Shot 2018-04-23 at 03.39.35.png

    Update 1:

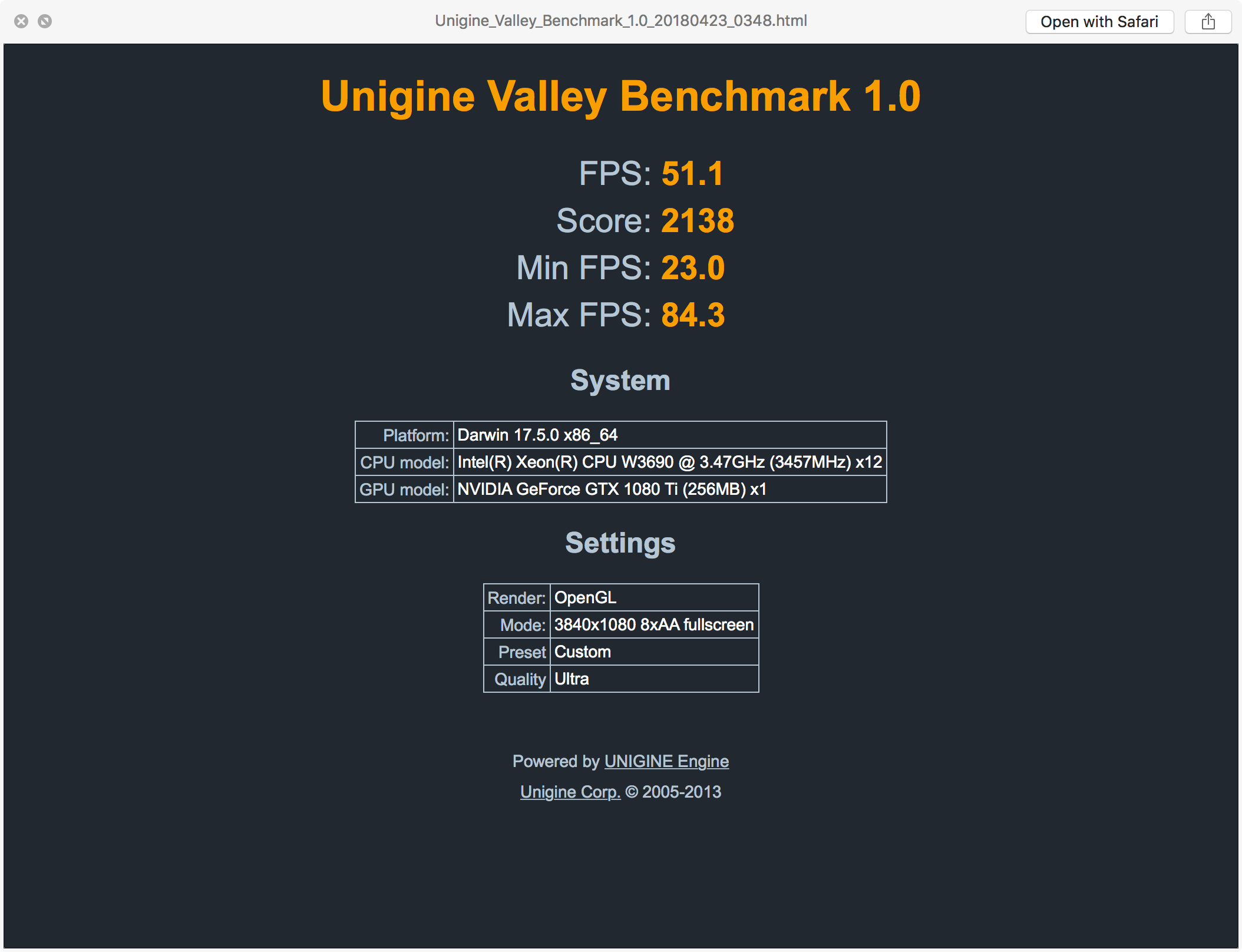

    I just try the 8xAA Ultra 3840x1080 (my monitor's native resolution). Still roughly the same result. Screen Shot 2018-04-23 at 03.48.59.png
    --- Post Merged, Apr 22, 2018 ---
    And GFXBench Metal can provide FPS benchmarks for METAL.

    https://itunes.apple.com/hk/app/gfxbench-metal/id1044629456?l=en&mt=12

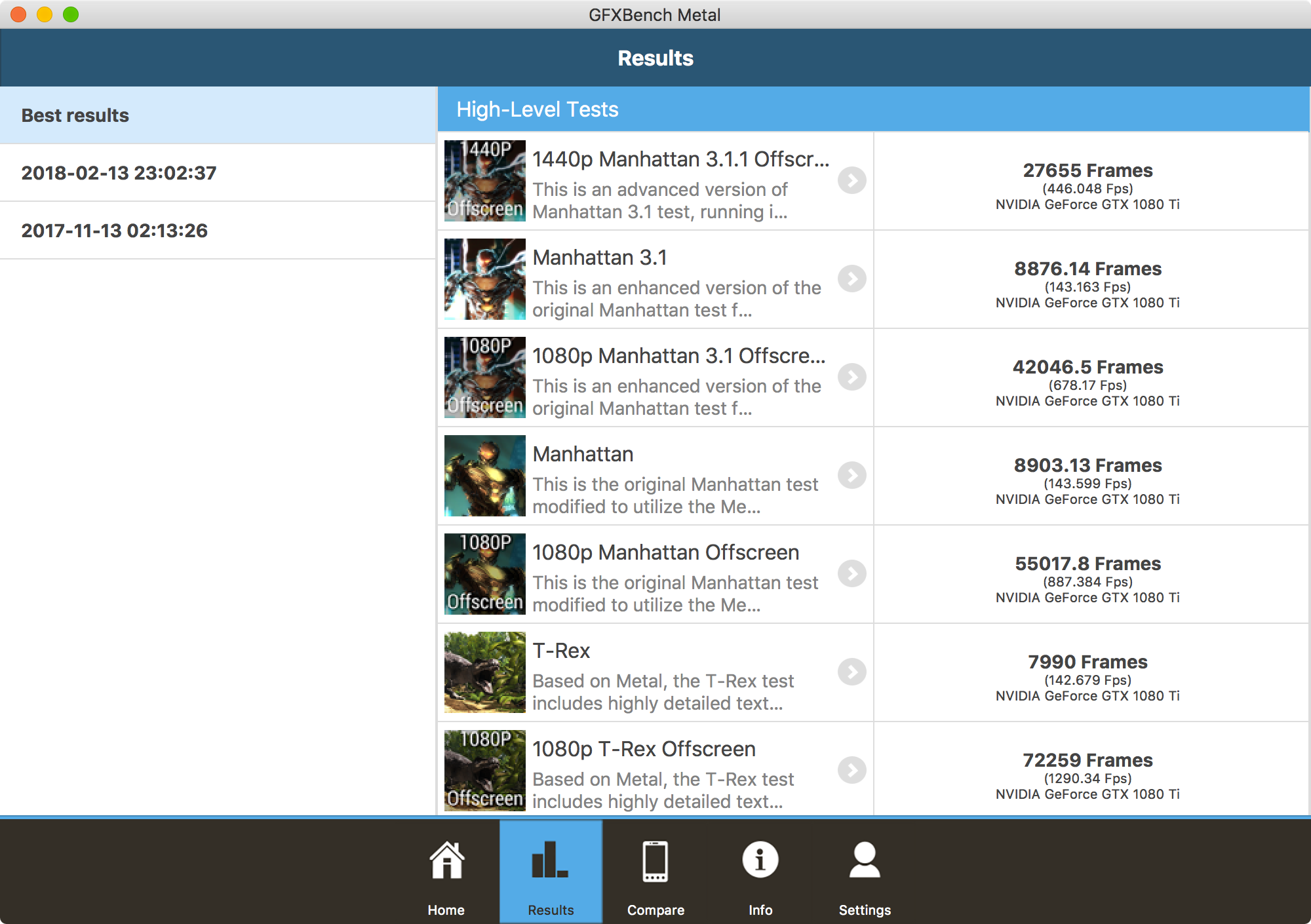

    Screen Shot 2018-04-23 at 04.43.04.png

    It provide "Offscreen" results which won't be limited by the monitor refresh as well.
