MP All Models macOS PCIe SATA SSD Adapters (MP5,1 & MP7,1)

Status
The first post in this thread is a WikiPost, and can be edited by anyone with the appropriate permissions.

bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
Wiki thread for compiling a list of confirmed PCIe SATA SSD adapters for MP5,1 with macOS. They're not as fast as NVMe, but they're widely available. Should also be helpful with options for transition to MP7,1 and (should) achieve faster read/write speeds with native PCIe 3 availability for adapters that support.

----------

Card: Angelbird Wings X2
Interface: PCIe 2.0 x2
Number of SATA SSDs: 2
Availability: $140-150 USD
Link: https://www.angelbird.com/prod/wings-x2-1103/
Link: https://www.angelbird.com/downloads/wings-x2-1103/
Status: Confirmed with Mojave 10.14.6, see #6 for SSD compatibility
Additional Power: None Required
Note: ASMEDIA ASM1062R

Card: Apricorn Velocity Duo x2
Interface: PCIe 2.0 x2
Number of SATA SSDs: 2
Availability: Officially Discontinued
Link: https://www.apricorn.com/upgrades/vel-duox2
Status: Confirmed with Mojave 10.14.6
Additional Power: None Required
Speeds: Typically around 480MB/s Write & 510MB/s Read in non-RAID configurations with Samsung 860 EVO SATA SSDs
Notes: Marvell 9230. Randomly occasionally will not properly mount a drive. Requires full shutdown and restart to workaround when experiencing issue.

Card: Apricorn Velocity Solo x1
Interface: PCIe 2.0 x1
Number of SATA SSDs: 1
Availability: Officially Discontinued, Limited Stock Remains (as of October 2019)
Link: https://www.apricorn.com/upgrades/vel-solo-x1
Status: PENDING CONFIRMATION
Additional Power: None Required
Notes: Asmedia 1061

Card: Apricorn Velocity Solo x2
Interface: PCIe 2.0 x2
Number of SATA SSDs: 1 (or 2 with extension adapter)
Availability: Officially Discontinued
Link: https://www.apricorn.com/upgrades/vel-solox2
Status: Confirmed with Mojave 10.14.6
Additional Power: None Required
Notes: Marvel 9182

Card: OWC Accelsior S
Interface: PCIe 2.0 x2
Number of SATA SSDs: 1
Availability: Typically $45-50 USD
Link: https://eshop.macsales.com/item/OWC/SSDACL6G.S/
Status:
Confirmed with Mojave 10.14.6
Additional Power: None Required
Notes: ASM1062

Card: Sonnet Fusion Dual 2.5 Inch SSD RAID (FUS-SSD-2RAID-E)
Interface: PCIe 3.0 x4
Number of SATA SSDs: 2 with USB-C 10Gbps
Availability: $130, will be available late January 2020
Link: https://www.sonnettech.com/product/fusion-dual-ssd-raid/overview.html
Status: SEEKING ADDITIONAL INFORMATION, confirmed see #26
Additional Power: None Required
Note: ASMedia 3142, hardware RAID available. NOT bootable.

Card: Sonnet Tempo SSD
Interface: PCIe 2.0 x2
Number of SATA SSDs: 1 (or 2 with extension adapter)
Availability: Typically $90-100 USD
Link: https://www.sonnettech.com/product/tempossd.html
Status:
Confirmed with Mojave 10.14.6
Additional Power: None Required
Notes: Marvel 9182

----------

Card: Sedna PCI Express Quad
Interface: PCIe 2.0 x1
Number of SATA SSDs: 4
Availability: Typically ~$90 USD
Link: https://www.amazon.com/dp/B07SJSR4C1
Status:
SEEKING ADDITIONAL INFORMATION
Additional Power: None Required

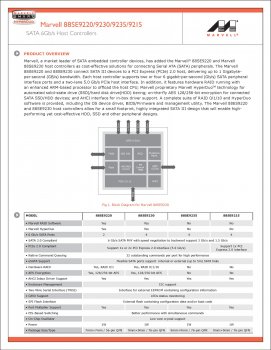

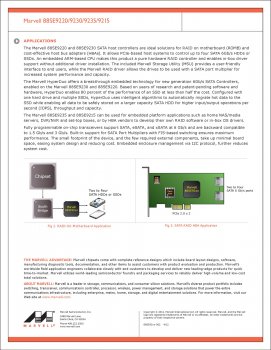

Notes: Part Number SE-PCIE-SSDx4-SATA6G-EX, Marvell 88SE9215
Note 2: There is a Quad RAID version of this card, Part Number SE-PCIE-SSDx4-SATA6G-RAID, based on Marvel 88SE9230 that does not advertise macOS compatibility

Card: Sedna PCI Express Dual (Short)
Interface: PCIe 2.0 x1
Number of SATA SSDs: 2
Availability: Typically ~$50 USD
Link: https://www.amazon.com/dp/B07MTFDY76
Status:
SEEKING ADDITIONAL INFORMATION
Additional Power: None Required
Notes: Part Number SE-PCIE-SSDX2-SATA6G-SH-P

Card: Sedna PCI Express Dual (Extended)
Interface: PCIe 2.0 x1
Number of SATA SSDs: 2
Availability: Typically ~$50 USD
Link: https://www.amazon.com/dp/B07L5SPWNV
Status:
SEEKING ADDITIONAL INFORMATION
Additional Power: None Required
Notes: Part Number SE-PCIE-SSDX2-SATA6G-EX-P

Card: Sedna PCI Express SATA III
Interface: PCIe 2.0 x1
Number of SATA SSDs: 1
Availability: Typically ~$40 USD
Link: https://www.amazon.com/dp/B01452SP1O
Status:
SEEKING ADDITIONAL INFORMATION
Additional Power: None Required
Notes: Part Number SE-PCIE-SSD-SATA6G-2P

Last edited:

SnakeCoils

macrumors member
Oct 17, 2018
39
15
Italy
Do not forget the Angelbird Wings X2, one of the few card to offer bootable hardware RAID0 configuration, maybe a bit picky about the SSD to use but a very nice and fast PCIe-SSD adapter.


  • Like
Reactions: bsbeamer

gugy

macrumors 68040
Jan 31, 2005
3,276
3,976
La Jolla, CA
I have the Apricorn Velocity Duo x2 with Samsung EVO's in RAID 0 for a couple of years. They have been reliable and no issues so far.


bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
Do not forget the Angelbird Wings X2, one of the few card to offer bootable hardware RAID0 configuration, maybe a bit picky about the SSD to use but a very nice and fast PCIe-SSD adapter.

Can you 100% personally confirm compatibility with Mojave 10.14.6 on MP5,1? Looking to post verified info as much as possible.

Any idea what chipset it uses?


SnakeCoils

macrumors member
Oct 17, 2018
39
15
Italy
Can you 100% personally confirm compatibility with Mojave 10.14.6 on MP5,1? Looking to post verified info as much as possible.

Any idea what chipset it uses?
I personally used this card for my OSX install for about a year, now after a parenthesis with a NVMe drive (Samsung 970EVO) I went back to the Sonnet Tempo SSD Pro Plus with a RAID0 software configuration using a couple of Crucial MX500 because it has a super fast boot time. The same Crucial SSDs do not worked at their maximum (plus other oddities) on the Angelbird so I am planning to replace both with a couple of Angelbird-approved Solid State Drive. I like very much the idea of an hard RAID0 because it is trasparent to the MacPro and therefore I can format it in APFS and installing Mojave without the need to clone it to a HFS+ soft raid like my actual setup.
It is compatible with 10.14.6 both on 4.1 flashed to 5.1 and 5.1 native but to perform at its best it needs different SSDs than the Crucial MX500 (that instead works GREAT when installed on the Sonnet Tempo SSD Pro Plus). No idea about the chipset they used, to discover it I should remove the blue aluminium heatsink in the middle but I fear to damage something.


bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
Do you happen to know what revision or version your Angelbird Wings X2 is? Seems like three different versions were released under the same name. The first actually supported 4 x SATA SSDs in some capacity and possibly required additional power. The latest version (currently for sale) only supports 2 x SSDs.

Would assume the chip could be ID'd under the blue cover, but unsure. I've not personally used this adapter.


SnakeCoils

macrumors member
Oct 17, 2018
39
15
Italy
Do you happen to know what revision or version your Angelbird Wings X2 is? Seems like three different versions were released under the same name. The first actually supported 4 x SATA SSDs in some capacity and possibly required additional power. The latest version (currently for sale) only supports 2 x SSDs.

Would assume the chip could be ID'd under the blue cover, but unsure. I've not personally used this adapter.
My version is labeled 1.3 on the PCB and matches the currenly item on sale. Just checked the chipset, after carefully removing 4 torx screws and thanks to a good magnify lens I read it is an ASMEDIA ASM1062R (the "R" letter at the end means it is the hardware raid version of the ASM1062).
I know there was a prototype version of this card with eSATA ports also but sadly it never went in production.

  • Like
Reactions: bsbeamer

Bggale

macrumors newbie
Nov 16, 2019
3
1
Whittier, Ca
My version is labeled 1.3 on the PCB and matches the currenly item on sale. Just checked the chipset, after carefully removing 4 torx screws and thanks to a good magnify lens I read it is an ASMEDIA ASM1062R (the "R" letter at the end means it is the hardware raid version of the ASM1062).
I know there was a prototype version of this card with eSATA ports also but sadly it never went in production.
Have you been able to format your Wings X2 as a RAID 0 in APFS? I got an error when I tried. I’m using it in my nMP (7.1).


SnakeCoils

macrumors member
Oct 17, 2018
39
15
Italy
Have you been able to format your Wings X2 as a RAID 0 in APFS? I got an error when I tried. I’m using it in my nMP (7.1).
My board, lately equipped with two identical (also in firmware) 240 Gb Kingdian SSDs, worked flawlessy in partitioning and formatting the hardware RAID0 volume in APFS resulting in a single 480 Gb bootable disk. However in the meantime I've sold my Angelbird board because in comparison the NVMe disks performances are so high (almost twice the measured transfer rates of the Angelbird) that it was an easy choice and now my MacPro 5.1 relies on a single Samsung 970EVO (1 Tb). To be honest before taking this decision I have also ordered from Angelbird a couple of their WRK ECO SSD (480gb and 90 euros each) to be sure the whole assembly worked at its best (Angelbird both the board and the SSDs) but the performance were REALLY disappointing (750 mb/s) compared to what they declare as specs (950 mb/s) and this poor level of transfer rates was almost the same both in software and hardware RAID0 configuration.
Angelbird declare a verified compatibility on 4.1 and 5.1 MacPros only, the new 7.1 is not mentioned at all, maybe they should update their page with a note about possible issues in this configuration.


zedex

macrumors regular
Oct 21, 2018
146
52
Perth, WA

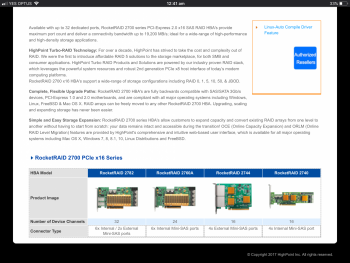

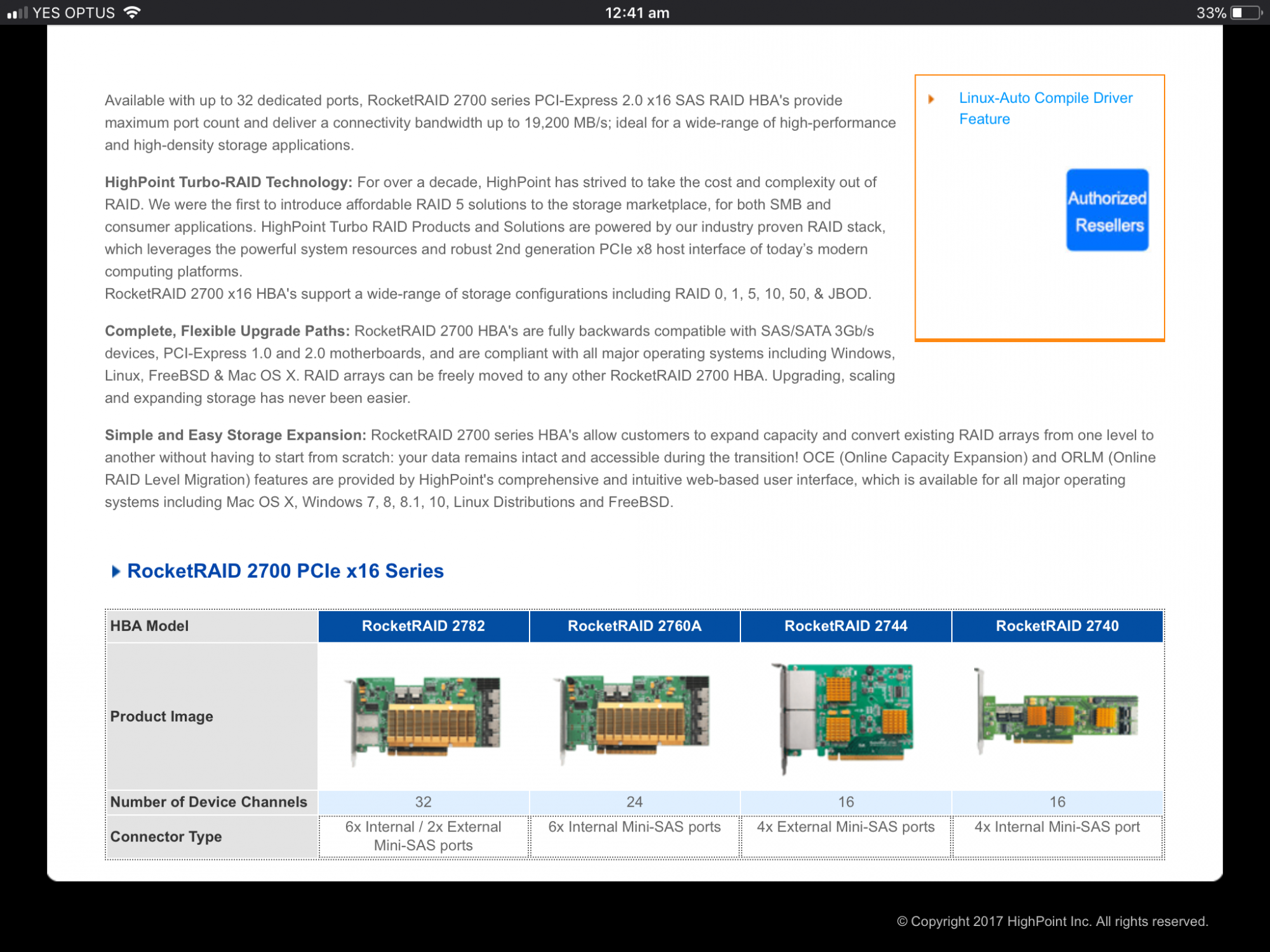

Where are all the HIGHPOINT cards?

HPT Rocket 644L PCIe 2.0 x4 (2 lanes)
HPT RocketRAID 2720 PCIe 2.0 x8 (8 lanes)
HPT RocketRAID 2744 PCIe 2.0 x16 (16 lanes!!)
HPT RocketRAID 2740 PCIe 2.0 x16 (16 lanes!!)


bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
There is a new FUS-SSD-2RAID-E product for MP5,1 & MP7,1 from Sonnet that will be available in late January 2020. Hardware RAID dual SATA SSD plus USB-C in one slot.


Mac Compatibility
  • Mac Pro 5,1 (Mid 2010 & Mid 2012) with available full-length PCIe slot
  • Mac Pro 7,1 (2019)
  • macOS 10.10.5, 10.12.6+(4)
  • macOS Catalina compatible
  • Note: not compatible with macOS 10.11
From website:

Fusion Dual 2.5-inch SSD RAID
Dual 2.5-inch SSD PCIe 3.0 card with hardware RAID controller,
plus 10Gbps USB-C port • Add your own SSDs

Great 2-Drive Hardware RAID 0 Performance
Install the Sonnet Fusion card into a PCIe 3.0 slot of a computer or Thunderbolt 3 expansion system and achieve great transfer speeds up to 1000 MB/s!

Still use a Mac Pro 5,1 tower? Enjoy performance up to 770 MB/s now, and migrate the Sonnet card to the new Mac Pro (2019) to enjoy even better performance.

  • Like
Reactions: erroneous

bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
According to the PDF, more than just MP7,1 and MP5,1 are supported. Seems to be same compatibility as their other USB-C products. Uses an ASMedia 3142.

Mac Compatibility
Mac Pro® (3,1, 4,1, 5,1, or 7,1 [2019])
macOS 10.10.5, 10.12.6+(2)
(not compatible with macOS 10.11)
macOS Mojave compatible

Mac Pro (2019), Mac Pro (Mid 2012), Mac Pro (Mid 2010), and Mac Pro (Early 2009) users may install the card into any available slot; Mac Pro (Early 2008) users should use slot 2 when available for best performance


zedex

macrumors regular
Oct 21, 2018
146
52
Perth, WA

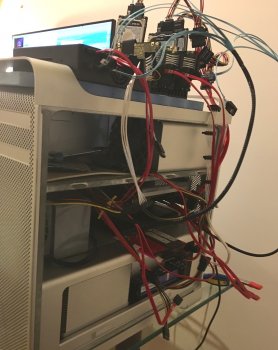

I have added some photos here to demonstrate economic ways of continuing to use SATA HDD/ SSD / M2 B-Key (*NOT* PCIe M-Key) in 7,1 and 5,1..

@bsbeamer can rule on relevance to this thread (but remember - these AIC cards pictured have all the same properties as the ones already discussed above).

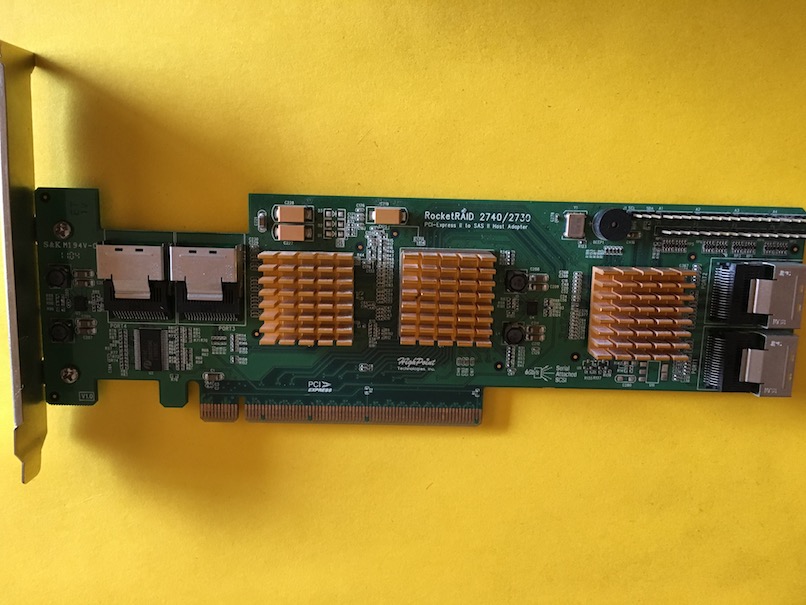

Take one of these..
IPHONE Image (ZX) H3024Y190309-0734.JPG

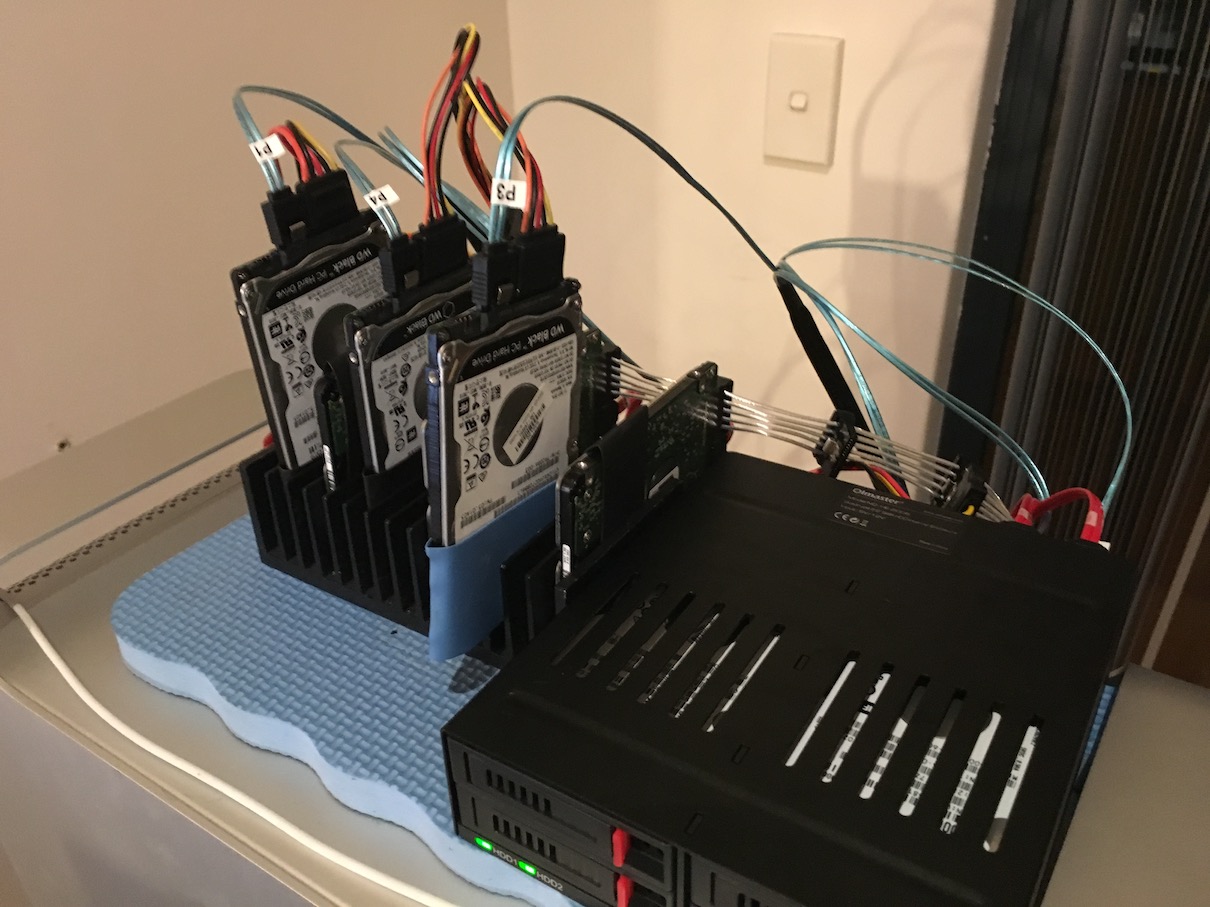

use SAS to SATA 4-way splitters to set up arrangements like this..



one card.. occupying one slot.. providing the opportunity to connect up to 16 SATA drives of all types. This photo shows gumsticks mixed with spinners..

IPHONE Image (ZX) H2268Y190408-0315.JPG


i'll thumbnail a few other images below for those that would like to see more of this approach..


IPHONE Image (ZX) H3024Y190407-0306.JPG
Screen PIX03145728 || K603229.PNG

  • Wow
Reactions: ZombiePhysicist

bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
IF you're adding these solutions to the Wiki list, they really should be in their own category with notations for "drive mounting required" or similar. The majority (all?) cards in this thread so far are for internally mounted PCIe options.

At that same point, 10Gbps USB-C arrays offer full ~500MB/s speeds with the majority of SATA SSDs in non-RAID configs in MP5,1. A simpler setup and option for many users.


zedex

macrumors regular
Oct 21, 2018
146
52
Perth, WA
Thanks @bsbeamer - I take your point and I defer to the narrow definition initially prescribed in the opening post.

For the benefit of forum members, at some point I think we need to identify the wide array of high quality solutions centred on SATA storage interface technologies. The PCIe Add In Cards that host 2.5-in (and m2) SSDs directly are important but examining the variants is also important because of the high cost third-party solutions being marketed to 7,1 owners (despite the fact that almost 30 pre-existing cMP 5,1 third-party products are also fully compatible).

Your observation regarding USB 3.0++ cards is also correct - perhaps 'SATA storage' is the superset and 'PCIe hosted SATA', 'SAS/SATA PCIe cards' and 'USB 3 / USB-C / eSATA' should be defined as three discrete subsets. Could be complicated without a well-designed data model. I'll have a go offline and in the mean time we'll just stick with the 'PCIe hosted SATA' subset type that you used to open the thread. Cheers for you feedback - David


bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
According to this article:

The new Sonnet Fusion Dual SATA SSD will be $130. Great price for what it offers for both MP5,1 and MP7,1.


zedex

macrumors regular
Oct 21, 2018
146
52
Perth, WA
I have to agree (assuming features in article are accurate). I just bought the Sonnet Tempo Pro Plus (EOL) on EBAY last week because prior to this offering - it was the only true 4 lane dual 2.5in SATA PCIe AIC. They've really slashed the price. It definitely looks like candidate number one given that the Caldigit FASTA boards are no longer in production.


awkward_eagle

macrumors member
Feb 5, 2020
44
19
Now available for purchase from the Sonnet site, I just ordered one.
I have 4x 2.5" ssds and was hoping to use two of these cards ( both in JBOD mode ) to software RAID 0 all four ssds together using Disk Utility. Can you confirm that JOB mode "bybasses" the RAID controller on the card so the drives show up individually to MacOS?


startergo

macrumors 68000
Sep 20, 2018
1,732
678
According to this article:

The new Sonnet Fusion Dual SATA SSD will be $130. Great price for what it offers for both MP5,1 and MP7,1.
Boot Support
  • No


bsbeamer

macrumors 68040
Original poster
Sep 19, 2012
3,425
1,743
Just saw that few days ago. Basically an internal hardware RAID only. Good for storage and work drives. Stick with NVMe for bootable.

Status
The first post in this thread is a WikiPost, and can be edited by anyone with the appropriate permissions.
