So I've been having some issues with my 2012 MP randomly rebooting.
I had weird flickering and artifacting problems so I had my GTX680 replaced.
I suspected my power supply was going so I replaced that as well.
I've ran memory tests and they all show nothing.
Also did a clean install on a new disk and same issues.
What else can it be? Logic board? Processors?


thefredelement

macrumors 65816
Apr 10, 2012
1,142
558
New York
So I've been having some issues with my 2012 MP randomly rebooting.
I had weird flickering and artifacting problems so I had my GTX680 replaced.
I suspected my power supply was going so I replaced that as well.
I've ran memory tests and they all show nothing.
Also did a clean install on a new disk and same issues.
What else can it be? Logic board? Processors?
Is the power going to the box ok? Do you have a UPS by chance?


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
I had a weird issue with an APC that would case a mini server at work to reset - I didn't know what was going on but I replaced with nothing at all at first and then with some other brand and it hasn't happened.
Hmm…I have other things plugged into the UPS and they don't seem to be affected.

I usually get a crash/reboot when I'm doing something video related. From editing, encoding, or simply watching a youtube video. A couple times it happened as I plugged a thumb drive in.

Then on reboot it cycles a few times before booting up, going to the grey Apple logo and rebooting.


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Have you checked crash logs?
Yeah I'm not good at deciphering those.

Here's one of the recent ones.

Thu Feb 19 01:44:18 2015
panic(cpu 18 caller 0xffffff800c8b8c44): Kernel trap at 0xffffff7f8de92c8e, type 14=page fault, registers:
CR0: 0x0000000080010033, CR2: 0x0000000000000010, CR3: 0x0000000001814032, CR4: 0x00000000000206e0
RAX: 0x0000000000000001, RBX: 0xffffff86822a7000, RCX: 0xffffff8083097401, RDX: 0xffffff87126f3a38
RSP: 0xffffff87126f3b60, RBP: 0xffffff87126f3b60, RSI: 0x0000000000000000, RDI: 0x0000000000000000
R8: 0x0000000000000000, R9: 0x00000000000003ff, R10: 0xffffffffffffffff, R11: 0x00000000ffffffff
R12: 0xffffff86822a7000, R13: 0x0000000000000000, R14: 0x0000000000000002, R15: 0x0000000000000000
RFL: 0x0000000000010246, RIP: 0xffffff7f8de92c8e, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0x0000000000000010, Error code: 0x0000000000000000, Fault CPU: 0x12

Backtrace (CPU 18), Frame : Return Address
0xffffff87126f3800 : 0xffffff800c81d6d6
0xffffff87126f3870 : 0xffffff800c8b8c44
0xffffff87126f3a40 : 0xffffff800c8cf04d
0xffffff87126f3a60 : 0xffffff7f8de92c8e
0xffffff87126f3b60 : 0xffffff7f8de8077d
0xffffff87126f3bb0 : 0xffffff7f8de806aa
0xffffff87126f3bd0 : 0xffffff7f8de5c941
0xffffff87126f3c00 : 0xffffff7f8cf46380
0xffffff87126f3c40 : 0xffffff7f8cf462ef
0xffffff87126f3c60 : 0xffffff7f8cf4b746
0xffffff87126f3cf0 : 0xffffff7f8cf43e30
0xffffff87126f3d20 : 0xffffff7f8cf953ab
0xffffff87126f3d70 : 0xffffff800cc3c73b
0xffffff87126f3dc0 : 0xffffff800cc6ddf7
0xffffff87126f3e30 : 0xffffff800c8988ff
0xffffff87126f3e80 : 0xffffff800c820bed
0xffffff87126f3eb0 : 0xffffff800c810488
0xffffff87126f3f00 : 0xffffff800c8196bb
0xffffff87126f3f70 : 0xffffff800c8a6746
0xffffff87126f3fb0 : 0xffffff800c8cf8c3
Kernel Extensions in backtrace:
com.apple.iokit.IOGraphicsFamily(2.3.7)[9928306E-3508-3DBC-80A4-D8F1D87650D7]@0xffffff7f8cf3a000->0xffffff7f8cf71fff
dependency: com.apple.iokit.IOPCIFamily(2.8)[6C1D646D-7E5E-3D7F-A557-2CBA398FF878]@0xffffff7f8cef7000
com.apple.NVDAResmanWeb(8.1.7)[CA80D169-93F0-36E0-AAD0-9A255D45C036]@0xffffff7f8cf91000->0xffffff7f8d219fff
dependency: com.apple.iokit.IOPCIFamily(2.8)[6C1D646D-7E5E-3D7F-A557-2CBA398FF878]@0xffffff7f8cef7000
dependency: com.apple.iokit.IONDRVSupport(2.3.7)[F16E015E-1ABE-3C40-AC71-BC54F4BE442E]@0xffffff7f8cf7d000
dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[9928306E-3508-3DBC-80A4-D8F1D87650D7]@0xffffff7f8cf3a000
com.apple.GeForceWeb(8.1.7)[B1C23155-23F5-39D0-8037-7FFB273DA8C6]@0xffffff7f8de59000->0xffffff7f8df24fff
dependency: com.apple.iokit.IOPCIFamily(2.8)[6C1D646D-7E5E-3D7F-A557-2CBA398FF878]@0xffffff7f8cef7000
dependency: com.apple.iokit.IONDRVSupport(2.3.7)[F16E015E-1ABE-3C40-AC71-BC54F4BE442E]@0xffffff7f8cf7d000
dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[9928306E-3508-3DBC-80A4-D8F1D87650D7]@0xffffff7f8cf3a000
dependency: com.apple.NVDAResmanWeb(8.1.7)[CA80D169-93F0-36E0-AAD0-9A255D45C036]@0xffffff7f8cf91000

BSD process name corresponding to current thread: WindowServer
Boot args: nvda_drv=1

Mac OS version:
12F45

Kernel version:
Darwin Kernel Version 12.6.0: Wed Dec 17 19:11:40 PST 2014; root:xnu-2050.48.15~1/RELEASE_X86_64
Kernel UUID: 2C802015-932B-3BDF-8ACF-DA75BE3F81AD
Kernel slide: 0x000000000c600000
Kernel text base: 0xffffff800c800000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 37439788807
last loaded kext at 37439191716: com.apple.driver.AppleHWSensor 1.9.5d0 (addr 0xffffff7f8e6ee000, size 36864)
loaded kexts:
com.nvidia.CUDA 1.1.0
com.microsoft.driver.MicrosoftMouseUSB 8.2
com.microsoft.driver.MicrosoftMouse 8.2
com.blackmagic-design.driver.BlackmagicIO 10.2.3
com.softraid.driver.SoftRAID 5.0.6
com.ATTO.driver.ATTOExpressSASRAID2 3.5.5
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.iokit.IOBluetoothSerialManager 4.1.7f5
com.apple.driver.AudioAUUC 1.60
com.apple.driver.AppleTyMCEDriver 1.0.2d2
com.apple.driver.AGPM 100.13.14
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleMikeyHIDDriver 124
com.apple.driver.AppleHDAHardwareConfigDriver 2.4.7fc4
com.apple.driver.AppleUpstreamUserClient 3.5.12
com.apple.driver.AppleMCCSControl 1.1.11
com.apple.iokit.IOUserEthernet 1.0.0d1
com.apple.driver.AppleHDA 2.4.7fc4
com.apple.GeForceWeb 8.1.7
com.apple.driver.AppleMikeyDriver 2.4.7fc4
com.apple.iokit.IOBluetoothUSBDFU 4.1.7f5
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 4.1.7f5
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleSMBusPCI 1.0.11d1
com.apple.driver.AppleLPC 1.6.3
com.apple.driver.ApplePolicyControl 3.4.5
com.apple.nvidia.NVDAStartup 8.1.7
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.XsanFilter 404
com.apple.iokit.IOAHCIBlockStorage 2.3.5
com.apple.driver.AppleFileSystemDriver 3.0.1
com.apple.iokit.SCSITaskUserClient 3.5.6
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
com.apple.BootCache 34
com.apple.driver.AppleUSBHub 635.4.0
com.apple.driver.AppleFWOHCI 4.9.9
com.apple.driver.AppleIntel8254XEthernet 3.1.1b1
com.apple.driver.Intel82574L 2.3.0b5
com.apple.driver.AppleUSBXHCI 635.4.0
com.apple.driver.AirPort.Brcm4331 615.20.17
com.apple.driver.AppleUSBEHCI 621.4.6
com.apple.driver.AppleAHCIPort 2.6.6
com.apple.driver.AppleUSBUHCI 621.4.0
com.apple.driver.AppleRTC 1.5
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleACPIButtons 1.8
com.apple.driver.AppleSMBIOS 1.9
com.apple.driver.AppleACPIEC 1.8
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 214.0.0
com.apple.nke.applicationfirewall 4.0.39
com.apple.security.quarantine 2.1
com.apple.driver.AppleIntelCPUPowerManagement 214.0.0
com.apple.kext.triggers 1.0
com.apple.driver.DspFuncLib 2.4.7fc4
com.apple.iokit.IOAudioFamily 1.9.2fc7
com.apple.kext.OSvKernDSPLib 1.12
com.apple.iokit.IOSurface 86.0.4
com.apple.nvidia.gk100halWeb 8.1.7
com.apple.NVDAResmanWeb 8.1.7
com.apple.iokit.IOBluetoothFamily 4.1.7f5
com.apple.driver.AppleSMBusController 1.0.11d1
com.apple.iokit.IOBluetoothHostControllerUSBTransport 4.1.7f5
com.apple.iokit.IOFireWireIP 2.2.5
com.apple.driver.AppleHDAController 2.4.7fc4
com.apple.iokit.IOHDAFamily 2.4.7fc4
com.apple.iokit.IOSerialFamily 10.0.6
com.apple.driver.AppleGraphicsControl 3.4.5
com.apple.iokit.IONDRVSupport 2.3.7
com.apple.iokit.IOGraphicsFamily 2.3.7
com.apple.driver.AppleSMC 3.1.5d4
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 5.4.1d13
com.apple.iokit.IOSCSIBlockCommandsDevice 3.5.6
com.apple.driver.AppleUSBMergeNub 621.4.6
com.apple.iokit.IOUSBHIDDriver 623.4.0
com.apple.driver.AppleUSBComposite 621.4.0
com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.5.6
com.apple.iokit.IOBDStorageFamily 1.7
com.apple.iokit.IODVDStorageFamily 1.7.1
com.apple.iokit.IOCDStorageFamily 1.7.1
com.apple.iokit.IOFireWireFamily 4.5.5
com.apple.iokit.IOAHCISerialATAPI 2.5.5
com.apple.iokit.IOUSBUserClient 630.4.4
com.apple.iokit.IO80211Family 530.5
com.apple.iokit.IONetworkingFamily 3.0
com.apple.iokit.IOSCSIParallelFamily 2.5.1
com.apple.iokit.IOSCSIArchitectureModelFamily 3.5.6
com.apple.iokit.IOAHCIFamily 2.5.1
com.apple.iokit.IOUSBFamily 635.4.0
com.apple.driver.AppleEFINVRAM 2.0
com.apple.driver.AppleEFIRuntime 2.0
com.apple.iokit.IOHIDFamily 1.8.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 220.4
com.apple.kext.AppleMatch 1.0.0d1
com.apple.security.TMSafetyNet 7
com.apple.driver.DiskImages 345
com.apple.iokit.IOStorageFamily 1.8
com.apple.driver.AppleKeyStore 28.21
com.apple.driver.AppleACPIPlatform 1.8
com.apple.iokit.IOPCIFamily 2.8
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.corecrypto 1.0

Last edited:

ScottishCaptain

macrumors 6502a
Oct 4, 2008
872
467
Probably a bad graphics card, or power supply issue causing the GPU to crash. Could also be the GPU drivers, make sure you're running the latest drivers from NVIDIA (since I see you're running the web drivers, and I know they've had a ton of issues with those in the past as I have too but most of them went away with the most recent drivers).

-SC


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Probably a bad graphics card, or power supply issue causing the GPU to crash. Could also be the GPU drivers, make sure you're running the latest drivers from NVIDIA (since I see you're running the web drivers, and I know they've had a ton of issues with those in the past as I have too but most of them went away with the most recent drivers).

-SC
Graphics card and power supply were recently replaced so I ruled those out.

I'm running NVIDIA Web Driver 313.01.04f01, that's the most recent right?


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Try booting off one stick of ram
I've tried different RAM combinations. Problem is that the reboots are so random that trying to determine the problem is becoming impossible. Everything can be fine for a couple weeks and then I'll get 5 reboots within a few hours. So the interval between these occurrences can be a few minutes to a few weeks.

I've cycled my ram half at a time in different sets and I had the same issues with each. So unless I have multiple sticks of bad RAM, memory isn't the problem.

Is there something specific to using just one stick? Are you staying boot off each of my sticks one at a time to check?


ScottishCaptain

macrumors 6502a
Oct 4, 2008
872
467
Graphics card and power supply were recently replaced so I ruled those out.

I'm running NVIDIA Web Driver 313.01.04f01, that's the most recent right?
For 10.8.5 it is, I dunno about 10.9 or 10.10.

Do you have any other crash logs?

If you've already replaced the GPU and PSU, then it could either be an electrical problem with the logic board or an issue with the northbridge chipset (which is situated on the CPU carrier and is directly responsible for driving the two PCI-e x16 slots). It's kinda hard to tell without seeing the other logs, since I'm curious to know if the problem is shifting around at all or if the machine is constantly crapping out somewhere in the graphics subsystem.

-SC


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
For 10.8.5 it is, I dunno about 10.9 or 10.10.

Do you have any other crash logs?

If you've already replaced the GPU and PSU, then it could either be an electrical problem with the logic board or an issue with the northbridge chipset (which is situated on the CPU carrier and is directly responsible for driving the two PCI-e x16 slots). It's kinda hard to tell without seeing the other logs, since I'm curious to know if the problem is shifting around at all or if the machine is constantly crapping out somewhere in the graphics subsystem.

-SC
I have a bunch from the other day that happened pretty much in a row and some from a couple weeks ago before I sprung for a new power supply.


Attachments

666sheep

macrumors 68040
Dec 7, 2009
3,623
211
Poland
All KPs are GPU related. Try to switch to OS X built-in drivers for a day or two and see if it will change anything.


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
No dice, MP just took a big dump while running OSX drivers.

Sat Feb 21 01:19:32 2015
panic(cpu 0 caller 0xffffff7f8fd728a1): NVRM[0/5:0:0]: Read Error 0x006100c0: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0x8a000000 0xffffff871cd5c000 0x0e4000a2, D0, P0/4
Backtrace (CPU 0), Frame : Return Address
0xffffff8717b13c50 : 0xffffff800f61d6d6
0xffffff8717b13cc0 : 0xffffff7f8fd728a1
0xffffff8717b13d80 : 0xffffff7f8fe4585a
0xffffff8717b13dc0 : 0xffffff7f90088ea7
0xffffff8717b13dd0 : 0xffffff7f8fe18db4
0xffffff8717b13df0 : 0xffffff7f8fec4212
0xffffff8717b13e70 : 0xffffff7f8fd57afa
0xffffff8717b13f30 : 0xffffff7f8fd176ec
0xffffff8717b13f60 : 0xffffff800f63e37e
0xffffff8717b13fb0 : 0xffffff800f6b34b7
Kernel Extensions in backtrace:
com.apple.NVDAResman(8.1.6)[39D35403-42FB-3F08-999C-9866938D6B3A]@0xffffff7f8fd11000->0xffffff7f8ffb4fff
dependency: com.apple.iokit.IOPCIFamily(2.8)[6C1D646D-7E5E-3D7F-A557-2CBA398FF878]@0xffffff7f8fc77000
dependency: com.apple.iokit.IONDRVSupport(2.3.7)[F16E015E-1ABE-3C40-AC71-BC54F4BE442E]@0xffffff7f8fcfd000
dependency: com.apple.iokit.IOGraphicsFamily(2.3.7)[9928306E-3508-3DBC-80A4-D8F1D87650D7]@0xffffff7f8fcba000
com.apple.nvidia.gk100hal(8.1.6)[347201ED-EC77-3189-B256-B3403CFCBB06]@0xffffff7f8ffc0000->0xffffff7f902f1fff
dependency: com.apple.NVDAResman(8.1.6)[39D35403-42FB-3F08-999C-9866938D6B3A]@0xffffff7f8fd11000
dependency: com.apple.iokit.IOPCIFamily(2.8)[6C1D646D-7E5E-3D7F-A557-2CBA398FF878]@0xffffff7f8fc77000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
12F45

Kernel version:
Darwin Kernel Version 12.6.0: Wed Dec 17 19:11:40 PST 2014; root:xnu-2050.48.15~1/RELEASE_X86_64
Kernel UUID: 2C802015-932B-3BDF-8ACF-DA75BE3F81AD
Kernel slide: 0x000000000f400000
Kernel text base: 0xffffff800f600000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 153015264239
last loaded kext at 26313024482: com.apple.iokit.IOBluetoothSerialManager 4.1.7f5 (addr 0xffffff7f90a03000, size 57344)
loaded kexts:
com.nvidia.CUDA 1.1.0
com.blackmagic-design.driver.BlackmagicIO 10.2.3
com.softraid.driver.SoftRAID 5.0.6
com.Logitech.Control Center.HID Driver 3.9.0
com.ATTO.driver.ATTOExpressSASRAID2 3.5.5
com.apple.iokit.IOBluetoothSerialManager 4.1.7f5
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.filesystems.autofs 3.0
com.apple.driver.AudioAUUC 1.60
com.apple.driver.AppleTyMCEDriver 1.0.2d2
com.apple.driver.AGPM 100.13.14
com.apple.driver.AppleMikeyHIDDriver 124
com.apple.driver.AppleHDAHardwareConfigDriver 2.4.7fc4
com.apple.driver.AppleHDA 2.4.7fc4
com.apple.driver.AppleUpstreamUserClient 3.5.12
com.apple.driver.AppleMCCSControl 1.1.11
com.apple.iokit.IOUserEthernet 1.0.0d1
com.apple.GeForce 8.1.6
com.apple.driver.AppleMikeyDriver 2.4.7fc4
com.apple.iokit.IOBluetoothUSBDFU 4.1.7f5
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 4.1.7f5
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleSMBusPCI 1.0.11d1
com.apple.driver.AppleLPC 1.6.3
com.apple.nvidia.NVDAStartup 8.1.7
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.ApplePolicyControl 3.4.5
com.apple.driver.XsanFilter 404
com.apple.iokit.IOAHCIBlockStorage 2.3.5
com.apple.iokit.SCSITaskUserClient 3.5.6
com.apple.driver.AppleUSBHub 635.4.0
com.apple.driver.AppleFWOHCI 4.9.9
com.apple.driver.AppleUSBXHCI 635.4.0
com.apple.driver.AppleIntel8254XEthernet 3.1.1b1
com.apple.driver.AirPort.Brcm4331 615.20.17
com.apple.driver.Intel82574L 2.3.0b5
com.apple.driver.AppleFileSystemDriver 3.0.1
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
com.apple.BootCache 34
com.apple.driver.AppleAHCIPort 2.6.6
com.apple.driver.AppleUSBEHCI 621.4.6
com.apple.driver.AppleUSBUHCI 621.4.0
com.apple.driver.AppleRTC 1.5
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleACPIButtons 1.8
com.apple.driver.AppleSMBIOS 1.9
com.apple.driver.AppleACPIEC 1.8
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 214.0.0
com.apple.nke.applicationfirewall 4.0.39
com.apple.security.quarantine 2.1
com.apple.driver.AppleIntelCPUPowerManagement 214.0.0
com.apple.kext.triggers 1.0
com.apple.driver.DspFuncLib 2.4.7fc4
com.apple.iokit.IOAudioFamily 1.9.2fc7
com.apple.kext.OSvKernDSPLib 1.12
com.apple.iokit.IOSurface 86.0.4
com.apple.nvidia.gk100hal 8.1.6
com.apple.NVDAResman 8.1.6
com.apple.driver.AppleSMBusController 1.0.11d1
com.apple.iokit.IOBluetoothHostControllerUSBTransport 4.1.7f5
com.apple.iokit.IOFireWireIP 2.2.5
com.apple.driver.AppleHDAController 2.4.7fc4
com.apple.iokit.IOHDAFamily 2.4.7fc4
com.apple.iokit.IOSerialFamily 10.0.6
com.apple.driver.AppleSMC 3.1.5d4
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 5.4.1d13
com.apple.driver.AppleGraphicsControl 3.4.5
com.apple.iokit.IONDRVSupport 2.3.7
com.apple.iokit.IOGraphicsFamily 2.3.7
com.apple.driver.IOBluetoothHIDDriver 4.1.7f5
com.apple.iokit.IOBluetoothFamily 4.1.7f5
com.apple.iokit.IOUSBHIDDriver 623.4.0
com.apple.driver.AppleUSBMergeNub 621.4.6
com.apple.driver.AppleUSBComposite 621.4.0
com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.5.6
com.apple.iokit.IOBDStorageFamily 1.7
com.apple.iokit.IODVDStorageFamily 1.7.1
com.apple.iokit.IOCDStorageFamily 1.7.1
com.apple.iokit.IOAHCISerialATAPI 2.5.5
com.apple.iokit.IOFireWireFamily 4.5.5
com.apple.iokit.IO80211Family 530.5
com.apple.iokit.IOSCSIParallelFamily 2.5.1
com.apple.iokit.IOSCSIArchitectureModelFamily 3.5.6
com.apple.iokit.IOUSBUserClient 630.4.4
com.apple.iokit.IONetworkingFamily 3.0
com.apple.iokit.IOAHCIFamily 2.5.1
com.apple.iokit.IOUSBFamily 635.4.0
com.apple.driver.AppleEFINVRAM 2.0
com.apple.driver.AppleEFIRuntime 2.0
com.apple.iokit.IOHIDFamily 1.8.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 220.4
com.apple.kext.AppleMatch 1.0.0d1
com.apple.security.TMSafetyNet 7
com.apple.driver.DiskImages 345
com.apple.iokit.IOStorageFamily 1.8
com.apple.driver.AppleKeyStore 28.21
com.apple.driver.AppleACPIPlatform 1.8
com.apple.iokit.IOPCIFamily 2.8
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.corecrypto 1.0


ScottishCaptain

macrumors 6502a
Oct 4, 2008
872
467
I think your graphics card is bad.

I know you said you just replaced it, but every single KP you've posted has pointed straight at that piece of hardware.

The most logical thing to do moving forward is to replace the GPU again, preferably with the card that came with your Mac Pro. If the system continues to panic, there is a problem with your logic board or CPU carrier. If the problem goes away, then your second 680 GTX is defective and should be replaced again.

-SC


digitalgum

macrumors newbie
Mar 30, 2013
13
0
I've tried different RAM combinations. Problem is that the reboots are so random that trying to determine the problem is becoming impossible. Everything can be fine for a couple weeks and then I'll get 5 reboots within a few hours. So the interval between these occurrences can be a few minutes to a few weeks.

I've cycled my ram half at a time in different sets and I had the same issues with each. So unless I have multiple sticks of bad RAM, memory isn't the problem.

Is there something specific to using just one stick? Are you staying boot off each of my sticks one at a time to check?
Yes that's what I'm saying. Boot off one at a time but obviously see if you can use it to it's max. Push each one until you crash with something ram intensive.

Not saying this will be it but worth a try, i've had 2-3 sticks bring down whole machine which also weren't ECC


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Update.

I ran both EFI and OS ASD Hardware tests for 12 hours each.

EFI returned no problems.

OS Tests came back with a ton of GPU errors and then the machine refused to boot, tries booting for over an hour.

However I started to strip the machine down one thing at a time.

I removed my blackmagic 4k card and tried booting and it started immediately. So I am hoping that is the issue. I will run the hardware tests again and see if they persist. Is it possible my blackmagic card was messing with my GPU and causing it to fail?

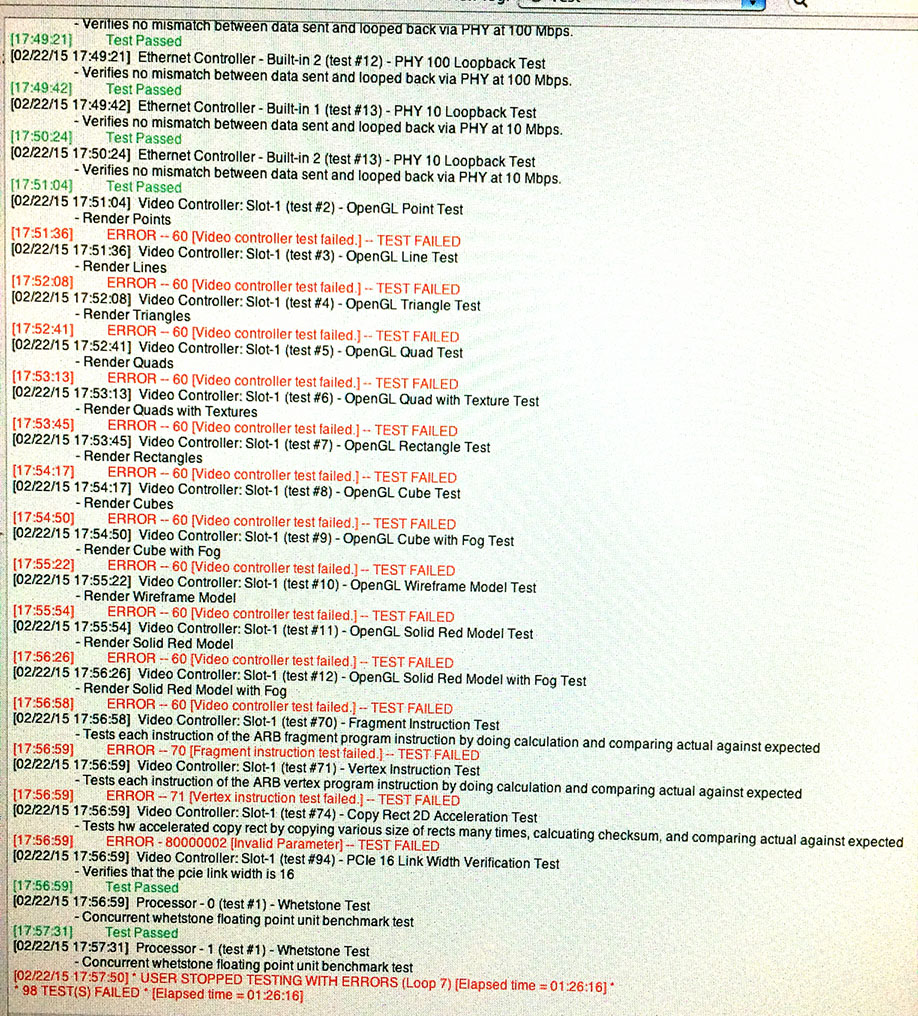

Here are the results from my the OS ASD tests.


Attachments

JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Well I am still getting the same errors with the ASD with the blackmagic card removed. However this is a 10.6 test and the GTX680 wasn't out yet so it simply may not know how to test it.

[19:35:13] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:35:13] Video Controller: Slot-1 (test #3) - OpenGL Line Test
- Render Lines
[19:35:46] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:35:46] Video Controller: Slot-1 (test #4) - OpenGL Triangle Test
- Render Triangles
[19:36:18] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:36:18] Video Controller: Slot-1 (test #5) - OpenGL Quad Test
- Render Quads
[19:36:50] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:36:50] Video Controller: Slot-1 (test #6) - OpenGL Quad with Texture Test
- Render Quads with Textures
[19:37:22] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:37:22] Video Controller: Slot-1 (test #7) - OpenGL Rectangle Test
- Render Rectangles
[19:37:55] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:37:55] Video Controller: Slot-1 (test #8) - OpenGL Cube Test
- Render Cubes
[19:38:27] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:38:27] Video Controller: Slot-1 (test #9) - OpenGL Cube with Fog Test
- Render Cube with Fog
[19:38:59] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:38:59] Video Controller: Slot-1 (test #10) - OpenGL Wireframe Model Test
- Render Wireframe Model
[19:39:31] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:39:31] Video Controller: Slot-1 (test #11) - OpenGL Solid Red Model Test
- Render Solid Red Model
[19:40:04] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:40:04] Video Controller: Slot-1 (test #12) - OpenGL Solid Red Model with Fog Test
- Render Solid Red Model with Fog
[19:40:36] ERROR -- 60 [Video controller test failed.] -- TEST FAILED
[02/22/15 19:40:36] Video Controller: Slot-1 (test #70) - Fragment Instruction Test
- Tests each instruction of the ARB fragment program instruction by doing calculation and comparing actual against expected
[19:40:36] ERROR -- 70 [Fragment instruction test failed.] -- TEST FAILED
[02/22/15 19:40:36] Video Controller: Slot-1 (test #71) - Vertex Instruction Test
- Tests each instruction of the ARB vertex program instruction by doing calculation and comparing actual against expected
[19:40:36] ERROR -- 71 [Vertex instruction test failed.] -- TEST FAILED
[02/22/15 19:40:36] Video Controller: Slot-1 (test #74) - Copy Rect 2D Acceleration Test
- Tests hw accelerated copy rect by copying various size of rects many times, calcuating checksum, and comparing actual against expected
[19:40:36] ERROR - 80000002 [Invalid Parameter] -- TEST FAILED
[02/22/15 19:40:36] Video Controller: Slot-1 (test #94) - PCIe 16 Link Width Verification Test
- Verifies that the pcie link width is 16


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Ok…still rebooting and trouble booting altogether.

I removed everything down to the GPU and Boot drive, one stick of ram and still problems.

I moved my GPU to slot 2 and seems to be ok for now. Will keep it like this for a while and see what happens.


JesterJJZ

macrumors 68020
Original poster
Jul 21, 2004
2,406
751
Was fine for a couple days and the reboots began again. Then oddly enough I couldn't get it to shut down. Everytime I tried to shut it down it would reboot instead. Time to take this puppy to the vet...
