Magsafe Plug looks burnt?

Discussion in 'Mac Pro' started by jlluna, Aug 18, 2011.

  1. jlluna macrumors 6502

    Joined:
    Apr 21, 2010
    Location:
    Holly Michigan
    #1

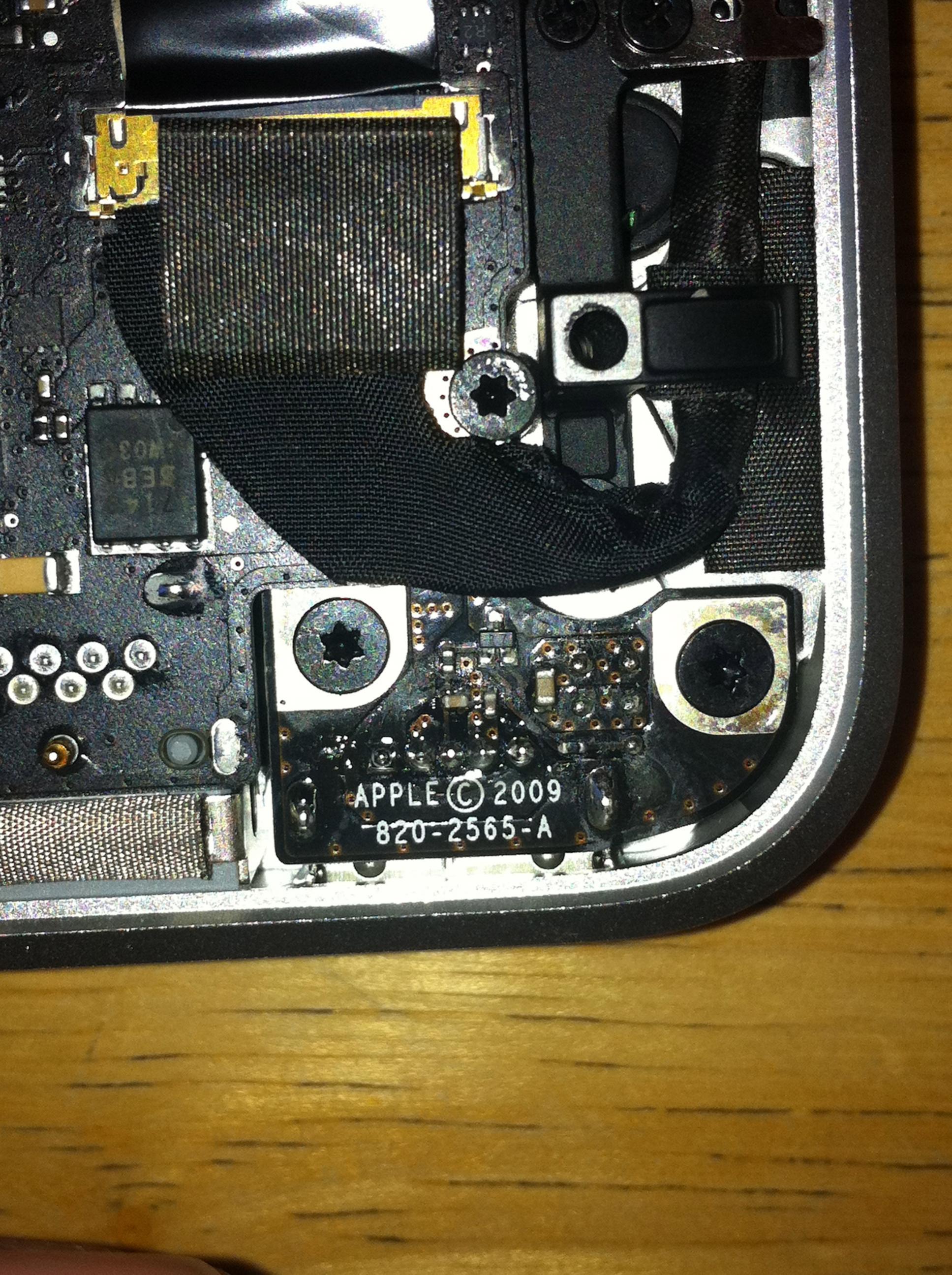

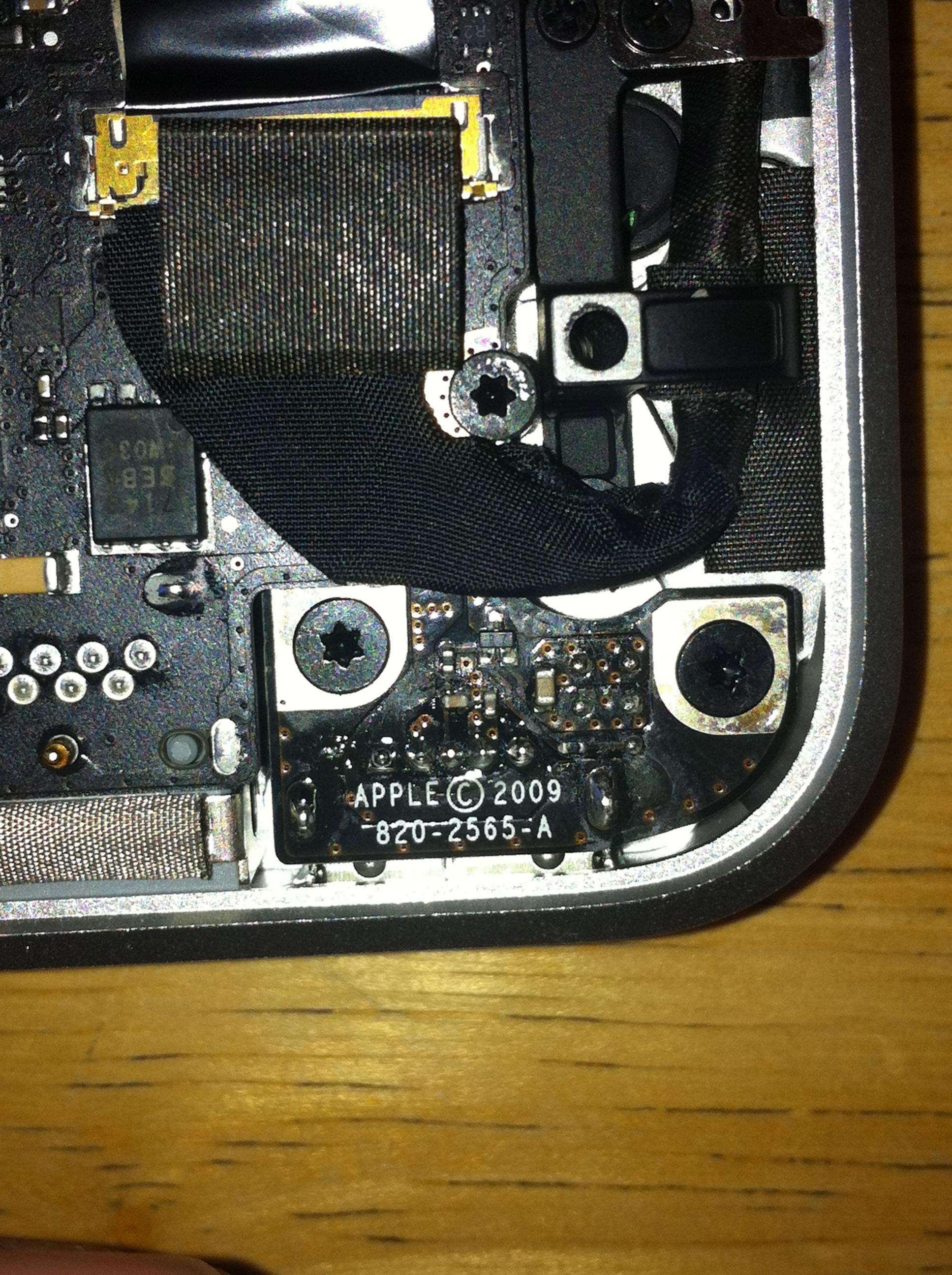

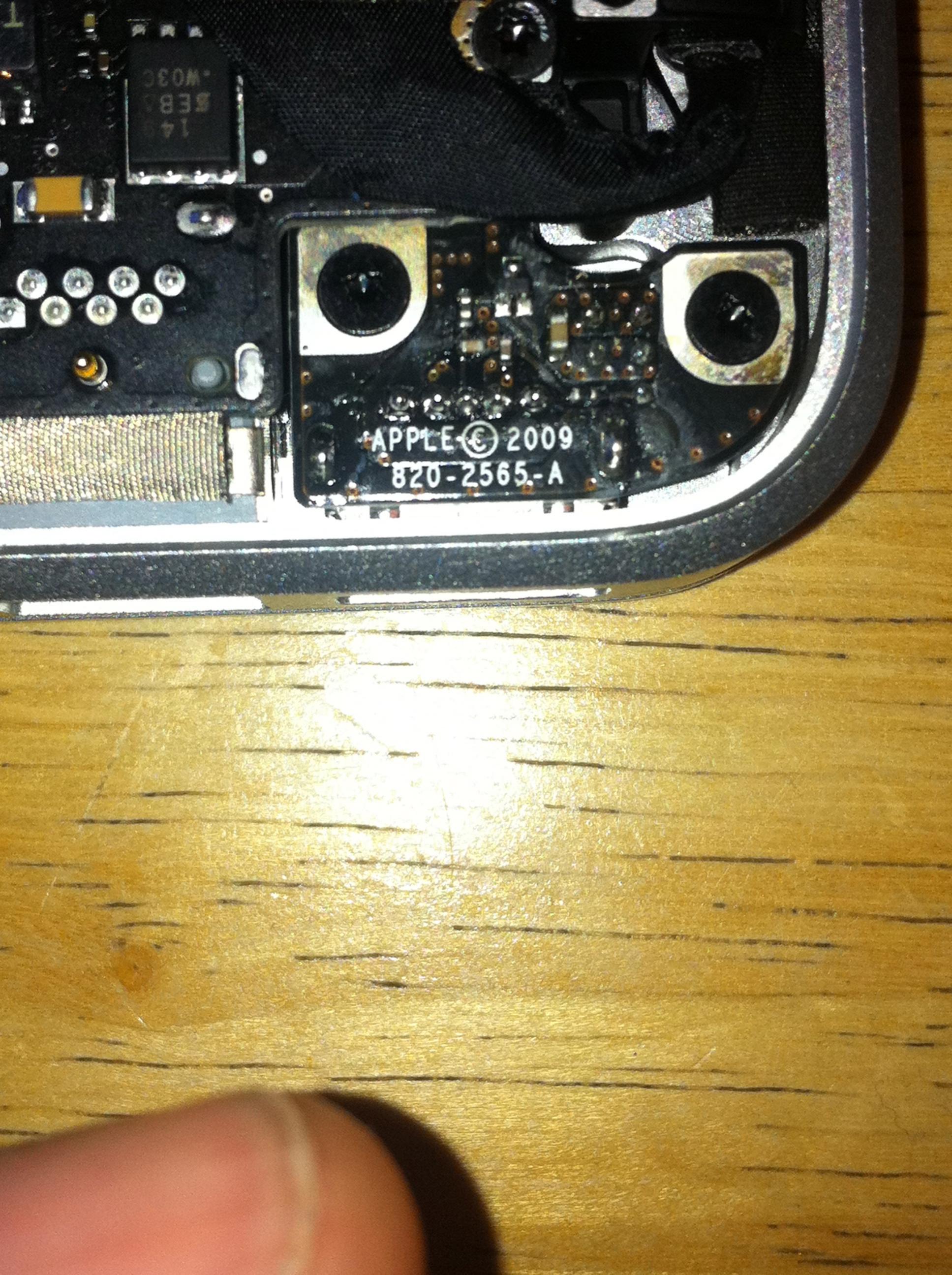

    Hello everyone! I have a macbook pro late 2010, 13". I have it hooked up to a monitor and i use apple keyboard and trackpad. it almost never moves, or even gets unplugged. I opened my computer today to blow the fan out as it collects dust and i do not wanted to over heat.I do this once a year. When i took the cover off i noticed were the power cored plugs into, the plastic looks burnt. The computer is running well, but do these plugs usually go bad after a while. I have some pictures tell me what you think. Thanks!


    Attached Files:

  2. jlluna thread starter macrumors 6502

    Joined:
    Apr 21, 2010
    Location:
    Holly Michigan
    #2
    Man I just realized i posted this in the wrong thread. Could someone move it for me or delete it wii repost it . Sorry!

  3. krburrell macrumors regular

    Joined:
    Dec 5, 2007
  4. jenzjen macrumors 68000

    Joined:
    Aug 20, 2010
    #4
    Are you using an OEM Apple charger, and does the charger plug look burnt? I'd call AppleCare, they are pretty sensitive towards these types of issues.

  5. G-Force macrumors 6502a

    Joined:
    Nov 25, 2006
    #5
    It looks fine to me, it just isn't soldered very pretty. If it works fine, don't worry about it.

  6. jlluna thread starter macrumors 6502

    Joined:
    Apr 21, 2010
    Location:
    Holly Michigan
    #6
    Yeah i figure if i took it to apple, They would just say the computer is working fine ,and they would tell me not to worry about it. And yes i am using the charger that came with it. I just wanted to see if any one else has had any issues with this. Thanks!

  7. linuxcooldude macrumors 68020

    Joined:
    Mar 1, 2010
    #7
    Could be the flux from the solder making it look burnt. Flux helps prevent oxidizing of the solder when its being applied.

  8. jlluna thread starter macrumors 6502

    Joined:
    Apr 21, 2010
    Location:
    Holly Michigan
    #8
    Good point, That could be. I guess i won't worry about unless it gives me problems.

  9. TheAnalogue macrumors member

    TheAnalogue

    Joined:
    May 12, 2011
    Location:
    Clearwater, Fl
    #9
    Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_3_5 like Mac OS X; en-us) AppleWebKit/533.17.9 (KHTML, like Gecko) Version/5.0.2 Mobile/8L1 Safari/6533.18.5)

    I work for a company called Jabil Circuit. Jabil has at times been one of the main manufacturing facilities for Apple (the other is Foxcon) I garentee you that your board didn't come from the factory like that. That board is a defect in class 2 & 3 circuitry. Most apple computers are class 2 but some high end models are class 3. I would contact apple immediately or better yet take it to an apple store if possible. Even if it is just Flux you paid for a level of quality that apple products represent and shouldn't tolerate this.

  10. jlluna thread starter macrumors 6502

    Joined:
    Apr 21, 2010
    Location:
    Holly Michigan
    #10
    Interesting. I will stop by my local apple store on Tuesday and see what they say. Thanks!
