MBP 13 dead after switching SuperDrive with HDD.

Discussion in 'MacBook Pro' started by kosaga, Aug 9, 2015.

  1. kosaga, Aug 9, 2015
    Last edited: Aug 9, 2015

    kosaga macrumors newbie

    Joined:
    Aug 9, 2015
    #1
    So I just replaced the SuperDrive with that HDD Sata III Adapter (with the HDD of course) and my MBP doesn´t turn on anymore.
    Just a plain blackscreen, the fan does not work and there is no boot sound either.

    I already tried to unplug the battery for a several hours and plug it back in. Nothing.
    Tried to start with the magsafe and unplugged battery. Nothing.
    Also tried a SMC Bypass. The fan is working but nothing else is.

    The magsafe lights up in green when I plug it in. With or without connecting the battery.
    Although the MBP (13" Early 2011) doesn´t start up I hear a little noise when I´m upclose with my ear on the MBP whenever I press the power button.

    Also I should mention that I connected an usb-stick before the first boot after I finished the SuperDrive replacement.
    On the first boot (not a SMC Bypass) the fan worked but the screen was black.

    Hope that anyone can help me.
    Thanks in advance.

    Greetings,

    Steven

  2. azentropy macrumors 68000

    azentropy

    Joined:
    Jul 19, 2002
    Location:
    Surprise
    #2
  3. kosaga, Aug 9, 2015
    Last edited: Aug 9, 2015

    kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #3
    [​IMG]

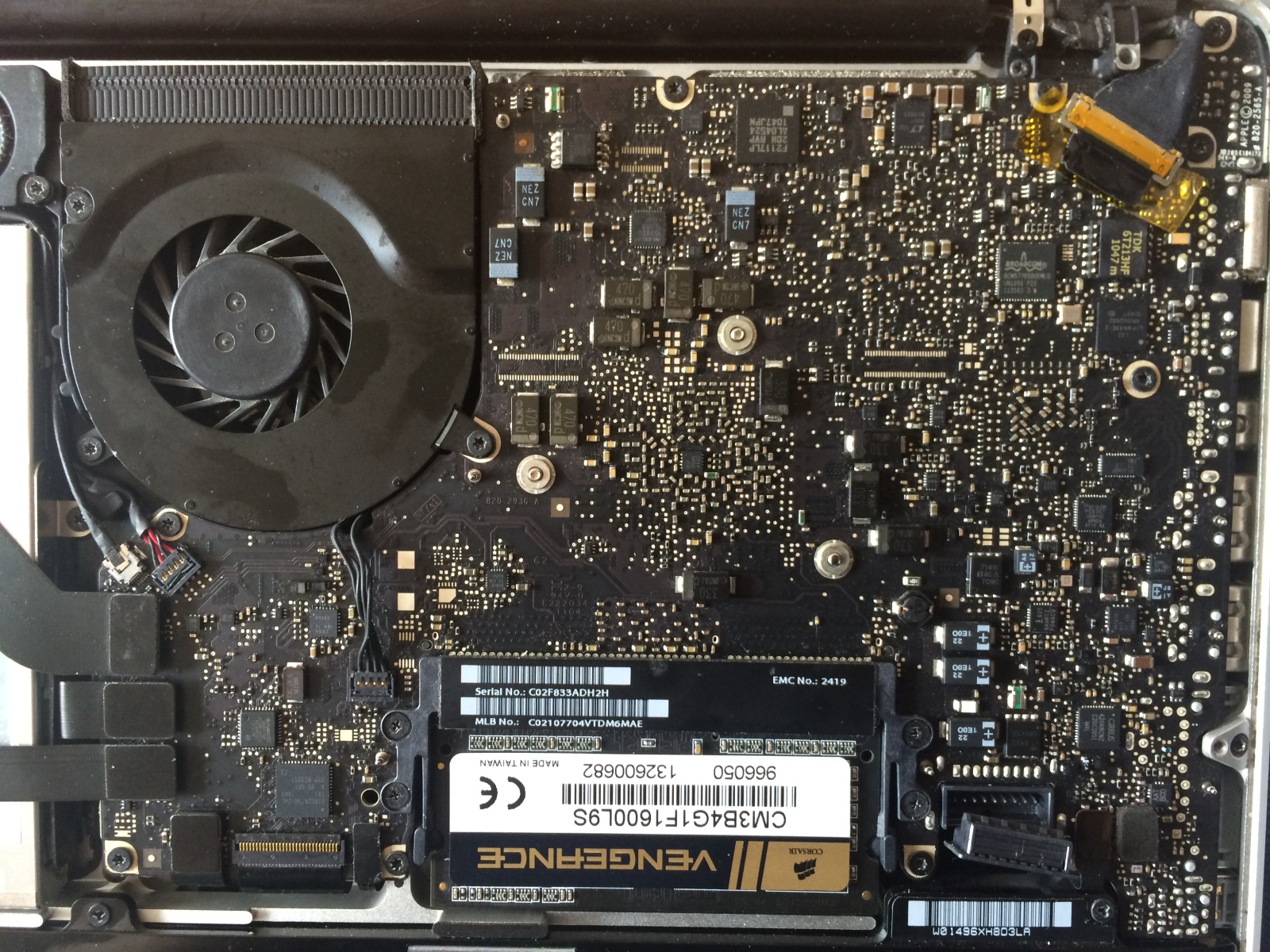

    Can´t seem to find anything here. Battery is unplugged on purpose.

    I already tried: SuperDrive + SSD, HDD + SSD, Superdrive + HDD, SuperDrive + Nothing


    Edit: Found out that the little noise comes from the SSD (SuperDrive + SSD constellation).
    When I take the SSD out and press the power button I hear only hear a tiny click or crack.

  4. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #4

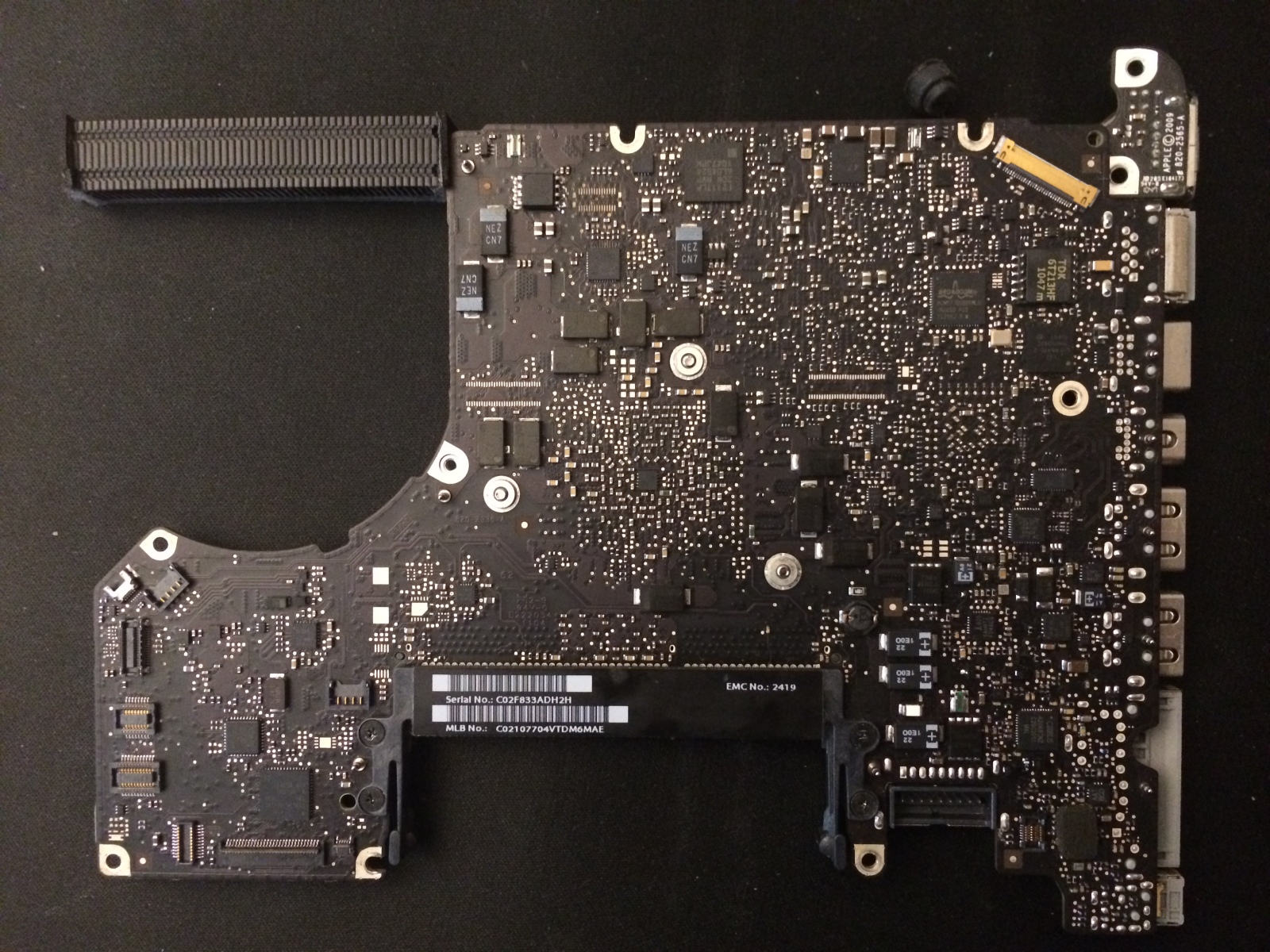

    So, out of curiosity and mainly despair I removed the logic board and looked on the back of it to see, if there are any burned or suspicious areas.
    Maybe one of you sees anything...

    [​IMG]
    [​IMG]

  5. Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
    #5
    I did exactly the same thing when i swapped cases on my MBP13. The ribbon cable that plugs in beside the ram slot had to be PERFECT. It took a few goes but that fixed it. I hope in your case it's nothing serious.

  6. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #6
    Thats the cable for the loudspeaker isn´t it ?
    With perfect you mean perfectly fitting into the plug ?

  7. Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
    #7
    It should be the keyboard ribbon, the one where you have to flip the latch.

  8. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #8
    Tried it several times with no success on booting.
    However, I did not touch that keyboard ribbon when switching the HDD with the SuperDrive so I don´t think that is the issue for this problem.
    Correct me if I´m wrong.
    How does an unplugged keyboard prevent the system from booting anyway ?

  9. Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
    #9
    An unplugged keyboard means the power switch won't work, but a badly connecting one could cause some crazy symptoms.
    If it obviously isn't that then like azentropy said, completely remove the adapter and see if it works again. Otherwise i really couldn't say. Sorry

  10. dannylillhtc macrumors member

    dannylillhtc

    Joined:
    Nov 23, 2012
    Location:
    uk somewhere
    #10
    its possible you didn't take the correct ESD precautions when working on your mac and you've given the logic board a static shock, causing it to fail, did you wear a grounded wrist band ?

  11. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #11
    I will do the replacement process tomorrow again and try to do it very neatly and correct.

    @dannylillhtc In fact I did not take these ESD precautions hence I did not wear a grounded wrist band.
    What if I DID give the logicboard a static shock ? Would it be totally damaged ?

  12. dannylillhtc macrumors member

    dannylillhtc

    Joined:
    Nov 23, 2012
    Location:
    uk somewhere
    #12
    I'm no expert in these things i just normally take the precautions due to good habits, its possible you could have damaged a component that is critical to the booting of the system, I'm not sure to be honest

  13. Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
    #13
    sadly a number of things could have happened, with ESD being the most likely. even a faulty SSD adapter might have shorted something.

  14. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #14
    No way to fix it if it actually happened ? Well other than buying a new logic board of course...

  15. Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
    #15
    the best thing to do now is just connect the display cable, the keyboard cable, the fan and the memory and see if it fires up. Then one at a time connect everything else if it did fire up. This way you know that the board is faulty.

  16. cookiesnfooty macrumors 6502

    cookiesnfooty

    Joined:
    Jul 1, 2009
    Location:
    Harrogate
    #16
    Sounds to me like the motherboard may have been fried, this could be from ESD or the drive adapter you fitted as I have come across devices that have the potential for causing power surges.

  17. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #17
    I did this just now and it won't even boot with display, keyboard, fan and memory.

  18. kosaga thread starter macrumors newbie

    Joined:
    Aug 9, 2015
    #19
    So.. nothing to do here except buying a new logicboard ?

  19. Dead0k macrumors regular

    Joined:
    Apr 23, 2015
    Location:
    Poland
    #20
    try some 3rd party advanced apple service to diagnose the issue before buying a new one (if it necessary)

  20. Mnowell69 macrumors regular

    Mnowell69

    Joined:
    Jul 4, 2013
    Location:
    Bedford, UK
    #21
    Not sure how that will help if the machine won't boot. OP will need to get hold of a logic board that is guaranteed working.
