MBP 13in late 2010 dead. no power
- Thread starter carryonplease
- Start date
- Sort by reaction score
Touche. calling me on my lack of close reading. it's certainly possible that you managed to damage things without hitting the sensors (they aren't everywhere, after all).
I know where they are, yes they are spread out. Still weird. Basically if i had never told them I spilled anything on it they never would have known? So the liquid sensors don't cover Apple's asses in some cases?

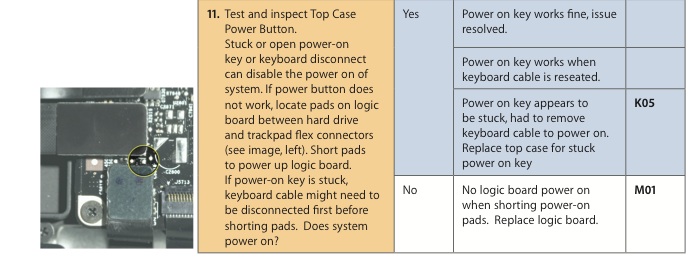

Any way you could post a picture of the two terminals? The one in the video is slightly different than mine and i've looked everywhere.
Any way you could post a picture of the two terminals? The one in the video is slightly different than mine and i've looked everywhere.
Essentially correct, although Apple may have seen evidence of liquid if they opened it up--as you note, the sensors aren't everywhere.
From my reading of the thread, it sounds as if the logic board has failed. And with having done the "rice in a bag" thing, I don't think there's much you can if "jump-starting" it doesn't work. Your best bet might be one of the aftermarket logic board repair places, as suggested by others.
Good luck.
Just a tip for future use...get a keyboard protector, it'll protect you from dust/liquid infiltration
I suggest diet coke and just rinse it with some alcohol I've done it on phones and its worked like a charm for me. Though you might want to consider this a last resort since a mbp is not a phone
I suggest diet coke and just rinse it with some alcohol I've done it on phones and its worked like a charm for me. Though you might want to consider this a last resort since a mbp is not a phone
huh? is this sarcasm or are you for real? can you post a link to a reputable website saying to do this? seems like a gawdawful idea to me.
Wirelessly posted (Mozilla/5.0 (iPhone; CPU iPhone OS 5_0 like Mac OS X) AppleWebKit/534.46 (KHTML, like Gecko) Version/5.1 Mobile/9A5313e Safari/7534.48.3)
Here's how you can test that. Open te backplate and unplug the keyboard ribbon cable from the logic board. Next to that cable there should be two shorting pads with a power symbol next to them. If you don't see that symbol, use the ground post of one of the screws and the fifth pin from the left on the ribbon connector on the logic board. The pin you need to touch is usually labeled with a small hole or circle under it. I know it may sound confusing, but I'm not able to post a pic right now. This will pretty much tell you if it's the power button or the logic board as the keyboard and power button run through that same ribbon cable. Hope this helps!
Here's how you can test that. Open te backplate and unplug the keyboard ribbon cable from the logic board. Next to that cable there should be two shorting pads with a power symbol next to them. If you don't see that symbol, use the ground post of one of the screws and the fifth pin from the left on the ribbon connector on the logic board. The pin you need to touch is usually labeled with a small hole or circle under it. I know it may sound confusing, but I'm not able to post a pic right now. This will pretty much tell you if it's the power button or the logic board as the keyboard and power button run through that same ribbon cable. Hope this helps!
Wrong, that is the flat rate depot price. They'll fix it no matter how many parts it'll take unless its beyond a certain number and considered beyond economical repair. If that happens, you owe $0.
thanks for the help guys. sorry about my attitude, I'm obviously a bit on edge about this whole thing.

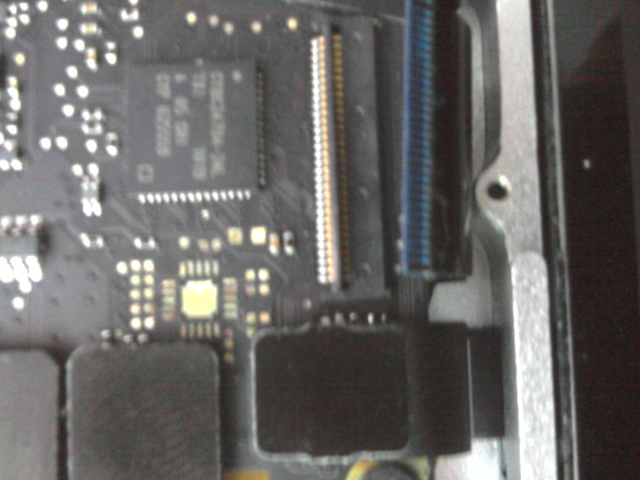

My logic board still looks a bit different from the picture so I want to make sure by posting a picture of mine. i don't want to be shorting random connections.
which two?? haha
My logic board still looks a bit different from the picture so I want to make sure by posting a picture of mine. i don't want to be shorting random connections.
which two?? haha
Attachments
Just an update, I found the power pads and it WORKED!!!
So boo all you naysayers
Now I know I might either need a new keyboard or new topcase. Having a bit of trouble putting the keyboard ribbon back in though haha
So boo all you naysayers
Now I know I might either need a new keyboard or new topcase. Having a bit of trouble putting the keyboard ribbon back in though haha
Last edited:
Just an update, I found the power pads and it WORKED!!!
So boo all you naysayers
Now I know I might either need a new keyboard or new topcase. Having a bit of trouble putting the keyboard ribbon back in though haha
You can change just the keyboard it seems http://www.ebay.com/itm/NEW-OEM-App..._Trackballs&hash=item35b32a2e70#ht_1123wt_828
to replace it you need to remove the logic board, be sure to check it just in case, it might've just shorted the keyboard but depending on how much it was it could leak and damage the logic board too
Oh thats awesome, looks like the power button is part of the keyboard. And I'll probably be able to see the spill remnants when i replace it and clean them.
edit: is it even possible to do this in a 13" model? There are no guides on ifixit
Last edited:
look at the part where you buy the top case on ifixit, someone said that you need to remove the logic board, then the backlight, then there's like 30 very small screws that hold the keyboard in place, the top case there is like 299$
i think this is the one as well http://www.ebay.com/itm/Apple-Macbo...ultDomain_0&hash=item3cb855654a#ht_2030wt_936
Once you remove the logic board, you're probably going to see a bunch of residue. You'd probably want to clean that up before corrosion gets to it, and components fall off). Here's the basic overview of the procedure I use when I get a liquid damaged macbook pro.
You have 2 options for a cleaning solution: Electrical contact cleaner (this is a harsh chemical, you'll need to perform the cleaning outside if you wish to use this), or you can pick up some 91%+ isopropyl alcohol from a drug store.
For your purposes, I'd take a trip to home depot, and get a couple of cans of Quick Dry contact cleaner, it's pricey, but worth it. It does the job much better than rubbing alcohol. And it's is not a liquid, but an spray that is sprayed onto the pcb for cleaning. Usually I use the cleaner held very close to the board to blast off any contaminants on the surface.
Anyway, you'll need to remove the logic board, fans, heatsink, and speaker assembly. You need to remove EVERYTHING on the board, including wiping off the thermal compound on the CPU & brushing off dust (unless you like nasty dust clumps). This is also a great time to blow out your MBP's fans, and pull clumps of dust out of the heatsinks.
Once you have the totally bare board, spray it down with contact cleaner (spray less than 1 inch from the board). On both sides, under any BGA mounted chips, in between every pin on every chip, make sure you get everything. If you're sing isopropyl alcohol, then get a toothbrush (brand new one, make sure the brush is flat), pour the alcohol on the board, and scrub it down (you won't be able to get under BGA with this).
Once your done with that, flip the board over, and repeat. Dry the board with a blow dryer on a heated setting, hover over any BGA chips (processor, GPU, RAM controllers, etc) until the solution stops bubbling out from under the chips. Once it's dry, take a close look at the board, and re-clean any areas with any remaining residue.
Wipe off any and all connector cables with a Q-TIP and your cleaning solution.
Now, if your keyboard isn't working after your repair, you'll need to A) purchase a new keyboard (remove DVD drive, and frame, then remove 100+ tiny screws, and install the replacement), or you can spend a bit more cash and get a used top case assembly. Either way, you're looking at $50-$80 depending on condition. As a last resort, you may want to try to spray a bunch of contact cleaner into the keyboard and let it dry, I've had limited success with that.
Oh, and by the way, set aside 1-2 hours to do this.
Thanks a lot man. I guess there is sitll a chance that my keyboard could function after a good cleaning. I'll definitely clean the logic board a bit but I dont think it will have much residue. The first apple genius took it out and said there was no sort of corrosion, and the spill did not go beyond the right apple key and i tilted the computer to the right.
but thanks for the contact cleaner thing i was just gonna use the alcohol.
So far I've seen a keyboard for $55 and a top case for $190. Debating whether to save or get this fixed now.
but thanks for the contact cleaner thing i was just gonna use the alcohol.
So far I've seen a keyboard for $55 and a top case for $190. Debating whether to save or get this fixed now.
coming soon, a somewhat step by step guide with pictures on replacing a macbook pro unibody keyboard. for anyone curious.
not as difficult as one may think really. the unibodies are so well designed, everything, well, makes sense.
and sure enough, my keyboard was sticky, although the backlight works and was not sticky.
not as difficult as one may think really. the unibodies are so well designed, everything, well, makes sense.
and sure enough, my keyboard was sticky, although the backlight works and was not sticky.
ok no step by step guide but some results.
the keyboard replacement worked. the only issue now is that my display is just a white screen. this is probably because i accidentally broke off the display data cable bracket. It looks like the cable is in the connector pretty solid but i guess it must have to be held down?
Anyone have any thoughts? besides, "you're an idiot"? I still saved myself a ton of money and I can just use an external monitor.
the keyboard replacement worked. the only issue now is that my display is just a white screen. this is probably because i accidentally broke off the display data cable bracket. It looks like the cable is in the connector pretty solid but i guess it must have to be held down?
Anyone have any thoughts? besides, "you're an idiot"? I still saved myself a ton of money and I can just use an external monitor.
Does the mbp boot up to the OS?
(everything working but the screen remaining in white)
Or it doesn't finish the booting process and stuck at white screen?
Kinda confused what you meant by white screen.
Yea everything boots up, i hear the start up sound and can only assume so since I was able to start it up before and it seems the only difference now is that the screen is white haha.
